Skyrc D200neo User manual

SKYRC D200 neo Instruction Manual

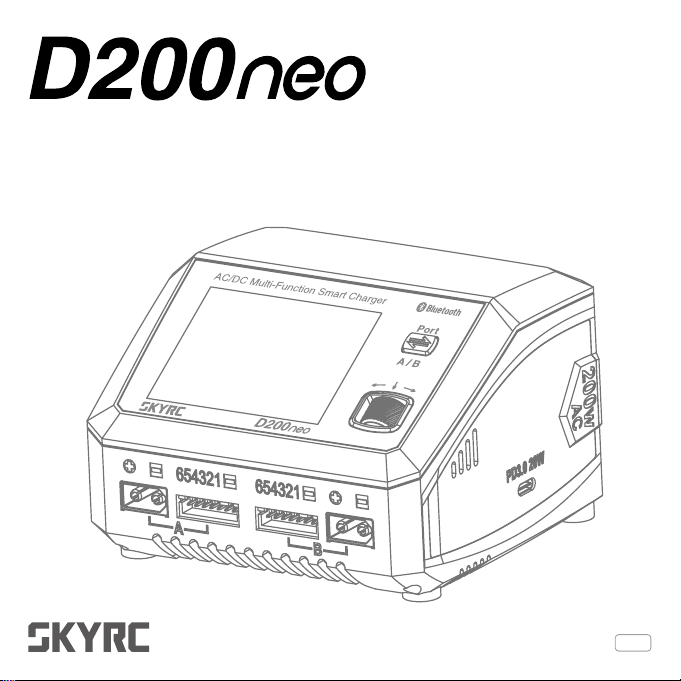

1. SKYRC D200 neo
AC/DC Multi-Function Smart Charger
Instruction Manual
SK-100196
V1.0

SKYRC D200 neo Instruction Manual
SKYRC D200 neo 2.
Introduction
Package
Chart
Specification
Warning
Standard Battery Parameters

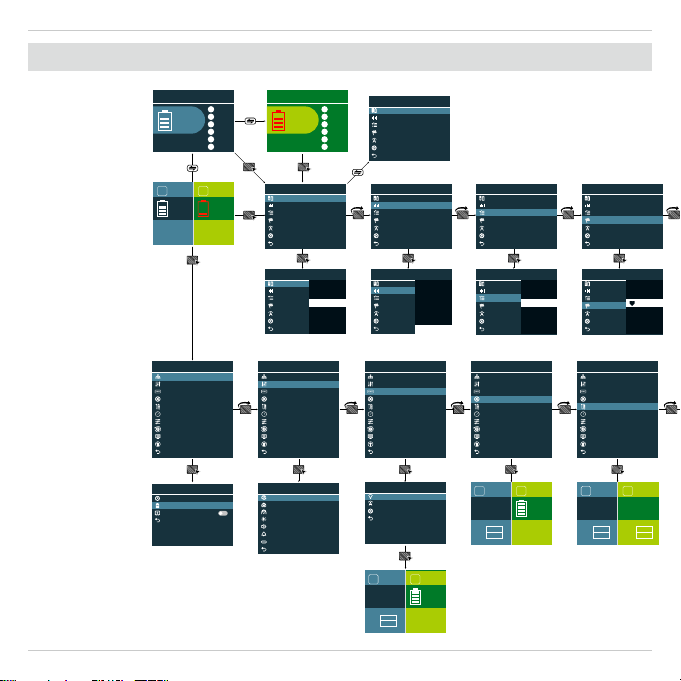

Program Flow Chart

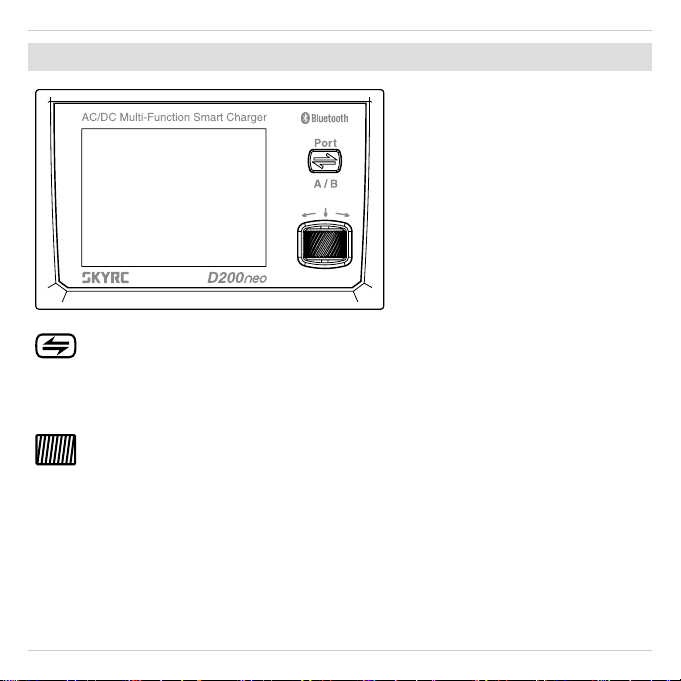

Explanation of Buttons
Power and Battery Connection
Charger Operation

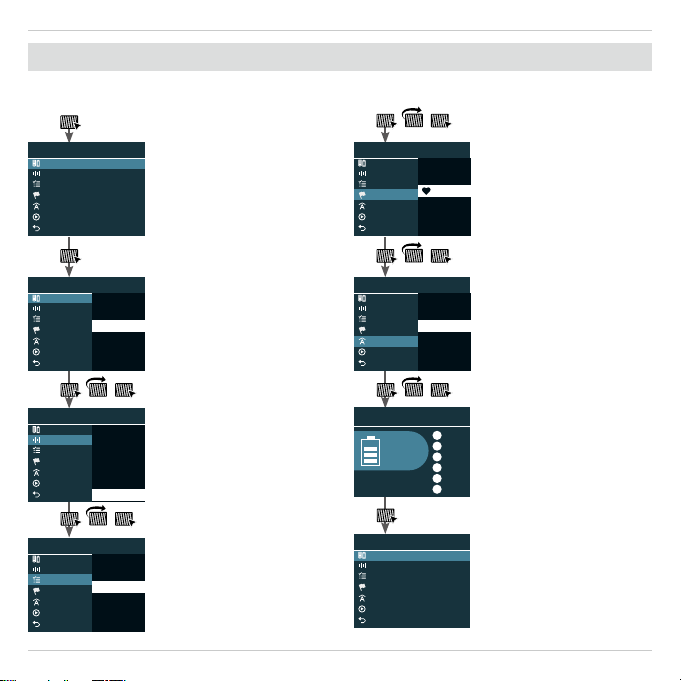

Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)
Parallel Charge(LiPo/LiFe/Lilon/LiHV)

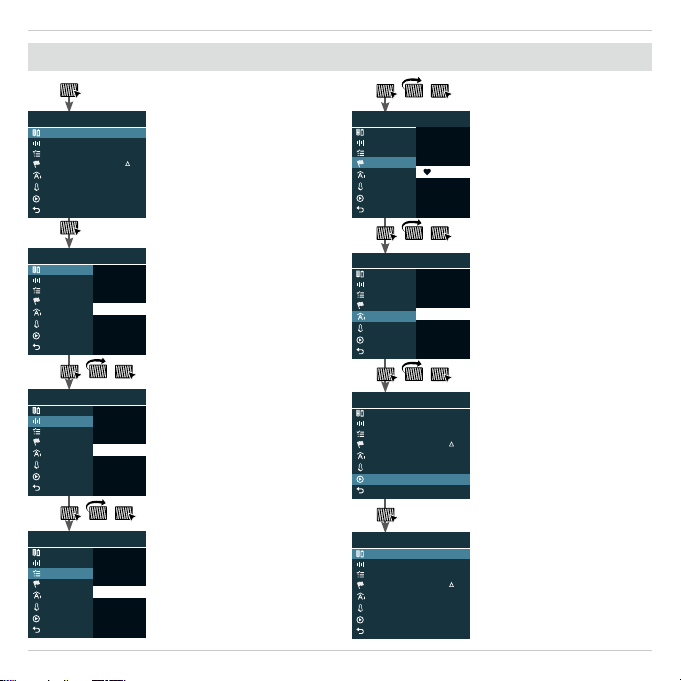

NiMH/NiCd Battery Program

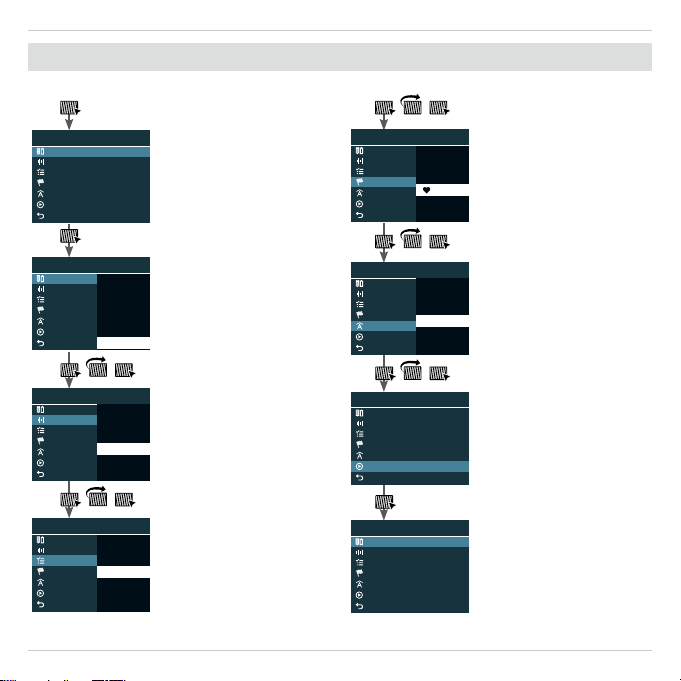

Pb Lead-Acid Battery Program

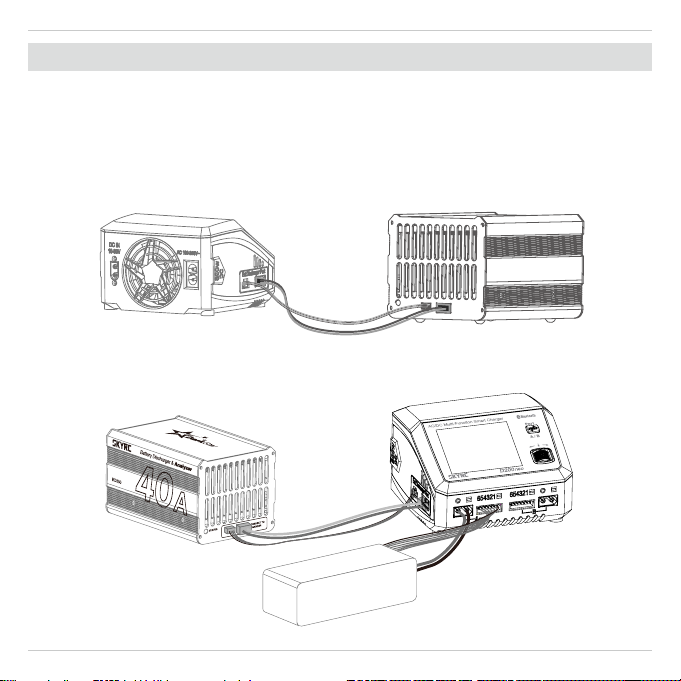

External Discharge
Charger Master
Battery Analyzer
SkyCharger app Control
DC Power
PCH-150 Power & Charging Hub
󵾧󵽇󵹄󵽤󵹁
Charging Settings
System Setting
Errors and Warnings

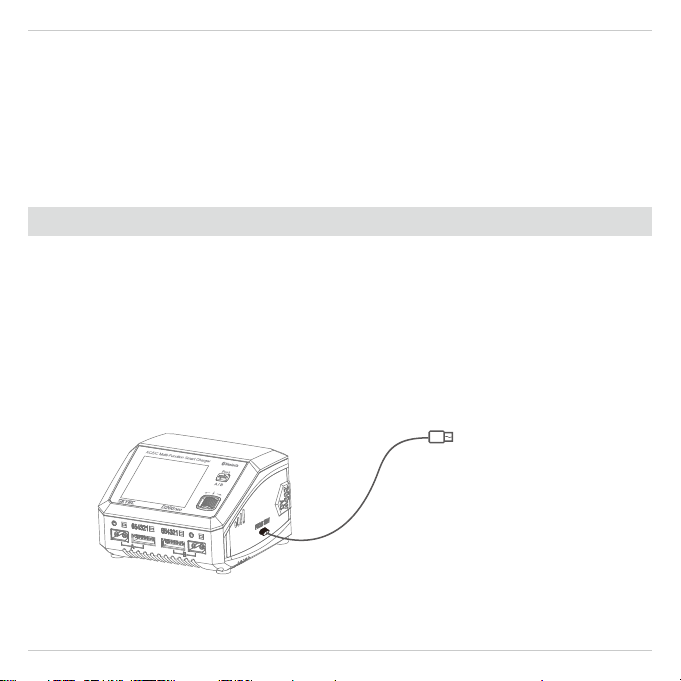

Firmware Upgrade Notice
Optional Parts
Conformity Declaration
Warranty and Service
1
1
2
2
4
5
6
8
9
10
12
13
14
15
16
17
18
19
19
20
20
21
22
24
25
26
27
28

SKYRC D200 neo Instruction Manual
1. SKYRC D200 neo
Introduction
Package
Congratulations on your choice of SkyRC D200 neo AC/DC Multi-Function Smart Charger. As
an update version of D200, this charger will take you on an exciting and delightful journey in
the world of model aircraft.
D200 neo has independent dual ports and supports most batteries in the RC industry. As a
dual input charger, it can be used for various charging scenarios. We do not only inherit the
meticulously designed interface and powerful functions of T1000 but also add the SkyCharger
󵼝󵽇󵽇󵹄󵽤󵹁
charge. So it can meet the charging requirments of different users for different scenarios in a
great extent. The new appearance design and the newly upgraded scroll button control make
the charging operation more convenient and simple.
󵾱󵼝󵼝󵼝󵼜
charging a battery or using the charger in the wrong way can cause a fire or explosion.
Wishing you a pleasant experience with this charger.
SkyRC D200 neo charger*1 User Manual*1 AC power Cord*1

SKYRC D200 neo Instruction Manual
SKYRC D200 neo 2.
Chart
DC Input 10-30V
AC Input 100-240V
Scroll to select the
parameters and start
the process
󵾧󵽇󵹄󵽤󵹁
Output Port
LCD Display
Smart Ventilation
Fan External Discharge
Port
Switch Between
Port A and B
XT60 Output
Socket
Balance Port
Specification
Item Option Specification
Model D200 neo
Input Voltage AC 100-240V (50/60Hz)
DC 10-30V
Input Current 󵹄󵹁󵽤󵹁󵾧󵹄󵹆󵽤󵹁

SKYRC D200 neo Instruction Manual
3. SKYRC D200 neo
Item Option Specification
Charge Power AC 200W MAX
DC 400W*2 MAX
Discharge Power
Main port 10W*2
Balance port 37W MAX
External discharge 350W MAX
Charge Current
LiPo/LiFe/LiIon/LiHV/
NiMH/NiCd/Pb 󵹁󵽤󵹂󵾧󵹃󵹁󵽤󵹁
Parallel 󵹃󵹁󵾧󵹄󵹆󵽤󵹁
Discharge Current
LiPo/LiFe/LiIon/LiHV/
NiMH/NiCd/Pb 󵹁󵽤󵹂󵾧󵹃󵽤󵹁
External Discharge 󵹁󵽤󵹂󵾧󵹅󵹁󵽤󵹁
Balance Current LiPo/LiFe/LiIon/LiHV 󵹂󵽤󵹆
Battery Types
LiPo/LiFe/LiIon/LiHV 1-6S
NiMH/NiCd 4-15S
Pb 3S/6S/12S
Working Modes
LiPo/LiFe/LiIon/LiHV Balance CHG, Charge, Discharge, Storage, Parallel
NiMH/NiCd Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Discharge
Pb Normal, AGM Charge, Cold Charge, Discharge
DC Power Supply Voltage 5-27V
Current 󵹂󵽤󵹁󵾧󵹂󵹆󵽤󵹁
USB Type-C Output 󵹄󵽤󵹁 󵹆󵹄󵼝󵹊󵹃󵼝󵹂󵹃󵹂󵽤󵹆󵹂󵹉
PD 󵹆󵹄󵼝󵹊󵹃󵽤󵹃󵼝󵹂󵹃󵹂󵽤󵹇󵹈󵹃󵹁
Size Lenth*Width*Height 116*110*79mm
Weight Net weight 602g
