SMART-AVI DVX-200PS User manual

© Copyright 2017 Smart-AVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
Technical Specications*
What’s in the Box?
SmartAVI, Inc. / Twitter: @smartavi
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
http://www.SmartAVI.com
The DVX-200 is a DVI-D video extender
system (transmitter and receiver) designed
to broadcast high-denition DVI-D signals
up to 225 feet using inexpensive cabling.
DVX-200
DVI-D Extender
up to 225 feet over a Cat6 Cable
www.smartavi.com
Installation
Manual
VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input/Output Cable
Length
Up to 20 ft.
Extension over Cat6 Up to 225 ft.
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions 2.75 in W x 0.8 in H x 3.4 in D
Weight 0.2 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
ORDER INFO
Part No. Description
DVX-200PS DVI-D/PC CAT6 STP Extender.
Includes: [DVX-TX200P, DVX-RX200,
(CCDVIMM06) and 2 x (PS5VD2A-Wall Mount)]
DVX-TX200PS DVI/PC CAT6 STP Transmitter.
Includes: [DVX-TX200P, (CCDVIMM06), and
(PS5VD2A-Wall Mount)]
DVX-RX200S DVI CAT6 STP Receiver. Includes: [DVX-RX200
and (PS5VD2A-Wall Mount)]
The following is the wiring standard for terminating UTP/STP
cable using RJ-45 connector:
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 23 AWG
Impedance: 100 +/- 15 ohms
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Supported Resolutions
RESOLUTION REFRESH RATE
640 x 480 85 Hz
800 x 600 85 Hz
1024 x 768 85 Hz
1152 x 870 75 Hz
1280 x 768 75 Hz
1280 x 960 60 Hz
1280 x 1024 60 Hz
1600 x 1200 60 Hz
1920 x 1200 60 Hz
PART NO. QTY DESCRIPTION
DVX-RX200 1 DVX-200 Receiver. DVI Receiver over CAT6 STP
DVX-TX200 1 DVX-200 Transmitter. DVI Transmitter over CAT6
STP
DVI-D Cable 1 6ft MM DVI-D
Power Supply 2 PS5VDC2A
User Manual 1

Introduction
The DVX-200 is the perfect solution for extending DVI-D
signals to a remote location up to 225 feet away over
Cat6 23 AWG STP cabling. It is the ideal way to isolate a
workstation computer into one location and a console in
another. It is fully compatible with MAC, PC and LINUX
DVI-D single link standards.
Applications
• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios
Features
• Supports DVI-D single-link sources
• Supports High Resolution 1920x1200 60Hz
WUXGA
• Supports Mac, PC, and Linux DVI
• Distance: 225 feet with Cat6 STP cabling
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• DDC from internal table for Mac/PC
• Compatible with all operating systems
• Compatible with all major KVM switches
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
• Plug-and-play

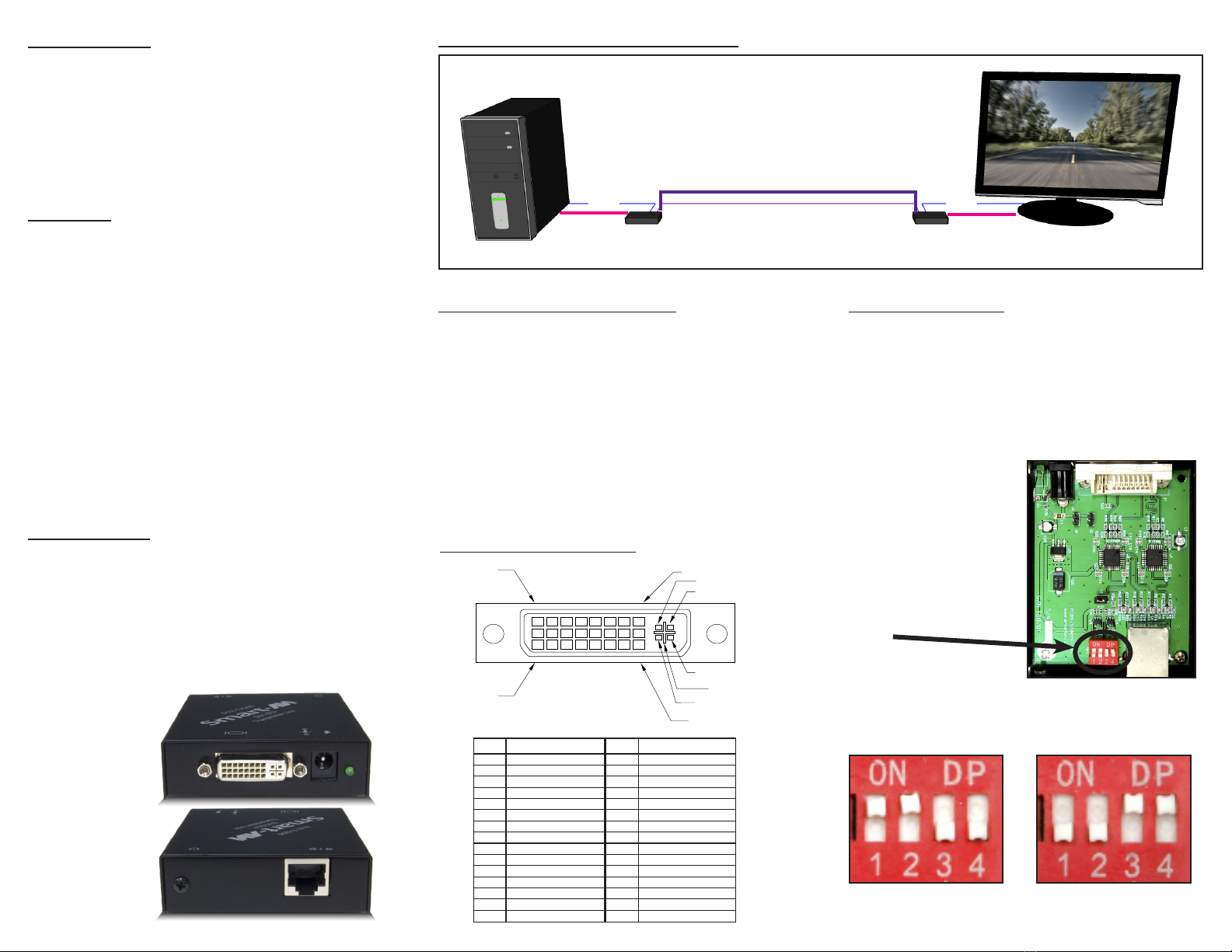

Product - Installation Diagram
Connecting the DVX-200
1. Power o all devices.
2. Connect a DVI-D source (computer) to the DVI-D
port on the rear of the DVX-TX200.
3. Connect the DVX-200-TX to the the DVX-RX200
with one STP (Sheilded Twisted Pair) cable.
4. Connect a DVI-D compatible display to the DVI-D
port on the rear of the DVX-RX200.
5. Connect the power to the DVX-RX200 and the
DVX-TX200.
6. Power on the display and then the computer.
Setting the DDC
DDC provides plug-and-play capability to your
displays. When you plug a display into your computer,
the DDC table in the display tells the computer the
optimal resolution to use. The DVX-200 is capable of
supporting two primary types of displays: PC and Mac.
The default setting is PC.
COMPUTER
DVI-D
DISPLAY
DVX-200
RECEIVER
DVX-200
TRANSMITTER
Up to 225 ft
over Cat6
DVI-D
DVI-D
Technical Specifications
Input/Output Signal
#niPlangiS#niPlangiS
1-2ataDS.D.M.6T1tceteDgulPtoH
2+2ataDS.D.M.7T1-0ataDS.D.M.T
d3leihS4/2ataDS.D.M.8T1+0ataDS.D.M.T
4-4ataDS.D.M. 9Td1leihS5/0ataDS.D.M.T
5+4ataDS.D.M.0T2-5ataDS.D.M.T
6kcolCCD1D2+5ataDS.D.M.T
7ataDCD2Dd2leihSkcolCS.D.M.T
8cnyS.treVgolan 3A 2+kcolCS.D.M.T
9-1ataDS.D.M.4T2-kcolCS.D.M.T
01+1ataDS.D.M.T
1d1leihS3/1ataDS.D.M.1TCdeRgolanA
21-3ataDS.D.M.2TCneerGgolanA
31+3ataDS.D.M.3TCeulBgolanA
41rewoPV54+CcnySzroHgolanA
51DN 5GCdnuorGgolanA
PIN 17
PIN 1
PIN 24
PIN 8
C 4
C 1
C 2
C 5
C 3
Resolutions
Supported by the internal EDID configuration
zH 58084 x 046
zH 58006 x 008
zH 58867 x 4201
zH 57078 x 2511
zH 57867 x 0821
zH 06069 x 0821
zH 064201 x 0821
zH 060021 x 0061
Resolution Refresh Rate
5VDC 1.6A
Technical Specifications
Input/Output Signal
#niPlangiS#ni
Pl
angiS
1-2ataDS.D.M
.6
T1tceteDgulPtoH
2+2ataDS.D.M
.7
T1-0ataDS.D.M.T
d3leihS4/2ataDS.D.M
.8
T1+0ataDS.D.M.T
4-4ataDS.D.M. 9
Td1l
eihS5/0ataDS.D.M.T
5+4ataDS.D.M
.0
T2-5ataDS.D.M.T
6kcolCCD1D2+5ataDS.D.M.T
7ataDCD2
Dd2l
eihSkcolCS.D.M.T
8cnyS.treVgolan 3A
2+
kcolCS.D.M.T
9-1ataDS.D.M
.4
T2-kcolCS.D.M.T
01+1ataDS.D.M.T
1d1leihS3/1ataDS.D.M
.1
TCdeRgolanA
21-3ataDS.D.M
.2
T
Cn
eerGgolanA
31+3ataDS.D.M
.3
TCeulBgolanA
41rewoPV54+CcnySzroHgolanA
51DN 5GCdnuorGgolanA
PIN 17
PIN 1
PIN 24
PIN 8
C 4
C 1
C 2
C 5
C 3
Resolutions
Supported by the internal EDID configuration
zH 58084 x 046
zH 58006 x 008
zH 58867 x 4201
zH 57078 x 2511
zH 57867 x 0821
zH 06069 x 0821
zH 064201 x 0821
zH 060021 x 0061
Resolution Refresh Rate
5VDC 1.6A
DVI-D Conguration
DVX-TX200 Front
DVX-TX200 Rear
For Mac, congure the
switches as shown below:
For PC, congure the
switches as shown below:
1&2 ON, 3&4 OFF 1&2 OFF, 3&4 ON
To change this setting,
rst remove the top cover
from the DVX-200
TRANSMITTER
by removing the four side
screws. Next, locate the
DIP switches near the rear
of the device next to the
Data Port (RJ-45 Ethernet
Port).
