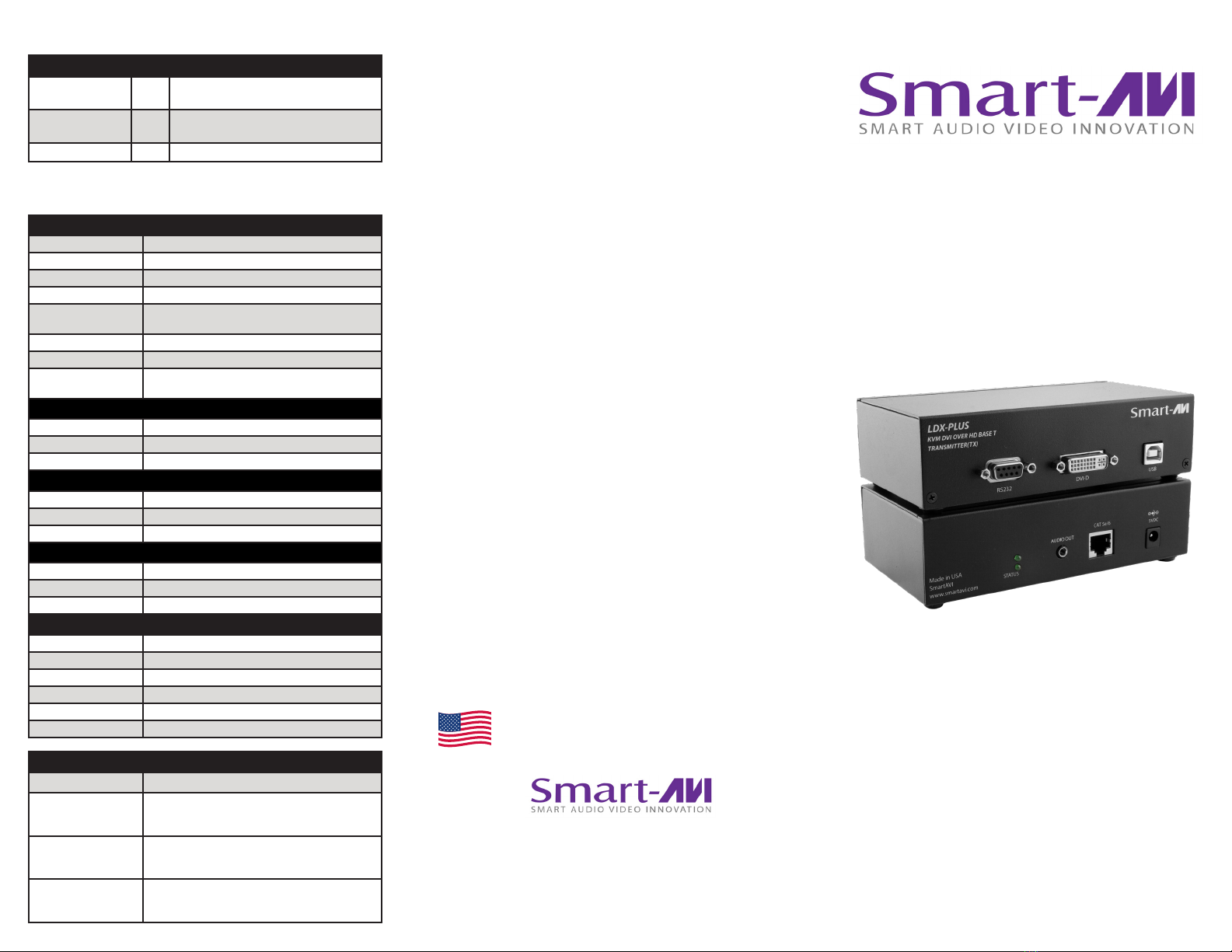

LDX-PLUS
DVI, KVM and Audio Extender
Over CAT5e/6 HDBaseT (245 ft)
Quick Start Guide
PART NO. QTY DESCRIPTION
LDX-PLUS-TX 1 DVI-D , USB 1.1 , RS232, and Audio
over CAT5/5e/6 Transmitter
LDX-PLUS-RX 1 DVI-D , USB 1.1 , RS232, and Audio
over CAT5/5e/6 Receiver
Power Supply 2 PS5VD4A
© Copyright 2017 SmartAVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: @smartavi
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
http://www.SmartAVI.com
Long-range HD DVI-D Video,
USB keyboard-Mouse, RS232
and Audio Extender
VIDEO
Format DVI-D Single-link
Max. Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @ 60 Hz
Up to 3840 x 2160 @ 30 Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input/Output Cable
Length
Up to 20 ft
USB
Signal Type OHCI/UHCI (USB1.1)
Input Interface (TX) (1) USB Type-B (female)
Output Interface (RX) (2) USB Type-B (female)
RS232
Input Interface (TX) (1) DB9 (female)
Output Interface (RX) (1) DB9 (female)
Speed @ 115 Kbps
AUDIO
Input Interface (TX) (1) 3.5 mm jack socket
Output Interface (RX) (1) 3.5 mm jack socket
Frequency Response 30 KHz to 80 KHz
OTHER
Power Supply External 100-240 VAC/5VDC4A
Dimensions 8.25”W x 1” H x 3.625” D
Weight 1 lb
Operating Temp. 32 to 131°F (0 to 55 °C )
Storage Temp. -4 to 185°F (-20 to 85 °C )
Humidity Up to 95%
ORDER INFO
Part No. Description
LDX-PLUS-S DVI-D + USB + RS232 over CAT5 UTP Extender,
up to 70 meters. Includes: [LDX-PLUS-TX,
LDX-PLUS-RX, 2 x PS5VD4A-WLLMNT]
LDX-PLUS-TX DVI-D , USB 1.1 , RS232, and Audio over
CAT5/5e/6 Transmitter. Includes: [LDX-PLUS-TX,
PS5VD4A-WLLMNT]
LDX-PLUS-RX DVI-D , USB 1.1 , RS232, and Audio over
CAT5/5e/6 Receiver. Includes: [LDX-PLUS-RX,
PS5VD4A-WLLMNT]
What’s in the Box?
Technical Specications*
Designed and Manufactured in the USA
Introduction
LDX-Plus is a DVI video, stereo audio, USB KVM and
RS232 control extender capable of sending ultra-HD
signals up to 245 ft away via CAT5e/6 cables.
Product - Installation Diagram
Connecting the LDX-PLUS
1. Turn o connected devices.
2. Connect cables between signal source device and TX unit’s input ports.
3. Connect cables between the RX unit’s output ports and end-point device.
4. Connect TX and RX via CAT5e/6 cable.
5. Connect power supply to either TX or RX units.
6. Turn on TX and RX units.
7. Return power to connected devices.
LDX-PLUS-TX Front LDX-PLUS-RX Front
LDX-PLUS-TX Back LDX-PLUS-RX Back
Features
• Extends DVI-D up to 245 ft from source.
• Data Recover for digital video.
• Supports up to 1080p and 4K/2K resolutions.
• Automatic DDC learning.
• Supports USB Keyboard-Mouse extension.
• Supports RS232 command extension.
• Can be powered by either TX or RX units with
HDBaseT.
• Plug-and-play ready for easy use.
Application
• Digital Signage
• Security
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studio
• PC KVM Extension
Computer
DVI-D
USB
Audio
RS-232
CAT5e/6 Cable
Transmitter Receiver
245 ft.
