SMART Board 7000R Series User manual

SMART Board® 7000R and 7000R Pro series
interactivedisplays




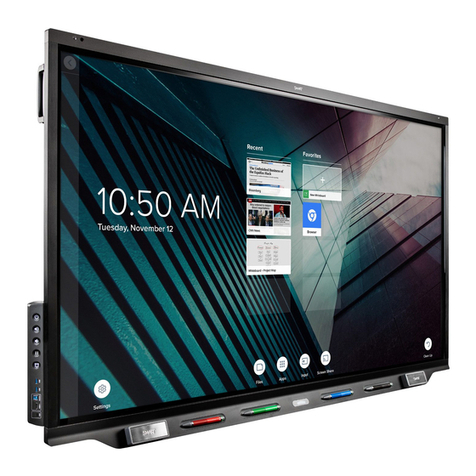

The SMART Board® 7000R and 7000R Pro series interactive displays are the hub of your classroom or
meeting room. PC-free embedded computing provides one-touch access to collaborative tools, including
a whiteboard, wireless screen sharing, and a web browser. There’s no need for wires, cables, or manual
software and firmware updates.
© 2022SMARTTechnologiesULC. All rights reserved. SMARTBoard, smarttech, the SMART logo, and all SMART taglines are trademarks or registered trademarks of SMARTTechnologiesULC in the U.S. and/or other countries. Windows is
either a registered trademark or a trademark of Microsoft Corporation in the United States and/or other countries. Apple, Mac, and iOS are trademarks of Apple Inc., registered in the U.S. and other countries. Google, Android, and
Chromebook are trademarks of Google Inc. All other third-party product and company names may be trademarks of their respective owners. Contents are subject to change without notice. December 7, 2022.


smarttech.com/kb/171669

Getting started
Waking up the display
The display’s proximity sensors can detect people
up to 16' (5 m) away when the display is in Sleep
mode. Depending on how the display is
configured, it either turns on or enters Ready
mode when the sensors detect people.
If the display is in Ready mode, you can turn it on
in a number of ways:
lPress the Power button on the
convenience panel or the remote control.
lPick up a pen or the eraser.
Using the Home screen
You can use the Home screen to open and use
iQ apps, view the input of connected computers,
and more. You can also change the background
and personalize other features of the Home
screen.
To show the Home screen, tap the
Home button below the screen.
Cleaning up the display
After you’ve finished using the display, show the
Home screen and tap Clean Up to clean up
the display for the next user.
Convenience panel
The convenience panel contains buttons for
turning the display on and off, controlling the
volume, freezing and unfreezing the screen, and
showing and hiding a screen shade. It also
includes connectors for USB peripherals and a
computer or other input source.
smarttech.com/kb/171669

SMART Whiteboard
Using SMART Whiteboard, you can write and erase notes on the display just as you do on a traditional
dry erase board.
To start a whiteboard, open the Files Library and tap Whiteboard.
You can use the following tools during your Whiteboard session:
Return to the previous screen.
View all the pages in a file.
Change the pen type, ink width, and ink color.
Select ink and objects and manipulate them by rotating, stretching and moving them around
the page.
Add an image or video from YouTube.
Add a blank page to a file.
Navigate the pages in a file.
Writing, erasing, and panning
To write in digital ink
1. Pick up a pen.
2. Use the pen to write in digital ink.
3. Return the pen to its holder to recharge it.
To erase digital ink
Move the eraser over the digital ink.
OR
Move your fist or palm over the digital ink.
To pan
Press the screen and move your finger in any
direction.
smarttech.com/kb/171669

Browser
Annotation layers
When using the Browser app or Screen Share app,
you can write or draw on an annotation layer and
save the screenshot to the Files Library.
To write or draw on an annotation layer
1. Pick up one of the display’s pens.
2. Use the pen to write or draw in digital ink.
3. Tap Close or Back in the command bar.
4. Tap Save to save the screenshot in the Files
Library.
OR
Tap Discard to discard the screenshot and
return to the app.
To open a saved screenshot
1. Open the Files Library.
2. Select a screenshot by tapping the screenshot’s
tile.
You can use Browser to view web content on the display.
To use Browser
1. Open the Apps Library and tap Browser .
2. Use Browser as you would use a web browser on your computer or mobile device.
smarttech.com/kb/171669

Input
You can use the connector panel on the side of the display or the convenience panel to connect a room
computer, guest laptops and other devices. For more information, see Connecting computers and
other devices.
Tap the Home button below the screen, tap Input , and then tap the connect device’s input.
Embedded Windows® 10 experience
If a SMART OPS PC module is installed in the
display’s accessory slot, you can use an embedded
Windows 10 experience on the display.
To use the embedded Windows 10 experience
1. Tap the Home button below the screen,
and then tap Input .
2. Tap the OPS PC module input.
smarttech.com/kb/171669

Screen Share
Apple devices
On the Home screen, tap Screen Share . Make
sure your device is connected to the same Wi-Fi
network as the display. On your Apple device, swipe
up to show the Control Center, tap Screen Mirroring,
and select the display.
OR
Download the iOS app from the Apple App Store or
Download the app for Mac computers from
SMART’s support site.
Android™ devices
On the Home screen, tap Screen Share . Make
sure your device is connected to the same Wi-Fi
network as the display. Open the Google™ Home
app, tap the navigation drawer, tap Cast Screen
/audio > Cast Screen / audio, and select the
display.
OR
Download the app from the Google Play Store.
Chromebook™ laptops
Download the app from the Chrome Web Store.
Other devices
See Sharing your device’s screen to the display.
You can share content from computers and mobile devices on the display wirelessly using Screen
Share.
Screen Share supports the following devices:
Mac computers and iOS devices
Windows computers
Android devices
Chromebook laptops
