SMART Board SPNL-4065 User manual

smarttech.com/docfeedback/170800
SMARTBoard® 4000 series
interactive flat panels
USER’S GUIDE
FOR MODELS SPNL-4055, SPNL-4065, SPNL-4075 AND SPNL-4084

smarttech.com/kb/170800
Product registration
If you register your SMART product, we’ll notify you of new features and software upgrades.
Register online at smarttech.com/registration.
Keep the following information available in case you need to contact SMART Support.
Serial number:
Date of purchase:
Licenses
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
FCC warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Trademark notice
SMARTBoard, SMARTNotebook, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMARTTechnologiesULC in
the U.S. and/or other countries. Windows is either a registered trademark or a trademark of Microsoft Corporation in the U.S. and/or other countries. All other
third-party product and company names may be trademarks of their respective owners.
Copyright notice
© 2013–2016SMARTTechnologiesULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system
or translated into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to
change without notice and does not represent a commitment on the part of SMART.
This product and/or use thereof is covered by one or more of the following U.S. patents:
www.smarttech.com/patents
10/2016

i smarttech.com/kb/170800
Important information
WARNING
lFailure to follow the installation instructions shipped with the interactive flat panel could
result in injury and product damage which may not be covered by the warranty.
lDo not open or disassemble the interactive flat panel. You risk electrical shock from the high
voltage inside the casing. Opening the casing also voids the warranty.
lDo not stand (or allow children to stand) on a chair to touch the surface of the interactive flat
panel. Rather, mount the product at the appropriate height.
lTo reduce the risk of fire or electric shock, do not expose the interactive flat panel to rain or
moisture.
lIf the interactive flat panel requires replacement parts, make sure the service technician
uses replacement parts specified by SMARTTechnologies or parts with the same
characteristics as the original.
lEnsure that any cables that cross the floor to the interactive flat panel are properly bundled
and marked to avoid a trip hazard.
lUseonly extension cords and outlets that can fully accommodate the interactive flat panel’s
polarized plug.
lUse the power cable provided with the interactive flat panel. If a power cable is not
supplied with the interactive flat panel, please contact your supplier. Use only power cables
that match the AC voltage of the power outlet and that comply with your country’s safety
standards.
lIf the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass
fragments with care when disposing of them.
lUse only VESA®-approved mounting hardware.
lDo not insert objects inside the cabinet ventilation holes, because they could touch
dangerous voltage points and cause electric shock, fire or product damage which may not
be covered by the warranty.
lDo not place any heavy objects on the power cable. Damage to the cable could cause
shock, fire or product damage which may not be covered by the warranty.

IMPORTANT INFORMATION
ii smarttech.com/kb/170800
lDisconnect all the interactive flat panel’s power cables from the wall outlet and seek
assistance from qualified service personnel if any of the following occurs:
oThe power cable or plug is damaged
oLiquid is spilled into the interactive flat panel
oObjects fall into the interactive flat panel
oThe interactive flat panel is dropped
oStructural damage, such as cracking, occurs
oThe interactive flat panel behaves unexpectedly when you follow operating
instructions

iii smarttech.com/kb/170800
Contents
Important information i
Chapter 1: About your interactiveflatpanel 1
SMARTBoard 4055 interactive flat panel feature highlights 1
SMARTBoard 4065 interactive flat panel feature highlights 2
SMARTBoard 4075 interactive flat panel feature highlights 3
SMARTBoard 4084 interactive flat panel feature highlights 4
Included accessories 4
Other documentation and resources 5
Chapter 2: Mounting your interactiveflatpanel 7
Before mounting the interactive flat panel 7
Choosing a mounting location 9
Choosing a mounting height 9
Chapter 3: Connecting power and devices 11
Connecting your interactive flat panel 11
Cable management 12
Configuring touch and display settings for your interactive flat panel 13
Configuring your computer’s screen resolution 14
Setting up multiple displays 15
Chapter 4: Using your interactiveflatpanel 19
Using the on-screen display menu 19
Multi Media mode 26
Cleaning the interactive flat panel 28
Chapter 5: Troubleshooting your interactiveflatpanel 31
Locating the serial number 31
Resolving common touch control and resolution issues with Windows and Mac operating
systems 32
Resolving image issues 33
Appendix A: Calibrating your interactiveflatpanel 35
Calibrating your interactive flat panel with Windows operating systems 35
Calibrating your interactive flat panel with Macoperating system software 36
Appendix B: Hardware environmental compliance 39
Waste Electrical and Electronic Equipment (WEEE) 39
Batteries 39

CONTENTS
iv smarttech.com/kb/170800
More information 39

Chapter 1
1 smarttech.com/kb/170800
Chapter 1: About your interactiveflatpanel
SMARTBoard 4055 interactive flat panel feature highlights 1
SMARTBoard 4065 interactive flat panel feature highlights 2
SMARTBoard 4075 interactive flat panel feature highlights 3
SMARTBoard 4084 interactive flat panel feature highlights 4
Included accessories 4
Pen and pen tray 4
Remote control 4
Included cables 5
Other documentation and resources 5
Specifications 5
Installation instructions 5
Training 6
Knowledge base 6
This chapter describes the features of your SMARTBoard® 4000 series interactive flat panel and
provides information about product parts and accessories.
SMARTBoard 4055 interactive flat panel feature
highlights

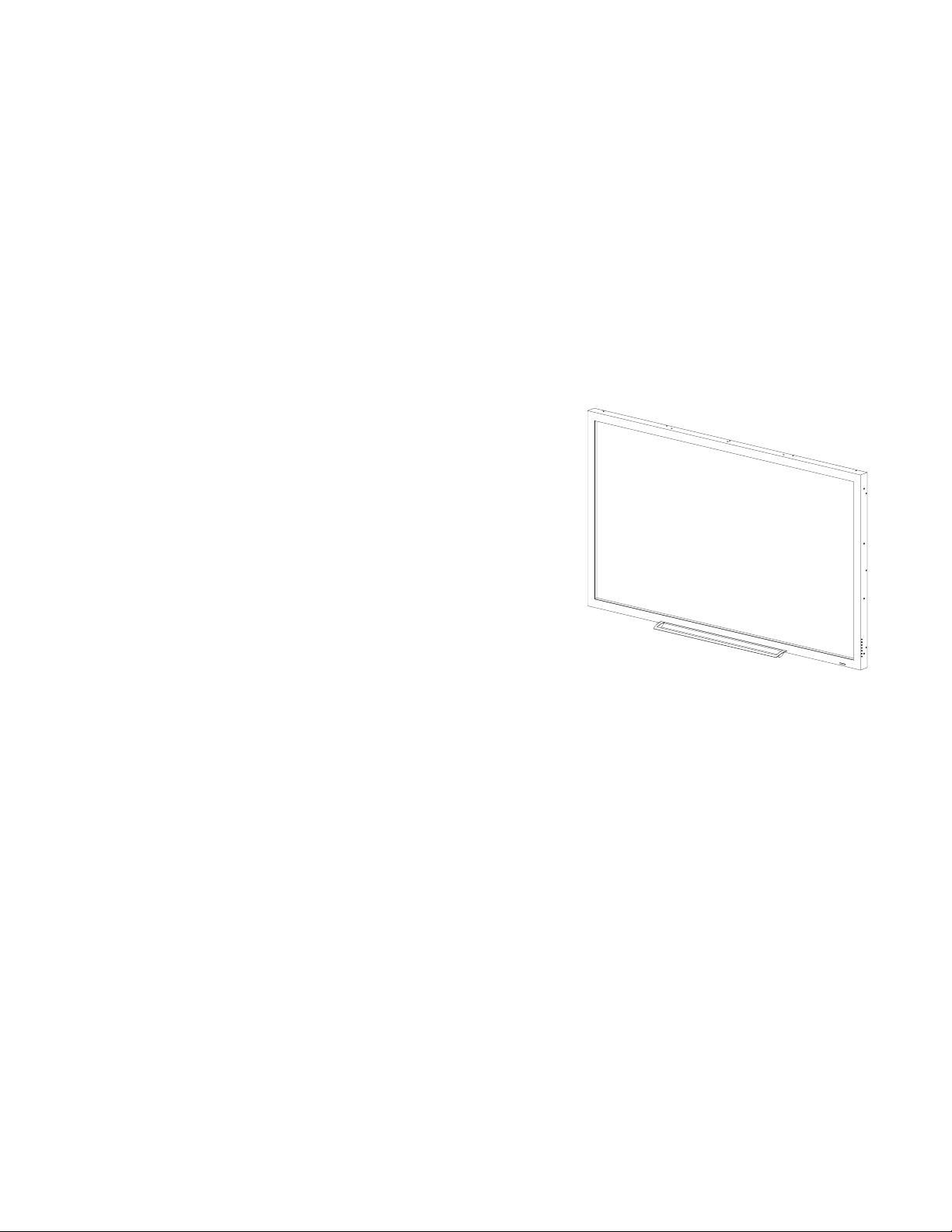

Designed for classrooms, the SMARTBoard® 4055
interactive flat panel combines a premium touch
experience with the power of SMARTNotebook®
collaborative learning software on a 55" (139.7 cm) display.

CHAPTER 1
ABOUT YOUR INTERACTIVEFLATPANEL
2 smarttech.com/kb/170800
The high-definition LED display features low friction coated glass that enables fingers to glide
smoothly over the surface, creating a natural touch experience. The interactive flat panel virtually
eliminates glare and provides an optimal view from any angle in the classroom. It delivers an
unparalleled viewing and writing experience and offers the best value for classrooms. With eight
simultaneous touch points for Windows, multiple students can use gestures, like zoom, rotate and
flip, at the same time.
SMARTBoard 4065 interactive flat panel feature
highlights
Designed specifically for classrooms, the SMARTBoard
4065 interactive flat panel combines a premium touch
experience with the power of
SMARTNotebook collaborative learning software on a
65" (164.5 cm) display.
The high-definition LED display features low-friction
coated glass that lets fingers glide smoothly over the
surface, creating a natural touch experience. The
SMARTBoard 4065 interactive flat panel virtually
eliminates glare and provides an optimal view from any
angle in the classroom. It delivers an unparalleled
viewing and writing experience, and offers the best
value for classrooms. With eight simultaneous touch
points for Windows, multiple students can use gestures, like zoom, rotate and flip, at the same time.

CHAPTER 1
ABOUT YOUR INTERACTIVEFLATPANEL
3 smarttech.com/kb/170800
SMARTBoard 4075 interactive flat panel feature
highlights
Designed specifically for classrooms, the SMARTBoard
4075 interactive flat panel combines a premium touch
experience with the power of
SMARTNotebook collaborative learning software on a
75" (190.5 cm) LED display.
The interactive flat panel’s 4K ultra-high-definition
display provides optimal image clarity and features low-
friction coated glass that lets fingers glide smoothly
over the surface, creating a natural touch experience.
The SMARTBoard 4075 interactive flat panel virtually
eliminates glare and provides an optimal view from any
angle in the classroom. It delivers an unparalleled
viewing and writing experience, and offers the best
value for classrooms. With 10 simultaneous touch points for Windows operating systems and one
touch point for Mac computers, multiple students can use gestures, such as zoom, rotate and flip, at
the same time.

CHAPTER 1
ABOUT YOUR INTERACTIVEFLATPANEL
4 smarttech.com/kb/170800
SMARTBoard 4084 interactive flat panel feature
highlights
Designed specifically for classrooms, the SMARTBoard
4084 interactive flat panel combines a premium touch
experience with the power of
SMARTNotebook collaborative learning software on a
84" (213.4 cm) display.
The 4K ultra-high-definition resolution display provides
optimal image clarity and features low-friction coated
glass that lets fingers glide smoothly over the surface,
creating a natural touch experience. The SMARTBoard
4084 interactive flat panel virtually eliminates glare and
provides an optimal view from any angle in the
classroom. It delivers an unparalleled viewing and
writing experience, and offers the best value for
classrooms. With 10 simultaneous touch points for Windows operating systems and one touch point
for Mac computers, multiple students can use gestures, such as zoom, rotate and flip, at the same
time.
Included accessories
The following accessories are included with your interactive flat panel.
Pen and pen tray
Two pens are included with your interactive flat panel.
Remote control
The remote control enables you to access the on-screen menus and to change the display and
input settings.

CHAPTER 1
ABOUT YOUR INTERACTIVEFLATPANEL
5 smarttech.com/kb/170800
Included cables
VGA - RGB video input
Power cable for your region: AU/NZ, NA, UK or EU
USB cable - touch interface
Other documentation and resources
In addition to this guide, SMART provides a variety of resources for people who install and use
interactive flat panels.
Specifications
Your interactive flat panel’s specifications list the product’s dimensions, weight, recommended
operating and storage temperatures, power requirements and consumption and other important
information for installation and maintenance.
Model Specifications
SPNL-4055 smarttech.com/kb/170809
SPNL-4065 smarttech.com/kb/170802
SPNL-4075 smarttech.com/kb/171098
SPNL-4084 smarttech.com/kb/170998
Installation instructions
The interactive flat panel comes with installation instructions. These installation instructions explain
how to unpack, assemble and mount the interactive flat panel and how to connect it to computers
and other devices. If you misplaced these installation instructions, you can download a PDFversion
from smarttech.com/kb/170799.

CHAPTER 1
ABOUT YOUR INTERACTIVEFLATPANEL
6 smarttech.com/kb/170800
Training
The SMART training website (smarttech.com/training) includes an extensive library of training
resources you can refer to when first learning to set up or use the interactive flat panel.
Knowledge base
The Support center (smarttech.com/support) includes a knowledge base that you can refer to
while maintaining or troubleshooting your interactive flat panel.

Chapter 2
7 smarttech.com/kb/170800
Chapter 2: Mounting your interactiveflatpanel
Before mounting the interactive flat panel 7
Choosing a mounting location 9
Choosing a mounting height 9
To mount your SMARTBoard 4000 series interactive flat panel on a wall, you require a team of
professional installers.
This chapter is intended for installers. Installers should read this chapter along with the installation
instructions included with the interactive flat panel before they mount the interactive flat panel.
WARNING
Improper mounting of the interactive flat panel can result in personal injury and product damage.
Before mounting the interactive flat panel
Perform these tasks before mounting your interactive flat panel:
lReview the environmental requirements in the interactive flat panel’s specifications (see
Specifications on page5).
lSave all product packaging so that it’s available if you need to transport the interactive flat
panel. If the original packaging isn’t available, you can purchase new product packaging from
your authorized SMART reseller (smarttech.com/where).

CHAPTER 2
MOUNTING YOUR INTERACTIVEFLATPANEL
8 smarttech.com/kb/170800
lRefer to local building codes to ensure the wall can support the weight of the interactive flat
panel and mounting equipment.
Model Weight
SPNL-4055 116 lb 13 oz (53 kg)
SPNL-4065 153 lb (69.4 kg)
SPNL-4075 189 lb (86 kg)
SPNL-4084 238 lb (108 kg)
lUse a standard VESAmounting plate (not included) to mount the interactive flat panel on a
wall.
Model Mounting plate
SPNL-4055 600 mm × 400 mm
SPNL-4065 600 mm × 400 mm
SPNL-4075 1000 mm × 600 mm
SPNL-4084 600 mm × 600 mm
lUse M8 screws to fasten the wall bracket.
CAUTION
Do not over-tighten the screws.
Model Screw length Fasten torque
SPNL-4055 25 mm where the total wall mount bracket
and washer thickness is less than 7 mm.
97.36–177.01 in-lb. (11–20
N·m)
SPNL-4065 30 mm where the total wall mount bracket
and washer thickness is less than 7 mm.
97.36–177.01 in-lb. (11–20
N·m)
SPNL-4075 See the SMARTBoard 4000 series
installation guide for more information.
97.36–177.01 in-lb. (11–20
N·m)
SPNL-4084 See the SMARTBoard 4000 series
installation guide for more information.
97.36–177.01 in-lb. (11–20
N·m)
lBecause the receptacles might not be easily accessible after the installers mount the
interactive flat panel, consider connecting cables for power, computers and other devices
while the interactive flat panel is still in its packaging (see Chapter 3: Connecting power and
devices on page11).

CHAPTER 2
MOUNTING YOUR INTERACTIVEFLATPANEL
9 smarttech.com/kb/170800
Choosing a mounting location
Consider the following when you select a location for the interactive flat panel:
lChoose a location for the interactive flat panel that’s far from bright light sources, such as
windows and strong overhead lighting. IR lighting can cause issues with the performance of
the cameras and can lead to unintentional or missed touches.
lThe wall must be strong enough to support the interactive flat panel and the mounting
equipment. See the table below for the weights of the various 4000 series interactive flat
panel models:
Model Weight
SMARTBoard 4055 116 lb (53 kg)
SMARTBoard 4065 153 lb (69.4)
SMARTBoard 4075 189 lb (86 kg)
SMARTBoard 4084 238 lb (108 kg)
lSelect a wall with a flat, regular surface and sufficient clearance to accommodate your
interactive flat panel. Mount the interactive flat panel in a location that’s central to your
audience’s viewing direction.
For mobile or adjustable installation options, contact your authorized SMART reseller
(smarttech.com/where).
Choosing a mounting height
Consider the general height of the user community when you choose the height for the interactive
flat panel.
The flat panel height is based on the midpoint between the reach of the students and the teacher.

Chapter 3
11 smarttech.com/kb/170800
Chapter 3: Connecting power and devices
Connecting your interactive flat panel 11
Cable management 12
Configuring touch and display settings for your interactive flat panel 13
Graphics card configuration 13
Panel settings 13
Configuring your computer’s screen resolution 14
Setting up multiple displays 15
Windows operating systems 15
OSX operating system software 16
This chapter describes how to connect the interactive flat panel to power, computers and other
devices.
Connecting your interactive flat panel
The connector panel is at the bottom of the interactive flat panel.
NOTE
The power, PC-RGB (VGA) and USB cable are included with your interactive flat panel.

CHAPTER 3
CONNECTING POWER AND DEVICES
12 smarttech.com/kb/170800
No. Connector Details
1 AC power AC power pass-through
2 USB B receptacle Computer to interactive flat panel touch interface
3 Video in Component video receptacle
4 Service port WARNING
Do not use this connector. This service connector for
the interactive flat panel must be used only by a
qualified technician.
5 Audio out Audio receptacle (SPNL-4075 and SPNL-4084)
6 USBA Media port (see Multi Media mode on page26)
7 Video in Composite video receptacle
8 Video in PC-RGB (VGA)
IMPORTANT
If the display flickers or is not sized correctly, press the
Auto button to resolve the issue. Ensure that you use
the recommended resolution for best performance.
9 Audio in Stereo 3.5 mm connector (from computer)
10 Video in HDMI®
Cable management
When you connect cables to the interactive flat panel from a computer and other peripheral
devices, ensure that the cables aren’t a trip hazard. Use channels and raceways to safely secure
and hide cables. Contact your authorized SMART reseller for these accessories.

CHAPTER 3
CONNECTING POWER AND DEVICES
13 smarttech.com/kb/170800
IMPORTANT
Do not connect the power cable to a power outlet until you have connected all cables to the
interactive flat panel.
Configuring touch and display settings for your
interactive flat panel
If you’re using multiple displays or a laptop connected to the interactive flat panel, ensure that they
are set up correctly.
Check the graphics card configuration (see Graphics card configuration below).
Check the panel settings (see Panel settings below).
Calibrate or clear previously set calibration data.
Graphics card configuration
If you’re using an unsupported graphics card configuration, you may experience display problems
or issues with touch accuracy. For example, you may experience issues if your graphics card
scaling option is set to something other than full-screen.
IMPORTANT
If you're using an ATI video card, go to the ATI Catalyst Control panel's Flat Panel menu, select
Pixel Format and change it to RGB 4:4:4 timing.
Panel settings
Ensure that you set Screen Mode to 16:9 or Full, and that you select the correct input source.
To select input
Press Input on the interactive flat panel’s side panel or remote control, and then use the
arrows to select the correct input source.

CHAPTER 3
CONNECTING POWER AND DEVICES
14 smarttech.com/kb/170800
To set Screen Mode
1. Press Menu on the remote control or on the side panel.
The on-screen display menu appears.
2. Press the up and down buttons and select Setup.
3. Press the right button on the remote control or VOL- to select Screen Mode.
4. Select 16:9 if not already selected.
Configuring your computer’s screen resolution
When you connect a computer to the interactive flat panel, you may have to adjust the computer’s
screen resolution to achieve the best image quality and touch performance.
NOTE
SMART recommends using 3840 × 2160, 1920 × 1080 or 1280 × 720 screen resolutions for best
image quality and touch performance.
The interactive flat panel can use the following screen resolutions:
l3840 × 2160 (for SPNL-4075 and
SPNL-4084 when using HDMI and a
computer that supports 4K UHD)
l1920 × 1080
l1600 × 1200
l1280 × 1024
l1360 × 768
l1280 × 960
l1280 × 768
l1280 × 720
l1024 × 768
l800 × 600
l640 × 480
To configure your Windows computer’s screen resolution
NOTE
This procedure varies depending on your version of the Windows operating system and your
system preferences.
