SMART SRS-MP-170 Operating manual

SMARTRoomSystem™
with SMARTMeetingPro® software
SETUP AND MAINTENANCE GUIDE
FOR MODELS SRS-MP-170, SRS-MP-270, SRS-MP-370, SRS-MP-184 AND SRS-MP-284

smarttech.com/kb/170764
Product registration
If you register your SMART product, we’ll notify you of new features and software upgrades.
Register online at smarttech.com/registration.
Keep the following information available in case you need to contact SMARTSupport.
Interactive flat panel serial numbers:
Camera serial number:
Table microphones serial number:
Speakers serial number:
Audio processor serial number:
Date of purchase:
FCC warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Licenses
Supported licenses may differ by model.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivXCertified® device that plays
DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain
your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460688; 7,515710; 7,519,274
Manufactured under license from DolbyLaboratories. Dolby and the double-D symbol are trademarks of DolbyLaboratories.
Trademark notice
SMARTBoard, SMARTMeetingPro, SMARTInk, Bridgit, DViT, SMARTRoomSystem, smarttech, the SMART logo and all SMART taglines are trademarks or
registered trademarks of SMARTTechnologiesULC in the U.S. and/or other countries. Microsoft, Windows and Lync are either registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. All other third-party product and company names may be trademarks of their respective
owners.
Copyright not ice
© 2014SMARTTechnologiesULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or
translated into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to change
without notice and does not represent a commitment on the part of SMART.
This product and/or use thereof covered by one or more of the following U.S. patents.
www.smarttech.com/patents.
06/2014

i smarttech.com/kb/170764
Important information
WARNING
lFailure to follow the installation instructions shipped with your SMART product could result in
personal injury and product damage which may not be covered by your warranty.
lEnsure your installation complies with local building and electrical codes.
lDo not open or disassemble the SMART product. You risk electrical shock from the high
voltage inside the casing. Opening the casing also voids your warranty.
lDo not stand (or allow children to stand) on a chair to touch the surface of your SMART
product. Rather, mount the product at the appropriate height.
lTo reduce the risk of fire or electric shock, do not expose the SMART product to rain or
moisture.
lIf your SMART product requires replacement parts, make sure the service technician uses
replacement parts specified by SMARTTechnologies or parts with the same characteristics
as the original.
lEnsure that any cables extending across the floor to your SMART product are properly
bundled and marked to avoid a trip hazard.
lDo not insert objects inside the cabinet ventilation holes, because they could touch
dangerous voltage points and cause electric shock, fire or product damage which may not
be covered by your warranty.
lDo not place any heavy objects on the power cable. Damage to the cable could cause
shock, fire or product damage which may not be covered by your warranty.
lUseonly extension cords and outlets into which this product’s polarized plug can be fully
inserted.
lUse the power cable provided with this product. If a power cable is not supplied with this
product, please contact your supplier. Use only power cables that match the AC voltage of
the power outlet and that comply with your country’s safety standards.
lIf the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass
fragments with care when disposing of them.

IMPORTANT INFORMATION
ii smarttech.com/kb/170764
lDo not move or mount the interactive flat panel by connecting rope or wire to its handles.
Because the interactive flat panel is heavy, rope, wire or handle failure could lead to
personal injury.
lTo prevent personal injury, do not attempt to mount or carry the interactive flat panel using
your own strength. Instead, use a lifting device with the included attachable eyebolts. The
eyebolts are not post-installation hardware.
lUse SMART supplied mounting hardware or hardware that is designed to properly support
the weight of your product.
lDisconnect all power cables for your interactive flat panel from the wall outlet and seek
assistance from qualified service personnel when any of the following occurs:
oThe power cable or plug is damaged
oLiquid is spilled into the interactive flat panel
oObjects fall into the interactive flat panel
oThe interactive flat panel is dropped
oStructural damage such as cracking occurs
oThe interactive flat panel behaves unexpectedly when you follow operating
instructions

iii smarttech.com/kb/170764
Contents
Important information i
Chapter 1: Welcome 1
About your SMARTRoomSystem 2
About this guide 10
Other documentation and resources 10
Chapter 2: Installing your SMARTRoomSystem 13
Before installing your SMARTRoomSystem 13
Connecting power 16
Connecting the room computer 16
Connecting cables for laptops 19
Chapter 3: Setting up your SMARTRoomSystem 21
Turning on your SMARTRoomSystem for the firsttime 21
Installing software 22
Running the connection wizard 23
Chapter 4: Using your SMARTRoomSystem 25
Turning on and turning off your SMARTRoomSystem 25
Using presence detection 27
Using your SMARTRoomSystem with the roomcomputer 28
Connecting a guestlaptop 28
Changing input sources 29
Using the remote control 29
Chapter 5: Maintaining your SMARTRoomSystem 37
Opening SMARTSettings 38
Updating software 38
Updating firmware 38
Maintaining the interactive flat panels 40
Maintaining the camera 45
Maintaining the microphones 45
Maintaining the speakers 46
Checking the SMARTRoomSystem installation 46
Removing your SMARTRoomSystem 46
Transporting your SMARTRoomSystem 47
Chapter 6: Troubleshooting your SMARTRoomSystem 49
Locating serial numbers 50

CONTENTS
iv smarttech.com/kb/170764
Locating power and status lights 51
Resolving issues with the interactive flat panels 52
Resolving issues with the camera 59
Resolving issues with the microphones 60
Resolving issues with the speakers 61
Resolving issues using the SMART ConnectionWizard 61
Resolving issues using SMARTBoard Diagnostics 62
Appendix A: Using the on-screen display menu 65
Changing settings in the on-screen display menu 65
SMARTBoard 8070i-G4 interactive flat panel on-screen display menu 66
SMARTBoard 8084i-G4 interactive flat panel on-screen display menu 72
Appendix B: Remotely managing your SMARTRoomSystem 79
Connecting and configuring a room control system 80
Power modes 81
Room control system programming commands and responses 82
SMARTBoard 8070i-G4 interactive flat panel commands 84
SMARTBoard 8084i-G4 interactive flat panel commands 91
Appendix C: Hardware environmental compliance 101
Waste Electrical and Electronic Equipment and Battery regulations (WEEE and
BatteryDirectives) 101
Batteries 101
More information 101
Index 103

Chapter 1
1 smarttech.com/kb/170764
Chapter 1: Welcome
About your SMARTRoomSystem 2
Features 2
Touch-enabled interactivity 2
Gesture support 2
Dual user support 2
Presence detection 2
Integrated video and audio 2
About SMARTBoard interactive flat panels 3
Screen 4
DViT cameras and reflective tape channel 4
Presence detection sensors 4
Pens and eraser 5
Color select module 5
Front control panel 6
Remote control 7
About other hardware 7
Camera 7
Table microphones, speakers and audioprocessor 8
Optional wall stand kit 8
About software 8
Differences between systems 9
About this guide 10
Other documentation and resources 10
Specifications 10
Release notes 11
Installation instructions 11
Help 12
Training 12
Knowledge base 12
This chapter introduces you to your SMARTRoomSystem™ with SMARTMeetingPro® software
and this guide.

CHAPTER 1
WELCOME
2 smarttech.com/kb/170764
About your SMARTRoomSystem
Your SMARTRoomSystem features one, two or three SMARTBoard® interactive flat panels, a
camera, microphones, speakers and supporting hardware as well as SMARTMeetingPro software
and SMARTMeetingPro PE software. This system is designed for use in highly collaborative team
environments.
Features
Your SMARTRoomSystem includes several features:
lTouch-enabled interactivity
lGesture support
lDual user support
lPresence detection
lIntegrated video and audio
Touch-enabled interactivity
You can do everything on your SMARTRoomSystem’s interactive flat panels that you can do at
your computer—open and close applications, meet with others, create new documents or edit
existing ones, visit websites, play and manipulate videos and so on—by touching the interactive
surfaces.
You can also write over any application in digital ink using one of the supplied pens or your finger,
and then erase the digital ink using the supplied eraser or your palm.
Gesture support
You can use an array of gestures within applications, including panning, scaling, rotating and
zooming in and out.
Dual user support
Two users can each pick up a pen and draw on the screen of the same interactive flat panel,
enabling greater collaboration.
Presence detection
Each interactive flat panel has two presence detection sensors. For more information on these
sensors, see Presence detection sensors on page4.
Integrated video and audio
Your SMARTRoomSystem includes a camera, table microphones and speakers, which you can
use with Bridgit® conferencing software or with other conferencing applications to collaborate with
others remotely.

CHAPTER 1
WELCOME
3 smarttech.com/kb/170764
About SMARTBoard interactive flat panels
SMARTBoard interactive flat panels feature SMART’s proprietary
DViT® (DigitalVisionTouch) technology on a 16:9 LCD screen
with e-LED backlight. DViT technology enables users to select,
write and erase on the interactive surface. Users can do
everything on the interactive flat panel that they can do at their
computers by touching the surface, and they can use an array of
gestures within applications.
For information on which interactive flat panel model is included
with your SMARTRoomSystem and the differences between these systems, see Differences
between systems on page9.
Each interactive flat panel consists of the following components:
No. Name
1 Screen
2 DViT cameras and reflective tape channel
3 Presence detection sensor (×2)
4 Pen (×2)
5 Eraser
6 Color select module
7 Front control panel
8 Remote control

CHAPTER 1
WELCOME
4 smarttech.com/kb/170764
NOTE
Components not pictured include the connector panels and the menu control panel.
Screen
The active screen area specifications vary by model:
Model Diagonal Width Height Aspect ratio
SBID 8070i-G4 70" (178 cm) 61" (154.9 cm) 34 3/8" (87.2 cm) 16:9
SBID 8084i-G4 84" (213.4 cm) 73 1/4" (186.1 cm) 41 1/4" (104.7 cm) 16:9
For information on cleaning the screen, see Cleaning the screens on page43.
DViT cameras and reflective tape channel
In the corners of each interactive flat panel’s screen, there are DViT cameras that track finger and
pen positions across the screen. The screen is bordered by a channel that contains reflective tape.
For information on cleaning the DViT camera windows and reflective tape, see Cleaning the DViT
camera windows and reflective tape on page43.
CAUTION
lKeep the reflective tape dry.
lDo not remove or damage the reflective tape.
IMPORTANT
lDo not attach items, such as adhesive notes, to the screens because they interfere with the
DViT cameras.
lDo not place anything in the channels because it interferes with the DViT cameras.
Presence detection sensors
Each interactive flat panel has two presence detection sensors on its frame that can detect people
up to 16' (5 m) away when the interactive flat panel is in Standby mode.
When the sensors detect motion in the room, the interactive flat panel turns on and displays a
welcome screen. Touching the screen activates the interactive flat panel. When the sensors no
longer detect people in the room, the interactive flat panel returns to Standby mode.
For information on cleaning the presence detection sensors, see Cleaning the presence detection
sensors on page43.

CHAPTER 1
WELCOME
5 smarttech.com/kb/170764
NOTES
lPresence detection settings can be changed with the on-screen display menu.
lIf ECO Standby mode is enabled for SMARTBoard 8070i-G4 interactive flat panels,
presence detection functionality is limited.
lFor more information on the on-screen display menu settings relevant for presence
detection, see page70 for SMARTBoard 8070i-G4 interactive flat panels or page76 for
SMARTBoard 8084i-G4 interactive flat panels.
Pens and eraser
Each interactive flat panel comes with two pens and an eraser.
The bottom bezel of the interactive flat panel includes magnetic holders for the pens and the
eraser. Removing a pen or the eraser from the holders activates it and enables you to either draw
or erase digital ink.
CAUTION
When returning the pen or eraser to the magnetic holder, ensure that it is centered on the holder
to prevent it from falling and potentially being damaged.
Color select module
Each interactive flat panel’s color select module enables you to access Help, to open the on-
screen keyboard, to select pen colors, to right-click and to orient the interactive flat panel.
No. Name
1 Help
2 Keyboard
3 Black pen color
4 Red pen color
5 Green pen color
6 Blue pen color

CHAPTER 1
WELCOME
6 smarttech.com/kb/170764
No. Name
7 Right-click
8 Orientation
Front control panel
Each interactive flat panel’s front control panel contains the Input Select and Power/Standby
buttons, as well as the status light and the remote control sensor.
No. Name
1 Volume control (not used in
SMARTRoomSystems)
2 Mute button (not used in
SMARTRoomSystems)
3 Input Select button
4 Power/Standby button,
powerlight
5 DViT technology status light
6 Remote control sensor
IMPORTANT
lIf there is a film over the front control panel, remove the film before using the front
controlpanel.
lDo not cover or block the front control panel or you could have reduced use of the
remotecontrol.
In normal use:
lThe Volume control, Mute button and Input Select button are blue.
lThe power light is green.
lThe status light is green.
For information on diagnosing issues using the front control panel lights, see Resolving blank
screen issues on page52.

CHAPTER 1
WELCOME
7 smarttech.com/kb/170764
For information on disabling the front control panel, see page70 for SMARTBoard 8070i-G4
interactive flat panels or page77 for SMARTBoard 8084i-G4 interactive flat panels.
Remote control
The remote control enables you to turn on and turn off the interactive flat panel, change the input
source, access the on-screen menu and more.
For more information on the remote control, see Using the remote control on page29.
About other hardware
In addition to the interactive flat panels, your SMARTRoomSystem includes the following
hardware:
Part no. Description
CAM301 Camera
MIC500 Table microphones
CSR500 Speakers
MIX500 Audio processor
WSK-SINGLE
OR
WSK-DUAL
Optional wall stand kit
Camera
The high definition camera automatically captures room video during Bridgit or other
conferencing application meetings. Users can temporarily stop the video or shutter
the camera for privacy purposes.
In most meeting rooms, digital pan, tilt and zoom (DPTZ) and the camera’s 105° field of view ensure
all meeting participants are captured regardless of where they are in the meeting room.
The camera is installed on top of the interactive flat panels and positioned in the center of the
interactive flat panel in SMARTRoomSystems with one interactive flat panel, between the
interactive flat panels in SMARTRoomSystems with two interactive flat panels and in the center of
the middle interactive flat panel in SMARTRoomSystems with three interactive flat panels.

CHAPTER 1
WELCOME
8 smarttech.com/kb/170764
Table microphones, speakers and audioprocessor
The table microphones and speakers facilitate audio communication during Bridgit
or other conferencing application meetings. The audio processor eliminates echos
and in-room audio feedback.
Users can temporarily mute the table microphones for privacy purposes.
The table microphones are typically located on the meeting room table, and the
speakers are located on either side of the interactive flat panels.
Optional wall stand kit
The optional wall stand kit includes a wall stand for each interactive flat
panel in your SMARTRoomSystem and the cable raceway. The wall
stands transfer some of the weight from the wall to the floor and are
required for metal stud walls that can’t support the full weight of the
interactive flat panels. The cable raceway covers cables running across
the floor from the interactive flat panels to the meeting room table.
About software
Your SMARTRoomSystem comes with licenses for two software packages:
lSMARTMeetingPro software
lSMARTMeetingPro PE software
Using these software packages, you can write or draw in digital ink on an interactive flat panel,
present content on your desktop and connect to individuals and other meeting rooms using
integrated conferencing software. You typically install SMARTMeetingPro software on the
computers that are connected to the SMARTRoomSystems and SMARTMeetingPro PE software
on users’ laptops.

CHAPTER 1
WELCOME
9 smarttech.com/kb/170764
Both software packages include the following other software:
Software Description
SMARTProductDrivers SMARTProductDrivers enables connected computers to detect
input from the interactive flat panel.
SMARTInk® SMARTInk enables you to write and draw in digital ink over open
applications, files, folders, websites and any other open window on
your computer. When you write outside the open windows on your
computer, a SMARTInk Note appears and you can write inside the
note.
When you open an application that has its own ink tools, you can
turn off SMARTInk, and then use the application’s ink tools to write
in the content.
Differences between systems
The following table presents the key differences between the five SMARTRoomSystems:
System Differences Guide icon
SRS-MP-170 Number of interactive flat panels: 1
Interactive flat panel model: SBID 8070i-G4
Screen size (diagonal): 70" (178 cm)
SRS-MP-184 Number of interactive flat panels: 1
Interactive flat panel model: SBID 8084i-G4
Screen size (diagonal): 84" (213.4 cm)
SRS-MP-270 Number of interactive flat panels: 2
Interactive flat panel model: SBID 8070i-G4
Screen size (diagonal): 2 × 70" (178 cm)
SRS-MP-284 Number of interactive flat panels: 2
Interactive flat panel model: SBID 8084i-G4
Screen size (diagonal): 2 × 84" (213.4 cm)
SRS-MP-370 Number of interactive flat panels: 3
Interactive flat panel model: SBID 8070i-G4
Screen size (diagonal): 3 × 70" (178 cm)
NOTES
lOther, minor differences between models are noted throughout this guide.
lSections in this guide that are relevant to specific models are flagged with the icons defined
in the previous table.

CHAPTER 1
WELCOME
10 smarttech.com/kb/170764
About this guide
This guide explains how to set up and maintain your SMARTRoomSystem. It includes the following
information:
lHow to install your SMARTRoomSystem
lHow to set up your SMARTRoomSystem
lWhat users can do with your SMARTRoomSystem
lHow to maintain your SMARTRoomSystem for years of use
lHow to troubleshoot issues with your SMARTRoomSystem
In addition, this guide includes information on the interactive flat panels’ on-screen display menu
and remote management support.
This guide is intended for individuals who are responsible for installing and maintaining
SMARTRoomSystems in their organizations. Other documentation and resources are available for
individuals who use SMARTRoomSystems.
Other documentation and resources
In addition to this guide, there are resources for individuals who install, maintain and use
SMARTRoomSystems.
Specifications
Your SMARTRoomSystem’s specifications define the product’s dimensions, weight,
recommended operating and storage temperatures, power requirements, power consumption and
other important information for installation and maintenance.
System Specifications
SRS-MP-170 smarttech.com/kb/170774
SRS-MP-184 smarttech.com/kb/170775
SRS-MP-270 smarttech.com/kb/170765
SRS-MP-284 smarttech.com/kb/170766
SRS-MP-370 smarttech.com/kb/170767

CHAPTER 1
WELCOME
11 smarttech.com/kb/170764
Release notes
The release notes for SMARTMeetingPro software and SMARTMeetingPro PE software contain
the computer requirements for the software.
Software System administrator’s guide
SMARTMeetingPro smarttech.com/kb/170521
SMARTMeetingPro PE smarttech.com/kb/170520

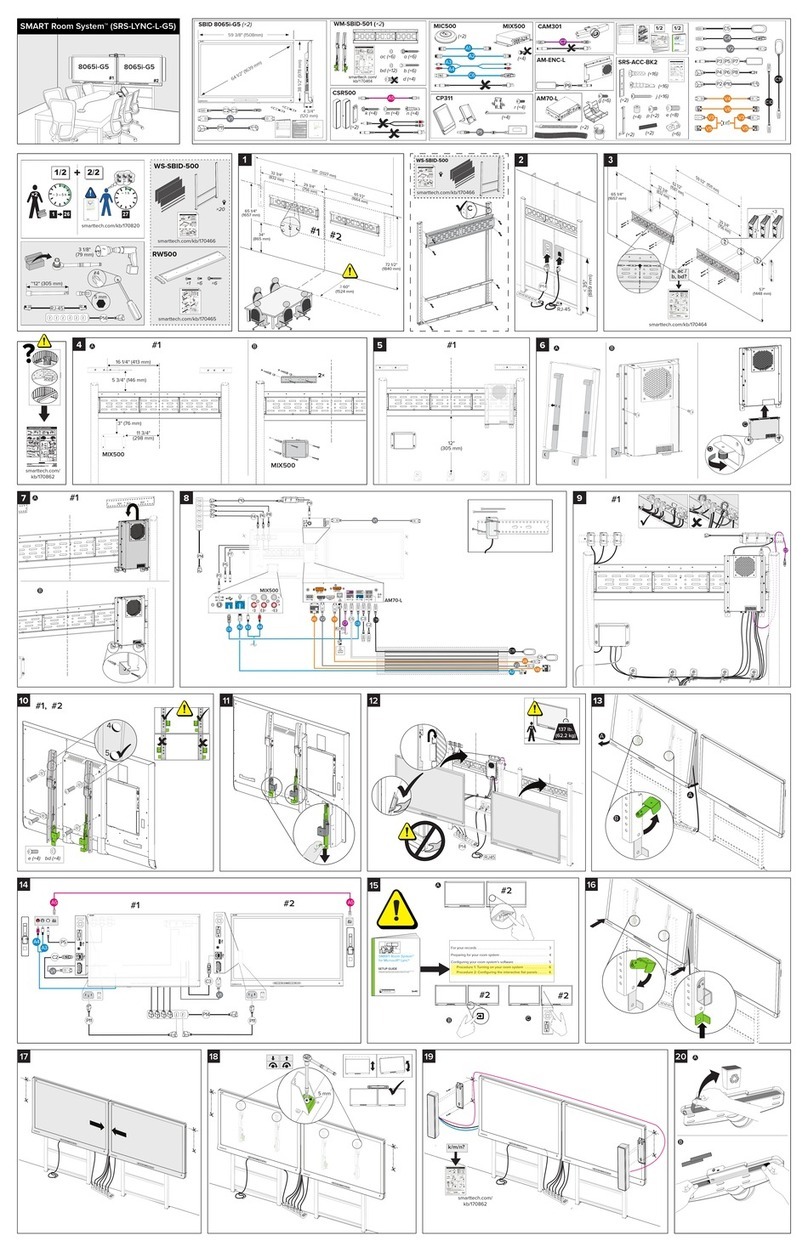

Installation instructions
Your SMARTRoomSystem comes with installation instructions. These installation instructions
explain how to unpack, assemble and mount the interactive flat panels and how to connect them to
the other components as well as to a computer. If you misplaced these installation instructions, you
can download a PDFversion.
Systems Installation instructions
SRS-MP-170
SRS-MP-270
SRS-MP-370
smarttech.com/kb/170671
SRS-MP-184
SRS-MP-284
smarttech.com/kb/170762
To use your SMARTRoomSystem with a connected computer, you need to install
SMARTMeetingPro software or SMARTMeetingPro PE software on the computer (see Installing
software on page22). If you need to deploy the software to multiple computers on your network,
refer to the system administrator’s guides.
Software System administrator’s guide
SMARTMeetingPro smarttech.com/kb/170518
SMARTMeetingPro PE smarttech.com/kb/170525
If your organization has purchased Bridgit server software, you need to install it before you can use
Bridgit software that comes with SMARTMeetingPro software and SMARTMeetingPro PE
software. For more information on installing Bridgit server software, see the Bridgit software
installation and system administrator’s guide (smarttech.com/kb/170397).

CHAPTER 1
WELCOME
12 smarttech.com/kb/170764
Help
SMARTMeetingPro software and SMARTMeetingPro PE software include extensive Help which
explains how to use both your SMARTRoomSystem and the software.
To view Help
1. In SMARTMeetingPro software or SMARTMeetingPro PE software, select Help > Contents.
The Help appears.
TIP
If you want to view the Help on your smart phone, tablet or other Internet-connected mobile
device, scan the QR code that appears on the home page of the Help with your device’s
camera.
2. Use the Help’s table of contents or search to browse its contents.
Training
The SMART training website (smarttech.com/trainingforbusiness) includes an extensive library of
training resources you can refer to when first learning to set up or use your SMARTRoomSystem.
Knowledge base
The Support center (smarttech.com/support) includes a knowledge base that you can refer to
when performing maintenance on your SMARTRoomSystem or troubleshooting issues.

Chapter 2
13 smarttech.com/kb/170764
Chapter 2: Installing your
SMARTRoomSystem
Before installing your SMARTRoomSystem 13
Connecting power 16
Connecting the room computer 16
Connecting the interactive flat panels 17
Connecting the camera 17
Connecting the audio processor 18
Connecting cables for laptops 19
This chapter is intended for installers. Before they install your SMARTRoomSystem, installers
should read this chapter along with the hardware installation instructions included with your
SMARTRoomSystem (see Installation instructions on page11).
Before installing your SMARTRoomSystem
Do the following before installing your SMARTRoomSystem:
Task
Review the environmental requirements in the SMARTRoomSystem’s specifications
(see Specifications on page10).
Save all product packaging so that it’s available if you need to transport the
SMARTRoomSystem. If the original packaging isn’t available, you can purchase new
product packaging from your authorized SMART reseller (smarttech.com/where).

CHAPTER 2
INSTALLING YOUR SMARTROOMSYSTEM
14 smarttech.com/kb/170764
Task
Ensure the wall can support the weight of the interactive flat panels, camera, speakers,
audio processor and mounting equipment.
Model Weight (lb.) Weight (kg)
SRS-MP-170 248 112.5
SRS-MP-184 317 144
SRS-MP-270 477 216.4
SRS-MP-284 616 279.2
SRS-MP-370 706 320.3
Choose an appropriate location for your SMARTRoomSystem:
lDo not install your SMARTRoomSystem in a location where a door or gate could
hit it.
lDo not install your SMARTRoomSystem in an area where it will be subjected to
strong vibrations or dust.
lDo not install your SMARTRoomSystem near where the mains power supply
enters the building.
lEnsure adequate ventilation or provide air conditioning around your
SMARTRoomSystem so that heat can flow away from the unit and the mounting
equipment.
lIf you mount your SMARTRoomSystem in a recessed area, leave at least 4"(10cm)
of space between the interactive flat panels and the recessed walls to enable
ventilation and cooling.
Consider the general height of the user community when you choose the height for the
interactive flat panels.
