Notes on the manual and the manufacturer
This manual will help you to use the CEECOACH PLUS communication
device, version 01.00.xx or higher, safely.
The CEECOACH PLUS communication device is referred to in the following as
"device".
Keep manual available
This manual is part of the device.
Make sure that this manual is always available for you.
Always download the latest manual after an update.
Online available information
Information about new features and updates for the device can be found in
the newsletter and in social media as well as at www.peiker-cee.de.
Design features in the text
normal text
•Enumeration
Action steps
Tips contain additional information.

5
Copyright
This manual contains information that is subject to copyright. This manual
may not be copied, printed, filmed, processed, duplicated or distributed in
any form, either in whole or in part, without the prior written consent of peiker
CEE GmbH.
©2020peiker CEE GmbH
All rights reserved.
Manufacturer address
peiker CEE GmbH
Gartenstraße 25
D-61352 Bad Homburg
Phone: [phone]
E-mail: [e-mail]
Internet: www.peiker-cee.de

6
Security
Intended use
The device is used for group communication in the sports and leisure sector.
The device can communicate with a maximum of 16 participants in a
conference.
The range between the participants is up to 650 m.
The distance between the devices must be less than 10 m when connecting
to a group.
Reading and understanding this manual is also part of the intended use.
Furthermore, you must observe and follow all information in this manual,
especially the safety instructions.
Any other use is expressly deemed to be improper.
Basic Safety Instructions
Avoid serious injury or death from explosions
The device has no approval according to the ATEX directive for use in
potentially explosive atmospheres.
Only use the device in areas where there are no special requirements for
explosion protection.
Avoid danger of suffocation
Small parts are included in the delivery. Children can swallow the small parts
while playing and choke on them.
Make sure that the small parts do not get into the hands of children.

7
Avoid hearing damage
Too high volume levels can irreparably damage your hearing.
Avoid continuous exposure to sound at maximum volume.
Avoid environmental damage
Dispose of the device and its components in accordance with the
regulations applicable at the place of use.
Avoid damage to property and malfunctions
Avoid damage to the device due to incorrect use
Attach the device to your belt or wear it securely on your upper arm. A
belt clip or a wristband with velcro fastener are included.
Do not drop the device.
Avoid shock loads.
Avoid headset cable break
Only touch the cable at the plug for insertion or removal.
Avoid damage to the device due to incorrect cleaning
Cleaning with harsh cleaning agents can damage the device.
Only use a soft cloth to clean the device when it is slightly dirty.
Use only gentle cleaning agents for heavy soiling. Make sure that the
cleaning agent does not attack the housing parts and buttons by trying it
out on a concealed area.
Avoid damage to the device due to improper repair
Never open the housing of the device.
Have the device repaired by qualified personnel only.

8
Design features of the warning notices
WARNING
Notes with the word WARNING warn of a dangerous situation
that could result in death or serious injury.
CAUTION
Notes with the word CAUTION warn of a situation that may
cause minor or moderate injury.
Design features of the indications of material damage
ATTENTION!
These notes warn of a situation that could lead to material
damage and limited functionality.

9
Description

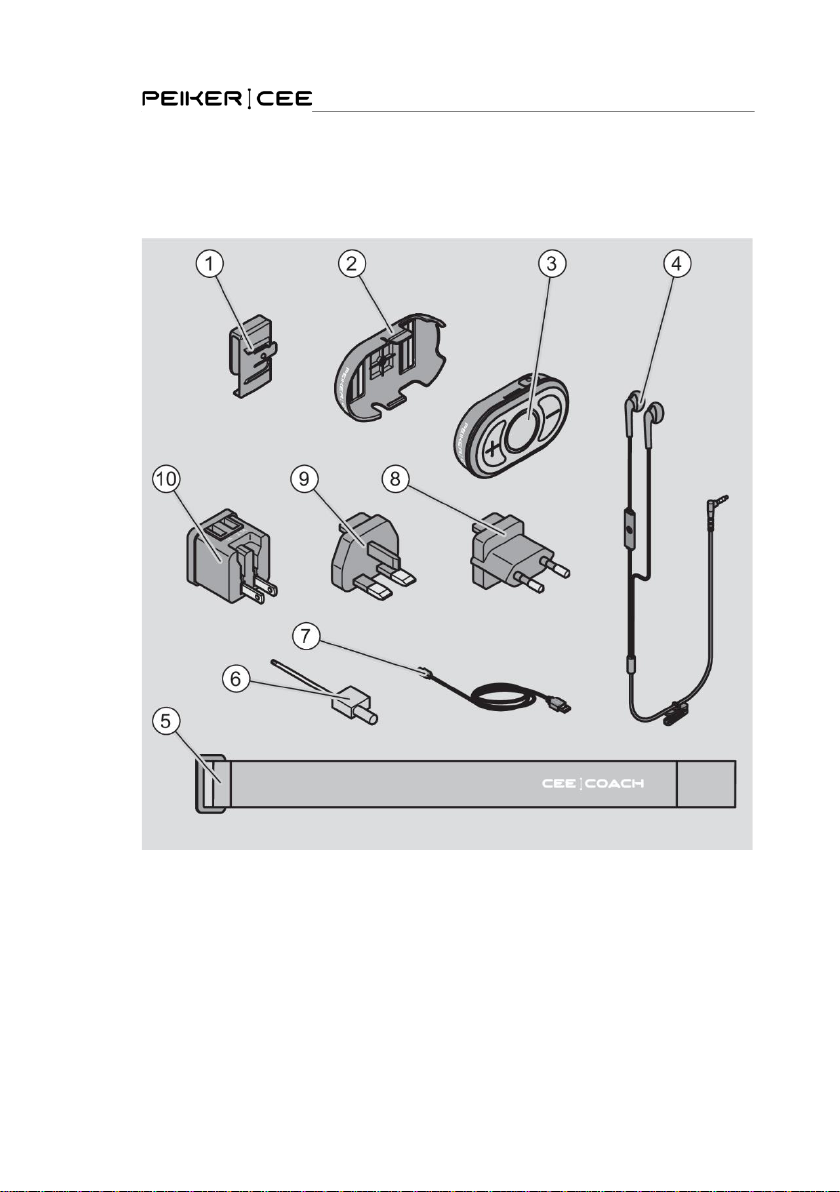

Scope of delivery

10
No.
Designation
1
Belt clip (included 2 times in the duo set)
2
Holder (included 2 times in the duo set)
3
Device (included 2 times in the Duo-Set)
4
Headset (included 2 times in the Duo-Set)
5
wristband with velcro (included 2 times in the duo set)
6
Screwdriver
7
USB-C cable (included 2 times in the duo set)
8
Plug (country-specific)
9
Plug (country-specific)
10
Charger
Task and function
The device is used for group communication in sports and leisure time.
The device can communicate with a maximum of 16 participants in a
conference.
The range between the participants is up to 650 m.
The distance between the devices must be less than 10 m when connecting
to a group.

11

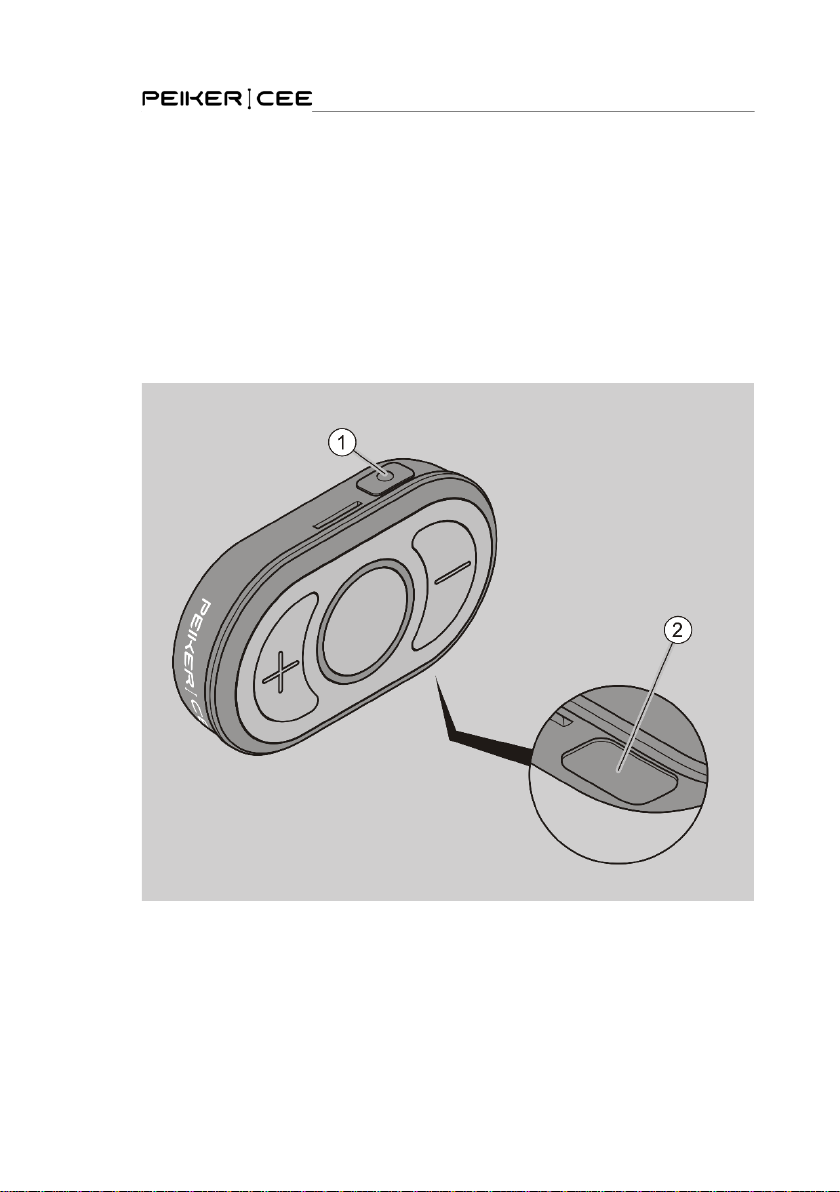

Control Elements

12
No.
Designation
1
Function key for connecting the device to other devices
2
Connection socket for headset
3
USB socket for USB-C cable
4
Minus key: decrease volume
5
Function key to connect the device to other devices or to the
Bluetooth® headset
6
Main key:
Switch device on and off
Switch microphone on and off
7
Plus key: Increase volume
8
illuminated ring
Indications in the light ring
Color
Meaning
Red
Battery almost empty (less than 30 % charged)
Yellow
Battery charged between 30 % and 70
Green
Battery more than 70% charged
Device is connected and at least one device is in the
transmit and receive range
White
There is no connection to other devices
Cyan
Device is connected, but there is no other device in the
transmit and receive area
Blue
Device can be connected to a Bluetooth® headset
Magenta
The microphone is switched off

13
Unpacking and checking the scope of delivery
WARNING
Small parts are included in the delivery.
Children can swallow the small parts while playing and choke on
them.
Make sure that the small parts do not get into the hands of
children.
Remove the parts of the device from the original packaging.
Keep the original packaging for possible return.
Check that all parts of the device have been supplied.
Check that the parts are in perfect condition.
Contact the manufacturer if parts are missing or damaged.

14
Putting the device into operation
Switch on the device (see section "Switching the device on and off" on
page20).
Use the headset as described in the manual of the respective
manufacturer.
When using a Bluetooth® headset, proceed as described in section
"Connecting the device to a Bluetooth® headset" on page15.
Connect the device to the other devices you want to use.
You can connect the device with up to 15 other devices to form a group (see
section "Forming a group" on page24).
The devices in the Duo Set are connected to each other in the delivery
condition.

15
Connect device to a Bluetooth® headset
Switch on the device (see section "Switching the device on and off" on
page20).
Turn on the Bluetooth® headset.
Make sure that the Bluetooth® headset is in pairing mode. Follow the
instructions in the Bluetooth® headset user guide.
Press the function key (1) on the device.
The light ring shines blue in a circular pattern. During this time you can
connect your device to a Bluetooth® headset.

16
When using the device with a Bluetooth® headset, please note the following:
•When a device is connected to a Bluetooth® headset, the Bluetooth®
headset and the device can be turned off. After both devices are switched
on again, they will automatically connect (re-connect).
•If you want to connect the device to another Bluetooth® headset, you must
turn off the currently connected Bluetooth® headset. You can connect the
device with the other Bluetooth® headset as described in section
"Connecting the device to a Bluetooth® headset" on page15
•When a Bluetooth® headset is connected and a corded headset is
plugged into the device, the connection is transferred to the corded
headset. As soon as the plug is pulled out of the connection socket, the
audio connection automatically returns to the Bluetooth® headset.
If the connection is not successful, this could be due to the following
reasons:
•The Bluetooth® headset does not allow pairing.
•The battery of the Bluetooth® headset is discharged.
Make sure that the Bluetooth® headset is in pairing mode.
With many Bluetooth® Headsets this is indicated by a blue flashing LED.
Proceed as described in the operating instructions for the Bluetooth®
headset.

17

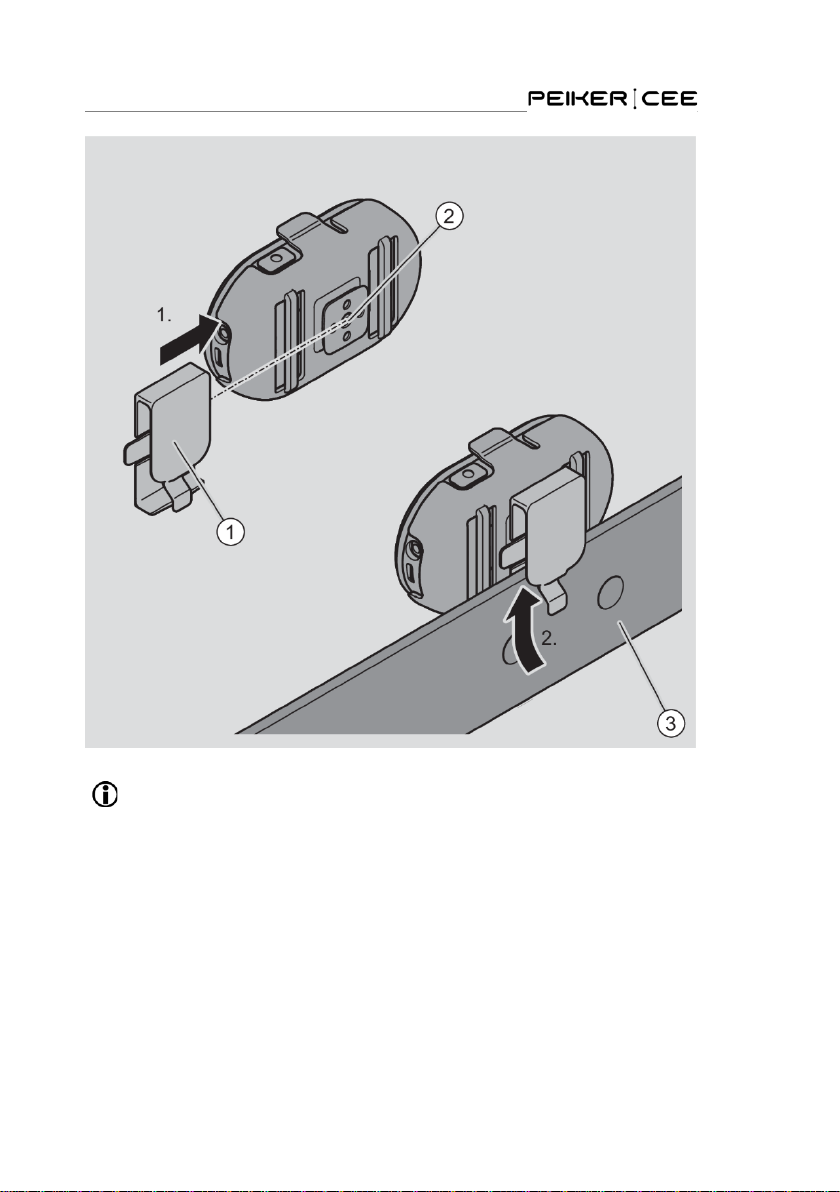

Wear the device on your belt
ATTENTION!
Damage to the device due to incorrect wearing is possible.
If possible, attach the device to the belt with the supplied belt
clip or wear it securely on your upper arm.
Do not drop the device.
Avoid shock loads.
Attach the holder to the device.
Push the belt clip (1) over the holder (2) until the locking lever (5) audibly
engages.
Hook the device together with the belt clip (2.) on the belt (3).

18
Alternatively you can thread the belt through the belt clip.
To remove, lift the nose of the belt clip and pull the device together with
the belt clip off the belt.
To remove the belt clip, pull the locking lever upwards and remove the
belt clip from the device.
