SMC Networks SMCGB10-Z User manual

Copyright ©2013 SMC Networks Page 1
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
1 Product Introduction
The SMCGB10-Z is a wireless Glass Break
Detector that complies with the ANSI/UL 639
standard for Intrusion products. It is intended for
residential indoor dwelling unit applications and
other areas approved by the authority having
jurisdiction (AHJ). It is not intended for use in
industrial applications.
The SMCGB10-Z operates with your wireless
Touchscreen, providing a local indication. Refer
to the Touchscreen installation instructions for
revision verification details.
2 Parts List
Your SMCGB10-Z package comes with:
One SMCGB10-Z Glass Break Detector
One CR123 Lithium battery
Mounting screws and anchors
This User Guide
3 Finding a Suitable Location
The SMCGB10-Z must always be in direct line of
sight of all windows to be protected. The
SMCGB10-Z cannot consistently detect glass
breaking around corners or in other rooms. There
is no required front, back, up or down
orientation.
Wall Mount
The best wall-mount location is on the opposite
wall, assuming the glass to be protected is within
the sensor's range and line of sight. The
adjoining wall can also be used.
Ceiling Mount
Mount the SMCGB10-Z in a location that has a
direct line of sight of the glass to be protected.
Since sound travels directionally out from a
broken window, a position 8 ft. (2.4 m) into the
room provides better detection.
To determine the best mounting location, mount
the SMCGB10-Z:
At least 3.3 ft. (1 m) from the windows being
protected and at least 4 ft. (1.2 m) from
noise sources such as TVs, speakers, sinks,
and doors.
In the direct line of sight of the glass to be
protected.
In a suitable environment: temperature
between 0 and 120°F (-18 and 50°C); and
humidity between 10 and 90% non-
condensing.
On a stable surface up to 25 ft. (7.6 m) from
the farthest point on the glass surface.

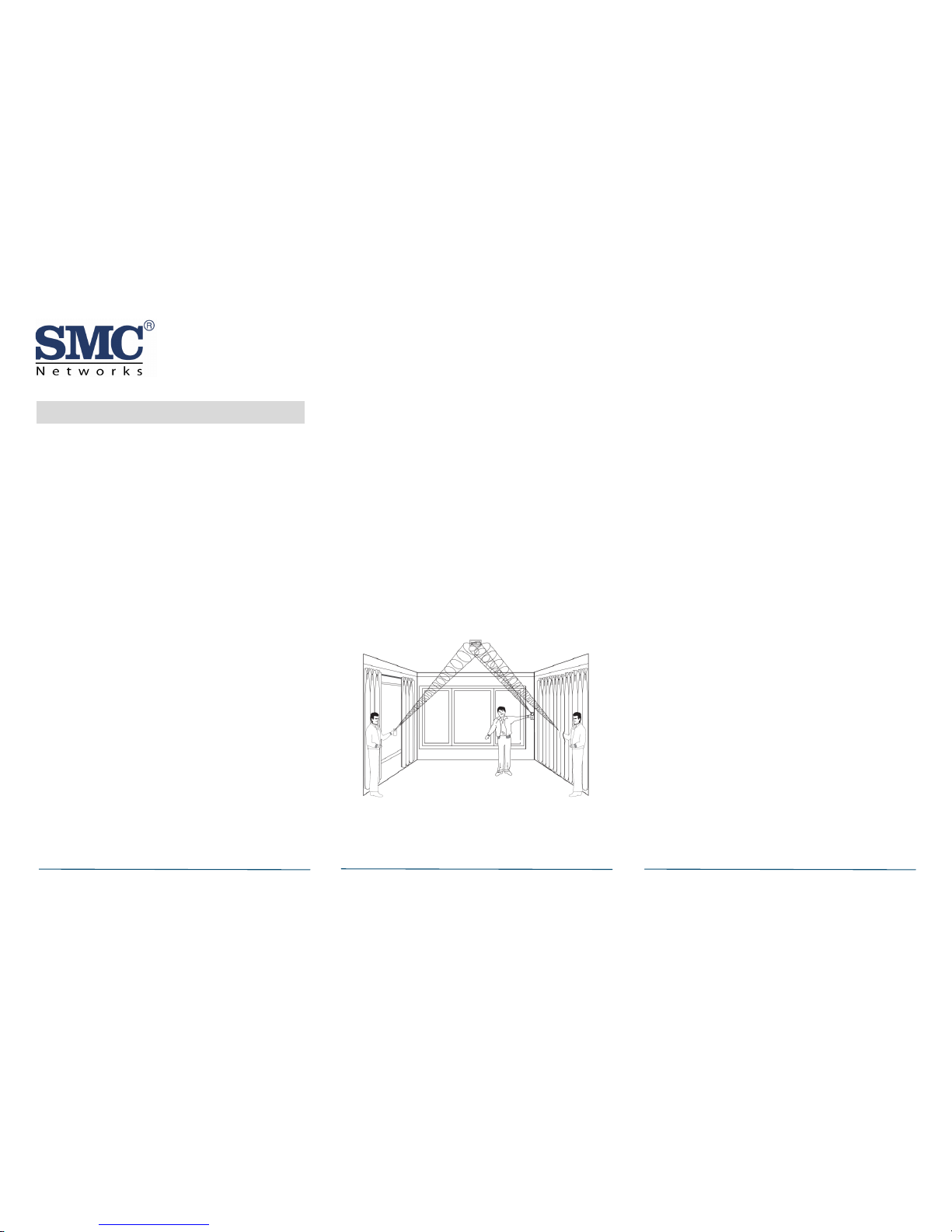

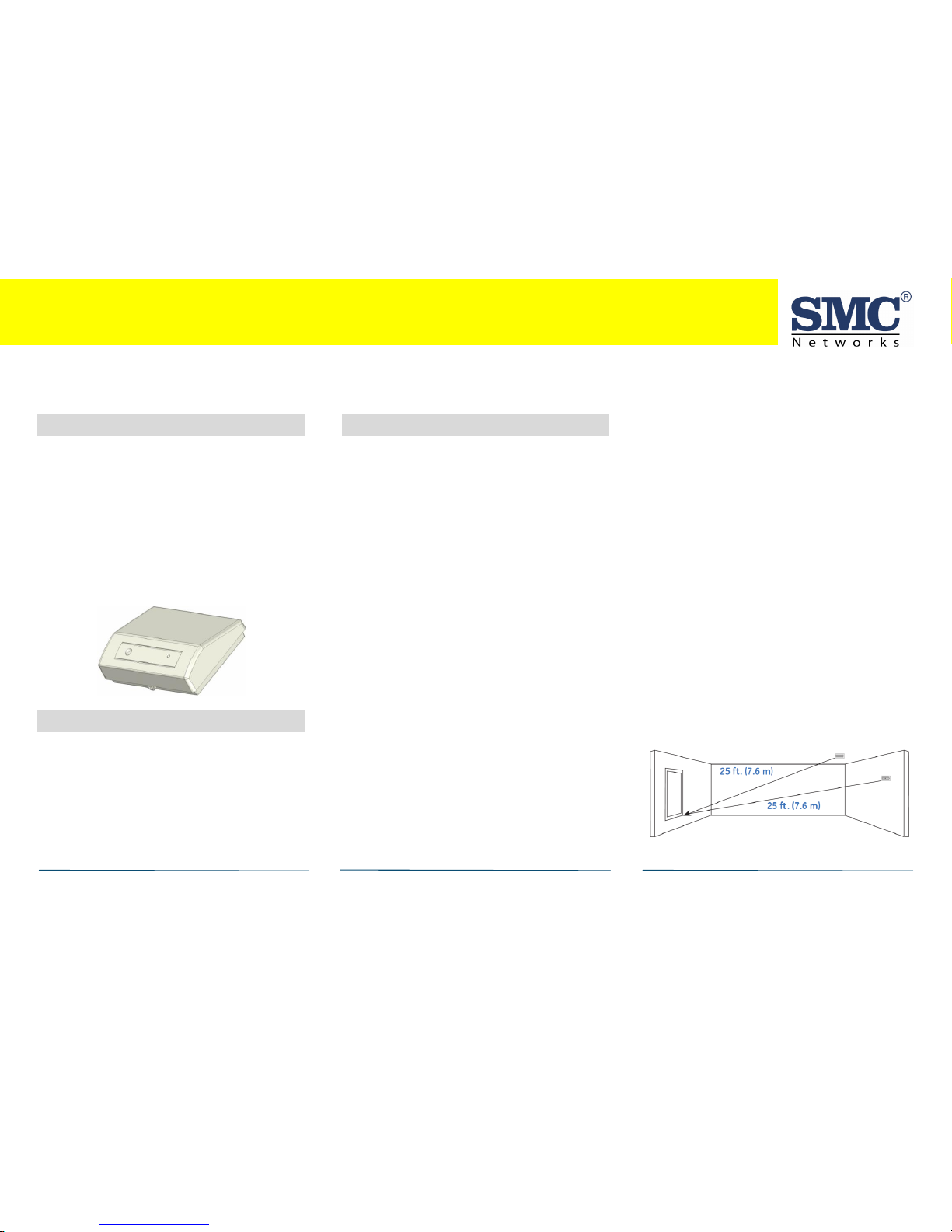

Recommended Locations and Range
The SMCGB10-Z is omni-directional, providing
360° coverage. Coverage is measured from the
SMCGB10-Z to the point on the glass farthest
from the sensor. The sensor can be mounted as
close as 3.3 ft. (1 m) from the glass. The
maximum range depends on the type of glass
being protected:
Armor-coated glass: Mount the SMCGB10-Z no
more than 12 ft. (3.6 m) from the glass.
Plate, tempered, laminated, and wired glass:
Mount the SMCGB10-Z on the ceiling or the
opposite or adjoining wall. Maximum range is
25 ft. (7.6 m).
SMCGB10-Z Glass Break Sensor Guide
Congratulations on purchasing your SMCGB10-Z Glass Break Sensor.
The SMCGB10-Z Glass Break Sensor provides excellent acoustic sensing by listening to actual patterns of breaking glass across the full audio band
while providing immunity to false alarm. This Quick Start Guide has all the information to get your SMC Glass Break Sensor up and running.

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 2
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
Locations to Avoid
Improper location can affect the sensitive
electronic components in this product. To avoid
causing damage to the product, to provide
optimum performance, and to prevent
unnecessary nuisance alarms:
Avoid rooms smaller than 10 x 10 ft. (3m x
3m).
Avoid locations where lined, insulating, or
sound-deadening drapes or closed wooden
shutters are used.
Avoid the corner of a room.
Do not install the SMCGB10-Z in humid
rooms. Excess moisture on the circuit board
can cause a short and a false alarm.
Avoid locations that expose the SMCGB10-Z
to possible false alarm sources such as:
- Glass airlocks and vestibule areas
- Kitchens
- Corner mounting
- Residential car garages
- Small utility rooms
- Stairwells
- Bathrooms
- Small acoustically live rooms.
- Locations exposed to white noise, such as
air compressors.
4 Mounting the Sensor
You can mount the SMCGB10-Z on a wall or
ceiling.
A. Disconnect alarm-notification appliances,
service-release devices, and extinguishing
systems. Test communications between the
Touchscreen and the product before
permanently mounting as follows:
- Hold the SMCGB10-Z where you plan to
install it.
- Hold the glass break tester next to the glass
break’s microphone sensor and press the test
button on the glass break tester. The product
sends a signal to the Touchscreen.
- At the Touchscreen, verify the signal was
received and RF signal strength is adequate.
If no signal is received or the RF signal is low,
relocate the product and retest.
B. Using two supplied screws and anchors,
mount the base of the product as follows:
- Remove the screw located in the front.
- Remove the top cover using a flat bladed
tool in the screw location to pry open the
top cover.
- Find the mounting location and drill holes
in the base per the mounting impression in
the base.
- Use the anchors and screws to secure the
product to the mounting surface.
C. Replace the SMCGB10-Z top cover:
- Snap the top onto the base.
- Replace the screw into the front location.
5 Basic Operation
The SMCGB10-Z is equipped with an intuitive
normal mode operation. Since the batteries are
pre-installed, remove the battery pull tab to
turn ON power. The SMCGB10-Z searches for a
networked Touchscreen with which to pair.
During this Search Mode time, the RF wireless
module transmits every ~ 5-seconds.
Not pairing or enrolling into a Touchscreen
within minutes of initial power up places a large
drain the batteries.
Failure to complete pairing results in dead
batteries after 2-3 days pass.

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 3
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
Normal Mode Operation
In normal operation, the red LED is OFF.
In wake up, the red LED flashes ON with two
quick flashes.
In alarm mode, the red LED stays ON for 4
seconds. Sends an alarm message to the
Touchscreen.
In trouble or maintenance mode, the red LED
does not activate after a wake up test.
In low battery mode, a message is sent to the
Touchscreen.
Note: Modes can be viewed from the
Touchscreen.

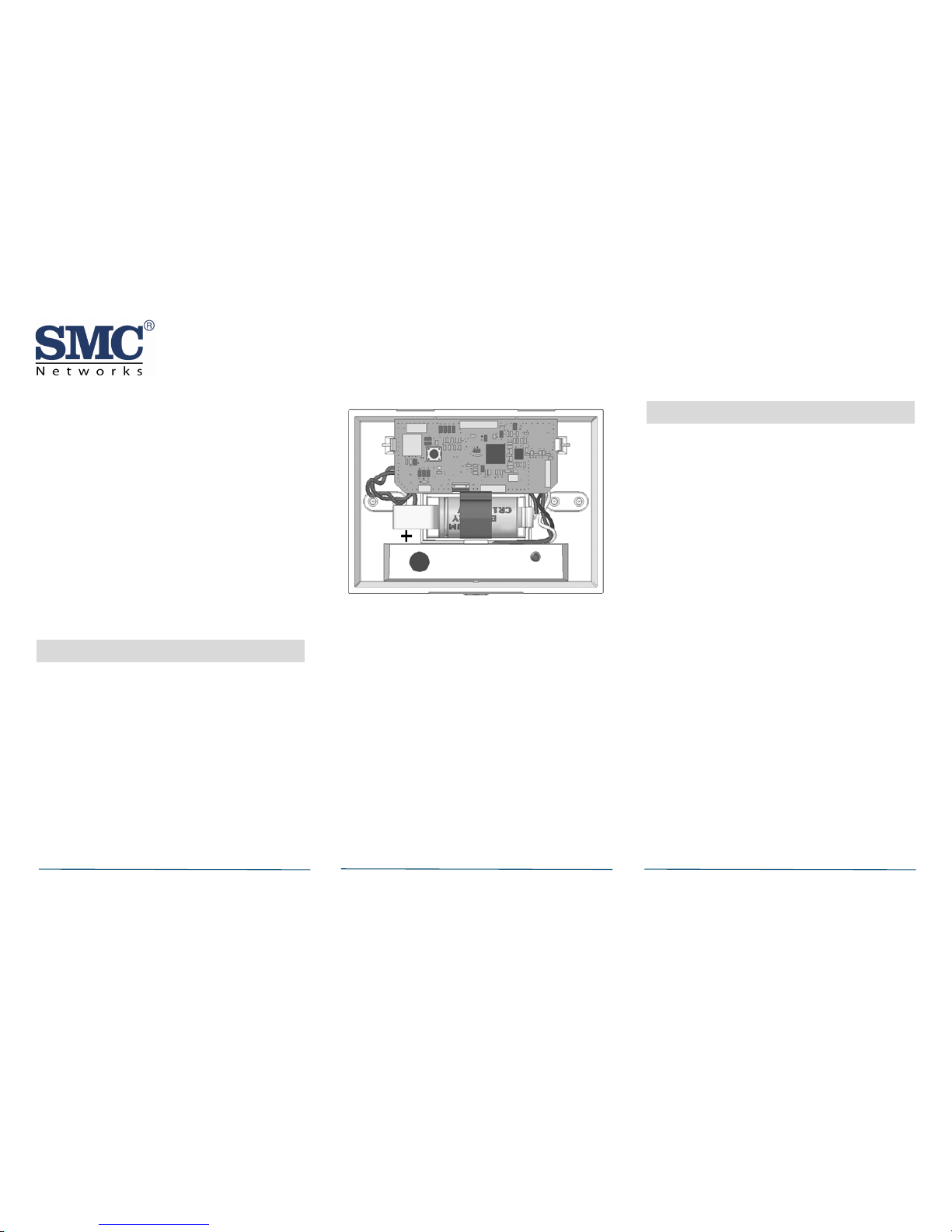

6 Installing/Replacing Battery
The SMCGB10-Z comes with one battery
preinstalled. When you need to replace the
battery, use the following procedure.
Note: Place the Touchscreen into sensor test
mode prior to replacing the batteries. Otherwise,
an alarm/tamper condition may be indicated.
A. Remove the product top cover.
B. If replacing the battery, remove the old
battery and properly dispose of it as
recommended by the battery manufacturer.
C. Install the new battery. Note the polarity
illustration in the battery compartment.
C. Replace the top cover.
D. Replace the front screw.
When replacing the battery, use one of the
following approved brands:
Duracell Ultra
Panasonic
Note: Using a different battery may have a
detrimental effect on the product's operation.
Constant exposures to high or low humidity may
reduce battery life.
After installing or changing the batteries,
reinstall the SMCGB10-Z top cover. Test your
SMCGB10-Z using a wake-up test.
7 Adding to Touchscreen
Each SMCGB10-Z is programmed with a unique ID
when manufactured. The unique ID is enrolled
into the Touchscreen at the time of installation,
allowing the SMCGB10-Z to communicate with
that specific Touchscreen.
A. Log in to the Settings app with an Installer
code.
B. In the Settings menu, tap Sensors & Zones >
Add a Sensor/Zone.
C. Place the SMCGB10-Z in Search mode and
prepare it to be added to the Touchscreen
(refer to the installation documentation for
your sensors). Available sensors meet the
following requirements:
- Defaulted.
- Not currently paired with another
Touchscreen device.
- Currently in Search mode.
D. At the Locating Wireless Sensors screen, tap
Next. A Done button appears on the screen
and the Touchscreen searches for sensors
that are available to be added. As sensors
are found, a grayed icon appears for that
sensor.
E. Fault each found sensor to pair it to the
Touchscreen. The icon for each sensor is
undarkened as it is faulted and the
Touchscreen beeps. The sensor is paired to
the Touchscreen.

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 4
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
F. When all the sensors are found and paired,
tap Stop. Any located sensors that were not
paired are released by the Touchscreen and
can be added later. The Wireless Sensors
Located screen shows the number of wireless
sensors found and paired.
G. Tap Next. The Configure Wireless Sensors
screen shows icons of the sensors that were
found and paired.
H. Touch each sensor icon to configure the
corresponding product. The Add Sensor/Zone
Modify screen appears.
I. To change the product Icon (if multiple
options are available), tap the currently
selected value.
J. Tap Next. The Add Sensor/Zone Modify
screen appears.
K. To modify a text field on the Touchscreen,
tap the field, use the onscreen keyboard to
enter your changes, and tap Done to save
your changes.
L. When all sensors are configured properly, tap
Next in the Configure Wireless Sensors
screen.
M. If all of the sensors have not been
configured, the Modify screen appears for
each sensor to let you review its details.
Change the details as needed or tap Next to
cycle through all the sensors. The sensors are
marked as configured.
8 Testing the SMCGB10-Z
The SMCGB10-Z can be tested during install or at
any time. It is recommended the SMCGB10-Z be
tested in place annually. The SMCGB10-Z is
sealed. The cover is not removable.
WARNING: The Touchscreen must be placed into
sensor test mode while conducting any tests to
protect against false alarms and unintentional
central station reporting.
The SMCGB10-Z has three test methods:
Wake Up Test. A hand clap should wake up
the glass break detector.
RF Communication Test. Tests the
communication path with the Touchscreen.
Glass Break Functional Test. Tests the
functional operation of the glass break
sensing element.
Wake Up Test
To test the SMCGB10-Z locally, clap your hands
loudly above the sensor and verify the LED blinks
twice. This test verifies that the SMCGB10-Z is
receiving power, and the microphone and circuit
board are working properly. It does not trip the
sensor. The hand clap is only a momentary test,
so there is no significant effect on battery life.
Note: Room acoustics can artificially extend the
range of a glass-break sensor. The specified range
of the sensor is set for worst-case conditions. While
it may work at extended range, it can miss a
minimum output break or room acoustics may
change over time, bringing sensor range back into
normal 2-foot (6 m) conditions. Do not exceed the
rated range of the sensor, regardless of the tester
results.
RF Communication Test
This section provides general guidelines for
testing the SMCGB10-Z with the Touchscreen. For
complete testing details, refer to the specific
Touchscreen documentation.
A. Be sure the product is operating normally.
B. Set the Touchscreen to sensor test mode to
prevent an alarm signal from being sent to
the central-monitoring station if you have a
monitored system.
C. To generate a test alarm, remove the top
cover generating a tamper alarm. If the
product is operating properly, an alarm
message is sent to the Touchscreen.
D. The Touchscreen beeps and shows the
number of RF packets received.
E. At the Touchscreen, exit sensor test mode.

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 5
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
9 Glass Break Functional Test
The SMCGB10-Z detects the breaking of framed
glass mounted in an outside wall. Testing the
sensor with unframed lass, broken bottles, and
so on, may not trip the sensor. The sensor
typically does not trip to glass breaking in the
middle of the room. In rooms where multiple
sounds can reflect and duplicate the glass-break
frequency pattern.
The Pattern Recognition Technology of the
sensor ignores most false alarm sounds, including
glass break testers. To test the sensor, use test
mode.
Test mode disables glass break pattern
processing in upper and lower frequencies. The
sensor is then listening only for the mid-range
frequencies that the hand-held tester
reproduces. It’s the mid-range frequencies that
determine sensor range.
Test Mode
To put the sensor in test mode:
A. Set the Touchscreen to sensor test mode.
B. Use a Sentrol 5709C handheld tester to put
the sensor into test mode. Set the tester to
tempered glass and hold the tester on top of
the sensor.
C. Activate the tester. The sensor will alarm,
then go into test mode for one minute. In
test mode, the LED blinks continuously. To
extend test time, fire the tester at the
sensor at least once a minute.
Testing the Sensor
To test the sensor while in test mode:
A. The tester has a different setting for each
type of glass. Set the tester for tempered or
laminated glass unless you are certain that
all the glass to be protected is plate glass.
B. Hold the tester near the surface of the glass
to be protected and aim the speaker at the
sensor. Be sure the tester is at the point on
the glass farthest from the detector. If
closed drapes or curtains are present, hold
the tester behind them.
C. Press the test button on the tester. The LED
on the sensor goes ON for 4 seconds to
indicate the glass is within detection range
of the sensor. If the LED does not stay ON for
4 seconds, move the sensor and retest.
If the sensor will not activate within its stated
range of coverage, check for battery strength in
the tester. A new tester battery will likely
restore range. You may need to use additional
sensors to achieve adequate coverage.
The sensor automatically changes from test
mode to normal mode approximately one minute
after it last hears the tester. In normal mode the
LED does not blink unless it hears a loud sound.
In normal mode, the sensor does not trip to the
tester, unless the tester is held next to the
sensor. Each time the sensor alarms, it also goes
into test mode for one minute.
Room acoustics can artificially extend the range
of a glass break sensor. The specified range of
the sensor has been established for worst-case
conditions. While the sensor will likely function
at additional range, it may miss a minimum
output break, or room acoustics may change at
some future time, bringing the sensor range back
into normal 20 ft. (6 m) conditions. Do not
exceed the rated range of the sensor, regardless
of what the tester shows.

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 6
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
10 Defaulting the Detector
This step should only be performed by a qualified
service technician.
A. Remove the top cover from the SMCGB10-Z.
B. Remove the battery.
C. Press and hold the enrollment switch in the
RF circuit inside the SMCGB10-Z until you
replace the batteries.
D. Replace the battery while still pressing the
enrollment switch then release the switch.
The RF Module LED flashes three times to
signal the product is defaulted and not
paired with a Touchscreen.
E. Replace the top cover.
11 Viewing Zone Event History
To view event history:
A. Tap the Security widget on the Home screen.
B. Tap the History tab. The Zone Event History
shows the event history.
12 Disabling Zones
The system can bypass a zone, so the zone is not
monitored when the system is armed. This is
useful when a sensor is being repaired. You can
only change the Bypass state of a zone when the
system is disarmed.
The system continues to log the activity of
bypassed zones in the Event History (see "View
Zone Event History" on this page).
To bypass a zone:
A. With the system disarmed, tap the Security
app on the Home screen.
B. Tap the Turn Zone Off button for the smoke
alarm. The Turn Zone Off button changes to
Turn Zone On.
C. When the system is disarmed, the Security
Status header shows that some zones have
been bypassed.
13 Deleting from Touchscreen
Deleting a sensor from the premises removes it
from being monitored by the customer's system.
This is not the same as disabling (bypassing) a
sensor. You should delete a sensor only:
If the SMCGB10-Z is being removed from the
premises
To reset the product to factory default
settings by deleting the product and adding it
immediately.
To delete a product from the system:
A. Contact Customer Care to obtain the Premise
Passphrase for the current customer account.
B. Perform steps A through D in Step 6, "Adding
to Touchscreen." on page 4.
C. When the Technician Settings menu appears,
select Sensors & Zones > Delete a
Sensor/Zone. The Premise Passphrase
keyboard appears.
D. Enter the Premise Passphrase and click
Done. The currently installed
sensors/security zones appear.
E. Tap the zone you want to delete and follow
the instructions provided by the Touchscreen
to delete the sensor and security zone from
the current system.

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 7
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
14 Maintenance
The SMCGB10-Z is designed for a long service
life. Even though the Touchscreen indicates
when to service this product, several annual and
random/as required checks are recommended.
Annual - Glass Break Functional Test
Random - visual check for LED flash during a
Wake Up Test and Wireless Signal Strength
The Touchscreen indications are Trouble and
Low Battery.
Trouble - the SMCGB10-Z has an internal
fault indication, which requires technical
service.
Low Battery - batteries are low and must be
replaced to maintain proper operation.
General Maintenance
To keep your SMCGB10-Z in good working order:
Vacuum the SMCGB10-Z cover once a month
to remove accumulated dust.
Never use detergents or solvents to clean the
SMCGB10-Z. Chemicals can permanently
damage or temporarily contaminate the
sensor.
Avoid spraying air fresheners, hair spray,
paint, or other aerosols near the SMCGB10-Z.
Do not paint the SMCGB10-Z. Paint will seal
the sensor opening and interfere with proper
sensor operation.
Wireless Signal Strength
After adding the SMCGB10-Z to the Touchscreen
and installing the SMCGB10-Z, test the signal
strength between the Touchscreen and its added
sensors/security zones:
A. Be sure steps A through D in Section 7
“Adding to Touchscreen” have been
performed.
B. At the Technician Settings menu, select
Sensors & Zones > Sensor Diagnostics.
C. When the currently installed sensors/
security zones appear, tap the zone you want
to test for connectivity and follow the
instructions from the Touchscreen.
The Sensor Diagnostic for <Security Zone name>
appears as the system detects the current signal
strength between the selected sensor and the
Touchscreen.
15 Troubleshooting
The SMCGB10-Z does not power up properly or
reports low battery.
Be sure the battery is fully seated within the
battery compartment and the polarity is
correct.
Check the battery voltage (3.0 VDC nominal).
Touchscreen does not respond.
Use a wireless RF Sniffer to confirm that the
product is sending messages for activation.
Be sure the SMCGB10-Z is enrolled into the
Touchscreen properly.
Be sure you are using a compatible
Touchscreen.
Tamper condition does not restore.
Be sure the SMCGB10-Z is installed properly
onto the mounting plate and the mounting
plate has a magnet.
Be sure there are no trouble indications at
the detector.
Be sure you are using a compatible
Touchscreen.
If a tamper alarm occurs.
Be sure you are using a compatible
Touchscreen.
Be sure the Touchscreen is in sensor test
mode during sensor testing.
Alarm/open condition does not restore.
Be sure the smoke or heat has cleared at the
SMCGB10-Z.
Be sure you are using a compatible
Touchscreen.

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 8
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
16 Specifications
Power
One CR123 battery
Battery type
3.0 VDC Lithium
Duracell, Panasonic, Sanyo
Battery Life
5 years (typically)
Glass Break Sensor
Microphone Omni-directional 360°
Detection Range
20 ft. (6 m) x 360°
Min. Distance from Glass
4 ft. (1.2 m)
Glass Thickness
Plate
Tempered
Wired
Laminated
3/32 to 1/4 in. (2.4 to 6.4 mm)
1/8 to 1/4 in. (3.2 to 6.4 mm)
1/4 in. (6.4 mm)
1/8 to 1/4 in. (3.2 to 6.4 mm)
RF Wireless Frequency
2.4 GHz
Weight w/battery
0.28 lbs / 0.13 kg
Dimensions (H x W x D)
3.13 in. x 4.25 in. x 1.31 in.
(80 mm x 108 mm x 33 mm)
Storage temperature
-4 to 140°F (-20 to 60°C)
Operating environment
14 to 120°F (-10 to 50°C)
Relative Humidity
10 to 95% non-condensing

SMCGB10-Z Glass Break Sensor Guide
Copyright ©2013 SMC Networks Page 9
All Rights Reserved
I/M SMCGB10-Z rev. 1.0
8/2/2013
Regulatory Information
WEEE Directive
2002/96/EC (WEEE directive): Products marked with this
symbol cannot be disposed of as unsorted
municipal waste in the European Union. For
proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
RoHs Directive
2002/95/EC RoHS Compliant. This product does not
contain lead, mercury, cadmium, hexavalent chromium,
polybrominated biphenyls (PBB) or polybrominated
depheny ethers (PBDE) in more than the percentage
specified by EU directive 2002/95/EC, except exemptions
stated in EU directive 2002/95/EC annex.
UL Rating
ANSI/UL 639 Recognized
ETL Rating
UL 639
FCC Compliance
FCC ID: QPY-5845GB-Z
IC: 8303B-5845GBZ
The device complies with part 15 of the FCC Rules as
well as Industry Canada Rules and Regulations license-
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept
any interference received, including interference that
may cause undesired operation.
Conformité Réglementaire
Ce dispositif est conforme à la réglementation de la IC et
(Partie 15) de la FCC. Son fonctionnement est soumis à
deux conditions : (1) ce dispositif ne doit pas causer
d’interférences nuisibles, et (2) ce dispositif doit
accepter toute interférence reçue, y compris les
interférences pouvant entraîner des conditions de
fonctionnement indésirables.
Disclaimer
This Glass Break Detector is not a complete alarm
system, but only a part. Therefore SMC does not accept
any responsibility or liability for any damage that is
claimed to be a result of an incorrect functioning of the
Glass Break Detector. SMC reserves the right to change
the specification without a prior notice.
Limitations of Security Products
Security products and alarm systems do not offer
guaranteed protection against burglary, fire, or other
emergencies. They may fail to warn for diverse reasons,
including (but not limited to): power failure, dead
batteries, improper installation, coverage, coverage
areas overlooked during installation, defeat by
technically sophisticated intruders, component failure,
or inadequate maintenance. Alarm systems should be
checked weekly to ensure that all devices are working
properly.
AN ALARM SYSTEM IS NOT A SUBSTITUTE FOR INSURANCE
Part Number: 1078204A
