Smeg SNZ61MFX User manual

Contents
1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4
2. INSTALLATION OF THE APPLIANCE_________________________ 6
3. ADAPTATION TO DIFFERENT TYPES OF GAS _______________ 10
4. FINAL OPERATIONS_____________________________________ 12
5. DESCRIPTION OF CONTROLS ____________________________ 14
6. USE OF THE HOB _______________________________________ 19
7. USE OF THE OVEN______________________________________ 21
8. AVAILABLE ACCESSORIES _______________________________ 23
9. COOKING HINTS________________________________________ 24
10. CLEANING AND MAINTENANCE ___________________________ 29
11. EXTRAORDINARY MAINTENANCE _________________________ 31
12. PROBLEMS AND CAUSES ________________________________ 33
Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary
instructions for maintaining unaltered the appearance and functional
qualities of the cooker.
INSTRUCTIONS FOR THE INSTALLER: these are for the authorised
person who must carry out a suitable check of the gas system, install
the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.
3

Introduction
1. INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE
READING THIS MANUAL AND ALL THE INSTRUCTIONS THERE IN BEFORE
USING THE COOKER.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY
OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD.
ALL OTHER USES ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.
SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE
SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION
(OFF) WHEN YOU FINISH USING THE HOB.
NEVER PUT INFLAMMABLE OBJECTS INTO AN OVEN: IF THEY CATCH FIRE
THEY COULD CAUSE A FIRE IN THE HOME.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.
THE PLATE MUST NOT BE REMOVED.
4

Introduction
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS
ON THE HOB GRIDS.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE
OUTER PERIMETER OF THE HOB.
IF THE APPLIANCE IS TO BE POSITIONED ON A PLATFORM IT MUST BE
INSTALLED IN SUCH A WAY AS TO PREVENT IT FROM SLIPPING OFF THE
FORMER.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN OR INFIRM PERSONS TO GO NEAR OR PLAY WITH IT.
DURING USE THE APPLIANCE BECOMES HOT. CARE SHOULD BE TAKEN
TO AVOID TOUCHING THE HEATING ELEMENTS INSIDE THE OVEN. KEEP
CHILDREN AWAY FROM THE OVEN.
REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE
COLLECTION CENTRE.
THIS APPLIANCE IS DESIGNED FOR COOKING FOOD AND IT SHALL NOT
BE USED AS A SPACE HEATER.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT
IS IN OPERATION.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.
5

Instructions for the installer
2. INSTALLATION OFTHE APPLIANCE
It is the law that all gas appliances are installed by authorised persons.
Clearance around the cooker must comply with the requirements of
AS5601.
2.1 Electrical connection
Make sure that the power line voltage matches the specifications
indicated on the rating plate located inside the storage compartment.
This rating plate must never be removed.
On the power line, install a two-pole cut-off device with contact cut-off
distance greater than or equal to 3 mm, located in an easily accessible
position near the unit.
The wire section on the cable must not be less
than 2.5 mm2(3 x 2.5 cable), keeping in mind
that the end to be connected to the cooker
must have the ground wire (yellow-
g
reen)
longer by at least 20 mm. Use only the special
cables available at our Service Centres.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance.

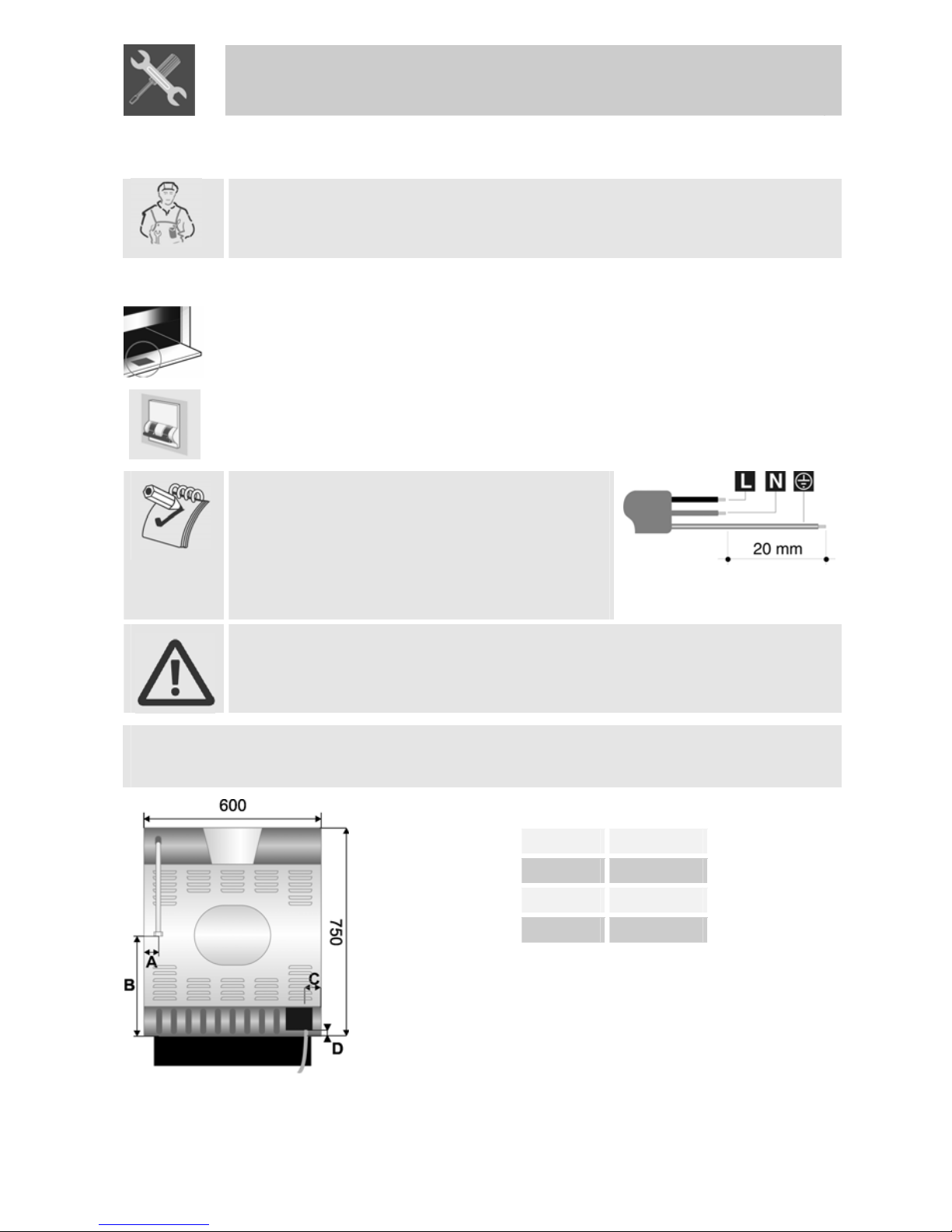

Overall dimensions: location of gas and electrical connection points (all
measures in mm).
A 60
B 410
C 100
D 140
6

Instructions for the installer
2.2 Gas connection
This appliance is suitable for installation with Natural
Gas or LPG (propane). Refer to page 12 for the relevant
burner pressure and appropriate injector sizes. When
the appliance is connected to Natural Gas a pressure
regulator (supplied by installer) must be fitted to the gas
inlet. A test point (for checking the gas pressure) is
supplied either with the regulator or as a separate fitting
in the case of LPG (propane) appliances.
Connection of the appliance to the gas supply must be in
accordance with the requirements of AS5601. A ½” BSP
connector at the inlet is recommended and the gas
supply line to the appliance must be of adequate length
to allow sufficient withdrawal of appliance for service or
disconnection and be annealed copper pipe.
The cooker must be installed with provision to allow the gas to be turned
off and disconnected for servicing and removal of the appliance as
required from the gas supply.
Before the cooker is operated make certain all relevant parts are placed
in the correct position.
When the installation is completed the installation connections of cooker
will require to be leak tested, the burner operating pressure and flame
checked and adjusted.
Warranty service calls do not cover these adjustments!
To check the operating pressure of the appliance it is recommended at
least 2 large size burners are used. Ensure appliance is secured to wall
when installation is completed.
N.G. The regulator supplied must be fitted to the ½ BSP thread at the
rear of the appliance. An approved manual shut-off valve must be
installed. The N.G. regulator must be checked and adjusted to 1.0kPa
after installation.
L.P.G. Can be connected to the inlet fitting directly. The
pressure must be checked to ensure it is operating at
2.75kPa. A separate test point fitting must be installed
(to be supplied by installer) between the piping & the
appliance for the pressure to be checked to ensure it is
operating at 2.75kPa.
7

Instructions for the installer
2.3 Room ventilation
Caution – This cooker may only be installed and operated in rooms
permanently ventilated in accordance with current regulations. For
proper operation of a gas appliance it is essential for the air necessary
for combustion of the gas to be able to flow naturally into the room. Air
must flow directly into the room through openings in its outside walls.
This (these) opening (s) must have a free passage cross-section of at
least 100 cm2, or 200 cm2for appliances not equipped with gas safety
device. These openings must be constructed so that they cannot be
obstructed indoors or outdoors, and should preferably be close to the
floor on the side opposite to the combustion gas discharge point. If it is
not possible to make the openings in the room where the cooker is
installed, the necessary air may be taken from an adjoining room,
proveded it is not a bedroom or a room with fire risk.

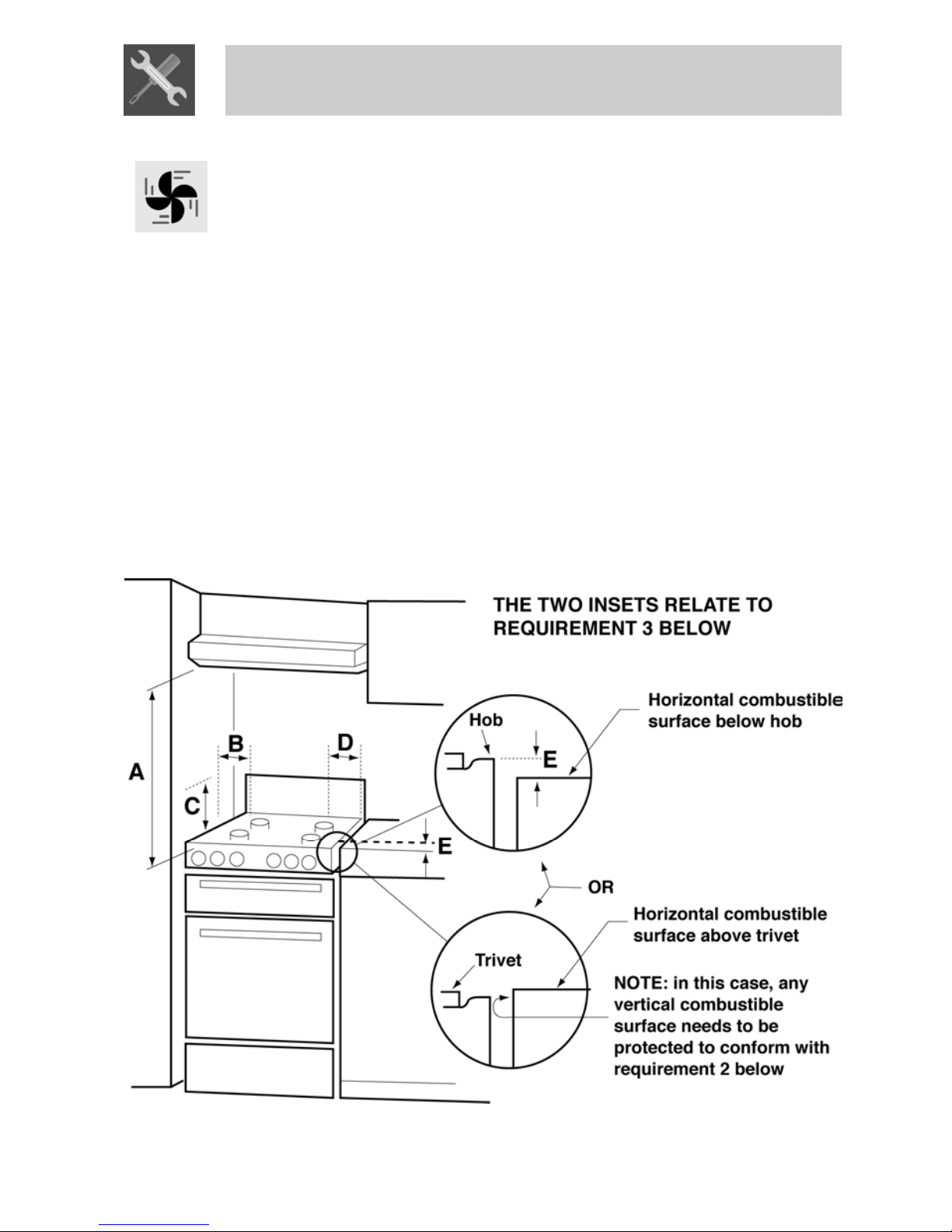

2.4 Clearance above and around domestic cookers
Extract from AS5601
8

Instructions for the installer
REQUIREMENTS
1Overhead clearances – (Measurement A)
Range hoods and exhaust fans shall be installed in accordance with
the manufacturer’s instructions. However, in no case shall the
clearance between the highest part of the hob of the cooking
appliance and a range hood be less than 600 mm or, for an overhead
exhaust fan, 750 mm.
Any other downward facing combustible surface less than 600 mm
above the highest part of the hob shall be protected for the full width
and depth of the cooking surface area in accordance with Clause
5.12.1.2. However, in no case shall this clearance to any surface be
less than 450 mm.
2Side clearances – (Measurements B& C)
Where B, measured from the periphery of the nearest burner to any
vertical combustible surface, is less than 200 mm, the surface shall
be protected in accordance with Clause 5.12.1.2 to a height Cof not
less than 150 mm above the hob for the full dimension (width or
depth) of the cooking surface area. Where the cooking appliance is
fitted with a ‘splashback’, protection of the rear wall is not required.
3Additional requirements for Freestanding and Elevated Cooking
Appliaces – (Measurements D& E)
Where D, the distance from the periphery of the nearest burner to a
horizontal combustible surface is less than 200 mm, then Eshall be
10 mm or more, or the horizontal surface shall be above the trivet.
See insets above.
NOTES
1Requirement 3 does not apply to a freestanding or elevated
cooking appliance which is designed to prevent flames or the
cooking vessels from extending beyond the periphery of the
appliance.
2The ‘cooking surface area’ is defined as that part of the
appliance where cooking normally takes place and does not
include those parts of the appliance containing control knobs.
3For definition of hob, see Clause 1.4.64.
4For definition of trivet, see Clause 1.4.109.
5Consideration is to be given to window treatments when
located near cooking appliances. See Clause 5.3.4.
9

Instructions for the installer
3. ADAPTATIONTO DIFFERENTTYPES OF GAS
Before performing any cleaning or maintenance work, disconnect the
appliance from the mains.
The hob of the cooker is adjusted for use with natural gas at a pressure
of 1.0kPa. If used with other types of gas, you have to replace the
nozzles, then adjust the minimum flame on the gas taps. For nozzle
replacement and burner adjustment operate as described in the following
paragraph.

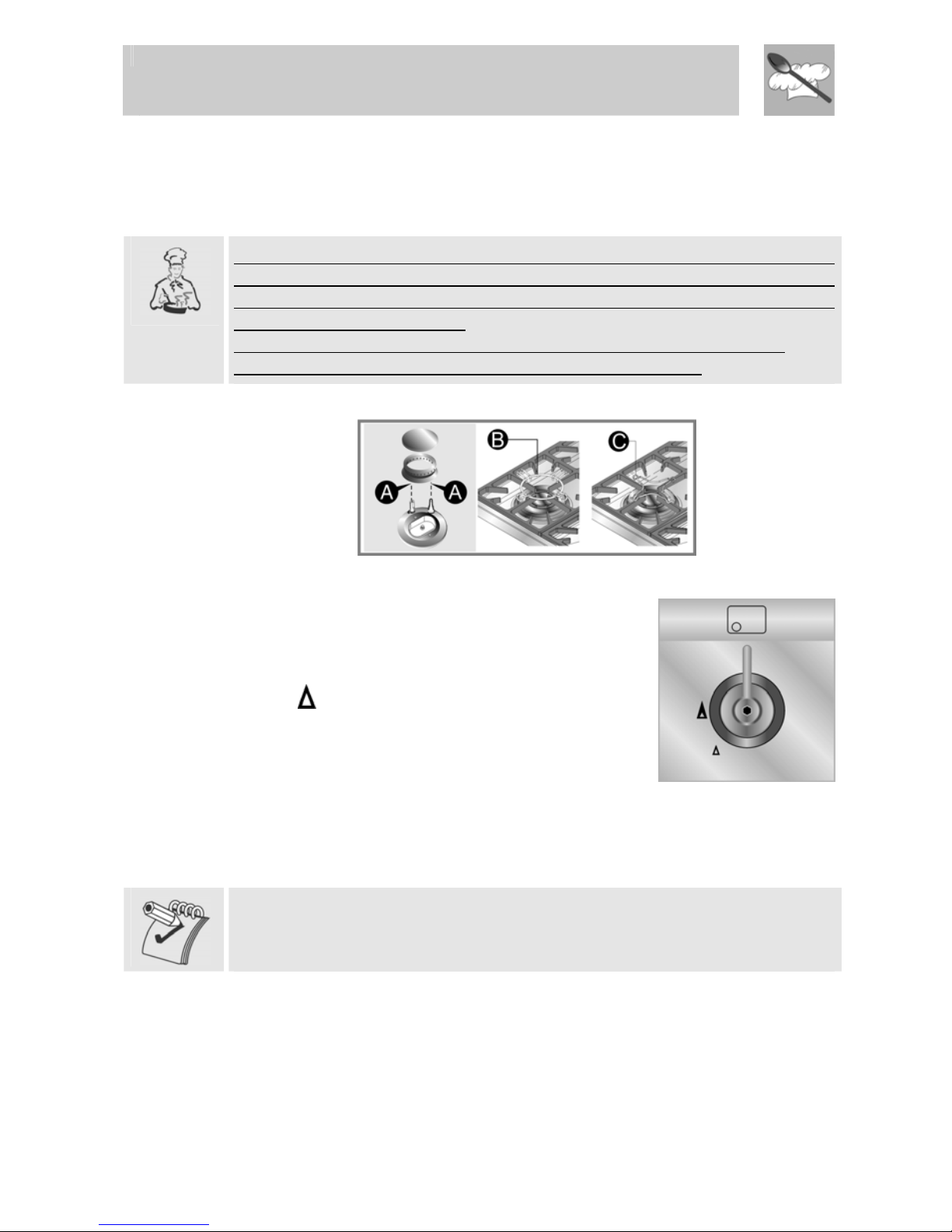

3.1 Replacement of nozzles on the hob
This operation requires no primary air regulation.
1. Extract the grids and remove all the caps and flame-spreader
crowns;
2. unscrew the burner nozzles with a 7 mm socket wrench;
3. replace the nozzles according to the type of gas to be used and the
description in paragraph "3.2 Burner and nozzle characteristics
table".
4. Replace the burners in the correct position.
10

Instructions for the installer

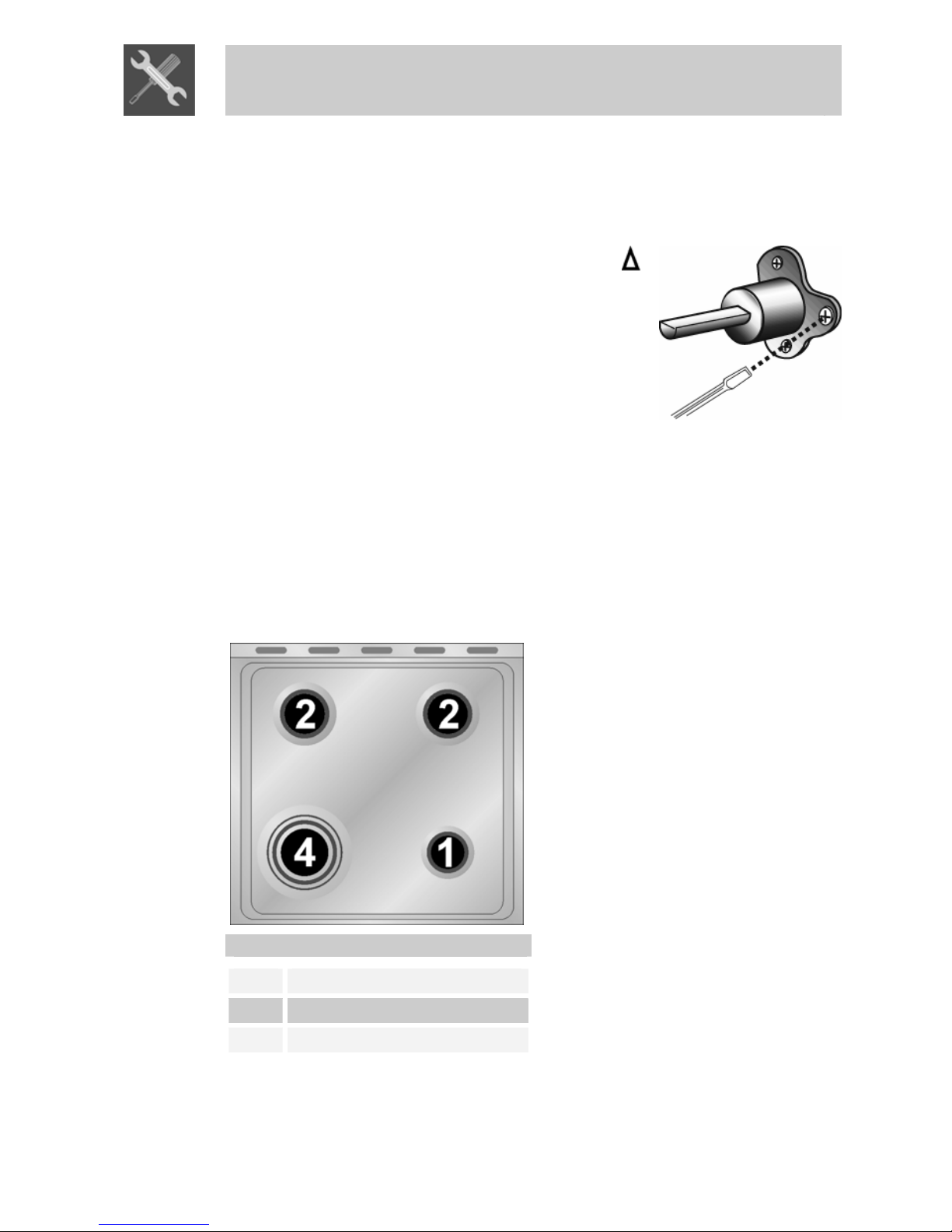

3.2 Burner and nozzle characteristics table
Burner LPG (PROPANE)–2.75 KPa
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Auxiliary 3.6 1.26 54
Semi rapid 6.3 1.62 68
Triple crown 11.52 5.4 100
Burner NG –1.0 KPa
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Auxiliary 3.6 1.26 90
Semi rapid 6.3 1.62 120
Triple crown 12.78 4.32 175
11

Instructions for the installer
4. FINAL OPERATIONS
After replacing the nozzles, reposition the flame-spreader crowns, the
burner caps and the grids.
4.1 Adjustment of the hob burner minimum level for natural gas
Light the burner and take it to the minimum .
Remove the gas tap knob and turn the
adjustment screw inside of the tap shaft
(depending on the model) until there is a regular
minimum flame. Replace the knob and check
burner flame stability: (rapidly turning the knob
from maximum to minimum position, the flame
should not go out). Repeat the operation on all
the gas taps.
4.2 Adjustment of the hob burner minimum level for LPG
(propane)
To regulate the minimum for LPG (propane), completely tighten
(clockwise) the screw inside or next to the gas tap pin (depending on the
model).
4.3 Arrangement of the burners on the hob
Burners
1 Auxiliary
2 Semi rapid
4 Wok
12

Instructions for the installer

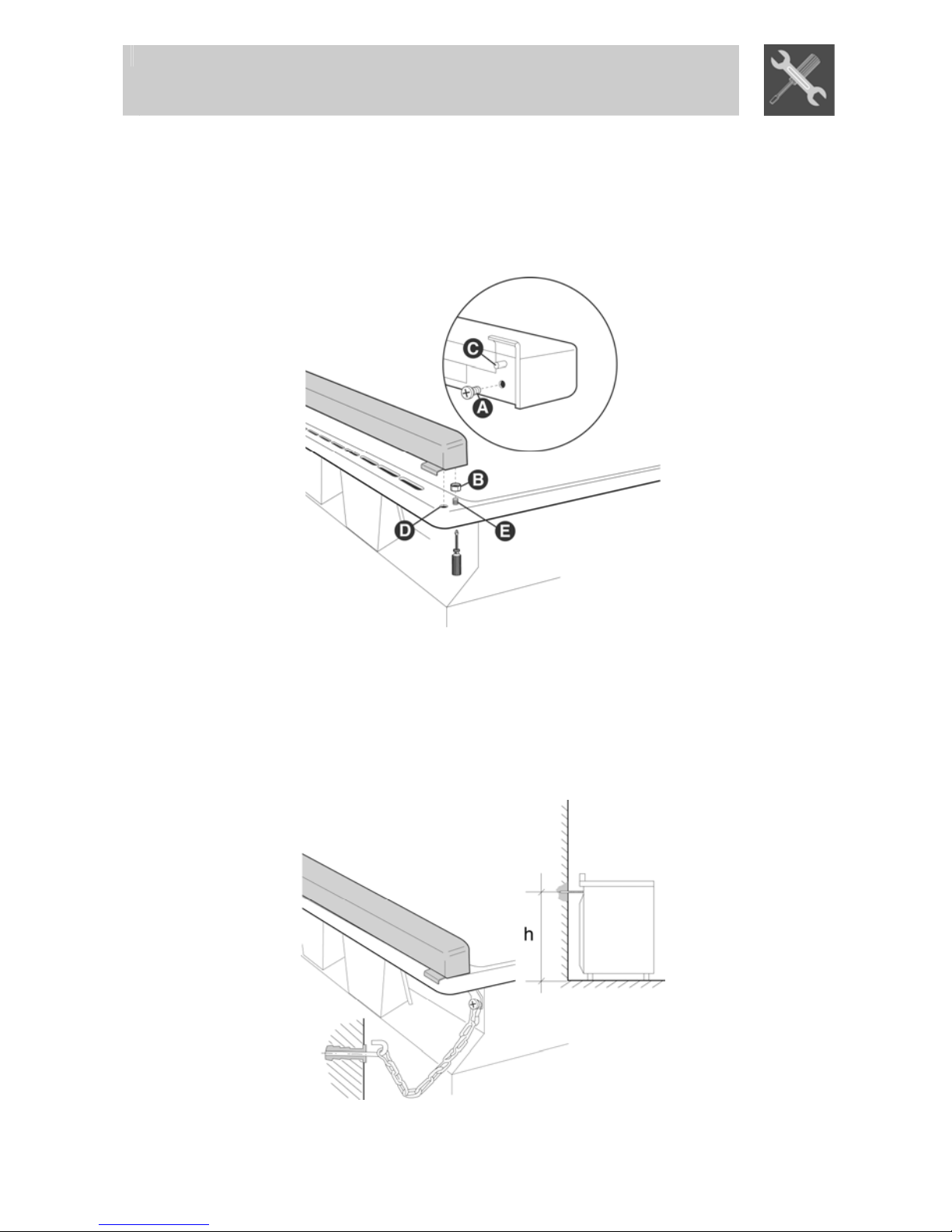

4.4 Mounting the rear top skirtboard (where applicable)
•Loosen screws Alocated beneath the skirt.
•Loosen nuts B.
•Position the skirt above the top, taking care to align pins Cwith holes D.
•Secure the skirt to the top by tightening screws E.
4.5 Wall fixing
•Stretch out the chain attached to the cooker horizontally so that the
other end touches the wall.
•Mark the wall in the position where the hole is to be drilled.
•Drill the hole, insert the finned dowels and attach the chain.
•Move the cooker up against the wall.
13

Instructions for the user

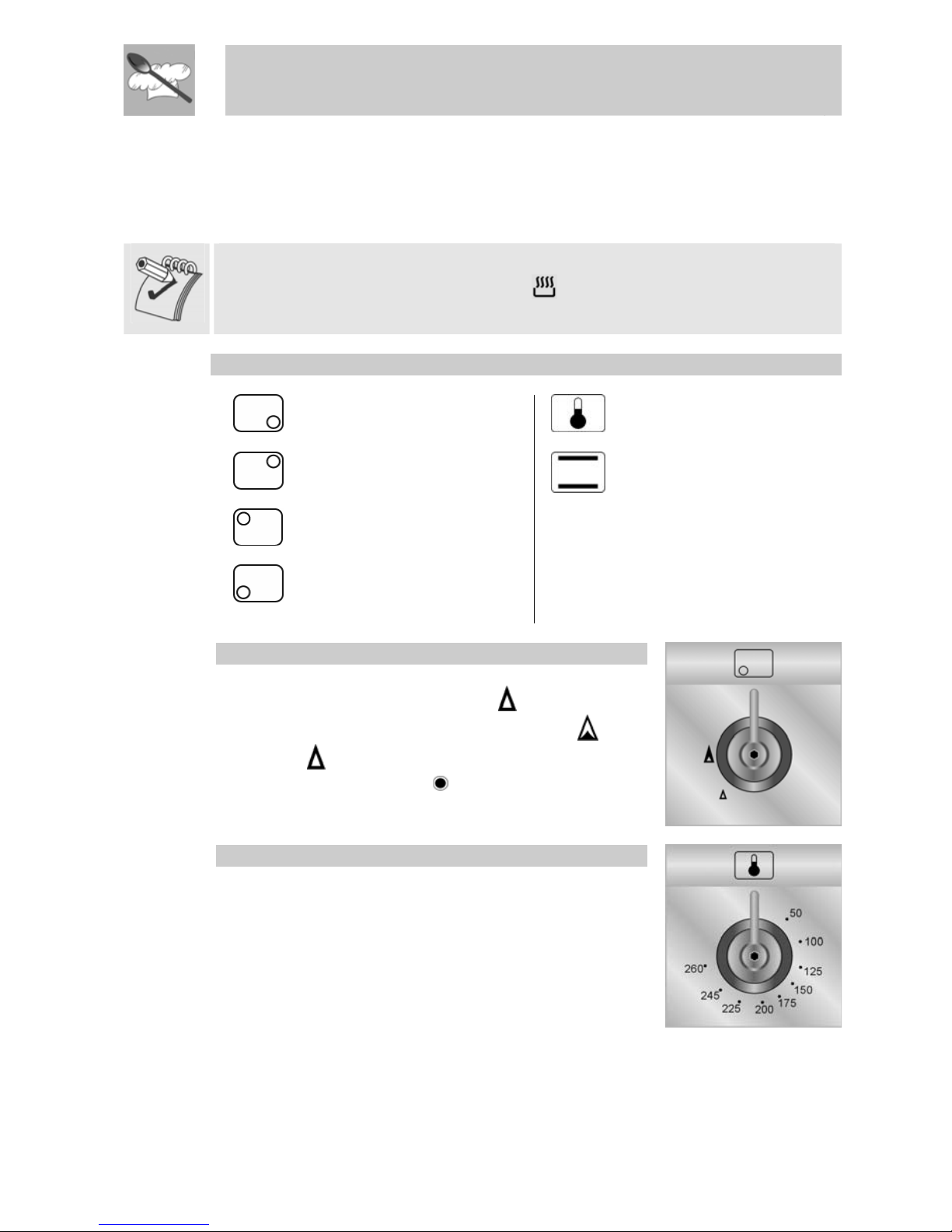

5. DESCRIPTION OF CONTROLS
5.1 Front control panel
All the cooker controls and commands are on the front panel.
If the cooker is equipped with an electronic programmer, before using the
oven make sure that the symbol ; appears on the display. See
paragraph “5.2.1 Clock adjustment”.
DESCRIPTION OF SYMBOLS
FRONT RIGHT BURNER ELECTRIC OVEN
THERMOSTAT
BACK RIGHT BURNER
ELECTRIC OVEN
FUNCTION KNOB
BACK LEFT BURNER
FRONT LEFT BURNER
HOB BURNER COMMAND KNOB
The flame is lit by pressing the knob and turning it
anticlockwise to minimum flame . To adjust the
flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob
is returned to the position .
ELECTRIC OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by
turning the knob clockwise to the required
temperature, between 50° and 260°C.
If the appliance has an electric oven, the warning
light will come on when the oven is heating up.
When it goes out it means that the required
temperature has been reached. Regular flashing
means that oven temperature is being constantly
maintained at the programmed level.
14

Instructions for the user
ELECTRIC OVEN CONTROL KNOB
Each of the functions listed below can be used
(except the oven light and the small grill) only
together with the correct temperature thermostat
regulation as described on page 14 of this manual.
OVEN LIGHT GRILL ELEMENT + VENTILATION
UPPER AND LOWER
HEATING ELEMENT
LOWER HEATING ELEMENT +
VENTILATION
GRILL ELEMENT VENTILATED HEATING ELEMENT
+ VENTILATION
15

Instructions for the user
5.2 Electronic Programmer
The programmer user instructions are valid only for the main oven.
LIST OF FUNCTIONS
MINUTE-COUNTER KEY
COOKING TIME KEY
END-OF-COOKING KEY
DECREASE TIME KEY
INCREASE TIME KEY

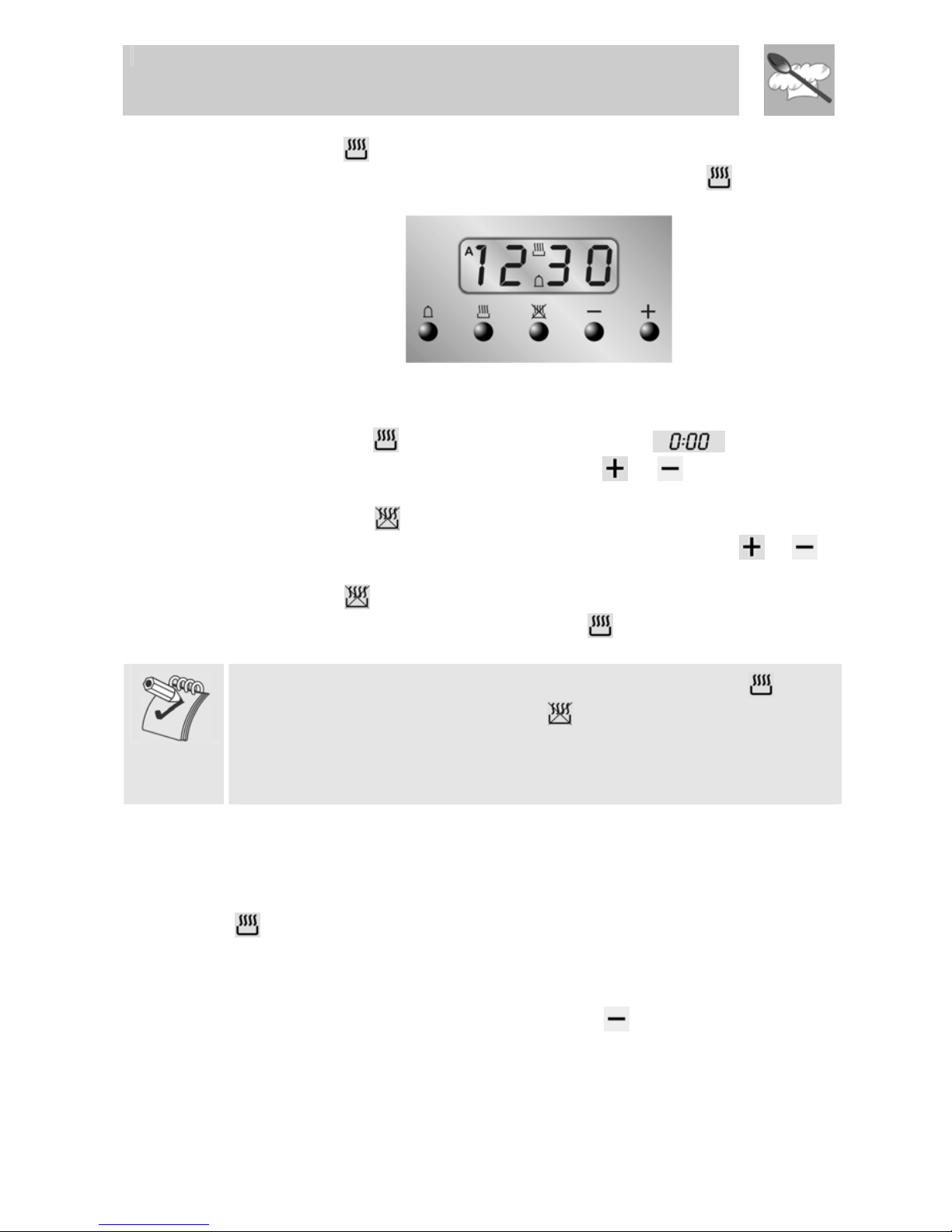

5.2.1 Clock adjustment
When using the oven for the first time, or after a power failure, the display
flashes regularly and indicates . Press the keys and at
the same time the keys o : each single press changes the time by
1 minute either up or down.
Before setting the programmer activate the desired function and
temperature.
5.2.2 Semiautomatic cooking
Use this setting for automatic oven switch-off at the end of cooking time.
By pressing key , the display lights up, showing ; keep the key
pressed and at the same time, press keys o to set the cooking
time.
16

Instructions for the user
Release key to start the programmed cooking time count. The display
will now show the right time together with symbols Aand .
5.2.3 Automatic cooking
Use this setting to automatically start and stop the oven.
By pressing key , the display lights up showing ; keep the key
pressed and at the same time, press keys or to set the cooking
time.
By pressing key the sum of the right time + cooking time will appear;
keep the key pressed and at the same time, press keys o to
regulate the end of cooking time.
Release key to start the programmed count and the display will show
the right time together with symbols A and .
After set-up, to see the cooking time remaining, press the key ; to see
the end of cooking time press the key .
Set-up with incoherent values is logically prevented (e.g. the contrast
between a cooking time and a longer period will not be accepted by the
programmer).
5.2.4 End of cooking
When cooking is over, the oven will automatically switch off and, at the
same time, an intermittent alarm will sound. After switching off the alarm,
the display will once again show the right time together with the symbol
, indicating that the oven has returned to manual operation mode.
5.2.5 Adjusting alarm volume
The acoustic alarm has three different settings. These can be operated,
while the alarm is sounding, by pressing key .
17

Instructions for the user
5.2.6 Switching off the alarm
The alarm switches off automatically after seven minutes. They can be
manually de-activated by pressing the keys and together.
5.2.7 Minute Counter
The programmer can also be used as a simple minute counter. By
pressing key , the display shows ; keep the key pressed and
at the same time press keys o . On releasing the key ,
programmed counting will begin and the display will show the current
time and the symbol .
After set-up, to see the remaining time, press the key .
Use as a minute counter does not interrupt functioning of the oven at the
end of the programmed time.
5.2.8 Cancellation of set data
Once the programme has been set, keep the key of the function to be
cancelled pressed, while at the same time is reached by means
of variation keys o . Time cancellation will be considered as end-of-
cooking time by the programmer.
5.2.9 Changing the set data
The cooking data entered can be changed at any time by keeping the
function key pressed and at the same time adjusting the keys o .
5.3 Analogue clock (only on equipped models)
The mechanical timer is set by turning the knob
clockwise.
The timer can be set from 0to 55 minutes. At
the end of the cooking time, an alarm signal will
be heard: to stop the alarm turn the external
part of the knob to position .
The clock is set by pulling the knob and turning
it clockwise.
18

Instructions for the user
6. USE OFTHE HOB
6.1 Lighting of the hob burners
Before lighting the hob burners check that the flame caps are in the
correct position and that their burner caps are in place, making
sure that the holes A in the flame caps correspond to the spark
plugs and thermocouples.
The optional grid B must be used with “woks” (Chinese pans).
The supplied reduction rest C is used for small pans.
The drawing next to each knob shows the
corresponding burner. The appliance has an
electronic lighting device. Simply press and turn
the knob anticlockwise to the minimum flame
symbol , until the ring is lit. Hold the knob down
for a few seconds to allow the thermocouples to
heat up. The burner may go out when the knob is
released: this is because the thermocouple has
not been sufficiently heated. Repeat the
operation holding down the knob for a little
longer. This operation is not necessary for
burners without thermocouples.
For models with thermocouples, if the burner should accidentally go out,
a safety device will be activated which stops the gas flow even if the tap
is open.
19

Instructions for the user
6.2 Practical advice for using the hob burners
For better use of the burners and lower gas consumption, use covered
containers that are proportional in size to the burner to prevent the flame
from licking the sides (see paragraph “6.3 Diameter of containers”).
When water reaches the boiling point, lower the flame so that it doesn’t
overflow. To avoid burns or damage to the hob, all recipients or griddle
plates must be placed within the perimeter of the hob. All containers
have to have a flat and smooth bottom. When using fats or oils, be
extremely careful that they don’t overheat and catch fire.
If the flame accidentally goes out, turn off the control knob and wait at
least 1 minute before trying to re-light the burner.

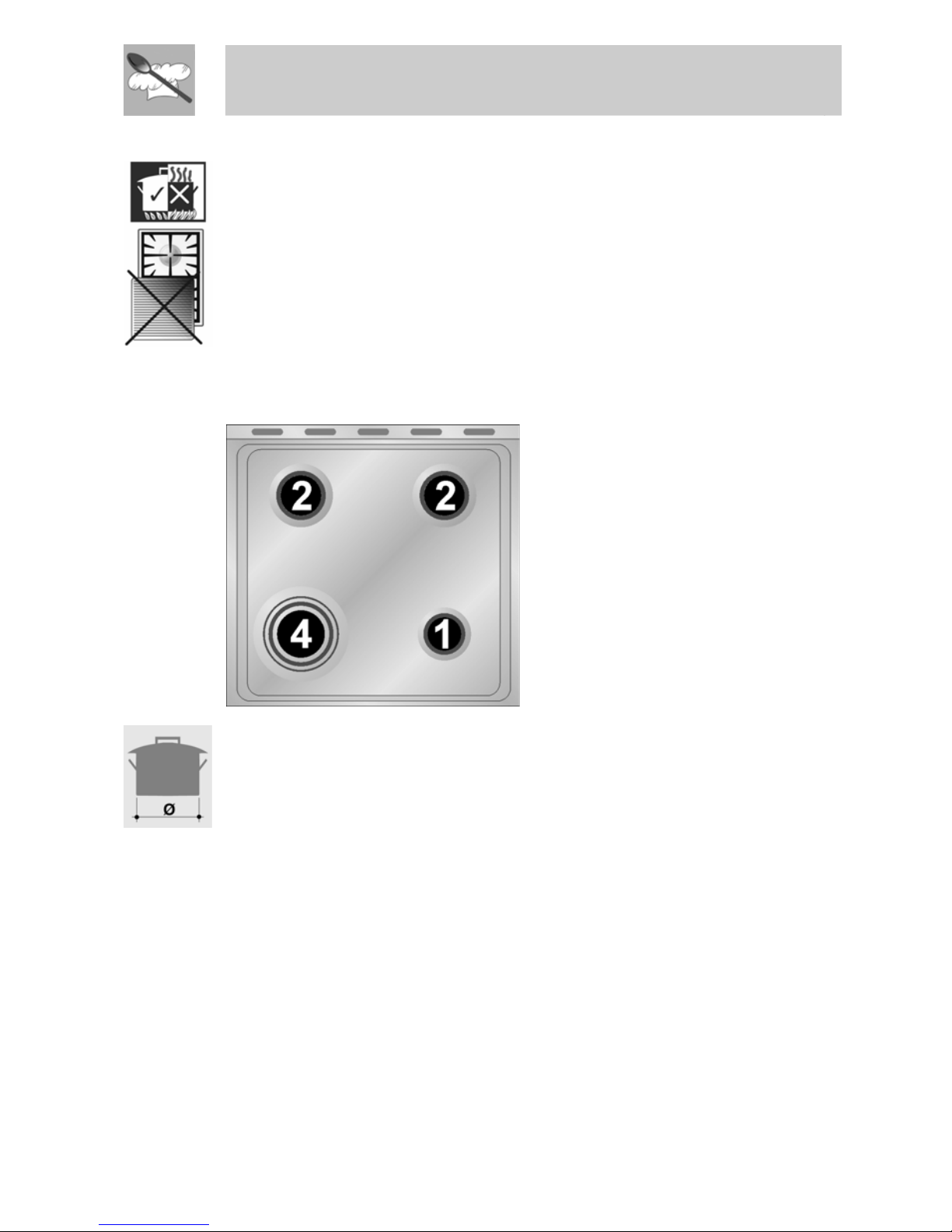

6.3 Diameter of containers
BURNERS
1Auxiliary
2Semi rapid
3Rapid
4Triple crown
Ø min. and max.
(in cm)
12-14
16-24
18-26
18-26
20

Instructions for the user
7. USE OFTHE OVEN
For those models with electronic programmer, before using the oven
make sure that the display shows the symbol .
For those models with analogue clock and timer, place on the symbol
.
7.1 Warnings and general advice
Using the oven and the grill for the first time, heat them to the maximum
temperature (260°C) for as long as it takes to burn off any production oil
residues which could give a nasty flavour to the food. After a power cut,
the oven display will flash intermittently and show . To adjust
refer to paragraph “5.2 Electronic Programmer”.
To prevent any steam in the oven creating problems,
open the door in two stages: half open (5 cm
approx.) for 4-5 seconds and then fully open. To
access food, always leave the door open as short a
time as possible to prevent the temperature in the
oven from falling and ruining the food.
7.2 Use of the electric grill
For short cooking procedures, such as the final crisping of meat which is
already cooked, select the static grill function and turn the thermostat
knob to the maximum temperature. The fan grill function allows actual
cooking procedures to be carried out, thanks to the fan function which
ensures that the heat penetrates into the food. For this cooking mode,
select the fan grill function and turn the thermostat knob to the ideal
cooking temperature (never set at more than 220). Cooking procedures
in this mode must never last more than 60 minutes.
All cooking with the grill and grill + spit must be done with the door
closed to prevent the knobs and the front panel of the equipment to
overheat.
Failure to do this will void the warranty.
How to use the grill
Food should be flavoured and basted with oil or melted butter before cooking.
An oven dish should be used to contain the sauces. The food should be
placed on the oven shelf which is positioned on one of the guides supplied
with the different ovens, following the instructions below:
21

Instructions for the user
FOOD GRILLE ON THE SHELF
Flat or thin meat 3
Rolled roast joints 2 – 3
Poultry 2 – 3
WARNING
•The oven accessories which may come into contact with food are
made from materials which conform to the standing directives.
•During and after use the accessible parts of the oven may be very hot,
and children must always be kept at a distance.
7.3 Storage compartment
A storage compartment, accessible by pulling
on the top edge of the door, is located
beneath the oven.
Never store inflammable materials such as
rags, paper or the like. The compartment is
intended only for holding the metal
accessories of the range.
22
