Smeg ALFA140UK User manual

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Identification plate 5
1.3 Manufacturer liability 5
1.4 Appliance purpose 5
1.5 Disposal 5
1.6 This user manual 6
1.7 How to read the user manual 6
2 Description 7
2.1 General Description 7
2.2 Control panel 7
2.3 Other parts 8
3 Use 9
3.1 Instructions 9
3.2 First use 10
3.3 Using the oven 10
3.4 Cooking modes 10
4 Cleaning and maintenance 11
4.1 Instructions 11
4.2 Cleaning the surfaces 11
4.3 Ordinary daily cleaning 11
4.4 Food stains or residues 11

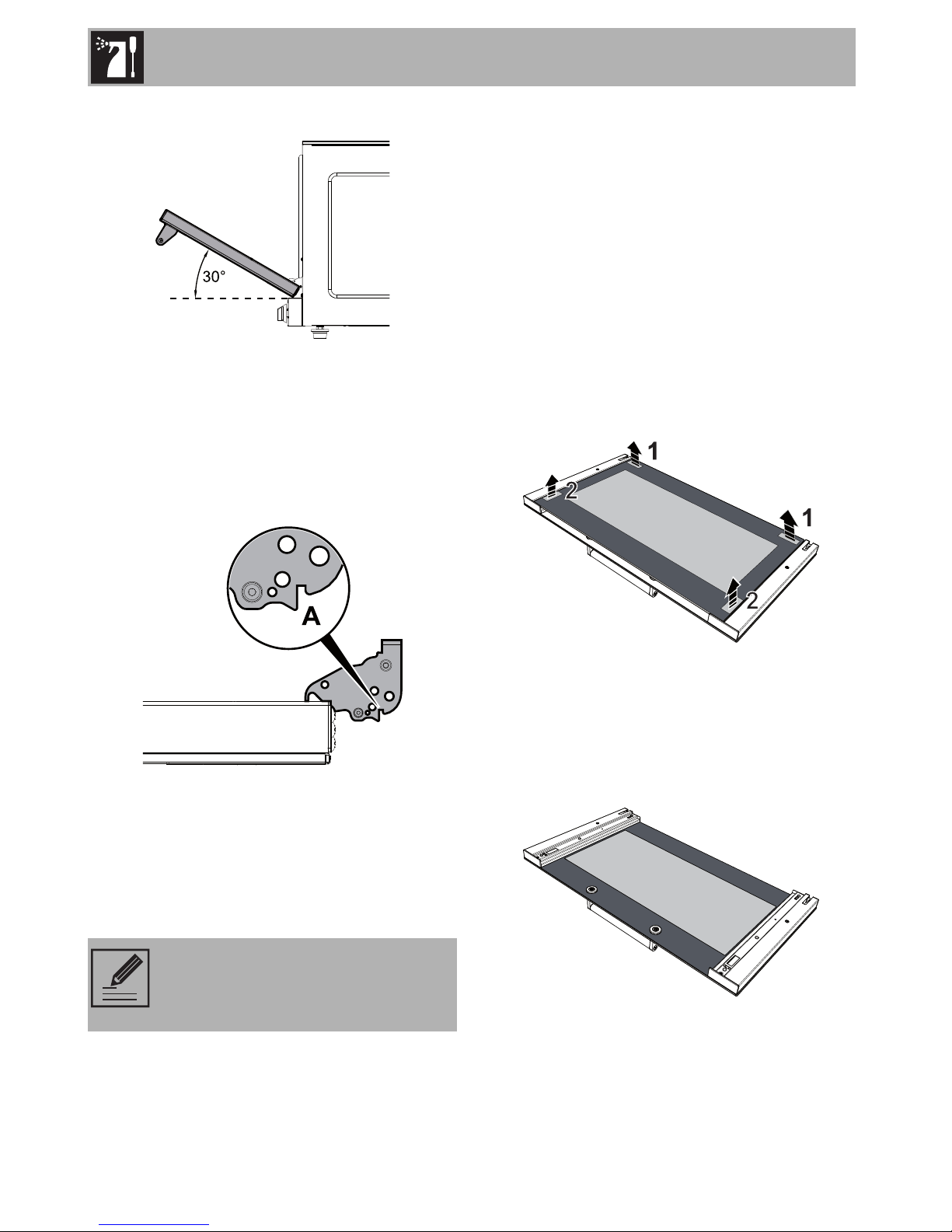

4.5 Removing the door 11
4.6 Cleaning the door glazing 12
4.7 Removing the internal glass panels 12
4.8 Cleaning the inside of the oven 13
4.9 Extraordinary maintenance 14
4.10 If the appliance is not working properly 15
5 Installation 16
5.1 Electrical connection 16
5.2 Positioning 17
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
ORIGINAL INSTRUCTIONS

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Children must never play with the
appliance.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Do not place containers with
liquids or food products which
can melt during cooking on the
upper shelves which are not
visible.
• The floor adjacent to the
appliance could be very slippery.
Pay close attention.
Risk of damaging the appliance
• Racks and trays have to be
inserted into the side guides until
they come to a complete stop.
The mechanical safety locks that
prevent the rack from being taken
out accidentally have to face
downwards and towards the
oven back.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers
and metallic sponges).
• Do not use steam jets to clean the
appliance.

Instructions
5
EN
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Remove any food residues or
large spills from previous cooking
operations from the inside of the
oven.
For this appliance
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.
• Have the condition of the
components checked regularly by
Technical Support.
1.2 Identification plate
• The identification plate bears the
technical data, serial number and brand
name of the appliance. Do not remove
the identification plate for any reason.
1.3 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than as
envisaged;
• Non-observance of the user manual
provisions;
• Tampering with any part of the
appliance;
• Use of non-original spare parts.
1.4 Appliance purpose
This appliance is intended for cooking food
in the professional environment. Every other
use is considered improper.
This appliance must not be used by people
(including children) of reduced physical or
mental capacity, or lacking in experience in
the use of electrical appliances, unless they
are supervised or instructed by adults who
are responsible for their safety.
1.5 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Unplug the appliance.

Instructions
6
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packed in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone use instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
7
EN
2 Description

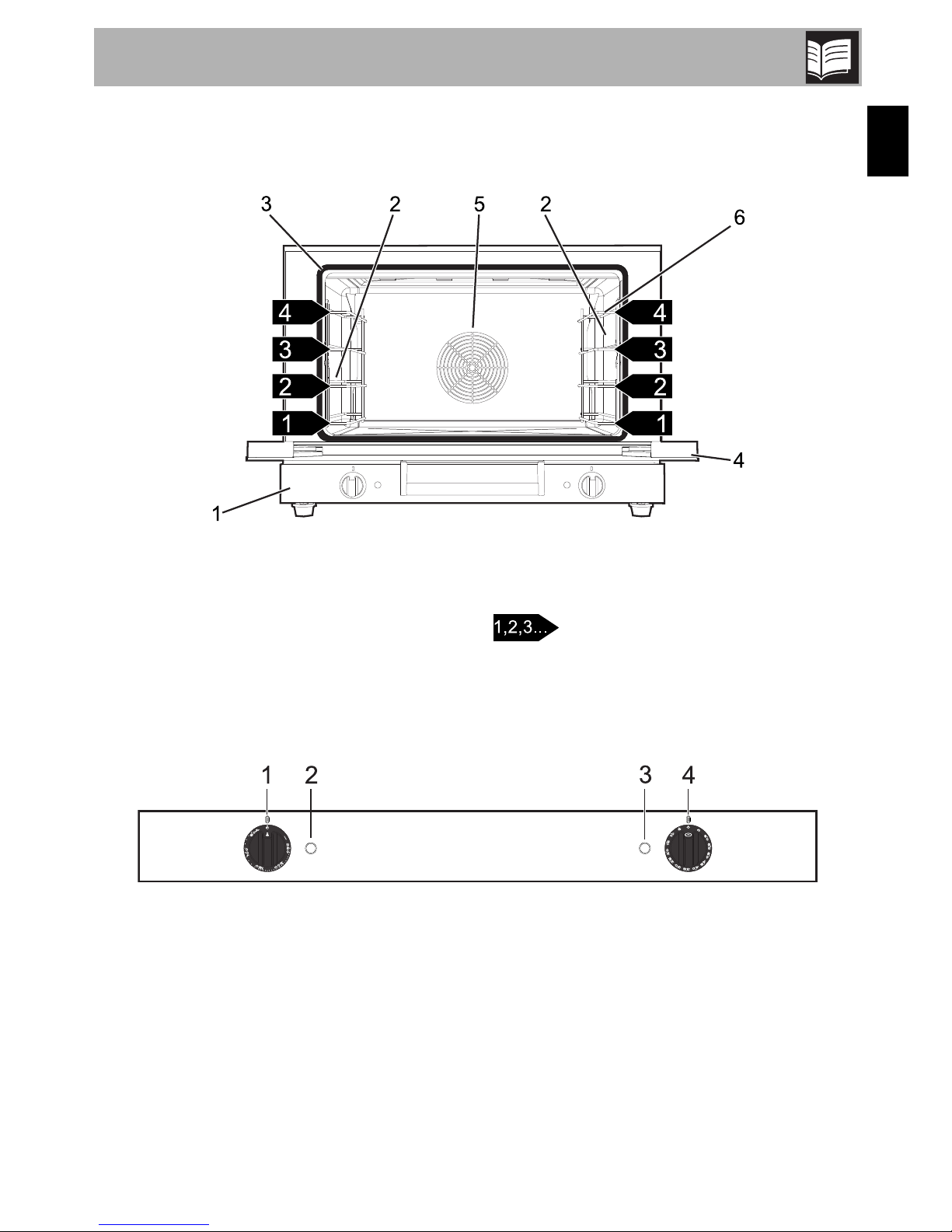

2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Oven fan
6 Rack/tray support frames
Frame shelf
2.2 Control panel
1 Temperature/function knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
settings.
2 Thermostat indicator light
When the indicator light is fixed, it indicates
that the oven is heating up to reach the set
temperature. Once the temperature has
been reached, the indicator light comes on
and goes off to indicate that the
temperature is being kept constant.

Description
8
3 Timer indicator light
When off, it indicates the beginning of
timed cooking. When on, it indicates that
timed cooking has finished.
4 Timer knob
This knob allows you to select manual or
timed cooking. Turn the knob to symbol
for manual cooking or to the numbers to
select the minutes of cooking. Once the
countdown has finished, the knob will
automatically return to the “0” position, the
oven switches off and a beep sounds to
indicate the end of cooking.
2.3 Other parts
Shelves
The appliance features shelves for
positioning trays and racks at different
heights. The insertion heights are indicated
from the bottom upwards (see 2.1 General
Description).
Internal ventilation
The counter rotating fan(s) deactivate
automatically when the door is opened and
resume operation when the door is closed.
Interior lighting
The oven interior lighting comes on when
the door (depending on the model) is
opened or any function is selected.
Safety thermostat
The appliance is equipped with a safety
device that triggers in case of serious
malfunction. To re-arm the safety device
press the button on the back.
Contact technical support
immediately after the safety device
has triggered to check if there are
any faults.

Use
9
EN
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to get near the
oven when it is in operation.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove from the oven compartment all
trays and racks not used during cooking.
Improper use
Risk of damage to enamelled
surfaces
• Do not cover the bottom of the cooking
compartment with aluminium or tin foil
sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the cooking compartment.
• Do not pour water directly onto very hot
trays.

Use
10
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the cooking
compartment.
3. Remove and wash all the appliance
accessories (if fitted) (see 4 Cleaning
and maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
3.3 Using the oven
Switching the oven on
To switch the oven on:
1. Select the cooking temperature and
function using the temperature knob.
2. Select the cooking time or set manual
cooking using the timer knob.
3.4 Cooking modes
The oven is designed for a
maximum load of 12 kg.
Defrosting
The movement of air at room
temperature causes frozen food to
defrost quickly. This type of rapid
defrosting is ideal as the taste and
appearance of the de-frozen food,
whether previously deep-frozen or
frozen in the freezer, remain
unaltered.
Normal cooking
Using the fan and the circular
heating elements (incorporated in
the rear of the oven) allows you to
cook different foods on several
levels. Hot air circulation ensures
instant and uniform distribution of
heat.

Cleaning and maintenance
11
EN
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
4.3 Ordinary daily cleaning
Always use only specific products that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
4.4 Food stains or residues
Do not use metallic sponges or sharp
scrapers as they will damage the surfaces.
Use ordinary non-abrasive products with
the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a
soft cloth or a microfibre cloth.
4.5 Removing the door
For easier cleaning, the door can be
removed and placed on a canvas.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
Improper use
Risk of damage to surfaces
• Do not use steam jets for cleaning the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic finishes on the
surface (e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents on glass parts (e.g. powder
products, stain removers and metallic
sponges).
• Do not use rough or abrasive materials
or sharp metal scrapers.

Cleaning and maintenance
12
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections Aare resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
4.6 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
4.7 Removing the internal glass
panels
For easier cleaning the door internal glass
panels can be disassembled.
1. Remove the internal glass panel by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). In
this way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Clean the external glass panel and the
panels previously removed. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
We recommend the use of
cleaning products distributed by
the manufacturer.

Cleaning and maintenance
13
EN
4. Reposition the internal glass panel. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
4.8 Cleaning the inside of the oven
For the best oven upkeep, clean it regularly
after having allowed it to cool.
Removing racks/trays support frames
Removing the guide frames enables the
sides to be cleaned more easily.
unscrew the fastening pins of the frame.
To remove the guide frames, pull the frame
upwards to unhook it from its groove, then
slide it out of the seats at the back.
When cleaning is complete, repeat the
above procedures to put the guide frames
back in.
The oven should be operated at
the maximum temperature for
about 15-20 minutes after the use
of specific products, to burn off the
residues left inside the oven.
For easier cleaning, remove the
door.

Cleaning and maintenance
14
4.9 Extraordinary maintenance
Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the racks/trays support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
4. Slide out and remove the light bulb.
5. Replace the light bulb with one of the
same type (40W).
6. Refit the cover correctly, so that the
moulded part of the glass is facing the
door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Removing the door seal
To permit thorough cleaning of the oven, the
door seal may be removed. There are
fasteners on all four sides and in the middle
to attach it to the edge of the oven. Pull the
edges of the seal outwards, where
indicated to detach it.
To keep the seals clean, use a non-abrasive
sponge and lukewarm water. Seals should
be soft and elastic.
Live parts
Danger of electrocution
• Disconnect the oven power supply.
Do not touch the halogen light
bulb directly with your fingers, but
wrap it in insulating material.

Cleaning and maintenance
15
EN
4.10 If the appliance is not working properly
This product meets the current safety
regulations in force for electrical
appliances. To prevent safety hazards for
users, all technical inspections or repairs
must be carried out by qualified personnel.
Problem Likely solution
The oven is not working
• The timer knob is positioned on 0.
• The plug is not properly inserted in the
socket.
• The electrical system is damaged or not
working properly.
• The fuses have blown or the circuit breakers
have not been activated.
Foods either take too long or too little to
cook
• The temperature setting is incorrect.
Moisture forms inside the oven and on the
foods
• The foods are being left in the oven for too
long after cooking. Do not leave them in the
oven for more than 15-20 minutes after the
end of the cooking time.
If the appliance is not working
properly, before calling Customer
Service, ensure that the
procedures listed below have
been performed.

Installation
16
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The appliance is provided with a five-core
H07RN-F cable (3 x 1.5 mm² referring to
the cross section of the internal conductor).
Connection modes:
• 220-240 V 1N~
Use a 3 x 4 mm² three-core cable.
• 380-415 V 2N~
Use a 4 x 2.5 mm² four-core cable.
• 380-415 V 3N~
Use a 5 x 1.5 mm² five-core cable.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the main power supply.
• Do not pull the cable to remove the
plug.
• Use H07RN-F cables withstanding a
temperature of at least 90°C.
• The tightening torque of the screws of
the terminal supply wires must be 1.5 - 2
Nm.
The terminal indicated by symbol
links up parts that are normally
earthed. Connect the appliances
appropriately using this terminal in
order to make sure that they are
equipotential.
If the phase voltage drops below
190V~, the performance of the
oven may suffer, not due to the
product itself.
The values indicated above refer
to the cross-section of the internal
conductor.

Installation
17
EN
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
Cable replacement
1. Unscrew the rear casing screws and
remove the casing to access the terminal
board.
2. Replace the cable.
3. Make sure that the cables follow the best
route in order to avoid any contact with
the appliance.
5.2 Positioning
Levelling
Level the appliance on the ground using the
adjustable feet. The foot has a range of 10
mm.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
Heavy appliance
Danger of crush injuries
• Position the appliance with the aid of a
second person.
Pressure on the open door
Risk of damages to the appliance
• Never use the open door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (no less than
90°C).
Improper installation
Risk of damage to people
• The appliance support base should not
exceed a height of 160 mm from the
floor.

Installation
18
Steam outlet pipe
Depending on the model, there are two
exhaust flues on the back of the appliance
for releasing the steam produced during
cooking.
Multiple installations
Place the appliance at a distance of at least
50 mm from any back wall and at 30 mm
from any side wall. Keep a minimum
distance of 50 mm between the appliances
in the case of installation of multiple and
adjacent appliances.
The appliance support base should not
exceed a height of 1.60 m from the floor.
The appliance must be installed on a
worktop.
These must be left free of any
obstruction. Avoid crushing them.
Improper installation
Risk of damages to the appliance
• The appliances cannot be installed one
on top of the other without installing the
stack kit (on demand).
Weight: Kg 56.3
