Smeg KSET61E User manual

KSET61E
Libretto d’ uso
User manual
Manuel d’utilisation
Gebrauchsanleitung
Gebruiksaanwijzing
Manual de uso
Livro para utilização
Brugsvejledning
Användningshandbok
Руководство по эксплуатации
Instrukcja użytkowania
Bruksveiledning

2
2
INDICE
CONSIGLI E SUGGERIMENTI.............................................................................................................................................. 5
CARATTERISTICHE.............................................................................................................................................................. 6
INSTALLAZIONE ................................................................................................................................................................... 7
USO........................................................................................................................................................................................ 9
MANUTENZIONE ................................................................................................................................................................ 10
INDEX
RECOMMENDATIONS AND SUGGESTIONS ................................................................................................................... 11
CHARACTERISTICS ........................................................................................................................................................... 12
INSTALLATION.................................................................................................................................................................... 13
USE...................................................................................................................................................................................... 15
MAINTENANCE................................................................................................................................................................... 16
SOMMAIRE
CONSEILS ET SUGGESTIONS.......................................................................................................................................... 17
CARACTERISTIQUES......................................................................................................................................................... 18
INSTALLATION.................................................................................................................................................................... 19
UTILISATION ....................................................................................................................................................................... 21
ENTRETIEN......................................................................................................................................................................... 22
INHALTSVERZEICHNIS
EMPFEHLUNGEN UND HINWEISE ................................................................................................................................... 23
CHARAKTERISTIKEN......................................................................................................................................................... 24
MONTAGE ........................................................................................................................................................................... 25
BEDIENUNG........................................................................................................................................................................ 27
WARTUNG........................................................................................................................................................................... 28
INHOUDSOPGAVE
ADVIEZEN EN SUGGESTIES............................................................................................................................................. 29
EIGENSCHAPPEN .............................................................................................................................................................. 30
INSTALLATIE....................................................................................................................................................................... 31
GEBRUIK ............................................................................................................................................................................. 33
ONDERHOUD...................................................................................................................................................................... 34
INDICE
CONSEJOS Y SUGERENCIAS........................................................................................................................................... 35
CARACTERÍSTICAS ........................................................................................................................................................... 36
INSTALACIÓN ..................................................................................................................................................................... 37
USO...................................................................................................................................................................................... 39
MANTENIMIENTO............................................................................................................................................................... 40
IT
EN
FR
DE
NL
ES

3
3
ÍNDICE
CONSELHOS E SUGESTÕES............................................................................................................................................ 41
CARACTERÍSTICAS ........................................................................................................................................................... 42
INSTALAÇÃO....................................................................................................................................................................... 43
UTILIZAÇÃO ........................................................................................................................................................................ 45
MANUTENÇÃO.................................................................................................................................................................... 46
INDHOLD
RÅD OG ANVISNINGER ..................................................................................................................................................... 47
APPARATBESKRIVELSE ................................................................................................................................................... 48
INSTALLATION.................................................................................................................................................................... 49
BRUG................................................................................................................................................................................... 51
VEDLIGEHOLDELSE .......................................................................................................................................................... 52
INNHOLD
RECOMMENDATIONS AND SUGGESTIONS.............................................................................................53
CHARACTERISTICS.......................................................................................................................................54
INSTALLATION ..............................................................................................................................................55
USE....................................................................................................................................................................57
MAINTENANCE..............................................................................................................................................58
УКАЗАТЕЛЬ
СОВЕТЫ ИРЕКОМЕНДАЦИИ .......................................................................................................................................... 59
ХАРАКТЕРИСТИКИ............................................................................................................................................................ 60
УСТАНОВКА........................................................................................................................................................................ 61
ЭКСПЛУАТАЦИЯ................................................................................................................................................................ 63
УХОД.................................................................................................................................................................................... 64
SPIS TREŚCI
UWAGI I SUGESTIE............................................................................................................................................................ 65
WŁAŚCIWOŚCI TECHNICZNE........................................................................................................................................... 66
INSTALACJA........................................................................................................................................................................ 67
UŻYTKOWANIE................................................................................................................................................................... 69
KONSERWACJA ................................................................................................................................................................. 70
INNEHÅLL
REKOMMENDATIONER OCH TIPS ................................................................................................................................... 71
EGENSKAPER..................................................................................................................................................................... 72
INSTALLATION.................................................................................................................................................................... 73
ANVÄNDING........................................................................................................................................................................ 75
UNDERHÅLL........................................................................................................................................................................ 76
PT
DK
NO
RU
PL
SE

4
4
سﺮﻬﻔﻟا
تﺎﺣاﺮﺘﻗا وتادﺎﺷرا..............................................................................................................................................77
ﺺﺋﺎﺼﺨﻟا...........................................................................................................................................................78
ﺐﻴآﺮﺘﻟا.............................................................................................................................................................79
ماﺪﺨﺘﺳﻻا.............................................................................................................................................................81
ﺔﻧﺎﻴﺼﻟا ﺔﻴﻠﻤﻋ....................................................................................................................................................82
SA

EN 1
11
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accordingly, you may find
descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incorrect or improper
installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some
models can be installed at a lower height, please refer to the paragraphs on working dimensions
and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of
the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route
of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces,
etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a
sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of
exhaust gas. The kitchen must have an opening communicating directly with the open air in order
to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances
supplied with energy other than electric, the negative pressure in the room must not exceed 0,04
mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the
technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has
to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
USE
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not
engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given su-
pervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “ CAUTION: Accessible parts may become hot when used with cooking appliances.”.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance
work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
2°

EN 1
12

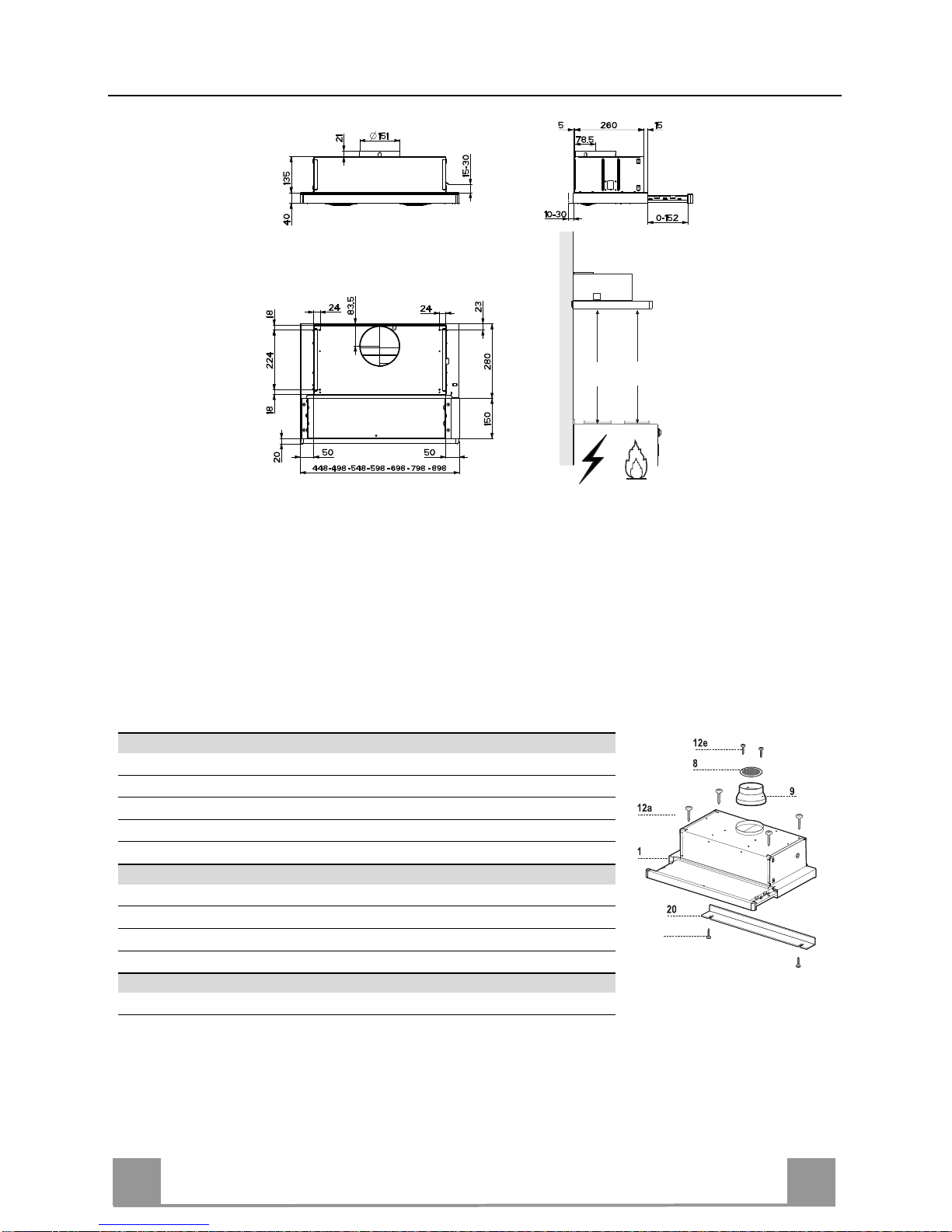

CHARACTERISTICS
Min.
500mm
Min.
650mm
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower, Filters
81 Directional Air Outlet grille
91 Reducer Flange ø 150-120 mm
20 1 Closing element
Ref. Q.ty Installation Components
12a 4 Screws 4,2 x 44,4
12b 2 Screws 4,2 x 12,7
12e 2 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
12b

EN 1
13
INSTALLATION
Drilling the Support surface and Fitting the Hood
SCREW FITTING
• The hood support surface must be 135 mm above the bottom
surface of the wall units.
• Drill the support with a ø 4,5 mm drill bit, using the drilling
template provided.
• Cut a hole ø 150 mm in size on the support surface, using the
drilling template provided.
• Fix using the 4 screws 12a (4,2 x 44,4) provided.
12a
135
150
CLOSING ELEMENT
• The space between the edge of the hood and the rear wall can
be closed by applying the element 20 provided, using the
screws 12b.
20
12b
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove possible charcoal filters.
ø 150
9
ø 120

EN 1
14

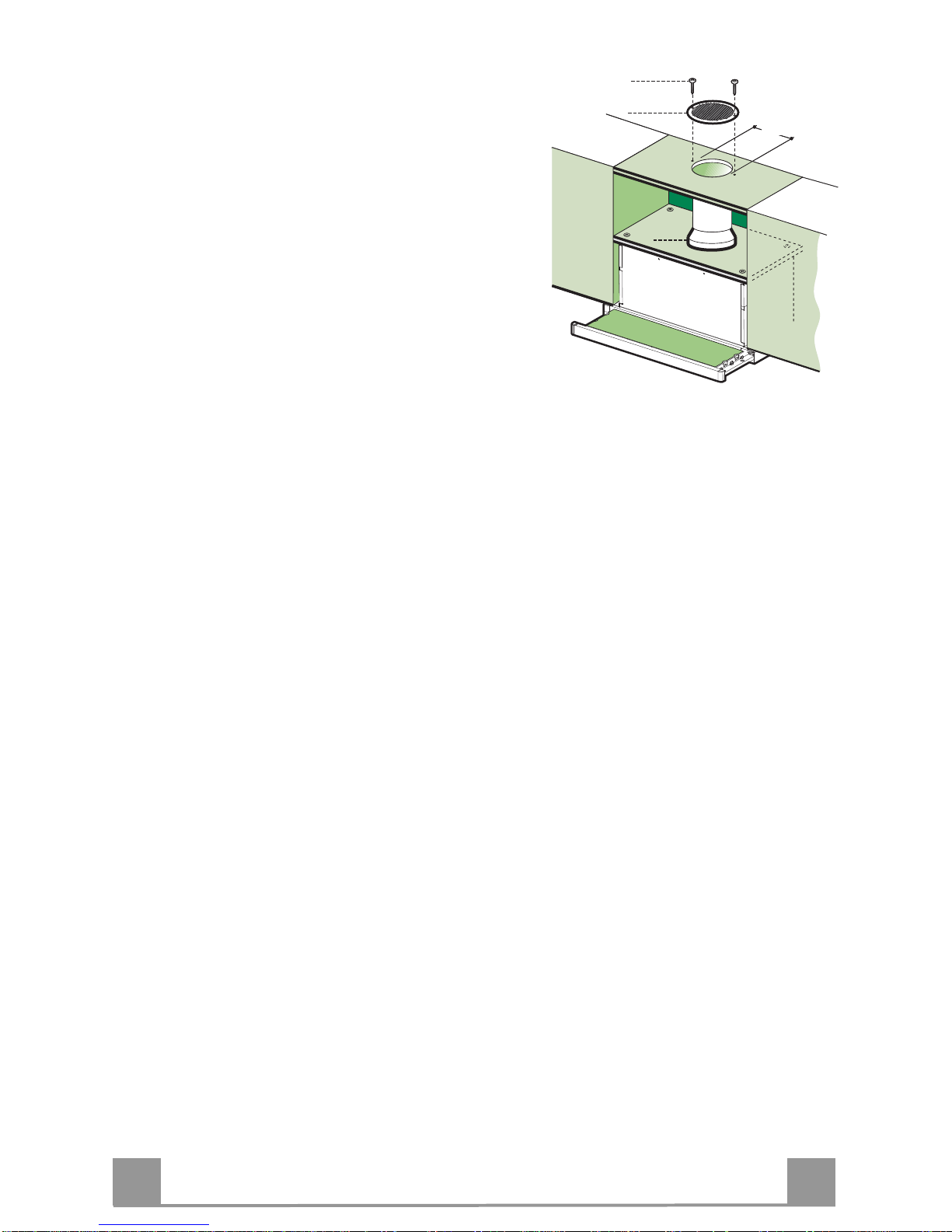

RECIRCULATION VERSION AIR OUTLET
• Cut a hole ø 125 mm in any shelf that may be posi-
tioned over the hood.
• Insert the reducer flange 9on the hood body outlet.
• Connect the flange to the outlet on the shelf over the
hood by using a flexible or rigid pipe ø120 mm.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Fix the air outlet grid 8on the recirculation air outlet
by using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have been
inserted.
8
9
125
8
9
125
12e
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3
mm.
• When opening the sliding carriage for the first time after installing the hood, pull it out
briskly until it clicks.

EN 1
15
USE
L
M - V
0
1
0
1
2
3
LLight Switches the lighting system on and off
M-V Speed Sets the operating speed of the extractor:
0. Motor Off.
1. Low speed, used for a continuous and silent air change in the presence o
light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimu
m
treated air flow/noise level ratio.
3. Maximum speed, used for eliminating the highest cooking vapour emis
sion, including long periods.

EN 1
16
MAINTENANCE
Grease filters
CLEANING METAL CASSETTE GREASE FILTERS
• The filters must be cleaned every 2 months, or more frequently
in case of particularly heavy use of the hood. Filters can be
washed in a dishwasher.
• Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the
relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry
before refitting them. (The colour of the filter surface may
change throughout the time but this has no influence to the fil-
ter efficiency).
• When refitting the filters, make sure that the handle is visible
on the outside.
• Close the sliding suction panel.
Charcoal filter (Recycling version)
REPLACING CHARCOAL FILTERS
Warning: Turn the lights off and wait until the lamps cool down
before you change the odour filter.
• These filters are not washable and cannot be regenerated, and
must be replaced approximately every four months or more
frequently by particularly heavy use.
• Pull out the sliding suction panel.
• Remove the grease filters.
• Remove the saturated carbon filter by releasing the fixing
hooks
• Fit the new filter by hooking it into its seating.
• Replace the grease filters.
• Close the sliding suction panel.
Lighting
LIGHT REPLACEMENT
28W-40W light.
• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the
same characteristics.
• Replace the metal grease filters.
