Smeg KSET66E User manual

Libretto istruzioni
Instructions Manual
Manuel d’Instructions
Bedienungsanleitung
Gebruiksaanwijzing
Manual de instrucciones
Manual de Instruções
Brugsvejledning
Bruksanvisning
Руководство по эксплуатации
Instrukcja Obsługi
Bruksanvisning
Käyttöohje
KSET66E-KSET66VSE-KSET66VNE-KSET66VBE-KSET96E
KSET66VBE2-KSET66VNE2-KSET66VSE2

2
2
INDICE
CONSIGLI E SUGGERIMENTI.............................................................................................................................................. 5
CARATTERISTICHE.............................................................................................................................................................. 8
INSTALLAZIONE ................................................................................................................................................................... 9
USO...................................................................................................................................................................................... 11
MANUTENZIONE ................................................................................................................................................................ 12
INDEX
RECOMMENDATIONS AND SUGGESTIONS ................................................................................................................... 13
CHARACTERISTICS ........................................................................................................................................................... 16
INSTALLATION.................................................................................................................................................................... 17
USE...................................................................................................................................................................................... 19
MAINTENANCE................................................................................................................................................................... 20
SOMMAIRE
CONSEILS ET SUGGESTIONS.......................................................................................................................................... 21
CARACTERISTIQUES......................................................................................................................................................... 24
INSTALLATION.................................................................................................................................................................... 25
UTILISATION ....................................................................................................................................................................... 27
ENTRETIEN......................................................................................................................................................................... 28
INHALTSVERZEICHNIS
EMPFEHLUNGEN UND HINWEISE ................................................................................................................................... 29
CHARAKTERISTIKEN......................................................................................................................................................... 32
MONTAGE ........................................................................................................................................................................... 33
BEDIENUNG........................................................................................................................................................................ 35
WARTUNG........................................................................................................................................................................... 36
INHOUDSOPGAVE
ADVIEZEN EN SUGGESTIES............................................................................................................................................. 37
EIGENSCHAPPEN .............................................................................................................................................................. 40
INSTALLATIE....................................................................................................................................................................... 41
GEBRUIK ............................................................................................................................................................................. 43
ONDERHOUD...................................................................................................................................................................... 44
INDICE
CONSEJOS Y SUGERENCIAS........................................................................................................................................... 45
CARACTERÍSTICAS ........................................................................................................................................................... 48
INSTALACIÓN ..................................................................................................................................................................... 49
USO...................................................................................................................................................................................... 51
MANTENIMIENTO............................................................................................................................................................... 52
IT
EN
FR
DE
NL
ES

3
3
ÍNDICE
CONSELHOS E SUGESTÕES............................................................................................................................................ 53
CARACTERÍSTICAS ........................................................................................................................................................... 56
INSTALAÇÃO....................................................................................................................................................................... 57
UTILIZAÇÃO ........................................................................................................................................................................ 59
MANUTENÇÃO.................................................................................................................................................................... 60
УКАЗАТЕЛЬ
СОВЕТЫ ИРЕКОМЕНДАЦИИ .......................................................................................................................................... 61
ХАРАКТЕРИСТИКИ............................................................................................................................................................ 64
УСТАНОВКА........................................................................................................................................................................ 65
ЭКСПЛУАТАЦИЯ................................................................................................................................................................ 67
УХОД.................................................................................................................................................................................... 68
INNEHÅLL
REKOMMENDATIONER OCH TIPS................................................................................................................................... 69
EGENSKAPER..................................................................................................................................................................... 72
INSTALLATION.................................................................................................................................................................... 73
ANVÄNDING........................................................................................................................................................................ 75
UNDERHÅLL........................................................................................................................................................................ 76
INDHOLD
RÅD OG ANVISNINGER ..................................................................................................................................................... 77
APPARATBESKRIVELSE ................................................................................................................................................... 80
INSTALLATION.................................................................................................................................................................... 81
BRUG................................................................................................................................................................................... 83
VEDLIGEHOLDELSE .......................................................................................................................................................... 84
SPIS TREŚCI
UWAGI I SUGESTIE............................................................................................................................................................ 85
WŁAŚCIWOŚCI TECHNICZNE........................................................................................................................................... 88
INSTALACJA........................................................................................................................................................................ 89
UŻYTKOWANIE................................................................................................................................................................... 91
KONSERWACJA ................................................................................................................................................................. 92
INNHOLD
ANBEFALINGER OG FORSLAG ........................................................................................................................................ 93
EGENSKAPER..................................................................................................................................................................... 96
INSTALLASJON................................................................................................................................................................... 97
BRUK ................................................................................................................................................................................... 99
VEDLIKEHOLD.................................................................................................................................................................. 100
PT
RU
SE
DK
PL
NO

4
4
سﺮﻬﻔﻟا
تادﺎﺷرا وتﺎﺣاﺮﺘﻗا............................................................................................................................................101
ﺺﺋﺎﺼﺨﻟا.........................................................................................................................................................104
ﺐﻴآﺮﺘﻟا...........................................................................................................................................................105
ماﺪﺨﺘﺳﻻا...........................................................................................................................................................107
ﺔﻧﺎﻴﺼﻟا ﺔﻴﻠﻤﻋ..................................................................................................................................................108
SISÄLTÖ
OHJEET JA SUOSITUKSET ............................................................................................................................................. 109
MITAT JA OSAT ................................................................................................................................................................ 112
ASENNUS.......................................................................................................................................................................... 113
KÄYTTÖ............................................................................................................................................................................. 115
HUOLTO ............................................................................................................................................................................ 116
SA
FI

EN 1
13
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top
and the extractor hood is 650 mm (some models can
be installed at a lower height, please refer to the
paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that
indicated on the rating plate fixed to the inside of the
hood.
• For Class I appliances, check that the domestic
power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-
electrical appliances (e.g. gas burning
appliances), a sufficient degree of aeration must
be guaranteed in the room in order to prevent the
backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open
air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with
appliances supplied with energy other than electric, the negative pressure in
the room must not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the
manufacturer or by the technical service department, in order to prevent any
risks.
2°

EN 1
14
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

EN 1
15
• “CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.

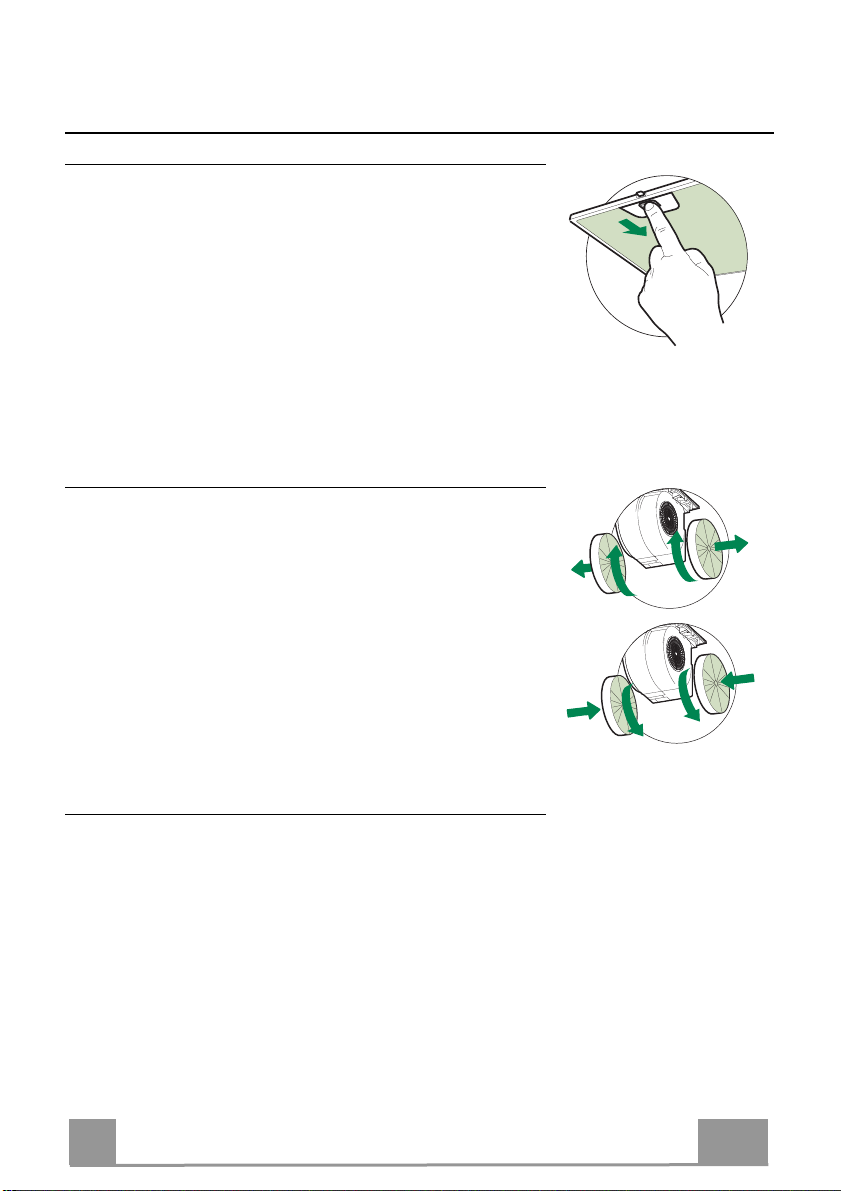

• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

EN 1
16
CHARACTERISTICS
0
÷
152 280
598 - 898
260
150
ø
Min.
650mm
Min.
650mm
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower, Filters
20 1 Closing element
10 1 Damper (optional)
Ref. Q.ty Installation Components
12a 4 Screws 4,2 x 44,4
Q.ty Documentation
1 Instruction Manual

EN 1
17
INSTALLATION

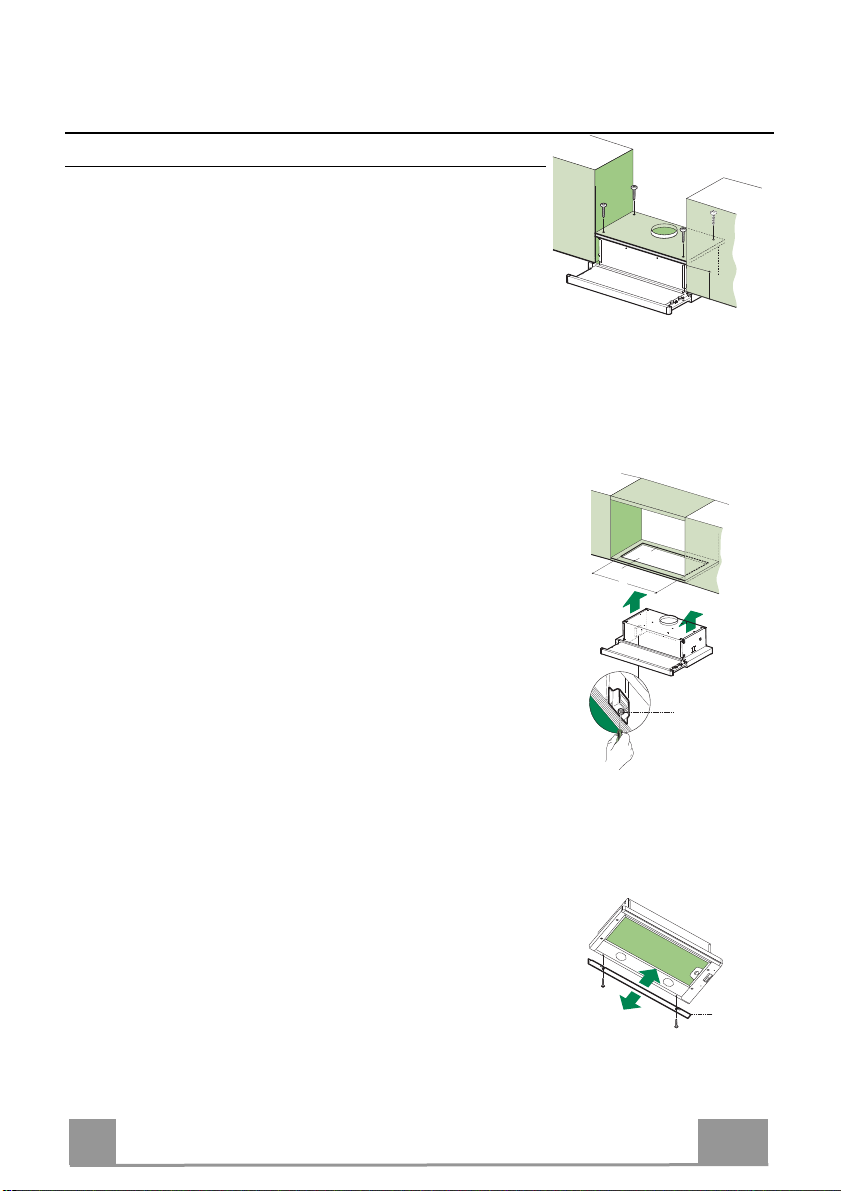

Drilling the Support surface and Fitting the Hood
SCREW FITTING
• The hood support surface must be 220 mm above the bottom
surface of the wall units.
• Drill the support with a ø 4,5 mm drill bit, using the drilling
template provided.
• Cut a hole ø 150 mm in size on the support surface, using the
drilling template provided.
• Fix using the 4 screws 12a (4,2 x 44,4) provided.
220
SNAP-ON FITTING
• The hood can be installed either directly on the bottom surface
of the wall units using snap-on side supports.
• Cut a fitted opening in the bottom surface of the wall unit, as
shown.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath
the hood.
15
264
502 - 802
Vf
CLOSING ELEMENT
• The space between the edge of the hood and the rear wall can
be closed by applying the element 20 provided, using the
screws supplied for this purpose.
20

EN 1
18
Connections

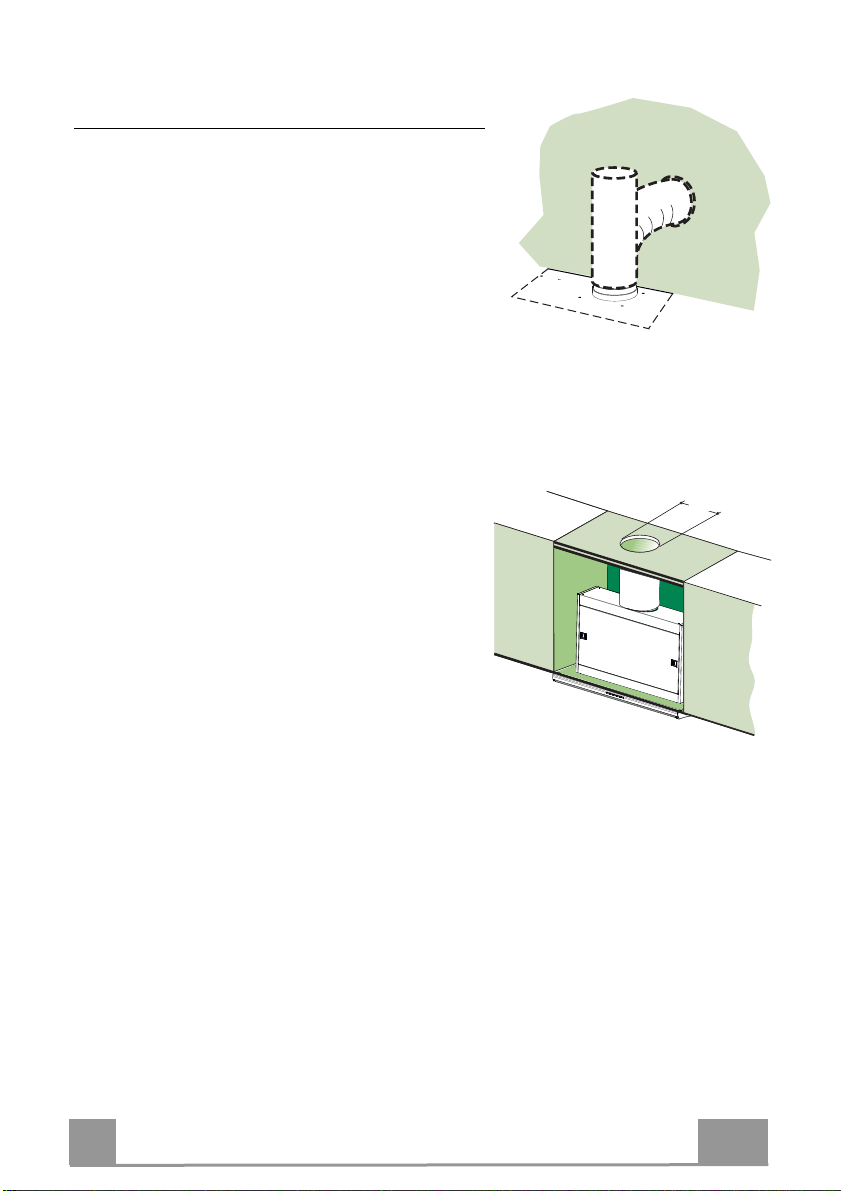

DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid
pipe ø 150 mm, the choice of which is left to the in-
staller.
• Fix the pipe in position using sufficient pipe
clamps (not supplied).
• Remove any activated charcoal filters.
ø 150
RECIRCULATION VERSION AIR OUTLET
• Cut a hole ø 150 mm in the wall unit over the hood.
• Connect the hood body outlet to the top part of the
wall unit using a rigid or flexible pipe ø 150 mm, to
be selected by the installer.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Ensure that the activated charcoal filters have been
inserted.
150
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3
mm.
• When opening the sliding carriage for the first time after installing the hood, pull it out
briskly until it clicks.

EN 1
19
USE

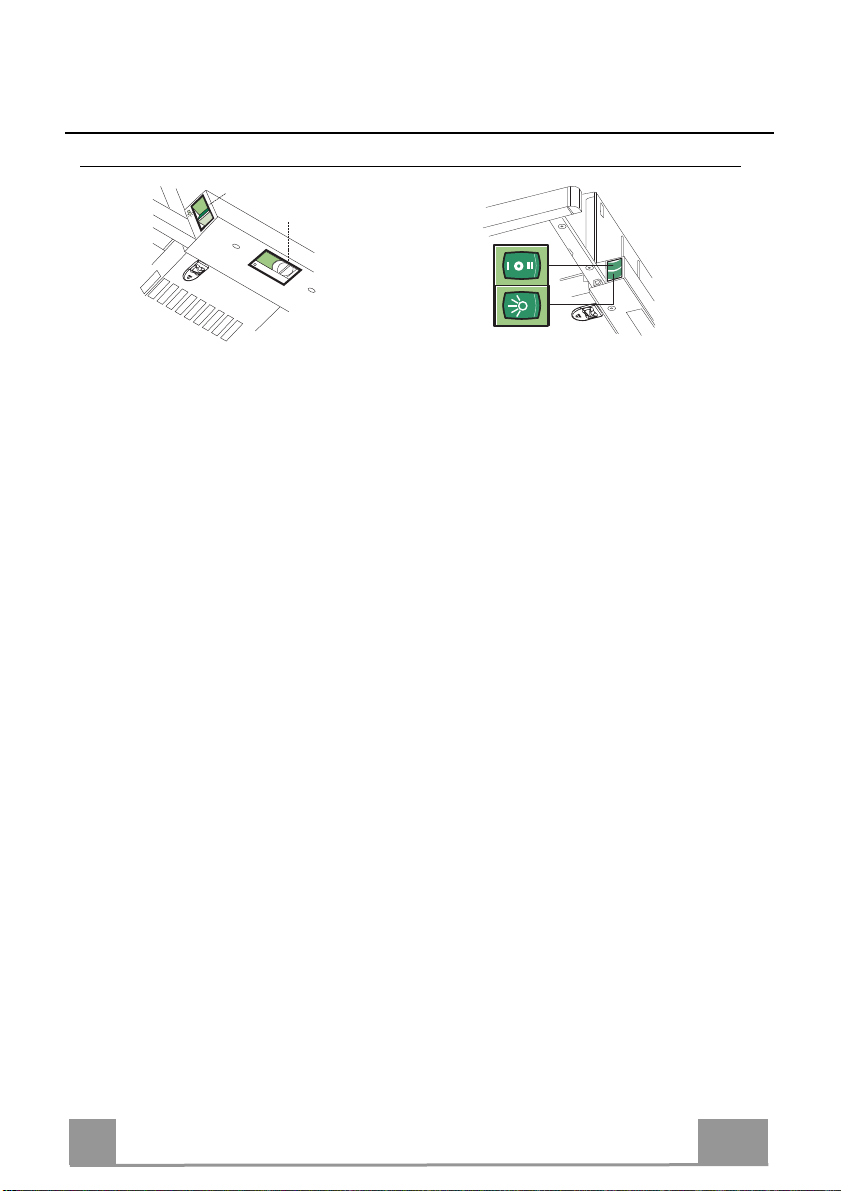

Control panel
LLight Switches the lighting system
on and off.
MMotor Switches the extractor motor
on and off.
VSpeed Sets the operating speed of
the extractor:
1. Low speed, used for a
continuous and silent air
change in the presence of
light cooking vapour.
2. Medium speed, suitable
for most operating condi-
tions given the optimum
treated air flow/noise
level ratio.
3. Maximum speed, used for
eliminating the highest
cooking vapour emission,
including long periods.
LLight Switches the lighting system
on and off.
MMotor Switches the extractor motor
on and off.
VSpeed Sets the operating speed of
the extractor:
1. Low speed, used for a
continuous and silent air
change in the presence of
light cooking vapour.
2. Medium speed, suitable
for most operating condi-
tions given the optimum
treated air flow/noise
level ratio.
L
M - V
0
1
0
1
2
3
L
M-V

EN 2
20
MAINTENANCE
Grease filters
CLEANING METAL SELF- SUPPORTING GREASE FILTERS
• The filters must be cleaned every 2 months of operation, or
more frequently for particularly heavy usage, and can be
washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the
back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to
dry before refitting.
• When refitting the filters, make sure that the handle is visible
on the outside.
Activated charcoal filter (Recirculation version)
These filters are not washable and cannot be regenerated, and
must be replaced approximately every 4 months of operation, or
more frequently with heavy usage.
REPLACING THE ACTIVATED CHARCOAL FILTER
• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
• Fit the new filters (B).
• Replace the metal grease filters.
A
B
Lighting unit
Warning: This appliance is fitted with a white LED lamp classed
as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001
standards; maximum optical power emitted @439nm: 7µW. Do
not look directly at the light through optical devices (binoculars,
magnifying glasses…).
• For replacement contact technical support. ("To purchase con-
tact technical support")
