Smeg KQR45BE User manual

Libretto istruzioni
Instructions Manual
Manuel d’Instructions
Bedienungsanleitung
Gebruiksaanwijzing
Manual de instrucciones
Manual de Instruções
Brugsvejledning
Bruksanvisning
Руководство по эксплуатации
Instrukcja Obsługi
Bruksanvisning
Käyttöohje
KQR45NE - KQR45BE

2
2
INDICE
CONSIGLI E SUGGERIMENTI.............................................................................................................................................. 5
CARATTERISTICHE.............................................................................................................................................................. 8
INSTALLAZIONE ................................................................................................................................................................... 9
USO...................................................................................................................................................................................... 12
MANUTENZIONE ................................................................................................................................................................ 13
INDEX
RECOMMENDATIONS AND SUGGESTIONS ................................................................................................................... 15
CHARACTERISTICS ........................................................................................................................................................... 18
INSTALLATION.................................................................................................................................................................... 19
USE...................................................................................................................................................................................... 22
MAINTENANCE................................................................................................................................................................... 23
SOMMAIRE
CONSEILS ET SUGGESTIONS.......................................................................................................................................... 25
CARACTERISTIQUES......................................................................................................................................................... 28
INSTALLATION.................................................................................................................................................................... 29
UTILISATION ....................................................................................................................................................................... 32
ENTRETIEN......................................................................................................................................................................... 33
INHALTSVERZEICHNIS
EMPFEHLUNGEN UND HINWEISE ................................................................................................................................... 35
CHARAKTERISTIKEN......................................................................................................................................................... 38
MONTAGE ........................................................................................................................................................................... 39
BEDIENUNG........................................................................................................................................................................ 42
WARTUNG........................................................................................................................................................................... 43
INHOUDSOPGAVE
ADVIEZEN EN SUGGESTIES............................................................................................................................................. 45
EIGENSCHAPPEN .............................................................................................................................................................. 48
INSTALLATIE....................................................................................................................................................................... 49
GEBRUIK ............................................................................................................................................................................. 52
ONDERHOUD...................................................................................................................................................................... 53
ÍNDICE
CONSEJOS Y SUGERENCIAS........................................................................................................................................... 55
CARACTERÍSTICAS ........................................................................................................................................................... 58
INSTALACIÓN ..................................................................................................................................................................... 59
USO...................................................................................................................................................................................... 62
MANTENIMIENTO............................................................................................................................................................... 63
IT
EN
FR
DE
NL
ES

3
3
ÍNDICE
CONSELHOS E SUGESTÕES............................................................................................................................................ 65
CARACTERÍSTICAS ........................................................................................................................................................... 68
INSTALAÇÃO....................................................................................................................................................................... 69
UTILIZAÇÃO ........................................................................................................................................................................ 72
MANUTENÇÃO.................................................................................................................................................................... 73
INDHOLD
RÅD OG ANVISNINGER ..................................................................................................................................................... 75
APPARATBESKRIVELSE ................................................................................................................................................... 78
INSTALLATION.................................................................................................................................................................... 79
BRUG................................................................................................................................................................................... 82
VEDLIGEHOLDELSE .......................................................................................................................................................... 83
INNHOLD
ANBEFALINGER OG FORSLAG ........................................................................................................................................ 85
EGENSKAPER..................................................................................................................................................................... 88
INSTALLASJON................................................................................................................................................................... 89
BRUK ................................................................................................................................................................................... 92
VEDLIKEHOLD.................................................................................................................................................................... 93
УКАЗАТЕЛЬ
СОВЕТЫ И РЕКОМЕНДАЦИИ .......................................................................................................................................... 95
ХАРАКТЕРИСТИКИ............................................................................................................................................................ 98
УСТАНОВКА........................................................................................................................................................................ 99
ЭКСПЛУАТАЦИЯ.............................................................................................................................................................. 102
УХОД.................................................................................................................................................................................. 103
SPIS TREŚCI
UWAGI I SUGESTIE.......................................................................................................................................................... 105
WŁAŚCIWOŚCI TECHNICZNE......................................................................................................................................... 108
INSTALACJA...................................................................................................................................................................... 109
UŻYTKOWANIE................................................................................................................................................................. 112
KONSERWACJA ............................................................................................................................................................... 113
INNEHÅLL
REKOMMENDATIONER OCH TIPS ................................................................................................................................. 115
EGENSKAPER................................................................................................................................................................... 118
INSTALLATION.................................................................................................................................................................. 119
ANVÄNDING...................................................................................................................................................................... 122
UNDERHÅLL...................................................................................................................................................................... 123
PT
DK
NO
RU
PL
SE

4
4
SISÄLTÖ
OHJEET JA SUOSITUKSET ............................................................................................................................................. 125
MITAT JA OSAT ................................................................................................................................................................ 128
ASENNUS.......................................................................................................................................................................... 129
KÄYTTÖ............................................................................................................................................................................. 132
HUOLTO ............................................................................................................................................................................ 133
سﺮﻬﻔﻟا
تﺎﺣاﺮﺘﻗا و تادﺎﺷرا............................................................................................................................................135
ﺺﺋﺎﺼﺨﻟا.........................................................................................................................................................138
ﺮﺘﻟاﺐﻴآ...........................................................................................................................................................139
ماﺪﺨﺘ.ﺳﻻا...........................................................................................................................................................142
ﺔﻧﺎﯿﺼﻟا ﺔﻴﻠﻤﻋ..................................................................................................................................................143
FI
SA

EN 1
15
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
•The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top
and the extractor hood is 650 mm (some models can
be installed at a lower height, please refer to the
paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that
indicated on the rating plate fixed to the inside of the
hood.
• For Class I appliances, check that the domestic
power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-
electrical appliances (e.g. gas burning
appliances), a sufficient degree of aeration must
be guaranteed in the room in order to prevent the
backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open
air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with
appliances supplied with energy other than electric, the negative pressure in
the room must not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the
manufacturer or by the technical service department, in order to prevent any
risks.
2°

EN 1
16
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
•The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

EN 1
17
• “CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.

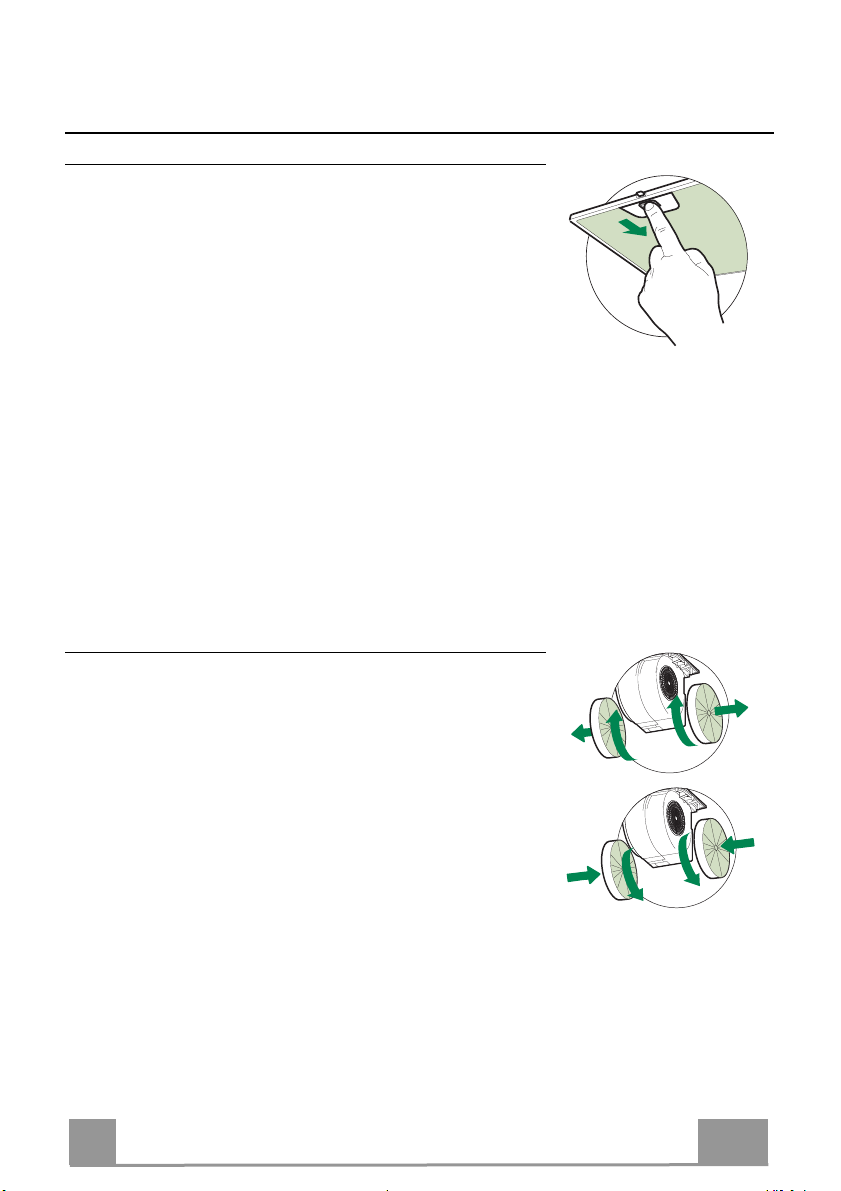

• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

EN 1
18

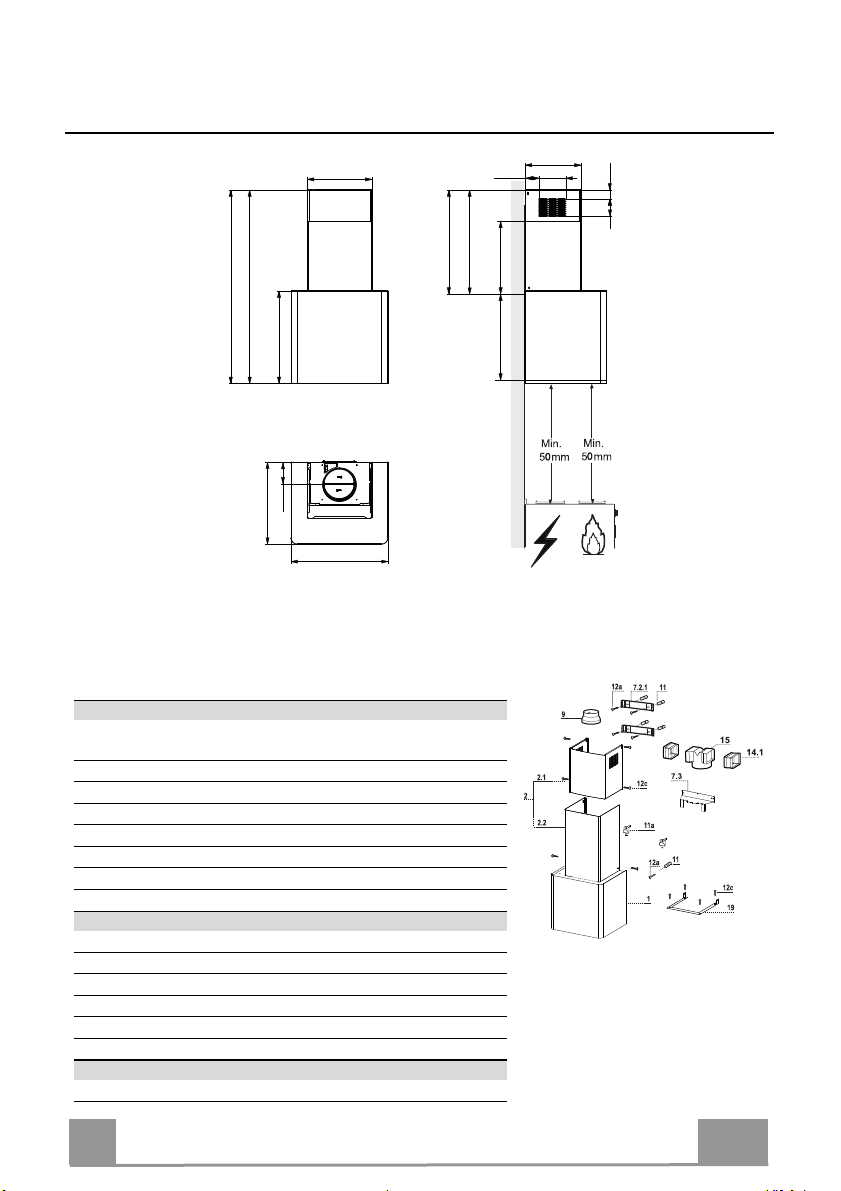

CHARACTERISTICS
*Dimensions of the hood in ducting version.
** Dimensions of the hood in recycling version.
Components
Ref. Q.ty Product Components
1 1 Hood Canopy, complete with: Controls, Light, Fan unit,
Filters
2 1 Telescopic chimney, comprising:
2.1 1 Upper chimney
2.2 1 Lower chimney
9 1 Reduction flange ø 150-120 mm
14.1 2 Air Outlet Connector Extension
15 1 Air Outlet Connector
19 1 Chimney Fixing Element
Ref. Q.ty Components for Installation
7.2.1 2 Upper Chimney Fixing Brackets
7.3 1 Connector Support Bracket
11 5 Plugs
11a 2 Plugs SB 12/10
12a 5 Screws 4.2 x 44.4
12c 10 Screws 2.9 x 6.5
Q.ty Documentation
1 Instruction Manual
430
126
81 41.5
300
260
62.5
340
** * MIN 460 - MAX 66
* MIN 340 - MAX 66
400
** * MIN 875 - MAX 107
* MIN 755 - MAX 107
66
450
380
98.8

EN 1
19
INSTALLATION
Drilling the Wall
373
105
150 150
12a
Mark the following on the wall:
• a vertical line up to the ceiling or surface above the hood, at the centre of the area in which
the hood itself is to be fitted;
• a horizontal line at: 650 mm min. above the Hob;
• Rest the Bracket 7.2.1 as indicated, 1-2 mm from the ceiling or surface above the hood,
aligning its centre (grooves) with the vertical reference line.
• Mark the centres of the holes in the bracket.
• Rest the Bracket 7.2.1 as indicated, X mm under the first bracket (X = height of the Upper
chimney provided), aligning its centre (grooves) with the vertical reference line.
• Mark the centres of the holes in the bracket.
• Mark a reference point as indicated at 105 mm from the horizontal reference line.
• Drill the points marked using an ø 8 mm bit.
• Insert the plugs 11 into the holes.
• Fix the Brackets, using the screws 12a (4.2 x 44.4) provided, and, only when fitting the
Hood in recirculation version with chimney, also fit the support bracket 7.3.
• As indicated above, mark a reference point 373 mm above the horizontal reference line, and
150 mm to the right of the vertical reference line.
• Repeat this operation on the opposite side, checking to ensure it is level.
• Drill the points marked using an ø 12 mm bit.
• Insert the plugs, screws and bracket 11a into the holes, and fasten.

EN 2
20
Mounting the hood body
• Remove the metal grease filters by turning the handles pro-
vided.
• Adjust the two screws Vr, on brackets 11a, to a minimum.
• Hook the hood canopy onto the two brackets 11a.
• From inside the hood canopy, adjust the screws Vr to set the
Hood Canopy level.
• Tighten the safety screws 12a.
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove possible charcoal filters.
ø 150
9
ø 120
RECIRCULATION VERSION AIR OUTLET
• Insert the connection extension pieces laterally 14.1 in connec-
tion 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it
with a screw.
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet
using either a flexible or rigid pipe ø 150 mm, the choice of
which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.
15
ø 150
14.1
7.3

EN 2
21
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.
Chimney Assembly
• Fasten the Chimney fixing element 19 to the Body using 4
screws 12c.
Upper chimney
• Open the two side pieces out slightly, hook them up behind the
brackets 7.2.1 and bring them back together again until they
are in contact.
• Fix to the Brackets at the sides, using 4 screws 12c (2.9 x 9.5)
provided.
• If there are any, make sure that the Connector extensions outlet
is in correspondence with the Chimney openings.
Lower chimney
• Open the two side pieces of the Chimney out slightly, hook
them between the upper chimney and the wall, and then close
them together again until they are in contact.
• Fix the part at the sides to the Chimney fixing element 19, us-
ing 2 screws 12c (2.9 x 9.5) provided.

EN 2
22
USE
LMV
L Light Switches the lighting system on and off
M Motor Switches the extractor motor on and off
V Speed Sets the operating speed of the extractor:
1. Low speed, used for a continuous and silent air change in the presence of
light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum
treated air flow/noise level ratio.
3. Maximum speed, used for eliminating the highest cooking vapour emis-
sion, including long periods.

EN 2
23
MAINTENANCE
Grease filters
CLEANING METAL SELF- SUPPORTING GREASE FILTERS
• The filters must be cleaned every 2 months of operation, or
more frequently for particularly heavy usage, and can be
washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the
back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to
dry before refitting.
• When refitting the filters, make sure that the handle is visible
on the outside.
Activated charcoal filter (Recirculation version)
These filters are not washable and cannot be regenerated, and
must be replaced approximately every 4 months of operation, or
more frequently with heavy usage.
REPLACING THE ACTIVATED CHARCOAL FILTER
• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
• Fit the new filters (B).
• Replace the metal grease filters.
A
B

EN 2
24
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Extract the lamp from the lamp holder by pulling
gently.
• Replace with another of the same type, making sure
that the two pins are properly inserted in the lamp
holder socket holes.
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
28 E14 220 – 240 104 x 35 HSGSB/C/UB-28-220/240-E14
20 G4 12 33 x 9 HSG/C/UB-20-12-G4
35 GU10 230 51 x 50,7 HAGS-35-230-GU10-51/40
50 GU10 230 51 x 50,7 HAGS-35-230-GU10-51/20
20 GU4 12 40 x 35 HRGS-20-12-GU4-35/30
20 GU5.3 12 46 x 51 HRGS-20-12-GU5.3-50/10
16 G13 95 720 x 26 FD--16/40/1B-E--G13--26/720
18 G13 57 589,8 x 26 FD--18/40/1B--E--G13--26/600
9 G23
60 (lamp)
220-240 (starter) 167 x 28 FSD-9/27/1B-I-G23
11 G23
91 (lamp)
220-240 (starter) 235,8 x 28 FSD-11/40/1B-I-G23
