CONTENTS
Dear Customer,
If you follow the recommendations
contained in this Instruction Manual,
your appliance will give you constant
high performance and will remain
efficient for many years to come.
RECOMMENDATIONSAND SUGGESTIONS 12
CHARACTERISTICS 13
INSTALLATION 14
USE 17
MAINTENANCE 18

12GB

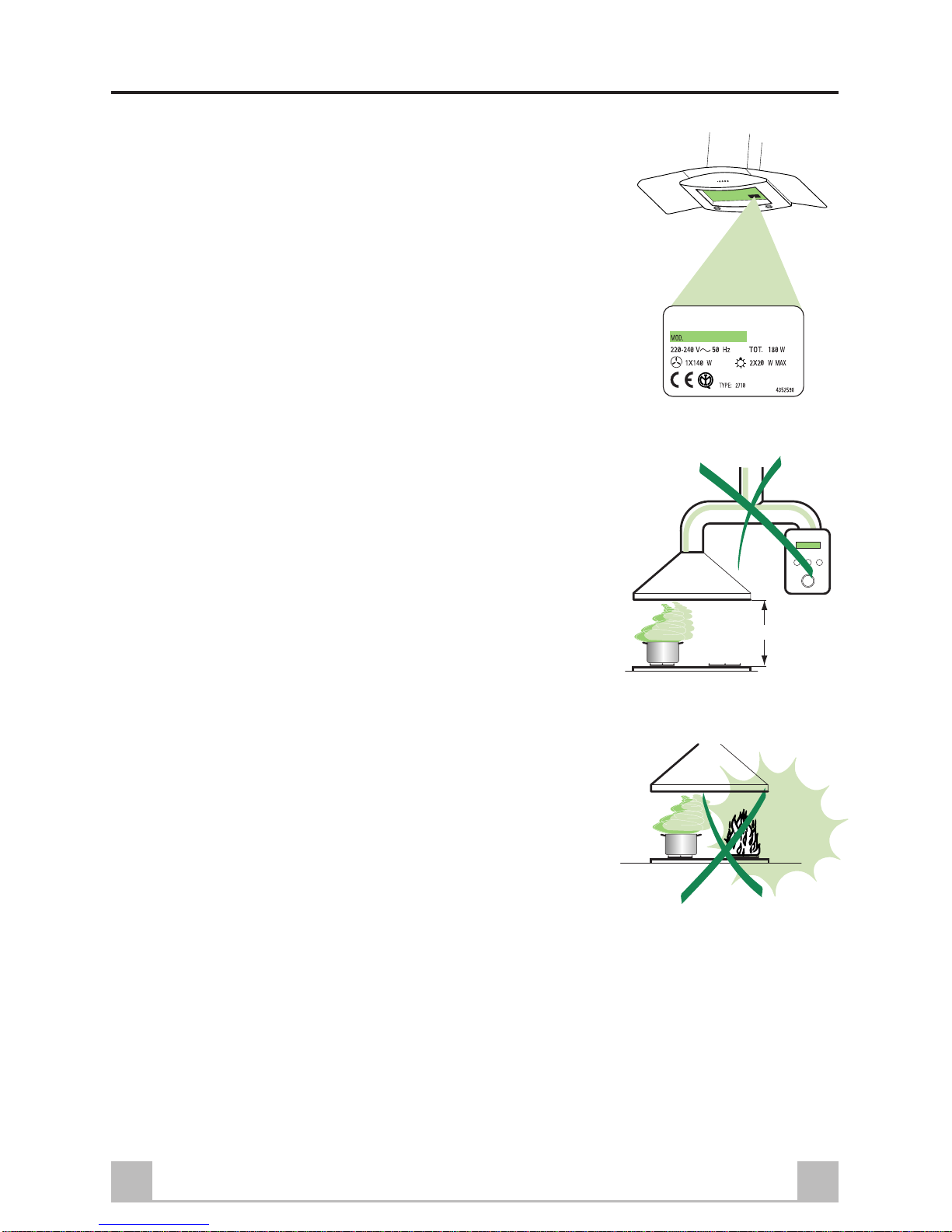

RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• The minimum safety distance between the cooker top and the
extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of
minimum diameter 120 mm. The route of the flue must be as short
as possible.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).
• Iftheextractorisusedinconjunctionwithnon-electricalappliances
(e.g. gas burning appliances), a sufficient degree of aeration must
be guaranteed in the room in order to prevent the backflow of
exhaust gas. The kitchen must have an opening communicating
directly with the open air in order to guarantee the entry of clean
air.
USE
• The extractor hood has been designed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben
designed.
• Never leave high naked flames under the hood when it is in
operation.
• Adjust the flame intensity to direct it onto the bottom of the pan
only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use:
overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed
in its correct use.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before
carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.
650 mm min.

13GB
300
500
265
898
31073
740
740 min
1060 max
2.1
2.2
2
14.1
15
12c
12a 7.2.1 11
1
11
12a
10
CHARACTERISTICS
Dimensions
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light,
Blower, Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 LowerSection
10 1 Damper
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
11 6 Wall Plugs
12a 6 Screws 4,2 x 44,4
12c 6 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual

14GB
INSTALLATION
Wall drilling and bracket fixing
Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre
of the area in which the hood will be installed.
• Draw a horizontal line at:
965 mm above the hob for installation without the back panel,
965 mm above the surface on which the pack panel rests, for installation with the back panel.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning
the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper
chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point on the horizontal reference line as indicated, 116 mm from the vertical
reference line.
• Repeat this operation on the other side.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the brackets using the 12a screws (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-
6 mm between the wall and the head of the screw.
11
12a
965 X
116
1÷2
116
965 min.
7.2.1

15GB
12a
Vr
ø 150
10
14.115

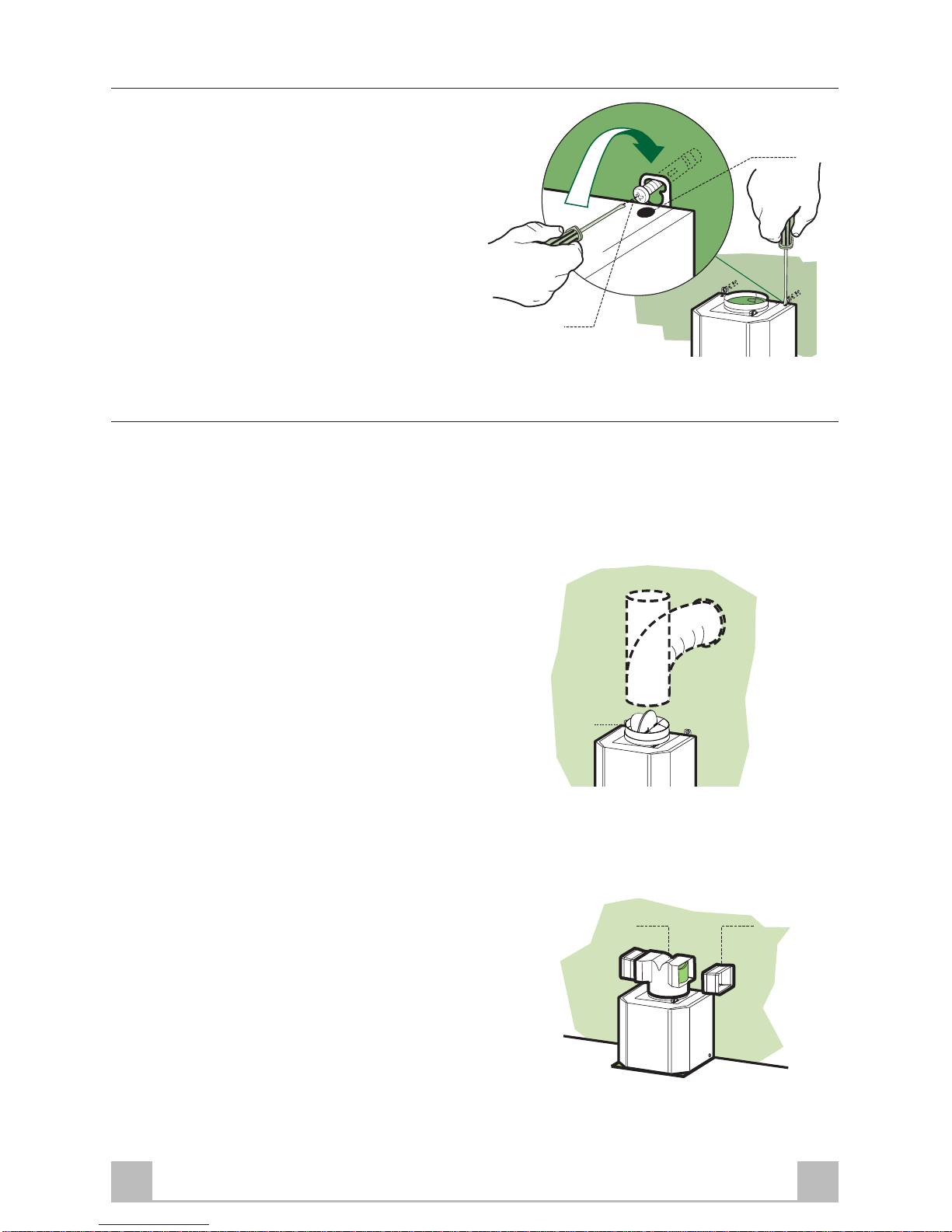

Mounting the hood body
• Before attaching the hood body, tighten the two
screws Vr located on the hood body mounting
points.
• Hook the hood body onto the screws 12a
• Fully tighten support screws 12a
• Adjust screws Vr to level the hood body.
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
In order to install the ducted version, connect the hood to the chimney using either a flexible or rigid
pipe ø 150 mm, the choice of which is left to the installer.
• Push fit Damper 10 onto the air outlet.
• Fix the pipe in position using sufficient pipe
clamps (not supplied).
• Remove any activated charcoal filters.
RECIRCULATION VERSION AIR OUTLET
• Push fit connection 15 onto the air outlet.
• Insert the connection extension pieces laterally
14.1 in connection 15.
• Makesure that the outletof the extension pieces
14.1 is horizontally and vertically aligned with
thechimney outlets. If this isnot the case, adjust
the position by either reversing the connection
extension pieces 14.1 or by pushing connector
15 all the way in.
• Ensure that the activated charcoal filters have
been inserted.

16GB
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

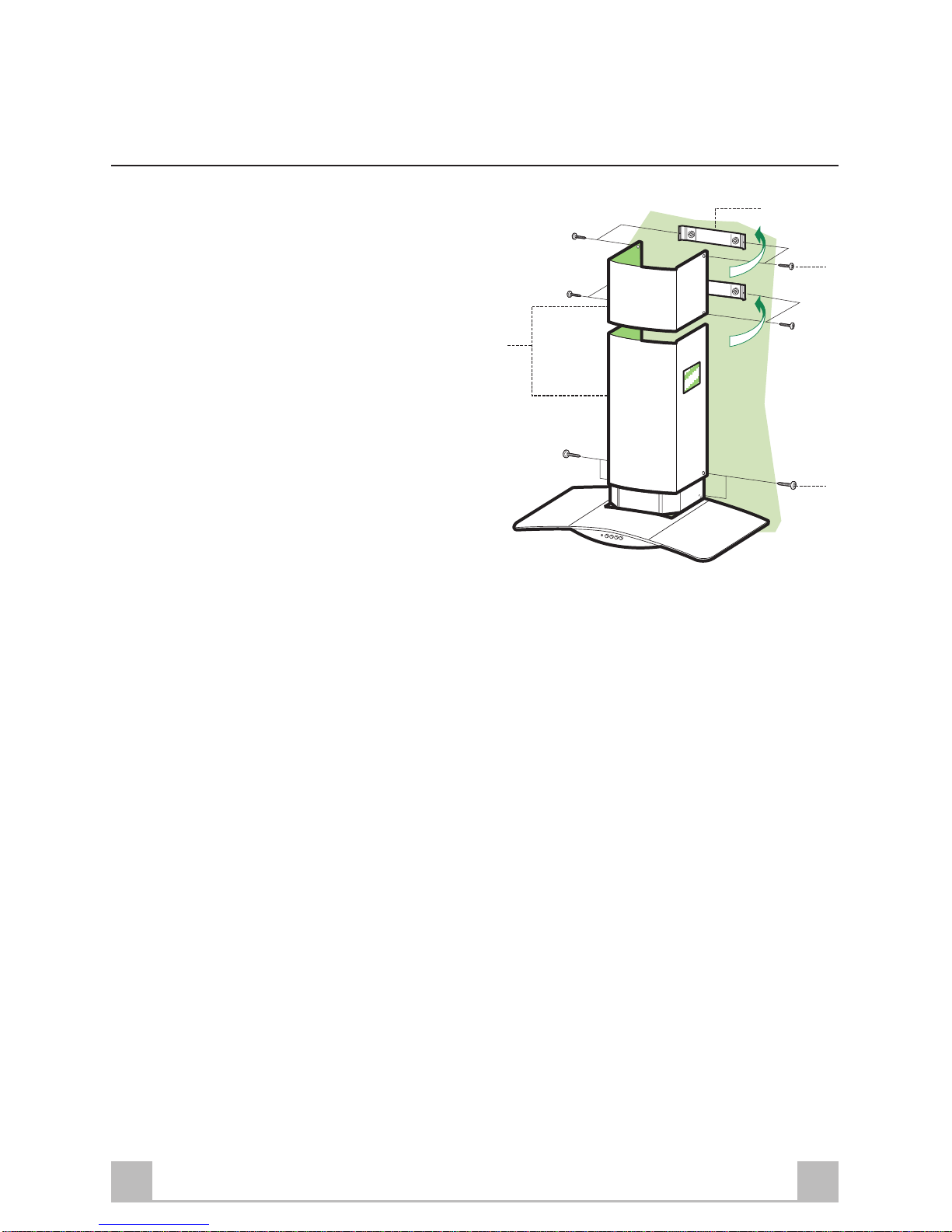

Flue assembly
Upper exhaust flue
• Slightly widen the two sides of the upper flue
and hook them behind the brackets 7.2.1,
making sure that they are well seated.
• Secure the sides to the brackets using the 4
screws 12c (2,9 x 9,5) supplied.
Lower exhaust flue
• Slightlywidenthetwosidesofthe flue and hook
them between the upper flue and the wall,
making sure that they are well seated.
• Fix the lower part laterally to the hood body
using the 2 screws 12c (2,9 x 9,5) supplied.
12c
2.1
2.2
2
7.2.1
12c

17GB
USE
Control panel
LLight Switches the lighting system on and off.
S1 Led Motor running led.
It flashes once after 100 working hours of the hood to indicate that the grease
filters need washing.
It flashes twice after 200 working hours to indicate that the grease filters need
washing and that the anti-odour charcoal filters, if any, need changing.
S2 Led Intensive speed led.
MMotor Switches the extractor motor on and off at low speed. Used to provide a contin-
uos and silent air change in the presence of light cooking vapours.
When the Hood is in ELC (Electronic Comfort) mode, the button will not
only turn the Ducting motor on, but will also disable this function.
V1 Speed Reduces the operating speed.
When the button is pressed with the Motor off, ELC (Electronic Comfort)
mode will be enabled again, giving a continuous, low noise flow of air. Press
the button and hold it until Led S1 flashes slowly.
V2 Speed Increases the operating speed.
V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission.
Speed Switches off automatically after 10 minutes operation. Can also be switched
off manually by pressing the button.
RReceiver for Optional Remote Control.
Remote Control
L
RV1 V2 V3
M
S1 S2

18GB
MAINTENANCE
Grease filters
CLEANING METAL SELF- SUPPORTING GREASE FILTERS
Alarm signal reset
• Switch off the lights and extractor motor.
• Press button V2 for at least 3 seconds, until the
leds start to flash.
Cleaning the filters
• The filters must be cleaned when led S1flashes
or at least every 2 months of operation, or more
frequently for particularly heavy usage.
• Removethefiltersoneatatimebypushingthem
towards the back of the group and pulling down
at the same time.
• Wash the filters, taking care not to bend them.
Allow them to dry before refitting.
• When refitting the filters, make sure that the
handle is visible on the outside.
Disconnecting the Suction Unit
• Disconnect the hood by switching off the two-
pole switch on the mains power supply line, or
by switching off the main power switch.
• Remove the grease filters from the hood.
• If the hood is of the recirculation type, remove
the odour filters.
• Remove the halogen-lamps support by taking
off the two fixing screws.
• Disconnect the power connector Ca and the
controland lightingconnector Cmdon the sides
of the unit.
• Turn the levers Lb locking the suction unit, so
that they disconnect from the pins.
• Pull the suction unit forwards so that it unhooks
fromthesupport pins, and remove it downwards
through the air outlet.
CmdCa
Lb

19GB
Activated charcoal filter (Recirculation version)
REPLACING THE ACTIVATED CHARCOAL FILTER
• The filter is not washable and cannot be
regenerated. It must be replaced when led S1
flashes twice or at least every 4 months. The
alarmsignalwill only light upwhentheextractor
motor is switched on.
Alarm signal reset
• Switch off the lights and extractor motor.
• Press button V2 for at least 3 seconds, until the
leds start to flash.

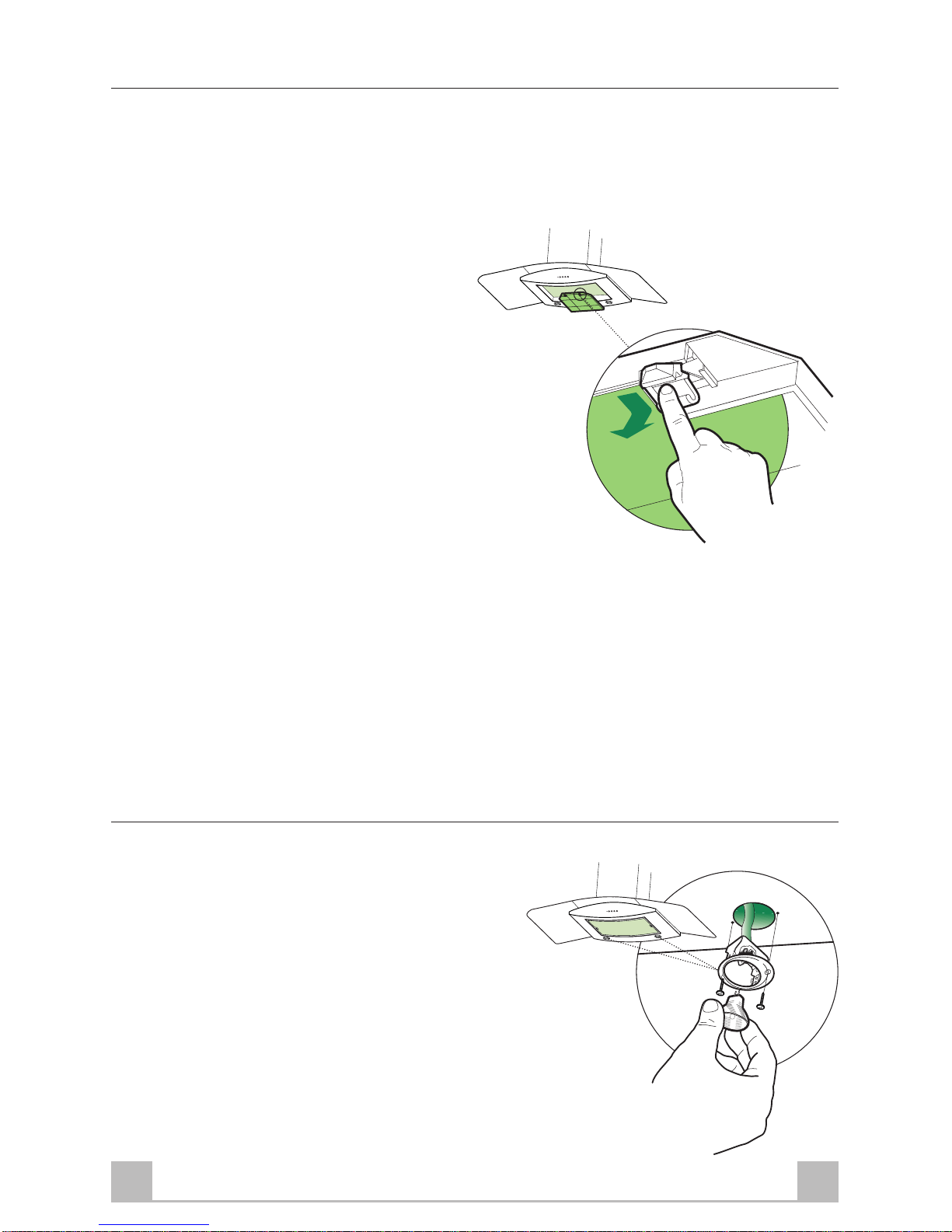

Replacing the Filter
• Remove the metal grease filters
• Remove the saturated activated carbon filter by
releasing the fixing hooks
• Fit the new filter by hooking it into its seating
• Replace the metal grease filters.
Alarm signal activation
• On the recirulcation version extractor hood, the
filter saturation alarm is activated during
installation or at a later date.
• Switch off the lights and extractor motor.
• Press button V2 for at least 10 seconds, until
the leds start to flash:
• 2 flashes of the activated carbon odour filter
saturation alarm led = filter ACTIVATED
• 1 flash of the activated carbon odour filter
saturation alarm led = filter DEACTIVATED
Lighting
LIGHT REPLACEMENT
• 20 W halogen light.
• Remove the 2 Screws fixing the Lighting
support, and pull it out of from the Hood.
• Extract the Lamp from the Support.
• Replace with another of the same type, making
sure that the two pins are properly inserted in
the lamp holder socket holes.
• Replace the Support, fixing it in place with the
two Screws removed as above.
