Smithco TCV 2200 32-000 Quick start guide

Product Support: Hwy SS & Poplar Ave; Cameron WI 54822
1-800-891-9435 [e-mail]
Parts & Service
&OPERATORSMANUAL
TCV 2200
Super Truck Turf Care Vehicle
Model 32-000
SN: DT2213
August 2013

Introduction Service Diagrams Parts Accessories Reference
CONTENTS
Introduction............................................................................1-5
Introduction..............................................................................1
Safe Practices.........................................................................2
Specifications ..........................................................................3
Setup .......................................................................................4
Controls & Instruments............................................................5
Service..................................................................................6-13
Operation..............................................................................6-7
Maintenance .........................................................................8-9
Adjustments...........................................................................10
Service Chart....................................................................11-12
Storage ..................................................................................13
Diagrams ........................................................................... 14-17
Wiring Diagram................................................................ 14-15
Hydraulic Diagram ........................................................... 16-17
Parts................................................................................... 18-45
MainDrawing ................................................................... 18-19
Nose Cone Drawing ........................................................ 20-21
Pedal Linkage Drawing.................................................... 22-23
Front Axle Drawing .......................................................... 24-25
Gast Tank Drawing.................................................................26
Oil Tank Drawing....................................................................27
Seat Panel Drawing ......................................................... 28-29
Engine Drawing ............................................................... 30-33
Rear Axle Drawing........................................................... 34-35
31-043 Single-Bank Valve............................................... 36-37
34-103 Orbitrol ................................................................ 38-39
76-238 Wheel Motor ....................................................... 40-41
76-197 Gear Pump ......................................................... 42-43
76-482 Hydrostat Pump .................................................. 44-45
Accessories ...................................................................... 46-48
32-001 Gondola Box.............................................................46
32-002 Tailgate Box ..............................................................47
32-003 Flat Bed ....................................................................48
Reference .......................................................................... 49-50
Decal List ...............................................................................49
Quick Reference....................................................................50
Warranty ....................................................... Inside Back Cover

1
Introduction
Informationneeded whenorderingreplacement parts:
1. ModelNumber of machine
2. SerialNumber of machine
3. Nameand Part Number of part
4. Quantityof parts
INTRODUCTION
Thank you for purchasing a SmithcoSmithco
SmithcoSmithco
Smithco product.
Readthis manual and all other manualspertaining to the DumpTruckcarefully as theyhave safety,operating,
assembly and maintenance instructions. Failure to do so could result in personal injury or equipment damage.
Keepmanualsinasafeplaceafteroperatorandmaintenancepersonnelhavereadthem. Right and left sides are
fromthe operator’s seat, facing forward.
All SmithcoSmithco
SmithcoSmithco
Smithco machines have a Serial Number and Model Number. Both numbers are needed when ordering
parts. The serial number plate on the Dump Truck is located on the right main frame, to the rear of the front
fender. Refertoenginemanual for placement ofengineserial number.
For easy access record your Serial and Model numbers here.

2
Introduction
SAFEPRACTICES
1. It is your responsibility to read this manual and all publications associated with this machine.
2. Neverallowanyone to operate or service the machine or its optionalequipmentwithoutpropertrainingand
instructions.Neverallow minors to operate any equipment.
3. Learnthe proper useof the machine, thelocation and purpose of allthe controls and gauges beforeyou
operatetheequipment.Workingwith unfamiliar equipment can lead to accidents.
4. Wear all the necessary protective clothing and personal safety devises to protect your head, eyes, ears,
hands and feet. Operate the machine only in daylight or in good artificial light.
5. Inspect the area where the equipment will be used. Pick up all debris you can find before operating.
Bewareof overhead obstructions and underground obstacles.Stayalertforhiddenhazards.
6. Neveroperate equipment thatis not in perfect working order or withoutdecals, guards, shields, or other
protectivedevices in place.
7. Never disconnect or bypass any switch.
8. Carbonmonoxidein the exhaust fumes can be fatal when inhaled, neveroperateamachinewithoutproper
ventilation.
9. Fuel is highly flammable, handle with care.
10. Keep engine clean.Allowthe engine to cool beforestoring and alwaysremove the ignition key.
11. Disengageall drives and set park brake beforestartingtheengine.
12. Never use yourhands tosearch for oilleaks. Hydraulicfluid under pressurecan penetratethe skin and
cause serious injury.
13. This machine demandsyour attention.Topreventlossof control or tipping of the vehicle:
A. Use extra caution in backing up the vehicle. Ensure area is clear.
B. Do not stop or start suddenly on any slope.
C. Reduce speed on slopes and in sharp turns. Use caution when changing directions on slopes.
D. Stay alert for holes in the terrain and other hidden hazards.
14. Beforeleaving operator’sposition:
A. Disengagealldrives.
B. Set park brake.
C. Shut engine offand remove the ignition key.
D. If engine has to run to perform any maintenance keep hands, feet, clothing and all other parts of body
awayfrom moving parts.
15. Keep hands, feetand clothing away from movingparts. Wait for allmovement to stop beforeyou clean,
adjustorservicethemachine.
16. Keep the areaof operation clear of all bystanders.
17. Stopenginebeforemaking repairs/adjustmentsor checking/adding oil to the crankcase.
18. Use parts and materials supplied by SmithcoSmithco
SmithcoSmithco
Smithco only. Do not modify any function or part.
19. The tank is a confined space, take precaution.
20. Whencarrying passenger,be sure passengerissafelyseatedbeforeoperatingmachine.
These machines are intended for professional maintenance on golf courses, sports turf, and any other
area maintained turf and related trails, paths and lots. No guaranty as to the suitability for any task is
expressed or implied.

3
Introduction
SPECIFICATIONS
WEIGHTSANDDIMENSIONS
Length 108"(274cm)
Width 60"(152cm)
Heightw/ROPS 71"(180cm)
InsideTurn Circle 120"(305cm)
OutsideTurn Circle 230" (584 cm)
Weight Empty 1289lbs(585kg)
Payload 2200lbs(998kg)
SOUNDLEVEL(DBA)
Atear level 96 dBA
ENGINE
Make Briggs & Stratton
Model# 543477
Type / Spec# 0175G1
Horsepower 31 Hp (23 kw)
Fuel Unleaded87 Octane
GasolineMinimum
CoolingSystem AirCooled
LubricationSystem FullPressure
Alternator 15Amp
WHEELS&TIRE Front: (2) 22 x 11 - 10 Turf Type 18 psi (1.2 bar)
Rear: (2) 24 x 12 - 12 Turf Type 20 psi (1.4 bar)
SPEED
Infinitely Variable 0-12m.p.h. (0-19 kph)
BATTERY Automotivetype45-12volt
BCIGroup Size 45
ColdCrankingAmps 480 minimum
GroundTerminal Polarity Negative(-)
MaximumLength 9" (23 cm)
Maximum Width 5.38" (14 cm)
MaximumHeight 9" (23 cm)
FLUIDCAPACITY
CrankcaseOil See Engine Manual
Fuel 6 gallon(22.7liters)
HydraulicFluid 4 gallon (18 liters)
Grade of Hydraulic Fluid SAE 10W-40API Service SJ or higher Motor Oil

4
Introduction
SETUP
TheDumpTruck arrives from Smithco setup andreadyforservice.Dependingon freight conditions battery may
need to be installed.
1. Check the tire pressure. The front tires are 18 psi (1.2 bar) and rear tires are 20 psi (1.4 bar).
2. Battery is located at the rear of the machine behind the engine. This
isanegativegroundingsystem.
Connecting battery cables to the wrong post could result in
personal injury and/or damage to the electrical system.
Make sure battery and cables do not interfere or rub on
any moving part. Connect red positive (+) cable (A) to
battery first. When disconnecting remove black negative (-)
cable (B) first.
3. Check hydraulic fluid level in oil tank located on the right side of the
machine.RemovecapandaddSAE10W-40APIService SJ or
highermotoroilifnecessary.Fluidlevelshouldbeabout2-21/2" (5-6.4
cm) from the top of the tank when cold. DO NOT OVERFILL.
4. Fill fuel tank, located on left side, with Unleaded 87 Octane gasoline (mini-
mum). Your fuel tank is CARB compliant. Please check vent alignment in fill
cup.
Fuel is flammable, caution must be used when storing or handling
it. Do not fill fuel tank while engine is running or an enclosed area,
fumes are explosive and dangerous to inhale. DO NOT SMOKE
while filling the fuel tank. DO NOT OVERFILL
5. Machineshouldbe greased before starting, refer to Maintenance for grease fitting location.
6. Readoperating instructions before starting.
TOWING
When it is necessary to move the dump truck without the engine running, there are 2 things that need to be
done. First, the bypass valve built into hydrostatic pump must be "open" by turning it 1/4turn to open. The valve
is located on the back side of the pump.An "open" valve allows fluid to pass through the wheels freely. When
normaldrivenoperationisdesired,valve should be "closed" by turning it clockwise. Failure to "close" the valve
withenginerunningmeansno power to wheels. Secondly, the hand brake needs to be manually released.The
hand brake is located between the seats. Push back to release.

5
Introduction
A. Oil Light - The oil light should come on when the ignition is on without the
enginerunningandgoout when the engine is running. The oil light will
light when the oil pressure is low. If oil light should come on, shut engine
offimmediatelyandfindthecause.
B. Ignition Switch - The ignition switch has three positions: Off - Run - Start.
C. TiltSteering - Hold lever down and adjust steering wheel todesired
positionand releaselever.
D. Lights - This rocker switch turns lights on by pushing on the top and off
by pushing on the bottom.
E. Hand Throttle - The hand throttle is used to regulate engine speed.
F. Cup Holder - Holds 2largecups.
G. Park Brake - The park brake is only a parking brake. Pull back to release,
pushforward to apply.
H. Dump Box Lever - The dump box lift lever is used to raise and lower the
dump box. Pull back to raise the dump box. Push forward to lower the
dumpbox.
I. Choke - The choke is used in starting the engine. Pull choke out to close
choke plate when starting a cold engine. Push in when engine starts.A
warm engine may not require "choking" to start.
J. Brake Pedal - Operates the hydraulic brakes on the front axle.
K. Forward Pedal -Thispedalcontrolsgroundspeed. Varying the amount of
movementof the pedal will vary thegroundspeed.
L. ReversePedal - Thispedalcontrolsreverse ground speed.
M. Hour Meter - The hour meter indicates hours of machineoperation. It operates only when the ignition
switch is on. Located on left ROP's mount.
CONTROLS&INSTRUMENTS

6
Service
OPERATION
Before operating the Smithco Dump Truck, become familiar with all controls and functions.Also complete all
maintenancerequirementsandreadallsafetywarnings.KnowingtheDumpTruckthoroughly,howitoperates,
and by doing the prescribed maintenance steps, you can expect trouble free operation for years to come.
SAFETY
Operatorneedstoalwaysbetheconcernofanoperatorofamovingvehicleoranymachinewithmovingparts.
1. Keep all shields and guards in place.
2. Keeptheparkingbrake engaged any time the operator is away from the vehicle or whenever service is
performed.
3. Alwayswearthenecessaryprotectiveclothingandequipment.
4. Turnengine offwhen refuelingorperforming maintenance notspecificallyrequiring engine power.
DAILYCHECKLIST
1. Checktheengineoil level. Addas needed.DO NOT OVERFILL. Refertoengineowner'smanualforoil
gradeandprocedure.
2. Tirepressureshould be 18 psi (1.2bar)on front and 20 psi(1.4bar)on back.
3. Inspect the electrical system and battery cables for loose connections or frayed wiring. Replace any faulty
equipmentortightenifloose.
4. Check hardware for loose or missing nuts, bolts, screws, etc., and tighten or replace as needed.
5. Inspect hydraulic lines for damage or leaks. Never use hands to inspect for leaks.
6. Check the hydraulic fluid level. The hydraulic fluid tank is located on the right side of the machine. The
fluid level should be 2"-2½" (5 - 6.4 cm) from the top of the tank when cold. Use only SAE 10W-40API
ServiceSJorhigherMotorOil.
7. Inspectthesteering, throttle and shift linkages forgood hookups
andclear travel.
8. Checkcontrolsforsmooth,proper working operation. Lubricateas
needed.
9. Checkanti-vibration mounts onengineframe.
STARTINGTHEENGINE
1. The ignition switch is located on the dashboard. Insert the key (A)
and turn clockwise to (C) until the engine starts. Release the key
and it will return to the run position (B).
2. Allowenginetoidleandwarmupbefore selecting direction of
travel.
STOPPINGTHEENGINE
If the engine has been running under high power, let it
run at slow idle speed a few minutes to cool the engine down, before turning the ignition
switch to the OFF position.
1. Movethe throttlelever to “slow” andturn ignition key tothe “off” position.
2. Removetheignitionkeyandengagethe park brake.
Never leave the vehicle unattended with the engine running. Always bring the vehicle to a
complete stop, engage park brake, turn key off and remove key.

7
Service
OPERATION
HILLSIDE OPERATION
Do NOT stop or start suddenly on any slope. Be especially cautious when changing direction. Do NOT operate on
slopes greater than 10°.
BATTERY
Batteries normally produce explosive gases which can cause personal injury. Do not allow flames, sparks or any ig-
nited object to come near the battery. When charging or working near battery, always shield your eyes and always pro-
vide proper ventilation.
Battery cable should be disconnected before using “Fast Charge”.
Charge battery at 15 amps for 10 minutes or 7 amps for 30 minutes. Do not exceed the recommended charging rate. If
electrolyte starts boiling over, decrease charging.
Always remove grounded (-) battery clamp first and replace it last. Avoid hazards by:
1. Filling batteries in well-ventilated areas.
2. Wear eye protection and rubber gloves.
3. Avoid breathing fumes when electrolyte is added.
4. Avoid spilling or dripping electrolyte.
Battery Electrolyte is an acidic solution and should be handled with care. If electrolyte is splashed on
any part of your body, flush all contact areas immediately with liberal amounts of water. Get medical
attention immediately.
JUMP STARTING
Use of booster battery and jumper cables. Particular care should be used when connecting a booster
battery. Use proper polarity in order to prevent sparks.
To jump start (negative grounded battery):
1. Shield eyes.
2. Connect ends of one cable to positive (+) terminals of each battery, first (A) then (B).
3. Connect one end of other cable to negative (-) terminal of "good" battery (C).
4. Connect other end of cable (D) to engine block on unit being started (NOT to negative (-) terminal of battery)
To prevent damage to other electrical components on unit
being started, make certain that engine is at idle speed before
disconnecting jumper cables.

8
Service
MAINTENANCE
Before servicing or making adjustments to machine, stop engine and remove key from
ignition.
Use all procedures and parts prescribed by the manufacturer's. Read the engine manual
before operation.

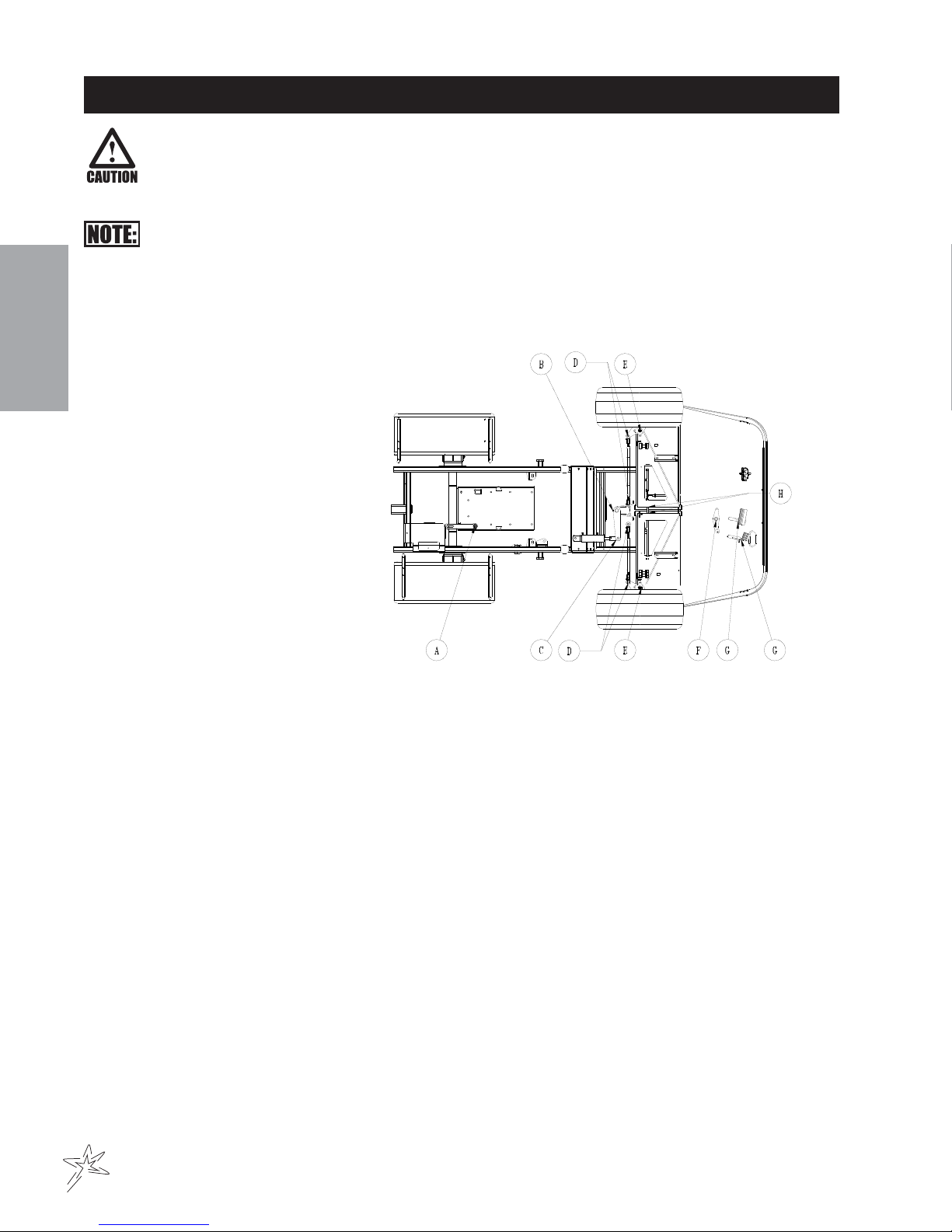

LUBRICATION
UseNo.2Generalpurpose lithium base grease and lubricate every 100 hours. The dump truck has 14
greasefittings.
A. Oneonthetensioner arm.
B. Oneonthesteeringrelay.
C. One on steering ram.
D. One on both ends of steering
arms(4).
E. Oneoneachfrontspindle.
F. Oneontheforward/reverserelay.
G. One on each pedal mount (2).
H. One on each control arm
ELECTRICALCONNECTIONS
Use dielectric grease on all electrical connections.
TIREPRESSURE
Caution must be used when inflating a low tire to recommended pressure. Over inflating can cause tires to ex-
plode.Fronttiresshouldbe 18 psi (1.2bar) and rear tires should be 20 psi (1.4bar). Improper inflation willreduce
tirelifeconsiderably.

9
Service
MAINTENANCE
ENGINEOIL
Change and add oil according to charts below. Do not overfill. Use a high quality detergent oil. For Briggs engine
use oil classified “For Service SJ or higher” SAE 30 oil.
SAE 30 oil, if used below 40° F (4° C), will result in hard starting and possible engine bore damage due to inad-
equatelubrication.
Theuseofnon-syntheticmulti-viscosity oils in temperatures above 40°F (4° C) will result in higher than normal
oilconsumption. Check oil level more frequentlywhenusing a multi-viscosity oil.
Checktheengine oil before startingormorethan 5 minutes afterstoppingtheengine. If oil level is low, remove
oilfillerplug and add new oil to the prescribed level. Do not overfill. Engine oil should be MIL-L2104C orhave
propertiesofAPI Classifications CD gradesor higher.Change the type of Engine oil accordingto theambient
temperature.
Starting Temperature Range Anticipated Before Next Oil Change
HYDRAULICOIL
1. Use SAE 10W-30API Service SJ or higher motor oil.
2. Forproperwarranty, change oil every 500 hours or annually,which ever is first.
3. Oillevelshould be 2-2½" (5-6.4cm) fromtop ofthe tankwhen fluidiscold. Do not overfill.
4. After changing oil, run the machine for a few minutes. Check oil level and for leaks.
5. Always use extreme caution when filling hydraulic oil tank or checking level to keep system free of
contaminants. Check and service more frequently when operating in extremely cold, hot or dusty condi-
tions.
6. If the natural color of the fluid has become black or smells burnt, it is possible that an overheating problem
exists.
7. If fluid becomes milky, water contamination may be a problem.
8. Ifeither ofthe above conditionshappen, change oilimmediately afterfluid is cool and find the cause.Take
fluid level readings when the system is cold.
9. In extreme temperatures you can use straight weight oil. We recommend SAE 30WAPI Service SG when
hot(above 90°F (33°C)) and SAE 10WAPIServiceSJorhigherwhen cold (below 32°F (0°C) ambient
temperature. Use either motor oil or hydraulic oil, but do not mix.
10. Oil being added to the system must be the same as what is already in the tank. Mark the tank fill area as
to which type you put in.

10
Service
ADJUSTMENTS
WHEELCREEP
"Creep" is when the engine is running and hydrostatic transmission is in neutral, but due to inadequate align-
ment, wheels still move. Do the following procedure to stop this motion.
1. Liftup and supportmachine so rear
wheelsareoff the ground and can turn
freely.
2. Intheenginecompartment, the hydro-
static pump is at the rear. The shift arm
is on the bottom of the pump. The
tensionerarmhas a bearing that rides
in the vee of the shift arm. Loosen bolt
A.
3. Withenginerunning,movebearing so it
centerson the shift arm and 'wheel
creep'stops.
4. Tighten all fasteners and test by using
foot pedal linkage to see that 'creep' is
removed.
5. Turnengine offandlower machine.
PARKBRAKEADJUSTMENT
By turning knob on end of park brake lever you can tighten
or loosen brake a small amount. To tighten turn the knob
clockwise. To loosen turn counter clockwise. If this is not
enoughturnclevison brake rod to adjust length of brake
cable.

11
Service
SERVICECHART
Before servicing or making adjustments to the machine, stop engine, block wheels and
remove key from ignition.
Follow all procedures and ONLY use parts prescribed by the manufacturer. Read the engine
manual before maintenance.
Thesuggestedmaintenancechecklistisnotofferedasareplacementforthemanufacturer’senginemanualbut
asasupplement.You must adhere to the guidelines establishedbythemanufacturerforwarrantycoverage.In
adverseconditionssuchasdirt,mudorextremetemperatures,maintenanceshouldbemorefrequent.
Maintenance Service Interval Maintenance Procedure
Torque the wheel lug nuts. (64-74 ft/lb (87-100 Nm))
Change the engine oil and filter.
After the first 20 operating hours Replace hydraulic filter
Check the engine oil.
Check the hydraulic fluid level.
Check the tire pressure.
Check condition of hydraulic hoses and fittings.
Inspect and clean the machine.
Inspect cooling system.
Check the battery fluid level and cable connections.
Change oil when operating under heavy load or high
ambient temperatures.
Change the engine oil and filter.
Change hydraulic filter
Check engine for leaks or loose parts.
Check air cleaner.
Check tire pressure (5 psi (.035 bar)).
Torque the wheel lug nuts. (64-74 ft/lb (87-100 Nm))
Grease Machine.
Check belt tension (where needed)
Every 200 Hours Torque the wheel lug nuts. (64-74 ft/lb (87-100 Nm))
Change oil filter
Change hydraulic filter
Clean battery terminals
Every 400 hours Check spark plugs
Lubricate machine
Visual inspection of machine and hydraulic hoses
Change oil.
Torque lug nuts.
Check battery terminals and electrolyte level.
Change all filters.
Every 250 hours
Every 500 hours or yearly
Every 100 hours
After the first 5 operating hours
Before each use daily
Every 25 hours

12
Service
ENDUSERSERVICECHART
Duplicate this page for routine use
Mon Tues. Wed. Thurs. Fri. Sat. Sun.
Check the Safety Seat Switch
Check Steering Operation
Check the fuel level
Check the engine oil level.
Check the condition of the air filter
Clean the engine cooling fins.
Check for unusual engine noises
Check the hydraulic oil level
Check hydraulic hoses and fittings for damage
Check for fluid leaks.
Check the tire pressure (20-30 psi)
Check the Instrumentation
Inspect electrical system for frayed wires
Check neutral start
Change oil filter.
Change oil.
Lubricate Machine
Ensure all warning decals are intact.
Item
Date Information
Maintence Check Item For the week of:
Areas of Concern
Inspection Performed by:

13
Service
STORAGE
UP TO ONE MONTH
1. Whileengine is running,treat upper cylinders by sprayingengine fogging agent into the airintake (NOT
throughaircleaner)forabouttwominutes.Foggingagentcanbe obtained from your local after market
supplier. Open throttle for short burst of speed, shut off ignition and allow engine to come to a stop while
continuing to spray fogging agent into air intake.
2. Leave spark plugs in holes or seal spark plug holes with suitable threaded metal plugs and cover all
openingsintoengine with suitable non-hygroscopic material.
3. Store machine indoors in dry area.
TWO MONTHS
(allof the above plus)
4. Cleantheexteriorsurfacesoftheengine.
5. Changetheoil and filter while the engineis stillwarm fromoperation.
6. Removebatteryfrom the engine, adjust theelectrolyte level,andrecharge it. Storebattery in a dry dark
place(NOTdirectlyoncement).
EXTENDEDSTORAGE
(allof the above plus)
7. Check for any damaged parts or missing decals. Replace as needed.
8. Draincrankcase completely and refill with recommended engine oil orequivalent.
9. Run engine until completely out of gasoline, then restart and run on stabilizer mixed with unleaded
gasoline for at least 10 minutes.
10. Lubricate all greasepoints.
11. Seal all openings in engine and accessories with non-hygroscopic material. Mask off all areas to be used
for electrical contact.
12. Tape all openings and make sure all surfaces are dry. Then spray all taped openings, all engine accesso-
riesincludingignitionwiring, and all exterior surfaces of engine with Insulation Compound.
13. Put blocks or stands under the machine to take weight off tires.
AFTERSTORAGE
1. Check for any damaged parts or missing decals. Replace as needed.
2. Lubricateallgreasepoints.
3. Cleanexterior surface of engine.
4. Replacespark plugs ifpreviouslyremoved.
5. Removeall tape and obstructions from exterior engine surfaces.
6. Chargeand replace battery.
7. Checktirepressure.
8. Removeblocksor supports from under the machine.
9. Checkengineoillevelandcoolantlevelandlubricateallgreasepoints.
10. Fill fuel tank.
11. Check belt tension.
12. Runengine approximately 5 minutes before putting the engineunderload.

14
Diagrams
WIRINGDIAGRAM
Use dielectric grease on all electrical connections.

15
Diagrams
WIRINGDIAGRAMPARTSLIST
REF# PART# DESCRIPTION QUANTITY
1 14-292 Seat Switch 1
2 13-488 IgnitionSwitch 1
3 32-014 HeadLights 2
4 15-727 SwitchActuator 1
15-782 RockerSwitch 1
5 12-017 HourMeter 1
6 50-359 Warning Light - Oil 1
7 8975 30AMP Breaker 1
8977 Boot 1
8 76-327 NegativeBattery cable 1
9 22-073 Battery 1
10 50-323 Red Battery Cable 1
32-087 Wire Harness 1

16
Diagrams
HYDRAULICDIAGRAM
Letter Code Chart
C Center
I Inside
O Outside
TTop
B Bottom

17
Diagrams
HYDRAULICDIAGRAMPARTSLIST
REF# PART# DESCRIPTION QUANTITY
1 34-103 Orbitrol 1
2 32-069 HydraulicHose - 74" 1
3 32-071 HydraulicHose - 87" 1
4 32-065 HydraulicHose-39.5" 2
5 32-066 HydraulicHose-56.5" 2
6 32-072 HydraulicHose-144" 1
7 32-070 HydraulicHose-116.5" 1
8 31-043 SingleBank Valve 1
9 32-073 HydraulicHose - 94" 1
10 10-554 HydraulicCylinder 1
14-529 Seal Kit 1
18-168 StraightThreadElbow 2
11 32-067 HydraulicHose- 24" 1
12 60-473 OilTank 1
13-586-03 FillerNeck 1
13-747 FillerBreather 1
13 15-624 OilCooler 1
18-168 StraightThreadElbow 2
14 23-006 Oil Filter 1
23-031 ReplacementFilter 1
15 8832-32 3/4" Suction Hose - 32" 1
18-040 HoseClamp 2
16 8832-28 3/4" Suction Hose - 28" 1
18-040 HoseClamp 2
17 8917-11 5/8" Suction Hose - 11" 1
18-040 HoseClamp 2
18 76-238 WheelMotors 2
34-122 ShortElbow 4
19 76-242 HydraulicCylinders 2
76-242-01 Seal Kit 1
23-167 MaleElbow 2
20 32-077 HydraulicHose - 19" 2
21 32-075 HydraulicHose - 24" 1
22 32-074 HydraulicHose- 17.5" 1
23 76-197 GearPump 1
24 76-482 HydrostaticPump 1
23-145 O-ring 1
25 32-068 HydraulicHose - 25" 1
26 32-076 HydraulicHose- 72.5" 1

18
Parts
MAINFRAMEDRAWING
