Smooth Fitness 5.65E User manual

USER’S MANUAL
SMOOTH 5.65E MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 135kgs (300lbs
SERVICE NUMBER: 0800-09 72 100
SERIAL NUMBER (found on frame):

2 SMOOTH 5.65E TREADMILL
PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that
blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
•When choosing a location for the treadmill make sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or
near water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 135gs (300lbs)
•Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the
treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the
same circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by
an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow
these instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.
•The equipment is for Class B (Home Use).

www.smoothfitness.co.uk 3
POWER REQUIREMENTS
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO
WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE
PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of treadmill damage, always use a surge protector (not included) with your treadmill. Surge protectors can be
purchased at most hardware stores.
This treadmill is provided with two different grounding plugs for Central Europe and United Kingdom. Please choose the right
one and plug in your treadmill.
Please make sure that your local voltage is appropriate for the power requirements of this treadmill before you plug it in.
This product is for use with a voltage of 230V ±5%.
Do not use a voltage transformer with product.
Do not use an extension cord with this product when you are not sure if the product is still properly grounded.

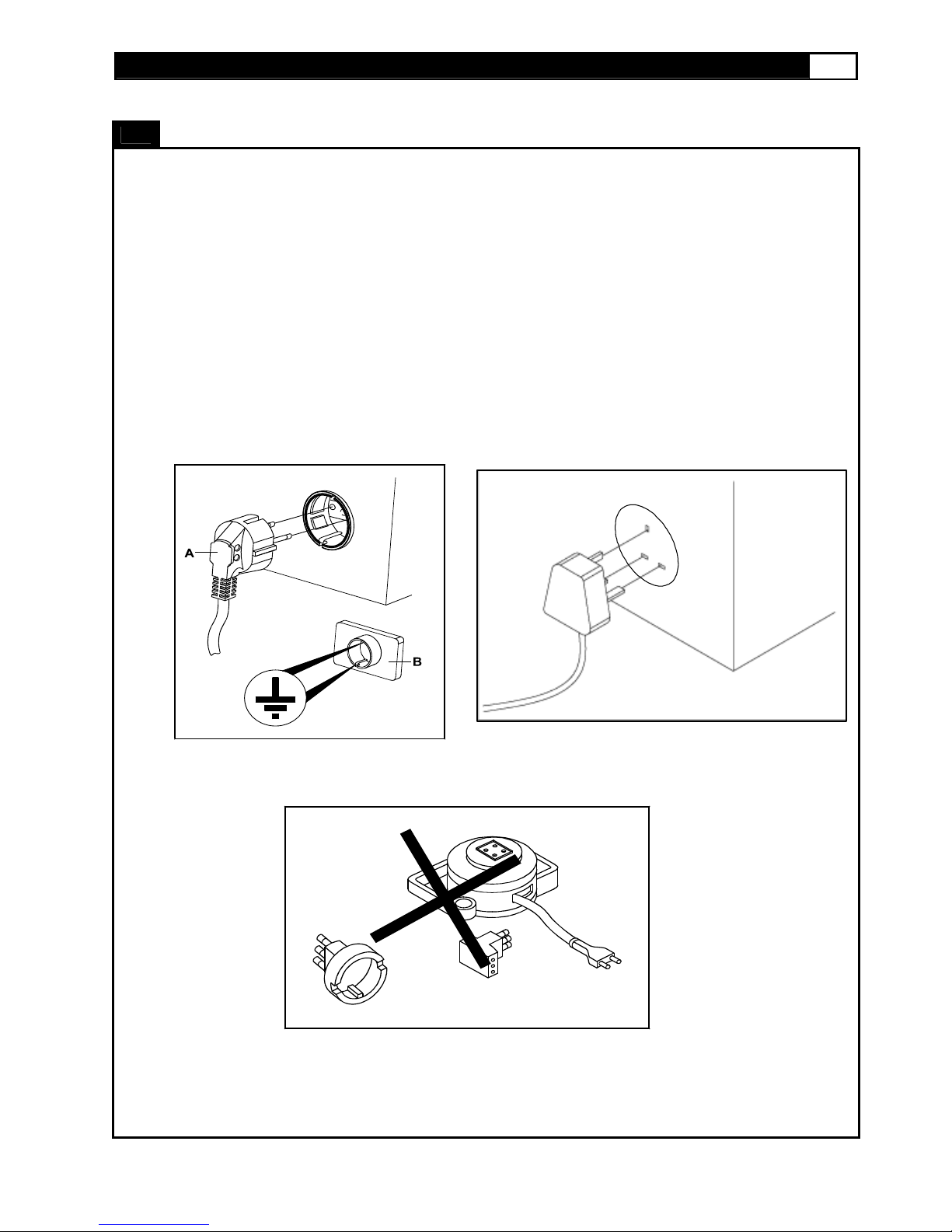

The following pictures show the two delivered plugs:

4 SMOOTH 5.65E TREADMILL
PREASSEMBY
Open the boxes:
Open the boxes of your new equipment. Inventory all parts included in the boxes. And Compare them to the supplied
components and supplied Hardware lists on pages 5-6 for a full count of the parts included. If you are missing any parts or
have any assembly questions contact us directly at 0800-09 72 100.
Assembly instructions begin on page 18.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to
assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free
from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person
when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 135KG (approx. 300LBS) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit shown
here. This product is not intended to support users whose weight exceeds this limit.
Care and maintenance:
1. The safety level can be maintained only if the unit is examined regularly for damage and wear.
2. Replace any defective components immediately and stop all use of equipment until repaired.
3. Always take care when you are mounting the equipment. Straddle the equipment by placing your feet on the straddle
rails. Dismount from the equipment only after all parts have stopped.
4. Always check the quick to wear components like pulley etc. To prevent danger.
5. There is an emergency stop in the form of a SAFETY KEY, to prevent injury; you can stop the treadmill
immediately by pulling the safety key for emergency dismount

www.smoothfitness.co.uk 5

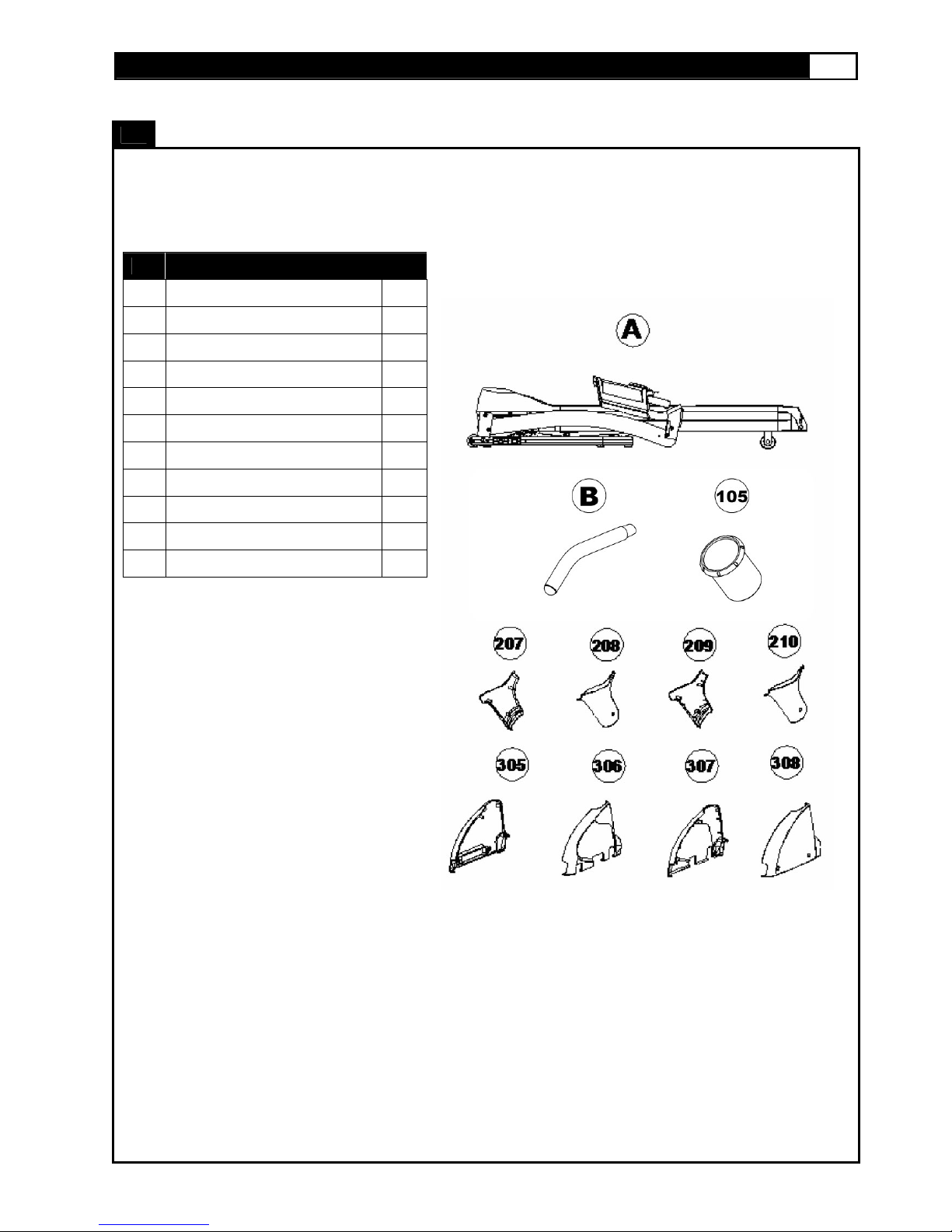

CONTENTS CHECKLIST
Carton contents:
For your convenience, we have identified the contents of the shipping carton. Please check to make sure you
have all of the components before assembly. This chart is provided to help you identify the components used in
the assembly of this product.
No. Description Qty.
A Main Frame Assembly 1
B Handle Bar-L 1
105 Water Bottle Holder 2
207 Handle Bar Cover-LL 1
208 Handle Bar Cover-LR 1
209 Handle Bar Cover-RL 1
210 Handle Bar Cover-RR 1
305 Upright Low Cover - LL 1
306 Upright Low Cover - LR 1
307 Upright Low Cover - RL 1
308 Upright Low Cover - RR 1

6 SMOOTH 5.65E TREADMILL
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is
provided to help you identify those items that may be unfamiliar to you.
No. Description Qty.
806 Bolt M8×52mm 2
807 Washer ∮8 6
809 Screw M4×15mm 8
811 Screw M6×12mm 4
812 Bolt M8×12mm 6
813 Curve Washer ∮8 4
814 Bolt M8×55mm 2
824 Nylon Nut M8 2
864 Screw M4×19 4
A T Handle Hex Key 1
B Wrench 1
C Screwdriver 1
MILLIMETERS

www.smoothfitness.co.uk 7
PARTS LIST
No. Description Qty. Order No.
100 Console Assembly
101 Overlay 1 5.65E-101
102 LCD Computer 1 5.65E-102
105 Water Bottle Holder 2 5.65E-105
106 Console Housing - Upper 1 5.65E-106
107 Console Housing - Bottom 1 5.65E-107
108 Safety Key Base 1 5.65E-108
109 Safety Key 1 5.65E-109
110 2 Pin Safety Key Box Upper Power Wire 1 5.65E-110
112 7 Pin Computer Upper Wire 1 5.65E-112
113 EKG Pulse Wire 2 5.65E-113
200 Handle Bar Assembly
201 Handle Bar 1 5.65E-201
202 Handle Bar Foam Grip 2 5.65E-202
203 Rear Handle Bar - Left 1 5.65E-203
204 Rear Handle Bar - Right 1 5.65E-204
205 Handle Bar Upright Foam Grip 2 5.65E-205
206 Handle Bar End Cap 2 5.65E-206
207 Handle Bar Cover - LL 1 5.65E-207
208 Handle Bar Cover - LR 1 5.65E-208
209 Handle Bar Cover - RL 1 5.65E-209
210 Handle Bar Cover - RR 1 5.65E-210
211 Hand Pulse Sensor 2 5.65E-211
212 Plastic Fixing Insert 10 5.65E-212
215 Front Handle Bar - 2 5.65E-215
216 Handle Bar Foam Grip 1 5.65E-216
300 Upright Assembly
301 Upright 2 5.65E-301
305 Upright Low Cover - LL 1 5.65E-305
306 Upright Low Cover - LR 1 5.65E-306
307 Upright Low Cover - RL 1 5.65E-307
308 Upright Low Cover - RR 1 5.65E-308

8 SMOOTH 5.65E TREADMILL
PARTS LIST
Description Qty. Order No.
400 Base Frame Assembly
401 Base Frame 1 5.65E-401
402 2 Pin Safety Key Box Lower Power Wire 1 5.65E-402
403 7 Pin Computer Lower Wire 1 5.65E-403
404 Power Switch Plate Base 1 5.65E-404
405 Power Switch Plate Cover 1 5.65E-405
406 Power Switch Plate 1 5.65E-406
407 Power Breaker 1 5.65E-407
408 Power Switch 1 5.65E-408
409 Front Caster 2 5.65E-409
410 Base Frame rubber cushion 2 5.65E-410
411 Rubber Cushion 2 5.65E-411
412 Cushion 2 5.65E-412
413 Foot Locker 1 5.65E-413
414 Transportation wheel bracket 1 5.65E-414
415 Transportation wheel 1 5.65E-415
416 Holder 1 5.65E-416
417 Plastic pole 1 5.65E-417
418 Spring 1 5.65E-418
500 Motor Assembly
501 Motor Hood Top 1 5.65E-501
502 Driving Motor 1 5.65E-502
503 Motor Holder 1 5.65E-503
504 Driving Belt 1 5.65E-504
505 Control Board 1 5.65E-505
506 Transformer 1 5.65E-506
507 Elevation Control Board 1 5.65E-507
508 Elevation Support Tube 1 5.65E-508
509 Elevation Support Tube End Cap 4 5.65E-509
510 Elevation Motor 1 5.65E-510
511 Elevation Gear Sleeve 1 5.65E-511
512 Fold Up Locker 1 5.65E-512
513 Fold Up Support 1 5.65E-513
514 Shock 1 5.65E-514
515 Wheel 1 5.65E-515
516 Plastic Clamp - Top 2 5.65E-516
517 Plastic Clamp - Bottom 2 5.65E-517
518 Elevation Support 2 5.65E-518
519 Motor Hood - Left 1 5.65E-519
520 Motor Hood - Right 1 5.65E-520
521 Motor Bottom Cover 1 5.65E-521

www.smoothfitness.co.uk 9
PARTS LIST
600. Running Deck Assembly
601 Running Belt 1 5.65E-601
602 Side Rail 2 5.65E-602
603 Running Deck 1 5.65E-603
604 Side Rail End Cap - Left 1 5.65E-604
605 Side Rail End Cap - Right 1 5.65E-605
606 Rear end cap fixed block 2 5.65E-606
700 Deck Frame Assembly
701 Deck Frame 1 5.65E-701
702 Front Roller Shaft 1 5.65E-702
703 Front Roller Tube 1 5.65E-703
704 Rear Roller Shaft 1 5.65E-704
705 Rear Roller Tube 1 5.65E-705
706 Running Deck Support Tube 1 5.65E-706
707 Running Deck Support Tube Foam Grip 1 5.65E-707
708 Rear Caster 2 5.65E-708
709 Cushion Pad 6 5.65E-709
710 Bottom cover-1 1 5.65E-710
711 Bottom cover-2 1 5.65E-711
800 Fastening
801 Screw M3×16m 8 5.65E-801
803 Screw M3×8mm 2 5.65E-803
804 Screw M4×12 30 5.65E-804
805 Bolt M8×45mm 4 5.65E-805
806 Bolt M8×52m 4 5.65E-806
807 Washer ∮8 11 5.65E-807
809 Screw M4×15 50 5.65E-809
811 Screw M6×12m 4 5.65E-811
812 Bolt M8×12 6 5.65E-812
813 Washer ∮8.5 4 5.65E-813
814 Bolt M8×55mm 2 5.65E-814
816 Washer ∮8 2 5.65E-816
817 M8 C-Clip 2 5.65E-817
818 Bolts M16×102 2 5.65E-818
819 Washer M16×26 2 5.65E-819
821 Screw M3×8mm 2 5.65E-821
822 Bolt ∮8×36 1 5.65E-822
823 Bolt M10×53mm 1 5.65E-823
824 M8 Nylon Nut 11 5.65E-824
825 M10 Nylon Nut 3 5.65E-825
827 Bolt M10x82 1 5.65E-827
828 Bolt M10x88 1 5.65E-828

10 SMOOTH 5.65E TREADMILL
PARTS LIST
No. Description Qty. Order No.
830 Washer ∮10 3 5.65E-830
831 Bushing 10x20.9x26x17.5 2 5.65E-831
832 M4×25mm 4 5.65E-833
833 Bolt M8×36mm 1 5.65E-833
836 Screw M4x19 16 5.65E-836
837 Fixed Bolt M8×68 2 5.65E-837
838 Curve Washer ∮9×35 2 5.65E-838
839 Spring ∮8×26 1 5.65E-839
843 Fixed Bolt M8×48mm 1 5.65E-843
844 Washer ∮10.5 2 5.65E-844
845 Washer ∮8 6 5.65E-845
846 Bolt M8×12mm 6 5.65E-846
847 Nut M8 2 5.65E-848
848 Fixed Bolt M10×115mm 2 5.65E-848
853 Bolt M5×14mm 2 5.65E-853
855 Side Rail Guider 8 5.65E-855
856 Screw M8×25mm 6 5.65E-856
857 Screw M8×55mm 2 5.65E-857
858 Bolt M6×45mm 3 5.65E-858
859 Washer ∮6.5 3 5.65E-859
860 Bolt M10×32mm 1 5.65E-860
863 Bolt M10×45mm 2 5.65E-863
864 Screw M4×19mm 4 5.65E-864
865 Bolt M8×30mm 8 5.65E-865
866 Screw M4x23 2 5.65E-866
867 Spring Washer ∮8x14x2 2 5.65E-867
868 OD30xID9xT3.0 2 5.65E-868

www.smoothfitness.co.uk 11

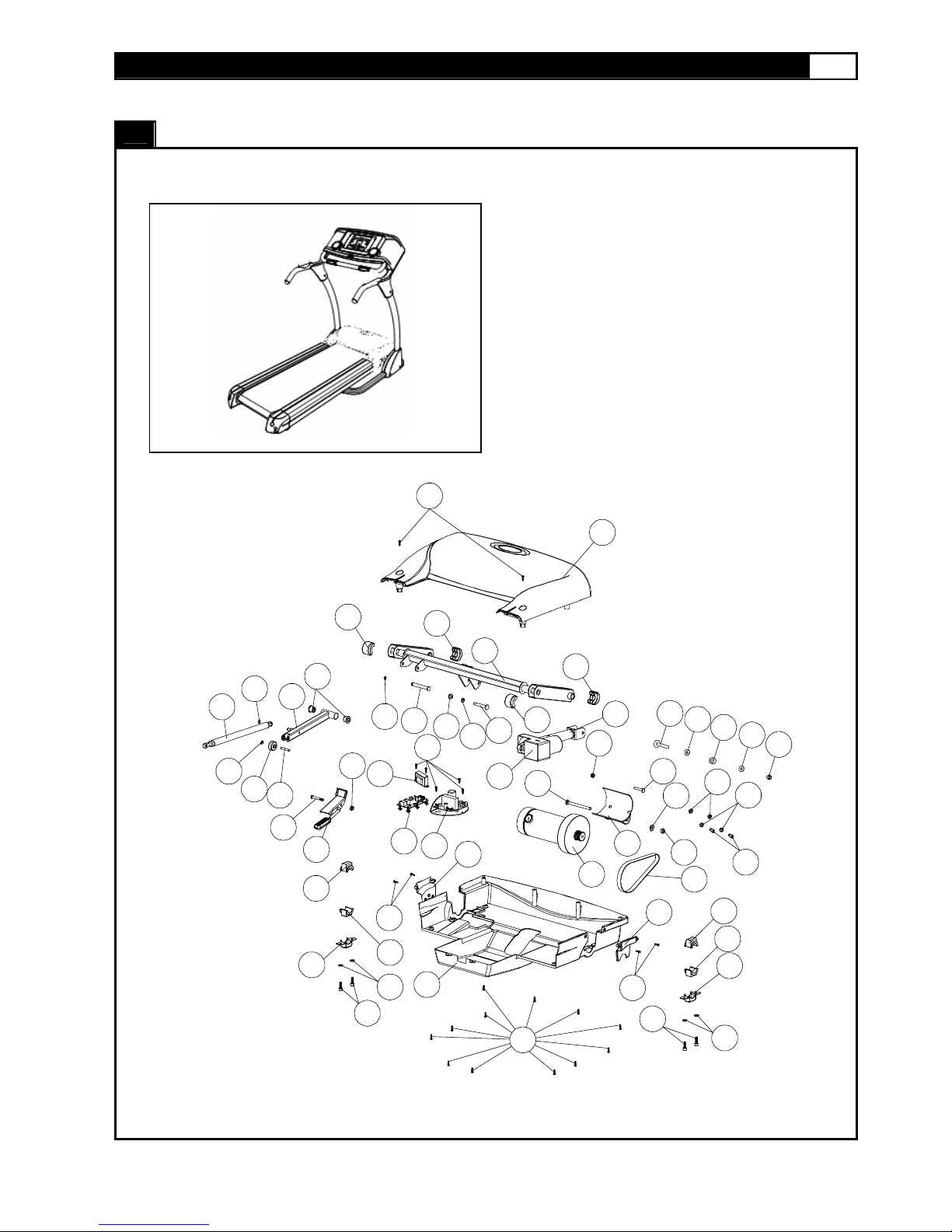

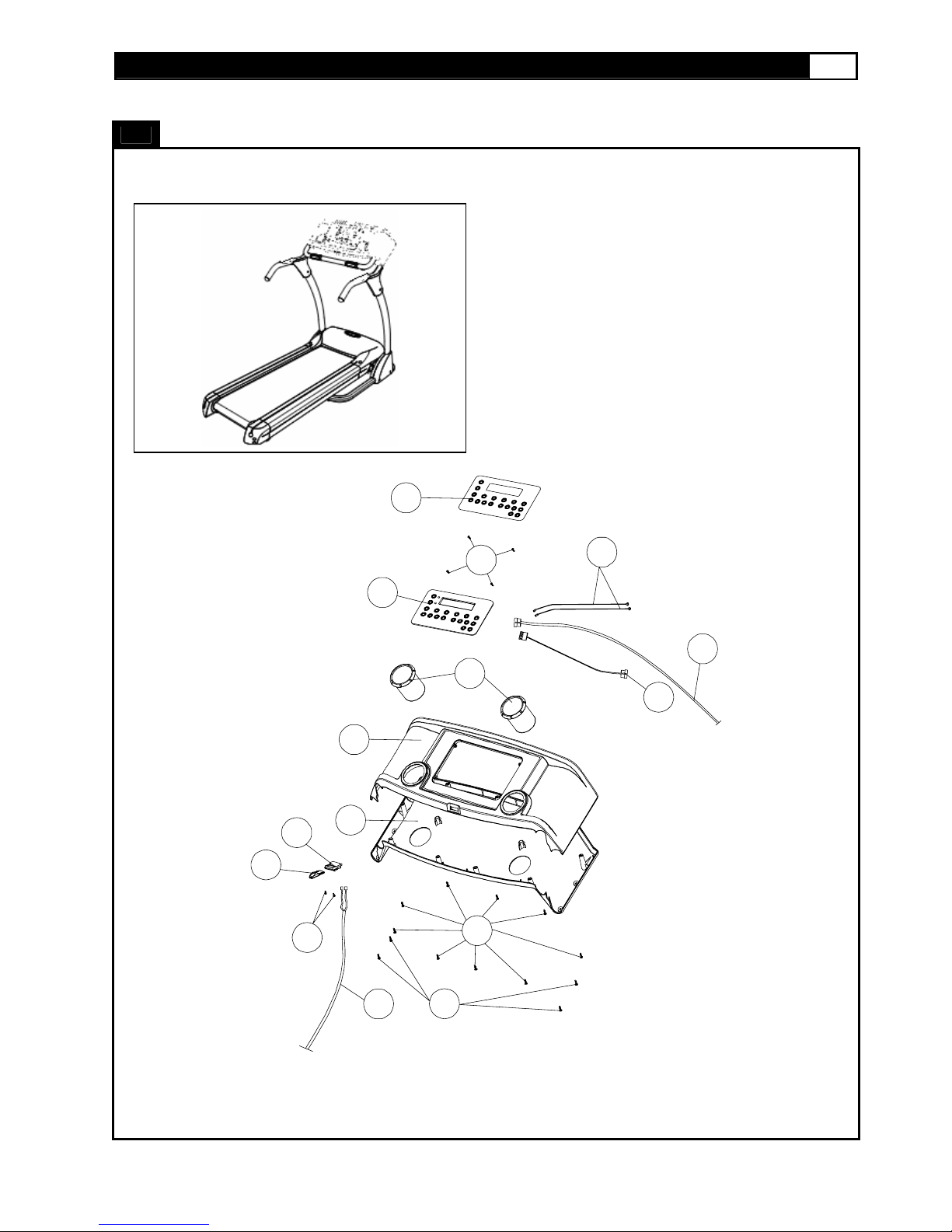

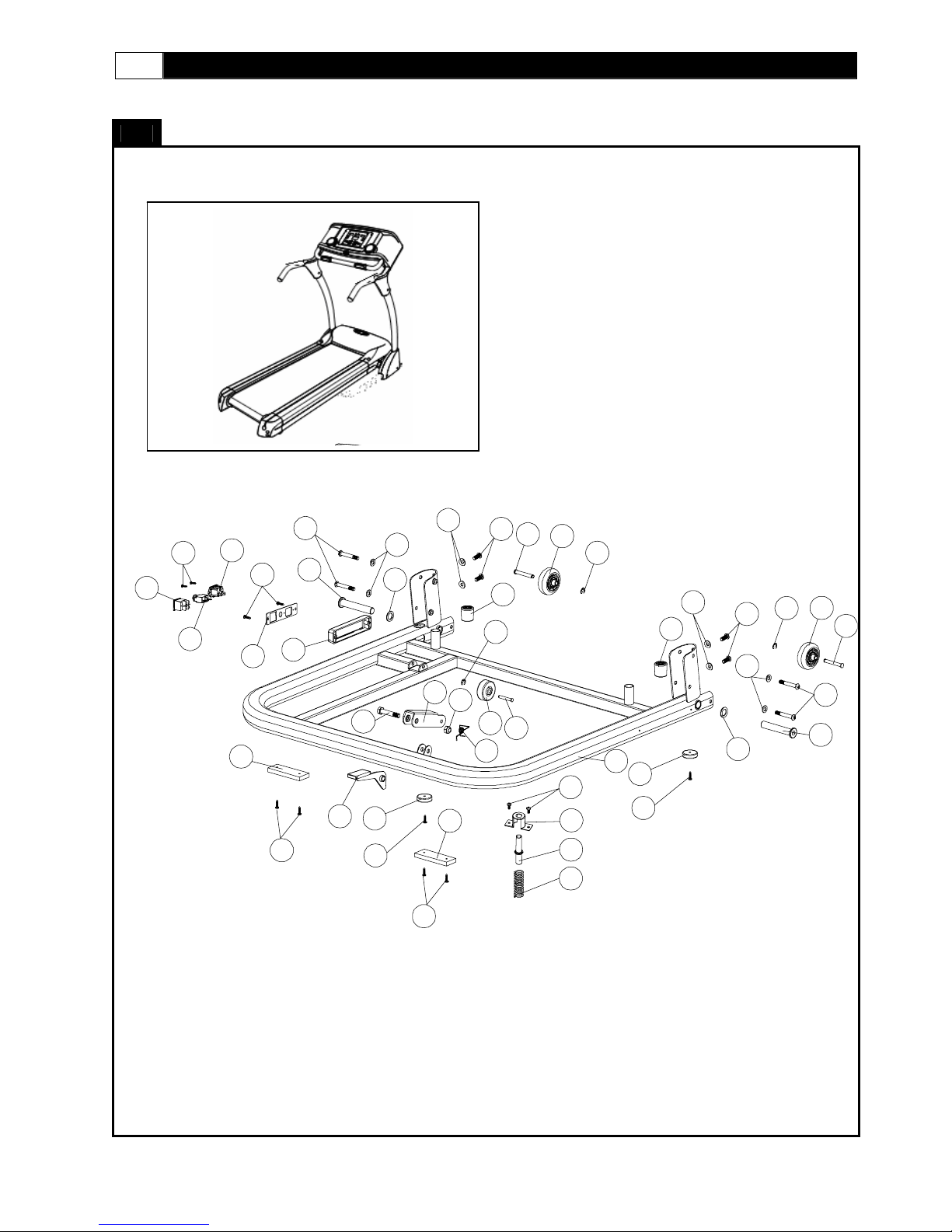

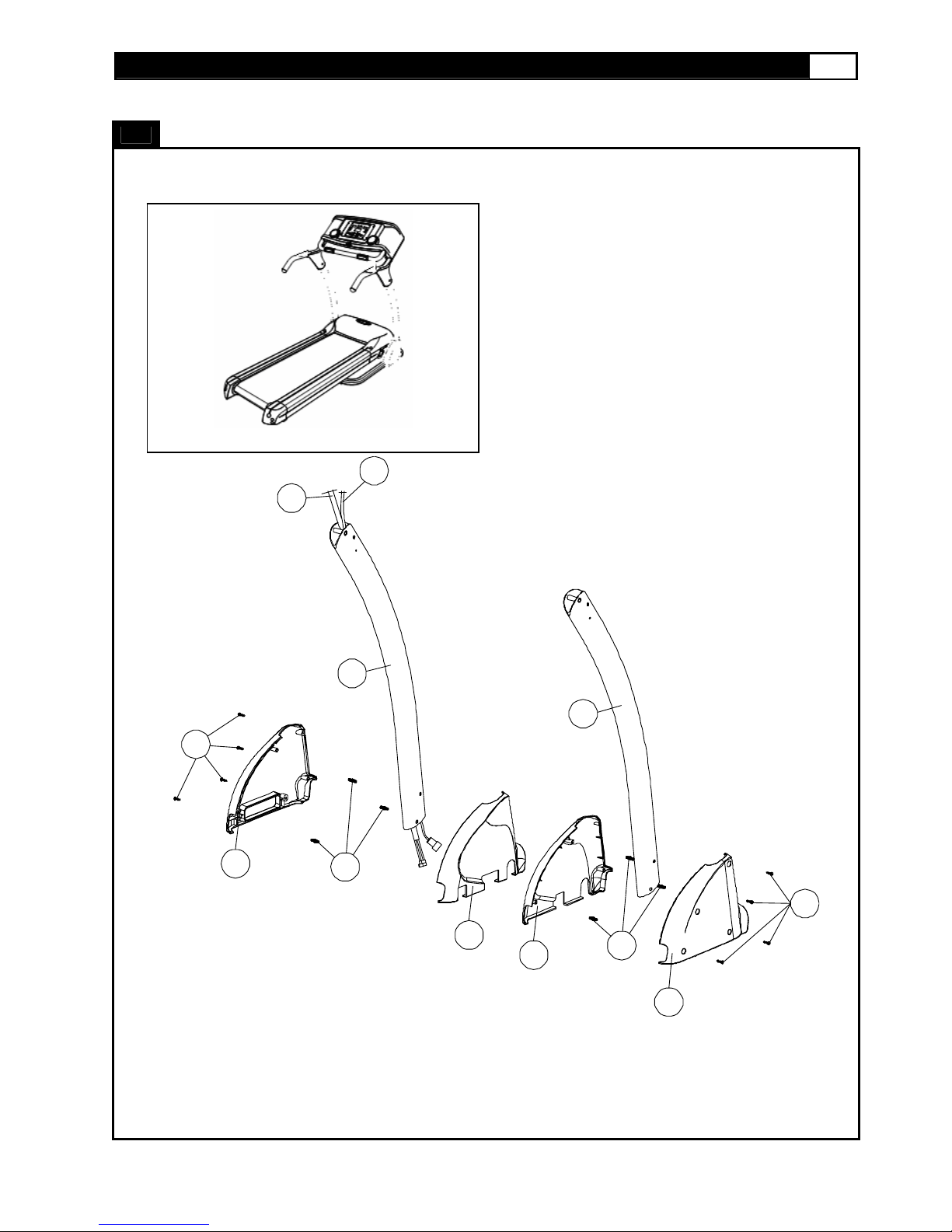

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED AT THE FACTORY.
113
112
110
109
108 107
106
105
102
801
101
111
809
803
809

12 SMOOTH 5.65E TREADMILL
216 202
824 824
812
811
807
812
811
215
215
807
806
864
864
864 807
805 801
801
806
212
212
211
210
209
208
207
206
206 205
205
204
203
202
201
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED AT THE FACTORY.

www.smoothfitness.co.uk 13
809
809
308
307
306 212
212
305
110
112
301
301
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED AT THE FACTORY.

14 SMOOTH 5.65E TREADMILL
419
809
809
418
417
416
853
401
404
405
406
407
408
409
409
410
410
411
411 412
412
413
414
415
812
812
813
813
814 807
807
816
816
817
817
814
817
818
818
819
819
832
821
822
823 825
809
809
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED AT THE FACTORY.

www.smoothfitness.co.uk 15
827
830
506 867
844
501
503
502 504
505
507
508
509 509
509
509
510
511
512
513
514
515
516
516
517
517
518 518
519
520
521
809
828
825
831
817
830
822
806
824 809
837 838 838
839 824
824
843
844 807
846
825
848
809
809
846 846
807
807
809
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED AT THE FACTORY.

16 SMOOTH 5.65E TREADMILL

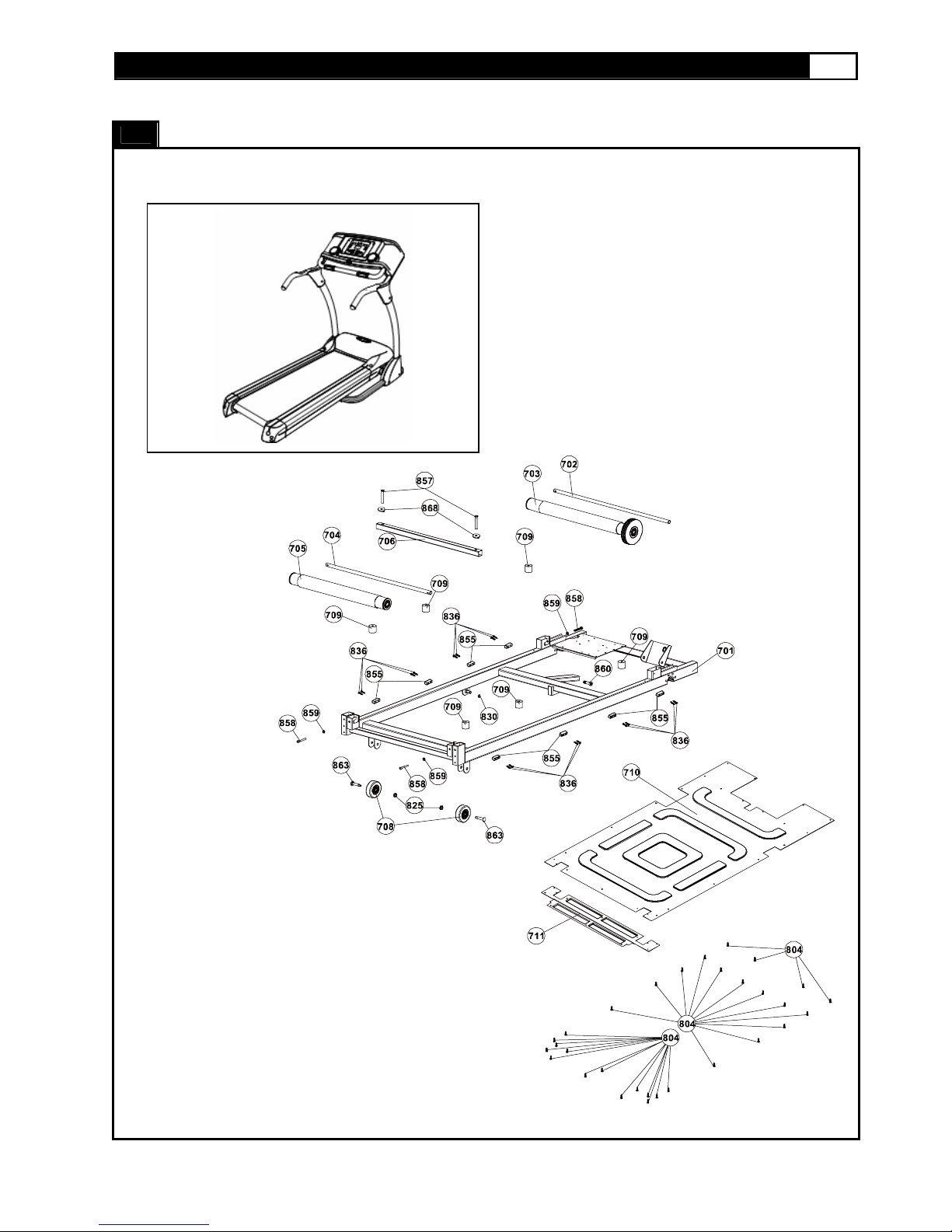

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED AT THE FACTORY.

www.smoothfitness.co.uk 17
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED AT THE FACTORY.

18 SMOOTH 5.65E TREADMILL

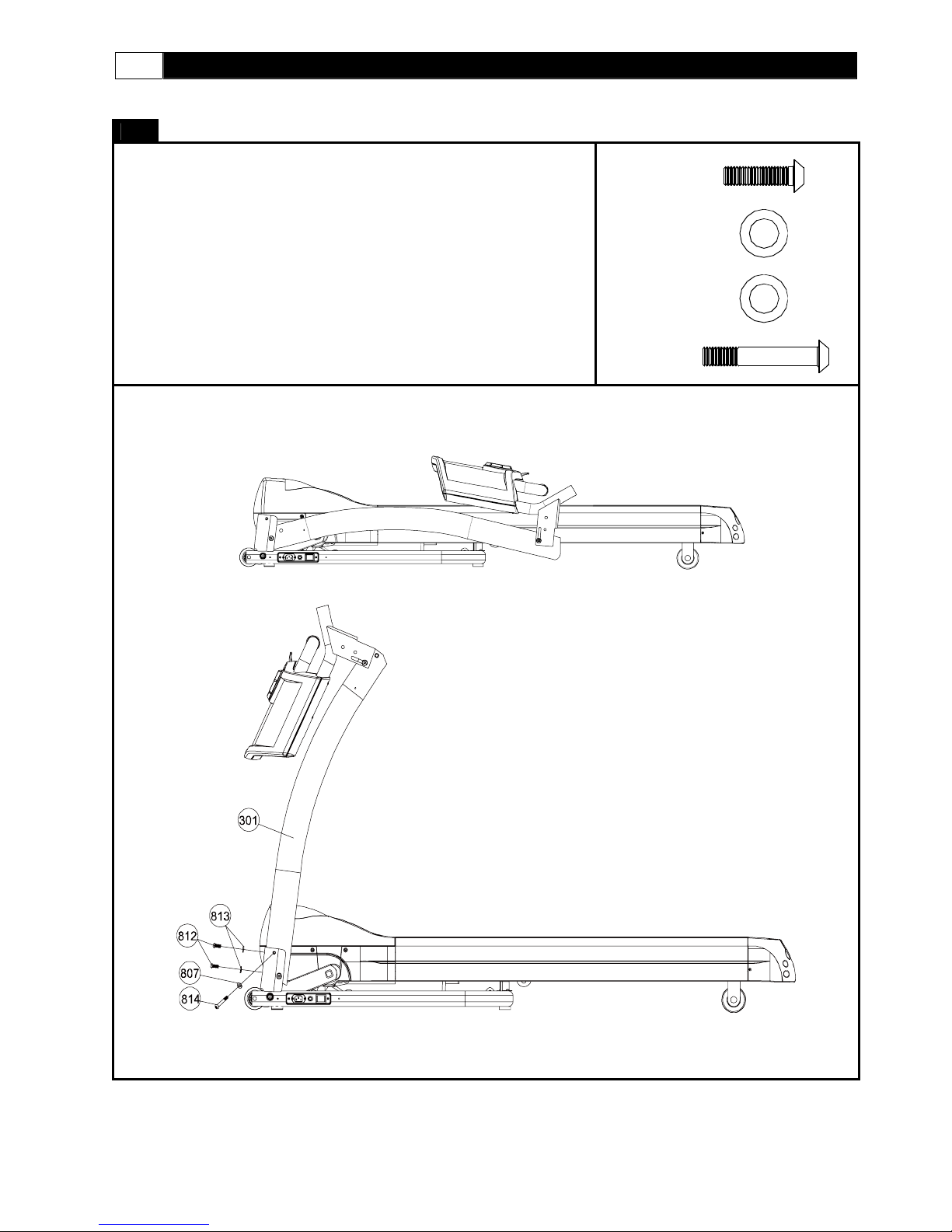

ASSEMBLY
STEP 1:
Remove your treadmill from the carton and place it on the floor in an
open area.
Attach the Uprights (301) to the Base Frame and secure each one in
place using two M8×12mm Bolt (812) and two ø8.5 Washer (813), one
M8×55mm Bolt (814) and one ø8 Washer (807).
812 X4
813 X4
807 X2
814 X2

www.smoothfitness.co.uk 19
ASSEMBLY
STEP 2:
Rotate the Console Housing – Bottom （107）up to the correct position and press the Rear
Handle Bar – Left（203）into the Upright - Left （301）as shown. Repeat this procedure on the
Upright – Right.

20 SMOOTH 5.65E TREADMILL
ASSEMBLY
STEP 3:
Secure in place using two M8 × 52mm Bolt (806), two ∮8 Washer (807)
and two M8 Nylon Nut (824). Secure the M8 ×12mm Bolt (812) and two
∮8 Washer (807).
806 X2
807 X4
812 X2
824 X2
203
807
806
807
806
812 807
807
812
824 204
