Smooth Fitness 9.45ST User manual

USER’S MANUAL
9.45ST MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 400lbs(182kgs).
SERIAL NUMBER (found on frame):

2 9.45ST TREADMILL
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
•When choosing a location for the treadmill be sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near
water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 400LBS (182 Kgs).
•Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the treadmill.
Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both
men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in
sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the same
circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by an
authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow these
instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.
•Use “safety key” when operating the treadmill and make sure the “safety key” is clipped to the users clothing.
•Remove the “safety key” and store it in a safe place when the treadmill is not in use. Keep the “safety key” away from
children.

www.smoothfitness.com 3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC
SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE
PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT
THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges and
noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the possibility of
treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector with a
UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less and an
electrical rating 110VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for electric
current, should the treadmill malfunction. This treadmill is equipped with an electrical cord that has an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like the plug illustrated in the drawing
below.
GFCI outlets and GFCI Circuit Breakers are NOT recommended for use on this product. GFCI outlets and GFCI Circuit Breakers
may cause this equipment to function improperly.

4 9.45ST TREADMILL
BEFORE YOU BEGIN
Open the boxes:
Open the boxes of your new equipment. Inventory all parts included in the boxes, and compare them to the Supplied
Components and Supplied Hardware lists on pages 5-6 for a full count of the parts included. If you are missing any
parts or have any questions contact us directly at 888-800-1167
*Assembly instructions are on pages 18-26.
Gather your tools:
Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the unit
properly. Having all of the necessary equipment at hand will save time and make the assembly quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 400LBS (Approx. 182 Kgs). It is
not recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit shown
here. This product is not intended to support users whose weight exceeds this limit.
Care and maintenance:
The safety level can be maintained only if it is examined for damage and wear.
Replace any defective components immediately and stop all use of the equipment until repaired.
Always take care when mounting the equipment. Straddle the equipment by placing your feet on the straddle rails.
Dismount from the equipment only after all parts have stopped.
Always check the wear and tear components like pulley, belts, etc.…To prevent injury.
There is an emergency stop, in the form of a SAFETY KEY, to prevent injury; you can stop the treadmill immediately
by actuating the emergency stop for emergency dismount.

www.smoothfitness.com 5

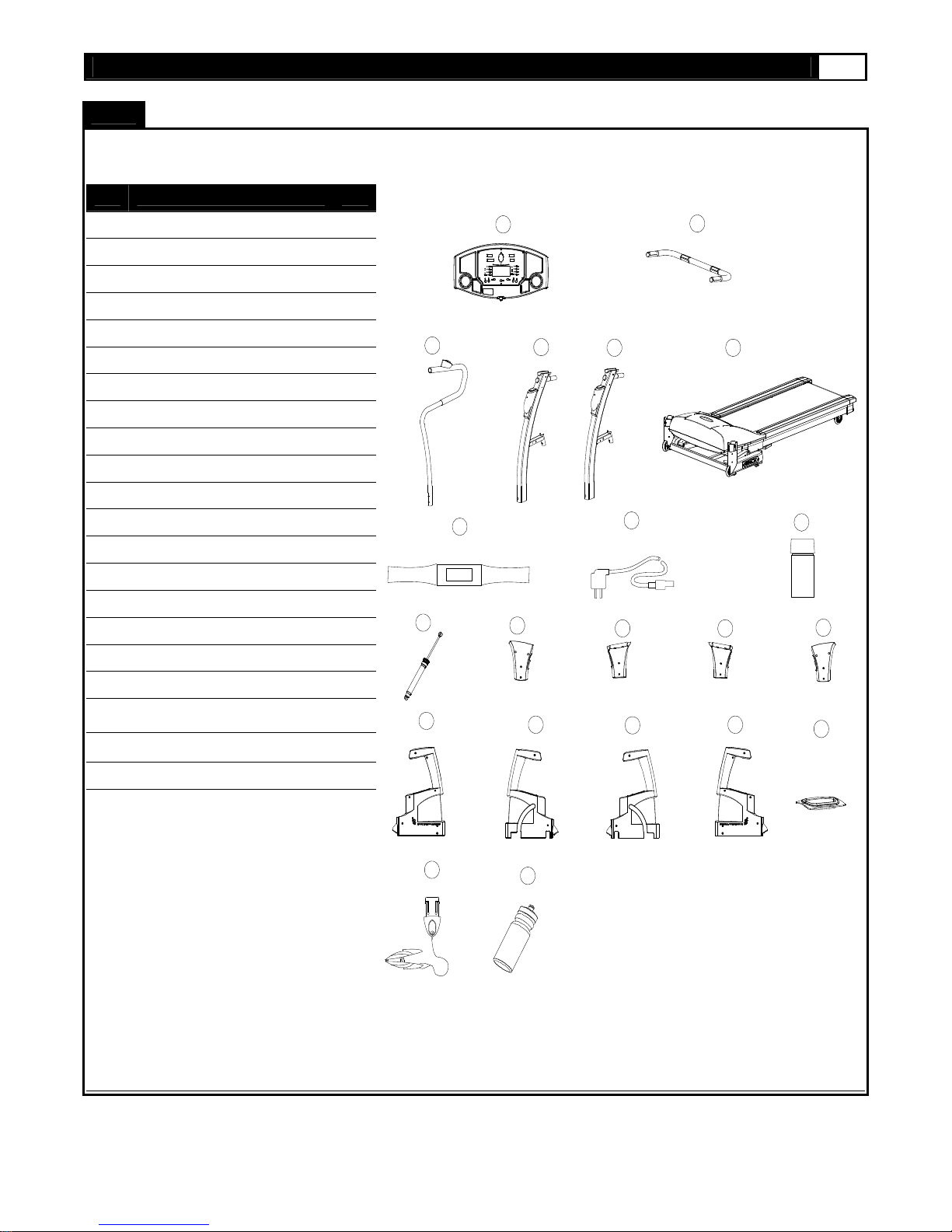

SUPPLIED COMPONENTS
This list identifies the major components you will use to assemble this product.
No. Description Qty.
311 312
107 116
313 314 315
310
AB
305304
303 306
F
D
CE
HI
G
A Computer 1
B Front Handlebar Assembly 1
C Handlebar 2
D Upright Assembly Left 1
E Upright Assembly Right 1
F Main Frame Assembly 1
G Chest Belt 1
F Power Cord 1
I Running belt Lubrication 1
310 Adjustable Cylinder 2
303 Upright Cover - LL 1
304 Upright Cover - LR 1
305 Upright Cover - RL 1
306 Upright Cover - RR 1
311 Upright Plastic Shroud - LL 1
312 Upright Plastic Shroud - LR 1
313 Upright Plastic Shroud - RL 1
314 Upright Plastic Shroud - RR 1
315 Adjustable Cylinder Cover -
Upper 2
107 Safety Key 2
116 Water Bottle 1

6 9.45ST TREADMILL

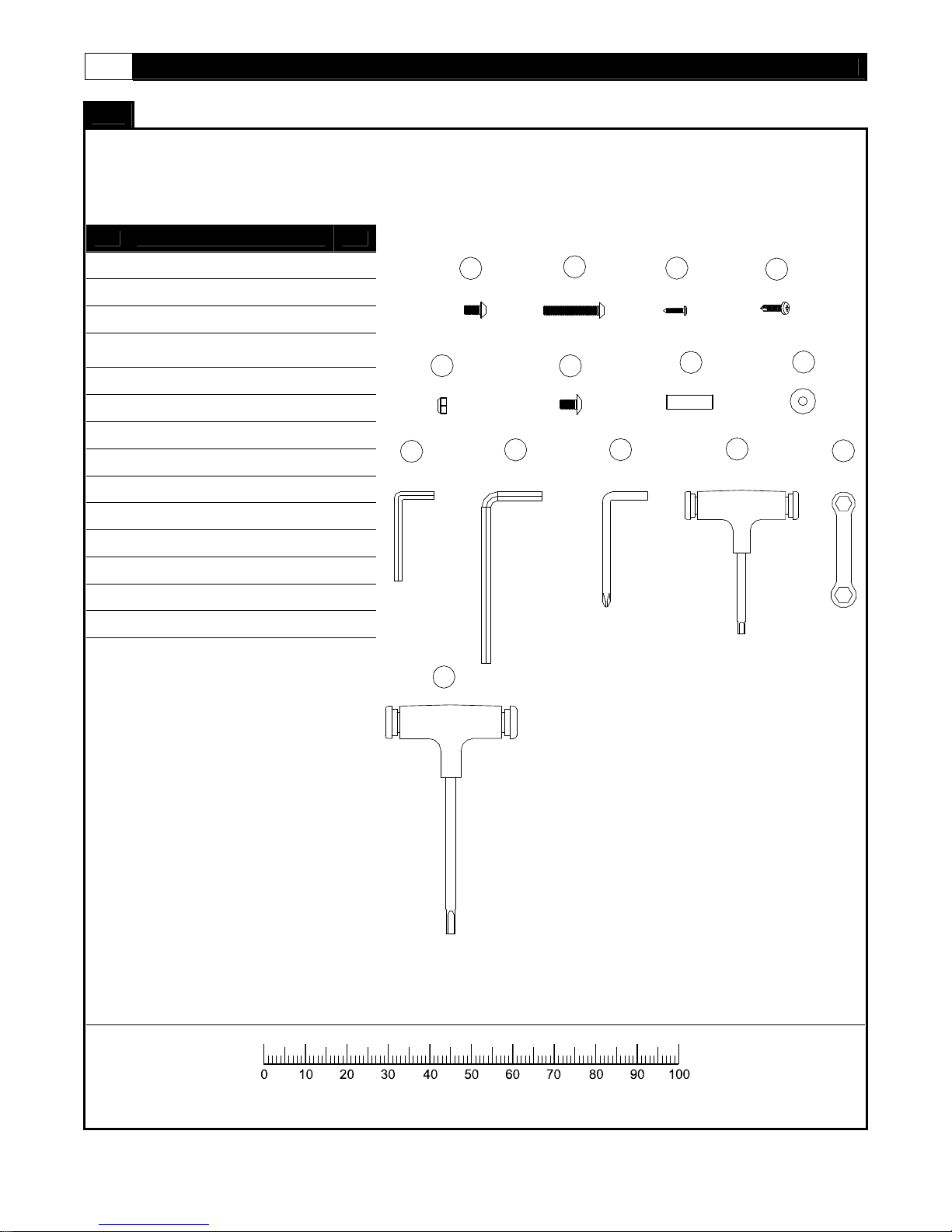

SUPPLIED HARDWARE
This list identifies the hardware you will use to assemble the product. To help distinguish between
the various types of screws and bolts, use the scale below to measure them and compare them to
the sizes listed.
No. Description Qty.
845 846
826
BCEAD
F
807
843
805 806
804
804 M8 × 15mm Bolt 2
805 M8 × 50mm Bolt 12
806 # 8 × 20mm Screw 18
807 4 × 15mm Thread Cutting
Screw 19
826 M8 Nylon Nut 2
843 M8 × 15 mm Allen Head Bolt 4
845 13 × 42mm Shaft 2
846 #8 × 23mm Washer 2
A 5mm Allen Key 1
B 8mm Allen Key 1
C Screwdriver 1
D 5mm Allen Wrench 1
E Spanner 1
F 6mm Allen Wrench 1
MILLIMETERS

www.smoothfitness.com 7
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
9.45ST-100 Complete Computer Console
101 Overlay 1 9.45ST-101
102 Computer Insert 1 9.45ST-102
103 Console PC Board 1 9.45ST-103
104 Console Housing – Upper 1 9.45ST-104
105 Console Housing – Bottom 1 9.45ST-105
106 Safety Key Base 1 9.45ST-106
107 Safety Key 1 9.45ST-107
108 Safety Key Wire – Upper 1 9.45ST-108
109 Computer Wire – Upper 1 9.45ST-109
110 Computer Ground Wire 1 9.45ST-110
111 Hand Pulse Wire – Upper 2 9.45ST-111
112 E – Prom 1 9.45ST-112
113 Motion Control Board 1 9.45ST-113
114 Motion Control Board Wire 1 9.45ST-114
115 Motion Control Sensor Wire 2 9.45ST-115
116 Water Bottle Holder 2 9.45ST-116
9.45ST-200 Complete Handle Bar Components
201 Handle Bar Upright 2 9.45ST-201
202 Handle Bar Upright Foam Grip 2 9.45ST-202
203 Front Handle Bar 1 9.45ST-203
204 Front Handle Bar Foam Grip-Short 1 9.45ST-204
205 Front Handle Bar Foam Grip-Long 2 9.45ST-205
206 Hand Pulse Set 2 9.45ST-206
207 Motion Control 2 9.45ST-207
208 Motion Control Base 2 9.45ST-208
9.45ST-300 Complete Upright Components
301 Upright 2 9.45ST-301
303 Upright Cover-LL 1 9.45ST-303
304 Upright Cover-LR 1 9.45ST-304
305 Upright Cover-RL 1 9.45ST-305
306 Upright Cover-RR 1 9.45ST-306
307 Safety Key Wire – Middle 1 9.45ST-307
308 Computer Wire – Upper 1 9.45ST-308
309 Motion Control Sensor Wire - Middle 2 9.45ST-309

8 9.45ST TREADMILL
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
310 Adjustable Cylinder 2 9.45ST-310
311 Upright Plastic Shroud – LL 1 9.45ST-311
312 Upright Plastic Shroud – LR 1 9.45ST-312
313 Upright Plastic Shroud – RL 1 9.45ST-313
314 Upright Plastic Shroud – RR 1 9.45ST-314
315 Adjustable Cylinder Cover - Upper 2 9.45ST-315
318 Fixing Inserts 2 9.45ST-316
9.45ST-400 Complete Base Frame Components
401 Base Frame 1 9.45ST-401
402 Safety Key Wire – Lower 1 9.45ST-402
403 Computer Wire –Lower 1 9.45ST-403
404 Power Switch Plate Cover 1 9.45ST-404
405 Power Switch Plate 1 9.45ST-405
406 Power Breaker 1 9.45ST-406
407 Power Switch 1 9.45ST-407
411 Bushing 4 9.45ST-411
412 Fix Bolt Sets 2 9.45ST-412
413 Front Caster 2 9.45ST-413
414 Rubber Cushion 2 9.45ST-414
415 Level Adjuster 2 9.45ST-415
416 Base Frame End Cap 2 9.45ST-416
417 Cushion 2 9.45ST-417
426 Shock 1 9.45ST-426
9.45ST-500 Complete Motor Components
501 Motor Hood 1 9.45ST-501
502 Elevation Motor 1 9.45ST-502
503 Elevation Gear Sleeve 1 9.45ST-503
504 Driving Motor 1 9.45ST-504
505 Motor Holder 1 9.45ST-505
506 Driving Belt 1 9.45ST-506
507 Motor Control Board 1 9.45ST-507
508 Elevation Control Board 1 9.45ST-508

www.smoothfitness.com 9
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
09 Elevation Support Tube 1 9.45ST-509
510 Elevation Support Tube Cover - LEFT 1 9.45ST-510
511 Motor Bottom Cover 1 9.45ST-511
512 Deck Frame Side Cover - LEFT 1 9.45ST-512
513 Plastic Clamp - TOP 2 9.45ST-513
514 Plastic Clamp - BOTTOM 2 9.45ST-514
515 Elevation Support 2 9.45ST-515
516 Deck Rubber Cushion 2 9.45ST-516
517 Rear Vent Cover 1 9.45ST-517
518 Elevation Support Tube Cover - RIGHT 1 9.45ST-518
519 Deck Frame Side Cover – RIGHT 1 9.45ST-519
9.45ST-600 Complete Running Deck Components
601 Running Belt 1 9.45ST-601
602 Side Rail 2 9.45ST-602
603 Running Deck 1 9.45ST-603
604 Side Rail End Cap - LEFT 1 9.45ST-604
605 Side Rail End Cap - RIGHT 1 9.45ST-605
9.45ST-700 Complete Deck Frame Components
701 Deck Frame 1 9.45ST-701
702 Front Roller Shaft 1 9.45ST-702
703 Front Roller Tube 1 9.45ST-703
704 Roller Bearing 6202 4 9.45ST-704
705 Rear Roller Shaft 1 9.45ST-705
706 Rear Roller Tube 1 9.45ST-706
707 Running Deck Support Tube 1 9.45ST-707
708 Deck Frame – Rear 1 9.45ST-708
709 Steady Frame 1 9.45ST-709
413 Rear Caster 2 9.45ST-413
9.45ST-800 Complete Hardware Pack
801 ＃6 × 12mm Screws 10 9.45ST-801
802 M4 × 6mm Screws 12 9.45ST-802
803 M8 × 12mm Screws 8 9.45ST-803

10 9.45ST TREADMILL
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
804 M8 × 15mm Bolt 3 9.45ST-804
805 M8 × 50mm Bolt 12 9.45ST-805
806 # 8 × 20mm Screw 20 9.45ST-806
807 4 × 15mm Thread Cutting Screw 19 9.45ST-807
808 M5 × 10mm Screws 2 9.45ST-808
809 M8 × 16 Screws 20 9.45ST-809
813 Washer 4 9.45ST-813
814 Nylon Nut 6 9.45ST-814
816 M14 × 90 Screws 3 9.45ST-816
817 Bearing 4 9.45ST-817
818 M10 × 35mm Screws 10 9.45ST-818
819 M8 × 10mm Screws 7 9.45ST-819
820 M8 × 50mm Screws 2 9.45ST-820
821 M10 × 63mm Bolts 1 9.45ST-821
822 Fixed Block 8 9.45ST-822
823 M8 × 120mm Bolts 1 9.45ST-823
824 Plate Washer 2 9.45ST-824
825 Spring 1 9.45ST-825
826 M8 Nylon Nut 2 9.45ST-826
827 M8 × 20mm Screws 6 9.45ST-827
828 Spring Washer 12 9.45ST-828
829 Washer 2 9.45ST-829
830 M10 × 136mm Screws 1 9.45ST-830
832 M8 × 25mm Screws 8 9.45ST-832
833 Hexagon Nut 10 9.45ST-833
834 M6 × 70mm Bolts 3 9.45ST-834
838 M10 × 43mm Bolts 2 9.45ST-838
839 Cushion Pad 10 9.45ST-839
840 M10 × 40mm Screws 1 9.45ST-840
841 M6 × 10mm Screws 2 9.45ST-841
842 M10 × 30mm Allen Head Bolt 2 9.45ST-842
843 M8 × 15mm Allen Head Bolt 4 9.45ST-843
845 13 × 42mm Shaft 2 9.45ST-845
846 #8 × 23mm Washer 2 9.45ST-846

www.smoothfitness.com 11

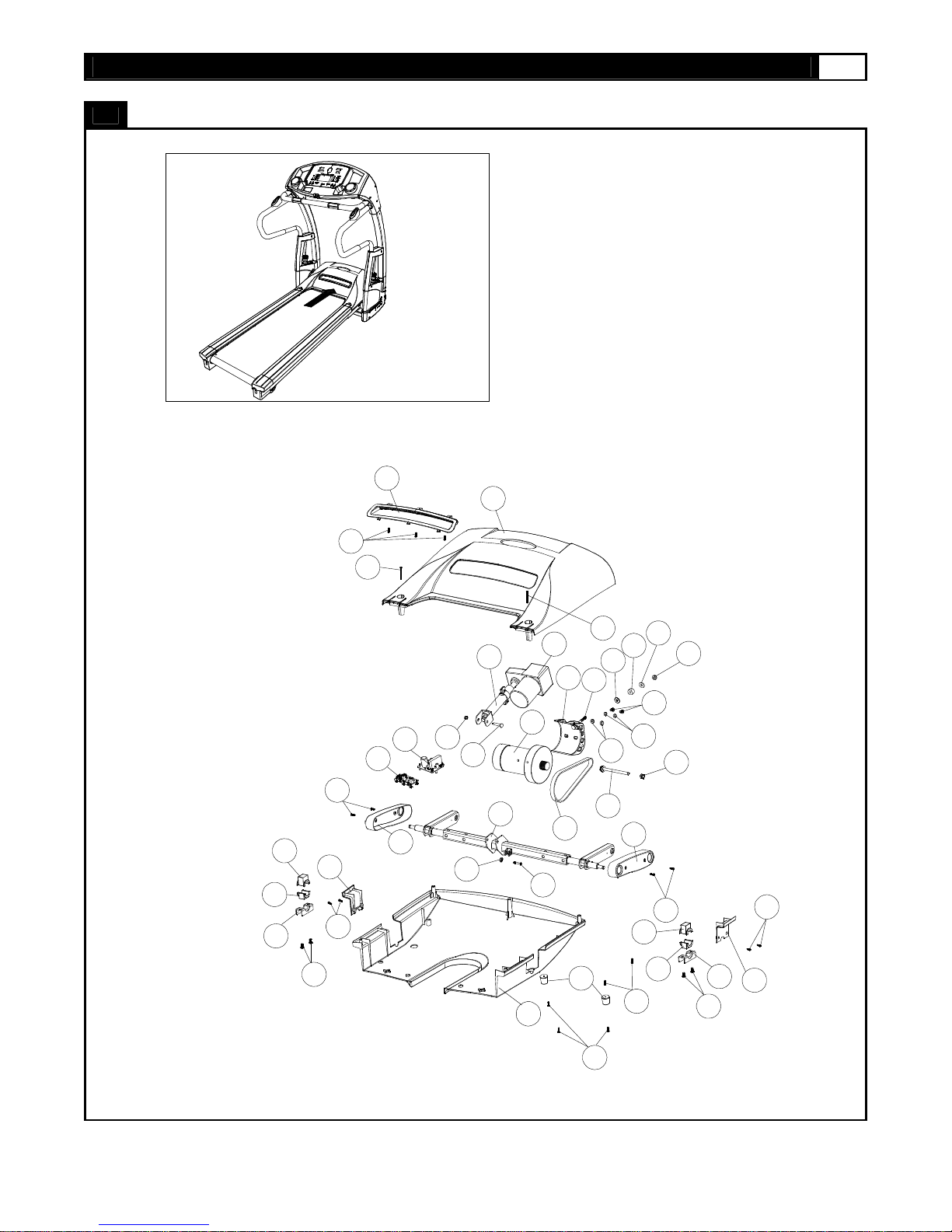

PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED

12 9.45ST TREADMILL
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

www.smoothfitness.com 13
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

14 9.45ST TREADMILL
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

www.smoothfitness.com 15
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
516
814
820
821
508 507
509
506 830
809
515
514 519
820
501
517
819
503 824
505
504
823
502
829
510
512
809
827
825
827
828
518
513
827
515
514
513
809
806
511
819
814
816
824
819
514
513
819
510
512
809
827
825
827
828
518
513
827
515
809
806
511
516
506 830
821
508 507 814
820
503 824
505
504
829
823
502 820
517
819
501
515
514
809
519
819
814
816
824
509
814842

16 9.45ST TREADMILL
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
605
832
601
602
602
809
604
603
822
818

www.smoothfitness.com 17
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
828
709
833
828
833
828
833
702
703
840 814 704
701
834
841
413
706
707
834
814
708
838
839
828
833
828
833
828
833
704
704
704 705

18 9.45ST TREADMILL
ASSEMBLY

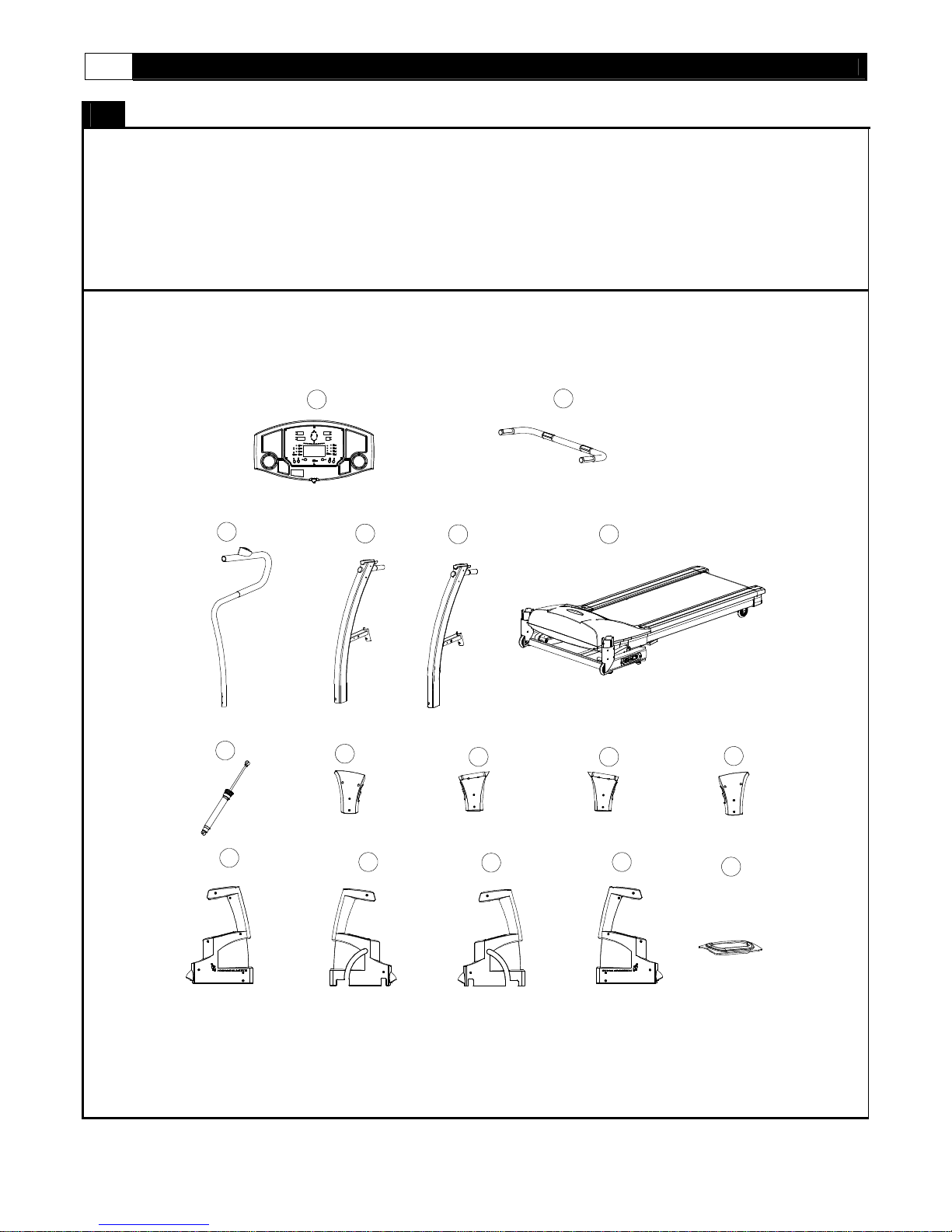

STEP 1:Unpacking and Inventory
(A)Remove your treadmill from the carton and place it on the floor in an open area.
(B)Remove the treadmill and all the components and hardware from the box.
(C)Check the quantities of all components and hardware with the component and hardware lists on pages 5-6
(D) After verifying inventory if there are any missing parts please contact Smooth fitness at 1-888-800-1167.
310
311 312 313 314 315
B
F
E
D
C
A
305304
303 306

www.smoothfitness.com 19
ASSEMBLY
STEP 2:Assemble Upright F
r
ame
NOTE: Make sure all wires are recessed into the frame. DO NOT trap or
pinch DO NOT tighten bolts until STEP9
(A) Connect the Lower and middle section wire as seen below (307 to 402)(308 to 403)
(B) Insert any extra cable length into the Left Upright (301).
(C)Insert the Left and Right Uprights (301) into the Base Frame (401).
403
402
307 308

20 9.45ST TREADMILL
ASSEMBLY
STEP 3: Assemble The Side Handlebars
NOTE: Side rails are interchangeable for use on both right and left sides.
Make sure all wires recessed into the frame. DO NOT trap or pinch.
(A) Connect the Left Motion Control lower wire to the middle wire (207 to 309 ). As
Shown in the diagram below.
(B) Insert the Left Handlebar (201) into the Upright Tube (301). Using one M8 x 15mm
bolts (804) to secure the upper portion. Use two M8 x 50mm Bolts (805) to secure
the lower portion to the base frame. Use two M8 x 50mm Bolts (805) to secure the
middle portion to the base frame.
(C) Repeat the above process for the Right side
804 X2
805 X8
207
309
