Smooth Fitness EVO 2CD User manual

OWNER’S MANUAL
RETAIN FOR FUTURE REFERENCE
TOLL FREE CUSTOMER SERVICE
1.888.800.1167
MODEL NUMBER: EVO 2CD
SERIAL NUMBER:
USER’S WEIGHT LIMITATION 400lbs.
APPLICATION STANDARD
ASSEMBLY
OPERATING INSTRUCTIONS
CONDITIONING GUIDELINES
MAINTENANCE
SERVICE
EVO 2CD Motorized Treadmill
Optional Equipment:Standard Equipment:

precautions
-2-
BEFORE BEGINNING
Use the treadmill only as
described in this manual.
Place on a level surface, with 6
feet (2 m) of clearance behind it. Do
not place the treadmill on any surface
that blocks air openings. To protect
the floor or carpet from damage, place
a mat under the treadmill.
When choosing a location for the
treadmill make sure that the location
and position permit access to a plug.
Keep the treadmill indoors, away
from moisture and dust. Do not put
the treadmill in a garage or covered
patio, or near water.
Do not operate the treadmill
where aerosol products are used or
where oxygen is being administered.
Keep children under the age of
12 and pets away from the treadmill
at all times.
The treadmill should not be used
by persons weighing more than
400lbs.
Never allow more than one
person on the treadmill at a time.
Wear appropriate exercise clothing
when using the treadmill. Do not
wear loose clothing that could become
caught in the treadmill. Athletic
support clothes are recommended
for both men and women. Always
wear athletic shoes. Never use the
treadmill with bare feet, wearing only
stockings, or in sandals.
For future service or related
questions.
Please staple your receipt and/or
write in the name and phone number
of the retail store where you
purchased your EVO treadmill.
Name:
Phone Number:
Receipt:
Precautions
WARNING: To reduce the risk of
burns, fire, electric shock, or injury
to persons, read the following
important precautions and
information before operating the
treadmill.
It is the responsibility of the
owner to ensure that all users of this
treadmill are adequately informed of
all warnings and precautions.
When connecting the power
cord, plug the power cord into
a grounded circuit. No other
appliance should be on the same
circuit.
Always straddle the belt and allow
it to start moving before stepping
onto the belt.
Always examine your treadmill
before using to ensure all parts are
in working order.
Allow the belt to fully stop before
dismounting.
Never insert any object or body
parts into any opening.
Follow the safety information in
regards to plugging in your treadmill.
Keep the power cord away from
the incline wheels and do not run
the power cord underneath your
treadmill. Do not operate the
treadmill with a damaged or frayed
power cord.
Always unplug the treadmill before
cleaning and/or servicing. Service
to your treadmill should only be
performed by an authorized service
representative, unless authorized
and/or instructed by the
manufacturer. Failure to follow these
instructions will void the treadmill
warranty.
Never leave the treadmill
unattended while it is running.

power requirements
POWER REQUIREMENTS
conductor and a grounding plug.
Always plug the power cord into a
surge protector, and plug the surge
protector into an appropriate outlet
that is properly installed and
grounded in accordance with all local
codes and ordinances.
This product is for use on a nominal
120-volt circuit, and has a grounding
plug that looks like the plug illustrated
in the drawing below.
Power Requirements:
IMPROPER CONNECTION OF
THE EQUIPMENT GROUNDING
CONNECTOR CAN RESULT IN A
RISK OF AN ELECTRIC SHOCK.
CHECK WITH A QUALIFIED
ELECTRICIAN OR SERVICE MAN
IF YOU ARE IN DOUBT AS TO
WHETHER THE PRODUCT IS
PROPERLY GROUNDED. DO NOT
MODIFY THE PLUG PROVIDED
WITH THE PRODUCT, IF IT WILL
NOT FIT THE OUTLET, HAVE A
PROPER OUTLET INSTALLED BY
A QUALIFIED ELECTRICIAN.
This treadmill can be seriously
damaged by sudden voltage
changes in your home’s electrical
power. Voltage spikes, surges and
noise interference can result from
weather conditions or from other
appliances being turned on or off.
To reduce the possibility of treadmill
damage, always use a surge
protector (not included) with your
treadmill.
Surge protectors can be purchased
at most hardware stores. The
manufacturer recommends a single
outlet surge protector with a UL1449
rating as a Transient Voltage Surge
Suppressor (TVSS) with a UL
suppressed voltage rating of 400V
or less and an electrical rating
120VAC,15 amps.
This treadmill must be grounded to
reduce the risk of electrical shock.
Grounding provides a path of least
resistance for electric current, should
the treadmill malfunction. This
treadmill comes with an electrical
cord having an equipment-grounding -3-

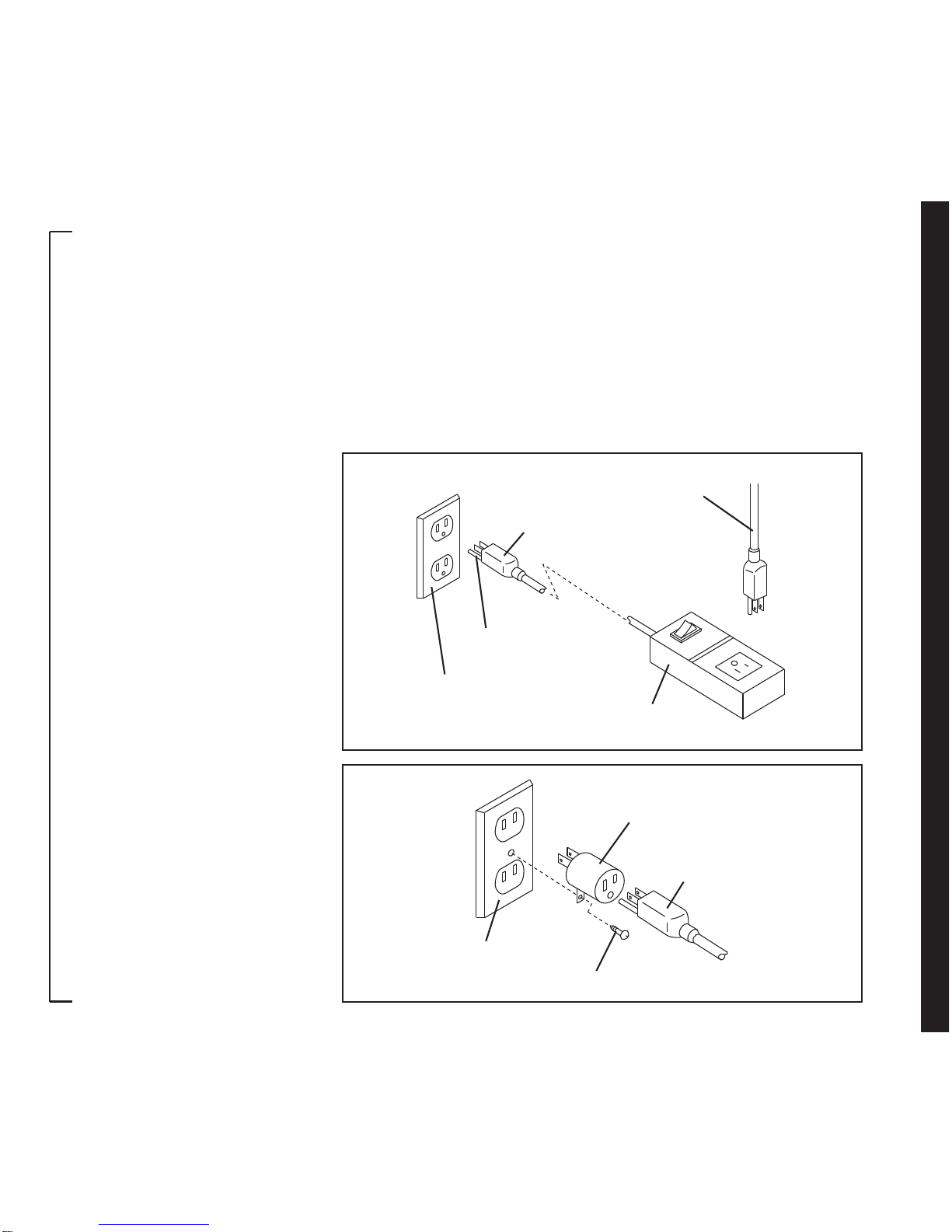

SURGE PROTECTOR
GROUNDING PLUG
SURGE PROTECTOR
GROUNDING PIN
GROUNDING OUTLET
TREADMILL POWER CORD
ADAPTOR
SCREW
GROUNDING OUTLET
SURGE PROTECTOR
GROUNDING PLUG

preassembly
-4-
BEFORE BEGINNING
Invite a friend
Some of the assembly steps may
require heavy lifting. It is
recommended that you obtain the
assistance of another person when
assembling this product.
User Weight Limitation
Please note that there is a weight
limitation for this product. If you
weigh more than 400lbs. it is not
recommended that you use this
product. Serious injury may occur
if the user’s weight exceeds the
limit shown here. This product is
not intended to support users whose
weight exceeds this limit.
Open the boxes
You are now ready to open the boxes
of your new equipment. Make sure
to inventory all of the parts that are
included in the boxes. Check the
Hardware Comparison Chart for a
full count of the number of parts
included for this product to be
assembled properly. If you are
missing any parts or have any
assembly questions call your local
Smooth Retailer.
Gather your tools
Before starting the assembly of
your unit, make sure that you have
gathered all the necessary tools you
may require to assemble the unit
properly. Having all of the necessary
equipment at hand will save time
and make the assembly quick and
hassle-free.
Clear your work area
Make sure that you have cleared
away a large enough space to
properly assemble the unit. Make
sure space is free from anything that
may cause injury during assembly.
After the unit is fully assembled,
make sure there is a comfortable
amount of free area around the unit
for unobstructed operation.

-5-
COMPARISON CHART
For your convenience, we have
identified the hardware used in
the assembly of this product.
This chart is provided to help you
identify those items that may be
unfamiliar to you.
hardware
8
Screw
M4 x 19mm
(4 pieces)
55
Screw
#8 x 19mm
(4 pieces)
16
Screw
M6 x 20mm
(2 pieces)
17
Bolt
M8 x 15mm
(4 pieces)
121
Allen Head Bolt
M9 x 19mm
(4 pieces)
40
Metal Cap
(2 pieces)
Allen Wrench
(1 piece)
Wrench
(1 piece)
Wrench
(1 piece)
Wrench
(1 piece)
130
Screw
M6 x 15mm
(2 pieces)
46
Bolt
M8 x 78mm
(2 pieces)
4
Safety Key
(1 piece)

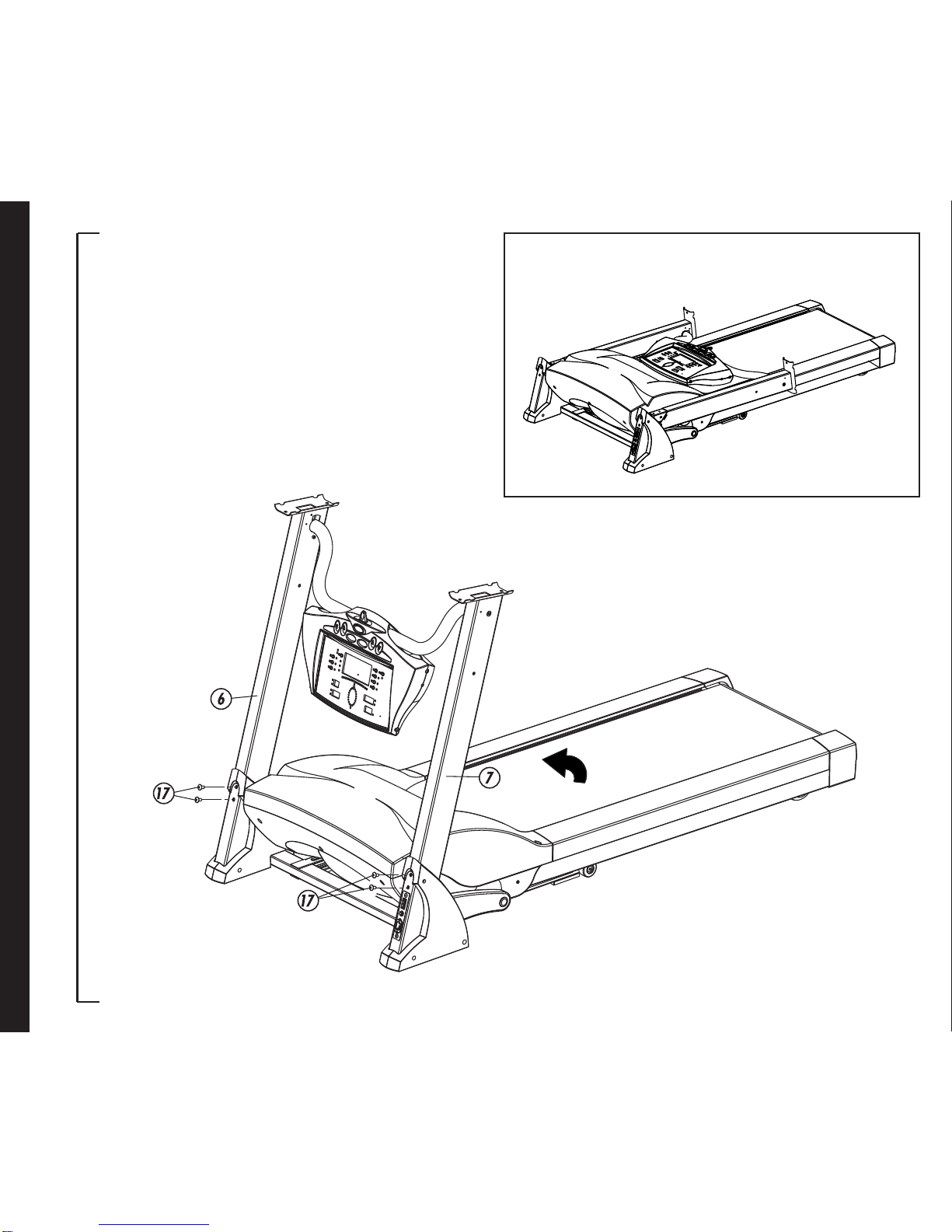

Step 1:
Remove your EVO 2CD Treadmill from
the carton and place it on the floor in an
open area as shown in FIG-1.
Raise the Right and Left Handle Uprights
(6 and 7) to the upright position and
secure with Screws (17).
assembly instructions
-6-
ASSEMBLY
FIG-1

assembly instructions
-7-
Step 2:
Remove the Screw (51) then rotate the
Computer Support (3) up to the correct
position as shown and secure with the
Screw (51).
ASSEMBLY

Step 3:
Rotate the Console (39) up to its proper
angle and secure with Screws (16) as
shown in FIG-2.
ASSEMBLY
assembly instructions
-8-
FIG-2

Step 4:
NOTE:
If you have the Optional Smooth Music Package
follow these instructions before attaching the Console
Tray (132).
Run the Cd Player Wires from the back of the
Console (39) first through the small hole on the
Console Tray (132), then through the tabs on the
back of the Console Tray (132) and finally through
the small hole on the side of the Console (39) as
shown.
Attach the Metal Plate (115) to the Console Tray
(132) and secure with Screws (109).
Attach the Console Tray (132). Insert the Metal
Plate (115) into the Console (39) and secure with
the Screw (116).
NOTE: For proper use please make sure to insert
the plastic flange UNDER the metal tab before
inserting the screw.
assembly instructions
-9-
ASSEMBLY
CD PLAYER
WIRES
Plastic Flange

Step 5:
Attach the Cross Tube (45) to the Left and
Right Handle Uprights (6 and 7) and secure
with the Metal Cap (40) and Bolts (46).
Secure the Computer Support (3) to the
Right and Left Handle Uprights (6 and 7)
by tightening the Screws (18).
ASSEMBLY
assembly instructions
-10-

Step 6:
Unscrew theAllen Head Bolt (86). Insert
the Console Tray Support Tube (9) into
the Cross Tube (45) and secure with
Allen Head Bolt (86). Do not fully tighten
until later.
assembly instructions
-11-
ASSEMBLY

assembly instructions
-12-
Step 7:
Rotate the Console Tray Support
Tube (9) and slide it into the hole
underneath the Console Tray (132).
ASSEMBLY

Step 8:
Fully tighten Screws (18), Bolts (46) and
(86) at this time.
assembly instructions
-13-
ASSEMBLY

assembly instructions
-14-

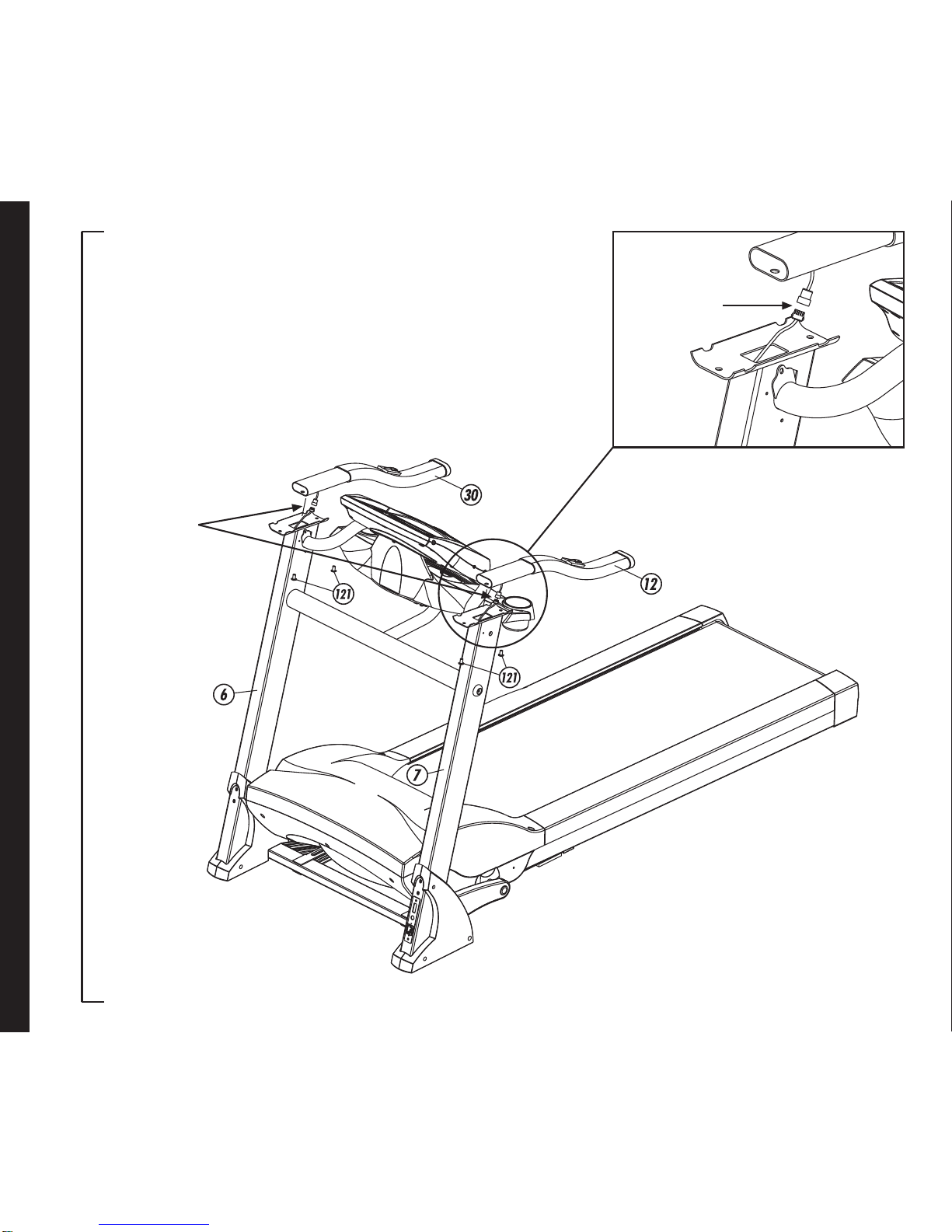

Step 9:
Connect the Motion Control Sensor and Hand
Pulse Sensor wires then attach the Right and
Left Handlebars (30 and 12) to the Right and
Left Handle Uprights (6 and 7) and secure using
Allen Head Bolts (121).
ASSEMBLY
Connect the
sensor wires
Connect the
sensor wires

Step 10:
Mount the Handle Cover Right - 1 (42) and the
Handle Cover Right - 2 (44) to the Right Handle
Upright (6) and secure with Screws (55) and (8).
Mount the Handle Cover Left - 1 (43) and the
Handle Cover Left - 2 (41) to the Left Handle
Upright (7) and secure with Screws (55) and (8).
Step 11:
Attach the Base Frame End Caps (14) to the Left
and Right Handle Upright (6 and 7) and secure
using the Screws (130).
ASSEMBLY
assembly instructions
-15-

assembly instructions
-16-

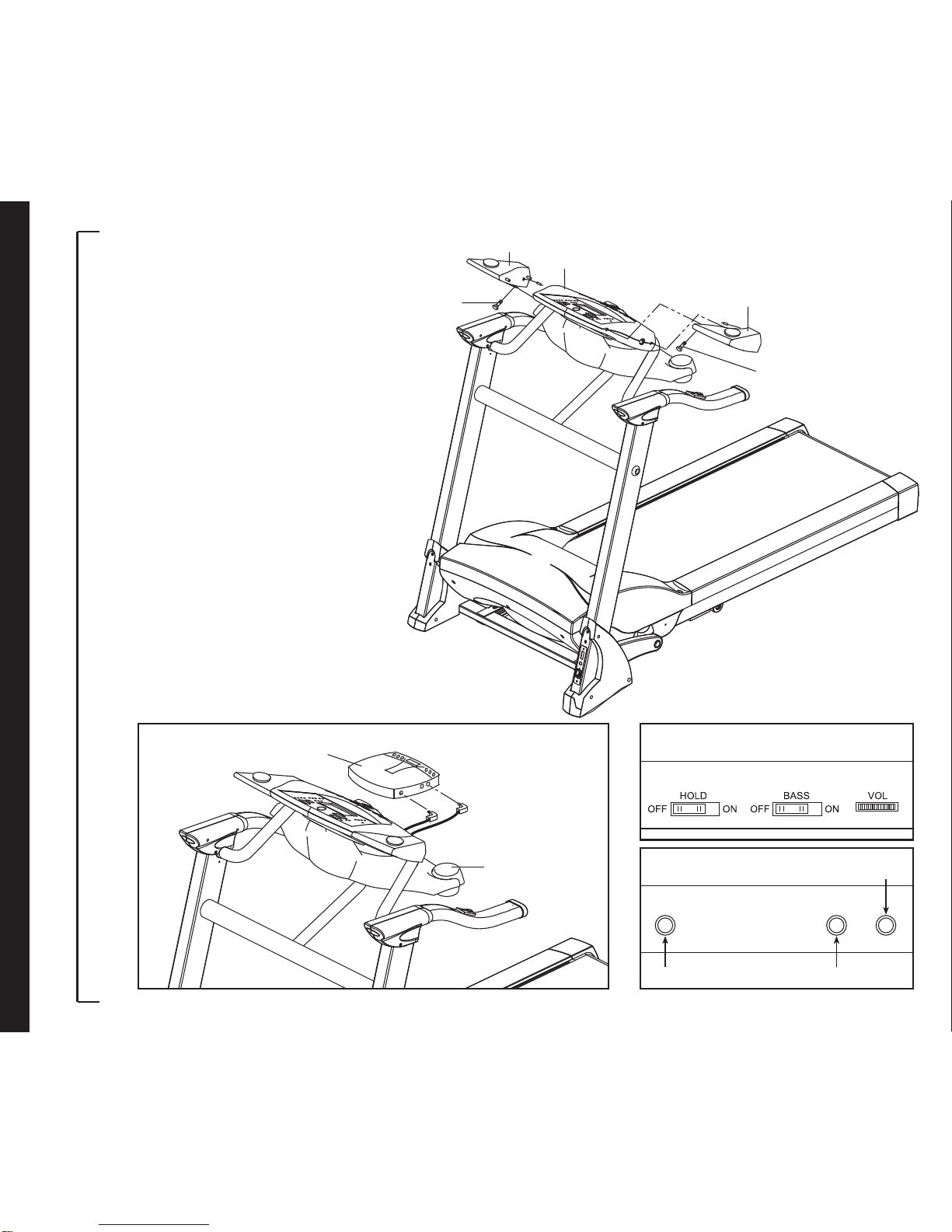

Connecting the Speakers and CD Player:
When connecting the Speakers to the
Console first plug the Speaker Wires into
the sides of the Console. Then insert the
Speakers into the sides of the Console and
secure with Knobs.
Plug the two wires from the Console Tray
into the CD Player then place it on the Tray
as shown in FIG 3.
NOTE: There are three plugs located on
the left side of the CD player. The rear plug
is the AC power. The middle plug (Line
Out) is not used at all. Leave that one open.
The front plug is called Headphones Out
and is used for the speakers (or headphones
if you like).
Warning: On the right side of the CD Player
there is a button called “Hold”. This button
should ALWAYS be set to OFF. If it is on,
the unit will not play.
OPTIONAL EQUIPMENT ASSEMBLY
FIG-3 CD Player
Console Tray
Speaker
Speaker
Console
Knob
Knob
CD Player, right side
AC Power Line Out (not used)
CD Player, left side Headphones Out

-17-
roll away instructions
How to roll away the EVO 2CD Treadmill:
Tilt the treadmill to one side (you may need the
help of a friend), reach under the Base Frame
(1) and pull down the Caster Bracket (49).
Repeat this procedure on the other side. Walk
around to the back of the treadmill, lift the deck
and roll to desired location as shown below.
NOTE: After moving, make sure to put the Caster
Brackets (49) back into their upright position in
order to stabilize the treadmill for use.
ROLL AWAY FOR STORAGE
Put up to stabilize for use.
Pull down to roll away.

-18-
CONSOLE OPERATION
computer instructions
POWER ON
Set the POWER SWITCH, located on the base frame, to ON and insert the SAFETY KEY. All the LED lights
will auto scan.
SLEEP MODE
The computer will automatically enter SLEEP MODE if left idle for 5 minutes without any input in POWER ON
status. Press any button to return to POWER ON status when the computer is in the SLEEP MODE.
ENGLISH / METRIC CONVERSION
To switch the computer display information from English (miles, pounds, inches) to Metric, set the POWER
SWITCH, located on the base frame, to ON. Press and hold the ENTER button. Insert the SAFETY KEY. The
computer will sound one short BEEP, the English LED light will turn off and the Metric LED will light up. Repeat
the same procedure to switch between the Metric and English. Press the STOP button to confirm the change
and return to POWER ON status.
INCLINE
STOP
SPEED
STARTENTER
CALORIES / CALORIES PER HOUR
PRESET PROGRAMS
TIME / DISTANCE
MESSAGE CENTER
HEART RATE
INCLINE / AGE
SAFETY KEY
PRESET
PROGRAMS

COOL DOWN
For every program, there is a preset COOL DOWN feature at the end of each program. When the program is
complete, the speed will return to 2MPH/3.2KMH, the incline level will return to level 0 and the time will countdown
1 minute. After the timer 1 minute countdown is complete, the treadmill will stop and return to POWER ON status
after 30 seconds. If you wish to return to POWER ON status faster than 30 seconds, press the STOP button at
any time.
QUICK START
In POWER ON status, press the START button to QUICK START. The Speed starts from 0.5MPH/0.8KMPH and
the Incline Level starts from 0. Press the SPEED UP/DOWN buttons to change the Speed. Press the INCLINE
UP/DOWN buttons to change the incline level.
During the exercise press STOP to pause the program. The Speed and Incline Level return to the beginning
levels while the other information (Time, Distance, Calories) is paused. To recall values and resume exercising
press START. Pressing the STOP button again within 30 seconds returns all data to zero and the computer
returns to POWER ON status. If no buttons are pressed within 30 seconds the computer automatically returns
to POWER ON status and all data returns to zero.
GOAL COURSE TIME
When the computer is in POWER ON status press the button on the console. The LED on button will light
up. If no buttons are pressed after this within 3 minutes the program will return to POWER ON status. If you
wish to return to POWER ON status, press the STOP button any time.
The TIME LED will light up, show the preset time as 15:00 and blink. After press the button. Press the
INCLINE UP/DOWN buttons to set your ideal workout time then press the START button to start. After pressing
the START button the TIME counts down from the preset time. The other information counts up until the treadmill
stops. The Speed starts from 2MPH/3.2KMPH and the incline starts from level 0. Press the SPEED UP/DOWN
buttons to adjust the speed. Press the INCLINE UP/DOWN buttons to adjust the incline level.
During exercise press STOP to pause the program. Speed and Incline Level return to the beginning levels while
the other information (Time, Distance, Calories) is paused. To recall values and resume exercising press START.
Pressing the STOP button again within 30 seconds returns all data to zero and the computer returns to POWER
ON status. If no buttons are pressed within 30 seconds the computer automatically returns to POWER ON status
and all data returns to zero.
GOAL COURSE DISTANCE
When the computer is in POWER ON status press the button on the console. The LED on button lights
up. If no buttons are pressed within 3 minutes the program will return to POWER ON status. If you wish to return
computer instructions
-19-
CONSOLE OPERATION

to POWER ON status, press the STOP button any time.
The DISTANCE LED will light up, show the preset distance as 3MI/5KM and begin blinking. After press the
button. Press the INCLINE UP/DOWN buttons to set up the ideal distance then press the START button to
start. After pressing the START button the DISTANCE counts down from the preset distance. The other
information counts up until the treadmill stops. The Speed starts from 2MPH/3.2KMPH and incline starts from
level 0. Press the SPEED UP/DOWN buttons to adjust the speed. Press the INCLINE UP/DOWN buttons to
adjust the incline level.
During exercise press STOP to pause the program. Speed and Incline Level return to the beginning levels while
the other information (Time, Distance, Calories) is paused. To recall values and resume exercising press START.
Pressing the STOP button again within 30 seconds returns all data to zero and the computer returns to POWER
ON status. If no buttons are pressed within 30 seconds the computer automatically returns to POWER ON status
and all data returns to zero.
GOAL COURSE CALORIES
When the computer is in POWER ON status press the button on the console. The LED button lights up.
If no buttons are pressed within 3 minutes the program will return to POWER ON status. If wish to return to
POWER ON status, press the STOP button any time.
The CALORIES LED will light up and show the preset calories burned as 050 and blinking. After press the
button. Press the INCLINE UP/DOWN buttons to set up the desired calories then press the START button
to start. After pressing the START button the CALORIES count down from the preset calories. The other
information counts up until the treadmill stops. The Speed starts from 2MPH/3.2KMPH and the incline starts
from level 0. Press the SPEED UP/DOWN buttons to adjust the speed. Press the INCLINE UP/DOWN buttons
to adjust the incline level.
During exercise press STOP to pause the program. The Speed and Incline Level return to the beginning levels
while the other information (Time, Distance, Calories) is paused. To recall values and resume exercising press
START. Pressing the STOP button again within 30 seconds returns all data to zero and the computer returns
to POWER ON status. If no buttons are pressed within 30 seconds the computer automatically returns to POWER
ON status and all data returns to zero.
20 MINUTE FAST RUN
When the computer is in POWER ON status press the button on the console then press START to start the
program. If no buttons are pressed within 3 minutes the program will return to POWER ON status. At this time
the LED button will light up. The Time counts down from 20:00. The other information will count up until
the treadmill stops. The SPEED and INCLINE level follow the preset program.
During exercise press STOP to pause the program. The Speed and Incline Level will return to the beginning
CONSOLE OPERATION
computer instructions
-20-
