Smooth Fitness 835 User manual

USER’S MANUAL
835 MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 400lbs(181kgs).
SERIAL NUMBER (found on frame):

2 835i TREADMILL
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions
and information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 6 feet 2 X1m
of clearance behind it. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
•When choosing a location for the treadmill be sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near
water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 400LBS (181 Kgs).
•
Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the treadmill.
Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both
men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in
sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the same
circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by an
authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow these
instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.
•Use “safety key” when operating the treadmill and make sure the “safety key” is clipped to the users clothing.
•Remove the “safety key” and store it in a safe place when the treadmill is not in use. Keep the “safety key” away from
children.

www.smoothfitness.com
3
PRECAUTIONS
Pour réparations futures ou questions connexes :
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Précautions:
AVERTISSEMENT : Pour réduire les risques de brûlures, d’incendie, de choc électrique ou de blessures aux personnes, lire les
précautions importantes et l’information suivantes avant de se servir du tapis roulant. Il revient au propriétaire de s’assurer que tous
les utilisateurs de ce tapis ont bien été informés de tous les avertissements et précautions.
•Utiliser le tapis seulement comme il est décrit dans ce manuel.
•Le placer sur une surface plane, en laissant 2X1m d’espace libre en arrière. Ne pas placer le tapis roulant sur une surface
qui bloque les ouvertures d’air.
•Pour protéger le plancher ou un tapis de dommages, placer un petit tapis sous le tapis roulant.
•Choisir pour le tapis roulant un emplacement et une position qui permettent d’avoir accès à une prise murale.
•Garder le tapis roulant à l’intérieur, à un endroit sans humidité ni poussière. Ne pas mettre le tapis roulant dans un garage,
sur une terrasse couverte ou près de l’eau.
•Ne pas faire fonctionner le tapis roulant pendant la vaporisation de produits aérosol ou l’administration d’oxygène.
•Ne pas laisser les enfants de moins de 12 ans et les animaux s’approcher du tapis roulant.
•Le tapis roulant ne doit pas être utilisé par des personnes pesant plus de 160 kg (350 lb).
•Il ne doit jamais y avoir plus d’une personne sur le tapis à la fois. Porter des vêtements d’exercice appropriés pour utiliser
le tapis roulant. Ne pas porter de vêtements lâches qui pourraient être pris dans le tapis roulant. Les vêtements de soutien
athlétiques sont recommandés tant pour les hommes que pour les femmes. Porter toujours des chaussures d’athlétisme.
Ne pas être pieds nus, ou porter seulement des chaussettes ou des sandales lors de l’utilisation du tapis roulant.
•Brancher le cordon d’alimentation dans un circuit avec mise à la terre. Aucun autre appareil ne doit être sur le même
circuit.
•Toujours enjamber le tapis et le laisser commencer à rouler avant de monter dessus.
•Toujours examiner votre tapis roulant avant de l’utiliser pour s’assurer que toutes les pièces fonctionnent correctement.
•Laisser le tapis s’arrêter complètement avant de descendre.
•Ne jamais insérer d’objets ou de parties du corps dans une ouverture.
•Suivre les directives de sécurité en ce qui concerne le branchement de votre tapis roulant.
•Garder le cordon d’alimentation éloigné des roues inclinées et ne pas faire passer le cordon d’alimentation sous votre
tapis roulant. Ne pas faire fonctionner le tapis roulant si le cordon d’alimentation est endommagé ou effiloché.
•Débrancher toujours le tapis roulant avant de le nettoyer ou de le réparer.
•Toute réparation au tapis doit être effectuée par un réparateur agréé, à moins d’autorisation ou de directives contraires du
fabricant. Le non-respect de ces instructions annulera la garantie du tapis roulant.
•Ne jamais laisser le tapis roulant sans surveillance lorsque la clé de sécurité est insérée.
•Utiliser la « clé de sécurité » pour faire fonctionner le tapis roulant et s’assurer qu’elle est accrochée aux vêtements des
utilisateurs.
•Retirer la « clé de sécurité » et la ranger dans un endroit sûr lorsque le tapis roulant n’est pas en fonction. Garder la « clé
de sécurité » hors de la portée des enfants.

4 835i TREADMILL
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC
SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE
PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT
THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges and
noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the possibility of
treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector with a
UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less and an
electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for electric
current, should the treadmill malfunction. This treadmill is equipped with an electrical cord that has an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the drawing
below.
GFCI outlets and GFCI / AFCI Circuit Breakers are NOT recommended for use on this product. GFCI outlets and GFCI / AFCI
Circuit Breakers may cause this equipment to function improperly.

www.smoothfitness.com
5
POWER REQUIREMENTS
Alimentation :
UN MAUVAIS BRANCHEMENT DU CONNECTEUR DE MISE À LA TERRE DE L’ÉQUIPEMENT POURRAIT PROVOQUER UN
CHOC ÉLECTRIQUE. EN CAS DE DOUTE, CONSULTER UN ÉLECTRICIEN OU UN RÉPARATEUR QUALIFIÉ POUR SAVOIR
SI LE PRODUIT EST CORRECTEMENT MIS À LA TERRE. NE PAS MODIFIER LA FICHE FOURNIE AVEC LE PRODUIT. SI
ELLE N’ENTRE PAS DANS LA PRISE, FAIRE INSTALLER UNE PRISE APPROPRIÉE PAR UN ÉLECTRICIEN
PROFESSIONNEL.
Ce tapis roulant pourrait être gravement endommagé en cas de changement soudain de tension dans votre alimentation électrique.
Les conditions météorologiques ou la mise sous tension ou hors tension d’autres appareils électriques peuvent provoquer des
pointes de tension, des surtensions ou un brouillage. Pour réduire la possibilité que le tapis soit endommagé, toujours utiliser un
limiteur de surtension (non inclus) avec votre tapis roulant.
Il est possible d’acheter des limiteurs de surtension dans la plupart des quincailleries. Le fabricant recommande un limiteur de
surtension UL 1449 à prise unique comme suppresseur de tension transitoire (TVSS) ayant un taux de suppression de tension de
400 V ou moins et une tension électrique de 110 V C.A., 15 A.
Ce tapis roulant doit être mis à la terre pour réduire le risque de choc électrique. La mise à la terre fournit une voie de moindre
résistance au courant électrique en cas de mauvais fonctionnement du tapis roulant. Ce tapis roulant est équipé d’un cordon
électrique avec un conducteur de mise à la terre et une fiche de mise à la terre. Brancher toujours le cordon électrique dans un
limiteur de surtension et brancher le limiteur de surtension dans une prise appropriée, correctement installée et mise à la terre
conformément à tous les codes locaux et ordonnances.
Ce produit doit être utilisé avec un circuit nominal de 110 volts et à une fiche de mise à la terre qui ressemble à celle illustrée ci-
dessous.
Les prises avec disjoncteur de fuite de terre et les disjoncteurs de fuite de terre ne sont PAS recommandés pour ce produit. Les
prises avec disjoncteur de fuite de terre et les disjoncteurs de fuite de terre pourraient provoquer un mauvais fonctionnement de cet
équipement.

6 835i TREADMILL
BEFORE YOU BEGIN
Open the boxes:
Open the boxes of your new equipment. Inventory all parts included in the boxes, and Supplied Hardware lists
on page 7 for a full count of the parts included. If you are missing any parts or have any questions contact us
directly at 888-800-1167
Gather your tools:
Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the unit
properly. Having all of the necessary equipment at hand will save time and make the assembly quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350LBS (Approx. 160 Kgs). It is
not recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit shown
here. This product is not intended to support users whose weight exceeds this limit.
Care and maintenance:
The safety level can be maintained only if it is examined for damage and wear.
Replace any defective components immediately and stop all use of the equipment until repaired.
Always take care when mounting the equipment. Straddle the equipment by placing your feet on the straddle rails.
Dismount from the equipment only after all parts have stopped.
Always check the wear and tear components like pulley, belts, etc.…To prevent injury.
There is an emergency stop, in the form of a SAFETY KEY, to prevent injury; you can stop the treadmill immediately
by actuating the emergency stop for emergency dismount.

www.smoothfitness.com
7
SUPPLIED COMPONENTS / SUPPLIED HARDWARE
This list identifies the major components you will use to assemble this product.
No. Description Qty.
835i -101
Treadmill Base
1
835i -212
Console Assembly
1
835i -311
Left Upright
1
835i -310
Right Upright
1
835i -309
Left Base Cover
1
835i -305
Right Base cover
1
835i -302
Left Handle Bar
1
835i -301
Right Handle Bar
1
835i -306
M8x15mm Allen Head Bolt
18
835i -304
M8 Flat Washer
22
835i -308
M4x10mm Pan Head Screw
4
A
5mm Allen Key
1
B
6mm Allen Key
1
C
13mm Allen Wrench
1
D
Silicone Lubricant
1
835i -312
M8x100mm Bolt
2
835i -313
M8 Nut
2
835i -218
Safety Key
1
835i -145
Power Cord
1
Millimeters
101
302 301
311 310
212
309 305
304
312
308
306
B
C
A
313
D
218
145

8 835i TREADMILL

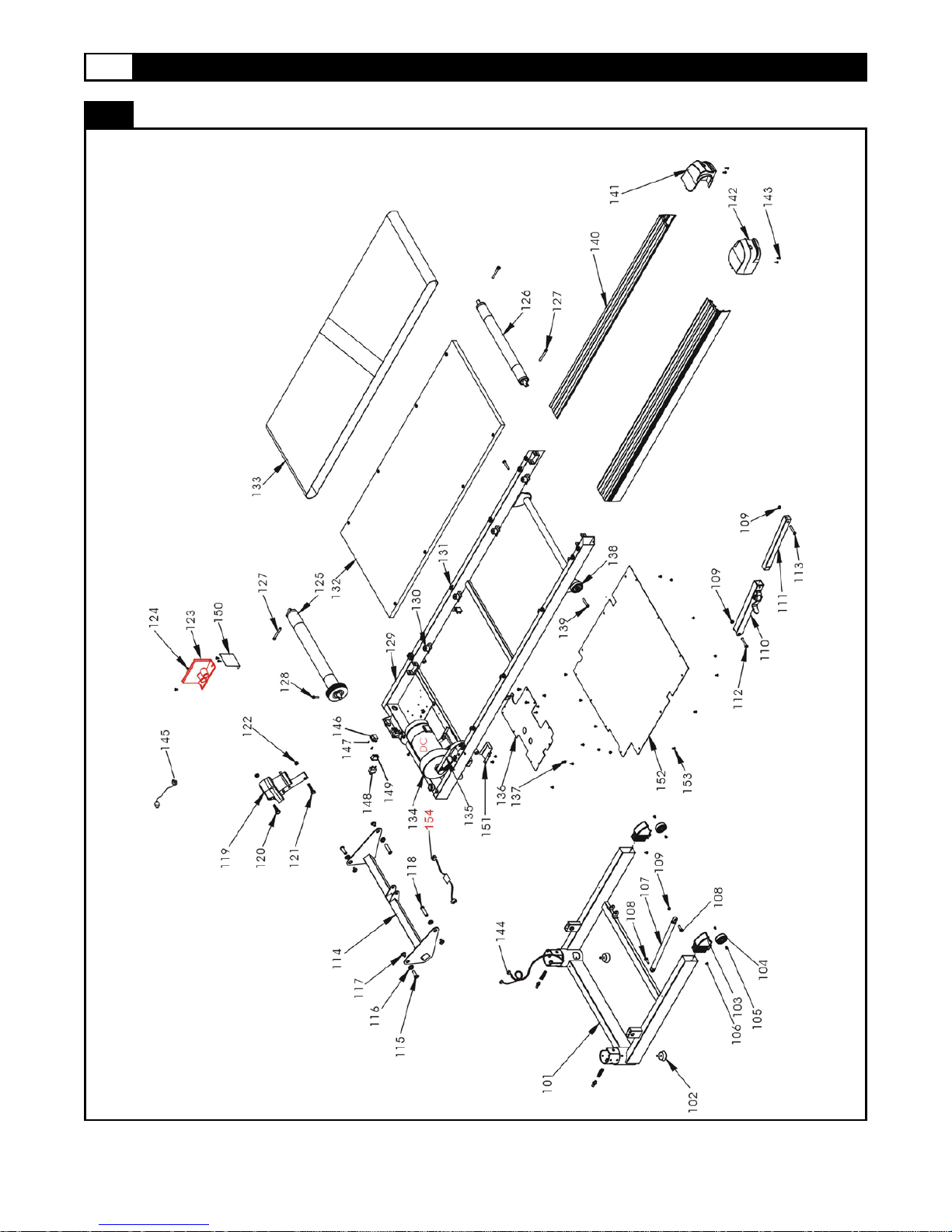

COMPLETE PARTS LIST
Item No. Description Qty.
835i -100
835i -101
Base Frame
1
835i -
102
Horizontal Adjustment 2
835i -
103
Front Mobile Wheel Cover 2
835i -104
Front Mobile Wheel
2
835i -
105
M4x10mm Bolt 4
835i -
106
M4x12mm Bolt 2
835i -107 Air Shock 1
835i -
108
M8x30mm Bolt 2
835i -
109
M8 Nut 3
835i -
110
Upper Locking Tube 1
835i -111
Lower Locking Tube
1
835i -
112
M8x55 mm Bolt 1
835i -
113
M8x50 mm Bolt 1
835i -114 Lift Arm 1
835i -
115
Hex. Screw 39mm 2
835i -
116
Washer, stud 4
835i -117 M8x15mm Bolt 4
835i -118
Hex. Screw 53mm 2
835i -
119
Incline Motor 1
835i -
120
M10x45mm Bolt 1
835i -121
M10x55mm Bolt 1
835i -
122
M10 Nut 2
835i -
123
Motor Control Board 1
835i -124
M4x10mm Bolt
4
835i -
125
Front Roller 1
835i -
126
Rear Roller 1
835i -127 M8x70mm Bolt 3
835i -128
M8x30mm Bolt 1
835i -
129
Running Deck Frame 1
835i -130 Rubber Cushion 8
835i -131
M6x15mm Bolt
10
835i -
132
Running Deck 1
835i -
133
Running Belt 1
835i -134
Driving Motor
1
835i -
135
Driving Belt 1
835i -
136
Lower Motor Cover 4
835i -137 M4x10mm Bolt 2
835i -
138
Rear Wheel 2
835i -
139
M8x60mm Bolt 2
835i -
140
Side Rail 2

www.smoothfitness.com
9
COMPLETE PARTS LIST
Item No. Description Qty.
835i -
141
Right End Cap 1
835i -142 Left End Cap 1
835i -143 M4x15mm Bolt 4
835i -144 Lower Console Wire 1
835i -145 Power Cord 1
835i -
146
Power Socket 1
835i -
147
M3x8mm Bolt 2
835i -
148
ON-OFF Switch 1
835i -149 Power Breaker 1
835i -150 Mudguard, motor control 1
835i -151 Mudguard, drive belt 1
835i -152 Running Deck Belly Pan 1
835i -
153
M4x10 mm Bolt 15
835i -
154
Adaptor 1

10 835i TREADMILL
Item No. Description Qty.
835i -200
835i -201
Console frame
1
835i -202 Hand pulse upper cover 2
835i -203
Hand pulse lower cover
2
835i -204
Bolt M3*20mm
4
835i -205
Hand pulse plate
4
835i -206
Upper console cover
1
835i -207
Console housing
1
835i -208
Panel, console
1
835i -209 Bolt M3*6mm 14
835i -210
Safety key base
1
835i -211
Fan
1
835i -212 Bolt M3*30mm 4
835i -213
Speaker
2
835i -214
Bolt M4*12mm
17
835i -215
IHP
1
835i -216
Bolt M2.6*8mm
2
835i -217
USB charger
1
835i -218
Bolt M2*6mm
6
835i -219 Tablet Shelf
1
835i -220
Audio jack
1
835i -221
Bolt M2*5mm
2
835i -222 Receiver 1
835i -223
Handle button wire
6
835i -224
Washer M4
4
835i -225
Screw location fixer
2
835i -226 Lower console cover 1
835i -227
Bolt M4*15mm
6
835i -228
Bolt M4*10mm
2
835i -229 Operational button 1
835i -230
Hand pulse wire
1
835i -231
Console wire
1
835i -232 Safety key 1
835i -233
Software update cap
1
835i -234
Right handle button cover
1
835i -235
Left handle button cover
1
835i -236
Handle button sticker
2
835i -237
Spring
2
835i -238
M4 washer
2
835i -239 Bolt M3*10mm 2
835i -240
Tablet left support
1
835i -241
Table right support
1
835i -242 Adaptor wire 1

www.smoothfitness.com
11
COMPLETE PARTS LIST
Item No. Description Qty.
835i -300
835i -301 Right handle bar 1
835i -302 Left handle bar 1
835i -303 Receiver 1
835i -304 M8 Flat Washer 22
835i -305 Right protective cover 1
835i -306 M8x15mm Bolt 18
835i -307 Upper motor cover 1
835i -308 M4x10mm Bolt 4
835i -309 Left Right protective cover 1
835i -310 Right Upright 1
835i -311 Left Upright 1
835i -312 M8x100mm Bolt 2
835i -313 M8 Nut 2

12 835i TREADMILL
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED

www.smoothfitness.com
13
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

14 835i TREADMILL
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

www.smoothfitness.com
15
ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK.
STEP 1: Assemble the Upright
NOTE: Make sure all wires are recessed into the frame. DO NOT trap or
pinch. DO NOT tighten bolts until STEP2.
When attaching the Right upright (310) first attach the 8 pin data cable to the wire
in the upright. This will allow you to pull the data cable up through the upright after
installation.
(1) Slide the base frame covers over uprights.
(2) Attach the Left Upright (wrapped in clear plastic) and Right Upright (wrapped in
green shaded plastic) to the treadmill main frame, and secure using the
M8x15mm Allen Head Bolts (306) with M8 Flat Washers (304). HAND TIGHTEN
ONLY.Do not tighten the M8x15mm Allen Head Bolt (306) until STEP2 has
been completed.
306 X10
304 X10
Bolts should be hand tight only
Green plastic wrap
Clear plastic wrap

16 835i TREADMILL
ASSEMBLY

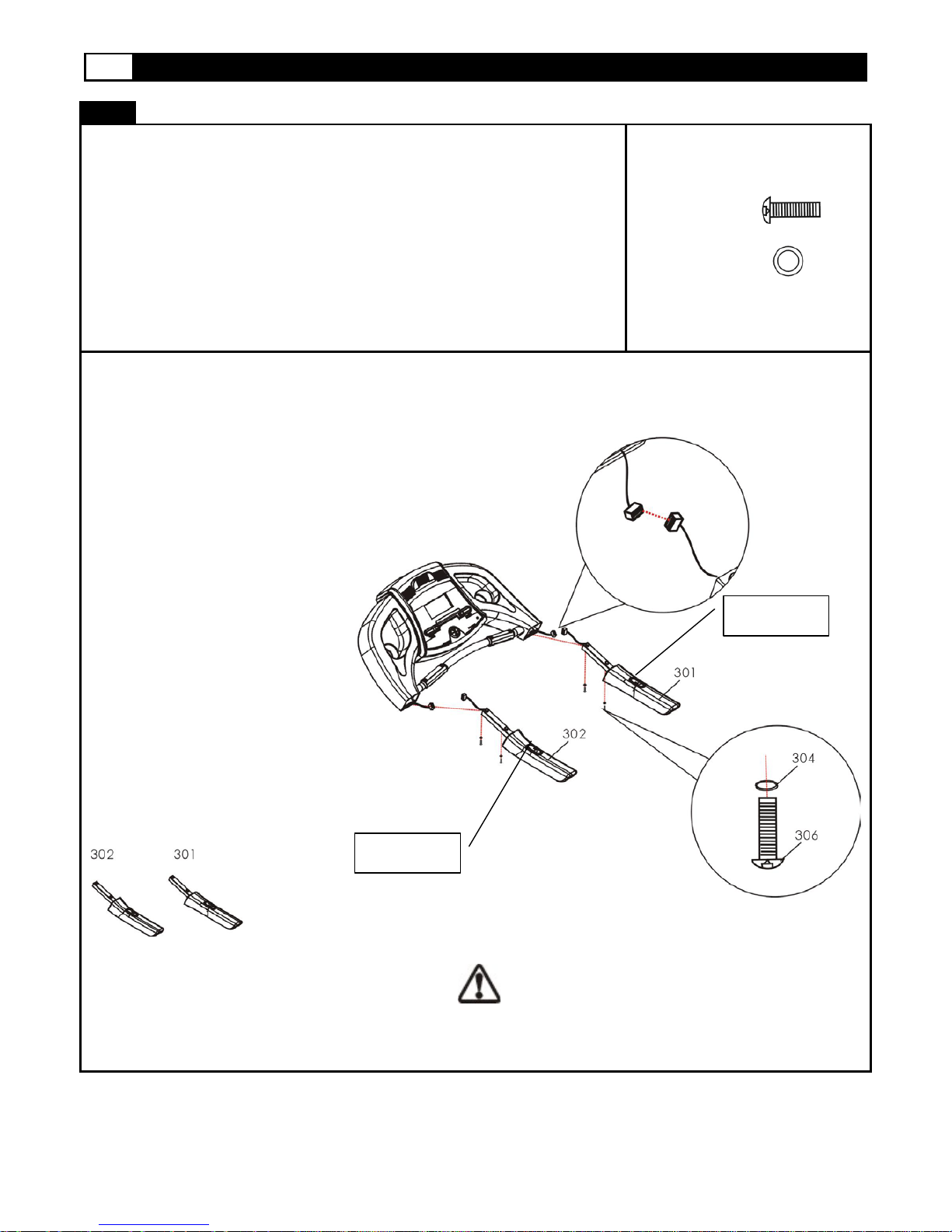

STEP 2: Attach the Handle Bars
(1). Take out right handle bar from carton, connect handle button wire (223).
(2). Attach the Right and Left Handle Bar and secure using the M8x15mm Allen
Head Bolt (306) with M8 Flat Washer (304). 306 X4
304 X4
Tighten all bolts and fasteners now
223
223
Speed
Incline

www.smoothfitness.com
17
ASSEMBLY
STEP 3: Attach the Console to Left and Right Uprights
(1) Connect Upper Console Wire (from console) and Lower Console Wire
(from Right Upright) as shown below (222 to 144). Connect the adaptor
wire (244 to 154).
(2) Place the console housing over the Left and Right Uprights and secure using
the 2 x M8x100mm Allen Head Bolt (312) with 2 x M8 Flat Washer (304)
Insert the bolt through the upper hole. Then attach the M8 Flat Washers (304)
and M8 Nut (313).
(3) Secure the lower bolt hole with the M8x15mm Allen Head Bolt (306) with
M8 Flat Washer (304).
TIGHTEN ALL BOLTS NOW
306 X4
304 X8
312
X2
313
X2
Caution Pinch point! Do not pinch wires between frame.
Tighten all bolts and fasteners now

18 835i TREADMILL
ASSEMBLY
STEP 4: Tighten the Lower Upright Bolt and attach Lower Protective Cover
(1) Fully tighten the M8x15mm Allen Head Bolt (308) to for STEP1.
(2) Attach the Left and Right Protective Cover, and secure using M4x10mm Pan
Head Screw (308).
308 X2

www.smoothfitness.com
19
ASSEMBLY

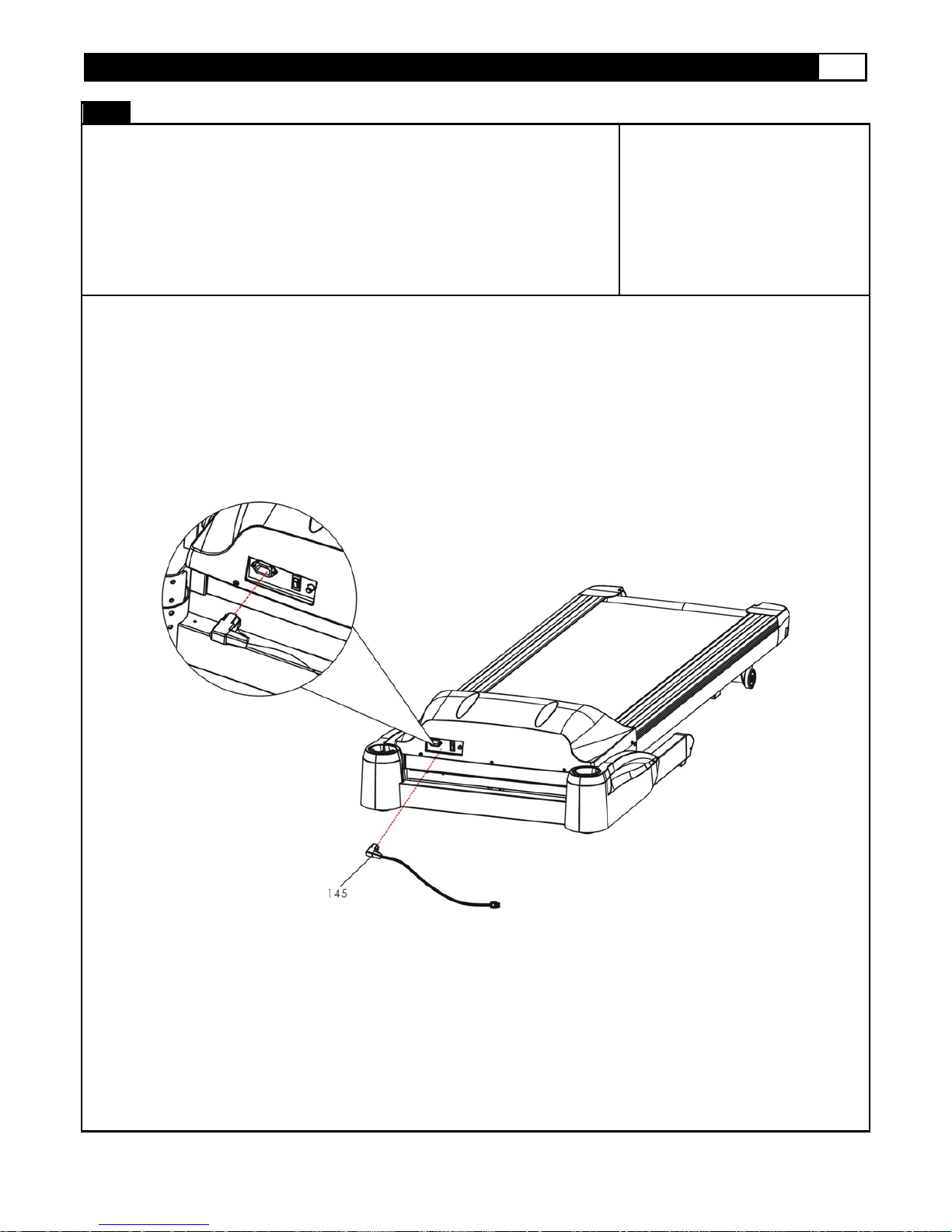

STEP 5:
Attach power cord (145) to front of base from in diagram below.

20 835i TREADMILL
ASSEMBLY
STEP 6:
Insert Safety Key (218) into Bottom Center of Console prior to operation. Your
treadmill will not Function with out the safety key.
