USER’S MANUAL
7.35 MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 350lbs (160kgs).
SERIAL NUMBER (found on frame):

2 7.35 TREADMILL
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important
precautions and information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this
treadmill are adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
•When choosing a location for the treadmill be sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near
water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 350LBS (160 Kgs).
•Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the treadmill.
Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both
men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in
sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the same
circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by an
authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow these
instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.
•Use “safety key” when operating the treadmill and make sure the “safety key” is clipped to the users clothing.
•Remove the “safety key” and store it in a safe place when the treadmill is not in use. Keep the “safety key” away from
children.

www.smoothfitness.com 3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC
SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE
PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT
THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges and
noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the possibility of
treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector with a
UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less and an
electrical rating 110VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for electric
current, should the treadmill malfunction. This treadmill is equipped with an electrical cord that has an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like the plug illustrated in the drawing
below.
GFCI outlets and GFCI Circuit Breakers are NOT recommended for use on this product. GFCI outlets and GFCI Circuit Breakers
may cause this equipment to function improperly.

4 7.35 TREADMILL
BEFORE YOU BEGIN
Open the boxes:
Open the boxes of your new equipment. Inventory all parts included in the boxes, and Supplied Hardware lists
on pages 5 for a full count of the parts included. If you are missing any parts or have any questions contact us
directly at 888-800-1167
Gather your tools:
Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the unit
properly. Having all of the necessary equipment at hand will save time and make the assembly quick and hassle-free.
Please note that your assembly kit includes all of the tools necessary to assemble the unit. You may however choose
to use your own Phillips head screwdriver and/or Allen wrench
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350LBS (Approx. 160 Kgs). It is
not recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit shown
here. This product is not intended to support users whose weight exceeds this limit.
Care and maintenance:
The safety level can be maintained only if it is examined for damage and wear.
Replace any defective components immediately and stop all use of the equipment until repaired.
Always take care when mounting the equipment. Straddle the equipment by placing your feet on the straddle rails.
Dismount from the equipment only after all parts have stopped.
Always check the wear and tear components like pulley, belts, etc.…To prevent injury.
There is an emergency stop, in the form of a SAFETY KEY, to prevent injury; This key should always be attached to
your clothing when using the treadmill.

www.smoothfitness.com 5

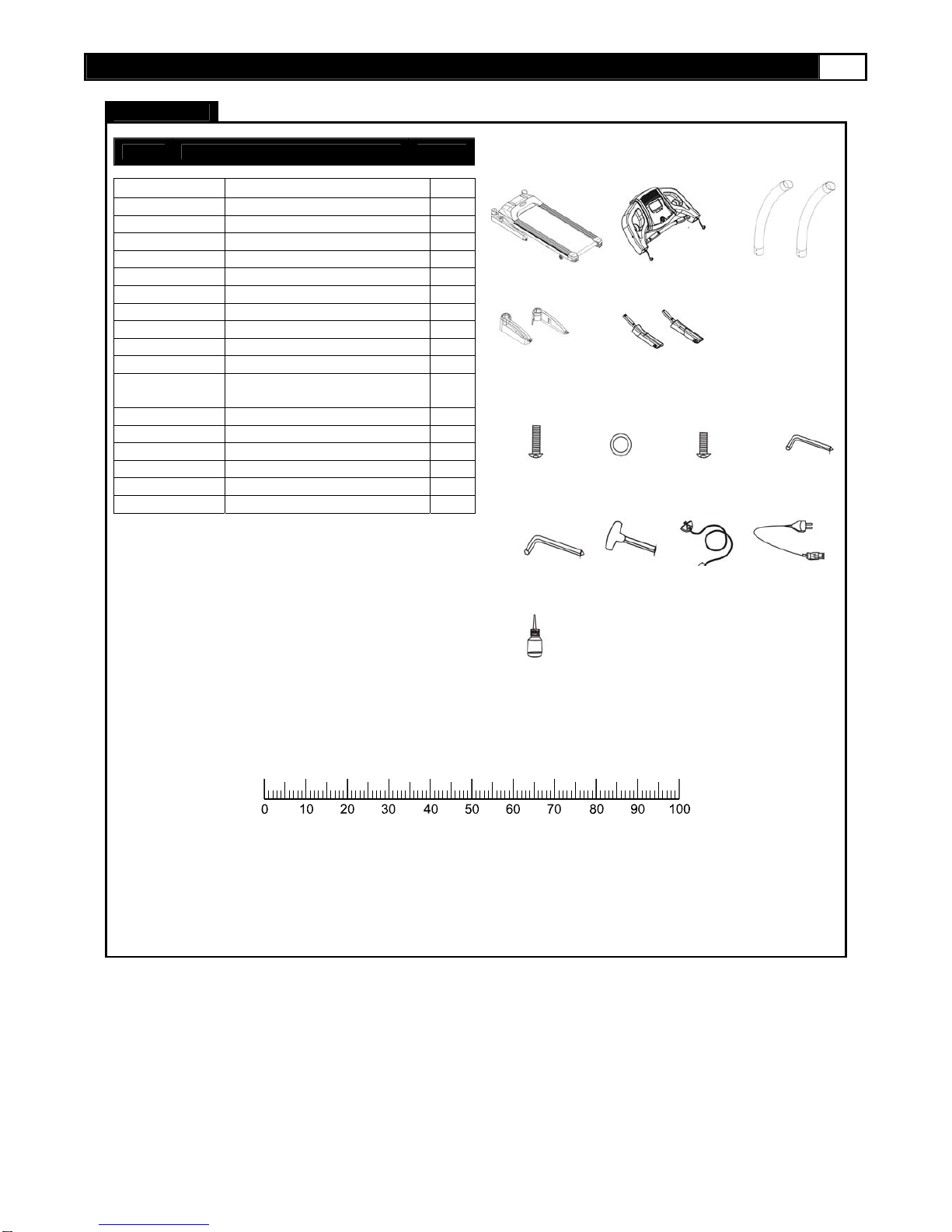

SUPPLIED HARDWARE
No. Description Qty.
101 Treadmill Base 1
212 Console Assembly 1
311 Upright Left 1
310 Upright Right 1
309 Left Base Cover 1
312 Right Base cover 1
302 Left Handle Bar 1
301 Right Handle Bar 1
Hardware Kit
306 M8 x 15mm Allen Head Bolt 20
313 M8 Flat Washer 20
308
M4 x 10mm Pan Head
Screw 4
A 5mm x 76 Allen Wrench 1
B 5mm x 114 Allen Wrench 1
C 6mm Allen Wrench 1
D Safety Key 1
E Power Cord 1
F Silicone Lubricant 1
Millimeters
#101 #311 #310
#212
#309 #312 #302 #301
A
#306 #308
#313
ED
BC
F

6 7.35 TREADMILL
PARTS LIST
ITEM Part Number DESCRIPTION Q'TY
101 F500306-000 Base frame 1
102 F300140-000 Wheel lift arm 2
103 F500002-002 Upper locking tube 1
104 H048000-000 Air shock 1
105 F510003-200 Lower locking tube 1
106 F500305-000 Lift arm 1
107 H022144-001 Hex. Screw 39mm 2
108 H022144-003 Hex. Screw 48mm 2
109 F991014-000 Incline motor 1
110 F060000-000 Plate Ф25XФ18XФ12.5 4
111 H020800-001 Bolt M8x15mm 4
112 F080006-002 Lower console wire 1
113 H020300-002 Bolt M10x45mm 1
114 H022303-000 Nut M10 2
115 H020300-004 Bolt M10x55mm 1
116 F900464-000 Front roller 1
117 H020700-000 Bolt M6x15mm 10
118 F330002-000 Rubber cushion 8
119 H020608-001 Bolt M8x70mm 4
120 H020606-000 Bolt M8x50mm 2
121 F580014-000 Running deck 1
122 F570035-001 Running belt 1
123 F300449-000 Side Rein 2
124 F300388-101 Right end cap 1
125 F300387-101 Left end cap 1
126 H020207-002 Bolt M4x15mm 4
127 F330001-000 Rear wheel, running deck frame 2
128 F299004-000 Rear roller 1
129 H041002-000 Drive belt 1
130 F993014-001 Motor 1
131 H020606-000 Bolt M8x50mm 1
132 H022302-000 Nut M8 2
133 F083008-000 Power cord 1
134 F373200-001 Motor control 1
135 H020607-000 Bolt M8x55mm 1
136 F300013-000 Pad 2
137 H022107-001 Nut M8 2
138 F300450-000 Front mobile wheel cover 2
139 F300451-000 Front mobile wheel2
140 H020803-004 Bolt M4x10mm 4
141 H020208-000 Bolt M4x12mm 2

www.smoothfitness.com 7
PARTS LIST
Console
set
201 F300390-005 Console cover 1
202 F300391-101 Fan cover 1
203 F410003-000 Speaker 2
204 H020201-002 Bolt M3x6mm 12
205 F373065-000 Fan 1
206 F340009-000 Operational button 1
207 H020172-001 Bolt M3x8mm 4
208 F373201-003 Panel control 1
209 F300409-000 Lower console cover 1
210 F373202-000 MP3 module 1
211 F300281-000 Hand pulse (lower) 2
212 F300389-101 Upper console cover 1
213 F270271-000 Hand pulse plate 4
214 H020109-014 Bolt M3x20mm 4
215 F300341-000 Hand pulse (upper) 2
216 F519034-000 Console frame 1
217 H020173-000 Bolt M4x12mm 16
218 F300430-000 Safety key 1
219 F900283-000 OTC control board 1
220 F080045-000 Upper OTC wire 2
221 F080024-000 Hand pulse wire 1
222 F080006-004 Upper console wire 1
223 F080134-000 Receiver wire-1 1
224 H020109-001 Bolt M3x16mm 4
225 H020220-000 Bolt M2x5mm 4
226 H020203-001 Bolt M4x15mm 8
227 F373239-000 Hand pulse PCB 1

8 7.35 TREADMILL
PARTS LIST
Console mast
301 F900340-000 Right handle bar 1
302 F900339-000 Left handle bar 1
303 F300313-000 OTC end cap-Right 2
304 F300312-000 OTC end cap-Left 2
305 H020207-012 Bolt M4x65mm 2
306 H020203-001 Bolt M8x15mm 20
307 F300385-101 Upper motor cover 1
308 H020803-001 Bolt M4x10mm 4
309 F300395-101 Left protective cover 1
310 F517012-003 Right console support tube 1
311 F517006-003 Left console support tube 1
312 F300396-101 Right protective cover 1
313 H021100-000 Washer M8 20
314 F080133-000 Receiver wire-2 1
315 F373219-002 Receiver 1
316 F080016-001 Lower OTC wire 2

www.smoothfitness.com 9

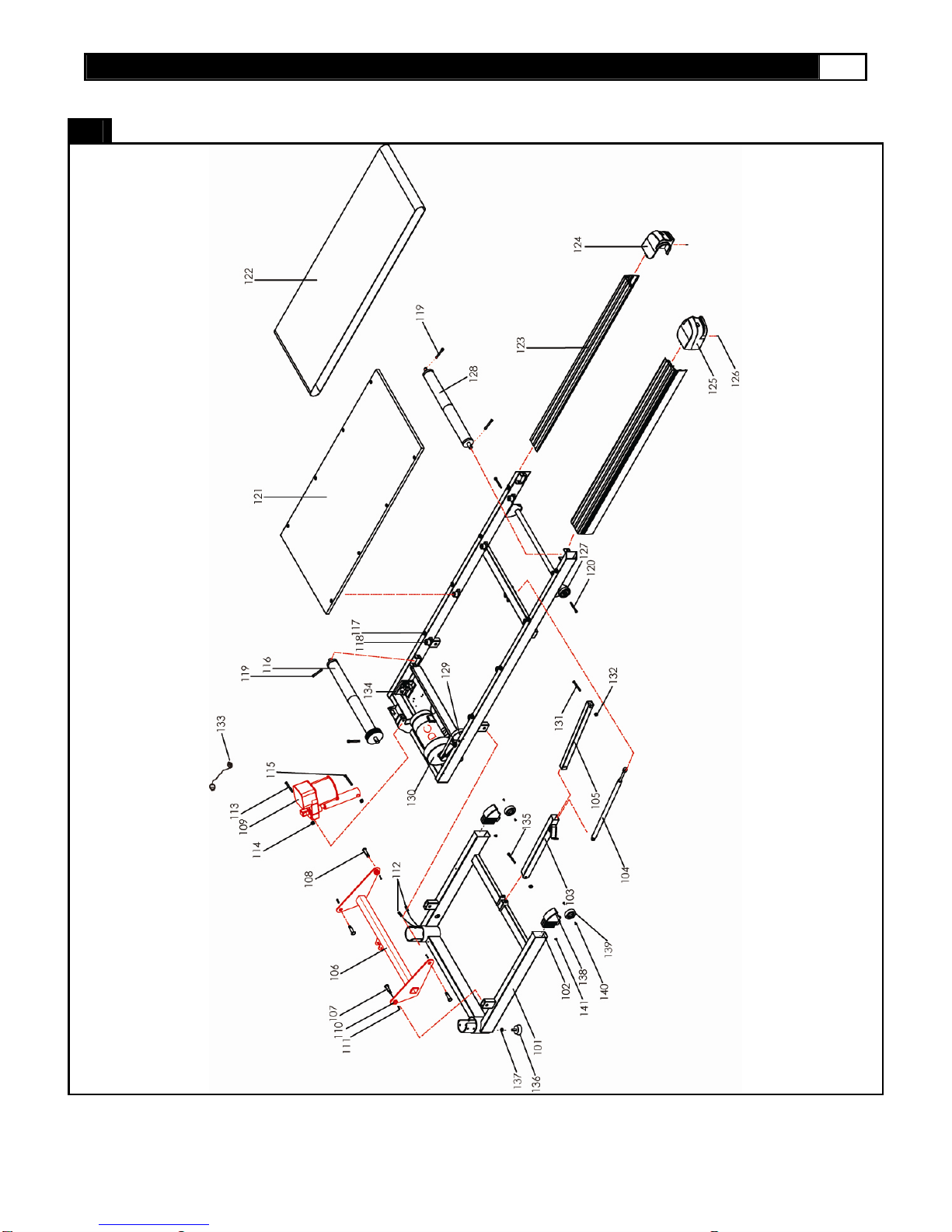

PARTS DIAGRAM

10 7.35 TREADMILL
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

www.smoothfitness.com 11
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

12 7.35 TREADMILL
ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK.
STEP 1: Assemble the Console Support Tube
When attaching the right upright (310) first attach the 8 pin data cable to the
wire in the upright. This will allow you to pull the data cable up through the
upright after installation.
(1) Attach the Left (311) console support tube (wrapped in clear plastic) and
Right (310) console support tube (wrapped in green shaded plastic) to the
treadmill main frame with eight M8 x 15mm Allen Head Bolts (306) and eight
M8 Flat Washers (313) HAND TIGHTEN ONLY.
(2) Slide the base frame covers over uprights Do not fasten until after
you complete STEP 3.
306 X8
313 X8
Bolts should be hand tight only

www.smoothfitness.com 13
ASSEMBLY
STEP 2: Attach Console to left and right console support tubes
(1) Connect the two Wires (one 7 Pin and one 5 pin) - Upper (222) (from
console) to the same wires – Lower (112) (from right console support tube)
as shown in FIG 1.
(2) Place the console over the left and right console support tubes
and secure with eight M8 x 15mm Allen Head Bolts (306) and eight M8
Flat Washers (313) (4 on each side). HAND TIGHTEN ONLY.
306 X8
313 X8
Caution Pinch point! Do not pinch wires between frame.
Bolts should be hand tight only

14 7.35 TREADMILL
ASSEMBLY

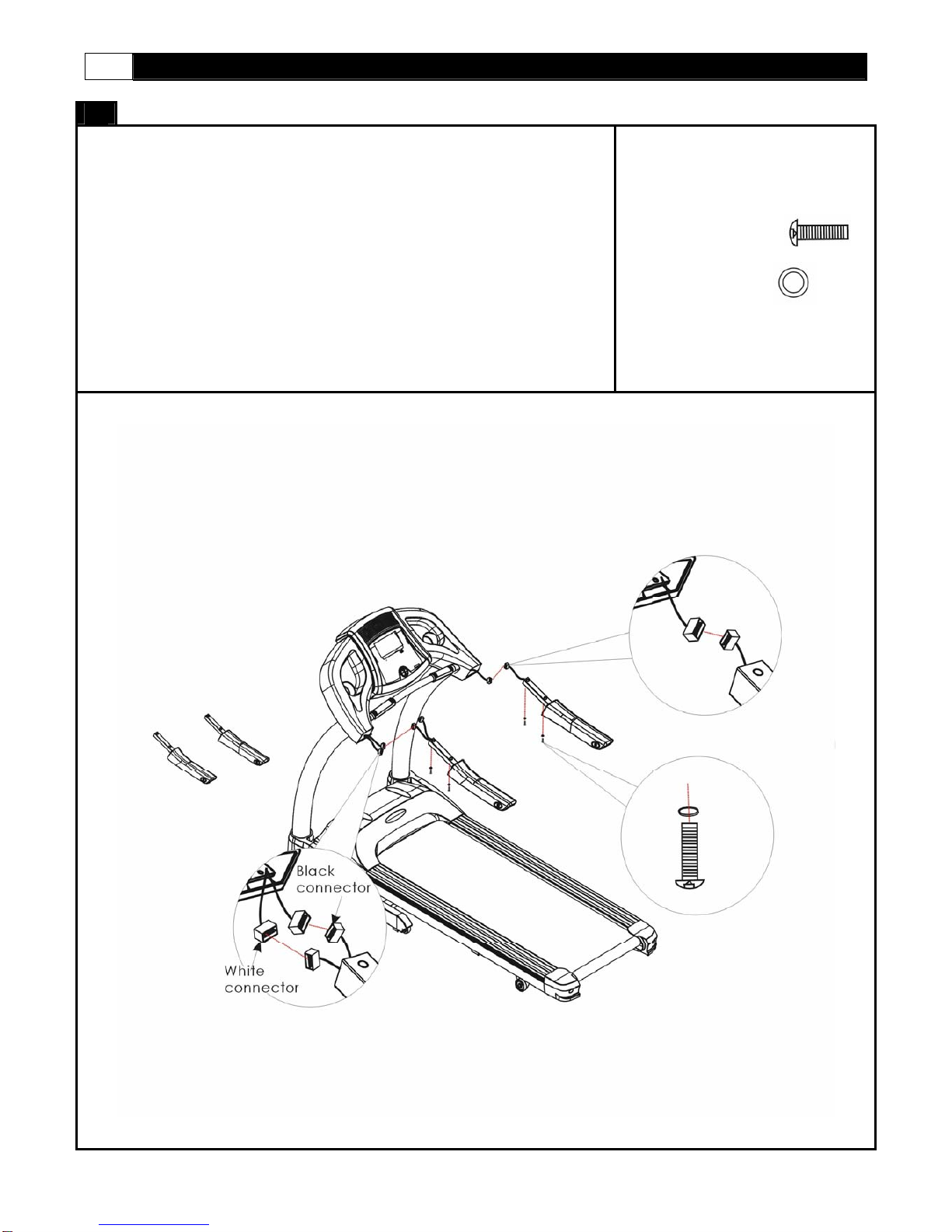

STEP 3: Attach Handle Bars
Note: Left Handle Bar has 2 connector wires
1. Before attaching right handle bar; connect OTC wire (220) (black
connector), then fasten handle bar on the console with two M8 x 15mm
Allen Head Bolts (306) and two M8 flat washers (313).
2. Before attaching left handle bar; connect OTC (220) wire (black
connector) and HEART RATE RECEIVER (223) wire (white connector),
then fasten handle bar on the console with two M8 x 15mm Allen Head
Bolts (306) and two M8 flat washers (313)..
3. Note: Secure Allen Head Bolts closest to rear of treadmill first ensuring
a snug fit between handle bar and console prior to tightening.:
AT THIS POINT TIGHTEN ALL ALLEN HEAD BOLTS (306) FROM PREVIOUS
STEPS
306 X8
313 X8

www.smoothfitness.com 15
ASSEMBLY

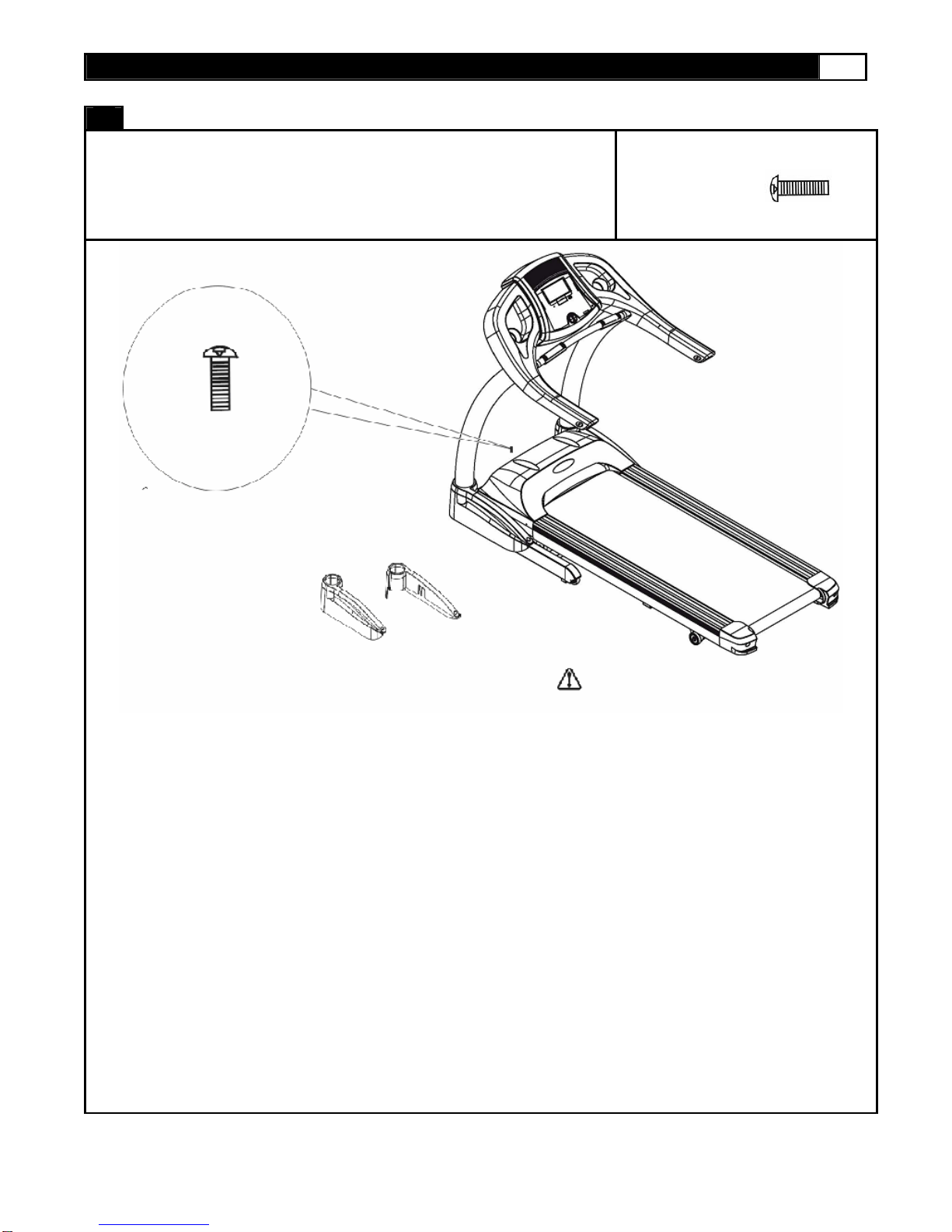

STEP 4: Assemble the Base Frame Covers
1. Fasten both the left and right base frame covers with four M4 x
10 MM pan head screws.
308 X4
Tighten all bolts and fasteners now

16 7.35 TREADMILL
ASSEMBLY

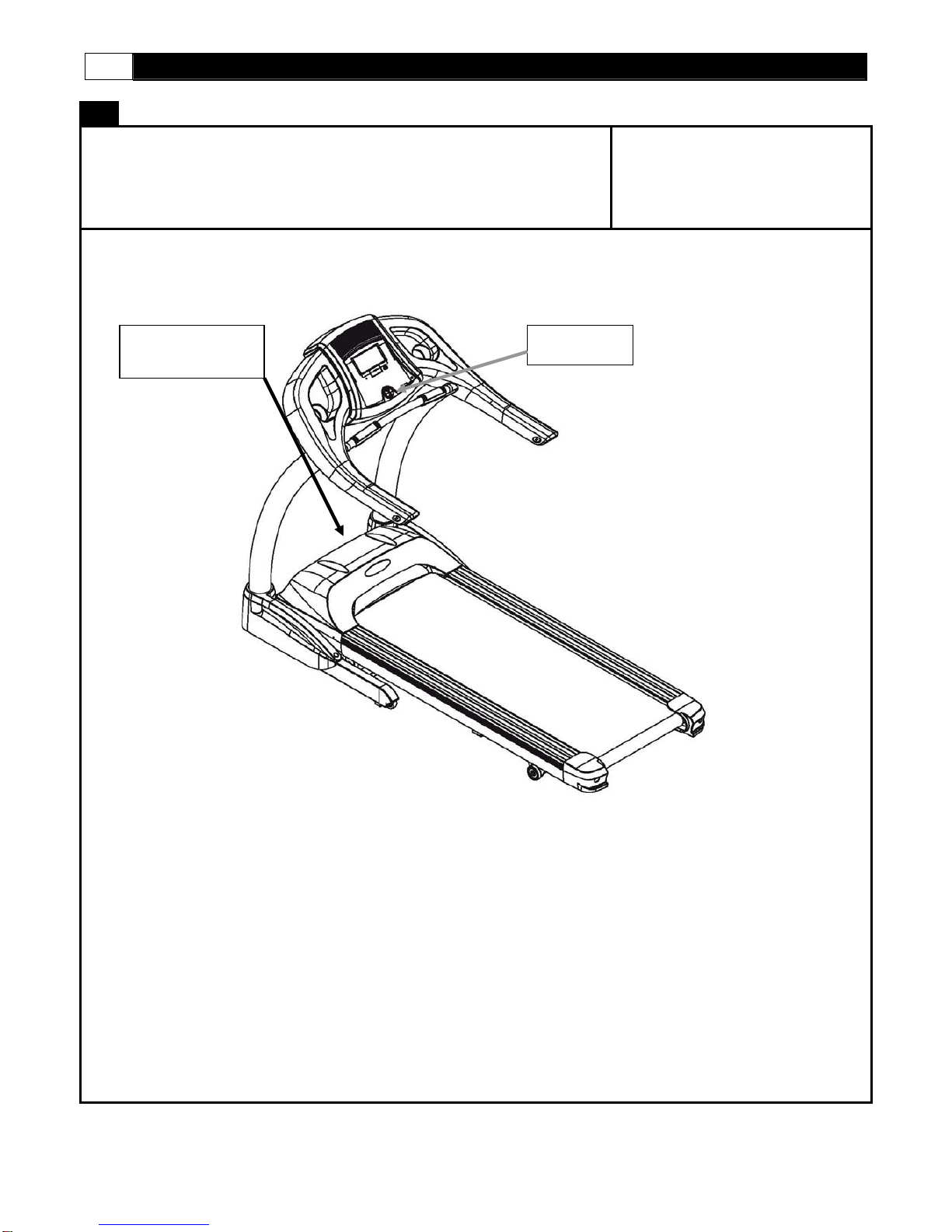

Step 5: Attach power cord (133) to front of base from in diagram below.
Step 6: Insert Safety Key (218) into Bottom Center of Console prior to
operation. Your treadmill will not power up with safety key in place.
308 X4
Power Cord
Receptacle Safety Pad

www.smoothfitness.com 17
FOLDING INSTRUCTIONS
How to fold and unfold the treadmill:
Your treadmill can be folded up for space saving storage. To do this follow the instructions here:
Fold Up
After the workout session, you can fold the
treadmill to the upright position. Lift up the rear
end of the treadmill until the upper folding latch
clicks. Before releasing the treadmill frame
verify the folding mechanism is locked.
Release
You can release the treadmill from the upright
position:
1. Push up the frame by hands.
2. Lightly kick the locking latch.
3. Lower the treadmill by hand and it will drop
automatically without hand support.
Horizontal Adjustment
For floor stability, you can adjust the 2 screws
located under the front of base frame.
1. Lift the machine on one side and then turn the
screw under the front of base frame.
2. Turn the screw clockwise to make the screw
go up.
3. Turn the screw counterclockwise to make the
screw go down.

18 7.35 TREADMILL
MAINTENANCE
HOW TO MAINTAIN YOUR TREADMILL:
Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper
maintenance could cause damage or shorten the life of your treadmill.
•Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer,
keep liquids away and keep it out of direct sunlight.
•Inspect and tighten all parts of the treadmill regularly. Replace any worn parts immediately.
BELT ADJUSTMENT:
The running belt has been properly adjusted at the factory. However transportation, uneven flooring or other
unpredicted reasons could cause the belt to shift off center resulting in the belt rubbing with the plastic side rail or end
caps and possibly causing damage. To adjust the belt back to it’s proper position please follow the directions below:
1. If your belt tends to walk to the right, rotate the right tension bolt clockwise. We recommend adjustments of
1/4 turn at a time, and follow with a test. If your belt continues to walk to the right, simply adjust the left belt
tension bolt by turning it 1/4 turn counterclockwise, and follow with a test.
2. If your belt tends to walk to the left, rotate the left tension bolt clockwise 1/4 turn at a time, and follow with a
test. If the belt continues to walk to the left, simply adjust the right tension bolt counterclockwise.
3. If your belt appears to be loose, simply tighten both bolts evenly 1/4 turn. If it appears tight, simply loosen
both bolts evenly 1/4 turn.
Right and left tension bolts are located at the rear of the treadmill.
DECK LUBRICATION:
The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be
checked periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be
lubricated usually within 3 months.
Smooth Fitness recommends lubricating the walking deck a minimum of twice a year for light use (2 days a week) and
four times a year for heavier use(3 times a week multiple users)
Please visit www.smoothfitness.com for approved maintenance supplies

www.smoothfitness.com 19
MAINTENANCE

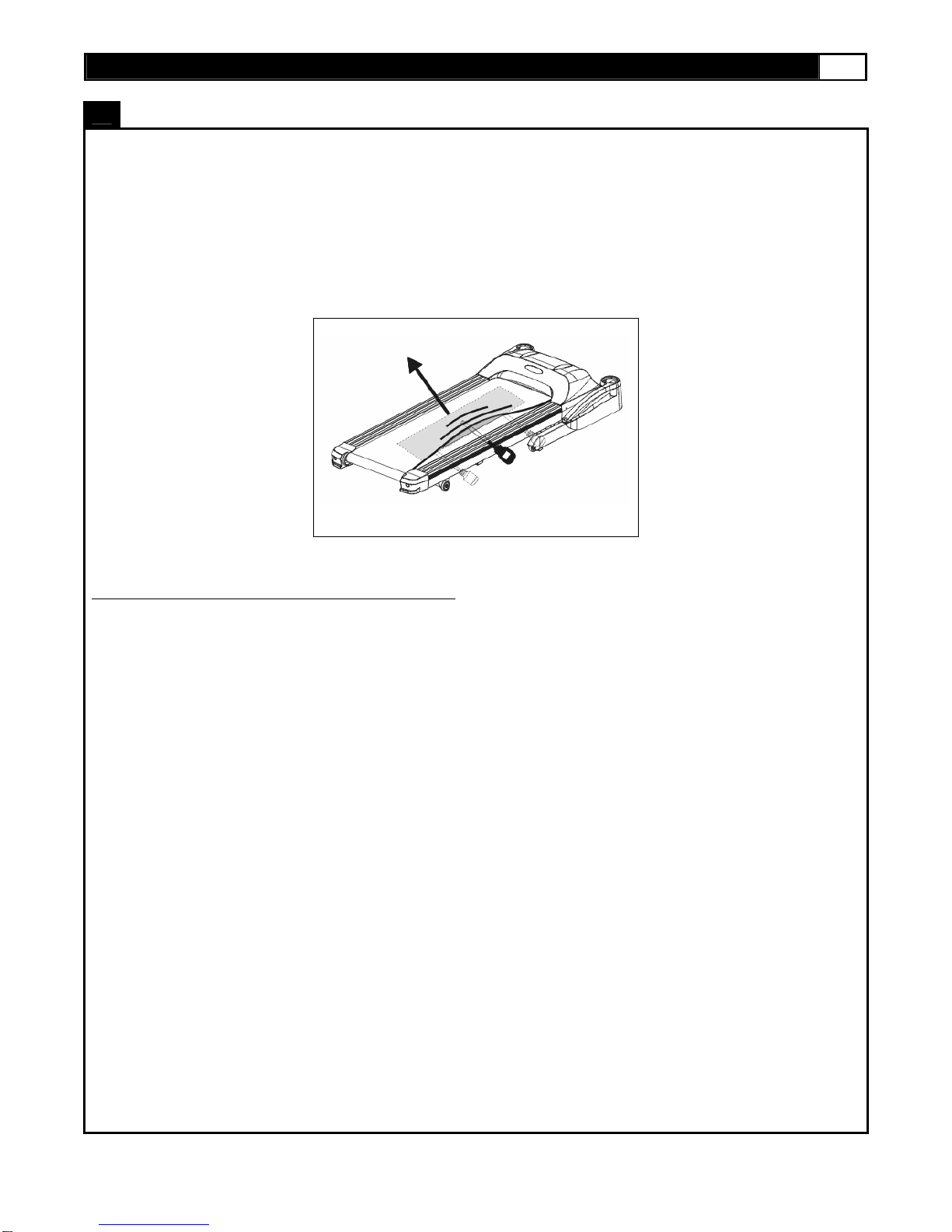

To apply lubricant to the walking belt:
1. Position the walking belt so that the seam is located on top and in center of the walking board.
2. Insert the nozzle of the lubricant container under the belt
3. While lifting the side of the walking belt, position the nozzle between the walking belt and the board
approximately 15 cm (6 inches) from the front of the treadmill. Apply the silicone lubricant to the walking
board, moving from the front of the treadmill to the rear. Repeat this on the other side of the belt. Spray
approximately 2 seconds on each side. Note: it is important to get the lubricant as far to the center of the
walking board as possible.
4. Allow the silicone to "set" for 1 minute before using the treadmill.
Apply lubricant from front to back.
CLEANING:
Routine cleaning of your treadmill will extend the product's life.
Warning:To prevent electrical shock, be sure the power to the treadmill is OFF and the power cord is
unplugged from the wall electrical outlet before attempting any cleaning or maintenance.
Important:Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep
liquids away and keep it out of direct sunlight.
After each workout:Wipe off the console and other treadmill surfaces with a clean, water dampened soft
cloth to remove excess perspiration.
Weekly:Use of a treadmill mat is recommended for ease of cleaning. Dirt from your shoes contacts the belt and
eventually makes it to underneath the treadmill. Vacuum underneath treadmill once a week.
Note: when lubricating the belt, make sure the treadmill is located on a surface that can be easily
cleaned. After lubricating your treadmill running belt, clean any excess silicone off the belt and frame.

20 7.35 TREADMILL
IMPORTANT STEPS
Warning:
Before using this product, please consult your personal physician for a complete physical examination. Frequent and
strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this
product, stop exercising and consult your doctor. Proper usage of this product is essential. Please read your manual
carefully before exercising.
Please keep all children away from the equipment during use and when equipment is unattended.
Always wear appropriate clothing, including athletic shoes, when exercising. Do not wear loose clothing that could
become caught during exercising.
Make sure that all bolts and nuts are tightened when equipment is in use. Periodic maintenance is required on all
exercise equipment to keep it in good condition.
Before beginning:
How you begin your exercise program depends on your physical condition. If you have been inactive for several
years, or are severely overweight, you must start slowly and increase your time gradually, a few minutes per week.
Initially you may be able to exercise only for a few minutes in your target heart rate zone. However, your aerobic
fitness will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at
your own pace. Ultimately, you’ll be able to exercise continuously for 30 minutes. And the better your aerobic fitness,
the harder you will have to work to stay in your target heart rate zone. But remember these essentials:
Contact your physician before starting a workout or training program. Have your doctor review your training and
diet programs to advise you of a workout routine you should adopt.
Begin your training program slowly with realistic goals that have been set by you and your doctor.
Supplement your program with some type of aerobic exercise such as walking, jogging, swimming, dancing and/or
bicycling. Monitor your pulse frequently. If you do not have an electronic heart rate monitor, have your physician
show you the proper way to manually check your pulse by using your wrist or neck. Establish your target heart
rate based on your age and condition.
Drink plenty of fluids during the course of your routine. You must replace the water content lost from
excessive exercising to avoid dehydration. Avoid drinking large amounts of cold liquids. Fluids should be at
room temperature when consumed.
