Smooth Fitness SMOOTH 7.1HR User manual

USER’S MANUAL
SMOOTH 7.1HR POWER FOLDING TREADMILL
MODEL NUMBER: 7.1HR
USER WEIGHT LIMITATION: 350lbs.
TOLL FREE CUSTOMER SERVICE NUMBER: 1.888.800.1167
SERIAL NUMBER (found on frame):

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
2
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your Smooth
Fitness treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
?? Use the treadmill only as described in this manual.
?? Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that
blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
?? When choosing a location for the treadmill make sure that the location and position permit access to a plug.
?? Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or
near water.
?? Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
?? Keep children under the age of 12 and pets away from the treadmill at all times.
?? The treadmill should not be used by persons weighing more than 350lbs.
?? Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the
treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
?? When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the
same circuit.
?? Always straddle the belt and allow it to start moving before stepping onto the belt.
?? Always examine your treadmill before using to ensure all parts are in working order.
?? Allow the belt to fully stop before dismounting.
?? Never insert any object or body parts into any opening.
?? Follow the safety information in regards to plugging in your treadmill.
?? Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
?? Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by
an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow
these instructions will void the treadmill warranty.
?? Never leave the treadmill unattended while it is running.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO
WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE
PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector
with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less
and an electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for
electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the
boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this product to be
assembled properly. If you are missing any parts or have any assembly questions call your local Smooth Retailer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to
assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free
from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person
when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350lbs. it is not recommended that
you use this product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not
intended to support users whose weight exceeds this limit.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
5
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help
you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
17 ALLEN HEAD BOLT 8
40 METAL CAP 2
46 BOLT 2
52 M5 x 20mm SCREW 2
55 M4 x 15mm SCREW 4
70 M4 x 20mm SCREW 4
ASCREWDRIVER 1
BALLEN WRENCH 1
CWRENCH 1
MILLIMETERS

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
6
PARTS LIST
No. Description Qty.Order No. No. Description Qty. Order No.
1BASE FRAME 17.1HR-01 31 SIDE RAIL GRIP 27.1HR-31
2POWER SWITCH 17.1HR-02 32 DECK SCREW 10 7.1HR-32
3COMPUTER SUPPORT 17.1HR-03 33 DECK RUBBER CUSHION 10 7.1HR-33
4DRIVING TUBE 17.1HR-04 34 TRANSPORT WHEEL 27.1HR-34
5WHEEL SUPPORT 17.1HR-05 35 REAR WHEEL 47.1HR-35
6RIGHT HANDLE UPRIGHT 17.1HR-06 36 RUNNING BELT 17.1HR-36
7LEFT HANDLE UPRIGHT 17.1HR-07 37 POWERFOLD SWITCH 17.1HR-37
8BASE FRAME 17.1HR-08 38 REAR WHEEL SCREW 27.1HR-38
9ELEVATION SUPPORT 17.1HR-09 39 CONSOLE 17.1HR-39
11 DRIVING ROD 27.1HR-11 40 METAL CAP 27.1HR-40
12 MOTOR BELLY PAN 17.1HR-12 41 HANDLEBAR FRONT END
CAP LEFT #1 17.1HR-41
13 16 X 35.5MM SHAFT 37.1HR-13 42 HANDLEBAR FRONT END CAP RIGHT #1 17.1HR-42
43 HANDLEBAR FRONT END CAP LEFT #2 17.1HR-43
15 DECK/BASE SCREW 27.1HR-15 44 HANDLEBAR FRONT END
CAP RIGHT #2 17.1HR-44
16 SPRING LOADED KNOB 17.1HR-16 45 UPRIGHT CROSS BRACE 17.1HR-45
17 ALLEN HEAD BOLT 87.1HR-17 46 BOLT 27.1HR-46
18 CONSOLE SUPPORT SCREW 27.1HR-18 47 SAFETY KEY 17.1HR-47
19 DRIVING DC MOTOR 17.1HR-19 48 ELEVATION MOTOR 17.1HR-48
20 MOTOR HOLDER 17.1HR-20 49 SUPPORT BRACKET COVER 27.1HR-49
21 MOTOR DRIVE BELT 17.1HR-21 50A HANDLEBAR (RIGHT)17.1HR-50A
22 ROLLER FLYWHEEL 17.1HR-22 50B HANDLEBAR (LEFT) 17.1HR-50B
23 MOTOR FLYWHEEL 17.1HR-23 51 CONSOLE SUPPORT
LOCATING SCREW 17.1HR-51
24 FRONT ROLLER 17.1HR-24 52 CONSOLE SCREW 27.1HR-52
25 REAR ROLLER 17.1HR-25 53 PIVOT BRACKETSCREW 47.1HR-53
26 TRANSPORT WHEEL BOLT 27.1HR-26 54 PIVOT BRACKET 27.1HR-54
27 HANDLEBAR GRIP 27.1HR-27 55 M4 X 15 SCREW 32 7.1HR-55
28 MOTORHOOD 17.1HR-28 56 FRONT SHROUD 17.1HR-56
29 RUNNING DECK 17.1HR-29 57 DECK REAR END CAP -LEFT 17.1HR-57
30 M8 X 43 CARRIAGE BOLT 27.1HR-30 58 DECK REAR END CAP -
RIGHT 17.1HR-58

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
7
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
59 HANDLEBAR END CAP (RIGHT &
LEFT) 27.1HR-59
60 BASE FRAME END CAP (FRONT &
REAR) 47.1HR-60
61 LEVEL ADJUSTER 47.1HR-61
62 SCREW 47.1HR-62
63 M8 LOCK NUT 47.1HR-63
64 ALLEN HEAD BOLT 17.1HR-64
65 MOTOR BOTTOM TRAY 17.1HR-65
66 RUNNING DECK BELLY PAN 17.1HR-66
67 ELEVATION MOTOR COVER 17.1HR-67
68 TENSION BOLT 27.1HR-68
69 FRONT SHROUD SCREW 27.1HR-69
70 M4 X 20 SCREW 47.1HR-70
71 SPACER 87.1HR-71
72 SPACER SCREW 16 7.1HR-72
73 REAR WHEEL NUT 27.1HR-73
74 NUT 27.1HR-74
75 POWER CORD 17.1HR-75
76 POWER BOARD 17.1HR-76
77 MOTOR CONTROL BOARD 17.1HR-77
78 REED SWITCHES 27.1HR-78
79 COIL 17.1HR-79
80 ELEVATION MOTOR CONTROL
BOARD 17.1HR-80
81 CHEST BELT PULSE SENSOR 17.1HR-81

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
8
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
9
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
10
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
11
ASSEMBLY
STEP 1:
Remove your 7.1HR Treadmill from the carton and place it on the floor in an open area as shown in FIG-1.
NOTE: When attaching the Handle Uprights (6 and 7) to the Base Frame (1) you will need the help of a friend.
First make sure to connect the wires. Then, simply have one person hold the Handle Uprights (6 and 7) in place on the Base
Frame (1) while the other secures it with Allen Bolts (17).

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
12
ASSEMBLY
STEP 2:
Remove the Screw (51) then rotate the Computer Support (3) up to the correct position as shown and secure with the Screw
(51).

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
13
ASSEMBLY
STEP 3:
Rotate the Computer (39) up to its proper angle and secure with Screws (52) as shown in FIG-2.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
14
ASSEMBLY
STEP 4:
Attach the Upright Cross Brace (45) to the Left and Right Handle Uprights (6 and 7) and secure with the Steel
Caps (40) and Bolts (46). Secure the Computer Support (3) to the Right and Left Handle Uprights (6 and 7) by
tightening the Screws (18).

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
15
ASSEMBLY
STEP 5:
Attach the Handlebars (50) to the Right and Left Handle Uprights (6 and 7) and secure using Allen Head Bolts (17).

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
16
ASSEMBLY

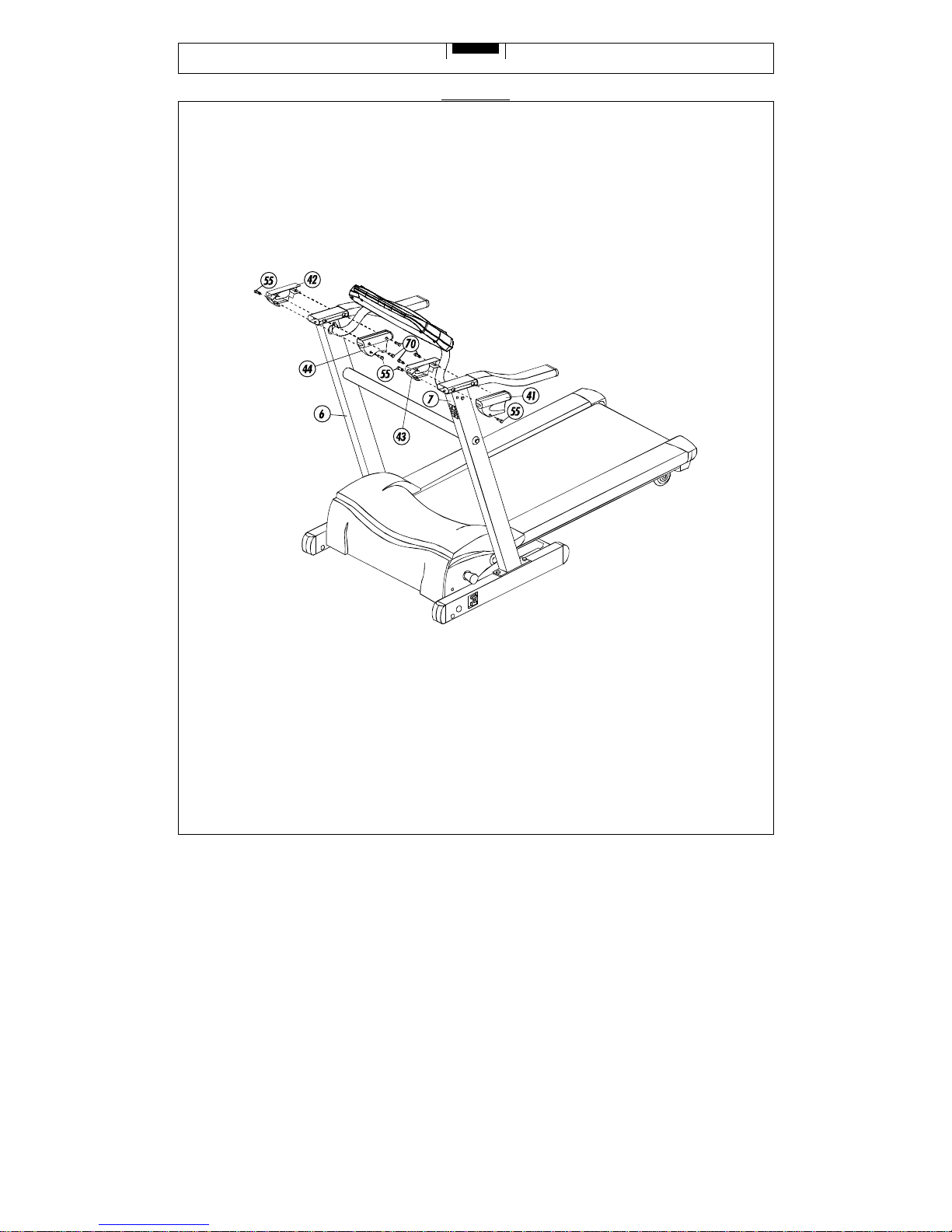

STEP 6:
Mount the Handle Cover Right -1 (42) and the Handle Cover Right -2 (44) to the Right Handle Upright (6) and secure with
the Screws (55) and Screws (70). Mount the Handle Cover Left -1 (43) and the Handle Cover Left -2 (41) to the Left Handle
Upright (7) and secure with the Screws (55) and Screws (70).

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
17
FOLDING INSTRUCTIONS
FOLLOW THESE INSTRUCTIONS TO FOLD UP YOUR 7.1HR TREADMILL:
1. Press STOP on the console and wait until the
belt has fully stopped.
2. Press RESET on the console. This will
ensure that the deck is in its lowest position
and enable it to fold. The 7.1HR won’t fold
unless the deck is in its lowest position. The
treadmill must be plugged in for this to work.
3. Turn the SPRING KNOB CLOCKWISE until
it is fully engaged. A “CLICK” can be felt at
this point.
4. Push the POWER FOLD SWITCH, located
on the front of the LEFT UPRIGHT (7). The
deck will now start to fold. Keep holding this
switch until the deck has fully folded.
5. Turn off the power and unplug the treadmill
before you leave it. DO NOT LEAVE THE
TREADMILL UNATTENDED AND
PLUGGED IN AT ANY TIME.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
18
UNFOLDING INSTRUCTIONS
FOLLOW THESE INSTRUCTIONS TO UNFOLD YOUR 7.1HR TREADMILL:
Before unfolding the 7.1HR plug the
treadmill in and insert the SAFETY KEY
and the console will light up.
1. Push the POWER FOLD
SWITCH “DOWN”. The deck will
now start to DESCEND. Keep
holding the switch until the deck
has fully descended.
2. Turn the SPRING KNOB
COUNTER CLOCKWISE until it
DISENGAGES. If you do not do
this the deck will not elevate or
incline while being used.

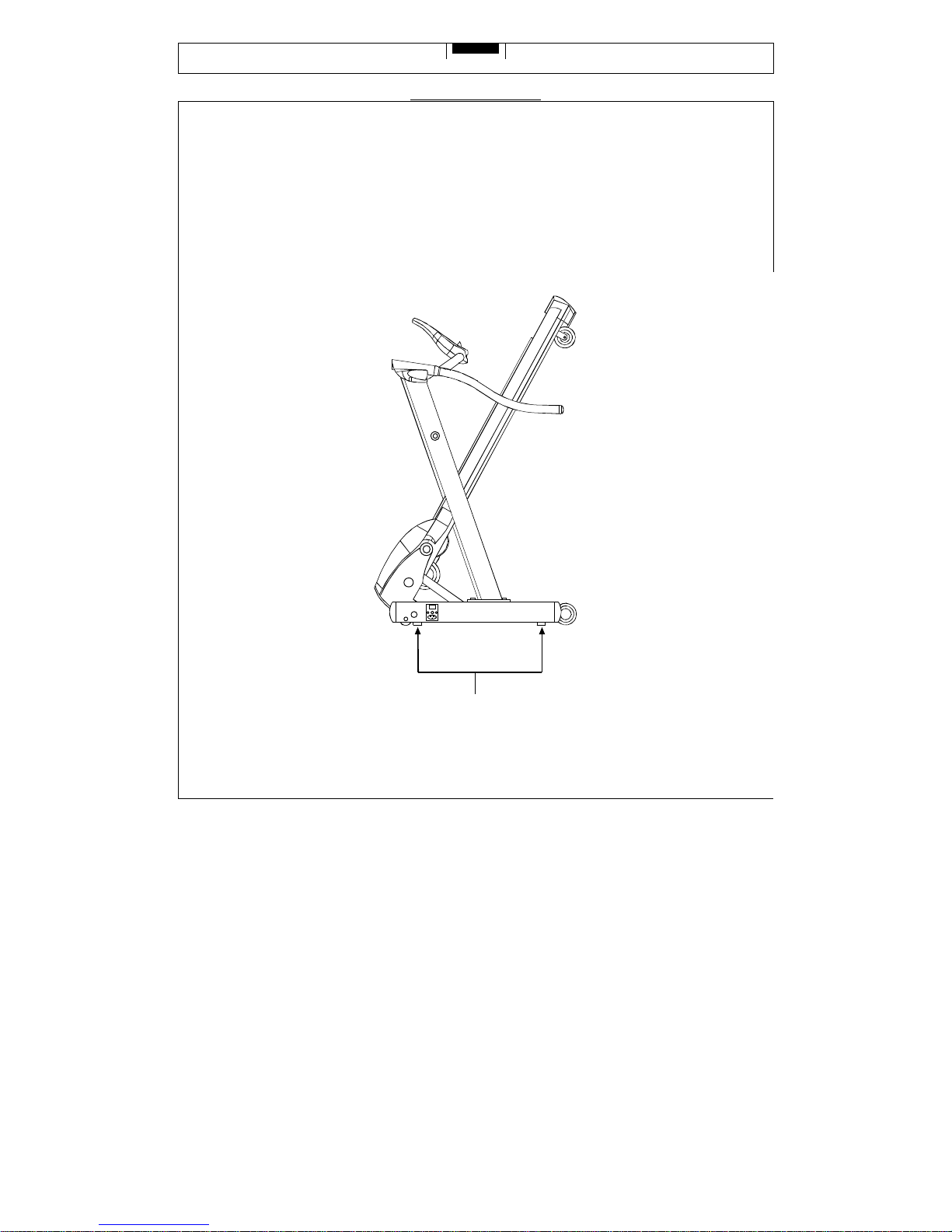

Transporting your treadmill:
IMPORTANT: NEVER TILT YOUR
TREADMILL USING THE INCLINE
WHEELS WHEN REPOSITIONING OR
MOVING YOUR TREADMILL. ONLY
ROLL/PUSH TREADMILL ON THE
FLOOR WHEELS.

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
19
LEVEL ADJUSTMENT
Leveling the treadmill:
Uneven flooring could cause the SPRING KNOBS not to engage and thus prevent the 7.1HR either not folding or unable to
incline. You will need someone to help you with this procedure, as you will need to tip the treadmill on its side.
To adjust the level first fold up the treadmill as per the instructions on the FOLDING INSTRUCTIONS page of this manual. If
your treadmill will not fold, please see the TROUBLE SHOOTING page of this manual.
Tip the 7.1HR to the left/right. You will then see the LEVEL ADJUSTERS. These will need to be screwed either in or out to
level the treadmill. Repeat for the other side. It may help to use a spirit level when adjusting the level on your treadmill.
When you are finished unfold the treadmill and unlock the SPRING KNOB.
Level Adjusters

SMOOTH 7.1HR POWER FOLDING TREADMILL
Visit us at: www.smoothfitness.com
20

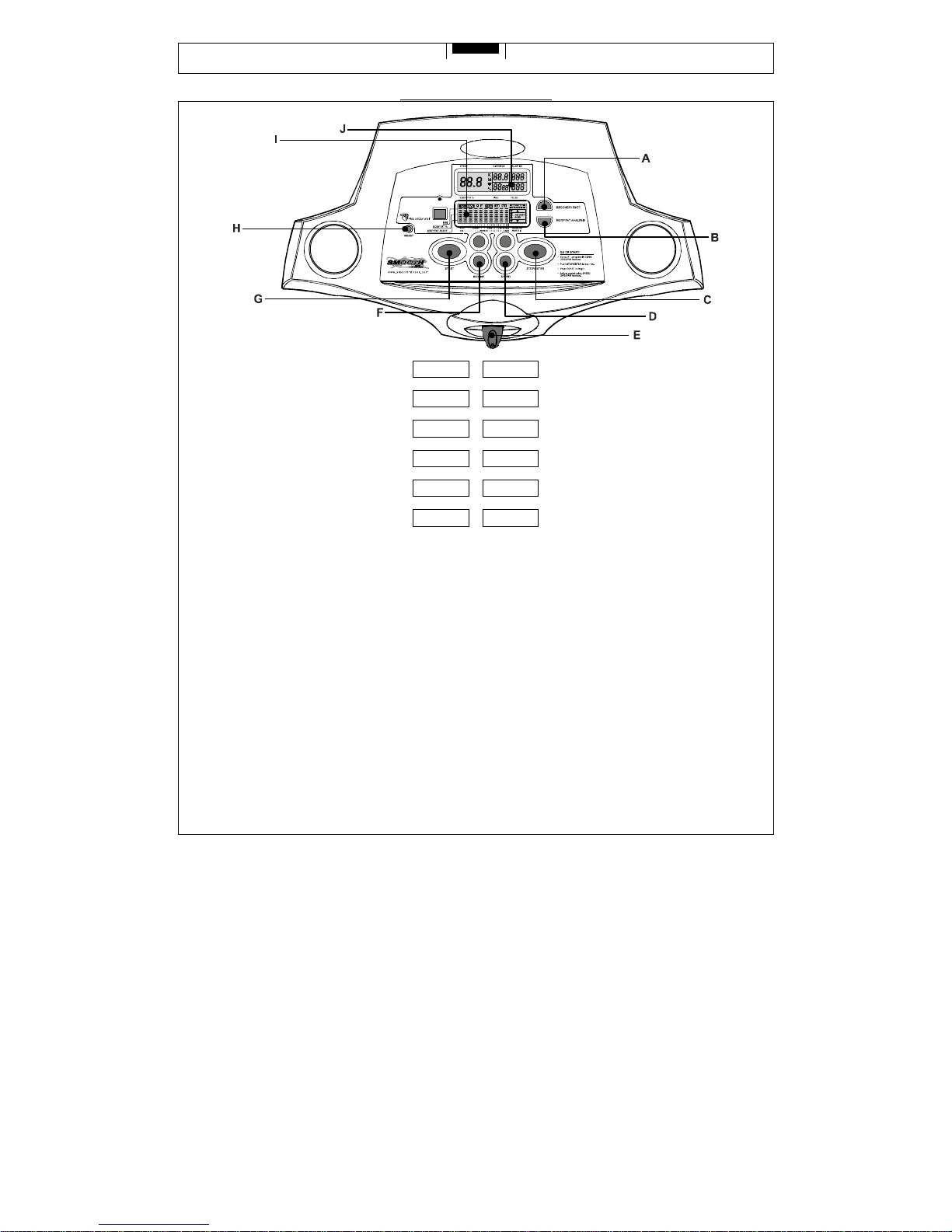

COMPUTER OPERATION
Body Fat Analysis Button A
BRecovery Rate Button
STOP/ENTER Button C DSPEED Buttons
Safety Key E FINCLINE Buttons
START Button G HRESET Button
LCD 2 Window I JLCD 1 Window
BUTTONS:
START -Press to start exercise at initial speed of 0.5mph.
STOP/ENTER -
a. Press to confirm program and preset function values under setting mode.
b. Press to run setting procedure before pressing the START key.
c. Press to stop exercise during workout time.
SPEED UP -
a. Press to increase exercise speed by 0.1mph.
b. Hold the button to increase rapid speed by 0.5mph per second and release the button to stop the function.
c. Press to select programs and preset related function value.
SPEED DOWN -
a. Press to decrease exercise speed by 0.1mph.
b. Hold the button to decrease rapid speed by 0.5mph per second and release the button to stop the function.
c. Press to select program and preset related function value.
INCLINE UP/DOWN SWITCH -Press up or down to change incline level.
SAFETY KEY:
The safety key must be inserted into the slot on the console in order to operate the treadmill. Always insert the safety key
and attach the clip to your clothing at your waist before beginning your workout. If you should encounter problems and need
to stop the motor quickly, simply pull on the cord to disengage the safety key from the console. To continue operation simply
turn the power switch to off, set the speed controller to stop and then reinsert the safety key into the console.
