SOLUTION M-FIX
User guide
UN R44/04, Gr. 2-3 | 15-36 kg
ENSENODKFISIHR

2
13 4 5
68 9 10
12 13
7
2
2
1
3
CLICK!
11
Brief instructions Group 2/3 (15-36 kg)EN –
Lyhyt käyttöohje Ryhmä 2/3 (15-36 kg) Kratka navodila Skupina 2/3 (15-36 kg)| FI – | SI –Kort vejledning Gruppe 2/3 (15-36 kg)
Kort vejledning Gruppe 2/3 (15-36 kg)
Kratke upute Skupina 2/3 (15-36 kg)
HR –
DK –
| NO –Korta instruktioner Grupp 2/3 (15-36 kg)| SE –

3
Warning! Without the approval of the certification office, the child car seat may not be modified or added to in any way. Repairs may only be performed by person
authorised to this effect. Only original parts and accessories may be used for repairs. Failure to comply with the above will result in the protective function of the child car
seat no longer being guaranteed.
Warning! The child car seat only offers optimum protection for your child if you follow the usage instructions precisely.
EN
Varning! Utan godkännande av certifieringsorgan, kan bilbarnstolen inte ändras eller modifieras på något sätt. Reparationer får endast utföras av person som är
auktoriserad för detta ändamål. Endast originaldelar och tillbehör får användas för reparationer. Om du inte följer ovanstående kommer bilbarnstolens skyddsfunktion inte
längre att kunna garanteras.
Varning! Bilbarnstolen erbjuder bara optimalt skydd för ditt barn om du följer instruktionerna.
SE
ADVARSEL! Der må ikke foretages nogen form for ændringer eller modifikationer på autostolens konstruktion. Reparationer må kun foretages af personale autoriseret til
formålet. Der må kun anvendes originale reservedele og komponenter til reparationer. Hvis ovenstående ikke overholdes bortfalder garantien for autostolens beskyttende
funktioner.
ADVARSEL! Autostolen giver kun optimal beskyttelse til dit barn, hvis du følger brugervejledningen nøje.
DK
Advarsel! Der må ikke foretages nogen form for ændringer eller modifikationer på autostolens konstruktion. Reparationer må kun foretages af personale autoriseret til
formålet. Der må kun anvendes originale reservedele og komponenter til reparationer. Hvis ovenstående ikke overholdes bortfalder garantien for autostolens beskyttende
funktioner.
Advarsel! Autostolen giver kun optimal beskyttelse til dit barn, hvis du følger brugervejledningen nøje.
NO
Varoitus! Turvaistuimeen ei saa tehdä mitään muutoksia tai lisäyksiä ilman viraonomaishyväksynnän myöntäjän lupaa. Korjauksia saa tehdä vain siihen valtuutettu henkilö.
Tuotteen korjaukseen saa käyttää vain alkuperäisiä varaosia. Jos edellämainittuja määräyksiä rikotaan, ei tuotteen valmistaja vastaa sen turvallisuudesta, eikä takuusta.
Varoitus! Turvaistuin antaa optimaalisen turvallisuuden lapsellesi vain, jos noudatat käyttöohjetta tarkasti.
FI
Opozorilo! Otroškega avto sedeža ne smete spreminjati ali mu karkoli dodajati brez odobritve Urada za certificiranje. Popravila lahko izvajajo le pooblaščene osebe. Za
popravila se lahko uporabljajo le originalni deli in dodatki. Neupoštevanje navedenega ima lahko za posledico, da zaščitna funkcija otroškega avto sedeža ne bo več
zagotovljena.
Opozorilo! Otroški avto sedež zagotavlja maksimalno zaščito vašemu otroku le v primeru, če natančno upoštevate navodila za uporabo.
SI
Upozorenje! Bez odobrenja ovlaštenog ureda, dječju sjedalicu nije dozvoljeno dorađivati, niti stavljati bilo kakve dodatke na nju. Popravke može vršiti samo za to ovlaštena
osoba. Samo originalni dijelovi i dodaci mogu se koristiti za popravke. Ukoliko se gore navedenog ne budete pridržavali, zaštitna funkcija dječje sjedalice više neće biti
zajamčena.
Upozorenje! Samo ako se budete pridržavali uputa za korištenje, dječja sjedalica će vašem djetetu pružiti najbolju moguću zaštitu.
HR

Thank you for choosing the CYBEX SOLUTION M-FIX child car seat. Safety, comfort and ease of use were the foremost
principles applied to the development of the CYBEX SOLUTION M-FIX child car seat. This product is manufactured subject to
special quality assurance measures and satisfies the most stringent of safety requirements.
Dear customer,

6
EN
Brief instructions Group 2/3 (15-36 kg).........................................................................2
Certification ....................................................................................................................6
First installation..............................................................................................................7
Positioning the seat correctly in the vehicle .................................................................8
Securing the child car seat using the ISOFIX Connect system...................................9
Activating the L.S.P......................................................................................................10
Adapting to body size .................................................................................................10
Removal of the CYBEX SOLUTION M-FIX ...............................................................10
Placing the seat in the vehicle .................................................................................... 11
Fastening your child’s seatbelt.................................................................................... 11
Is your child correctly secured?...................................................................................12
Reclining headrest ......................................................................................................13
Care & maintenance....................................................................................................13
Removing the seat cover ............................................................................................14
Removing the cover from the headrest flap ...............................................................14
Removing the cover from the head support ...............................................................14
Removing the cover from the shoulder part ...............................................................14
Removing the cover from the booster ........................................................................15
Cleaning.......................................................................................................................15
How to act following an accident.................................................................................15
Product Lifespan..........................................................................................................15
Disposal .......................................................................................................................16
Warranty conditions.....................................................................................................16
SOLUTION M-fix
ECE-R44-04
UNIVERSAL
SEMI-UNIVERSAL
15 – 36 kg
CYBEX GmbH
Riedinger Str. 18, 95448 Bayreuth
Germany
04301314
Certication
CYBEX SOLUTION M-FIX
seat cushion with backrest and headrest
Recommended for:
Age: from approximately 3 to 12 years
Weight: 15 to 36 kg
Body height: up to 150 cm
Only suitable for vehicle seats with automatic three-
point belts approved in accordance with UN regulation
R16 or a comparable standard
UN R 44/04, group 2/3, 15 to 36 kg
WARNING! To ensure optimum protection for your child, the CYBEX
SOLUTION M-FIX must be used as described in these instructions.
Note! Country-specic regulations (e.g. regarding colour-coding on child car seats)
may mean that product features may vary in appearance. This will, however, not
a󰀨ect the product in its correct function.
Note! Always keep these instructions to hand (e.g. in the designated compartment
on the rear of the backrest).
Contents

7
FIRST INSTALLATION
WARNING! The parts of the CYBEX SOLUTION M-FIX must not be used
alone or in combination with boosters, backrests or headrests from other
manufacturers or from different product series. In such instances, the
certification expires immediately.
The child seat consists of a booster seat (d) and a backrest (a) with a height
adjustable headrest. Only the combination of both parts provides best protection and
comfort to your child.
Warning! Please ensure that the plastic parts of the child seat are never
compressed (e.g. by jamming in the car door or when adjusting the back seat).
Connect the backrest (a) to the booster (d) by hooking the guide lug (b) on the axis
(c) of the booster (d).
b
c
a
a
dd

8
o
f
POSITIONING THE SEAT CORRECTLY IN THE VEHICLE
The CYBEX SOLUTION M-FIX with retracted ISOFIX Connect system
can be used on all vehicle seats with automatic three-point safety belts
approved for the transport of adult persons.
A ‘semi-universal’ certication is given to restraint systems that are connected
to the car through ISOFIX Connect (o). For this reason, ISOFIX Connect can
only be used in certain vehicles. Please refer to the enclosed vehicle type list
for approved vehicles. You can obtain the most up-to-date version from www.
cybex-online.com.
In exceptional cases, the child car seat may also be used on the front passenger
seat. Please note the following in this case:
• In cars with airbags, you should push the passenger seat back as far as possible.
When doing so, however, ensure that the upper pivot point of the safety belt is
behind the belt feed point of the child car seat.
• Always comply with the recommendations of the vehicle manufacturer.
WARNING! The seat is not suitable for use with a two-point or lap belt. If the
seat is secured using a two-point belt, an accident may result in severe or
even fatal injuries to the child.

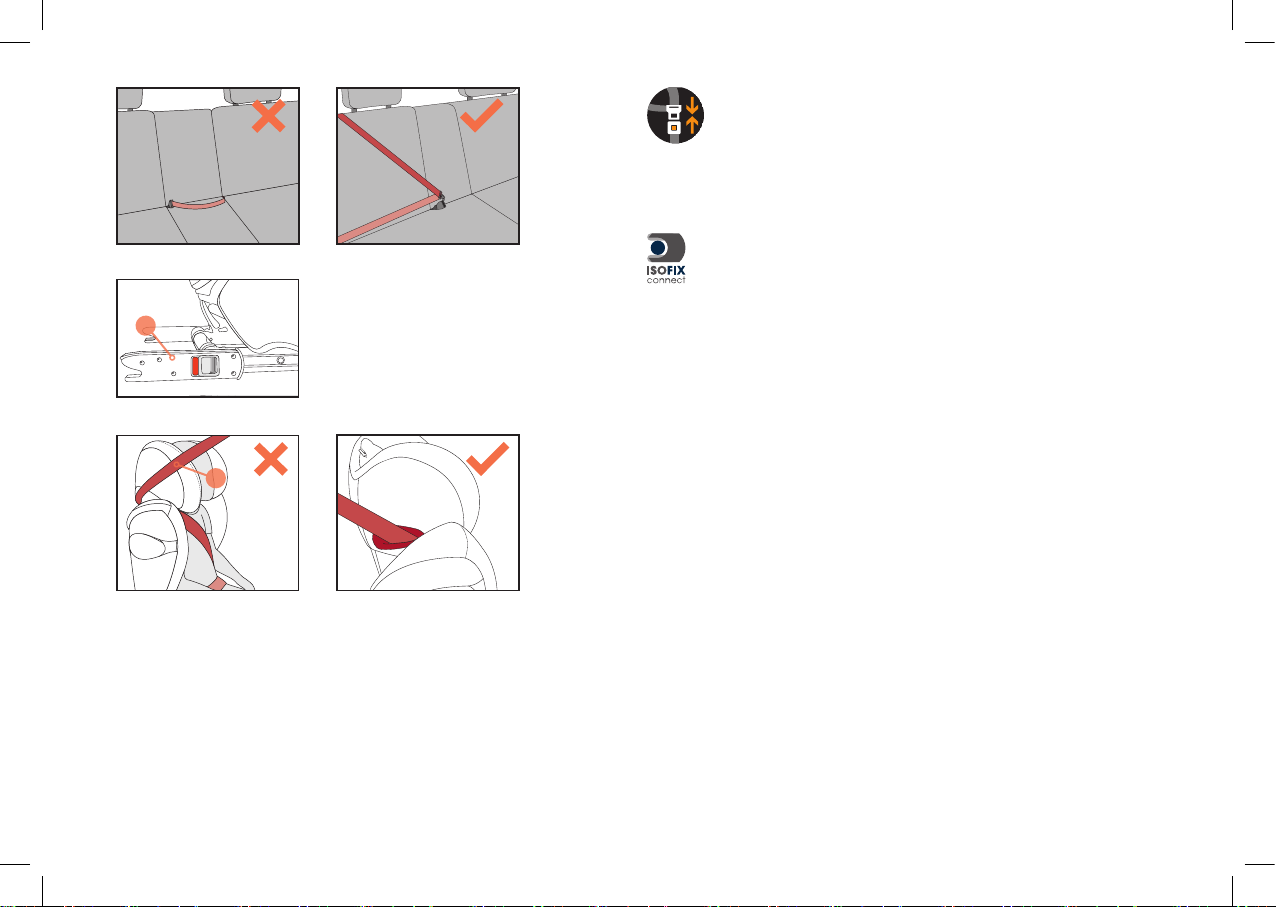

WARNING! The diagonal belt (f) must run back at a recline and must never
run forward to the upper belt point in your vehicle. If it is not possible to adjust
the seat in this way, e.g. by pushing the car seat forward or using it on another
seat, this child car seat is not suitable for your vehicle.
Luggage or other objects present in the vehicle that may cause injury in the event of
an accident must always be rmly secured. Otherwise, they may be thrown, causing
fatal injuries.
Note! Never leave your child unattended in the vehicle.
WARNING! The child car seat may not be used on car seats facing to the
side of the direction of travel. Use of the child car seat is permitted on rear-
facing seats, e.g. in a van or minibus, provided that the seat is permitted
for transporting an adult. Please note that the vehicle headrest must not be
removed when fitting on a rear-facing seat! Even if not in use, the child car
seat must always be secured with the safety belt. This applies even if the child
set has already been secured to the vehicle using the ISOFIX Connect system.
An unsecured child car seat can injure other passengers and yourself even
when just performing an emergency brake or in the event of a minor collision.

9
EN

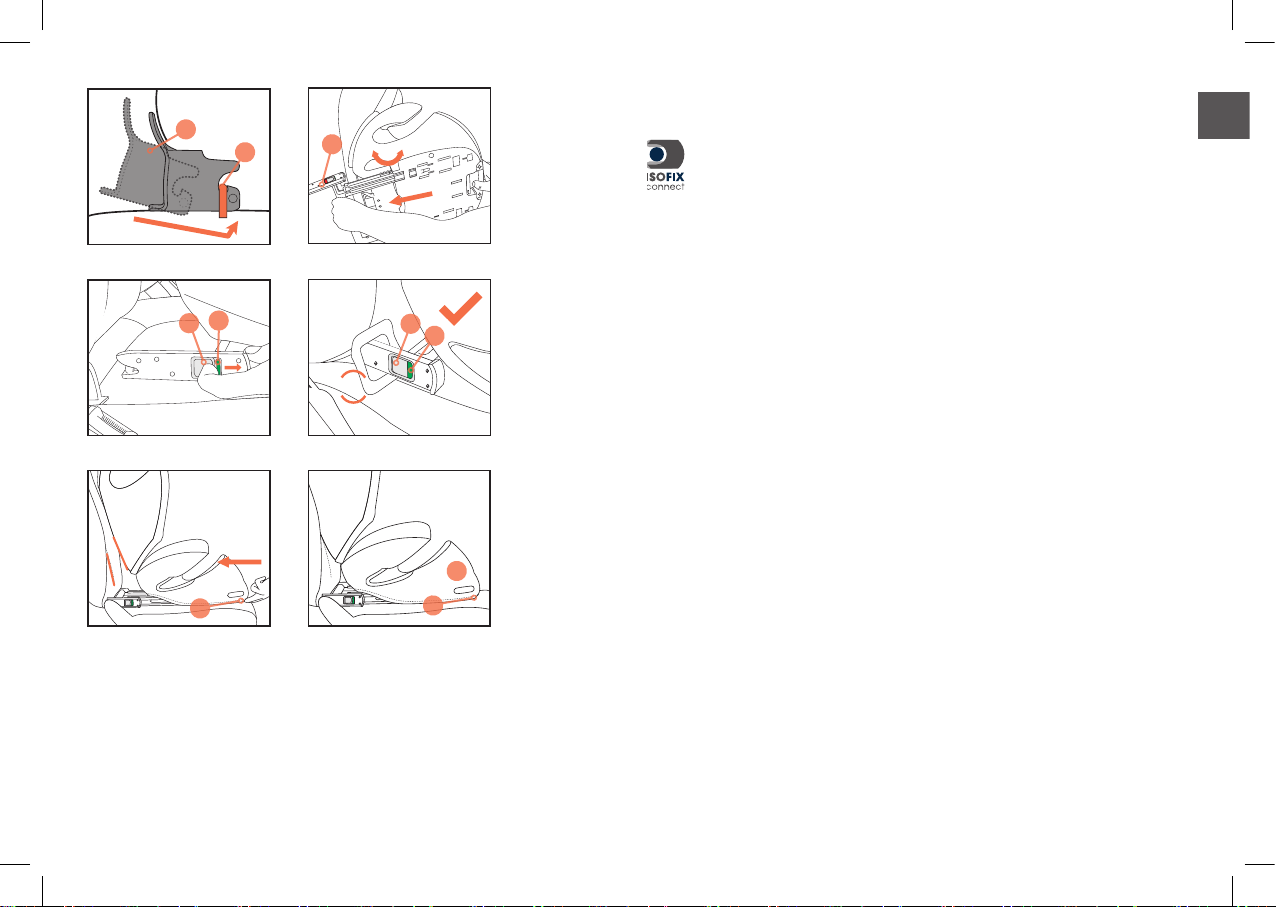

SECURING THE CHILD CAR SEAT USING THE ISOFIX
CONNECT SYSTEM

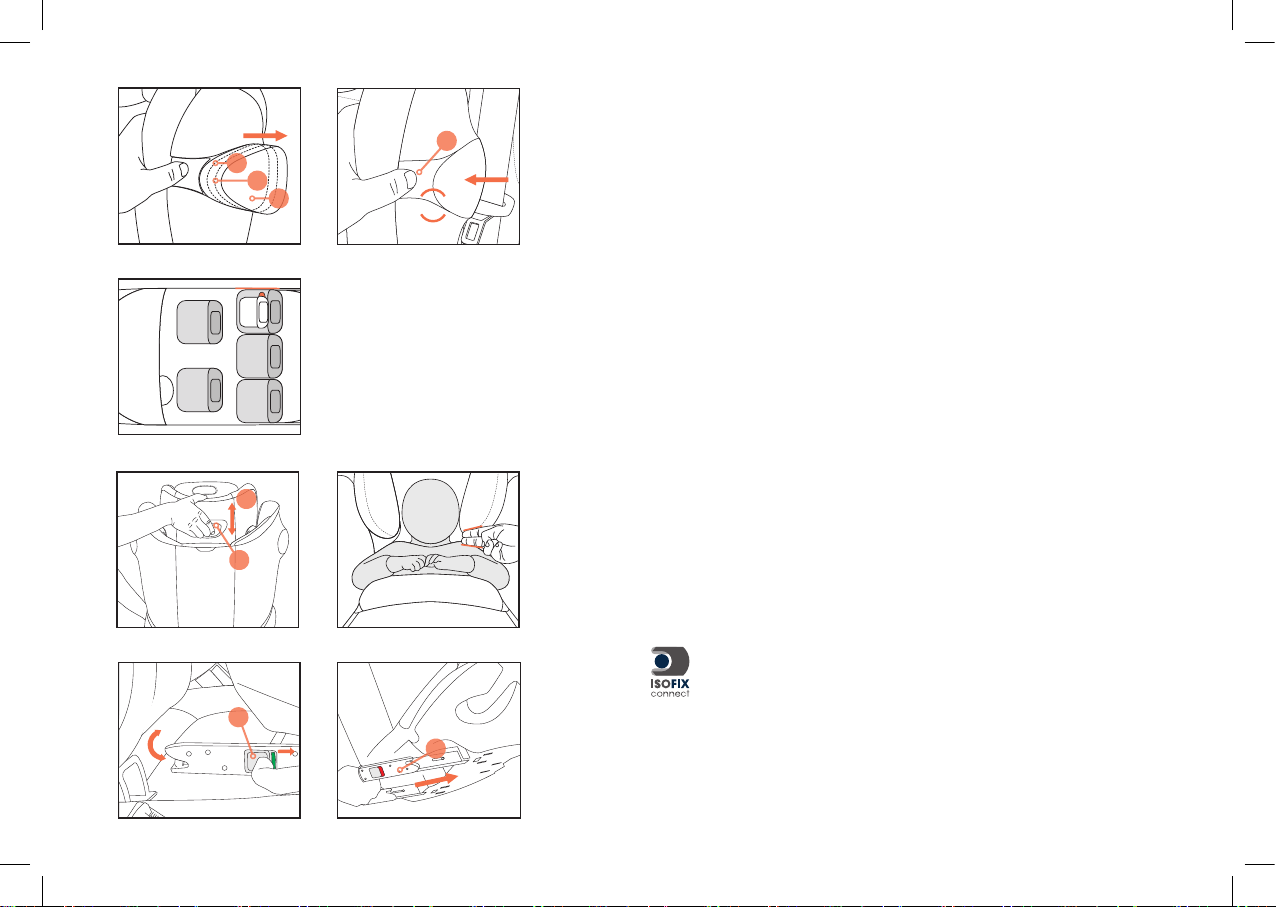

Note! The ISOFIX xture points (j) are two metallic clips for each seat and are
positioned between the backrest and the seating surface of the vehicle seat. In case
of doubt, please refer to the driver’s manual of your vehicle.
Note! Before clicking the the ISOFIX Connect locking arms (o) into the ISOFIX
xture points (j), check the release buttons (y). If the green safety indicators (b) are
visible, you must rst release the ISOFIX Connect locking arms before joining by
pressing and pulling back the release button (y). Repeat the process if necessary
with the second locking arm.
A perceptible click will be heard when the ISOFIX Connect locking arm correctly
locks into place with the ISOFIX xture points.
Note! Note the information in the section “PLACING THE SEAT IN THE VEHICLE”.
• Push the two locking arms (o) into the ISOFIX guides (u) until these lock into place
in the ISOFIX xture points with an audible ‘click’.
• Ensure that the seat is secure by trying to pull it out of the ISOFIX guides (u).
• The green safety indicator (b) must now be clearly visible on the two release
buttons (y).
• You can now use the adjustment lever (v) on the frame (d) of the CYBEX
SOLUTION M-FIX child car seat position.
• Insert the supplied ISOFIX guides (u) with the longer strap upwards into the two
ISOFIX xture points (j). In some vehicles, it is better to mount the ISOFIX guides
aids (u) in the opposite direction.
• Use the adjustment lever (v) under the seat cushion (d)
• Pull the two ISOFIX Connect locking arms (o) as far as they will go.
• Now twist the ISOFIX Connect locking arms (o) 180° so that they are facing the
direction of the ISOFIX guides (u).
Using the ISOFIX Connect system, you can x the CYBEX SOLUTION
M-FIX to the vehicle, thereby increasing your child’s safety. The child still
needs to be secured with the three-point belt of your vehicle.
u
j
b
y
CLICK!
v
yb
o
v
d

10
L.S.P.
PRESS!
2
1
3
A
y
o
ACTIVATING THE L.S.P.
The “Linear Side-impact Protection” system (L.S.P.) can be extended in two steps by
pressing the L.S.P. button(s).Together with the initial position, this provides a total of
three di󰀨erent L.S.P. settings.
To push the L.S.P. back into the housing, press the L.S.P. button again and push the
L.S.P. back into the starting position.
Note! Always activate the L.S.P. on the side of the seat facing the car door.
REMOVAL OF THE CYBEX SOLUTION M-FIX
Perform the installation steps in the reverse order.
Note! By folding in the locking arms (o), you are not just protecting the vehicle seat
but also the locking arms of the ISOFIX Connect system from dirt and damage.
• Unlock the ISOFIX locking arms (o) on both sides by pushing the release
buttons (y) and pulling them back simultaneously.
• Pull the seat out of the ISOFIX guides (u).
• Rotate the locking arms (o) 180°.
• Operate the adjustment lever (v) on the frame (d) of the CYBEX SOLUTION M-FIX
and push the locking arms in as far as they will go.
h
e

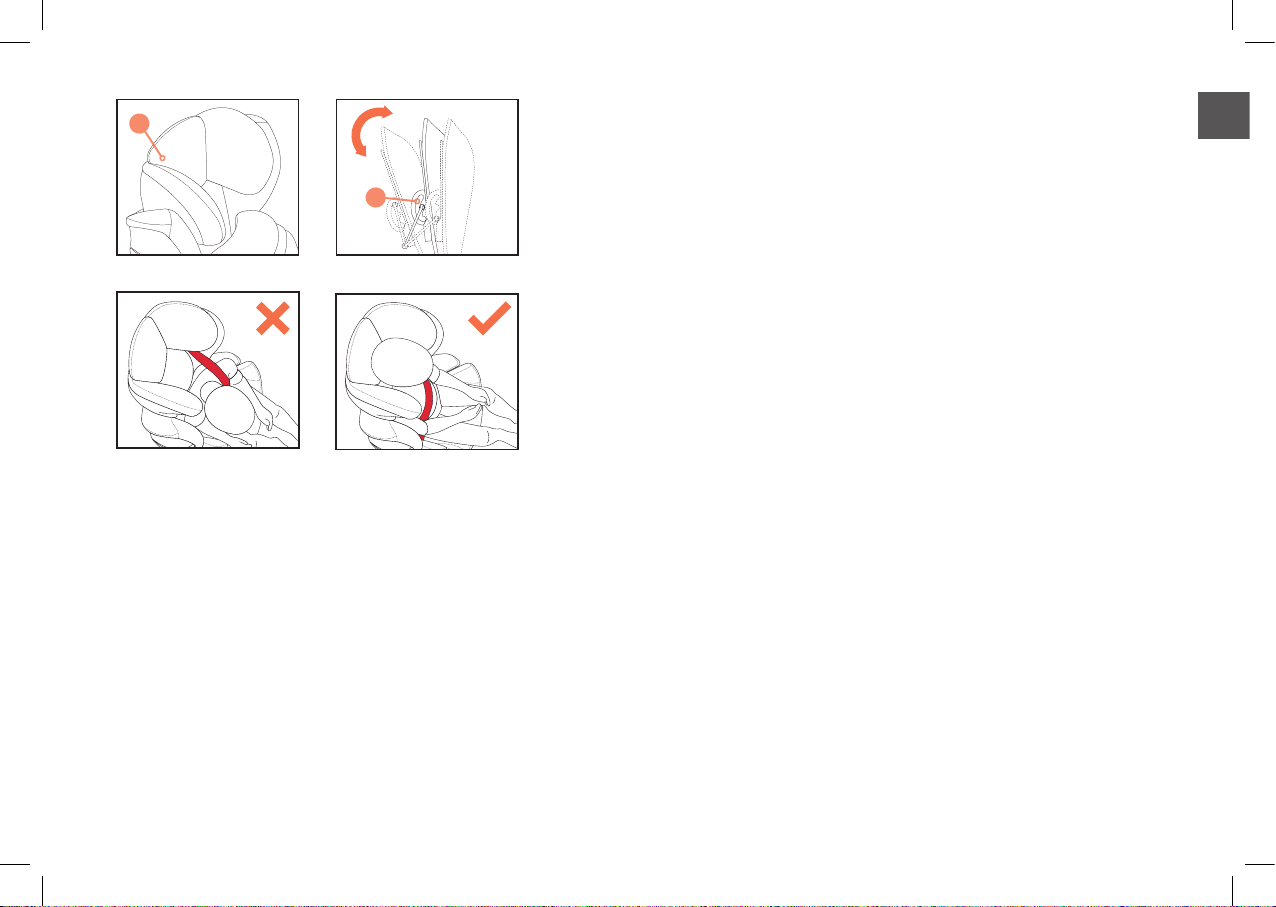

Note! Only an optimally adjusted headrest (e) can o󰀨er your child maximum
protection and comfort while ensuring that the diagonal belt can be tted smoothly
(f). The height of the CYBEX SOLUTION M-FIX can be adjusted to one of twelve
positions.
ADAPTING TO BODY SIZE
• The seat can then be adjusted to your child’s body simply by using the adjustable
headrest (e). To do this, pull the adjustment level (h) upwards to unlock the
headrest (e).
• Adjust it so that there is space for two ngers between the lower edge of the
headrest (e) and the shoulder of the child.

11
EN
v
a
l
k
m
CLICK!
PLACING THE SEAT IN THE VEHICLE
Note! On some car seats made of sensitive materials (e.g. suede, leather etc.), the
use of child car seats may leave marks and/or cause discolouration. To prevent this,
you can place a blanket or towel underneath it, for example. Please also refer in
this connection to our cleaning advises in these usage instructions; these cleaning
instructions must be observed prior to using the seat for the rst time.
Place the child car seat on the appropriate seat in the car.
• Always ensure that the entire surface of the backrest (a) of the CYBEX
SOLUTION M-FIX is placed against the backrest of the vehicle seat. The
child car seat must never be in a lying position. If necessary, you can
adjust the distance using the adjustment lever (v).
• If the headrest of the vehicle is in the way, pull it out all the way or remove it
completely (for exceptions to this, please refer to the section “POSITIONING THE
SEAT CORRECTLY IN THE VEHICLE”) The backrest (a) will perfectly adapt to
practically any recline of the vehicle seat
WARNING! The surface of the backrest of the CYBEX child car seat must be
against the backrest of the vehicle. To ensure maximum protection for your
child, the seat must be in a normal upright position!

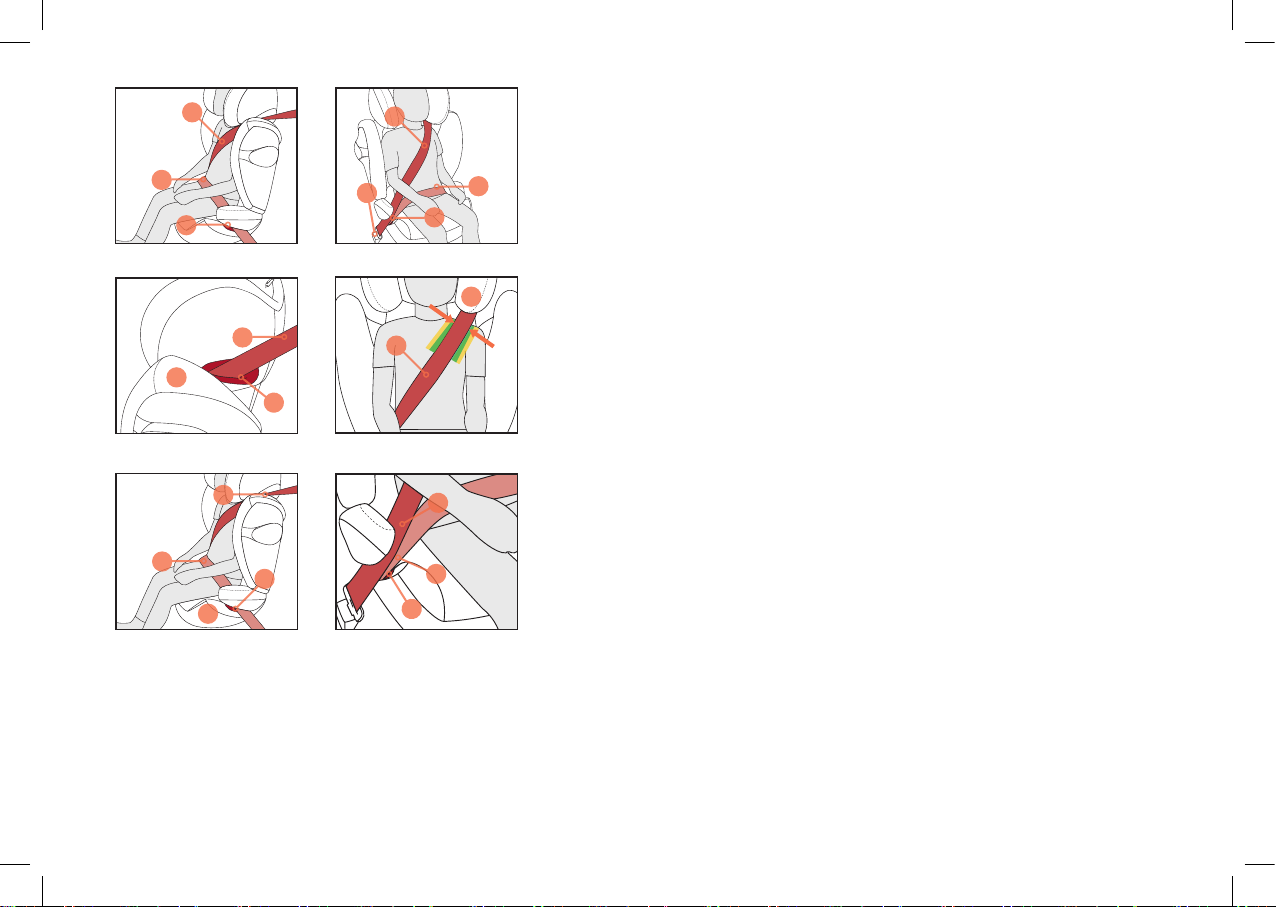

FASTENING YOUR CHILD’S SEATBELT
1. Place your child in the child car seat. Pull the three-point belt right out and feed it
along the belt buckle (l) in front of your child.
2. Insert the belt tongue (m) into the belt buckle (l). It must lock into place with an
audible “CLICK”.
3. Next, place the lap belt (n) in the lower belt guides (k) of the child car seat.
4. Now pull the diagonal belt (f) firmly to tighten the lap belt (n). The tighter the belt
sits, the better it provides protection from injury. On the side of the belt buckle (l),
the diagonal belt (f) and the lap belt (n) must be inserted together in the lower belt
guide (k).
WARNING! Never twist the belt.

12
f
k
f
l
k
k
f
k
n
nn
n
g
g
f
s
e
f
d
To ensure optimum safety for your child, please always check before commencing
travel that
• the lap belt (n) has been fed through the lower belt guides (k) on both sides of the
seat cushion (d).
• the diagonal belt (f) on the belt buckle side has also been fed through the lower belt
guide (k) of the seat.
• the diagonal belt (f) has been fed through the belt guide (g) marked red in the
shoulder rest (e).
• the diagonal belt (f) is at a recline backwards.
• the entire belt is tightly against your child’s body and is not twisted.
IS YOUR CHILD CORRECTLY SECURED?
WARNING! The lap belt (n) must run as low as possible on both sides along
your child’s groin to have optimum effect in the event of an accident.
Ensure that the diagonal belt (f) runs between the outside of the shoulder and the neck
of your child. If necessary, adjust the height of the headrest to change the position of
the belt. The height of the headrest (e) can still be adjusted while in the car.
Note! Teach your child from the start to always ensure that the belt is tight and, if
necessary, how to tighten the belt themselves.
5. The lap belt (n) should have been fed through the lower belt guides (k) on both
sides of the seat cushion (d).
6. Now feed the diagonal belt (f) through the upper belt guide (g) in the headrest (e)
until it is inside the belt guide.
WARNING! The vehicle belt buckle (l) must never cross the arm rest. If the belt
system is too long, the child car seat is not suitable for use in this position in
the vehicle. In case of doubt, please consult the manufacturer of your vehicle.

13
EN
t
rThe reclining headrest helps to prevent the child’s head from dangerously tipping
forward during sleep. In the event of a collision, the headrest will follow the
movement of your child’s head forwards, lock into place and absorb the subsequent
backwards motion of your child’s head.
The recline angle of the headrest can be set to one of three positions. It can be
moved forward without moving the lever to the second or third position until the rest
locks into position. To return it to the original position, the lever must be operated and
the headrest pulled back.
Note! Ensure that your child’s head is always in contact with the reclining headrest
(r), as this is the only way that the headrest can provide optimum protection in case
of side collisions.
WARNING! Never block the locking mechanism (t) ! In the event of an
accident, the recline adjustment mechanism must move smoothly, or else your
child may be injured!
RECLINING HEADREST
To ensure that your child car seat provides maximum protection, it is imperative that
you note the following:
CARE & MAINTENANCE
• All major parts of the child car seat should be checked regularly for damage. The
mechanical components must be free of defects.
• It is absolutely necessary to ensure that the child car seat is not jammed between
hard elements such as the vehicle door or seat rail, which could potentially
damage it.
• When exposed to extreme shock, e.g. after a crash, the child car seat must be
checked by the manufacturer.
Ensure that only an original CYBEX seat cover is used, as the cover is a key element
of the seat’s function. Spare covers can be obtained from a specialist retailer.

14
e e
h

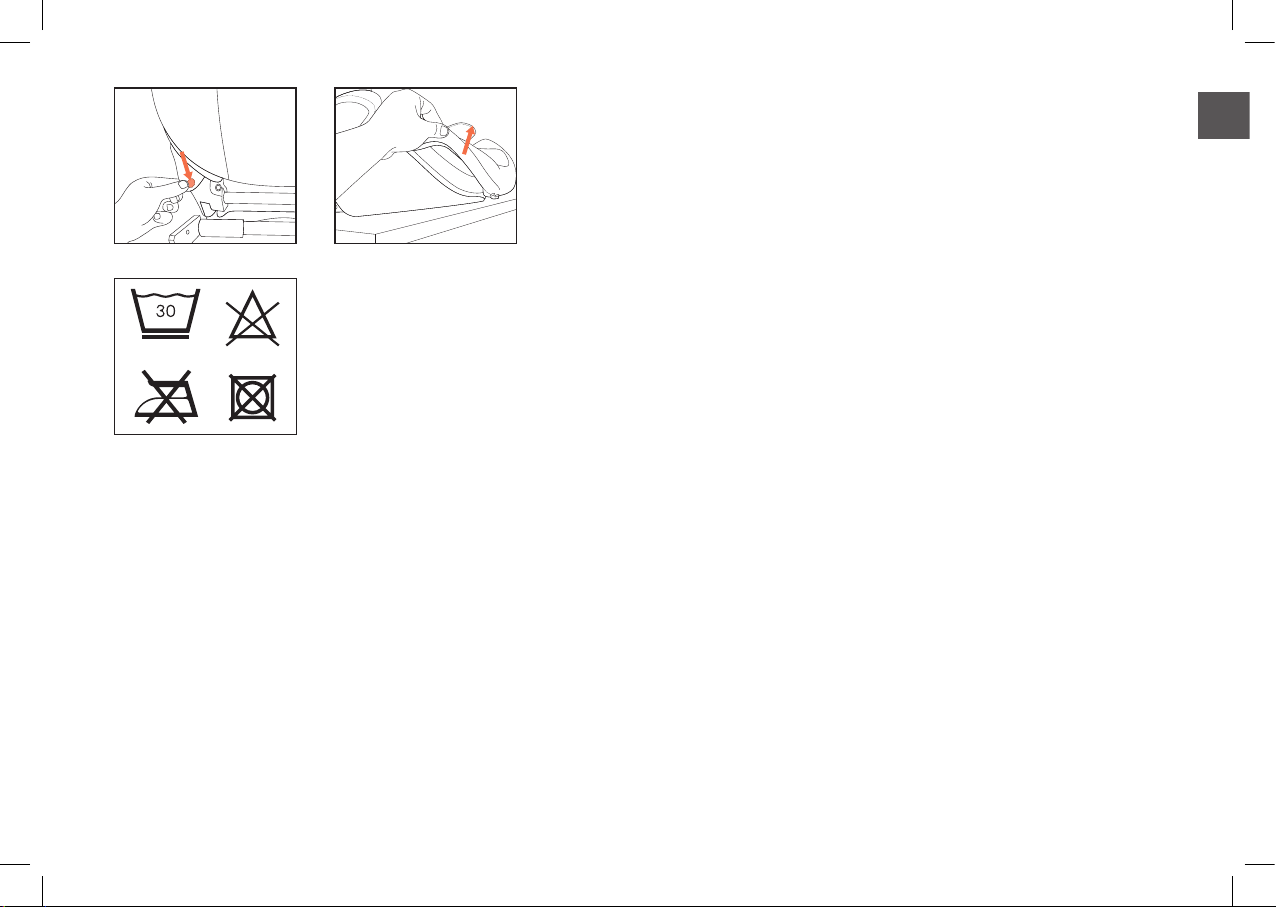

REMOVING THE SEAT COVER
REMOVING THE COVER FROM THE HEADREST FLAP
REMOVING THE COVER FROM THE HEAD SUPPORT
The cover of the infant seat consists of four parts (Headrest ap, headrest, shoulder
part cover, booster cover and/or seat surface cover). The four covers of the seat are
tted into the cover attachment channels on the edge of the infant seat and are held
in position at several places by press-studs (see image).
Once all studs have been released, the single parts of the cover can be removed
from the cover attachment channels.
Pull the opening of the cover over the adjustment lever so that the cover does not get
jammed on the lever when pulling it up to remove it.
Release the two press-studs at each side of the rear of the shoulder area. Pull the
cover out of the cover attachment channel.
In order to put the covers back on the seat, proceed in the reversed order as
removing them.
WARNING! The child car seat must never be used without the cover.
REMOVING THE COVER FROM THE SHOULDER PART
Pull the cover out of the cover attachment channel.

15
EN
REMOVING THE COVER FROM THE BOOSTER
Release the four press-studs of the seat cover at the front and the back. Now, pull o󰀨
the cover over the armrests and along the seat surface.
Note! Please wash the cover before you use it the rst time. The cover may only
be washed at 30°C with a delicate wash program. Washing at more than 30°C may
result in discolouration of the cover fabric. Please wash the cover separately from
other laundry and do not dry in the dryer! Never dry the cover in direct sunlight! The
plastic parts can be cleaned with a mild cleaning agent and warm water.
WARNING! Never use harsh cleaning agents or bleaches!
CLEANING
• If the vehicle is directly exposed to strong sunlight for long periods, the child seat
must be removed from the vehicle or covered with a light cloth.
• Check all plastic and metal parts of the seat regularly for damage or change of
shape or colour. If you notice any change in the child seat, the child car seat must
be disposed or checked and possibly replaced by the manufacturer.
• Changes to the fabric, especially fading, are normal when used in a vehicle and do
not impair the seat‘s function.
PRODUCT LIFESPAN
WARNING! An accident may cause damage to the child car seat that is not
identifiable with the naked eye. Please replace the seat after an accident. In
case of doubt, please consult your dealer or the manufacturer.
HOW TO ACT FOLLOWING AN ACCIDENT
This car seat has been designed to be able to fulll its intended functions by ordinary
use for a product life span of approx. 9 years.
Gradual wear of the plastic, for example caused by exposure to sunlight (UV), can
cause slight deterioration of the product’s properties.
Since very high temperature uctuations and other unforeseeable stresses are
common in vehicles, it is necessary to observe the following points:

16
CYBEX GmbH
Riedingerstr. 18, 95448 Bayreuth, Germany
Tel.: [phone], Fax.: [phone]
At the end of the child car seat’s service life, it must be disposed of correctly. The
separation of waste may be handled di󰀨erently from place to place. To ensure that
the child car seat is disposed of in accordance with regulations, please contact your
local waste disposal institution or local council. Always observe the waste disposal
regulations of your country.
DISPOSAL
The following warranty conditions only apply to the country in which this product
was rst sold through retail channels to a consumer. This warranty covers all
manufacturing and material defects that existed at the time of purchase or which
manifest themselves within three (3) years of rst sale of this product via retail
channels to a consumer (manufacturer warranty). If a manufacturing or material
defect arises during the warranty period, the product will be repaired at no charge
or – at our discretion – may be replaced by a new one. In order to make a claim on
this warranty, the product must be returned to the retailer that rst sold it and the
original proof of purchase (receipt or invoice), containing the date of purchase, name
and address of the retailer, and the product name, must be presented. No claims
may be made on this warranty if the product is sent to the manufacturer or any other
person than the retailer having rst sold it for the purpose of making a claim on the
warranty. The warranty only applies is the product was checked for completeness,
manufacturing defects and material defects immediately upon purchase. If the
product was purchase by way of a mail order outlet, it must be checked for
completeness, manufacturing defects and material defects immediately upon receipt.
If damage arises, the product may no longer be used and must be returned to the
retailer that original sold it. When claiming on the warranty, the product must be
returned in a complete and clean state. Please read the usage instructions carefully
before contacting the retailer. The warranty does not cover damage caused by
misuse, external inuences (water, re, tra󰀩c accidents etc.) or normal wear and
tear. Claims on the warranty will only be honoured if the product is treated and
used in accordance with the usage instructions, repairs and modications are only
performed by persons authorised to do so, and only original parts and accessories
are used. This warranty does not nullify or limit in any way any consumer rights or
rights against the seller based on infringement of the purchase agreement granted
by applicable legislation.
WARRANTY CONDITIONS

17
EN

Tak for at du valgte CYBEX SOLUTION M-FIX. Sikkerhed, komfort og brugervenlighed var de vigtigste principper i udviklingen
af CYBEX SOLUTION M-FIX. Produktet er produceret under særlig kvalitetsovervågning og opfylder de strengeste
sikkerhedskrav.
Kjære kunde.
Tack för att du valde CYBEX SOLUTION M-fix bilbarnstol. Säkerhet, komfort och användarvänlighet var de främsta principerna
som tillämpats för utvecklingen av CYBEX SOLUTION M-fix bilbarnstolen. Denna produkt är tillverkad under särskilda
kvalitetssäkringsåtgärder och uppfyller de strängaste säkerhetskrav.
Bästa kund,
Tak for at du valgte CYBEX SOLUTION M-Fix! Sikkerhed, komfort og brugervenlighed var de vigtigste principper i udviklingen
af CYBEX SOLUTION M-FIX. Produktet er produceret under særlig kvalitetsovervågning og opfylder de strengeste
sikkerhedskrav.
Kære kunde.
