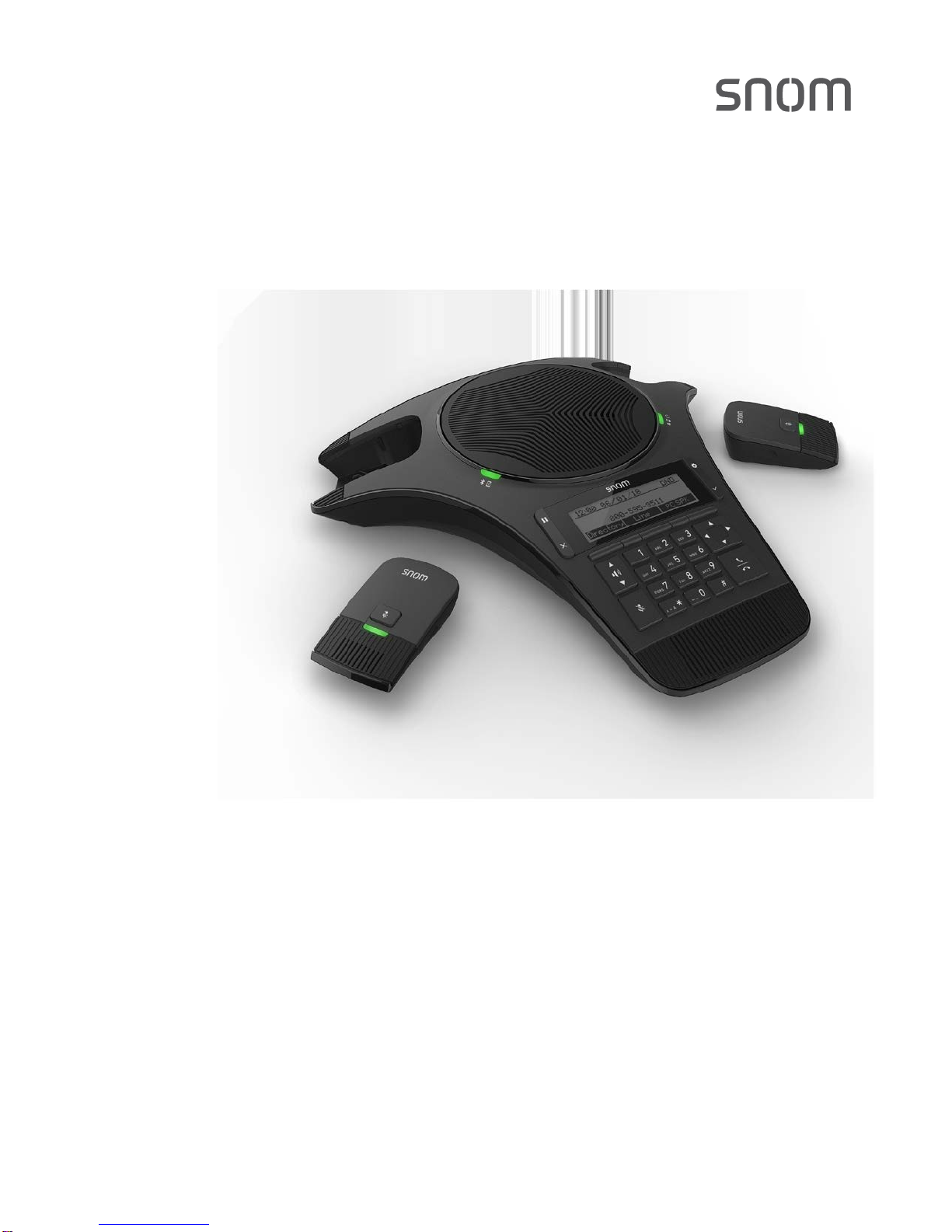

Snom C520 WiMi User manual

Conference call device
C520 WiMi
Administrator and Provisioning Manual
v2018002
Rev. 2 6/17

C520 WiMi Administrator and Provisioning Manual
2
––
C ONTENTS
Preface...................................................................................................... 7
Text Conventions..................................................................................................................8
Audience.............................................................................................................................8
Related Documents.............................................................................................................8
Introducing the C520................................................................................ 9
About the C520 conference phone...................................................................................10
Quick Reference Guide..................................................................................................... 11
Network Requirements......................................................................................................13
C520 Configuration Methods ............................................................................................14
Adding a Custom Logo......................................................................................................15
Idle screen logo behavior.....................................................................................15
Logo specifications...............................................................................................15
Uploading a custom logo......................................................................................16
Custom logo user interactions .............................................................................16
Customizing Soft Keys......................................................................................................17
Custom soft key configuration file settings...........................................................17
Configuration Using the Phone Menus................................................ 20
Viewing the Main Menu.....................................................................................................21
Using the Status menu.........................................................................................21
Viewing Linestatus..............................................................................................23
Using the Admin Settings Menu........................................................................................24
Using the Network Setting menu .........................................................................25
Using the Line menu............................................................................................28
Using the Provisioning menu ...............................................................................29
Using the WebUI .................................................................................... 30
Using the Web User Interface (WebUI) ............................................................................31
Status Page.......................................................................................................................33
System Status ...........................................................................................................33
System Pages................................................................................................................... 34
SIP Account Management...................................................................................34
General Account Settings..............................................................................34

C520 WiMi Administrator and Provisioning Manual
3
––
Dial Plan ........................................................................................................36
SIP Server Settings.......................................................................................37
Registration Settings .....................................................................................37
Outbound Proxy Settings...............................................................................37
Backup Outbound Proxy Settings .................................................................38
Audio Settings ...............................................................................................38
Quality of Service ..........................................................................................39
Signaling Settings..........................................................................................39
Feature Access Codes Settings....................................................................40
Voicemail Settings.........................................................................................42
NAT Traversal................................................................................................43
Music on Hold Settings..................................................................................43
Network Conference Settings........................................................................43
Session Timer.....................................................................................................44
Call Settings.........................................................................................................45
General Call Settings.....................................................................................45
Do Not Disturb...............................................................................................45
Call Forward ..................................................................................................46
Preferences..........................................................................................................47
General User Settings...................................................................................47
Call Hold Reminder .......................................................................................48
Call Waiting ...................................................................................................48
Program Dial Keys ...............................................................................................49
Speed Dial............................................................................................................50
Speed Dial Keys ............................................................................................51
Signaling Settings ................................................................................................52
Voice ...................................................................................................................52
NAT Traversal................................................................................................52
Ringer Settings.....................................................................................................53
Paging Zones.......................................................................................................54
Network Pages..................................................................................................................55
Basic Network Settings........................................................................................55
Basic Network Settings..................................................................................55
AdvancedNetwork Settings.................................................................................56
VLAN .............................................................................................................56
LLDP-MED ....................................................................................................57
802.1x............................................................................................................57
Contacts Pages.................................................................................................................58
Local Directory.....................................................................................................58
Create Local Directory Entry .........................................................................60
Directory Import/Export..................................................................................60
Blacklist .........................................................................................................61
Create Blacklist Entry....................................................................................62
Blacklist Import/Export...................................................................................63
LDAP....................................................................................................................64
LDAP Settings ............................................................................................... 64
Broadsoft..............................................................................................................67
Broadsoft Phonebook Settings......................................................................67
Call History...........................................................................................................68

C520 WiMi Administrator and Provisioning Manual
4
––
Servicing Pages................................................................................................................69
Reboot..................................................................................................................69
Time and Date...................................................................................................... 69
Time and Date Format...................................................................................70
Network Time Settings ..................................................................................70
Time Zone and Daylight Savings Settings.....................................................70
Manual Time Settings....................................................................................71
Firmware Upgrade ...............................................................................................72
Firmware Server Settings..............................................................................72
Manual Firmware Update and Upload...........................................................73
Provisioning.......................................................................................................................74
Provisioning Server .......................................................................................75
Plug-and-Play Settings..................................................................................75
DHCP Settings .............................................................................................. 76
Resynchronization.........................................................................................76
Import Configuration......................................................................................78
Export Configuration......................................................................................78
Reset Configuration.......................................................................................79
Security................................................................................................................ 80
Passwords.....................................................................................................80
Web Server....................................................................................................81
Certificates...........................................................................................................81
Device Certificate ..........................................................................................82
Server Certificate...........................................................................................82
System Logs ........................................................................................................83
Syslog Settings..............................................................................................83
Network Trace....................................................................................................84
Download Log................................................................................................84
Provisioning Using Configuration Files............................................... 85
The Provisioning Process .................................................................................................86
Resynchronization: configuration file checking....................................................87
C520 restart .........................................................................................................87
Configuration File Types ........................................................................................................88
Data Files..........................................................................................................................89
Configuration File Tips and Security.................................................................................90
Clearing parameters with %NULL in configuration file ........................................90
Guidelines for the MAC-Specific configuration file...............................................90
Securing configuration files with AES encryption ................................................91
Configuration File Parameter Guide..................................................... 93
"sip_account" Module: SIP Account Settings....................................................................95
General configuration file settings........................................................................95
MAC-specific configuration file settings .............................................................105
"network" Module: Network Settings...............................................................................107
General configuration file settings......................................................................107
MAC-specific configuration file settings .............................................................109

C520 WiMi Administrator and Provisioning Manual
5
––
"provisioning" Module: Provisioning Settings...................................................................111
"time_date" Module: Time and Date Settings ................................................................. 116
"log" Module: Log Settings..............................................................................................120
"remoteDir" Module: Remote Directory Settings.............................................................121
"web" Module: Web Settings...........................................................................................126
"user_pref" Module: User Preference Settings...............................................................127
General configuration file settings......................................................................127
MAC-specific configuration file settings .............................................................128
"call_settings" Module: Call Settings...............................................................................131
"speed_dial" Module: Speed Dial Settings......................................................................133
"ringersetting" Module: Distinctive Ringer Settings.........................................................134
"file" Module: Imported File Settings...............................................................................135
General configuration file settings......................................................................135
MAC-specific configuration file settings .............................................................136
"tone" Module: Tone Definition Settings..........................................................................138
"profile" Module: Password Settings...............................................................................141
General configuration file settings......................................................................141
MAC-specific configuration file settings .............................................................141
"page_zone" Module: Paging Zone Settings ..................................................................142
"softkey" Module: Custom Soft Key Settings..................................................................144
"bt_settings" Module: Bluetooth Settings........................................................................146
Troubleshooting .................................................................................. 147
Common Troubleshooting Procedures ...........................................................................147
Appendix.. ............................................................................................ 150
Appendix A: Maintenance...............................................................................................150

C520 WiMi Administrator and Provisioning Manual
6
––

C520 WiMi Administrator and Provisioning Manual
Preface
7
––
P REFACE
Please thoroughly read this manual for all the feature operations and troubleshooting
information necessary to install and operate your new device.
This administrator and provisioning manual contains detailed instructions for installing and
configuring The C520 WiMi Conference Phone with software version 1.1.6.x or newer.
See “Using the Status menu” on page 21 for instructions on checking the software version
on the device. Please read this manual before installing the product.
Please print this page and record the following information regarding your product:
Model number: C520 WiMi
Type: Small-to-medium business SIP-endpoint conference phone
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers can be found on the bottom of the device.
Save your sales receipt and original packaging in case it is necessary to return your
telephone for warranty service.

C520 WiMi Administrator and Provisioning Manual
Preface
8
––
Text Conventions
Table 1 lists text formats and describes how they are used in this guide.
Table 1. Description of Text Conventions
Screen Identifies text that appears on a device screen or a
WebUI page in a title, menu, or prompt.
HARD KEY or DIAL-PAD KEY Identifies a hard key, including the dial-pad keys.
CallFwd Identifies a soft key.
Example of a Note.
Example of a Caution.
Audience
This guide is written for installers and system administrators. It assumes that you are
familiar with networks and VoIP, both in theory and in practice. This guide also assumes
that you have ordered your IP PBX equipment or service and selected which PBX features
you want to implement. This guide references specific IP PBX equipment or services only
for features or settings that have been designed for a specific service. Please consult your
equipment supplier or service provider for recommended switches, routers, and firewall
and NAT traversal settings, and so on.
As the C520 Conference becomes certified for IP PBX equipment or services, Snom may
publish interop guides for those specific services. The interop guides will recommend
second-party devices and settings, alongwithC520-specificconfigurationsforoptimal
performancewiththoseservices.For the latest updates, visit our Wiki at
http://wiki.snom.com/Category:C520.
The download links for the Quick Installation Guides and the User Manual for the C520
WiMi, the C52 Speakerphone, and the C520 Replacement Microphone are also located at
the above link.
.
Text Format Description
Notes provide important information
about a feature or procedure.
A caution means that loss of data or
unintended circumstances may result.

C520 WiMi Administrator and Provisioning Manual
Introducing the C520
9
––
I NTRODUCING THE C520
C H A P T E R 1
This administrator and provisioning guide contains detailed instructions for configuring the
C520 WiMi Conference Phone. Please read this guide before attempting to configure the
C520.
Some of the configuration tasks described in this chapter are duplicated in the Web User
Interface (WebUI) described in the nextchapter, but ifyou need to assign static IP
addresses, they must be set at each device.
This chapter covers:
 “About the C520 conference phone” on page 10
 “Quick Reference Guide” on page11
 “Network Requirements” on page13
 “C520 Configuration Methods” on page 14
 “Adding a Custom Logo” on page15
 “Customizing Soft Keys” on page17.

C520 WiMi Administrator and Provisioning Manual
Introducing the C520
10
––
About the C520 conference phone
The C520 WiMi Conference Phone is a conference phone designed to work with popular
SIP telephone (IP PBX) equipment and services. Once you have ordered and configured
your SIP equipment or service, the C520 enables you to make and receive calls as you
would with any other business phone. In addition to its speakerphone and conferencing
features, the C520 provides calling features like hold, transfer and speed-dial numbers.
The C520 conference phone features include:
 2.5-inch backlit Liquid Crystal Display
 Bluetooth and DECT connectivity for cell phones and headsets
 Up to 3 SIP account registrations
 Up to 6 active SIP sessions
 3-way conferencing
 200-entry Call Log
You can configure the C520 using the menus on the phone, a browser-based interface
called the WebUI, or an automatic provisioning process (see “Provisioning Using
Configuration Files” on page 85). The WebUI enables you to configure the C520 using a
computer that is connected to the same Local Area Network. The WebUI resides on the
device and may get updated with firmware updates.
