Sola Vector 50 User manual

HU
BG
Gebrauchsanweisung
Operating instructions
Manuel d’instructions
Instruzioni d‘uso
Instrucciones de uso
Gebruiksaanwijzing
Руководство по применению
Instrukcja obsługi
Eksploatacijos instrukcija
Lietošanas instrukcija
Uputstvo za upotrebu
Návod k použití
Manual de utilizare
Ръководство за употреба
Használati útmutató
VECTOR 50

2
EN
Included in delivery with the Vector50
1. Laser distance measurement instrument
2. Belt pouch
3. AAA batteries
1.
2.
3.

3
EN
2.1 Function buttons
2.1 Display
6.
1.
4.
3.
2.
5.
7.
4.
2.
3.
6.
5.
1.
7.

4
EN
Operating manual
Vector 50 laser distance meter (original version)
About this manual
Congratulations on the purchase of your new Vector 50! You have acquired a SOLA measurement
instrument, which can make your work easier, faster and more precise.
To utilize the complete functionality range of this measurement instrument, and to ensure a safe
operation, please observe the following instructions:
• Please read this operating manual before commissioning the device.
• Always keep the operating manual near the device.
• Only hand over the device to other persons together with the operating manual.
• Never render the attached warning signs unreadable.
Contents
1. General information
2. Description
3. Technical data
4. Safety instructions
5. Laser safety / classication
6. Getting Started
7. Operation
8. Maintenance, storage and transportation
9. Delivery contents and accessories
10. Troubleshooting
11. Disposal
12. Manufacturer’s guarantee
13. EC conformity declaration

5
EN
1.1 Signal words and their meaning
DANGER
For an imminent danger that could lead to serious
injury or death.
WARNING
For a possibly dangerous situation that could lead
to serious injury or death.
CAUTION
For a possibly dangerous situation that could lead
to slight injury or property damage.
NOTE
For application notes and other useful information.
1.2 Pictograms and other information
1.2.1 Warning signs
Warning of dangers in general
1. General information
1.2.2 Symbols
Read the operating
manual before use
Batteries and devices must not be
disposed of with household waste
Do not throw batteries into the re
Warning signs on battery Do not
heat the battery above 60 °C.
Class 2 laser device
Do not look into the laser beam!

6
EN
2. Description
2.3 Intended use
This instrument is designed to measure distances. The measured value, setting, and instrument status
can be viewed on the display.
A laser beam is emitted and then sent back to the laser distance measurement instrument from a
reected surface. This is used to calculate the distance. The range depends on the model of the laser
distance measurement instrument, on reectivity, and on the properties of the reective surface.
2.1 Function Buttons
1 Vial
2 Display
3 ON/Measure button
4 Add, subtract/signal
5 Function button
6 OFF/Delete button
7 Belt holder
2.2 Display
1 Measured values
2 Mathematical sign
3 Surface, volume, indirect measurement
4 Measured value display
5 Battery status
6 Measurement edge
7 Unit

7
EN
3. Technical data
3.1 General
Measurement range 0.15–50m*
Accuracy ± 1.5mm**
Protection rating IP 42
Laser class 2
Laser type 650nm, < 1mW
Laser auto-shutdown 45s
Instrument auto-shutdown 180s
Operating duration up to 5000 measurements***
Battery type 2 x AAA 1.5V
Operating temperature 0–40°C
Storage temperature -20–60°C
Dimensions (H x W x D) 105 x 47 x 27
Weight with batteries 85g
*When measuring a target with 100% reectivity (e.g. a painted white wall), with low backlight and an operating temperature of 25°C.
Under unfavorable conditions, e.g direct sunlight, non-reective surfaces or measurements on glass or shiny surfaces, the inaccuracy can
increase and measuring errors can therefore occur.
The reach of the visible laserpoint always depends on the ambient conditions.
**This degree of precision applies when measuring distances of between 0.2 to 10 m. When measuring distances of between 10 m and
40 m, the maximum tolerance may decrease by 0.1 mm/m.
***When operated at room temperature.
3.2 Functions
Individual measurement
Min/max measurement
Continuous measurement
Area measurement
Volume measurement
Indirect 2-point measurement
Addition
Subtraction
3-part back-lit display

8
EN
8
4. Safety instructions
4.1 AREA OF RESPONSIBILITY
4.1.1 Manufacturer
SOLA is responsible for the safe delivery condition of the product, including the operating manual and the
original accessories.
4.1.2 Operator
The operator is responsible for using the product as intended, the deployment of his
personnel, their training and the operational safety of the product.
The operator understands the safety information which is stated on the product and
the instructions in the operating manual.
The operator shall comply with the standard local regulations relating to safety and accident preven-
tion regulations as well as worker protection laws and regulations.
The operator shall immediately notify SOLA if safety-related issues should arise relating to the product
or during its utilization.
The operator shall ensure that the product is not utilized any further if defects become evident, and
they will have the product repaired professionally.
4.2 Improper Use
Use of the device and the accessories without instruction.
Use of third-party accessories or additional equipment.
Use outside of the intended limits (see Chapter 3/Technical data) .
Use under extreme temperature fluctuations without an adequate acclimatization.
Disabling of safety devices and removal of hazard notices and labels.
Unauthorized opening of the device.
Performance of modifications or alterations to the device or the accessories.
Deliberate blinding of third parties.
Inadequate safeguarding at the installation site.
4.3 Utilization limitations
The VECTOR 50 is suitable for continuous use in an atmosphere which can be inhabited by humans.
Do not operate the product in explosion-prone or corrosive environments.
Inform the local safety authorities and safety experts before working in hazardous environments, in
close proximity to electrical installations or similar surroundings.

9
EN
4.4 Usage Hazards
4.4.1 General
WARNING
Missing or incomplete instructions may result in improper or incorrect use. This can cause
accidents with serious damage to persons, property,
assets and the environment.
Follow the manufacturer’s and operator’s safety instructions.
Protect equipment and accessories from being accessed by children.
WARNING
Blinding by laser radiation can indirectly lead to serious accidents,
especially for people who are driving a vehicle or operating machinery.
Do not look into the laser beam.
Do not set up the laser beam and the laser plane at eye level or aim at people.
CAUTION
A fall, longer storage, transportation or other mechanical eects can lead to erroneous meas-
urement results. Check the unit for damage before use. Do not use damaged equipment.
Repairs must only be performed by SOLA.
4.4.2 Batteries
DANGER
Mechanical damage can cause batteries to leak, explode or catch fire or trigger the release of
toxic substances.
Batteries and rechargeable batteries must not be opened or exposed to mechanical loads.
Repairs must only be performed by SOLA.

10
EN
WARNING
High ambient temperatures and immersion into liquids can cause batteries to leak,
explode or catch fire or trigger the release of toxic substances.
Protect batteries and rechargeable batteries from mechanical damage during transport.
Do not overheat batteries and rechargeable batteries or expose them to fire.
Avoid the ingress of moisture into batteries and rechargeable batteries.
Do not use damaged batteries or rechargeable batteries. Perform a proper disposal
(see Chapter 11/Disposal) .
WARNING
A short-circuiting or unintended use can cause batteries to overheat and create an injury or fire
hazard.
Do not transport or store batteries in the pockets of garments.
Do not bring the battery contacts in contact with jewellery, keys, or other electrically conductive
objects.
Do not charge the batteries.
Do not discharge the batteries through short-circuiting.
Do not solder the batteries in the device.
Do not mix old and new batteries, and do not mix batteries from dierent manufacturers or with a
diering type designation.
WARNING
If disposed of improperly third parties can possibly be seriously injured and the environment
polluted. Burning plastic components generates toxic fumes which may impair health. Batter-
ies/rechargeable batteries may explode if they are damaged or heated excessively, and thereby
cause poisoning, burning, corrosion or environmental contamination. If disposed of negligently
unauthorized persons are able to use the product improperly.
The product must not be disposed of together with household waste. Dispose of the device and
accessories properly
(see Chapter 11/Disposal) .
Protect the product against access by unauthorized persons at all times, and especially children.

11
EN
4.5 ELECTROMAGNETIC COMPATIBILITY (EMC)
The electromagnetic compatibility is the ability of the product to function in an environment where
electromagnetic radiation and electrostatic discharge are present, without causing electromagnetic
interference to other devices.
4.5.1 Interference with other devices by VECTOR 50
Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot
completely exclude the possibility of interference with other devices (for example, when using the product
in combination with third-party devices, such as field computers, personal computers, wireless devices,
mobile phones, certain cables or external batteries).
When using computers and radio equipment, be sure to observe to the vendor-specific information
about electromagnetic compatibility.
Only use original SOLA equipment and accessories.
4.5.2 Interference with the VECTOR 50 by other devices
Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot
entirely exclude the possibility that intense electromagnetic radiation in the immediate vicinity of radio
transmitters, two-way radios, diesel generators, etc. may distort the measurement results.
When performing measurements under these conditions, check the plausibility of the results.

12
EN
5. Laser safety / classification
The VECTOR50 emits a visible laser point.
The product corresponds to Laser Class 2 according to DIN EN 60825-1:2007-03.
Laser Class 2:
When using Class 2 laser devices, the eye is protected by the blink reflex or aversion reaction in the case
of random and short-term exposure.
WARNING
Looking directly into the beam with optical aids (e.g. binoculars,
telescopes) can be dangerous.
CAUTION
Looking into the laser beam may be hazardous to the eye.
Do not look into the laser beam.
Do not aim the laser beam at other people.
Labelling on the device:
Do not remove the type plate!
Made in PRC www.sola.at

13
EN
6. Getting Started

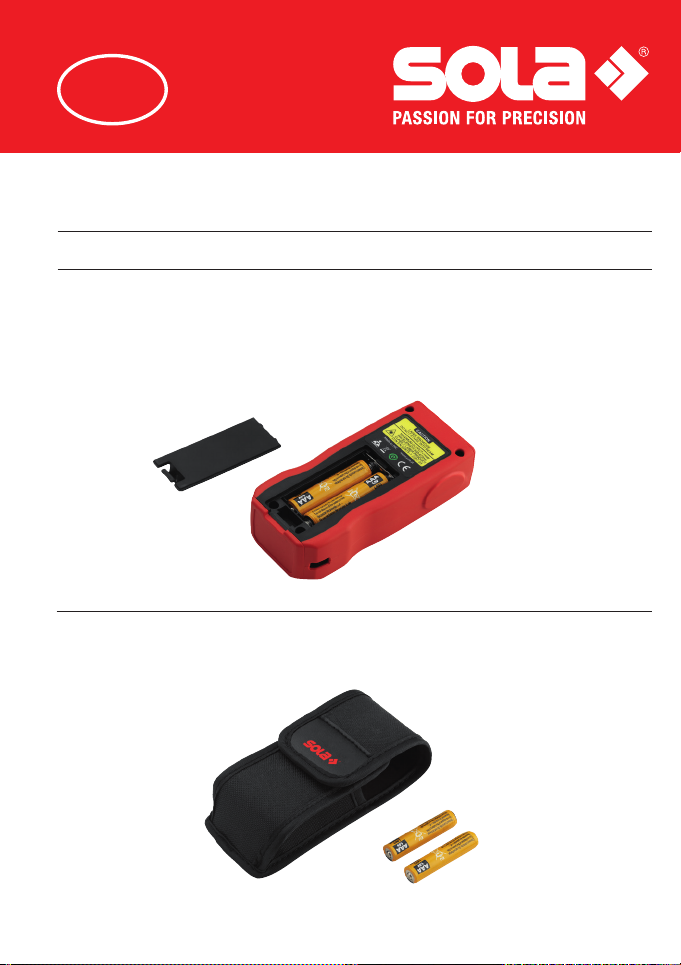

6.1 Operation with batteries
1. Open the battery compartment cover on the rear side of the device.
2. Insert the batteries into the instrument, observing the correct polarity.
3. Close the battery compartment cover.
Only use type 1.5 V AAA batteries!
Remove the batteries if the instrument is not used for an extended period.
6.2 Belt clip
The laser instrument can be stowed in a belt pouch for transport. It must be removed from the pouch
when taking measurements.

14
EN
7. Operation
7.1 Getting Started
7.1.1 Switching the Instrument On and Off
Hold down the ON/Measure button to switch the laser instrument on.
Hold down the OFF/Delete button for 2seconds to switch the laser instrument off.
7.1.2 Back
Press the OFF/Delete button once to undo the last action. Press the OFF/Delete button twice to exit the
current function and return to individual measurement mode.
7.1.3 Setting the measurement plane
Hold down the function button for 2seconds to toggle between the front and the back of the instrument.
The selection is indicated by an arrow on the display. The back of the instrument is set as the measure-
ment edge by default. Each time the instrument is restarted, the back of the instrument is reset as the
measurement edge.
7.1.4 Audible signal on/off
Hold down the Add/subtract button for 2seconds to switch the audible signal on or off.
7.2 Applications
7.2.1 Individual Measurement
1. Switchon the laser instrument.
2. Direct the laser point at the target.
3. Press the ON/Measure button.
As soon as an audible signal is emitted, the measurement is complete. and the distance can be seen on
the display. To calculate additional distances, press the Measure button again.
7.2.2 Min/Max Measurement
1. Switch on the laser instrument.
2. Direct the laser point at the target.
3. Hold down the ON/Measure button for 2 seconds.
The minimum and maximum values are shown on the display. To stop the measurement, simply press
the ON/Measure button.

15
EN
7.2.3 Continuous Measurement
1. Switch on the laser instrument.
2. Direct the laser point at the target.
3. Press the Min/Max and continuous measurement button.
The laser instrument measures the distance and shows it on the bottom line of the display.
7.2.4 Area Measurement
1. Switch on the laser instrument.
2. Press the Function button until the display for area measurement appears.
3. Measure the length and then the width separately using the individual measurement method. The laser
beam remains switched on between the two measurements.
Once the second measurement is complete, the area is automatically calculated and shown on the
bottom line of the display. The individual measured values are shown in measured value lines 1 and 2.

16
EN
7.2.5 Volume Measurement
1. Switch on the laser instrument.
2. Press the Function button until the display for volume measurement appears.
3. Measure the length, the width, and then the height separately using the individual measurement
method. The laser beam remains switched on between the three measurements.
Once the third measurement is complete, the volume is automatically calculated and shown on the
bottom line of the display. The individual measured values are shown in measured value lines 1, 2, and 3.
7.2.6 Indirect 2-Point Measurement
1. Switch on the laser instrument.
2. Press the Function button until the display for indirect 2-point measurement appears.
3. Measure the two points separately using the individual measurement method. The laser beam remains
switched on between the two measurements.
Once the second measurement is complete, the length is automatically calculated and shown on the
bottom line of the display. The individual measured values are shown in measured value lines 1 and 2.

17
EN
7.2.7 Addition
1. Switch on the laser instrument.
2. Direct the laser point at the target.
3. Take an individual measurement.
4. Press the Add/subtract button to add the next individual measurement.
(plus symbol + appears on the display).
5. Take an individual measurement.
The laser instrument shows the result on the bottom line of the display. This process can be repeated as
many times as required.
7.2.8 Subtraction
1. Switch on the laser instrument.
2. Direct the laser point at the target.
3. Take an individual measurement.
4. Press the Add/subtract button twice to subtract the next individual measurement.
(minus symbol - appears on the display).
5. Take an individual measurement.
The laser instrument shows the result on the bottom line of the display. This process can be repeated as
many times as required.
7.3. Guidance for operation
The laser instrument must not be moved while measuring. A xed mounting surface with a stop is there-
fore recommended. The laser outlet and receiving area must not be covered during measurement.
Depending on the measured surface, it cannot be guaranteed that all measurements are completely
accurate. Avoid surfaces that are textured, reective, transparent, or porous.
CAUTION
The three points measured must run in a line and the second measurement must be taken at a
right angle to the measured surface; otherwise measured values may be incorrect.

18
EN
8. Maintenance, storage and transportation
8.1 Cleaning
Wipe off the dirt with a soft damp cloth.
Check the outlet openings of the laser regularly, and thoroughly clean them if necessary.
Do not touch the glass with your ngers.
Do not use aggressive cleaning agents or solvents.
Do not immerse the device in water!
Clean and dry wet equipment, accessories and transport containers prior to
packaging them. Only pack equipment again when it is completely dry.
Keep plug connections clean and protected from moisture.
8.2 Storage
8.2.1 General
The equipment may only be stored within the specied temperature limits
(see Chapter 3/Technical data) .
After prolonged storage, check the accuracy of the measuring device before using it.
8.2.2 Batteries
For storage, remove the batteries from the device.
They should preferably be stored in a dry environment at room temperature (see Chapter 3/Technical data) .
Protect from moisture and humidity. Dry wet or damp batteries before storage before usage.
8.3 Transport
8.3.1 General
The device may be damaged if it falls or is subjected to strong vibrations.
Never transport the product loose. Always use the original packaging or an equivalent transport
container.
Switch off the measuring device before transporting it.
Check the unit for damage before use.
8.3.2 Batteries
When transporting or shipping batteries, the operator is responsible for complying with the applicable
national and international laws and regulations.
Before shipping, remove the batteries from the device.

19
EN
9.1 Included in delivery with the Vector50
1 Laser distance measurement instrument
2 batteries
1 Belt pouch
9.2 ACCESSORIES (optional)
LB RED laser protection goggles
ZSRED target
Further information on accessories can be found at www.sola.at
9. Delivery contents and accessories

20
EN
10. Troubleshooting
Error Possible Cause Remedy
301 Distance outside of the
measurement range.
Stay inside the
measurement range.
302 The reected signal is
too weak.
Measure using a more
reective surface.
303 Range outside the
display.
Use the OFF/Delete button
to reset to zero.
304 Calculation error in
Pythagoras.
Carry out measurement again.
305 Low battery. Put new batteries in.
306 Temperature too low. Warm the instrument up.
307 Temperature too high. Cool the instrument down.
308 Ambient light is too bright. Carry out the measurement in a
darker environment.
