Sole Fitness 16810388 User manual

Model : 16810388
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING
YOUR NEW TREADMILL!

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
2
TABLE OFCONTENTS
Important Safety Instructions 4
Important Electrical Information 5
Important Operation Instructions 6
Assembly instructions 7
Transport Instructions 13
Operation ofYour NewTreadmill 14
Programmable Features 18
Using Heart RateTransmitter 25
General Maintenance 27
Service Checklist - Diagnosis Guide 29
Exploded View Diagram 31
Parts List 32
Manufacturer’s Limited Warranty 36

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
3
CONGRATULATIONS ON YOUR NEW TREADMILL AND WELCOME TO THE SOLE
FAMILY!
Thank you for your purchase of the Sole treadmill from Dyaco Canada Inc. Your new
treadmill has been manufactured by one of the leading fitness manufacturers in the world
and is backed by one of the most comprehensive warranties available. Dyaco Canada Inc.
will do all we can to make your ownership experience as pleasant as possible for many years
to come.
If you have any questions about your new Sole product or questions about the warranty
contact Dyaco Canada Inc. at 1-888-707-1880.
Please take a moment at this time to record below the name of the dealer, their telephone
number, and the date of purchase for easy contact in the future. We appreciate your
confidence in SOLE and we will always remember that you are the reason that we are in
business. Please complete and mail your registration card today and enjoy your new
treadmill.
Yours in Health,
Dyaco Canada Inc.
Name of Dealer
Telephone Number of Dealer
Purchase Date
PRODUCT REGISTRATION
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness product in the space provided below.
Serial Number

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock disconnect your treadmill from the
electrical outlet prior to cleaning and/or service work.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install
the treadmill on a flat level surface with access to a 110-volt, 15-amp grounded outlet
with only the treadmill plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER,
WITH ONLY ONE OUTLET ON THE END: DO NOT ATTEMPT TO DISABLE THE
GROUNDED PLUG BY USING IMPROPER ADAPTERS, OR IN ANY WAY
MODIFY THE CORD SET.
A serious shock or fire hazard may result along with computer malfunctions. See Grounding Instructions,
page 3.
Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both
carpet and treadmill may result.
Do not block the rear of the treadmill. Provide a minimum of 3 1/2 feet clearance
between the rear of the treadmill and any fixed object.
Keep children away from the treadmill. There are obvious pinch points and other
caution areas that can cause harm.
Keep hands away from all moving parts.
Never operate the treadmill if it has a damaged cord or plug. If the treadmill is not
working properly, call your dealer.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is
being administered. Sparks from the motor may ignite a highly gaseous
environment.
Never drop or insert any object into any openings.
Do not use outdoors.
To disconnect, turn all controls to the off position, remove tether cord, then remove
the plug from the outlet.
Do not attempt to use your treadmill for any purpose other than for the purpose it
is intended.
The pulse sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are
intended only as exercise aids in determining heart rate trends in general.
Use handrails provided; they are for your safety.
The pulse sensors are not intended to support the user’s weight. For support
when using the treadmill and during dismounting use the side handrails.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable
for use on your treadmill. Quality athletic shoes are recommended to avoid leg
fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY!

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
5
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As
with any appliance with a large motor, the GFCI will trip often. Route the power cord
away from any moving part of the treadmill including the elevation mechanism and
transport wheels. NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your treadmill may
be affected. Such conditions are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a licensed electrician for proper
testing.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use
outdoors, near a pool or spa, or in any other high humidity environment. The maximum
operating temperature specification is 40 degrees c, and humidity is 90%
non-condensing(no water drops forming on surfaces).
Circuit Breakers: Some circuit breakers used in exercise facilities or homes are not
rated for high inrush currents that can occur when a treadmill is first turned on or even
during use. If your treadmill is tripping the facility or home circuit breaker (even though it
is the proper current rating) but the circuit breaker on the treadmill itself does not trip, you
will need to replace the facility or home breaker with a high inrush type. This is not a
warranty defect. This is a condition we as a manufacture have no ability to control. This
part is available through most electrical supply stores. Examples: Grainger part # 1D237,
or available online at www.squared.com part # QO120HM.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill should malfunction or breakdown,
ground-ing provides a path of least resistance for electric current, reducing the risk of
electric shock. This product is equipped with a cord having an equipment-grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or serviceman if you are
in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product if it will not fit the outlet; have a proper outlet installed by
a qualified electrician. This product is for use on a nominal 110-volt circuit, and has a

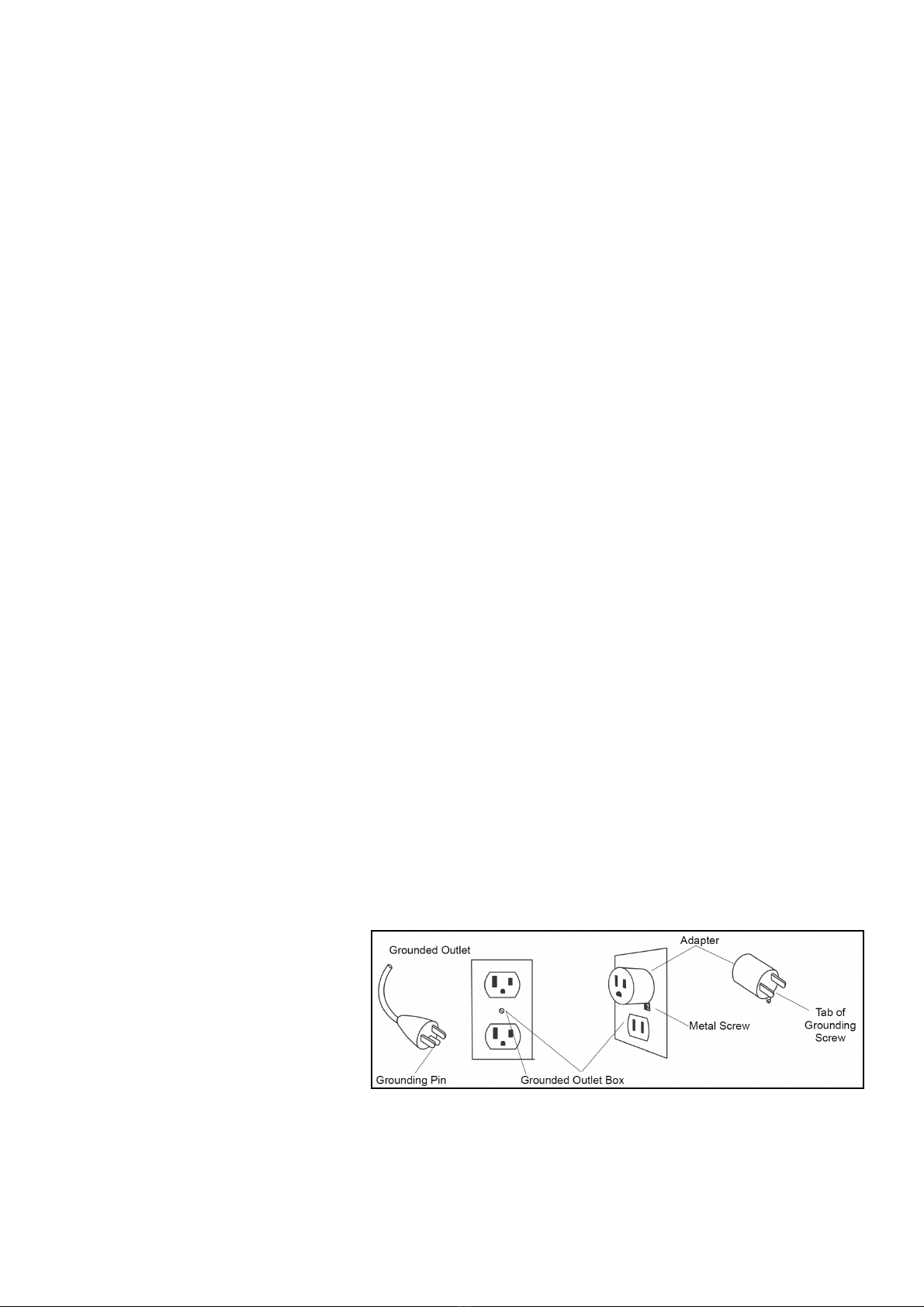

grounding plug that looks like the plug illustrated below. A temporary adapter that looks
like the adapter illustrated below may be used to connect this plug to a 2-pole
receptacle as shown below if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet, (shown below) can be
installed by a qualified
electrician. The green
colored rigid ear- lug, or the
like, extending
from the adapter, must be
connected to a permanent
ground such as a properly
grounded outlet box cover.
Whenever the adapter
is used, it must be held
in place by a metal
screw.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
6
IMPORTANT OPERATION INSTRUCTIONS
NEVER operate this treadmill without reading and completely understanding the
results of any operational change you request from the computer.
Understand that changes in speed and incline do not occur immediately. Set your
desired speed on the computer console and release the adjustment key. The
computer will obey the command gradually.
NEVER use your treadmill during an electrical storm. Surges may occur in your
household power supply that could damage treadmill components. Unplug the
treadmill during an electrical storm as a precaution.
Use caution while participating in other activities while walking on your treadmill;
such as watching television, reading, etc. These distractions may cause you to lose
balance or stray from walking in the center of the belt; which may result in serious
injury.
NEVER mount or dismount the treadmill while the belt is moving. Treadmills start at
a very low speed and it is unnecessary to straddle the belt during start up. Simply
standing on the belt during slow acceleration is proper after you have learned to
operate the unit.
Always hold on to a handrail or hand bar while making control changes (incline,
speed, etc.).
Do not use excessive pressure on console control keys. They are precision set to
function properly with little finger pressure. Pushing harder is not going to make the
unit go faster or slower. If you feel the buttons are not functioning properly with
normal pressure contact your dealer.
SAFETY TETHER CORD
A safety tether cord is provided with this unit. (See Step 6 of Assembly Guide, #63) It is
a simple magnetic design that should be used at all times. It is for your safety should
you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop
tread-belt movement.
To Use:
1. Place the magnet into position on the red portion of the console control head. Your
tread- mill will not start and operate without this. Removing the magnet also
secures the tread- mill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power.
Note: The magnet has strong enough power to minimize accidental,
unexpected stop- ping. The clip should be attached securely to make certain it
does not come off. Be fa- miliar with its function and limitations. The treadmill will
stop, depending on speed, with a one to two step coast anytime the magnet is
pulled off the console. Use the red Stop / Pause switch in normal operation.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
7
ASSEMBLY PACK CHECKLIST
3
HARDWARE STEP 3
5
HARDWARE STEP 5
6
HARDWARE STEP 6
#85
. 3/8” x 2T
Split Washer
(6 pcs)
#99
. 5/16” x 3/4”
Flat Head Socket Bolt
(4 pcs)
#100
. 3/8” x 2-1/4”
Button Head Socket Bolt
(6 pcs)
#131
. Ø8mm × Ø23mm ×
1.5T
Curved Washer (4 pcs)
#102
. Ø10mm × Ø19mm × 1.5T
Flat Washer (6 pcs)
#85
. 3/8” x 2T
Split Washer (4 pcs)
#125
. 3/8” x 1-3/4” Button
Head Socket Bolt (4 pcs)
#90
. 3.5mm x 16mm
Sheet Metal Screw (6 pcs)

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
8
7
HARDWARE STEP 7
8
HARDWARE STEP 8

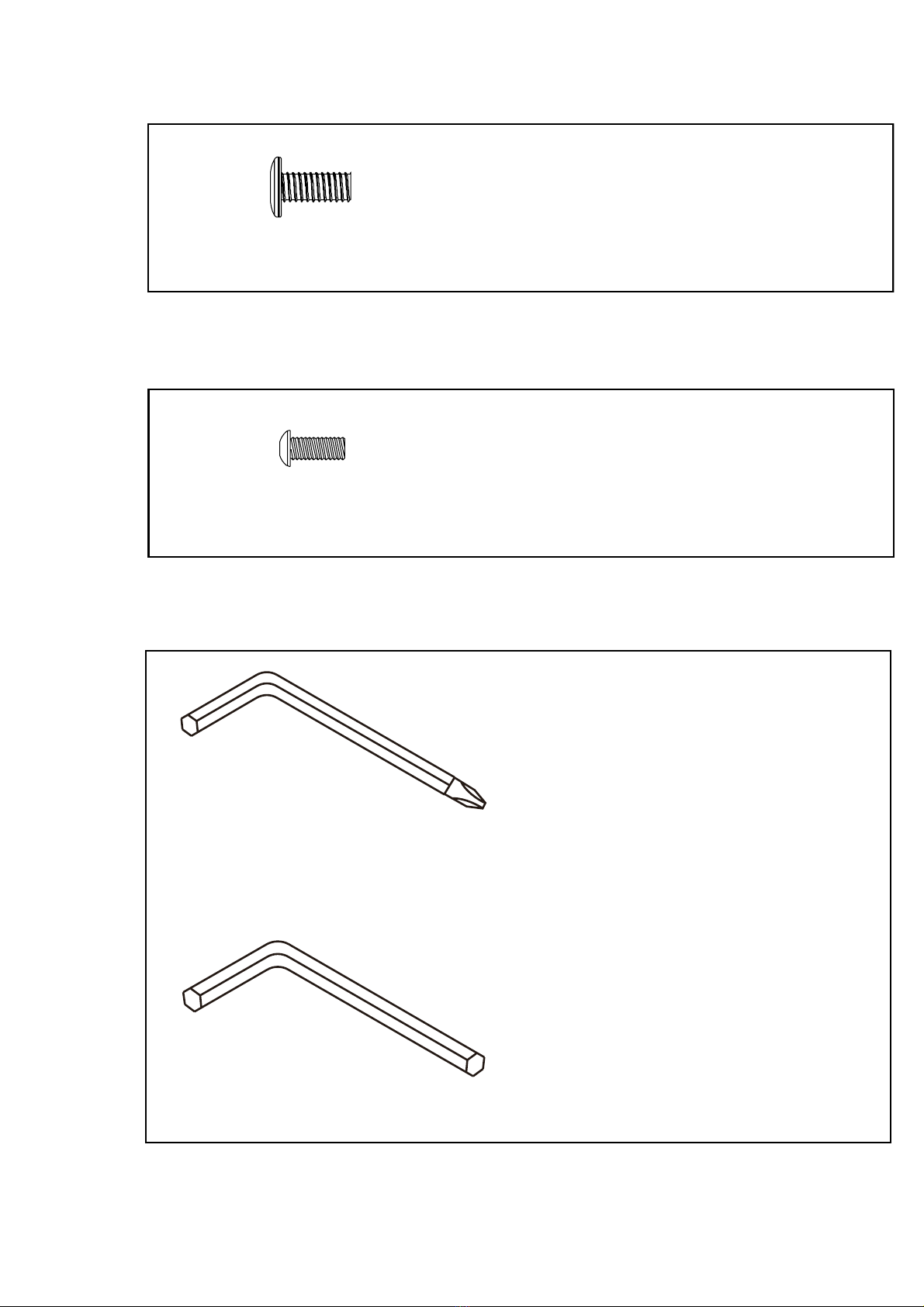

ASSEMBLY TOOLS
#99
. 5/16” x 3/4”
Flat Head Socket Bolt (4 pcs)
#126
. M5 x 10mm
Phillips Head Screw (4 pcs)
104
.
C
ombin
a
tion
M5
A
llen
W
r
ench
& Phillips Head Screw Driver
#105
. M6 L Allen Wrench

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
9
1
2
ASSEMBLY INSTRUCTIONS
ASSEMBLY STEP 1

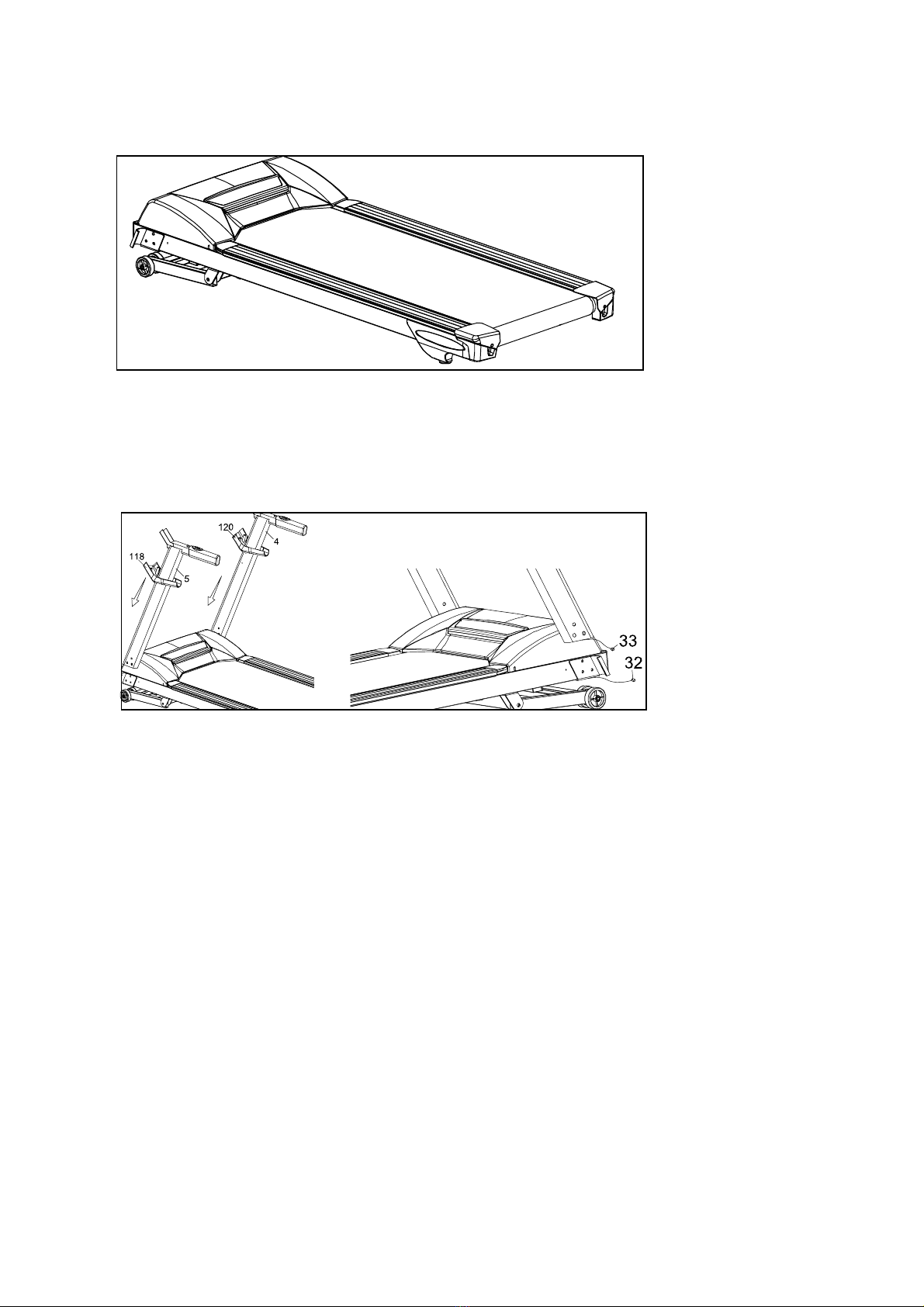

1. Remove the treadmill base frame from the carton and lay it
aside on firm, level ground.
ASSEMBLY STEP 2
1. Locate the left and right Console Mast Tubes (5 & 4). Slide
the Handgrip side caps (118L & 120R) onto the left and
right tubes as shown in the illustration.
2. Connect the Computer Cable (32) of the Main Frame with
the Computer Cable (33) at the bottom of the right upright
(4).
Before attaching the hardware to Step 3, make sure the cables you just connected don’t
get pinched in between the steel tubing. If they do, this may cause issues that prevent
the treadmill from operating properly.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
10
3
4
#85
. 3/8” x 2T Split Washer
(6 pcs)
#99. 5/16” x 3/4”
Flat Head Socket Bolt
(4 pcs)
#100. 3/8”x 2-1/4” Button
Head Socket Bolt
(6 pcs)
#102. Ø10mm × Ø19mm
× 1.5T Flat Washer (6 pcs)
#131. Ø8mm × Ø23mm
× 1.5T Curved Washer
(4 pcs)
ASSEMBLY STEP 3 HARDWARE STEP 3
1. Attach the left and right Upright Tubes (5& 4) to the Main
Frame (1). Be careful installing the right upright so that the
wire harness doesn’t get pinched or cut. Only
hand-tighten all the bolts in this step. The bolts will need
to be completely tightened after the console is installed.
Insert three Split Washers (85), three Flat Washers (102),
and three Button Head Socket Bolts (100) through the
brackets (151 & 152) and the Upright Tubes (5& 4) and into
the frame. Partially tighten with the M6 L Allen Wrench (105).
Attach two Curved Washers (131) and two Flat Head Socket
Bolts (99) to the front of each Upright Tube. Partially tighten
with the M5 Combination Allen Wrench & Phillips Head
Screw Driver (104).
ASSEMBLY STEP 4
1. Connect the Speed Adjustment Switch W/Cable (34) with
the Speed Cable (Upper)( 36-33).
2. Connect the Incline Adjustment Switch W/Cable (35) with
the Incline Cable (Upper)( 36-34).
3. Connect the Computer Cable (33) with the Computer Cable
(Upper/Lower) (31).

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
11
5
#85
. 3/8” x 2T
Split Washer (4 pcs)
#125. 3/8”x 1-3/4”
Button Head Socket Bolt
(4 pcs)
6
#90. 3.5mm x 16mm
Sheet Metal Screws
(6 pcs)
Before attaching the hardware in Step 5, make sure the cables you just connected
don’t get pinched in between the steel tubing. If they do, this may cause issues
that prevent the treadmill from operating properly.
ASSEMBLY STEP 5 HARDWARE STEP 5
1. Carefully attach the Console Assembly (36) to the top of
the upright tubes(5& 4) with the four Button Head Socket
bolts (125) and four Split Washers(85). Make sure the
cables don’t get pinched between the joint or by the bolts.
Tighten the bolts completely using the M6 Allen Wrench
(105).
ASSEMBLY STEP 6 HARDWARE STEP 6
1. Attach the two halves of each Handgrip side caps (117 &
118; 119 & 120) with three Sheet Metal Screws (90) on
each set of plastics.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
12
7
#99. 5/16” x 3/4”
Flat Head Socket Bolt
(4 pcs)
8
#126. M5 x 10mm
Phillips Head Screw
(4 pcs)
ASSEMBLY STEP 7 HARDWARE STEP 7
1. Install the Handrail Support (3) between the Upright Tubes
(5& 4) with the four Flat Head Socket bolts (99). Tighten the
bolts completely using the Com- bination M5 Allen Wrench
and Phillips Head Screw Driver (104).
2. After affixing the beverage holder covers (146 & 147), slip
the Beverage Holder (48) over the Handrail Support (3).
3. Make sure the magnet of the Safety Key (63) is affixed to
the console.
ASSEMBLY STEP 8 HARDWARE STEP 8
1. Completely tighten the bolts that secure the Console Mast
Tubes to the frame with the M6 Allen Wrench (105).
2. Attach the frame base covers (40L & 41R) to each mast (5&
4) with two Phillips Head Screws (126) on each side. Tighten
using the Combination Allen Wrench & Phillips Head Screw
Driver (104).

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
13

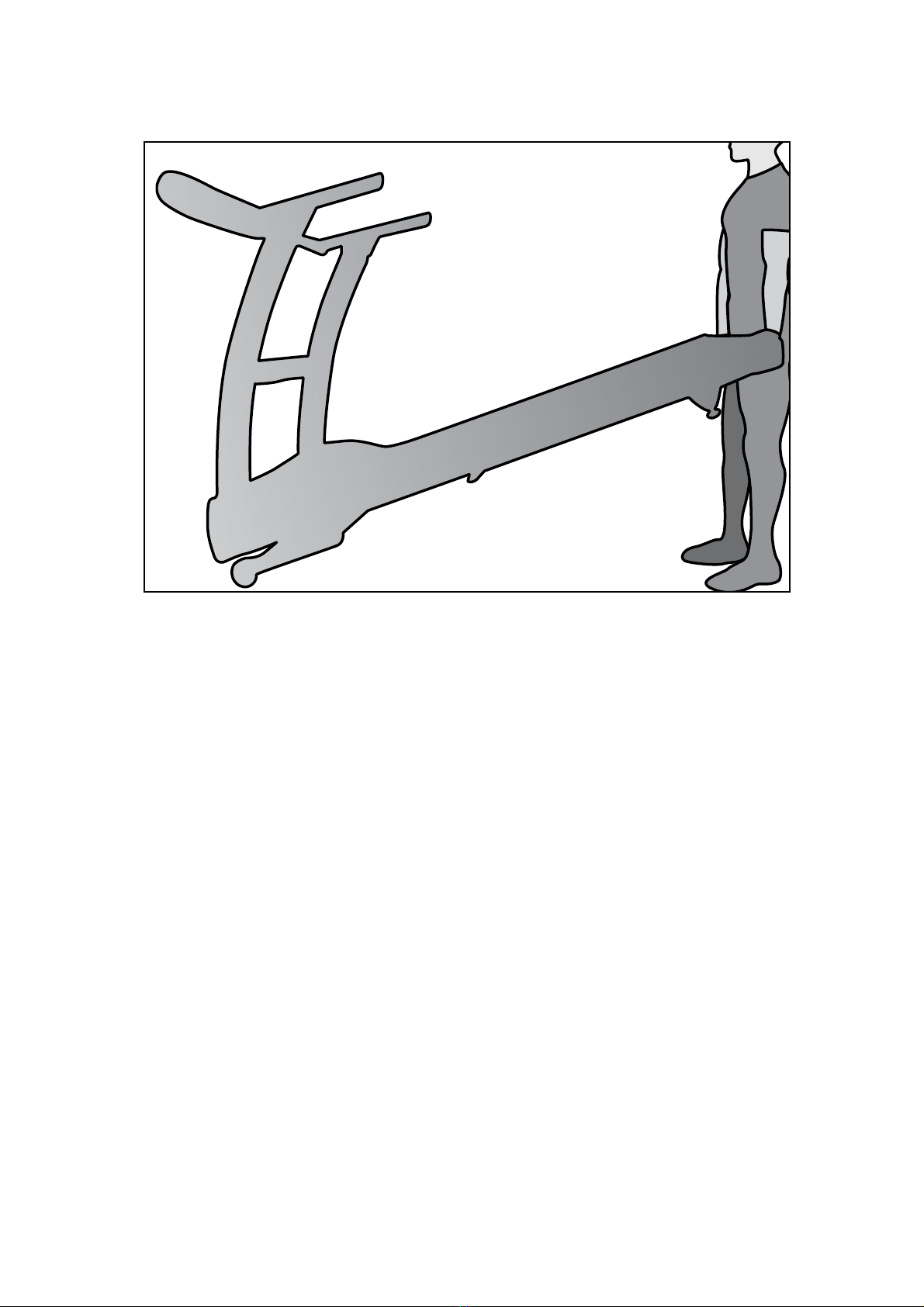

TRANSPORTATION INSTRUCTIONS
Carefully lift the treadmill at the rear roller area, grasping the two side end
caps, and roll the treadmill away.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
14
OPERATION OF YOUR TREADMILL

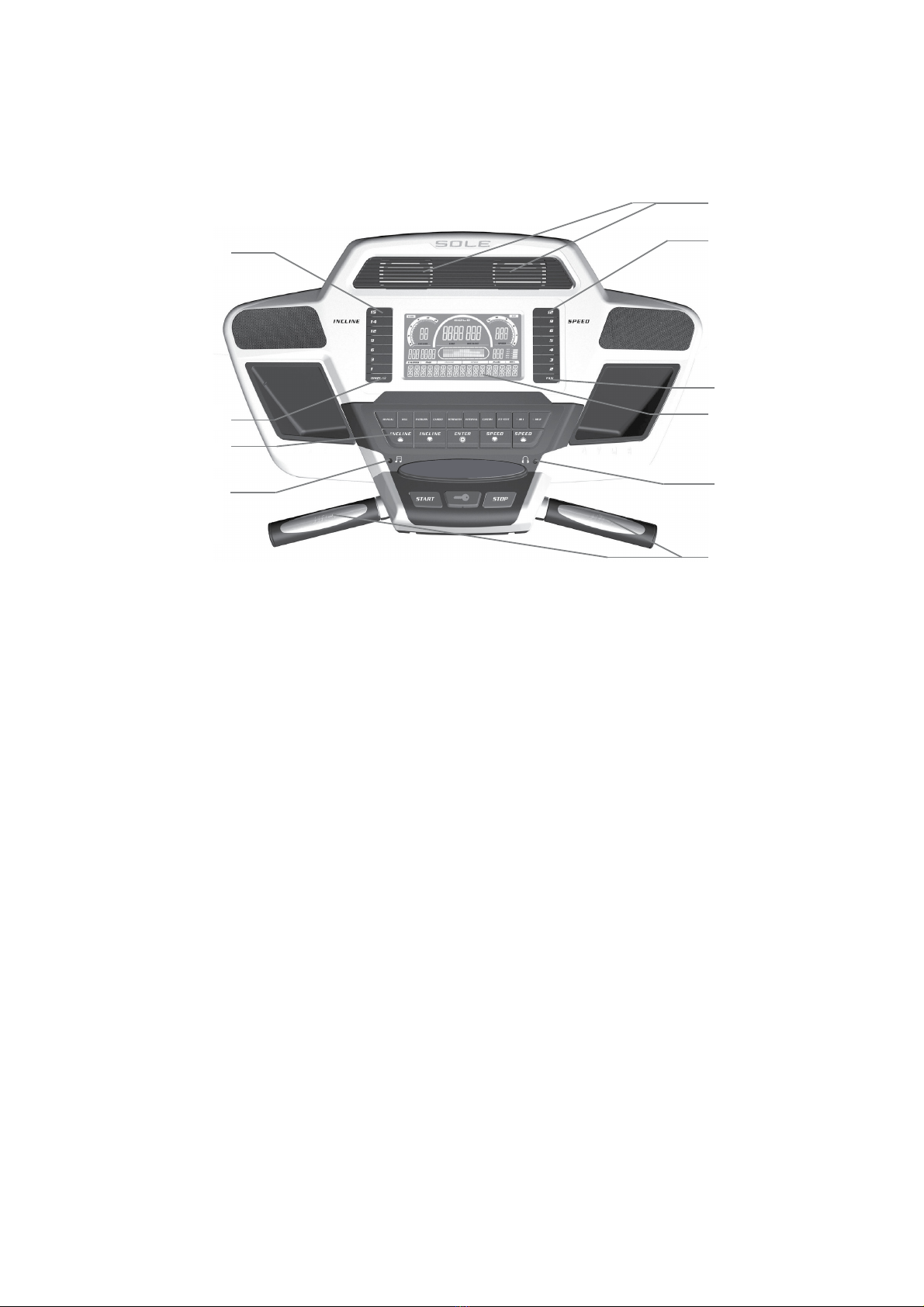

GETTING FAMILIAR WITH THE CONTROL PANEL
CONSOLE
GETTING STARTED
TT8 CONSOLE
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the
power switch located at the front of the treadmill below the motor hood. Ensure that the
Safety Key is installed, as the treadmill will not power on without it (See Assembly Step
7 for reference).
When the power is turned on, a message will scroll across the dot matrix showing the
current software version. Then the Time and Distance windows will display Odometer
readings for a short time, Time window will show how many hours the treadmill has been
in use and the Distance window will show how many miles (or Kilometers if the treadmill
is set to metric readings) the treadmill has gone. The current software version will appear
in the Message window. The treadmill will then enter idle mode, which is the starting
point for operation.
COOLING FANS
SPEED QUICK KEYS
FAN POWER SWITCH
DOT MATRIX DISPLAY
HEADPHONE JACK
CONTACT HEART
RATE SENSORS
INCLINE QUICK KEYS
DISPLAY BUTTON
AUDIO IN JACK
(MP3, CD, or
SMARTPHONE)
CONTROL KEYS

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
15

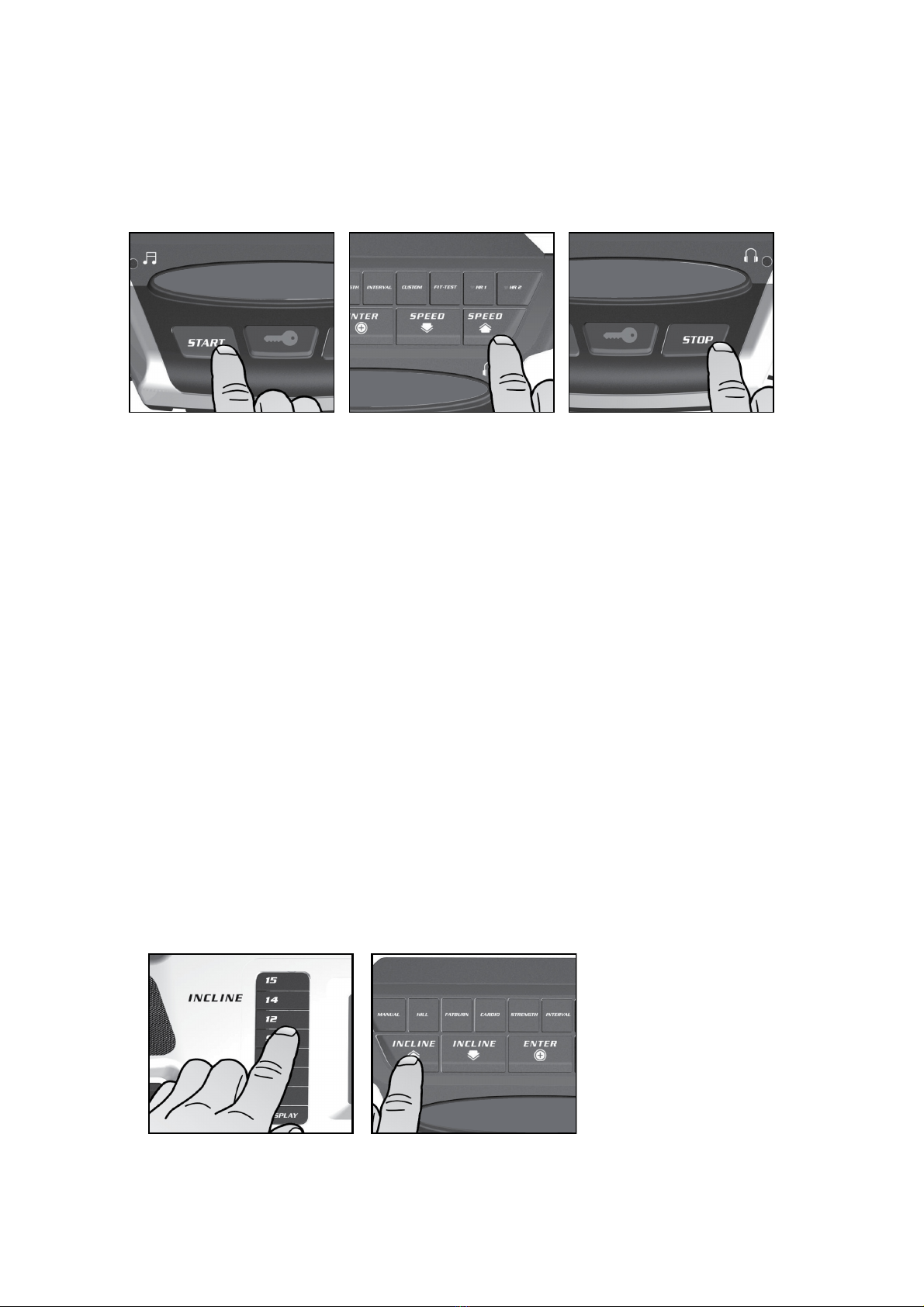

QUICK-START OPERATION
1. Attach the Safety Key to wake display up (if not already on).
2. Press the Start key to begin belt movement then adjust to the desired speed using
the Speed ▲/▼keys. You may also use the Quick speed keys 2, 3, 4, 5, 6, 9, or 12
to adjust the speed.
3. To slow tread-belt, press and hold the Slow key to the desired speed. You may also
press the Quick speed adjust keys, 2 through 12.
4. To stop the tread-belt, press the Stop key or pull away the Safety Key.
PAUSE/STOP/RESET FEATURE
1. When the treadmill is running the pause feature may be utilized by pressing the
red Stop key once. This will slowly decelerate the tread-belt to a stop. The incline
will go to zero percent. The Time, Distance and Calorie readings will hold while
the unit is in the pause mode. After 5 minutes the display will reset and return to
the start up screen.
2. To resume your exercise, when in Pause mode, press the Start key. The speed
and incline will return to their previous settings.
Pause is executed when the Stop button is pressed once. If the Stop button
is pressed a second time, the program will end and a workout summary will
be displayed. If the Stop button is pressed a third time, the console will
return to the idle mode (start up) screen. If the Stop button is held down for
more than 3 seconds the console will reset.
INCLINE FEATURE
Incline may be adjusted anytime after belt movement.
Press and hold the Incline ▲/▼keys to achieve desired level of incline. You may
also choose a more rapid increase / decrease by selecting the desired Quick Incline
key, 1, 3, 6, 9, 12, 14, 15, on left hand side of console (incline).
The space above the Incline heading on the LCD will indicate deck elevation as
adjustments are made.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
16

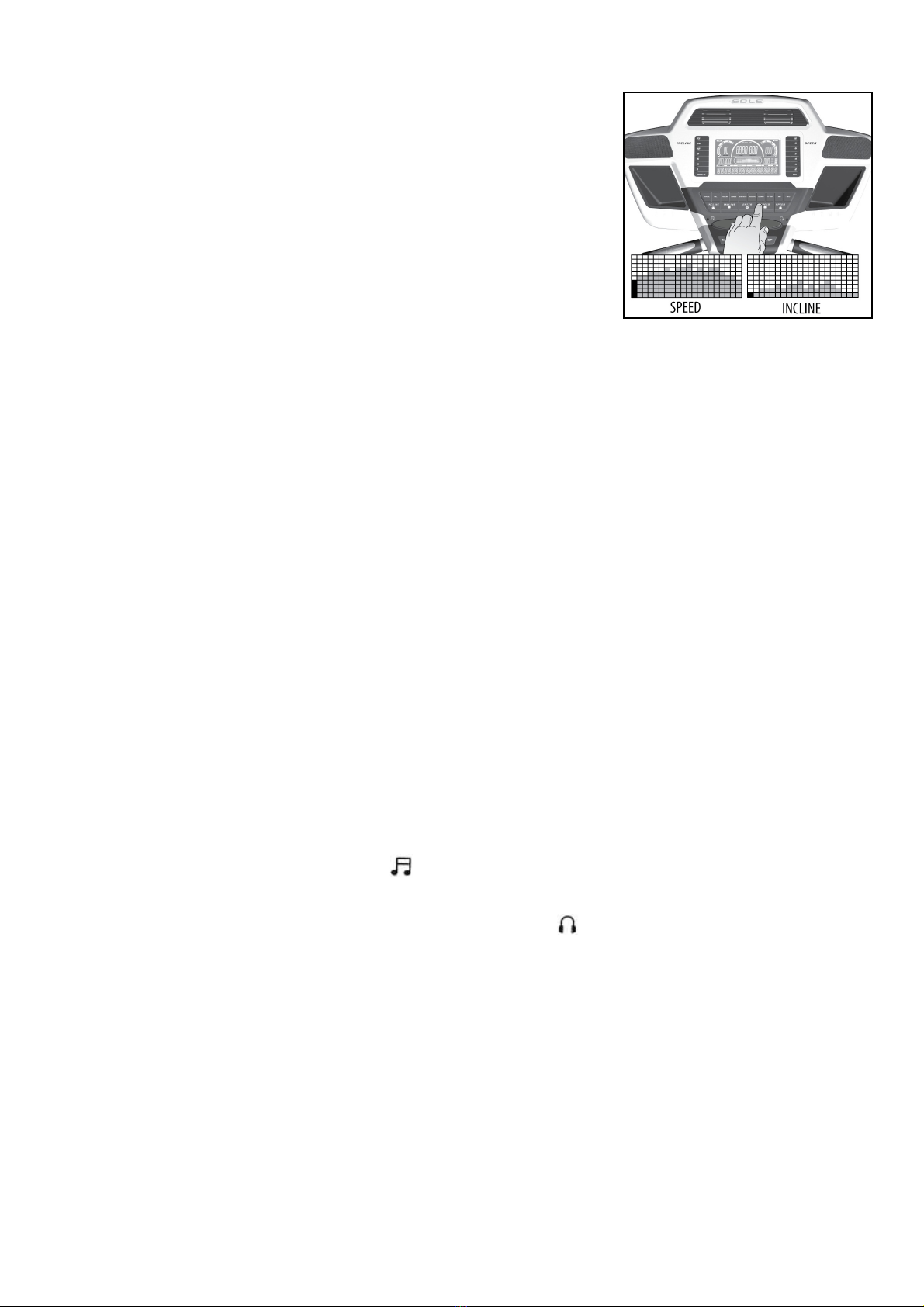

DOT MATRIX CENTER DISPLAY
Twenty columns of dots (10 high) indicate each segment
(speed or incline) of a workout. They do not necessarily
indicate a specific value - only an approximate percent to
compare levels of intensity. In Manual Operation the Speed
/ Incline dot matrix window will build a profile “picture” as
values are changed during a workout. The 20 columns are
divided into 1/20th of the total time of the program. The Dot
Matrix window will show the left half of the speed and
incline profiles. Once the program begins, the profiles will
scroll right to left.
You may change the Dot Matrix profile view by pressing the Enter button. After scrolling
through the two profiles the Dot Matrix will automatically scroll through the two displays
showing each one for five seconds. The icon associated with each profile will light while
that view is displayed. Pressing the Enter button a third time will alternate the display
view between the Speed and Incline profiles.
MESSAGE WINDOW DISPLAY
The Message Window will initially display Program Name. Each time the Display
button is pressed the next set of information will appear. The order of information
displayed will be: Laps, Vertical, MET’s, Segment Time, Max Speed (in mph), and Data
Scan mode. In Data Scan mode, the displayed information will change every 4 seconds
in the Message Window.
1/4 MILE TRACK
The 1/4-Mile Track (0.4 km) will be displayed around the Speed and Incline profiles. The flashing
dot indicates your progress and will advance in a counterclockwise direction.
CALORIE DISPLAY
Displays the cumulative calories burned at any given time during your workout.
Note: This is only a rough guide used for comparison of different exercise sessions,
which cannot be used for medical purposes.
There is an Audio Input Jack ( ) on the front of the console and built-in speakers.
You may plug any low-level audio source signal into this port. Audio sources include MP3,
iPod, portable radio, CD player or even a TV or computer audio signal. There is an audio
patch cable included to and also a headphone jack ( ) for private listening.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
17

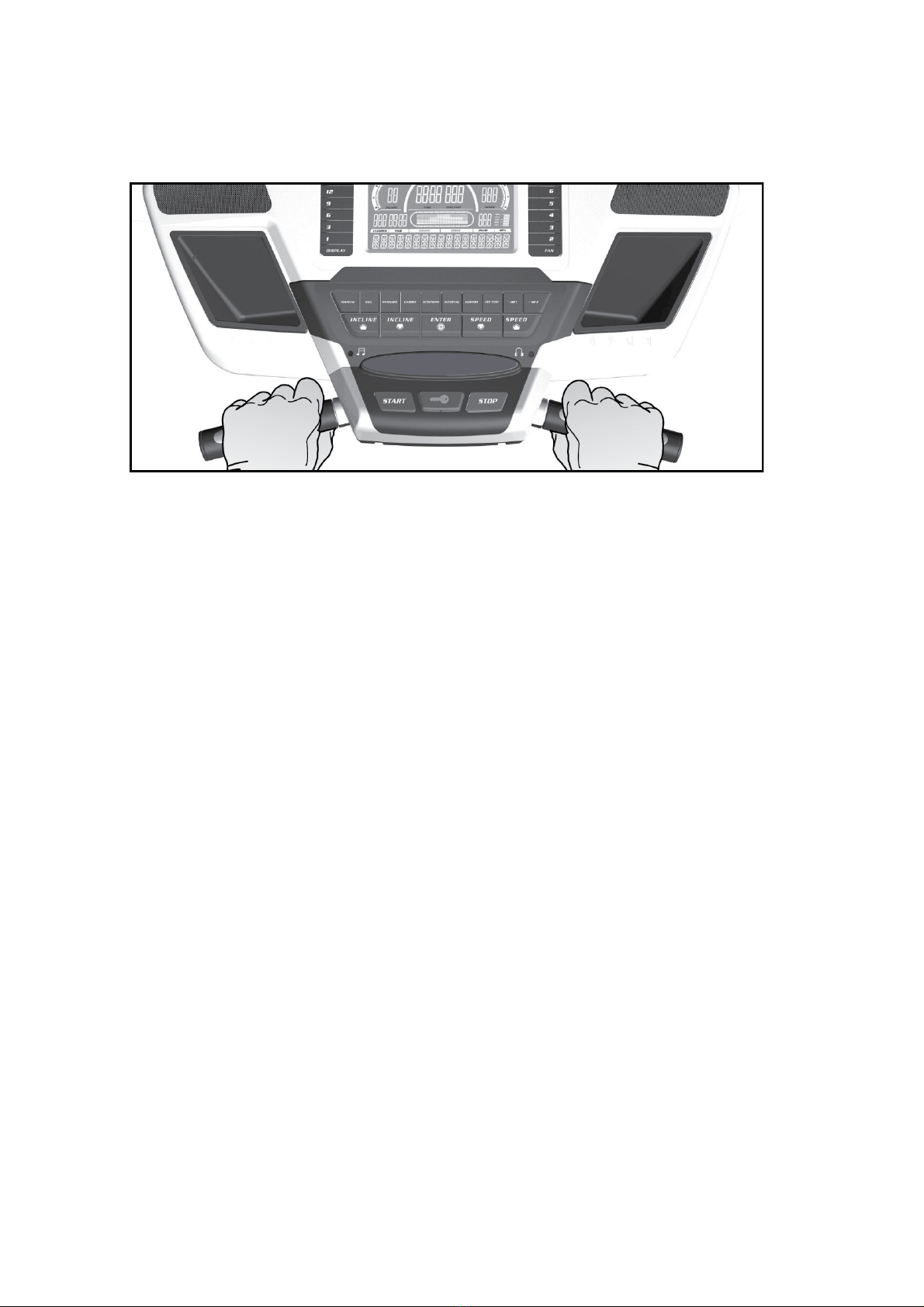

PULSE GRIP FEATURE
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the
workout. You must use both left and right stainless steel sensors on the front cross bar to pick up
your pulse. Pulse values are displayed anytime the computer is receiving a Grip Pulse signal or
while wearing an optional chest strap transmitter (see Using the Heart Rate Transmitter section
for directions). You may use the Grip Pulse feature while in a Heart Rate Program (HR1 or HR2).
TURNING OFF TREADMILL
1. The display will automatically turn off – go to sleep - after 30 minutes of inactivity
when in the Pause / Stop mode. Almost all power for the treadmill will be off except
for some circuits that are needed to detect if any key is pressed, indicating the
console should “wake up”. When the console is “asleep” the treadmill draws very little
power, about as much as your television when it is turned off.
2. Removing the safety key is similar to entering “sleep” mode. Turning off the main
power switch in the front of the treadmill will completely remove any power.
3. To exit the display mode, for normal operation, press and hold the
Stop/Enter/Display keys for 5 seconds; the display will show Display Mode - ON.
Use the speed Up key to change the setting to OFF then press Enter.
**ATTENTION**
Your new console comes configured in an in-store ‘display mode’ of operation, where the
console will remain powered on unless the main power switch is turned off. To exit the
display mode, for normal operation, press and hold the Stop, Enter and Display keys for 5
seconds; the display will show: Display mode - On. Use the Up arrow or Fast key to change
the setting to Off then press Enter.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
18
PROGRAMMABLEFEATURES
The TT8 has ten built-in programs: one Manual program, five preset profiles, one Custom, one
Fit Test, and two Heart Rate programs (HR1 & HR2).
PRESET PROGRAMS
Hill
The Hill program simulates going up and down a hill. The speed will steadily increase and then
decrease during the program.
SPEED INCLINE
Fat Burn
The Fat Burn program is designed, as the name implies, to maximize the burning of fat. There are
many schools of thought on the best way to burn fat but most experts agree that a lower exertion
level that stays at a steady workload is the best. The absolute best way to burn fat is to keep your
heart rate at around 60% to 70% of its maximum potential. This program does not use heart rate but
simulates a lower, steady exertion workout.
SPEED INCLINE
Cardio
The Cardio program is designed to increase your cardiovascular function and endurance. This is
exercise for your heart and lungs. It will build up your heart muscle and increase blood flow and lung
capacity. This is achieved by incorporating a higher level of exertion with slight fluctuations in work.
SPEED INCLINE
Strength
The Strength program is designed to increase muscular strength in your lower body. This program
will steadily increase in speed to a high level and forces you to sustain it. This is designed to
strengthen and tone your legs and glutes (muscles of the butt).
SPEED INCLINE
Interval
The Interval program takes you through high levels of intensity followed by periods of low intensity.
This program increases your endurance by depleting your oxygen level followed by periods of
recovery to replenish oxygen. Your cardiovascular system gets programmed to use oxygen more
efficiently this way. This program also forces your body to become more efficient due to spikes in
heart rate, between recovery periods. This aids in heart rate recovery from intense activities.
SPEED INCLINE

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
19

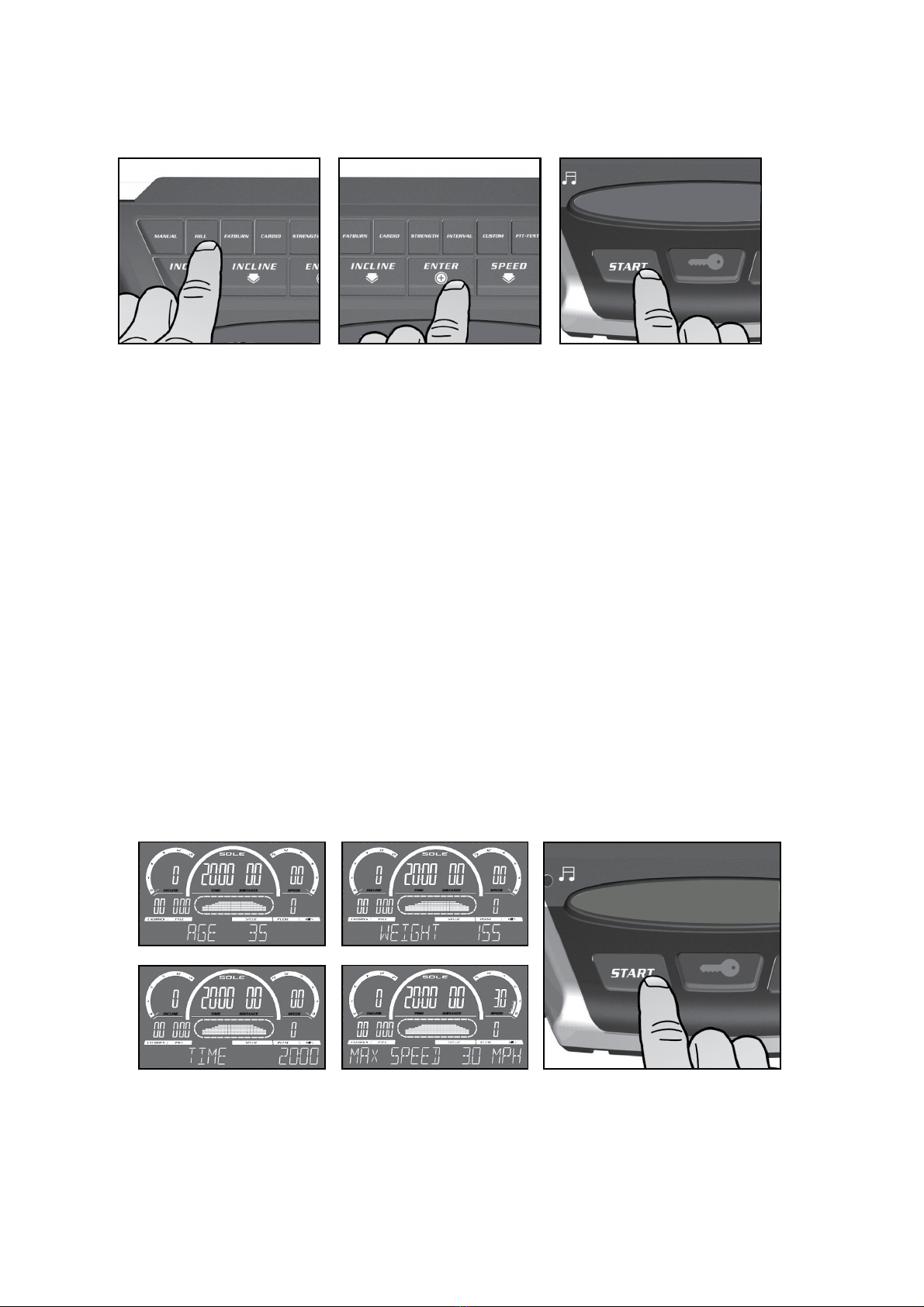

SELECTING A PROGRAM
1. Press the desired program from the 10 available program keys. Then press the Enter
key to begin customizing the program with your personal data, or just press the Start
key to begin the program with the default settings.
2. The Message window will now be showing a value, indicating your Age. Entering
your correct age affects the heart rate Bar Graph Display and the Heart Rate
programs. Use the Up/Down keys to adjust, and then press Enter. Your age
determines the maximum heart rate you may achieve. Since the Bar Graph Display
and the Heart Rate features are based on a percentage of your maximum heart rate, it
is important to enter the correct age for these features to work properly.
3. The Message window will now be showing a value, indicating your Body Weight.
Entering the correct body weight will affect the Calorie count. Use the Up/Down keys
to adjust, and then press Enter.
* A note about the Calorie display: No exercise machine can give you an exact calorie count because
there are too many factors which determine exact calorie burn for a particular person. Even if someone
is the exact same body weight, age and height, their calorie burn may be very different than yours. The
Calorie display is to be used as a reference only to monitor improvement from workout to workout.
4. After selecting a program and pressing Enter to set your personal data, the Time
window will show the default value of 20 minutes. Use the Up/Down keys to adjust,
then press Enter.
5. The Message window will now be blinking, showing the preset top speed of the
selected pro- gram. Use the Up/Down keys to adjust, and then press Enter. Each
program has various speed changes throughout; this allows you to limit the highest
speed the program will attain during your workout.
6. Press Start to begin or Enter to modify your settings.

Customer Service 1-888-707-1880 Dyaco Canada Inc. 2014
email: [e-mail]
20
CUSTOM PROGRAM
1. Select Custom on the Program keypad, then press Enter. Note that the dot
matrix display portion will light a single row of dots at the bottom (Unless there is a
previously saved program). If there is a program stored under the button that is
pressed, it will be retrieved. If not, you have the option of programming in your first
name. The Message window will display and flash the letter ”A” . To change it,
press the arrow key, then “B” will be displayed; if the arrow key is pressed,
the letter “Z” will be displayed. After selecting the appropriate letter, press Enter.
The letter “A” will again be displayed and blinking. Repeat the procedure until all
letters of your first name are programmed (7 characters maximum). When your
name is displayed, press Stop and it will be stored under Custom.
2. The Message window will now show an Age value. Adjust the age with the
Up/Down keys and press Enter.
3. The Message window will show a bodyweight value. Adjust the number with the
Up/Down keys to your bodyweight value and press Enter.
4. The Time window will be flashing. Use the Up/Down adjustment keys to set the
program for the desired time. Press the Enter key. This is a must to continue even
if the time is not adjusted.
5. 5. The first speed setting column (segment) will now be blinking. Using the
Fast/Slow keys, adjust the speed to your desired effort level for the first segment
then press Enter. The second column will now be blinking. Note that the previous
segment value has been carried over to the new segment. Repeat the above
process until all speed segments have been programmed.
Note: While in a User program, if you manually change the speed, all segment speeds from
there on will also change.
Examples: If you increase your current speed 1 mph, the remaining segment speeds will increase
by 1 mph. If you decrease your current speed .5 mph, the remaining segment speeds will
decrease by .5 mph, etc.
6. The first column will be blinking again. The console is now ready for the incline
settings. Repeat the same process used to set the speed values for programming
the segments for incline.
7. Press the Start button to begin the workout and also save the program to
memory.
