Soleus Air GB-WAC-06SE-C User manual

Models
GB-WAC-06SE-C
GB-WAC-06ESE-C
GB-WAC-08ESE-C
Electronic Window Air Conditioner
Operating Instructions

Thank you for choosing a Soleus Air powered by Gree Air Conditioner. This owner’s manual will
provide you with valuable information necessary for the proper care and maintenance of your new
product. Please take a few moments to thoroughly read the instructions and familiarize yourself with
all the operational aspects of your new air conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT SAFETY INSTRUCTIONS
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference. Your safety and the safety of others is very important to
us. Please pay attention to all safety messages outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow
the following basic precautions:
2
This is a safety alert symbol.
This symbol alerts you to potential hazards that can harm you or others or even cause
death.
All safety messages will directly follow the safety alert symbol and/or the words
“DANGER” or “WARNING”.
Failure to immediately follow these
instructions may cause serious injury
or even death.
All Safety messages alert you of potential hazards, how to reduce the chance of injury,
and what can happen if instructions are not followed correctly.
• Plug into a grounded 3 prong outlet.
• Do not remove the ground prong.
• Do not use a plug adapter.
• Do not use an extension cord.
• Unplug the air conditioner before servicing
• Use two or more people to move and install the air
conditioner

Recommended Ground Method
For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a 3 prong power
supply cord with a grounded plug. To minimize the possibility of electrical shock, the cord must be plugged into a 3 prong
outlet and grounded in accordance with all local codes and ordinances. If a 3 prong outlet is not available, it is the cus-
tomer’s responsibility to have a properly grounded 3 prong outlet installed by a qualified electrician.
LCDI Power Cord and Plug
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required
by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged
and leakage occurs, power will be disconnected from the unit.
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test the plug:
1. Plug power cord into a grounded 3 prong outlet
2. Press RESET (on some units a green light will turn on).
3. Press the TEST Button, the circuit should trip and cut all power to the air conditioner (on some units a green light
may turn off.
4. Press the RESET button for use. You will hear a click and the A/C is not ready for use.
NOTES:
• The RESET button must be engaged for proper use.
• The power supply cord must be replaced if it fails to trip when the TEST button is pressed and the unit fails to reset.
• Do not use the power supply cord as an ON/OFF switch. The
power supply cord is designed as a protection device.
• A damaged power supply cord must be replaced with a new
power supply cord from Soleus Air Powered by Gree.
• The power supply cord contains new user serviceable parts.
Opening the tamper-resistant case voids all warranty and per-
formance claims.
NOTE: Your units power cord and plug may differ from the one
shown.
ELECTRICAL REQUIREMENTS
3
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong.
Do not use an adapter
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock
The electrical ratings for your air conditioner are listed on the model and serial
number label located on the front left side of the unit (when facing the front).
Specific electrical requirements are listed in the chart below. Follow the
requirements below for the type of plug on the power supply cord.
Power Supply Cord
• 115 volt (103.5 min.—126.5
max)
• 0-12 amps
• 15-amp time-delay fuse or
circuit breaker
• Use on single outlet circuit only
Wiring Requirements
It is the customer’s responsibility:
• To contact a qualified electrician
• To assure that the electrical installation is adequate
and in conformance with the National Electrical Code,
ANSI/NFPA 70 - latest edition, and all local codes and
ordinances.
Copies of the standards listed may be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269

PACKING LIST
2/5”
Screw (4) Sash Lock (1)
4/5”
Screw (6)
Packing List:
• Window Air Conditioner

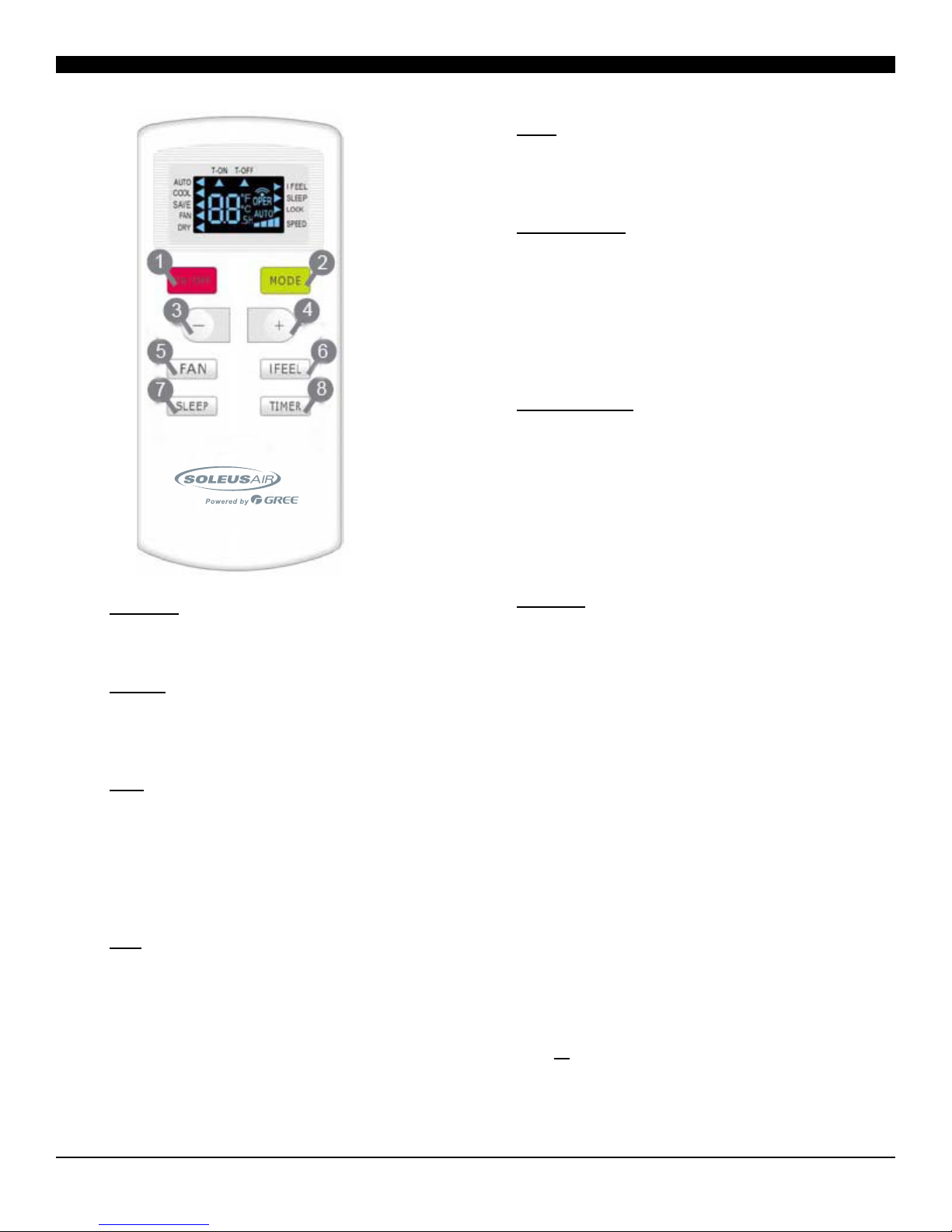

• Remote Control
• AAA Batteries (2)
• Top Mounting Rail
• Top Mounting Rail Seal Strip
• 2/5” Screw for Top Mounting Rail (4)
• Accordion Panels (Left & Right)
• Sash Lock (1)
• Window Sash Seal
• 4/5” Screw for Window Locking Bracket & Accordion
Panels (6)
• Foam Top Window Gasket
• Owner’s Manual
4

SPECIFICATIONS
•Noise level is measured at a distance of 3.28 ftaway from the front of the unit in cooling mode.
•Power consumption is measured when the fan runs at the highest speed setting.
•These specications are for reference only. For actual data, please refer to the rating label on the back of the unit.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT
TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.
5
Model GB -WAC-06SE-C GB -WAC-06ESE-C GB -WAC-08ESE-C
Energy Star No Yes Yes
Power Supply (Ph/V/Hz) 1/115/60 1/115/60 1/115/60
Rated Cooling Capacity (BTU/h) 6,300 6,300 8,000
Cooling Power Input (Was) 590 590 740
Rated Current Cooling (Amperage) 5.3 5.3 7.1
Cooling EER 10.7 10.7 10.8
Noise Level H/M/L [dB(A)] 56/55/54 56/55/54 58/56/54
Air Flow H/M/L (CFM) 190/180/170 190/180/170 195/183/170
Dehumidifying Capacity 30 Pints per day 30 Pints per day 40.8 Pints per day
Product Dimensions (W" x H" x D") 18.625 x 12.75 x 15.75 18.625 x 12.75 x 15.75 18.625 x 12.75 x 15.75
Product Weight (lbs) 46 46 50
Refrigerant Type R-410A R-410A R-410A

INSTALLATION & ASSEMBLY INSTRUCTIONS
Some assembly is required for your new air conditioner. Please read and follow these instructions carefully.
1. This air conditioner is designed to be installed in a
standard double-hung window with a window width
between 22” and 36” (559 mm - 914 mm).
2. The air conditioner can be installed without the
accordion panels to fit in a narrow window opening.
See the window dimensions.
3. The Lower Sash (the lower part of the window that
moves up and down) must allow for 13.25” of vertical
clearance when open. (See FIG. 1).
4. All supporting parts must be secured to firm wood,
masonry, or metal.
5. The electrical outlet must be within reach of the power
cord.
6
NOTE: Save the product packaging and installation instruc-
tions for future reference. Store the air conditioner in the
product box when not in use for an extended period of time.
FIG. 1
When handling the unit, be careful to avoid cuts from
the sharp metal edges and aluminum fins on the front
and rear coils.
22" to 3 6"
559mm to 914mm
13 1/4"
(337mm)

TOP RAIL INSTALLATION
NOTE: Top Rail and the side Sliding Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary
for proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be main-
tained.
1. Remove the backing from the top mounting rail seal strip and attach the seal strip to the bottom of the top rail. Align
along the front edge.
2. Attach the top rail onto the top of the outer case using the four 2/5” screws.
7

ASSEMBLY & INSTALLATION (CONT.)
8
Placing the Unit Inside a Normal Window
1. Place the air conditioner on the sill with the bottom
mounting rail against its back edge. Center the air con-
ditioner and close the window securely behind the top
mounting rail. The air conditioner should be slightly
tilted to the outside area. Use a level; about a 1/3 bub-
ble will be the correct case slant to the outside. (See
FIG. 5 & FIG. 6)
2. Once the air conditioner is placed, extend both the left
and right accordion panels to the width of the window
SEE FIGURE 7).
3. Drive 4/5” screws into the top of the accordion panel
frame and the top rail to securely attach the window air
conditioner to the lower sash. (See FIG. 8 )
Accordion Panel Installation
Now that you have installed the top rail, you can now install
the accordion panels on each side.
1. Place the air conditioner on a hard flat surface.
2. Locate the accordion panels in the box.
3. Gently pull the free end of the accordion panel (See
FIG. 2). Do this for both panels.
4. Slide the free end of the accordion panel into the side
panel of the air conditioner (See FIG. 3 & 3A). Do this
for each side.
5. Once the accordion panels are slid into place, make
sure you leave enough space to slip on the top and
bottom rails (See FIG. 4). Now, slide the top and bot-
tom of the side panels inside top and bottom rails (See
FIG. 4A). Adjust the panels until they fit securely inside
the rails
FIG. 2
FIG. 5
FIG. 6
FIG. 7
FIG. 3
FIG. 4A
FIG. 3A
FIG. 4
FIG. 8
4/5" screws

ASSEMBLY & INSTALLATION (CONT.)
4. To secure the lower sash into place, use the sash lock
and a 4/5 ” screw as shown below (See FIG. 9)
5. For added insulation, cut the supplied insulation foam
to the width of the window. Insert the foam between the
window sashes to prevent air and objects from getting
into the room. (See FIG. 10)
IF AC is Blocked by a Storm Window
A storm window frame will not allow the air conditioner to
tilt properly which in turn will keep it from draining properly.
To adjust for this, attach a board or piece of wood to the
sill. The board or wood piece should have a depth of at
least 1 1/2”. Make sure the board or piece of wood is ap-
proximately 1/2” higher than the storm window frame. This
will allow the air conditioner to tilt enough for proper drain-
age. (See FIG. 12).
Removing the Air Conditioner from the
Window
1. Turn the air conditioner off, and disconnect the power
cord.
2. Remove the sash seal from between windows, and
unscrew sash lock.
3. Remove the screws installed through the frame and
frame lock.
4. Close (slide) the side panels into frame.
5. Keeping a firm grip on air conditioner, raise the sash
and carefully “rock” air conditioner backward to drain
any condensate water in base of unit. Be careful not to
spill any remaining water while lifting unit from window.
6. Store parts with the air conditioner in the box
FIG. 9
FIG. 10
SASH
1 1/2” MIN
(38 mm)
STORM
WINDOW
FRAME
Board or wood
piece must be
approximately
1/2” higher
than the storm
window frame
for proper
drainage
FIG. 12
9
