Soleus Air KFHHP-22-ID Specification sheet

Wall Mounted Mini Split
Heat Pump
Air Conditioner
OPERATING AND INSTALLATION MANUAL
Model: KFHHP-22-ID / KFHHP-22-OD
Thank you for selecting Soleus Air. To ensure proper
operation, please read this manual and keep it for
future reference.
Indoor Unit.
Outdoor Unit.

TABLE OF CONTENTS
OPERATION AND MAINTENANCE…………..………..…………………………………….....1-12
Instructions before Use ……………………………………………………………………………1-2
Description of Air Conditioner Components………………………………………………...………3
Remote Control Operation…………………………………………………………………………4-6
How to Insert Batteries…………………………………………………….…………………………6
User Notices…………………………………………………….………………….…………………7
Care and Maintenance………………………………………………….......……………...….……8-9
Trouble-Shooting…………………………………………………….…...……..…………..…….9-10
Specifications and Technical Data………………………………...…….…....………...……..…….11
INSTALLATION………………………………………………...………..……...………….……12-21
Installation Diagram……………………………………………………………………..………….12
Installation Location………………………………….……………………………..………………13
Installation………………………………...……...……………………………………...………14-20
Test Operation and Check after Installation…………………………………………….………..…21
ELECTRICAL SCHEMATIC DIAGRAM…………………………………...………..…………22-23
Electrical Schematic Diagram (Indoor Unit)…………………………...……………......………….22
Electrical Schematic Diagram (Outdoor Unit)………..……………………….……………………23
WARRANTY…………………………………………………………………………………………24
Thank you for selecting Soleus Air. To ensure proper operation, please read this
manual and keep it for future reference.
Danger Caution. This mark indicates a direction/procedure that
must be followed!

- 1 -
Operation and Maintenance
◆Instructions before Use
Carefully read the following instructions before use
Warning
★Do not use flammable liquids on or near this air
conditioner.
★Touching metal parts after removing filter can
cause an electric shock.
★Do not use for long periods of time if the
humidity is high. Condensation may be present.
★Don’t operate the air conditioner with web
hands. It can cause an electric shock.
★Do not insert your hands or any other object into
the air intake or outlets.
★If your air conditioner malfunctions,
discontinue use and call your authorized dealer.

- 2 -
◆Instructions before Use
★Don’t attempt to repair the air conditioner by
yourself. There are no user replaceable parts.
Please contact your authorized dealer.
★Always use new batteries in your remote.
Never mix batteries.
★Be sure to turn the power off when not using the
air conditioner for a long time.
★Never store flammable liquids near your air
conditioner.
★The condensing unit should be
securely mounted to avoid
damage.
★Don’t step on the top of the
outdoor unit.
★Don’t block the air intake or
outlet vents of both the outdoor
and indoor unit. It can decrease
the air conditioning capacity or
cause a malfunction.

- 3 -

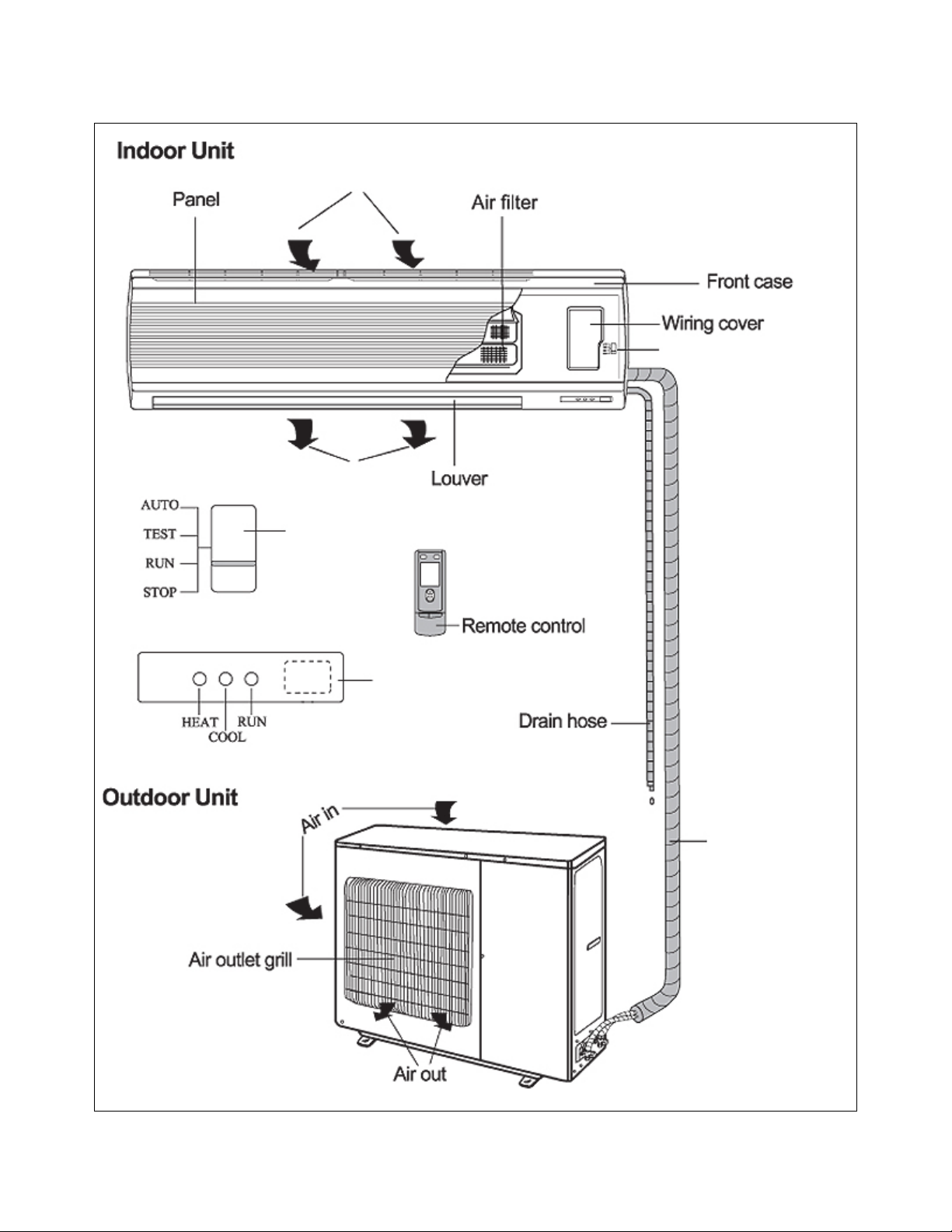

◆Description of Air Conditioner Components
Air intake
Air
outlet
On/Off Switch
Connecting Pipe /
Line set
On/Off Switch
Signal Sensor

- 4 -
◆Remote Control Operation
Function-Remote control
Note:
•Don't drop the remote control.
•Don't place the remote control in a location exposed to direct sunlight.
•When the unit is restarted after stopped, it will automatically resume its last running mode, and the
outdoor unit will start there after.
TEMP+ TEMP- Button:
Under the COOL, DRY,
FAN or HEAT mode, press
these two buttons could set
the temperature, the temp.
setting range is 60.8°F
-86°F, the temp. can be
memorized under each
mode.
FAN SPEED Button:
When the unit starts up,
under the AUTO, COOL,
FAN or HEAT mode, press
this button and select Auto
fan, Low fan, Middle fan,
High fan. At DRY mode,
the fan speed runs at Low
fan speed. The FAN
SPEED can be memorized
under various modes.
MODE Button:
When the unit is
turned on, press this
button. The AUTO,
COOL, DRY, FAN or
HEAT mode can then
be selected.
CLOCK Button:
When pressing this button
once, the icon of CLOCK
will flash, and can be
adjusted. At CLOCK
adjustment, press the
TIME+ once, the ones
placed on the minute will
be increased 1, and
continuously press 1 sec
above, the tens place on
the minute will be
increased 1 in every half
second. When pressing
the TIME-, the ones
placed on the minute will
be decreased 1, and
continuously press 1 sec
above, the tens place will
be decreased 1 in every
half second. After
adjusting please press the
CLOCK button again for
confirming.
SLEEP Button:
Under COOL, DRY &
HEAT mode, press the
button once to start the
SLEEP function, when
pressed again, it will stop.

- 5 -
◆Remote Control Operation (Continued)
Liquid Crystal Display.
It shows all set contents.
ON/OFF Button
Press ON.
Press OFF.
T-ON Button.
When pressing this button
once, enter into T-ON
setting, the icon of T-ON
flash, every press of
TIME+, the time of T-ON
will be increased 1min.
When continuously press 1
sec above, the tens placed
on minute will be increased
1, every press of TIME-
will be decreased 1 minute,
when continuously press 1
sec above, the tens placed
on minute will be decrease
1 in every half second, and
it goes round with 12 hours.
SWING Button:
Press once to have louvers
swing [oscillate]. Press
twice in one second the
panel light will turn on.
Press twice again and the
light will turn off.
T-OFF Button
Press this button once to
enter into T-OFF setting,
the icon of T-OFF will
flash, the T-OFF button
is available in ON or
OFF mode, the setting
method is the same with
T-ON.
CANCEL Button
Pressing this button will
cancel timer.
TIME+ TIME- Button
Function instruction please
refer to T-ON button,
T-OFF button, CLOCK
button.

- 6 -
◆Remote Control Operation (Continued)
The General Procedure:
1. Press ON/OFF button to start the unit.
2. Press MODE button to select the suitable operation mode.
3. Press SWING button to swing. It will stop when pressed again.
4. Press FAN button to set desired fan speed.
5. Press +/- button to set desired temperature.
The Selected Procedure:
6. Press SLEEP button to set timer.
7. Press ON/OFF button to set desired temperature.
Note:
In AUTO mode, the unit will automatically adjust its running modes according to the room
temperature.

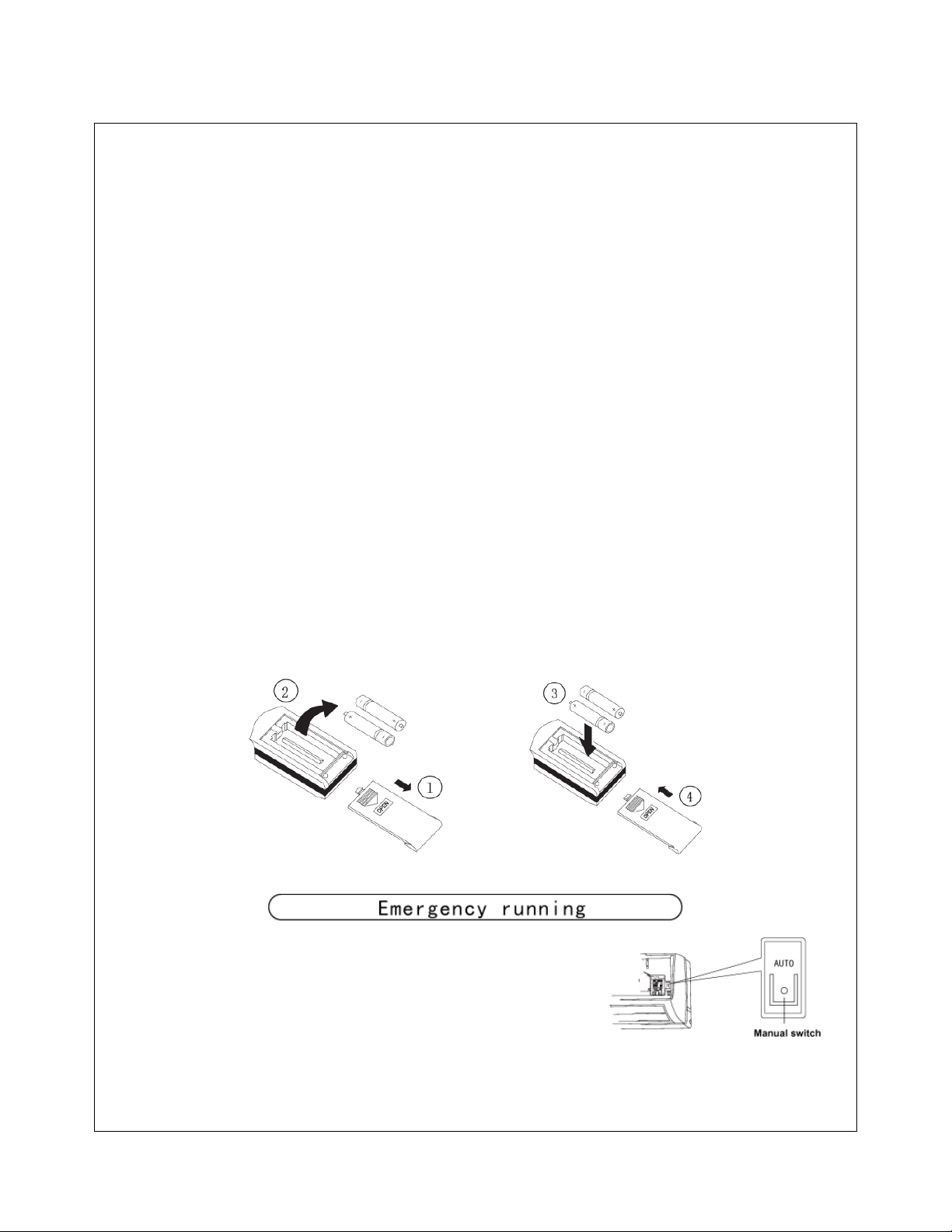

◆How to Insert Batteries
The remote control uses two AAA batteries.
1. Remove the cover from the back of the remote control and insert two new batteries.
2. Re-attach the cover.
Note:
•Don’t mix new and used or different types of batteries.
•Remove batteries when the remote control is not in use for a long time.
•Keep remote at least 3.28 feet from TV’s and other electronic devices.
When the wireless remote control is lost or broken, please use the manual switch,
It will start in AUTO mode, the temperature setting and fan speed cannot
be changed. Please use a ball point pen or similar device to operate switch.
Turn on the unit: By pressing the Manual Switch the unit will start in AUTO automatically.
The microcomputer will adjust to the indoor temperature by selecting (COOL, HEAT, FAN), in order to
achieve a comfortable condition.
•Turn off the unit: When unit is running, press the manual switch STOP button, the unit will stop running.

- 7 -
◆User Notices
★Select the most comfortable temperature.
★The airflow direction can be adjusted.
At operating, adjust the vertical airflow direction
by adjusting the louvers of upward/downward
direction. And then, hold two ends of left and
right louver to adjust the horizontal airflow.
★Don’t leave windows and doors open for a long
time while operating the air conditioner.
It can decrease the air conditioning efficiency.
★Splashing water on the air conditioner can
cause an electric shock and malfunction.
★Don’t use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.

- 8 -

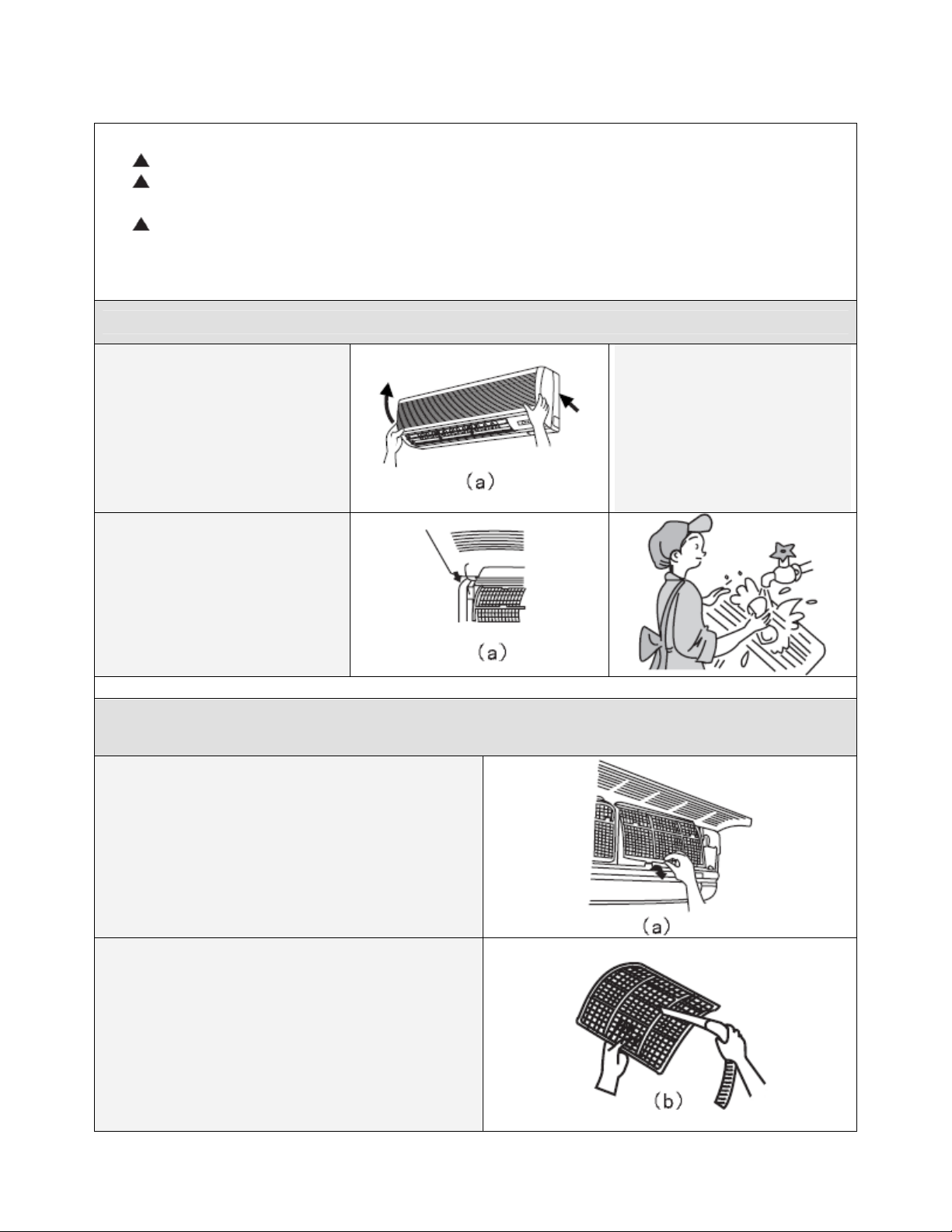

◆Care and Maintenance
CAUTION:
Turn power off and pull out the power cord before cleaning air conditioner.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause
an electric shock.
Volatile Liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units
with a dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Take down the surface panel and clean it (Take it down before cleaning)
1. Pull along the direction of
arrows to take down surface
panel.
2. Washing
Wipe with a cloth slightly
moistened with water or
cleaner then dry it.
Note: Never use water above
113°F to wash the panel, or it
could cause deformation or
discoloration.
3. Install surface panel.
Install the supports (those are on
two ends of surface panel) into
the supporting slots then cover
the surface panel and clasp it.
Cleaning the Air Filters (Recommended once every three months)
The air filters should be cleaned more frequently in dusty conditions.
1. Take down the air filter
Open the surface panel, hold the tab of air filter
and raise it slightly, and then take it out along the
direction of arrows (See the right figure).
2. Cleaning
To clear the dust adhering to the filters, you can
either use a vacuum cleaner, or wash them with
water and dry it in the shade (See the right figure).
Note: Never use water above 113°F to wash the filters, or it
could cause deformation or discoloration. Never parch it by
fire, or it could cause a fire or deformation.

- 9 -
◆Care and Maintenance (Continued)
3. Reinsert the filters
Reinsert the filters along the direction of arrow, then
cover the surface panel and clasp it.
Check before Use
1. Be sure that nothing obstructs the air outlet and
intake vents.
2. Verify that the unit is properly grounded.
3. Always use new batteries.
4. Verify condenser is properly mounted.
Maintain after Use
1. Clean filters and other parts.
2. Turn main power off.
3. Clean dust from the outdoor unit.
◆Trouble Shooting
Warning: Don’t attempt to repair the air conditioner by yourself; it can cause an electric shock or fire.
Please check the following items before calling your service technician.
Problem Trouble Shooting
Won’t start immediately
when the air conditioner is
restarted.
Once the air conditioner is stopped, it will not
operate until the time delay of 3 minutes has
passed.
There’s unusual odor blowing
from the outlet after operation
is started.
This is caused by the odors in the room.

- 10 -
◆Trouble Shooting
Problem Trouble Shooting
Sound of water flow can be heard during operation.
This is caused by the refrigerant flowing inside
the unit.
Mist is emitted during cooling operation.
Because the air of the room is cooled down
rapidly.
Creaking noise can be heard when start or stop the unit.
This is caused by the expansion of plastic due to
the change of temperature.
Air conditioner does not operate at all.
•Has the power been shut down?
•Is the leakage protection switch in operation?
•Is TIMER ON is operation?
Cooling (Heating) efficiency is not good.
•Is SET TEMP. suitable?
•Is air inlet or outlet obstructed?
•Are air filters dirty?
•Are the windows and door closed?
•Is indoor fan speed set at low speed?
•Is there any other hear source in your room?
Remote control is not operating
•Remote control can’t be used when the air
conditioner is disturbed or changing its
functions frequently.
•Is the remote control out of effective to the
indoor unit? Are there any obstruction
between the remote control and the signal
receptor?
•Replace the worn batteries of remote control
is the voltage of the batteries is not sufficient.

- 11 -
◆Specifications and Technical Data
Model KFHHP-22-ID / KFHHP-22-OD
Function Heating and Cooling
Cooling capacity(BTU/hr) & (Watts) 22000 / 6450 (2250-7000)
Heating capacity(BTU/hr) & (Watts) 24200 / 7100 (1650-8500)
Rated voltage 208-230V～
Rated Frequency 60Hz
Cooling/Heating rated current(A) 10.0/9.3
Cooling/Heating rated power(W) 3300/3200
Cooling/Heating power input(W) 2280/2250
SEER 14
EER/COP(W/W)
HSPF 8.4
Recycling Air Volume（ m
3
/h ）1100/1000/900
Factory Charge 410A (lbs.)* R410A 5.3 lbs
Noise (Indoor/Outdoor) dBA 50/59
Maximum Vertical
Height
Differential Maximum Length
Net Weight (Indoor/Outdoor) (lbs) 38.6/138.9
Dimensions (Indoor/Outdoor)
(WxDxH)(inch)
Indoor unit ：46.38” ×8.98” ×12.83”
Outdoor unit：37.40” ×16.54” ×33.07”
Connection Pipe:
Length (ft) 26.25
Gas additional charge(oz/ft) 0.21
Liquid Pipe (mm) Φ9.52(3/8”)
Outer Diameter Gas Pipe (mm) Φ16(5/8”)
Height (ft) 32.81
Max Distance Length (ft) 65.62
1. All above are tested and certified to ETL specification.
2. All above could be changed without notice; the latest specifications are on the nameplate of your air
conditioner.
When the unit is restarded after it stopping, it can automatically resume the last running mode, and the outdoor
unit starts later.
Working temperature range
Indoor side DB/WB(°F) Outdoor side DB/WB(°F)
Maximum cooling 90 / 74 109 / 79
Minimum cooling 70 / 59 70 / --
Maximum heating 81 / -- 75 / 64
Minimum heating 68 / -- 23 / 21

- 12 -
Installation Services
◆Installation Diagram
Important Notes
The installation must be done by trained and
qualified service personnel.

- 13 -
◆Installation Location
Indoor Unit
1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room.
2. Install in a location from which the condensation water can be drained out conveniently.
3. Avoid a location where there is heat source, steam or flammable gas.
4. Install in a location where is strong enough to withstand the full weight and vibration of the unit.
5. Be sure that the installation conforms to the installation dimension diagram.
6. Be sure to leave enough space to allow access for routine maintenance. The height of the installed
location should be 90.55 inch or more away from the floor.
7. Install in a location where is 3.28 feet or more away from other electric appliances such as
television, audio devices, etc.
8. Select a location where is easy to remove and clean the filter.
Outdoor Unit
1. Select a location from which noise and outflow air emitted by unit will not inconvenience
neighbors.
2. Select a location where there should be sufficient ventilation.
3. The inlet and outlet should not be covered.
4. The location should be able to withstand the full weight and vibration of the outdoor unit and
permit safe installation.
5. There should be flammable gas or corrosive gas leaks.
6. Be sure that the installation conforms to the installation dimension diagram.

- 14 -
◆Installation
Install the rear panel
1. Always mount the rear panel horizontally. Because the mouth of drainage pipe is at the left side
and the left side of the rear panel is better to adjust
slightly lower.
2. Fix the rear panel on the selected location with
screws supplied with the unit.
3. Be sure that the rear panel has been fixed firmly
enough to withstand the weight of an adult of
132.3 lbs; furthermore, the weight should be evenly
shared by each screw.
Install the piping hole

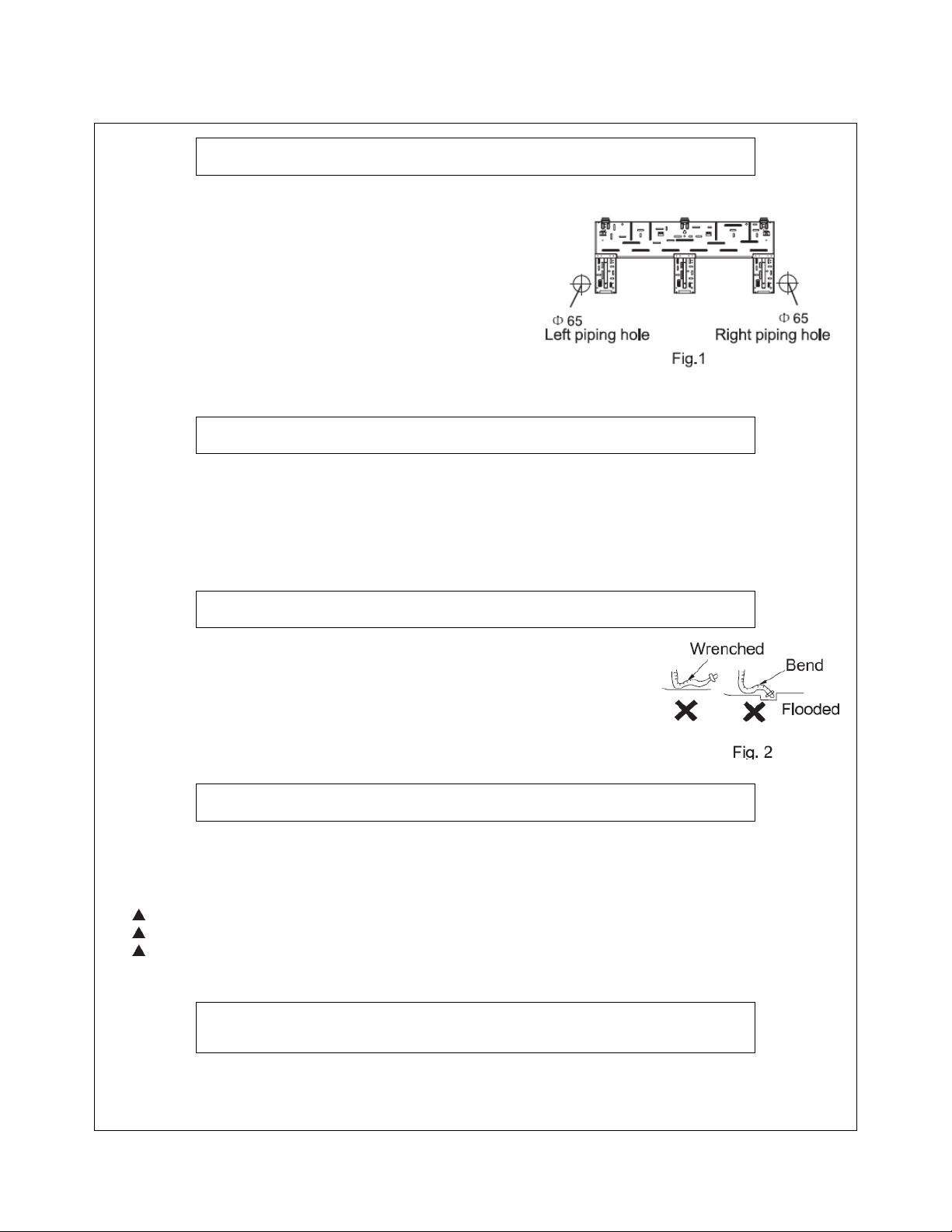

1. Make the piping hole （Φ65）in the wall at a slight downward slant to the outdoor side. (Shown
in Fig.1)
2. Insert the piping-hole sleeve into the hole to prevent the connection piping and wiring from being
damaged when passing through the hole.
Install the drainage hose
1. For well draining, the drain hose should be placed at a
downward slant.
2. Do not wrench or bend the drain hose or flood its end by water.
3. The extended drainage pipe in the room should be wrapped with
the insulating materials.
Install the connection pipes
Connect the connection pipes with the relevant union pipes of the indoor unit and tighten the flare nut
of the connection pipes (Shown in P19 “Install the connection pipes”).
NOTE:
Connect the connection pipes with the indoor unit firstly and the outdoor unit secondly.
Be careful in bending the connection pipes, or you will damage the pipes.
If the tightening torque is too great is tightening the flare nuts leakage will happen.
Electric wiring and electric wiring between indoor and
outdoor unit
1. The power supply should adopt the rated voltage and special circuit.
2. Wiring must be done by special technician according to local rules, regulations and the manual.
3. The nut should be tightened and cannot fall off.

- 15 -
◆Installation
Wiring of indoor unit
Note: The power of indoor unit is supplied by the outdoor. A breaker needs to be installed for safety.
Operation Procedures:

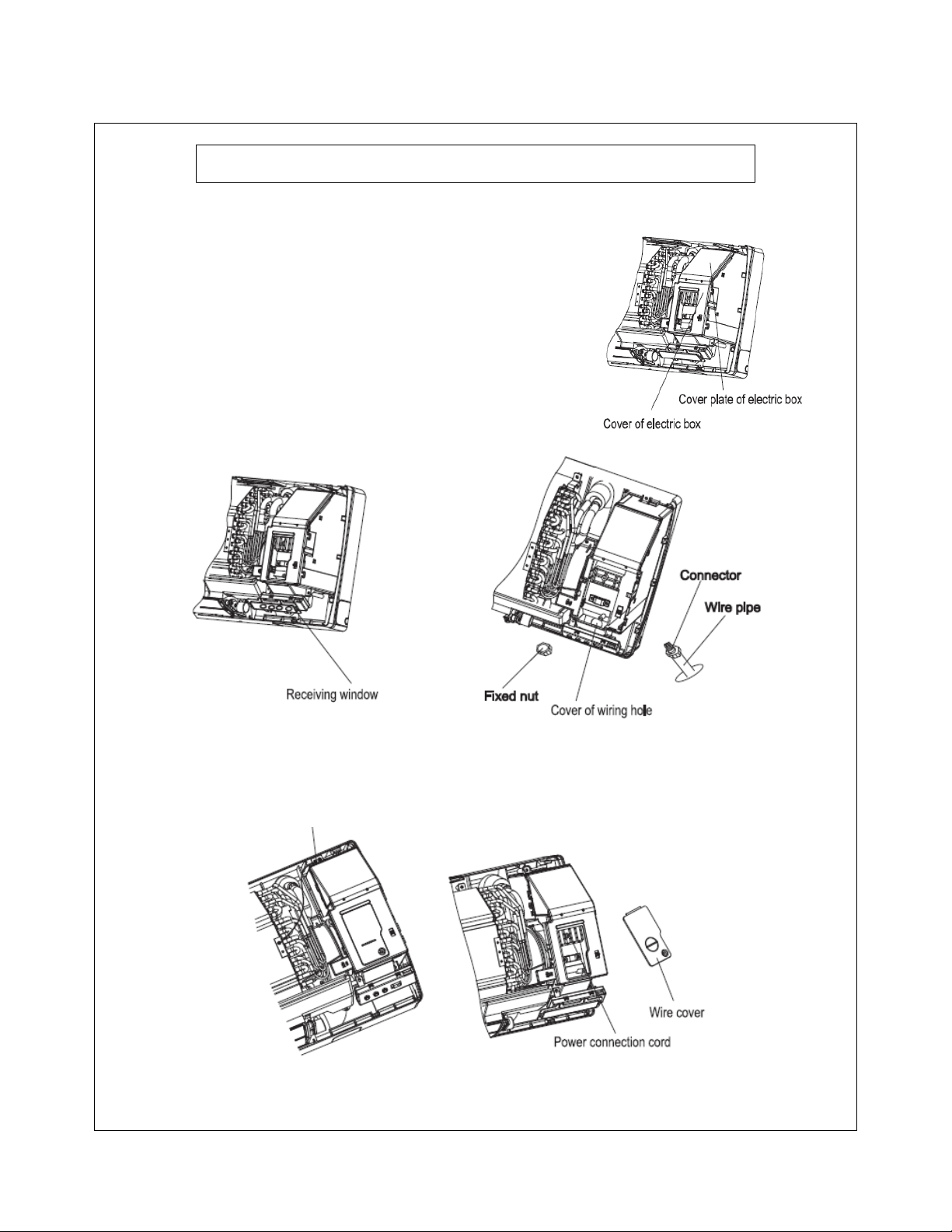

1. Open the surface panel.
2. Open the cover and cover plate of electric
box. (Right figure)
3. Remove the receiving window as shown in
the below left figure.
4. Wire pipe should be tightened by the fixed nut and the electric box should be fixed as shown in the
above right figure and the below figure.
Shield cover
(
u
pp
er
)
of electric box must be
g
rounded.

- 16 -
◆Installation
Electric Wiring
Note: Wiring must be done by a certified technician according to the local rules & regulations. The
connecting wire should be correctly connected to circuit interface. Otherwise, it can cause a fire,
electricity leakage and so on.

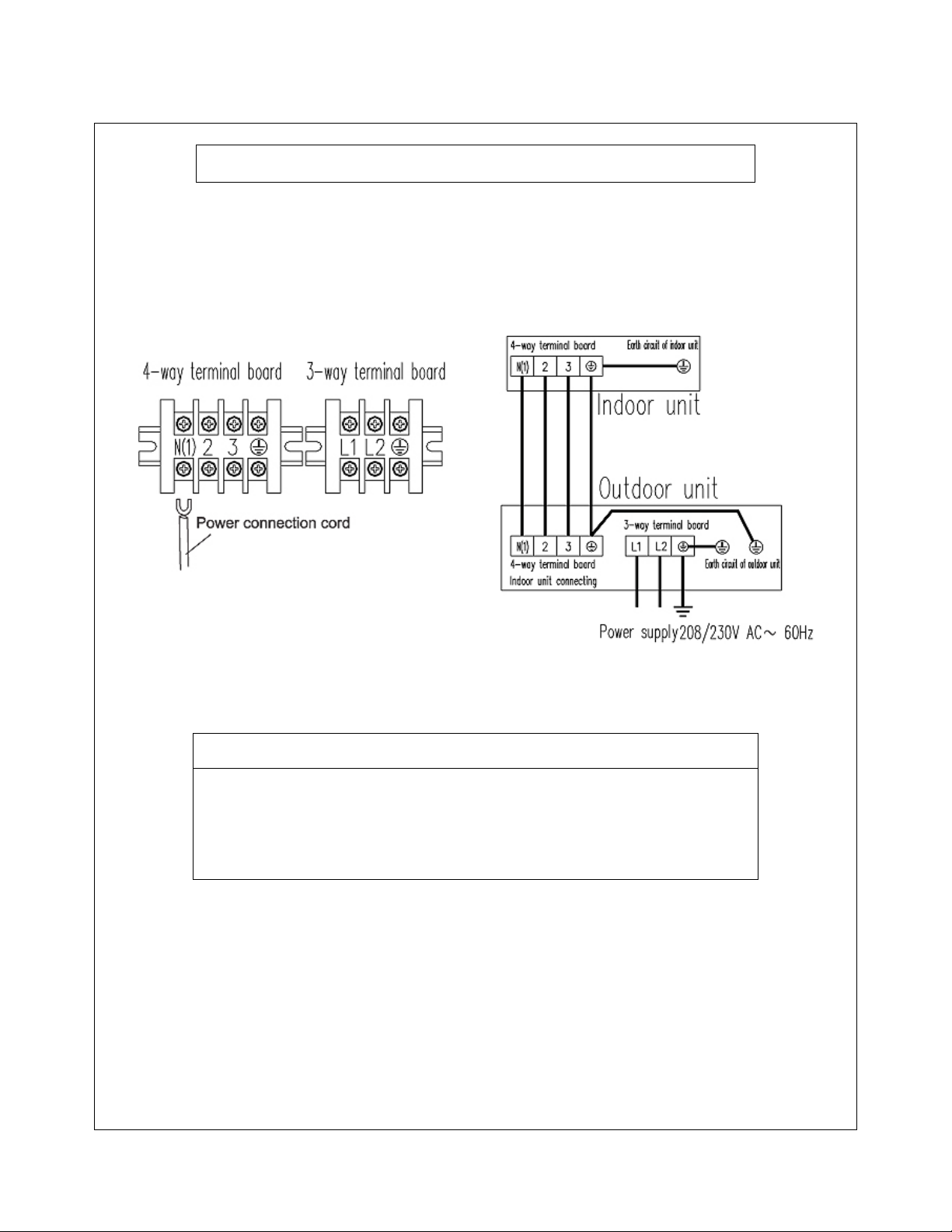

The diagram is shown as below:
NOTE:
1. Wiring should be correctly installed.
2. Tighten the nut of terminal board to avoid falling off.
3. Incorrect wiring will cause the unit to malfunction.
4. Units that are not properly grounded are hazardous and may cause the unit to fail.
Wire
Model Capacitance of air
switch
Grounding min
section
Power wire
of unit min.
section
Fuse
(Indoor)
Fuse
(Outdoor)
KFHHP-22 30A 3.15A 25A

- 17 -
◆Installation
Wiring of Outdoor unit
Operation Procedures:
•Open the cover of outdoor unit.
•The connecting wire led from the terminal board of indoor unit should be connected correctly.
•The connecting wire should be a little longer so that it can easily maintained.
NOTE:
1. Wiring should be correctly installed.
2. Tighten the nut of terminal board to avoid falling off.
3. Incorrect wiring will cause the unit to malfunction.
4. Units that are not properly grounded are hazardous and may cause the unit to fail.

- 18 -
◆Installation
Install the Power Line

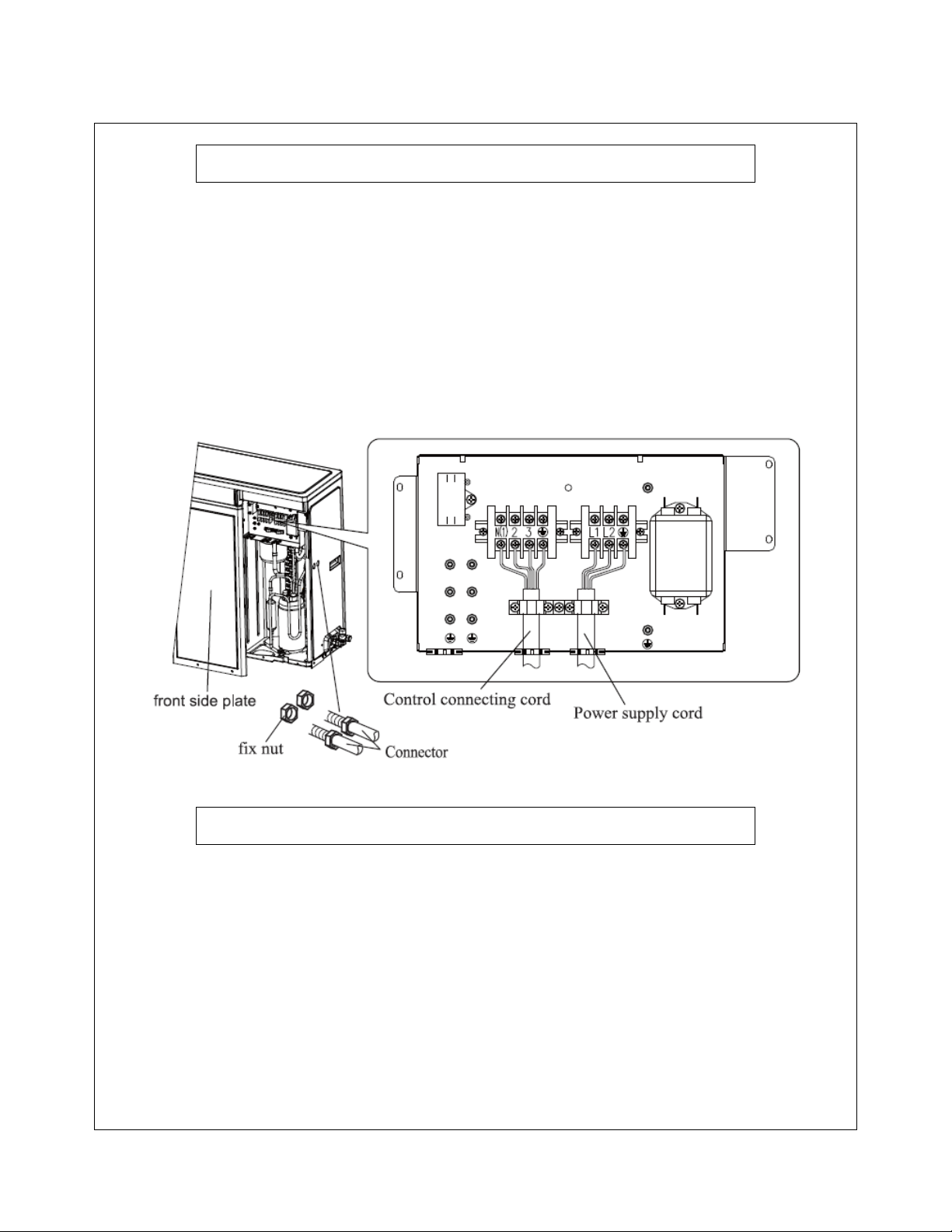

1. Remove the front side plate.
2. Break through the hole for wires and put on the rubber bushing.
3. Pull all wires through the rubber bushing.
4. Remove the wire clamp and connect the end of the power connection cord with screws to the
wiring terminal board according to the “WIRING DIAGRAM” of the outdoor unit.
5. Make sure that the wiring has been connected properly.
6. Tighten the wire with clamp and clasp.
7. After the wiring crosses through the Connector, tighten the Connector with the fix nut.
Install the Indoor Unit
1. When routing the piping and wiring from the left or right side of the indoor unit, cut off the
tailings from the chassis as necessary (shown in Fig.3).
① Cut off tailing 1 when only power cord is routed.
② Cut off tailing 1 and 2 when connect pipe and power cord are routed.
2. Wrap the piping and wiring and pull them through the cut-off tailings hole (shown in Fig.4).
3. Hang the 2 mounting slots of the indoor unit on the upper tabs of the rear panel and check that it
is securely fastened.
4. The height of the installed location should be 7.55 feet or more from the floor.
