Soleus Air PE2-08R-62 User manual

© 2008 Soleus Air International
8000 / 10,000 BTU Portable Air Conditioner
with dehumidifier & Fan
PE2-08R-62 / PE2-10R-32
Operating Instructions
Model No. PE2-08R / PE2-10R
3046364

Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you
with valuable information necessary for the proper care and maintenance of your new product. Please
take a few moments to thoroughly read the instructions and familiarize yourself with all the
operational aspects of your new Soleus Air Portable Air Conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
Before installing and using your portable air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference.
1) Always place the unit on a level surface.
2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this
manual.
3) Maintain at least 10 inches (25 cm) clearance space around this unit. Do not block or cover air inlet or
outlet grilles.
4) The unit must be connected to a correctly grounded power supply.
5) Do not start or stop the unit by inserting or pulling out the power plug.
6) Do not use an adapter plug or extension cord.
7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this
manual.
9) Do not let children play near this unit.
10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced
by the manufacturer or a qualified service technician.
11) When cleaning the unit, always turn the unit off and unplug the power cord.
12) When the unit is not in use, always remove the venting kit from window.
2

SPECIFICATIONS
• The cooling capacity is measured at an ambient temperature of DB 86 °F, WB 78 °F.
• Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
• If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature,
the air conditioner may not work properly.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT
TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.
PACKAGE CONTENTS
Portable Air Conditioner
Exhaust Hoses (1)
Hose Adapters (1)
Window Kit Adapter (1)
Remote Control
AAA Batteries (2)
Window Kit - 2 Sliding Panels (1 single hose panel, 1 extension panels)
Owner’s Manual
3
MODEL PE2-10R-32 PE2-08R-62
Cooling Capacity 10,000 BTU/Hr 8,000 BTU/Hr
Dehumidifying Capacity 55 pts/day 50 pts/day
Power Consumption Cooling 1250 W 950 W
Air Flow Volume 285 CFM 285 CFM
Power Source 115 V / 60 HZ 115 V / 60 HZ
Rated Current Cooling 11.2 A
Sound Pressure Level <45db(A) <40db(A)
Weight 68lbs 68lbs
Dimensions (WxDxH) 12.98” x 22.17” x 27.78” 12.98” x 22.17” x 27.78”
Refrigerant R22 R22
8.5A

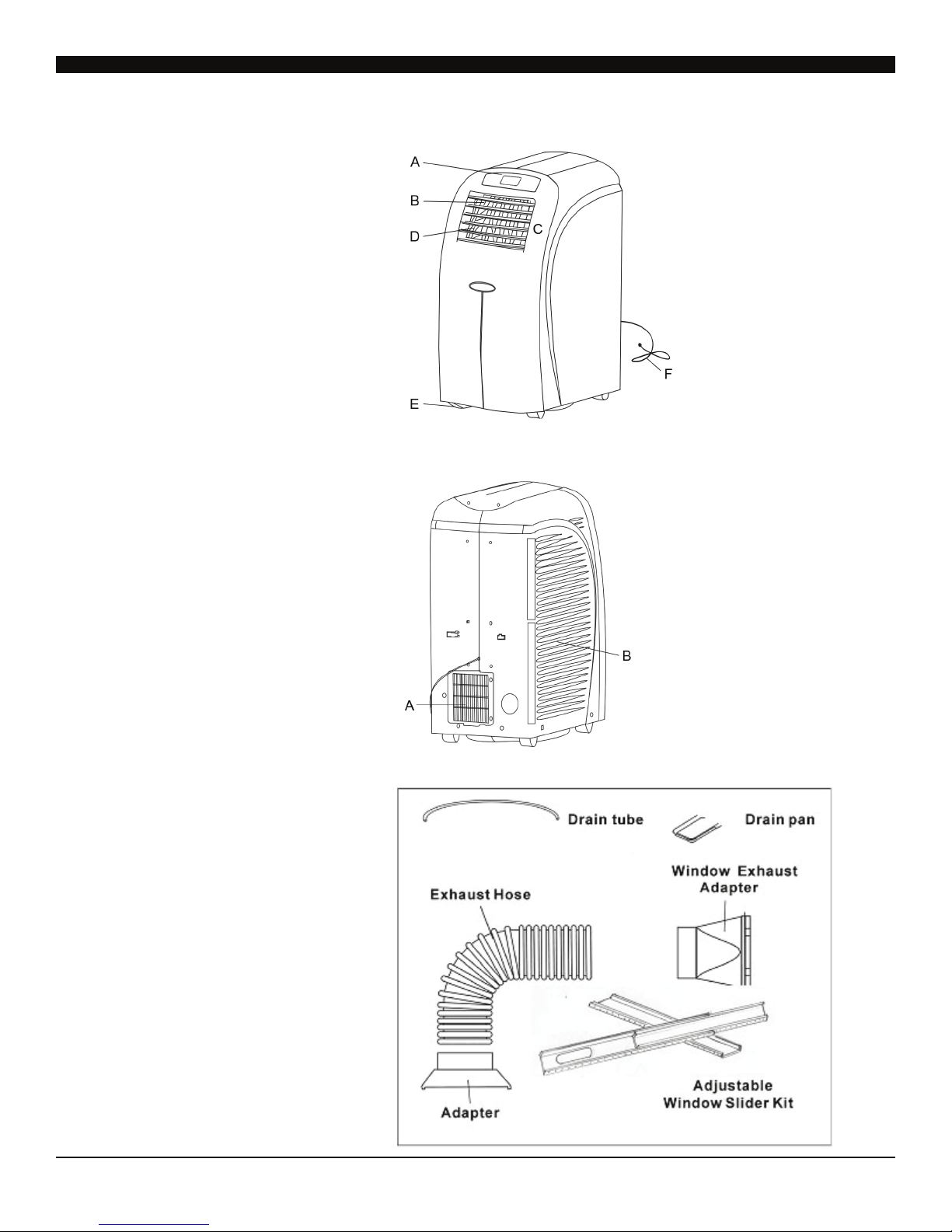

PRODUCT DIAGRAM (Actual product design may differ slightly from images below)
4
FRONT
A. Control panel
B. Vertical air louvers
C. Air outlet
D. Horizontal air louvers
E. Casters
F. Power Cord & Plug
BACK
A. Hot air outlet grill
B. Lower air inlet grill
ACCESSORIES
Flexible exhaust hose with 2 adapters
• 3-piece set
• stretches from 14 1/4” to 60 5/8”
(36cm to 150cm)
Adjustable window slider kit
• 2-piece set
• adjusts 28” to 55”
Drain tube
Drain pan

INSTALLATION
5

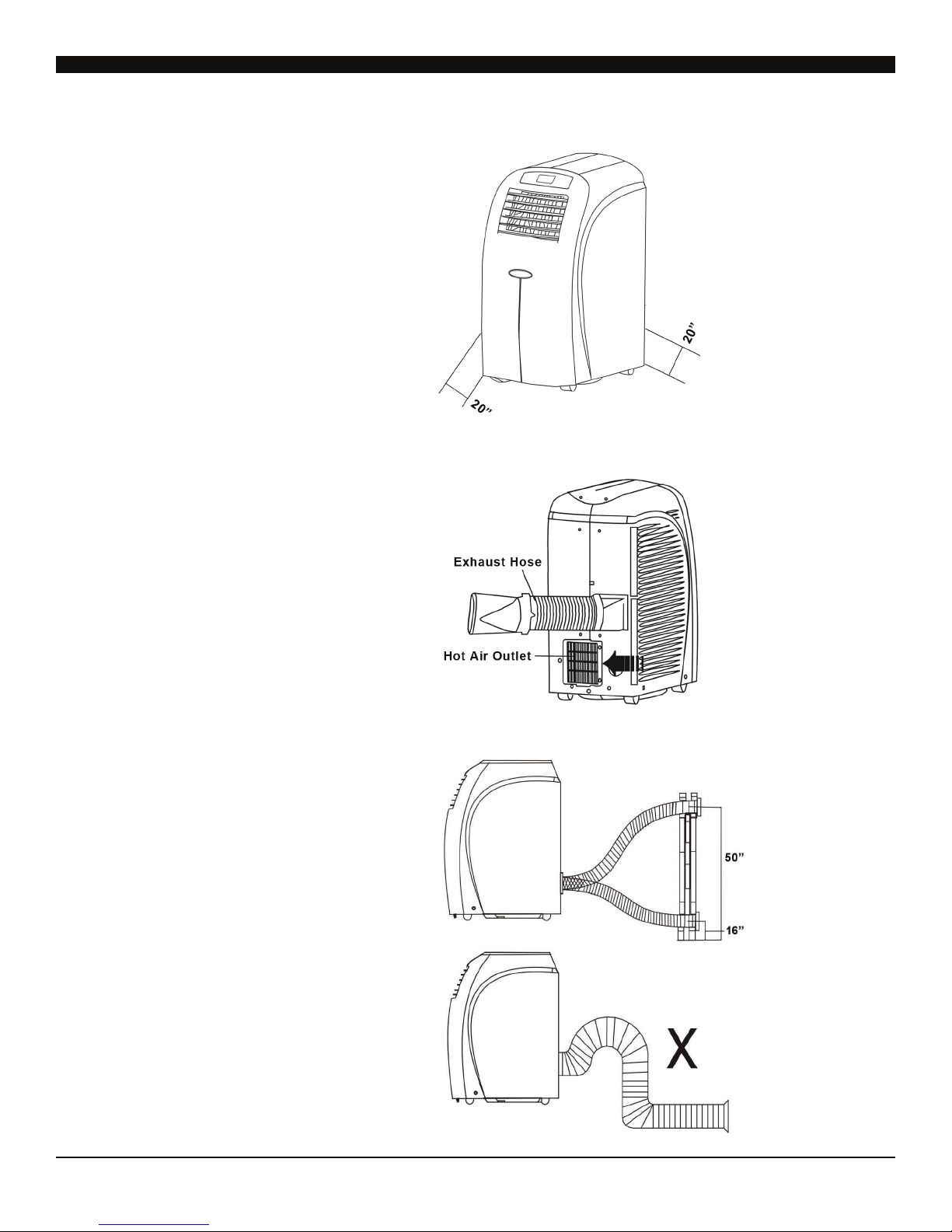

SELECTING THE LOCATION
Place the unit in a flat location where the air out-
lets are not obstructed. Place the unit at least
20” (50cm) away from a wall or other obstacle.
MOUNTING THE EXHAUST HOSE
Slide the square end of the exhaust duct over the
hot air outlet on the back of the unit.
The exhaust hose should be kept as short and
straight as possible. Prevent any sharp bends in
the exhaust hose, as this will trap hot exhaust air.
The hot exhaust air can be vented through the
wall or out a window. If mounting in the wall, the
height of the hole should be 16 to 50 inches
(40cm to 130cm).
Soleus Air does not provide a venting kit for
through the wall ventilation. Venting through the
wall requires a custom installation.

LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and
plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord
with no termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the
nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
The cord will remain de-energized until the devise has been manually reset. This is intended to reduce the risk
of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they must
be considered a shock hazards if exposed. The cord shield must not be connected to ground or to any exposed
metal.
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:
1. Plug power cord into wall outlet
2. Press TEST Button, circuit should trip, cutting power to the air conditioner
3. Press RESET button for use
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting
recommendations.
WARNING:
1. DO NOT press the TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for indoor use only.
RESET
TEST
6

WINDOW KIT INSTALLATION
The window kit is designed to fit into most standard
vertical and horizontal windows, as well as some
sliding glass doors. However, it may be necessary to
modify some aspects of the installation process for
certain window types.
Open the window or sliding door and adjust the
length of the window kit to fit the opening. If
the window kit is not long enough, connect the
extra window kit panel to fit the opening. Mark
and cut down a single panel of the window kit
if necessary.
Place the window kit between the window and the
window frame as shown in the images to the
right. Close the window onto the window kit to
form a tight seal.
Attach the exhaust duct adapter to the window kit.
Tabs located on the adapter will lock into
place securing the adapter to the window kit.
WINDOW KIT INSTALLATION
Window Slider Kit
Minimum: 28”
Maximum: 55”
Window Slider Kit
Minimum: 28”
Maximum: 55”
7

WINDOW KIT INSTALLATION (cont’d)
8
NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images
show general directions for all Soleus Air single hose portable air conditioners. - The heating function is not available on this unit.
When using to a sliding door, it is recommend to make
the air outlet up to air inlet.

CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS
CONTROL PANEL & MULTI-COLOR DISPLAY
MULTI-COLOR DISPLAY
MODE BUTTON
TIMER BUTTON
INCREASE TEMP & TIMER DECREASE TEMP & TIMER
POWER BUTTON
AUTO A/C DEHUM. FAN
FAN SPEED
TIMER ON TIMER OFF
TEMP AND
TIMER
INDICATOR
OSCILLATION ON/OFF COMPRESSOR ON/OFF SLEEP MODE ON/OFFBUCKET FULL
9
FAN SPEED
SWING BUTTON

OPERATING INSTRUCTIONS
CONTROL PANEL BUTTONS (Refer to the images on page 9)
1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER
button once more to turn the unit off.
2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Auto mode,
Air Conditioner, Dehumidifier, and Fan.
3) Fan Speed Control - Press the FAN SPEED Button to cycle through the different fan speeds: High,
Medium, and low. The fan speed can be visually distinguished by the speed of the digital air segments
progressing out from the windmill fan image on the Multi-color display.
4) Temperature - Select the desired temperature by pressing either ▼or ▲ button when using the unit in
cooling mode. The temperature indicator flashes to display the desired temperature setting. After the tem-
perature is set, the unit will display this temperature setting until it is changed by the user. The Multi-color
display shows temperature in Celsius or Fahrenheit. Press the ▼or ▲ buttons simultaneously on the con-
trol panel to select the desired temperature setting.
5) Timer - Turn the unit on - To program the unit to automatically turn on , press the TIMER button
when the unit is off. Once the TIMER button is pressed, the Timer On icon will flash in the multi
-color display. Choose the preferred time for the unit to turn on (between 1-24 hours) by pressing the ▼or
▲ buttons. Once you have chosen the desired time, the Timer On icon will flash for 3 seconds then remain
lit until the unit turns on.
6) Timer - Turn the unit off - To program the unit to automatically turn off, press the TIMER button when
the unit is on. Once the TIMER button is pressed the Timer Off icon on the display on the unit will flash
“ ”. Press the ▲or ▼buttons to change the clock to the desired time for the unit to
automatically turn off. The TIMER indicator will flash for 3 seconds to activate your programmed time
then remain solid until the unit automatically shuts down.
7) Swing - To start horizontal oscillation, press the Swing button once. ‘‘ “ icon will appear on the
multi-color display. To stop oscillation, press the Swing button again. Vertical air flow direction can be
adjusted manually.
NOTE: The timer will remember your settings when it is set. If you set the timer while in Air Conditioning
mode, the timer will automatically turn the unit on and off in air conditioning mode according to the desired
programmed times. The timer will also remember the temperature settings, fan speed, and oscillation setting.
The timer works when the unit is in Air Conditioner mode, Dehumidifier mode, Fan mode, and Auto mode.
10

OPERATING THE UNIT USING THE CONTROL PANEL
Air Conditioner Mode
1) Install the exhaust hose and window kit properly (see pages 7 & 8).
2) Plug the Power Cord into an electrical outlet.
3) Turn on the unit by pressing the POWER button on the control panel.
4) Press the Mode button until the “ ” icon appears on the Multi-color display
5) Press the ▲or ▼buttons until the desired room temperature appears on the control panel
display. The temperature ranges from 61°F - 88 °F (16 °C - 31 °C).
6) Select the desired fan speed by pressing the FAN SPEED button.
NOTE: During hot days, the unit will cool the room most efficiently by setting the temperature at the lowest
setting and the fan speed on high. Reducing the length of the exhaust duct, insulating the exhaust hose and
window kit, and keeping direct sunlight to a minimum will also improve the cooling efficiency.
NOTE: When the unit is running on cooling mode, the exhaust hoses are required and must be
vented outside using the supplied window kit.
Dehumidifier Mode
1) Install the exhaust hoses and window kit properly (see pages 7 & 8).
2) Plug the Power Cord into an electrical outlet.
3) Turn on the unit by pressing the POWER Button on the control panel.
4) Press the MODE button until the “ ” appears on the control panel display.
NOTE: The unit operates at low fan speed during dehumidifier mode. The unit cools room slightly during
the dehumidification. Keep the windows and doors closed to aid the effectiveness of the unit in removing the
moisture from the room.
NOTE: When the unit is running in dehumidifier mode, the exhaust hoses are required and must
be vented outside using the supplied window kit.
NOTE: The unit will not perform in dehumidifier mode when the room temperature is lower than 61°F .
Fan Mode
1) Plug the Power Cord into an electrical outlet.
2) Turn on the unit by pressing the POWER button on the control panel.
3) Press the MODE button until the “ ” icon appears on the control panel display.
4) Select the fan speed by pressing the FAN SPEED button.
5) To circulate more air, press the SWING button on the remote control. The louvers will oscillate in our
exclusive WAVEFLO® pattern; back and forth and up and down, spreading more air throughout the
room.
NOTE: It is not necessary for the exhaust hoses and window kit to be installed to operate the unit in fan mode.
11

Auto Mode
1) Install the exhaust hoses and window kit properly (see pages 7 & 8).
2) Plug the Power Cord into an electrical outlet.
3) Turn on the unit by pressing the POWER button on the control panel.
4) Press the MODE button until the “ ” icon appears on the control panel display. Select the fan speed
by pressing the FAN SPEED button.
NOTE: During AUTO mode, the unit operates in Dehumidifier mode when the room temperature is between
68 °F to 80 °F. The unit will operate in Air Conditioner mode when the room temperature is above 80 °F. In
Auto mode, the fan speed cannot be manually changed.
Sleep Mode (This mode can only be selected when using the Remote control )
1) To set Sleep mode, make sure the unit is in Air Conditioner mode.
2) Press the SLEEP Button on the remote control. The “ ” icon appears on the control panel display.
3) When in SLEEP mode, the fan will run on low to keep fan noise at a minimum.
4) When in Air Conditioner mode, the temperature setting will gradually increase to 2°F above the original set
temperature for 6 hours. After 6 hours the temperature setting will return to the set temperature.
5) When in Dehumidifier mode, the temperature will not change when Sleep mode is selected.
Compressor Indicator
The “ ” icon will light up on the control panel display when the compressor turns on. The “ ” icon will
turn off when the compressor shuts off.
12

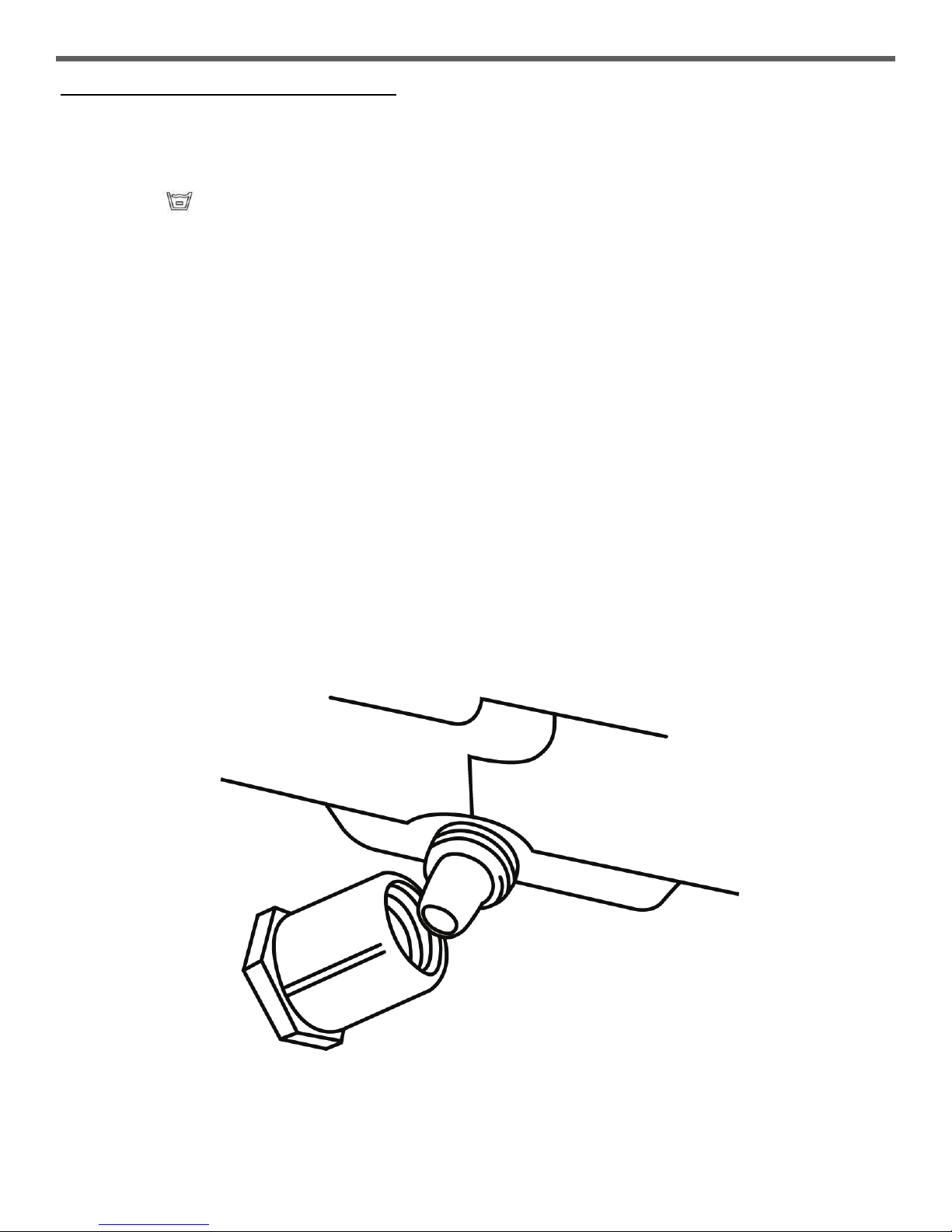

Emergency Condensate Holding Tank
When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to
evaporate some of the moisture fast enough. When this happens, the water will accumulate in an emergency
condensate tank inside the unit. Once the emergency condensate tank is full, the unit will automatically shut
off and the “ ” will appear on the control panel display. To empty the condensate tank, unscrew the screw
plug at the bottom back of the unit. You will need a small pan, approximately 1” high to catch the water com-
ing out of the condensate tank. Once the condensate tank is drained, the unit will begin working within a few
minutes. The emergency condensate tank holds approximately 1.5 Liters of water. Another option is to pur-
chase a small hose from a hardware store that can fit around the 5/8” drain plug on the back of the unit and
drain the unit into a gravity drain or larger pan for continuous drainage.
To resume operation quickly, empty the water container according to the following steps:
1. Turn the unit off. Do not move the unit when the water container is full.
2. Place the drain pan accessory under the drainage port at the back of the unit.
3. Remove the screw plug from the drain hole. The condensate water will drain out automatically. When the
drain pan is full, screw the screw plug back onto the drainage hole to stop the water flow. Empty the drain
pan. Repeat until all the water is emptied.
Once the water container has been emptied, screw the plug back onto the drain hole. Do not allow the
water to drip continuously into the drain pan, as it might easily overflow.
13

REMOTE CONTROL OPERATING INSTRUCTIONS
1) Power On and Off - Press the ON/OFF button on the remote to turn the unit on or off.
2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Auto, Air
Conditioner, Dehumidifier, and Fan only mode.
3) Fan Speed - Press the FAN button to cycle through low, medium, and high fan speeds.
4) Temperature Setting - When the unit is in Air Conditioner mode you can select your desired tempera-
ture. Press the ▲or ▼to select your desired temperature setting. The temperature on the multi-color
display on the control panel will increase or decrease accordingly. Pressing the °F/°C button will change
the temperature select between °F and °C.
5) Sleep Mode - See “SLEEP MODE” on page 12.
6) Swing - To turn on oscillation, press the SWING button on the remote control. Once you press SWING,
the louvers on the unit will oscillate back and forth.
7) Timer - To program the unit to turn on, press the TIMER button on the remote control when the unit is
OFF. Press the ▲or ▼buttons to change the clock to the desired time for the unit to automatically turn
on. Timer On indicator on the display will flash for 3 seconds to activate your programmed Turn On
time. To program the unit to turn off, press the TIMER button when the unit is ON and press the ▲or ▼
buttons to change the clock to the desired time for the unit to automatically turn off. The Timer Off indi-
cator on the display will flash for 3 seconds to activate your programmed Shut Down time.
REMOTE CONTROL TIMER/TEMP INCREASE
FAN SPEED
POWER BUTTON
TIMER BUTTON
TIMER/TEMP DECREASE
SLEEP MODE
MODE BUTTON
°C /°F BUTTON
SWING (LOUVER
OSCILLATION)
OPERATING THE UNIT USING THE REMOTE CONTROL
14

MAINTENANCE
Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to
performing any maintenance on the unit.
Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is
recommended to clean the filter once every two weeks or as needed.
1) Remove the filter from the filter compartment on the back of the unit.
2) Wash the air filter by immersing it gently into warm water with a neutral detergent. Rinse the filter
and dry it thoroughly out of sunlight.
3) Slide the filter back into the filter compartment after it is thoroughly dried.
4) If the filter is torn or unusable, order a new filter by calling the customer service number on the
warranty page of this manual.
Clean the unit Housing
1) Keep the unit from being exposed directly to the sun to prevent color fading.
2) Clean the surface with a damp cloth and dry it with a soft towel.
Storing the Unit for an Extended Period of Time or Transporting the unit
1) Empty any excess water by unplugging the water drainage stop in the back of the unit (located at
the bottom).
2) Unplug the unit.
3) The unit should be stored in a cool dry place.
15

WARRANTY
One Year Limited Warranty
Soleus International Inc. warrants the accompanying Soleus Air PE2-08R-62 / PE2-10R-32 Portable Air Conditioner to
be free of defects in material and workmanship for the applications specified in its operation instruction for a period of
ONE (1) year from the date of original retail purchase in the United States.
If the unit exhibits a defect in normal use, Soleus International Inc. will, at its option, either repair or replace it, free of
charge within a reasonable time after the unit is returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a
copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
• Damage, accidental or otherwise, to the unit while in the possession of a consumer not caused by a defect in
material or workmanship.
• Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions
in the instructions.
• Damage to the finish of the case, or other appearance parts caused by wear.
• Damage caused by repairs or alterations of the unit by anyone other than those authorized by Soleus Interna-
tional Inc.
• Freight and Insurance cost for the warranty service.
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE LIMITED TO
ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS INTERNATIONAL INC.
DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO EVENT
SHALL SOLEUS INTERNATIONAL INC’S LIABILITY EXCEED THE RETAIL VALUE OF THE UNIT FOR
BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS UNIT.
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, sal-
vaged, or refurbished products.
As some states do not allow the limitation or exclusion of incidental or consequential damages, or do not allow
limitation on implied warranties, the above limitations and exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state.
For Technical Support and Warranty Service
Please Call [phone]
Or Write To:
Soleus International Inc.
20035 E. Walnut Dr. North,
City of Industry, CA 91789 USA
www.soleusair.com
16
