OPERATING AND INSTALLATION MANUAL
Model: KFIHP-09-ID / KFHHP-09-OD
KFHHP-12-ID / KFHHP-12-OD
Thank you for selecting Soleus Air. To ensure proper
operation, please read this manual and keep it for
future reference.
Indoor Unit.
Outdoor Unit.

TABLE OF CONTENTS
STRUCTURE AND OPERATION...……………………..……………………………………….....1-8
Name of Each Part…………………………………………………………….………..………...……1
The Instructions before Use…………………………………………………………………………2-3
Specifications and Technical Data……………………………….……..……………….…………….4
Remote Control Operation………………………………………………….….…...............………5-6
How to Insert Batteries……………………………………………..………………….………...……7
Operation………………………………………………………………………………………...……8
INSTALLATION...……………………..……………………………………………………...........9-14
Installation Location………………………………………………….………………………………9
Electric Wiring………………………………………....………………………………...….……….10
Grounding Requirement…………………………………………………….…...……..………....….10
Installation Dimension Diagram……………………………………………………….…….………11
Installation…………………………………………………………………………….……….....12-13
Install the Indoor Unit…………………………………………………………………………….....14
Install the Outdoor Unit……………………………………………………………………...…..15-16
Test Operation and Check after Installation……………………………….………………………...17
CARE AND MAINTENANCE……………………………………………...………..…….……...…18
Care and Maintenance ………………………………………………………....………….…….18-19
Trouble Shooting………………………………….………………………………………..……20-21
ELECTRICAL SCHEMATIC DIAGRAM…………………………………...………..…………22-23
Electrical Schematic Diagram (Indoor Unit)…………………………...……………......………….22
Electrical Schematic Diagram (Outdoor Unit)………..……………………….……………………23
WARRANTY…………………………………………………………………………………………24
Thank you for selecting Soleus Air. To ensure proper operation, please read this
manual and keep it for future reference.
Danger Caution. This mark indicates a direction/procedure that
must be followed!

- 1 -
Structure and Operation

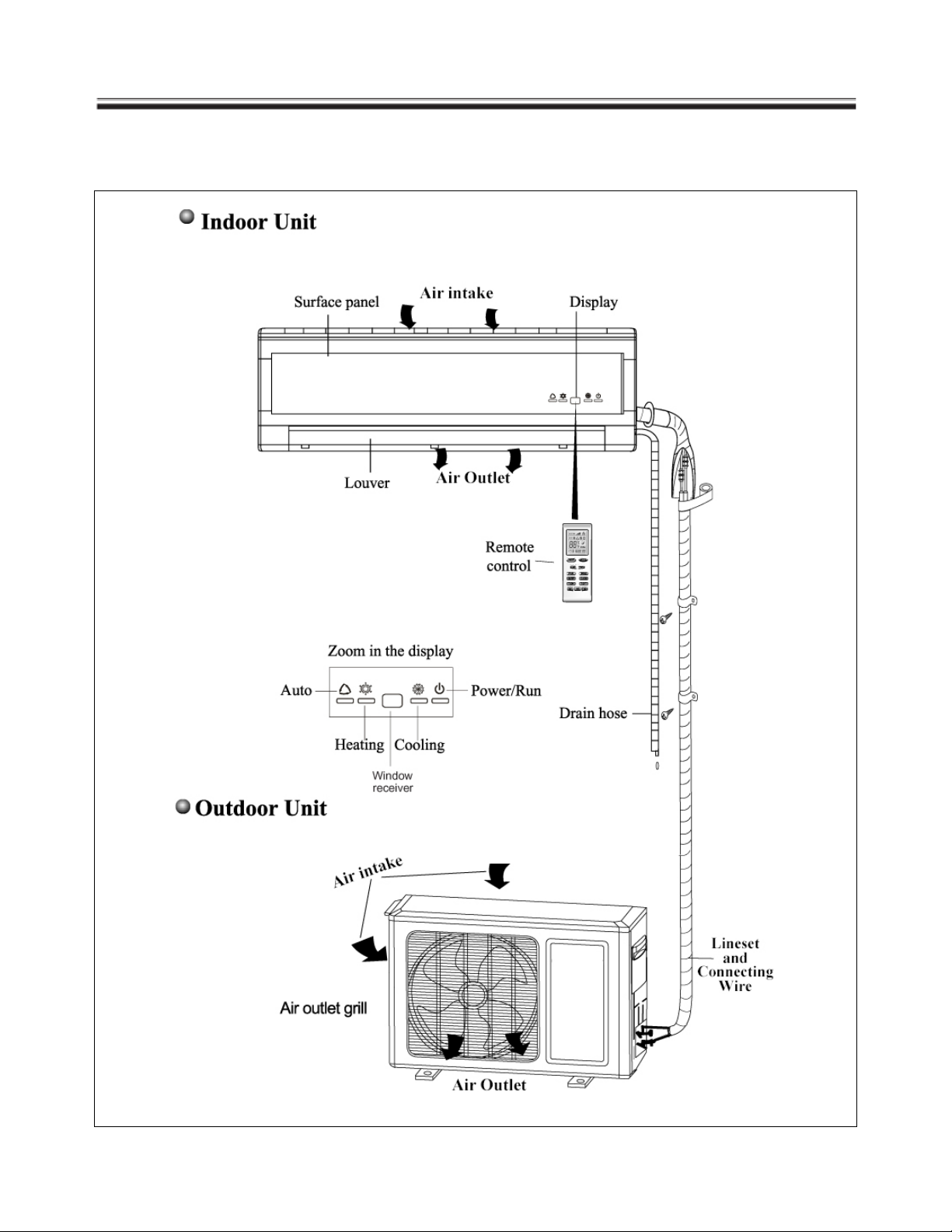

◆Name of Each Part

- 2 -
◆The Instructions before Use

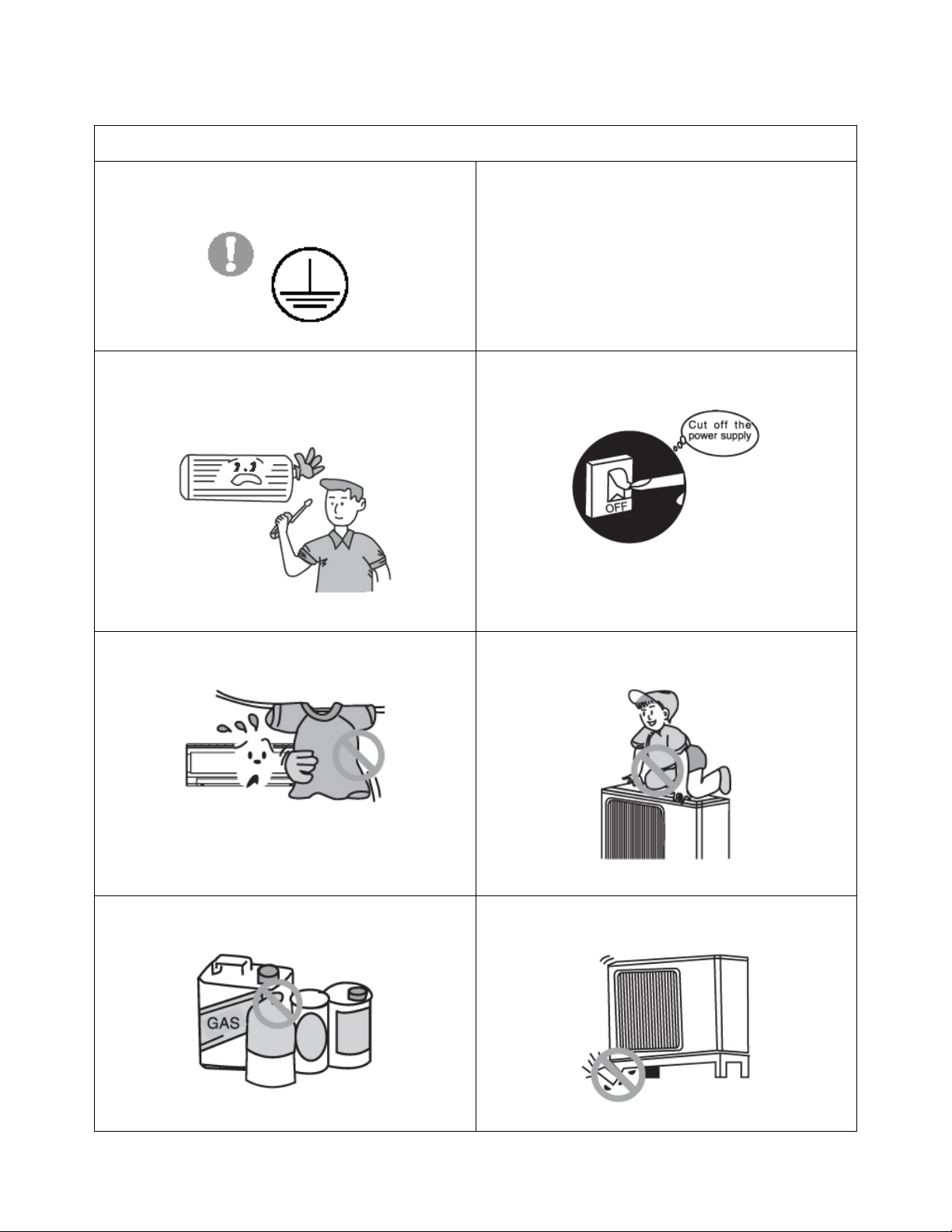

Warning
★Grounding: The unit must be properly
grounded.
★Disconnect the power when the unit is not being
used for extended periods of time.
★Don’t attempt to repair the air conditioner by
yourself. There are no user replaceable parts.
Please contact your authorized dealer.
★If your air conditioner malfunctions,
discontinue use and call your authorized dealer.
★Never block the air inlet or outlet of indoor and
outdoor unit.
★Don’t step on the top of the outdoor unit or
place something on it.
★Never store flammable liquids near your air
conditioner.
★The condensing unit should be securely
mounted to avoid damage.

- 3 -
◆The Instructions before Use

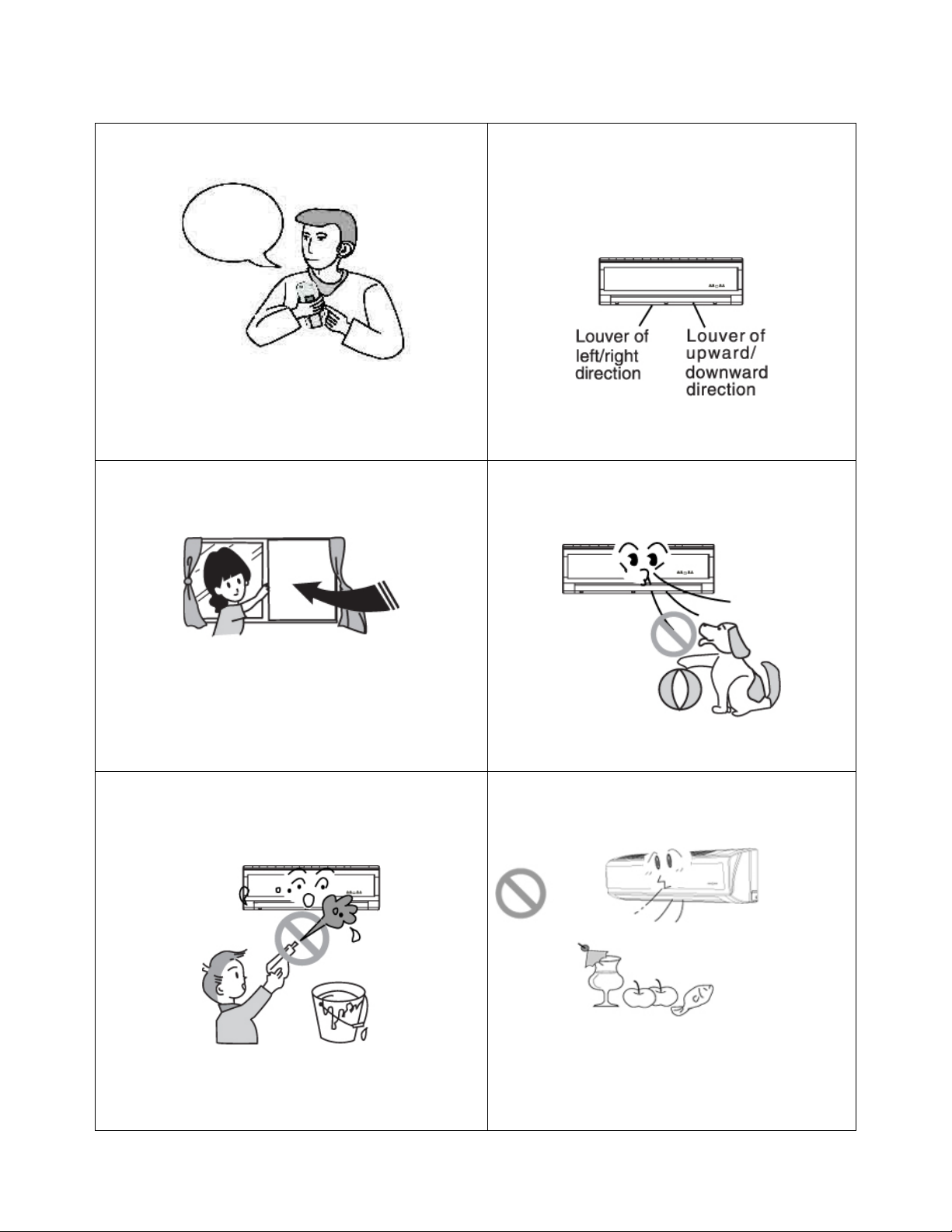

★Set the room temperature appropriately.
★Adjust the air flow and direction properly.
When the air conditioner is running, you can
press the SWING key on the remote control to
adjust the guide louver and change the
direction of air flow.
★Close all doors & windows for efficient
operation.
★To avoid harm to your pets or plants, never
direct the airflow at them.
★To avoid damage or electric shock, never spray
liquid onto the unit.
★This air conditioner cannot be used for
drying clothes or refrigerating foods.
The difference
between indoor
and outdoor
temperature
shall be 40 °F.

- 4 -
◆Specification and Technical Data
Model
KFIHP-09-ID
KFIHP-09-OD
KFHHP-12-ID
KFHHP-12-OD
Function Cool / Heat
Accessory Air Cleaner
Cooling capacity (Btu/h) 9000 12000
Heating capacity (Btu/h) 9500 13000
Power Supply (V) 115V~ 208~230
Frequency (Hz) 60
Cooling/Heating rated current(A) 12/13.6 9/10
Cooling/Heating rated power(W) 1250/1450 1700/1750
Cooling/Heating power input(W) 730/840 1100/1200
Recycling air Volume（ m
3
/h ）550
Refrigerant and weight(lbs) R410A 2.6 lbs R410A 2.8 lbs
Water proof level IP24
Noise(Indoor/Outdoor)dB(A) 43/55
Climate type T1
Anti-electric shock protection I
Weight Indoor/Outdoor)(lbs) 24.3/99.2 24.3/99.2
Dimensions
(W x D x H) Indoor unit 30.31”×7.48”×9.84” 32.68”×8.86”×11.22”
Outdoor unit
33.39”×12.6”×21.26” 33.39”×12.6”×21.26”
Connection Pipe:
Length (ft) 19.68
Gas additional charge(oz/ft) 0.16
Liquid Pipe (mm) Φ6(1/4”)
Outer Diameter Gas Pipe (mm) Φ12(1/2”)
Height (ft) 16.4
Max Distance Length (ft) 49.21
1. All above are tested and certified to ETL specification.
2. All above could be changed without notice; the latest specifications are on the nameplate of your air conditioner.
3. When the unit is restarted after it stopping, it can automatically resume the last running mode, and the outdoor unit
starts later.
Working temperature range:
Indoor side DB/WB(°F) Outdoor side DB/WB(°F)
Maximum cooling 89.6 / 73.4 109.4 / 78.8
Minimum cooling 69.8 / 59 69.8 / -
Maximum heating 80.6 / - 75.2 / 64.4
Minimum heating 68 / - 23 / 21.2

- 5 -
◆Remote Control Operation

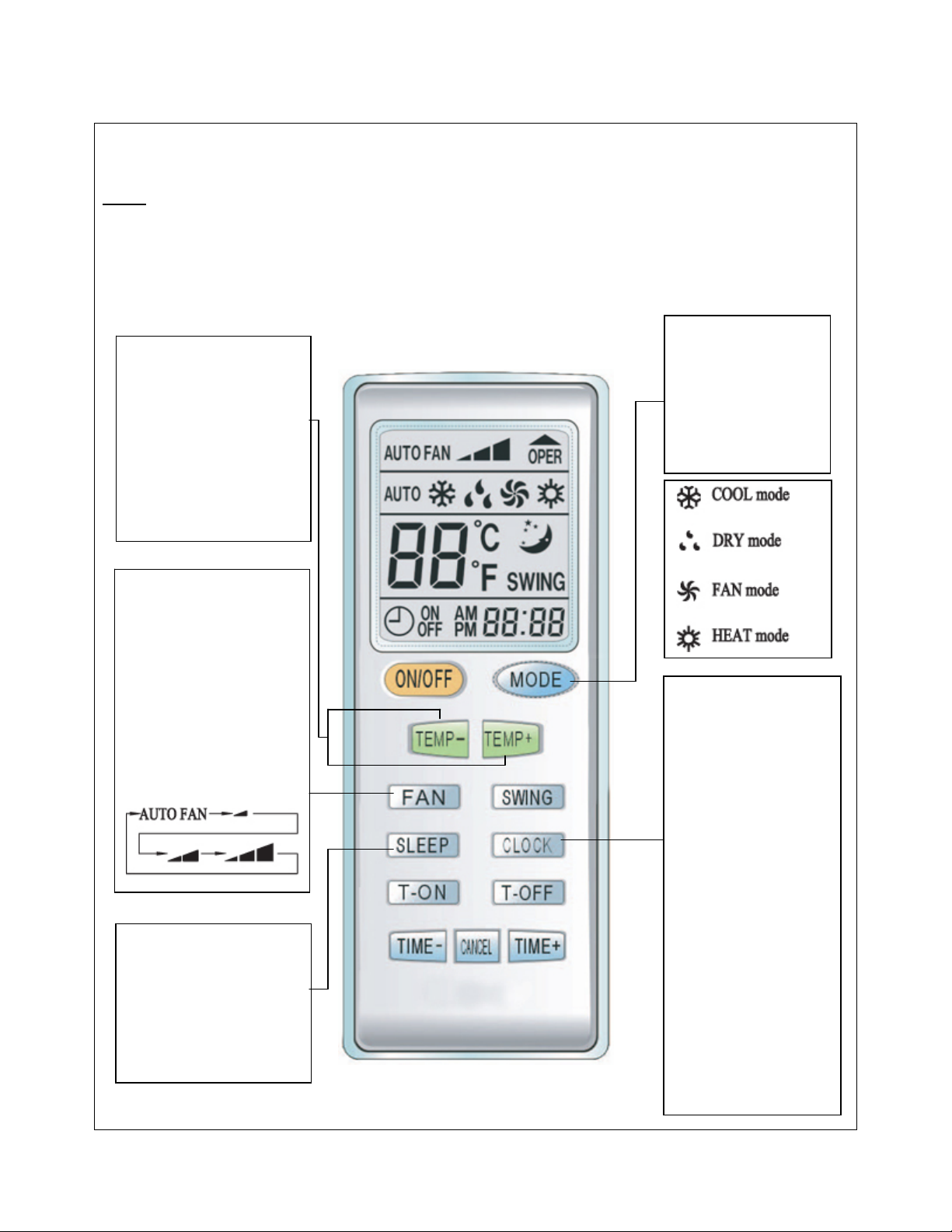

Function-Remote control
Note:
•Don't drop the remote control.
•Don't place the remote control in a location exposed to direct sunlight.
•When the unit is restarted after stopped, it will automatically resume its last running mode, and the
outdoor unit will start there after.
TEMP+ TEMP- Button:
Under the COOL, DRY,
FAN or HEAT mode,
press these two buttons
could set the temperature,
the temp. setting range is
60.8°F -86°F, the temp.
can be memorized under
each mode.
FAN SPEED Button:
When the unit starts up,
under the AUTO, COOL,
FAN or HEAT mode, press
this button and select Auto
fan, Low fan, Middle fan,
High fan. At DRY mode,
the fan speed runs at Low
fan speed. The FAN
SPEED can be memorized
under various modes.
MODE Button:
When the unit is
turned on, press this
button. The AUTO,
COOL, DRY, FAN or
HEAT mode can then
be selected.
CLOCK Button:
When pressing this
button once, the icon of
CLOCK will flash, and
can be adjusted. At
CLOCK adjustment,
press the TIME+ once,
the ones placed on the
minute will be increased
1, and continuously press
1 sec above, the tens
place on the minute will
be increased 1 in every
half second. When
pressing the TIME-, the
ones placed on the
minute will be decreased
1, and continuously press
1 sec above, the tens
place will be decreased 1
in every half second.
After adjusting please
press the CLOCK button
again for confirming.
SLEEP Button:
Under COOL, DRY &
HEAT mode, press the
button once to start the
SLEEP function, when
pressed again, it will stop.

- 6 -
◆Remote Control Operation (Continued)
Liquid Crystal Display.
It shows all set contents.
ON/OFF Button
Press ON.
Press OFF.
T-ON Button.
When pressing this button
once, enter into T-ON
setting, the icon of T-ON
flash, every press of
TIME+, the time of T-ON
will be increased 1min.
When continuously press 1
sec above, the tens placed
on minute will be
increased 1, every press of
TIME- will be decreased 1
minute, when continuously
press 1 sec above, the tens
placed on minute will be
decrease 1 in every half
second, and it goes round
with 12 hours.
SWING Button:
Press once to have louvers
swing [oscillate]. Press
twice in one second the
panel light will turn on.
Press twice again and the
light will turn off.
T-OFF Button
Press this button once to
enter into T-OFF
setting, the icon of T-
OFF will flash, the T-
OFF button is available
in ON or OFF mode, the
setting method is the
same with T-ON.
CANCEL Button
Pressing this button will
cancel timer.
TIME+ TIME- Button
Function instruction please
refer to T-ON button, T-
OFF button, CLOCK
button.

- 7 -

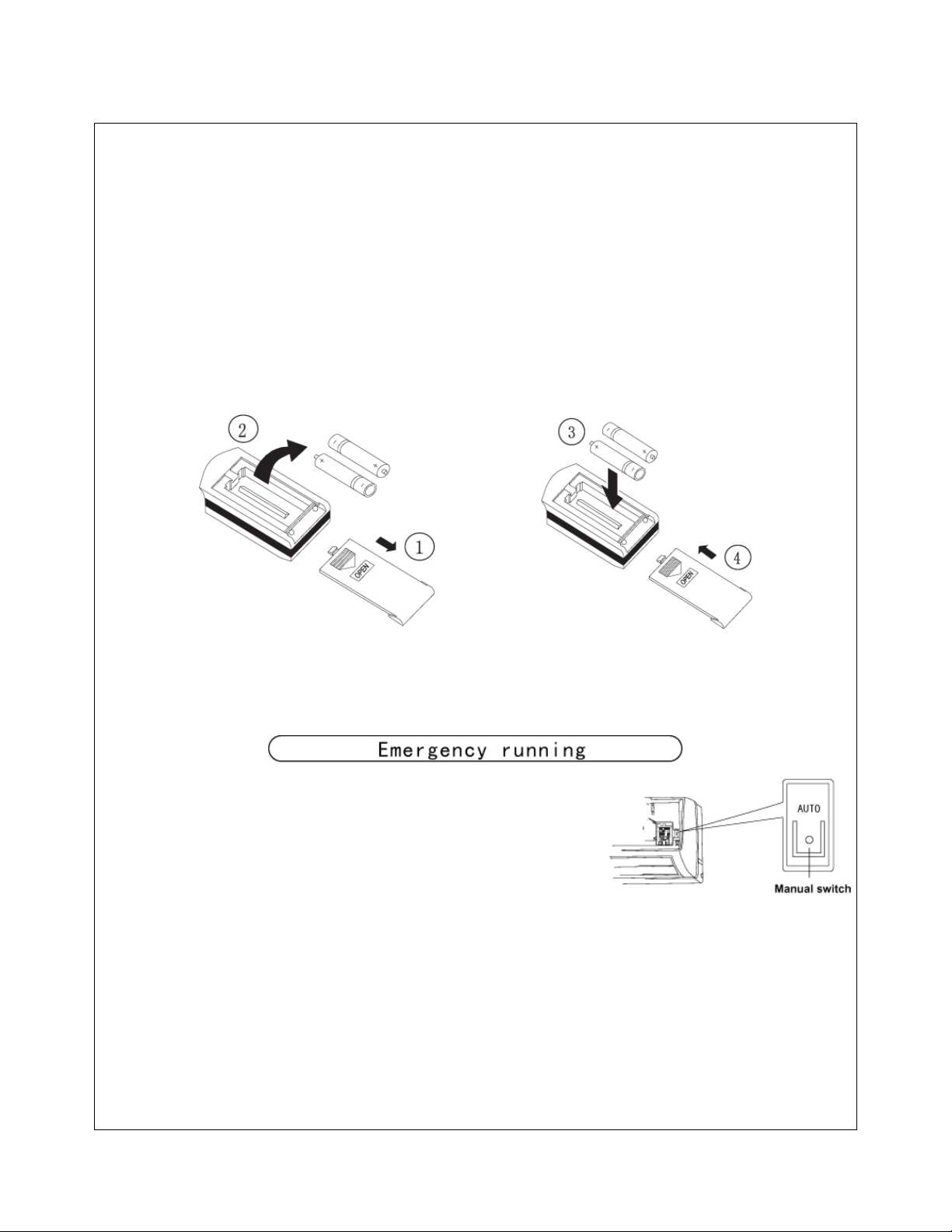

◆How to Insert Batteries
1. Remove the cover from the back of the remote control.
2. Insert the two batteries (Two AAA dry-cell batteries).
3. Re-attach the cover.
NOTE:
•Don’t mix different batteries.
•Remove batteries when not in use for a longtime.
•The batteries can be used for about one year.
•Keep remote at least 3.28 feet from TV’s and other electronic devices.
When the wireless remote control is lost or broken, please use the manual switch,
It will start in AUTO mode, the temperature setting and fan speed cannot
be changed. Please use a ball point pen or similar device to operate switch.
Turn on the unit: By pressing the Manual Switch the unit will start in AUTO automatically.
The microcomputer will adjust to the indoor temperature by selecting (COOL, HEAT, FAN), in order to
achieve a comfortable condition.
•Turn off the unit: When unit is running, press the manual switch STOP button, the unit will stop running.

- 8 -
◆Operation
The general procedure:
1. Power the unit and a buzzer will sound. Power/Run indication is red and the air conditioner is waiting
to run.
(Note: Once the air conditioner plugs to power supply or receives the signal of remote control, the
buzzer will send out the desirable sound.)
2. Press ON/OFF button, Power/Run indication is green and shows the running mode (Cooling, Heating,
and Auto), and then the air conditioner starts running.
3. Press MODE button to select desired running mode.
4. Press SWING button to automatically swing and stop when repress it.
5. Press FAN button to set desired fan speed.
6. Press TEMP. button to set desired temperature.
Procedure for SLEEP mode:
7. Press SLEEP button to set the sleep.
8. Press TIMER button to set the present ON TIME or OFF TIME.
Note:
In AUTO mode, the unit will automatically adjust its running modes according to the room temperature
changes.

- 9 -
Installation
◆Installation Location
Indoor Unit
1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room.
2. Install in a location from which the condensation water can be drained out conveniently and that is
permitting easy connection with the outdoor unit.
3. Avoid a location where there is heat source, steam or inflammable gas.
4. Install in a location where it can withstand the full weight and vibration of the unit.
5. Be sure to leave enough space to allow access for routine maintenance. The height of the installation
should be 7.55 feet or more away from the floor.
6. Install in a location where it is 3.28 feet or more away from other electric appliances such as television,
audio devices, etc.
7. Select a location where it is easy to remove and clean the filter.
8. Be sure that the installation conforms to the installation dimension diagram.
9. The plug should be accessible after the appliance is positioned.
Outdoor Unit
10. Select a location from which noise and outflow air emitted by unit will not inconvenience neighbors.
11. Select a location where there should be sufficient ventilation.
12. The inlet and outlet should not be covered.
13. The location should be able to withstand the full weight and vibration of the outdoor unit and permit
safe installation.
14. There should be no danger of flammable gas or corrosive gas leaks.
15. Be sure that the installation conforms to the installation dimension diagram.

- 10 -

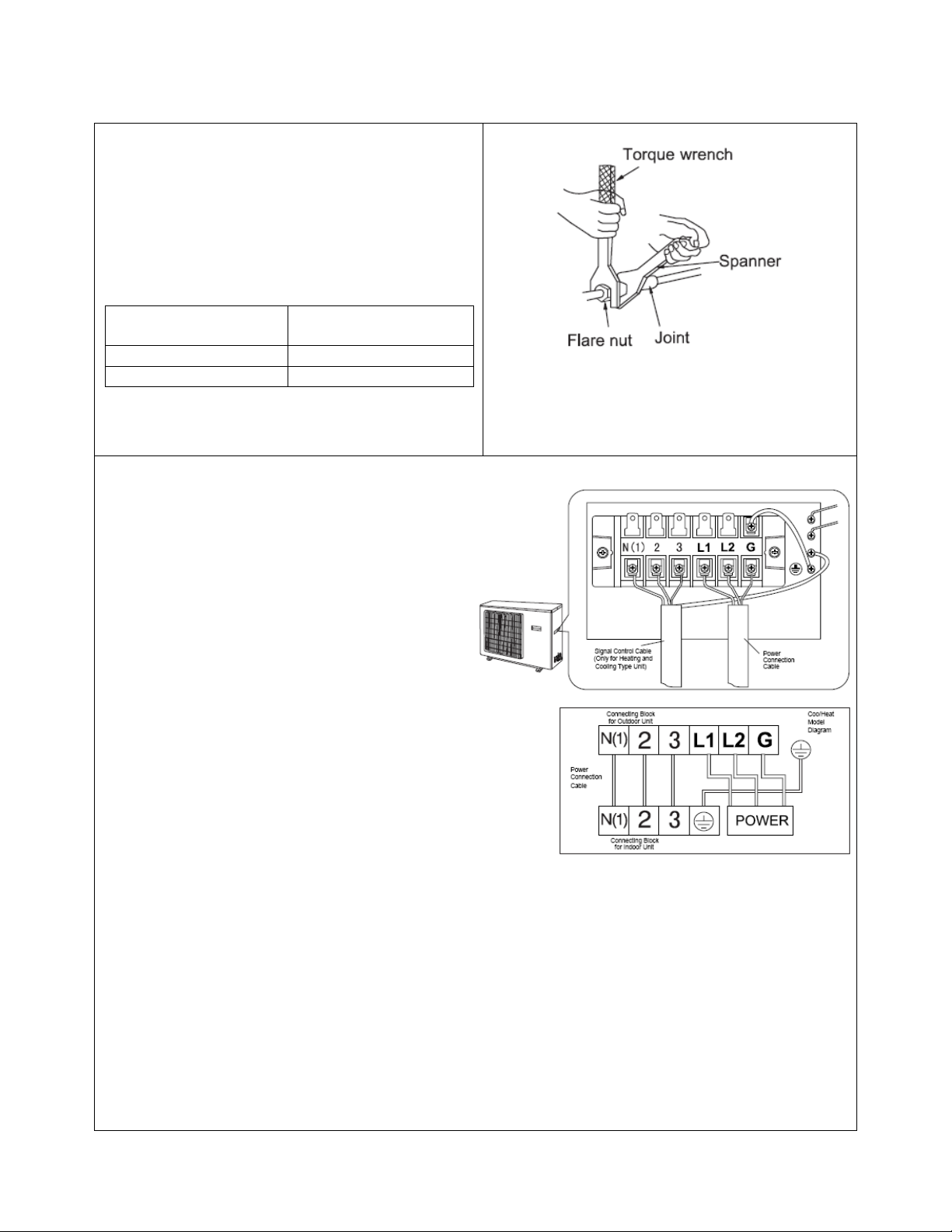

◆Electric Wiring
1. All the electric work must be done according to the wiring diagram.
2. Check for the correct voltage of the unit.
3. Don’t pull the power cord strongly.
4. The air conditioner must be safely grounded! Grounding wire must be connected to the building and
done by the qualified personnel. In fixed circuit, there must be electricity leakage protection switch of
enough power capacity and air switch with enough space. Air switch (thermal-magnetic breaker) can
protect the short circuit and over load.
◆Grounding Requirement
1. The air conditioner is class 1 appliance, so it must connect with ground reliably.
2. The yellow-green wires in the air conditioner are grounding wires and can’t be used for other purposes.
3. The grounding-resistance should conform to the requirement of IEC Standard.

- 11 -
◆Installation Dimension Diagram
Important Notes
The installation must be done by trained and qualified service personnel.
212.6 inch
112.6 inch

- 12 -
◆Installation
•Install the rear panel
1. Always mount the rear panel horizontally.
Because the mouth of drainage pipe is at the left
side and the left side of the rear panel is better to
adjust slightly lower.
2. Fix the rear panel on the selected location with
screws supplied with the unit.
3. Be sure that the rear panel has been fixed firmly
enough to withstand the weight of an adult of
132.3 lbs; furthermore, the weight should be
evenly shared by each screw.
•Install the piping hole
1. Make the piping hole （Φ50）in the wall at a slight downward slant to the out door side. (Shown in
Fig. 1)
2. Insert the piping-hole sleeve into the hole to prevent the connection piping and wiring from being
damaged when passing through the hole.
•Install the drainage hose
1. For well draining, the drain hose should be placed at a
downward slant.
2. Do not wrench or bend the drain hose or flood its end by
water.
3. The extended drainage pipe in the room should be wrapped
with the insulating materials.
•Install the connection pipes
Connect the connection pipes with the relevant union pipes of the indoor unit and tighten the flare nut of the
connection pipes (Shown in P16 “Install the connection pipes”).
NOTE:
1. Connect the connection pipes with the indoor unit first
and the outdoor unit second.
2. Be careful in bending the connection pipes, or you will
damage the pipes.
3. Do not over tighten the flare nut. There is a possibility
of leakage.
•Electric wiring
1. Open the surface panel.
2. Remove the fixed screw from the wiring cover as shown at the right side.
3. Route the power connection cord from the back of the indoor unit and pull it toward the front through
the wiring hole for connection.
50 50

- 13 -
◆Installation
4. Connect the Neutral wire of the power connection cables to the “N (1)”terminal of the terminal
board, connect the Signal wire to the “2” terminal, and connect the live wire to the“3”terminal and
connect the grounding wire to the “ ” terminal.
5. Reassemble the wiring cover and tighten the screw.
6. Recover the surface panel.

- 14 -
◆ Install the Indoor Unit
1. When routing the piping and wiring from the left or right side of the indoor unit, cut off the tailings from
the chassis in necessary (shown in Fig.4 (a), (b) and (c)).
(1) Cut off the tailings 1 when routing the wiring only.
(2) Cut off the tailings 1 and tailings 2 (or tailings 1, tailings 2 and tailings 3) when routing both the
wiring and piping.
①, ②, and ③in Fig. 4 are the recommended piping.
2. Wrap the piping and wiring and pull them through the cut-off-tailings hole (Shown in Fig.5).
3. Hang the mounting slots of the indoor unit on the upper tabs of the rear panel and check if it is secured.
4. The height of the installed location should be 6.56 feet or more from the floor.

- 15 -
◆Install the Outdoor Unit
•Install the connection pipe
1. Align the center of the piping flare with the valve.
2. Screw in the flare nut by hand and then tighten
the nut with spanner and torque wrench refer to
right figure.
Tightening Torque Table
Hex Nut Diameter
(mm)
Tightening Torque
（
N.m）
Φ6 15~20
φ12 50~55
•Electric wiring connection
1. Disassemble the big handle.
2. Remove the wire clamp and connect the end of
the power connection cord with screws to the
wiring terminal board. Be sure that the wiring
connection is in accordance with the indoor unit’s.
3. Fix the wiring with wire clamp. For the heat
pump join the two control cords.
4. Make sure that the wiring has been connected securely.
5. Reassemble the big handle.
NOTE:
1. Incorrect wiring connections will cause electrical malfunction.
2. Do not pull the wire when assembling it with wire clamp.
Note: Exceeding tightening torque will
damage the flare nut.

- 16 -
◆Install the Outdoor Unit
•Air Purging and Leakage Test
1. Remove the flare nuts of charging end from gas valve.
2. Connect the charging hose in the middle to the vacuum
pump, then Low-pressure (Lo) end should be connected
to charging end of gas valve. (Shown in Fig. 9)
3. Open the vacuum pump to evacuate. When multi-meter
indicates 1 bar, fully tighten Lo handle of manifold valve
and stop evacuation. Keep it for over 15 minutes to ensure
the pressure is constant.
4. Remove bonnets of gas and liquid valve.
5. Slightly loosen core of liquid valve with hexagon wrench
until the pressure exceeds 0 bars.
6. Remove charging hose from charging end of gas valve and
screw the flare nuts of charging end.
7. Open cores of gas and liquid valve entirely by hexagon
wrench.
8. Tighten the bonnets of gas and liquid valve, and then test
whether there is any leakage or not.

- 17 -
◆Test Operation and Check after Installation
Test Operation
1. Before Test Operation
(1) Do not switch on power before installation is finished
completely.
(2) Electric wiring must be connected correctly and securely
(3) Cut-off valves of the connection pipes should be opened.
(4) All the impurities such as scraps must be cleared from the
unit.
2. Test Operation Method
(1) Switch on power and press “ON/OFF” button on the remote control to run the air
conditioner.
(2) Press “MODE” button and check the operation condition of COOL, HEAT, SWING mode
and so on.
If Wireless remote control is lost, open the surface panel and operate as following:
a. When turning it to Auto position, unit will run in Auto mode, if there is remote control signal, it will run
at the remote control signal.
b. When turning it to Test position, the main unit will enter into Cool mode, indoor fan will run at high fan
speed, if there is remote control signal, main unit will run at the remote control signal.
c. When turning it to Run position, the main unit will run at received remote control order.
d. When turning it to Stop position, the unit will stop running.
Check after Installation
Items to be checked Possible Malfunction
Has it been properly mounted? The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test? It may cause insufficient cooling (heating) capacity.
Does the unit drain well? It may cause condensation and dripping.
Is the voltage in accordance with the rated
voltage marked on the nameplate? It may cause electric malfunction or damage the part.
Is the electric wiring and piping connection
installed correctly and securely? It may cause electric malfunction or damage the unit.
Has the unit been connected to secure grounding
connection? It may cause electrical leakage.
Has the inlet and outlet been insulated? It may cause insufficient cooling (heating) capacity.
Has the length of connection pipes and refrigerant
capacity been recorded? The refrigerant capacity is not accurate.

- 18 -
Care and Maintenance
◆Care and Maintenance
CAUTION:
Turn power off and pull out the power cord before cleaning air conditioner.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can
cause an electric shock.
Volatile Liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the
units with a dry soft cloth, or a cloth slightly moistened with water or cleanser.)
Clean the front panel (Don’t remove the front panel when cleaning)
When the indoor unit front panel is dirty, please use the cloth which is soaked in the warm water
under 104°F, then dry it and wipe the dirty places.
NOTE:
There are microcomputer components and circuit board on the displayer of the indoor unit front
panel, never let it dip in the water.
Cleaning the Air Filters (Recommended once every three months)
The air filters should be cleaned more frequently in dusty conditions.
1. Take down the air filter
Open the surface panel, hold the tab of air filter
and raise it slightly, and then take it out along the
direction of arrows (See the right figure).
2. Cleaning
To clear the dust adhering to the filters, you can
either use a vacuum cleaner, or wash them with
water and dry it in the shade (See the right
figure).
Note: Never use water above 113°F to wash the filters, or
it could cause deformation or discoloration. Never parch it
by fire, or it could cause a fire or deformation.
