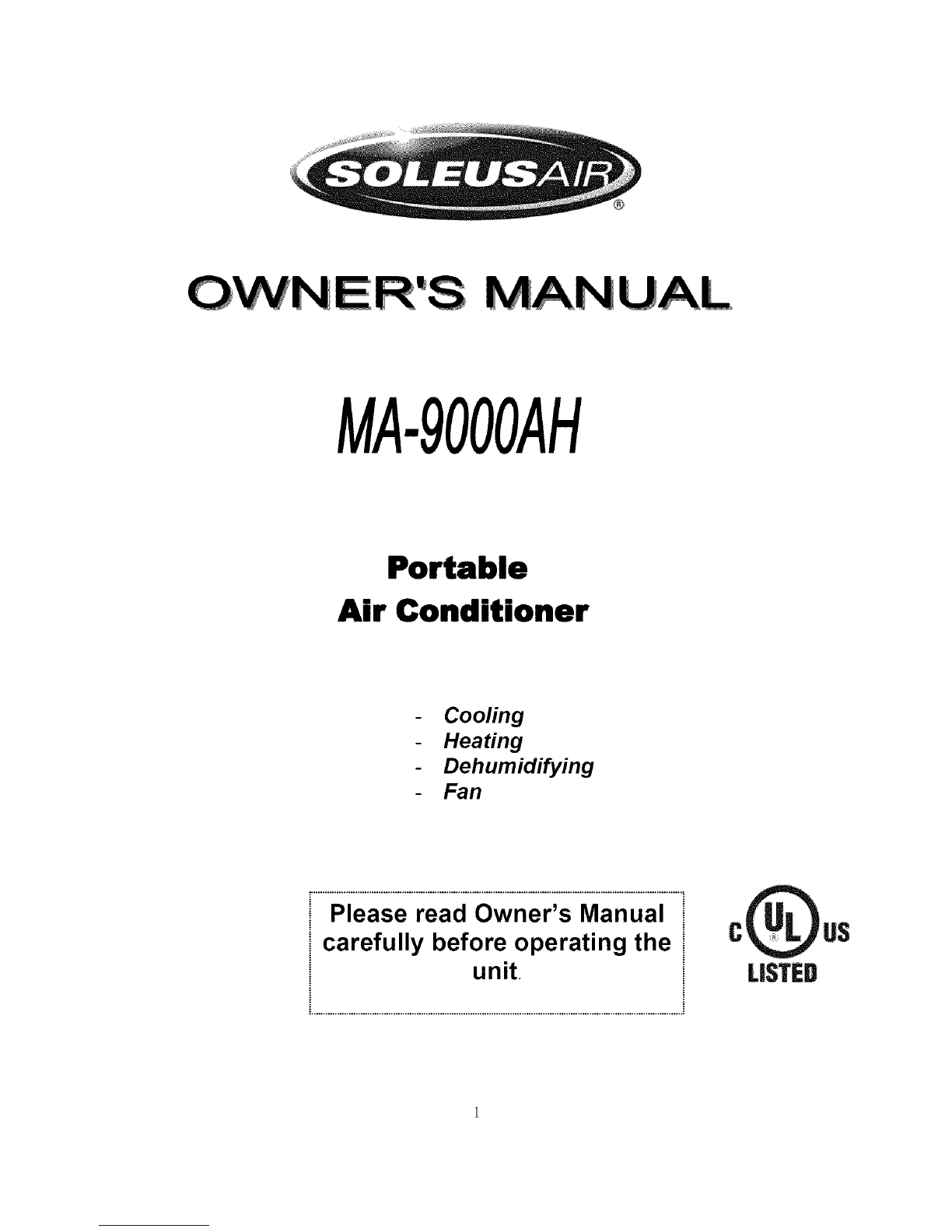

Soleus Air MA-9000AH User manual

MA-9OOOAH
Portable
Air Conditioner
-Cooling
-Heating
-Dehumidifying
-Fan
Please read Owner's Manual
carefully before operating the
unit.

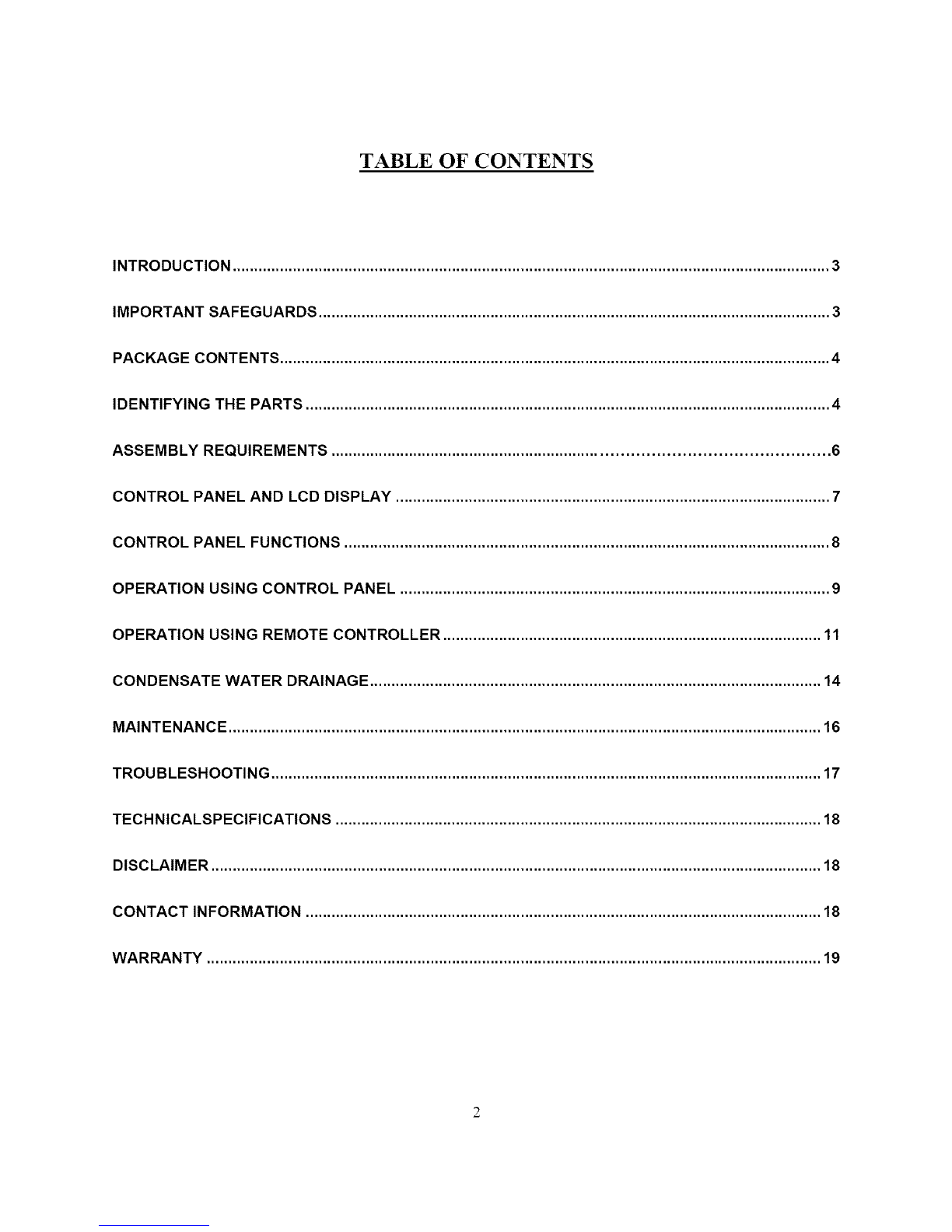

TABLE OF CONTENTS
INTRODUCTION ........................................................................................................................................... 3
IMPORTANT SAFEGUARDS ....................................................................................................................... 3
PACKAGE CONTENTS ................................................................................................................................ 4
IDENTIFYING THE PARTS .......................................................................................................................... 4
ASSEMBLY REQUIREMENTS ........................................................................................................... 6
CONTROL PANEL AND LCD DISPLAY ..................................................................................................... 7
CONTROL PANEL FUNCTIONS ................................................................................................................. 8
OPERATION USING CONTROL PANEL .................................................................................................... 9
OPERATION USING REMOTE CONTROLLER ........................................................................................ 11

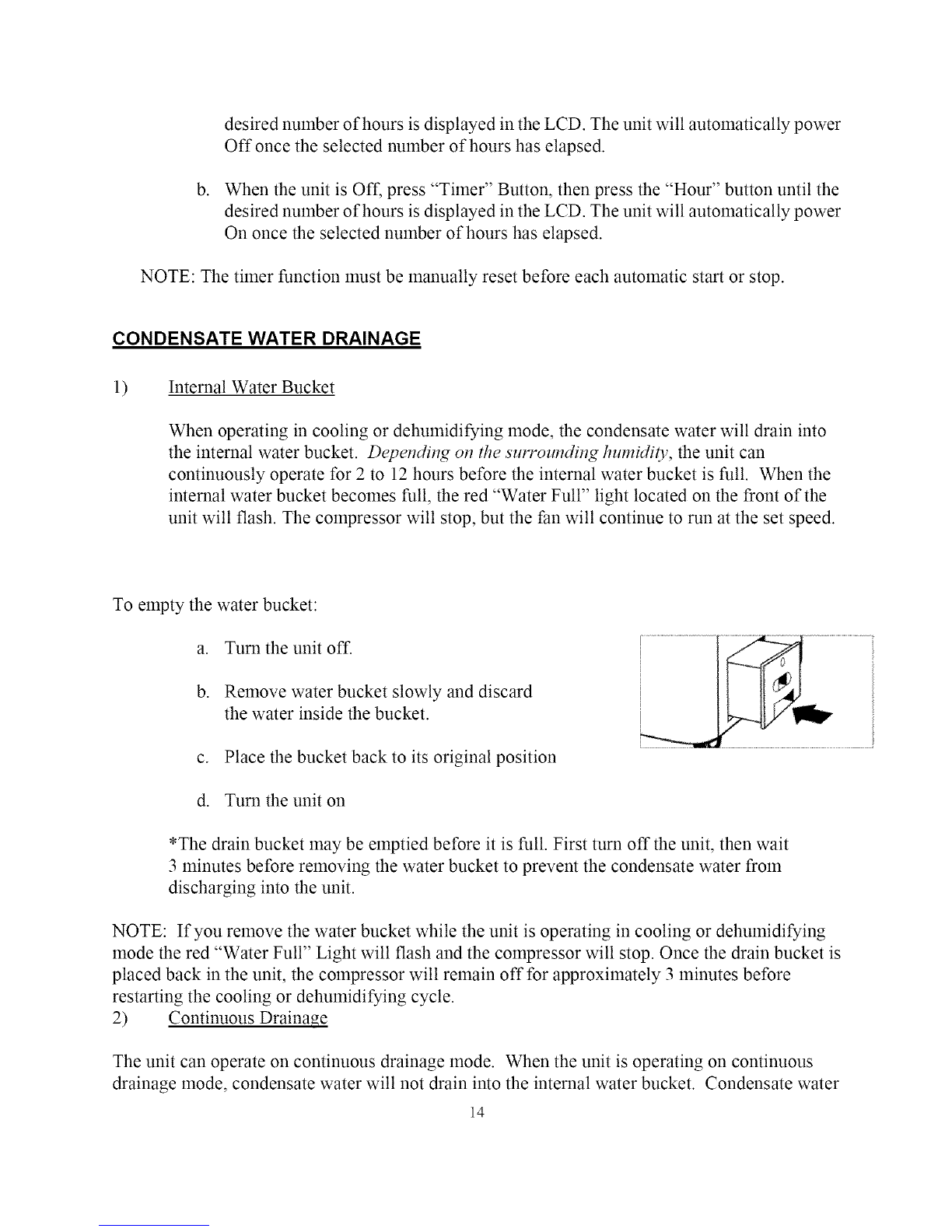

CONDENSATE WATER DRAINAGE ......................................................................................................... 14
MAINTENANCE .......................................................................................................................................... 16
TROUBLESHOOTING ................................................................................................................................ 17

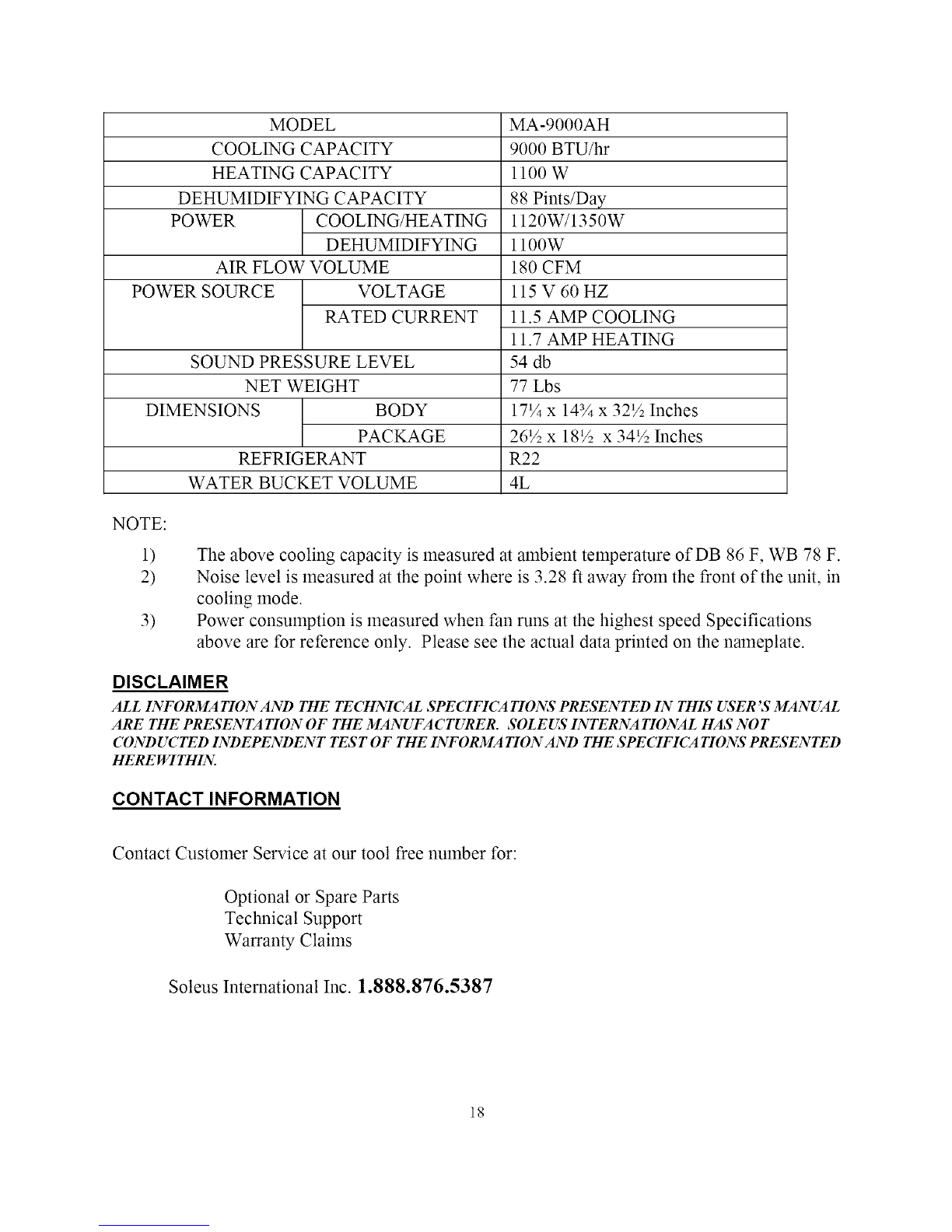

TECHNICALSPEClFICATIONS ................................................................................................................. 18
DISCLAIMER .............................................................................................................................................. 18
CONTACT INFORMATION ........................................................................................................................ 18
WARRANTY ............................................................................................................................................... 19

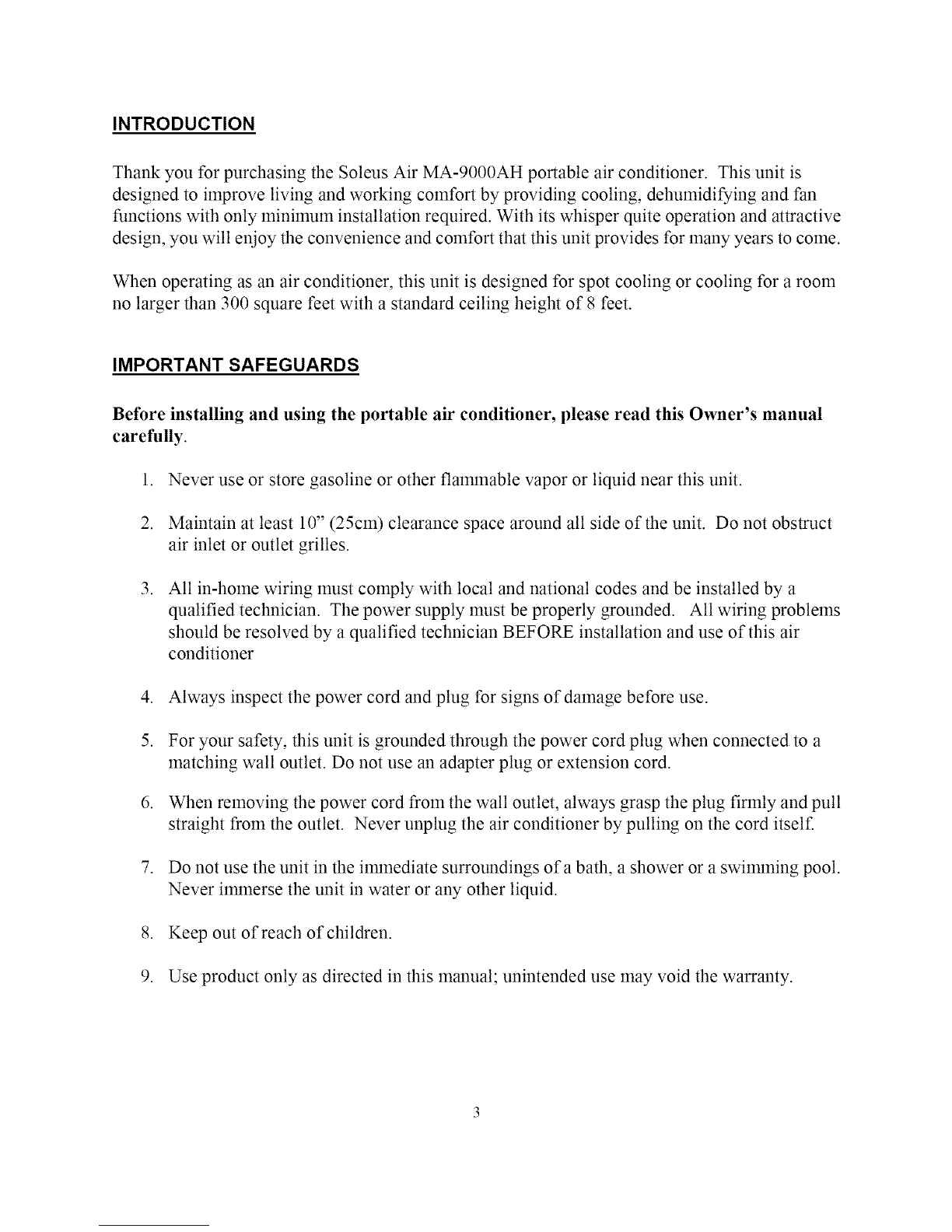

INTRODUCTION
Thank you for purchasing the Soleus Air MA-9000AH portable air conditioner. This unit is
designed to improve living and working comfort by providing cooling, dehumidifying and fan
functions with only minimum installation required. With its whisper quite operation and attractive
design, you will enjoy the convenience and comfort that this unit provides for many years to come.
When operating as an air conditioner, this unit is designed for spot cooling or cooling for a room
no larger than 300 square feet with a standard ceiling height of 8 feet.
IMPORTANT SAFEGUARDS
Before installing and using the portable air conditioner, please read this Owner's manual
carefully.
1. Never use or store gasoline or other flammable vapor or liquid near this unit.
2. Maintain at least 10" (25cm) clearance space around all side of the unit. Do not obstruct
air inlet or outlet grilles.
.All in-home wiring must comply with local and national codes and be installed by a
qualified technician. The power supply must be properly grounded. All wiring problems
should be resolved by a qualified technician BEFORE installation and use of this air
conditioner
4. Always inspect the power cord and plug for signs of damage before use.
.
.
For your safety, this unit is grounded through the power cord plug when connected to a
matching wall outlet. Do not use an adapter plug or extension cord.
When removing the power cord from the wall outlet, always grasp the plug firmly and pull
straight from the outlet. Never unplug the air conditioner by pulling on the cord itself.
7. Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
Never immerse the unit in water or any other liquid.
8. Keep out of reach of children.
9. Use product only as directed in this manual; unintended use may void the warranty.

PACKAGE CONTAINS:
1 Portable Air Conditioner
1 Air Exhaust Duct
1 Window Kit (2 Sliding Panels)
1 Window Kit Adapter
1 Remote Controller
2 AAA Batteries
1 User Manual
IDENTIFYING THE PARTS
Front View
Control Panel --
Up/down Air Swinging
Air Outlet
Left/right Swinging Handle
Water Tank
Caster Cable(power
Cord and Plug)

Rea.r View
Hot Air Outlet Grill .............
Lower Air Inlet Grill ItI,fJtIIIJi
...........................Upper Air Inlet
Grill/Filter
Exhaust Duct
E×h_ust
Duct
Window Kit
Window Kit

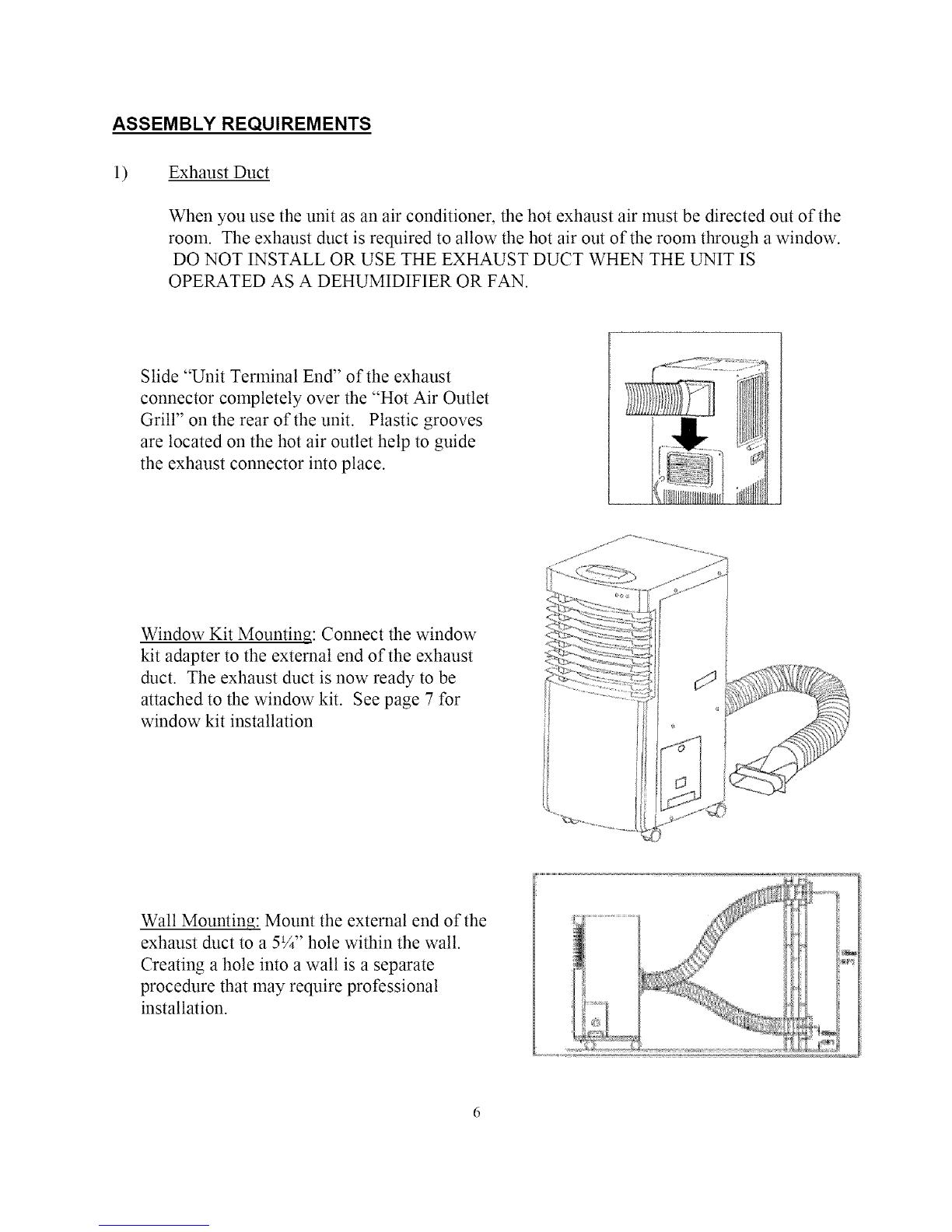

ASSEMBLY REQUIREMENTS
l) Exhaust Duct
When you use the unit as an air conditioner, the hot exhaust air must be directed out of the
room. The exhaust duct is required to allow the hot air out of the room through a window.
DO NOT INSTALL OR USE THE EXHAUST DUCT WHEN THE U_NIT IS
OPERATED AS A DEHUMIDIFIER OR FAN.
Slide "Unit Terminal End" of the exhaust
connector completely over the "Hot Air Outlet
Grill" on the rear of the unit. Plastic grooves
are located on the hot air outlet help to guide
the exhaust connector into place.
Window Kit Mounting: Connect the window
kit adapter to the external end of the exhaust
duct. The exhaust duct is now ready to be
attached to the window kit. See page 7 for
window kit installation
Wall Mounting: Mount the external end of the
exhaust duct to a 5¼" hole within the wall.
Creating a hole into a wall is a separate
procedure that may require professional
installation.

NOTE:In ordertoachievemaximumroomcoolingefficiency,theexhaustductshould
remainasshortandstraightaspossible.Tofurthershortentheexhausthose,firstunthread
eitherexhaustductadapterclockwisetoremoveit. Thencutthehosetodesiredlength. It
isnotrecolmnendedtoincreasethemanufacturer'slengthof theexhausthose.Thismay
reducethecoolingefficiencyordamagetheunit.
2) Window Kit Installation
a. Open window approximately
5 inches (13 cm)
b. Adjust the length of the window kit
to the same length of the window; use both
panels if necessary. The window kit
has a maximum length 50.5 inches.
C. Place the window kit between the window
and the window frame as shown in the
picture to the right. Close the window onto
the window kit to form a tight seal.
d. Attach the exhaust duct window kit adapte
to the window kit. Tabs located on the
adapter will lock into place securing the
adapter to the window kit.
NOTE: Using the window kit will cause the window not to be properly closed and locked.
Additional security measurements should be taken.
CONTROL PANEL AND LCD DISPLAY
CONTROL PANEL
\
DISPLAY
@ @
TIMER TIME TEMP+ MODE TEMP-FAN SPgEB SWIt'_G

! OperNion,mode in_ic8tor_---
HEAT SET FAULT
HIGHMEDLOW_
SWING _'"
eF
Dsplayofpreset,temperaturean_failure_de
•WhenSETis,displayedmedisplayeddigits
indicate_'_edesled tempe[ature,
•WhenFAULTisdisplayed,_e dispi_d digiLs
indicatethecodeoffNures.
[ Displayo_TimeSe_,ting1
IThedisNayeddigits
i_dicatelheremainin#
_me ofonlo#ope[aiion
Control Panel Functions
.
.
.
.
.
Power On/Off Control
Starts or stops the unit
Temperature Settin_ Control
Select the desired temperature setting by pressing either the it_ or _ key. It is
recommended to set the temperature before selecting the Mode Control.
Mode Control
Select the functions of the unit for:
a. Air Conditioning Mode (COOL)
b. Dehumidifying Mode (DRY)
c. Heating Mode (HEAT)
Fan Speed Control
Select the fan speed for:
a. High
b. Medium
C. Low
Timer + Time
Sets the amount of time, in hours, to automatically start or to stop the unit

a. When the unit is On, press "Tilner" Button, then press the "Tilne" button until the
desired number of hours is displayed in the lower right corner of the display
window. The unit will automatically power Off once the selected number of hours
has elapsed.
b. When the unit is Off, press "Tilner" Button, then press the "Time" button until the
desired number of hours is displayed in the lower right corner of the display
window. The unit will automatically power On once the selected number of hours
has elapsed.
NOTE: The timer function must be manually reset before each automatic start or stop.
6. Swing
Activates or deactivates the oscillating louvers
Operation Usinq the Control Panel
1. Cooling Operation
a. Be sure that the drain bucket is properly placed in the unit. If the drain bucket is not
properly secured, the red "Water Full" light located on the front panel will blink
and the unit will not begin cooling.
b. Be sure the exhaust duct properly installed. Refer to page 6 for exhaust duct
installation.
c. Plug the Power Cord to the power outlet.
d. Turn on the unit by pressing the On/Off Button on the control panel.
e. Press the Mode Button until "COOL" appears on the LCD display.
Press the Temperature Button A or _ until the desired room
temperature appears on the LCD. The temperature ranges from
63°F-88°F (17°C-3 I°C). After two seconds the current room
temperature will appear on the LCD screen
NOTE: During hot days, the unit will cool off the room most efficiently by setting the
telnperamre to the lowest setting and the Pan speed to the highest setting (see page 9 for fan
operation). Reducing the length of the exhaust duct, insulating the exhaust duct and keeping
direct sunlight to a minimum will also improve the cooling efficiency.
2. Dehumidifying Operation

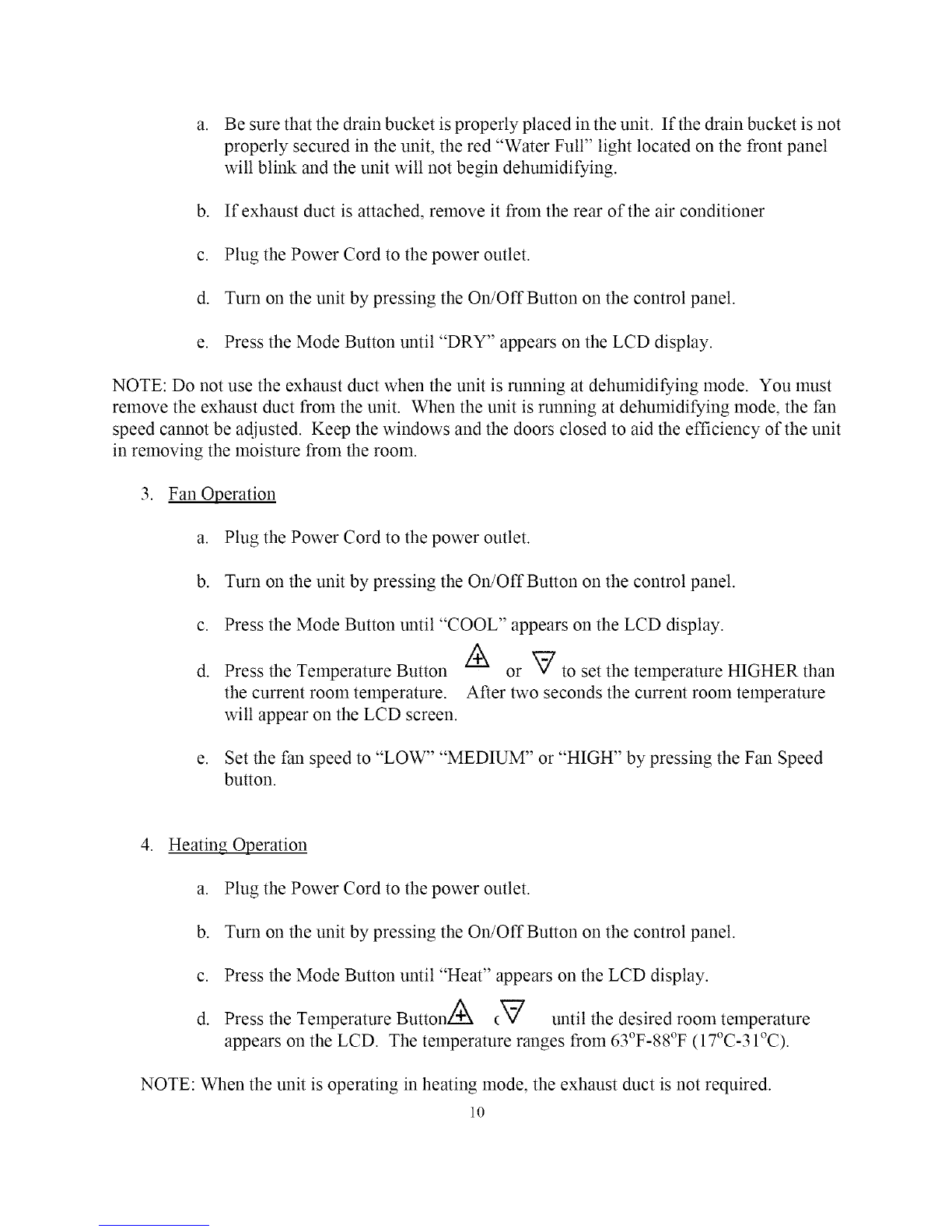

a. Be sure that the drain bucket is properly placed in the unit. If the drain bucket is not
properly secured in the unit, the red "Water Full" light located on the front panel
will blink and the unit will not begin dehumidifying.
b. If exhaust duct is attached, remove it from the rear of the air conditioner
c. Plug the Power Cord to the power outlet.
d. Turn on the unit by pressing the On/Off Button on the control panel.
e. Press the Mode Button until "DRY" appears on the LCD display.
NOTE: Do not use the exhaust duct when the unit is running at dehumidifying mode. You must
remove the exhaust duct from the unit. When the unit is running at dehumidifying mode, the tan
speed cannot be adjusted. Keep the windows and the doors closed to aid the efficiency of the unit
in removing the moisture from the room.
3. Fan Operation
a. Plug the Power Cord to the power outlet.
b. Turn on the unit by pressing the On/Off Button on the control panel.
c. Press the Mode Button until "COOL" appears on the LCD display.
d. Press the Temperature Button
the current room temperature.
will appear on the LCD screen.
or _ to set the temperature HIGHER than
After two seconds the current room temperature
Set the fan speed to "LOW" "MEDIUM" or "HIGH" by pressing the Fan Speed
button.
4. Heating Operation
a. Plug the Power Cord to the power outlet.
b. Turn on the unit by pressing the On/Off Button on the control panel.
c. Press the Mode Button until "Heat" appears on the LCD display.
d. Press the Temperature Buttoni_ (x_7until the desired room temperature
appears on the LCD. The temperature ranges from 63°F-88°F (17°C-3 I°C).
NOTE: When the unit is operating in heating mode, the exhaust duct is not required.
10

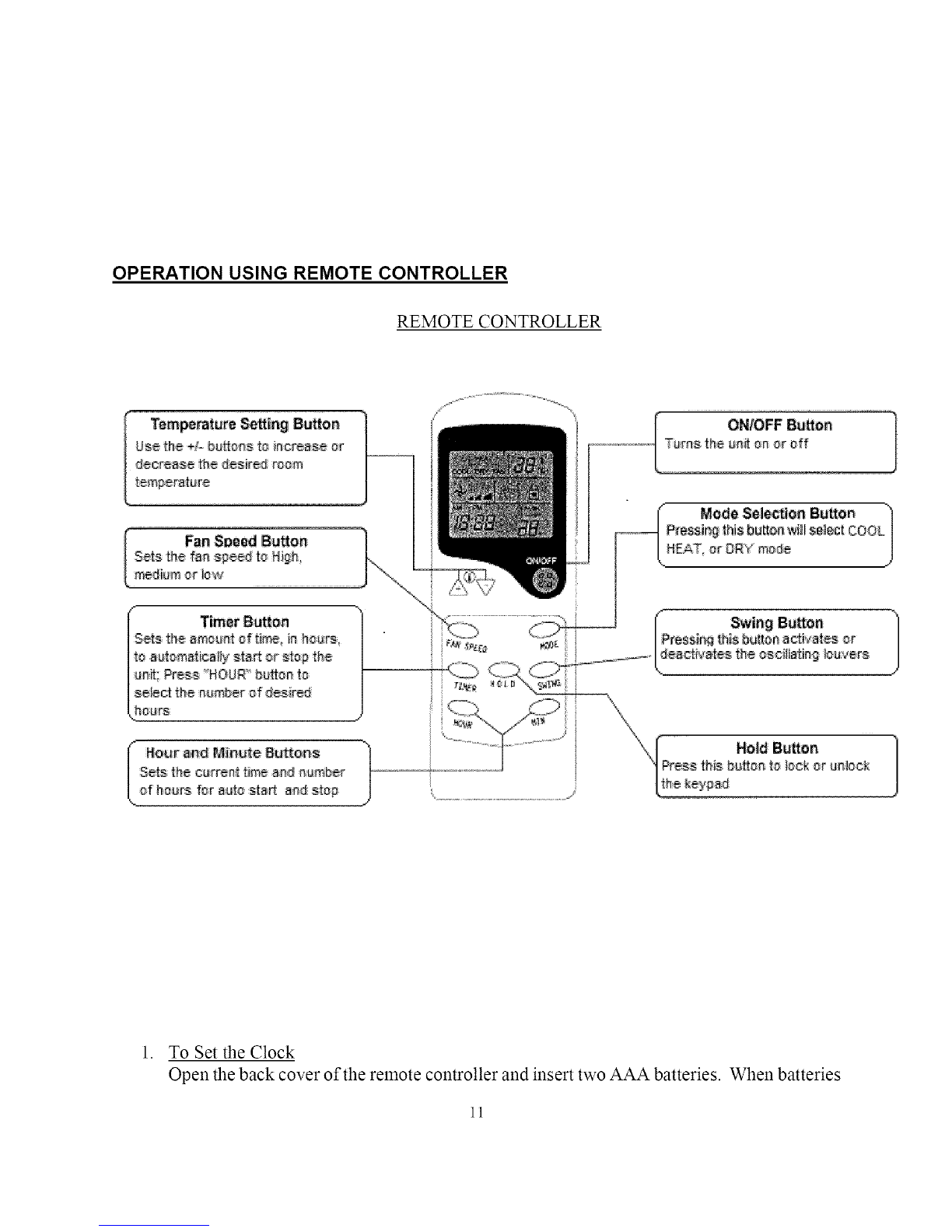

OPERATION USING REMOTE CONTROLLER
REMOTE CONTROLLER
IF;_n Speed Bu_on
Sets the _an sp_e_ t_ H_gh,
m_diwm or _ow
Timer 8ut_o,n
.:S,r_sth_ _mount of tirr_, in h#_rs,
to _u{o matio_R_ystart or sto# th_
an_; Press "HOUR" butto __#
select the #_mber of desired
ho_rs
Bour _nd MinuSe Buttons
Sets the current tim_ and number
of hours for _u_o,sta_ and stop
Swing Bu_on
P_es_ _NSbu_or_acHvatesor
deactivates the oscillating}ouvers
1
1. To Set the Clock
Open the back cover of the remote controller and insert two AAA batteries. When batteries
11

are installed or replaced, the clock is set to 12:00AM. To set present
time:
....... ¸¸¸¸¸¸¸%¸
Press the HOUR huron to Select the hour
nPress the MiN bu_on to Select the minute
----_ IPress the CLK botton again,then reattach
H,,eb,Ckoo er.
2. Cooling Operation
b.
Be sure that the drain bucket is properly placed in the unit. If the drain bucket is not
properly secured, the red "Water Full" light located on the front panel will blink
and the unit will not begin cooling.
Be sure the exhaust duct properly installed. Refer to page 6 for exhaust duct
installation.
c. Plug the Power Cord to the power outlet.
d. Press the ON/OFF key to turn on the unit
e. Press the Mode key until the LCD displays "COOL"
f. Press either _+\, of _ key of the Temperature keyuntil the LCD displays the
desired temperature
g. Press the Fan Speed key until the LCD displays the desired Pan speed.
3. Heating Operation
12

.

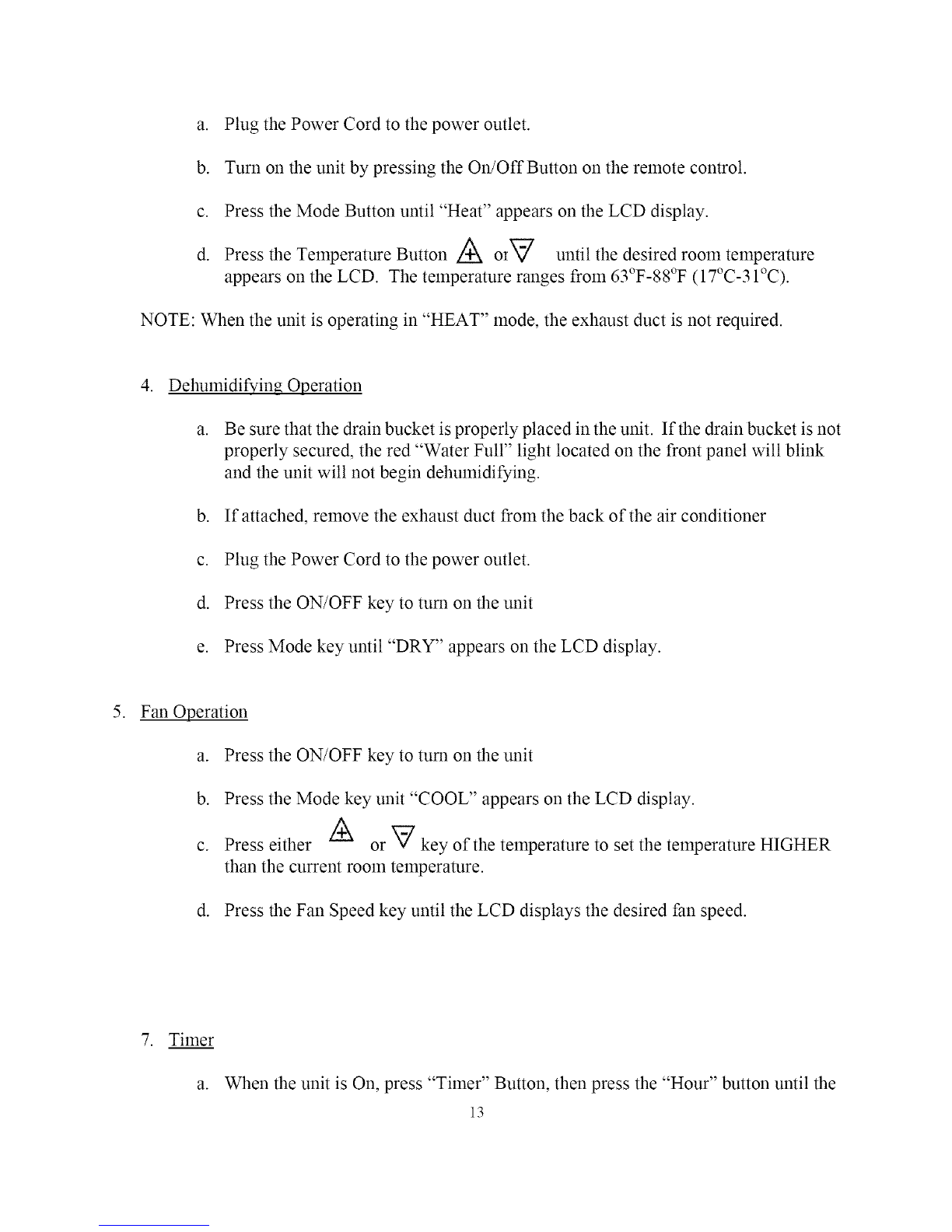

a. Plug the Power Cord to the power outlet.
b. Turn on the unit by pressing the On/Off Button on the remote control.
c. Press the Mode Button until "Heat" appears on the LCD display.
d. Press the Temperature Button /_ ot_ until the desired room temperature
appears on the LCD. The temperature ranges from 63°F-88°F (17°C-3 I°C).
NOTE: When the unit is operating in "HEAT" mode, the exhaust duct is not required.
.Dehumidifying Operation
a. Be sure that the drain bucket is properly placed in the unit. If the drain bucket is not
properly secured, the red "Water Full" light located on the front panel will blink
and the unit will not begin dehumidifying.
b. If attached, remove the exhaust duct from the back of the air conditioner
c. Plug the Power Cord to the power outlet.
d. Press the ON/OFF key to turn on the unit
e. Press Mode key until "DRY" appears on the LCD display.
Fan Operation
a. Press the ON/OFF key to turn on the unit
b. Press the Mode key unit "COOL" appears on the LCD display.
c. Press either _ or _ key of the temperature to set the temperature HIGHER
than the current room temperature.
d. Press the Fan Speed key until the LCD displays the desired Pan speed.
.Timer
a. When the unit is On, press "Timer" Button, then press the "Hour" button until the
13

desired number of hours is displayed in the LCD. The unit will automatically power
Off once the selected number of hours has elapsed.
b. When the unit is Off, press "Timer" Button, then press the "Hour" button until the
desired number of hours is displayed in the LCD. The unit will automatically power
On once the selected number of hours has elapsed.
NOTE: The timer function must be manually reset before each automatic start or stop.
CONDENSATE WATER DRAINAGE
1) Internal Water Bucket
When operating in cooling or dehumidifying mode, the condensate water will drain into
the internal water bucket. Depending o17the surrounding humidity, the unit can
continuously operate for 2 to 12 hours before the internal water bucket is full. When the
internal water bucket becomes full, the red "Water Full" light located on the front of the
unit will flash. The compressor will stop, but the Fan will continue to run at the set speed.
To empty the water bucket:
a. Turn the unit off.
b. Remove water bucket slowly and discard
the water inside the bucket.
c. Place the bucket back to its original position
d. Turn the unit on
*The drain bucket may be emptied before it is full. First turn off the unit, then wait
3 minutes before removing the water bucket to prevent the condensate water from
discharging into the unit.
NOTE: If you remove the water bucket while the unit is operating in cooling or dehumidifying
mode the red "Water Full" Light will flash and the compressor will stop. Once the drain bucket is
placed back in the unit, the compressor will remain off for approximately 3 minutes before
restarting the cooling or dehumidifying cycle.
2) Continuous Drainage
The unit can operate on continuous drainage mode. When the unit is operating on continuous
drainage mode, condensate water will not drain into the internal water bucket. Condensate water
14

is discharged by gravity through a drainage tube (12" length) to either an external hose (not
included) or to a condensate water pump device (not included). When the unit is operating on
continuous drainage mode, it can operate continuously without periodic stops to empty the water
bucket.
To allow continuous drainage:
a. Remove the water bucket from the cabinet.
b.
C.
d.
e.
Find the tube hanging beside the water
bucket inside of the cabinet.
Remove the plug from the end of the tube.
Connect the drainage tubing to a hose. Use a clamp
or adapter (not provided) if necessary
Place the other end of the hose into either an external
water bucket, a floor drain or the intake side of a
condensate water pump.
NOTE: When using the continuous drainage method, the unit will NOT shut off
automatically when an external water bucket is full. Spill water can cause substantial damages
to carpet, floors, furniture and other valuables.
NOTE: Do not use a lengthy drainage hose without a condensate water pump as water may
overflow into the internal drain bucket which requires periodic manual drainage
MAINTENANCE
Note: Before performing any maintenance activities turn the unit off and remove
the power plug from the power outlet. 15

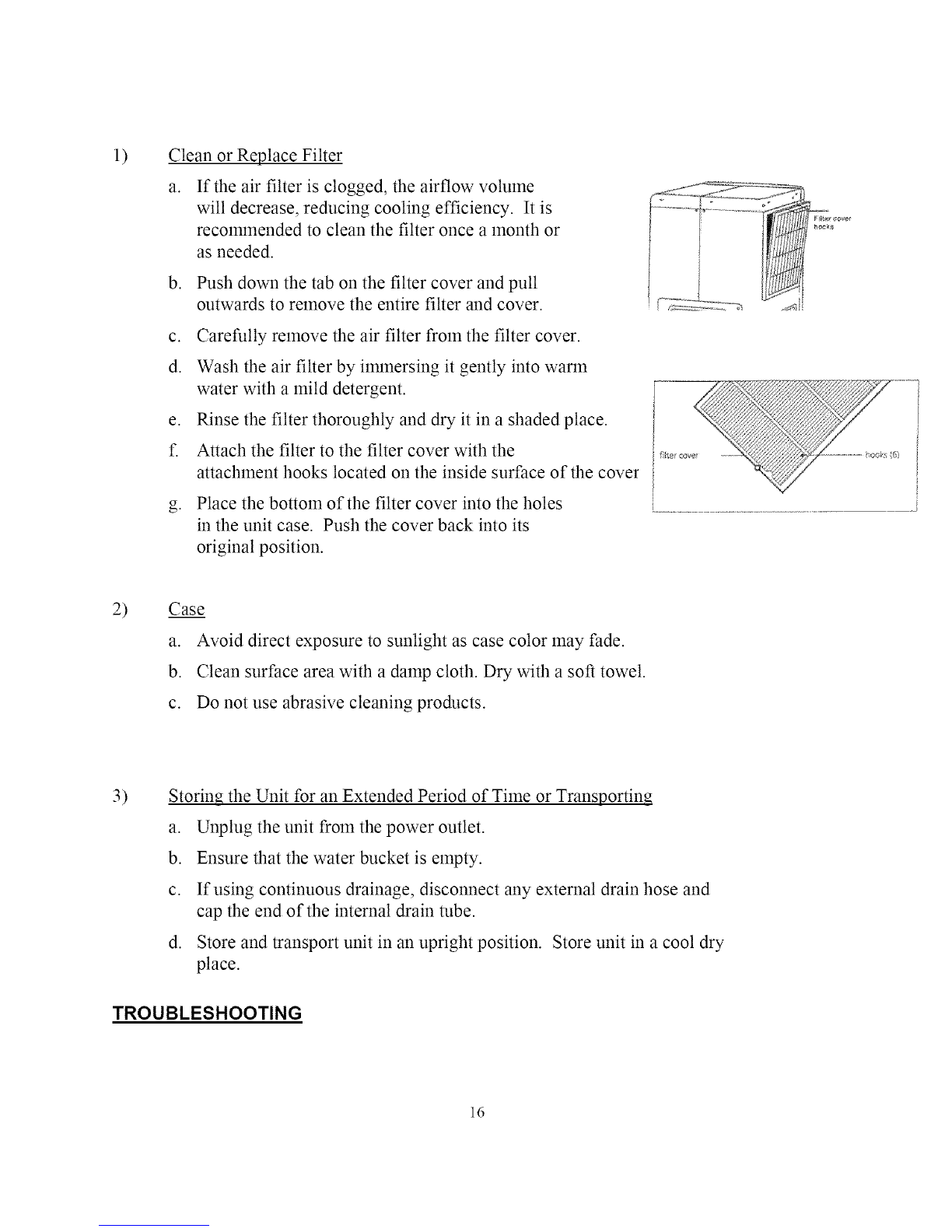

1) Clean or Replace Filter
a. If the air filter is clogged, the airflow volume
will decrease, reducing cooling efficiency. It is
recolmnended to clean the filter once a month or
as needed.
b. Push down the tab on the filter cover and pull
outwards to remove the entire filter and cover.
c. Carefully remove the air filter from the filter cover.
d. Wash the air filter by immersing it gently into warm
water with a mild detergent.
e. Rinse the filter thoroughly and dry it in a shaded place.
f. Attach the filter to the filter cover with the
attachment hooks located on the inside surface of the cover
g. Place the bottom of the filter cover into the holes
in the unit case. Push the cover back into its
original position.
(,4_)2
;Y;hg//
i fll¢/y_ 0
2) Case
a. Avoid direct exposure to sunlight as case color may fade.
b. Clean surface area with a damp cloth. Dry with a soft towel.
c. Do not use abrasive cleaning products.
3) Storing the Unit for an Extended Period of Time or Transporting
a. Unplug the unit from the power outlet.
b. Ensure that the water bucket is empty.
c. If using continuous drainage, disconnect any external drain hose and
cap the end of the internal drain robe.
d. Store and transport unit in an upright position. Store unit in a cool dry
place.
TROUBLESHOOTING
16

PROBLEM POSSIBLE CAUSE
Unit does not operate Unit is unplugged
Unit does not cool room
In dehumidifying mode, no
cool air coming out
"Water Full" indicator is
blinking
Noise or vibration
Water is leaking from unit
Drain bucket is full
Water bucket not installed
correctly
Air exhaust is clogged
Timer is on
There is a heating source in the
room
Temperature setting is too high
Air filter is dirty
Air exhaust is not installed
correctly
Room is too big or too much
ambient sunlight is reaching in
There is frost on the evaporator
There is frost on the evaporator
The water bucket is full
The water bucket is not
installed correctly
Surt:ace is not level
Surface is not level
Drainage plug is loose
REMEDY
Securely plug receptacle into
the power outlet
Empty water bucket
Completely insert water bucket
Remove obstruction from
exhaust hose
Cancel the timer
Turn down or off the other
heating source
Lower temperature setting
Clean or replace the air filter
Check the exhaust duct to
make sure that the hot exhaust
air is being vented out of the
room
This unit provides spot cooling
or cooling tbr a room no larger
than 300 square feet with
standard ceiling height
The unit will defrost
automatically and return to
operation afterwards
The unit will defrost
automatically and will return to
operation afterwards
Empty the water bucket
Completely insert the water
bucket
Place unit on a level surt:ace
and away from obstructions
Place unit on a level surt:ace
Make drain tube is properly
secured and plugged
TECHNICAL SPECIFICATIONS
17

MODEL
COOLING CAPACITY
HEATING CAPACITY
DEHUMIDIFYING CAPACITY
POWER COOLING/HEATING
DEHUMIDIFYING
AIR FLOW VOLUME
POWER SOURCE VOLTAGE
RATED CURRENT
SOUND PRESSURE LEVEL
NET WEIGHT
DIMENSIONS BODY
PACKAGE
REFRIGERANT
WATER BUCKET VOLUME
MA-9000AH
9000 BTU/hr
ll00 W
88 Pints/Day
1120W/1350W
1100W
180 CFM
115 V 60 HZ
11.5 AMP COOLING
11.7 AMP HEATING
54 db
77 Lbs
17'/4 x 143/4x 32'/2 Inches
26'/2 x 18'/2 x 34'/2 Inches
R22
4L
NOTE:
1)
2)
3)
The above cooling capacity is measured at ambient temperature of DB 86 F, WB 78 F.
Noise level is measured at the point where is 3.28 ft away from the front of the unit, in
cooling mode.
Power consumption is measured when fan runs at the highest speed Specifications
above are for reference only. Please see the actual data printed on the nameplate.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THL_ USER'S MANUAL
ARE THE PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT
CONDUCTED INDEPENDENT TEST OF THE INFORMATION AND THE SPECIFICATIONS PRESENTED
HERE WITHIN.
CONTACT INFORMATION
Contact Customer Service at our tool free number for:
Optional or Spare Parts
Technical Support
Warranty Claims
Soleus International Inc. 1.888.876.5387
18

WARRANTY
ONE YEAR LIMITED WARRANTY
Soleus International Inc. warrants the accompanying MA-9000AH Soleus Air air conditioner to be
free of defects in material and workmanship for the applications specified in its operation
instruction for a period of ONE (1) year from the date of original retail purchase in the United
States or Canada.
If the air conditioner exhibits a defect in normal use, Soleus International Inc. will, at its option,
either repair or replace it, free of charge within a reasonable time after the air conditioner is
returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty
Certificate along with a copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
l) Damage, accidental or other wise, to the air conditioner while in the possession of a
consumer not caused by a defect in material or workmanship.
2) Damage caused by consumer misuse, tampering, or failure to follow the care and special
handling provisions in the instructions.
3) Damage to the finish of the case, or other appearance parts caused by wear.
4) Filter.
5) Damage caused by repairs or alterations of the air conditioner by anyone other than
authorized by Soleus International Inc.
6) Freight and Insurance cost for the warranty service.
This warranty covers only new products purchased from our authorized dealers or retailers.
It does not cover used, salvaged, or refurbished products.
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY ARE LIMITED TO
ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS INTERNATIONAL
INC. DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
AND 1N NO EVENT SHALL SOLEUS INTERNATIONAL 1NC.'S LIABILITY EXCEEDTHE
RETAIL VALUE OF THE AIR CONDITIONER FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY
WITH RESPECT TO THIS AIR CONDITIONER
Serial No
19
