Soleus Air MAC 7500 User manual

MAC 7500 Owner's Manual
• Air Conditioner
• Dehumidifier
• Oscillating Fan
®
Please read this owner's manual
carefully before operating the unit. POWERED BY 41_GREE
66126113 .p65 17 02.12.2_ ' 15:44

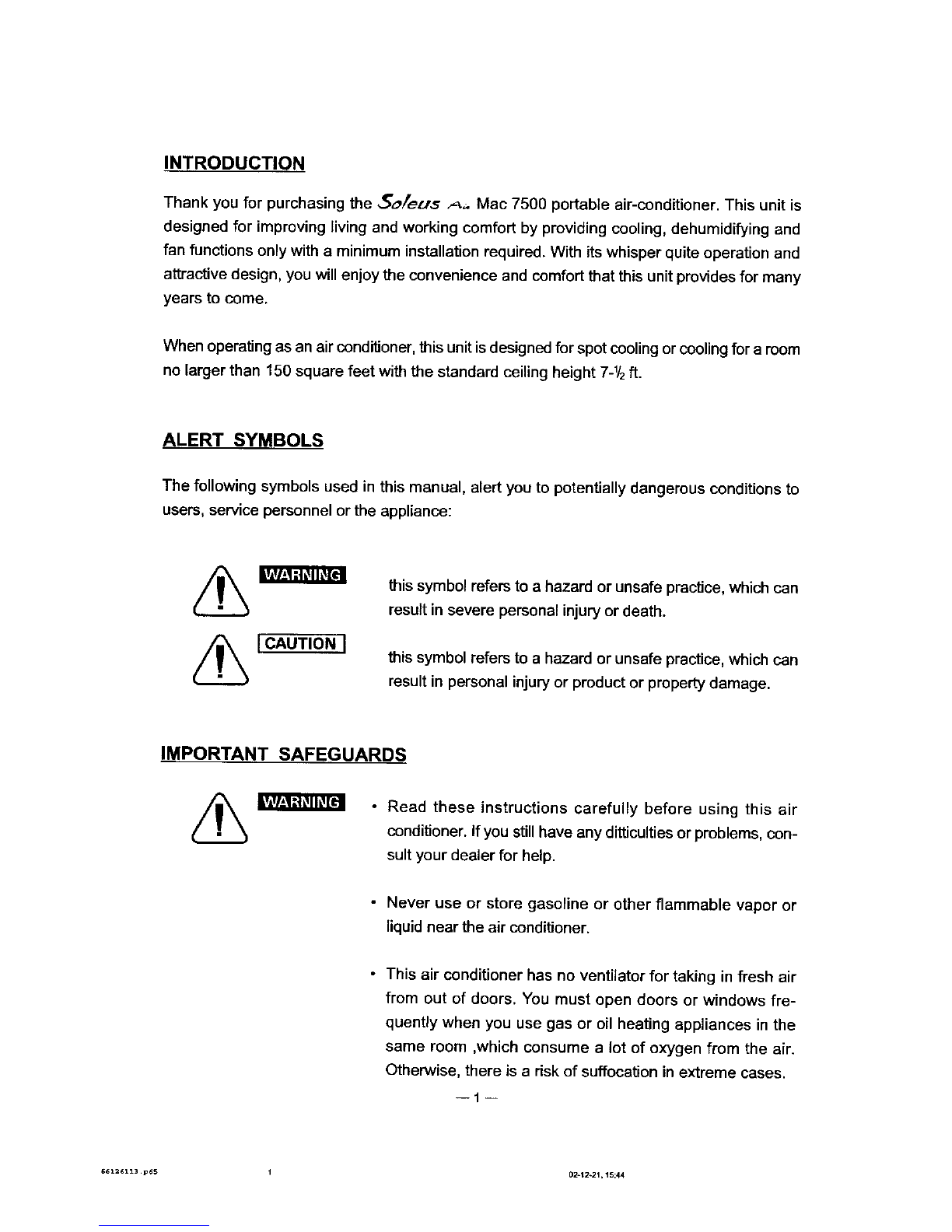

INTRODUCTION
Thank you for purchasing the 5ofeus .-_ Mac 7500 portable air-conditioner. This unit is
designed for improving living and working comfort by providing cooling, dehumidifying and
fan functions only with a minimum installation required. With its whisper quite operation and
attractive design, you will enjoy the convenience and comfort that this unit provides for many
years to come.
When operating as an air conditioner, this unit is designed for spot cooling or cooling for a room
no larger than 150 square feet with the standard ceiling height 7-1/2ft.
ALERT SYMBOLS
The following symbols used in this manual, alert you to potentially dangerous conditions to
users, service personnel or the appliance:
_[CAUTION ]
this symbol refers to a hazard or unsafe practice, which can
result in severe personal injury or death.
this symbol refers to a hazard or unsafe practice, which can
result in personal injury or product or property damage.
IMPORTANT SAFEGUARDS
1_ • Read these instructions carefully before using this air
conditioner. If you still have any ditticulties or problems, con-
sult your dealer for help.
• Never use or store gasoline or other flammable vapor or
liquid near the air conditioner.
This air conditioner has no ventilator for taking in fresh air
from out of doors. You must open doors or windows fre-
quently when you use gas or oil heating appliances in the
same room ,which consume a lot of oxygen from the air.
Otherwise, there is a risk of suffocation in extreme cases.
--1--
66Z26113 p65 1 D2-12_21,15:44

_/_L cAUTION J
• Unplug unit from the electrical outlet when not in use and
before cleaning it.
•Do not use an adapter plug extension cord.
• Do not use near gas appliances, open flames (fireplaces) or
near the vicinity flammable liquids.
• Do not operate this unit if ithad a damaged cord or plug or if
it is not warking properly, or has been dropped or damaged
in any manner. Take the unit to the nearest authorized. Ser-
vice Facility for examination, repair or electrical/mechanical
adjustment.
• The use of accessories and attachments not recommended
or sold by 5'o/eu_ .=_. may cause fire, electric shock or
injury.
• To protect against risk of electrical shock, do not immerse
the unit, cord or plug in water or any other liquid.
• Do not cut or remove the third (ground) prong from the power
cord.
• If the plug gets hot, call a qualified electrician.
• Close supervision isrequired when the unit isused by or near
children.
• Do not stick anything into the air outlet of the air conditioner.
• Do not use in a room with poor air circulation.
• Do not expose the unit to direct sunlight.
•Do not use the unit near water.
2
6E126113 p65 2 02=12-21.15:44

PACKAGE CONTAINS:
Mobile Air Conditioner
Air Exhaust Duct
Exhaust Duct Window Kit Adapter
Remote Controller
LITHIUM BATTERY 3V-
Window Kit - 3 Sliding Panels
Window Kit Fastener Screws (4)
User Manual
NAMES OF PARTS
FRONT
control pane' .__
air flow guider _ _
front air outlet grill_ _I_ I
castol -_ _ !
--handle
water tank
_ cable(power
cord and plug)
BACK
hot air outlet grill-
lower air inlet grill"
3er air
inlet grill
"- Outlet for Continuous Drainage
"Use exclusively for continuous
drainage.
"Don't pull out the outlet except
for this application. Otherwise
the drain will leak.
3
661261J.3 p65 3 02.12.21,15:44

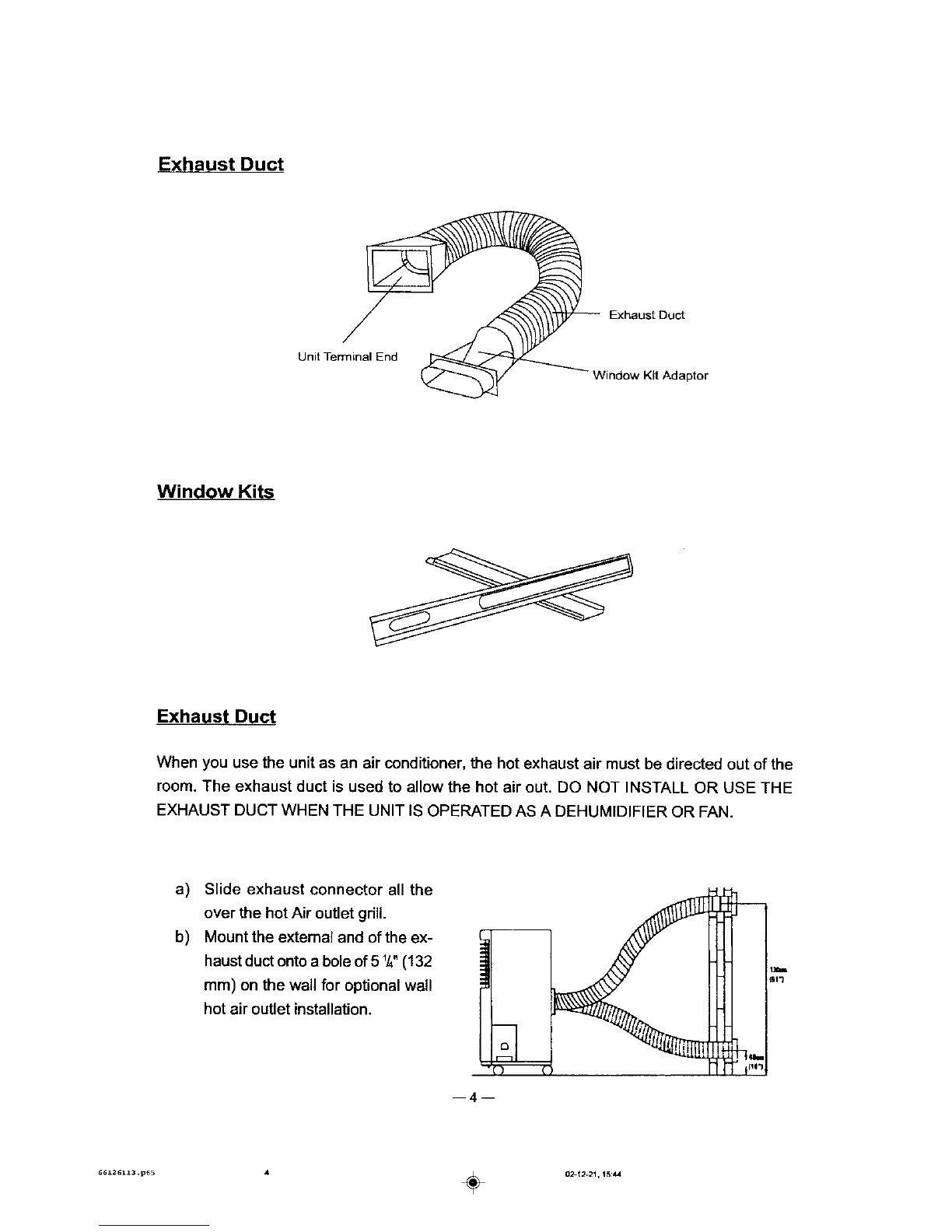

Exhaust Duct
Exhaust Duct
Unit Terminal End
Window Kit Adaptor
Window Kits
Exhaust Duct
When you use the unit as an air conditioner, the hot exhaust air must be directed out of the
room. The exhaust duct is used to allow the hot air out. DO NOT INSTALL OR USE THE
EXHAUST DUCT WHEN THE UNIT IS OPERATED AS A DEHUMIDIFIER OR FAN.
a)
b)
Slide exhaust connector all the
over the hot Air outlet grill.
Mount the external and of the ex-
haust duct onto a bole of 51/4"(132
mrn) on the wall for optional wall
hot air outlet installation.
I_1"1
al
4--
6_126113 .p_s 4 _ °2-_2-21' 15:44

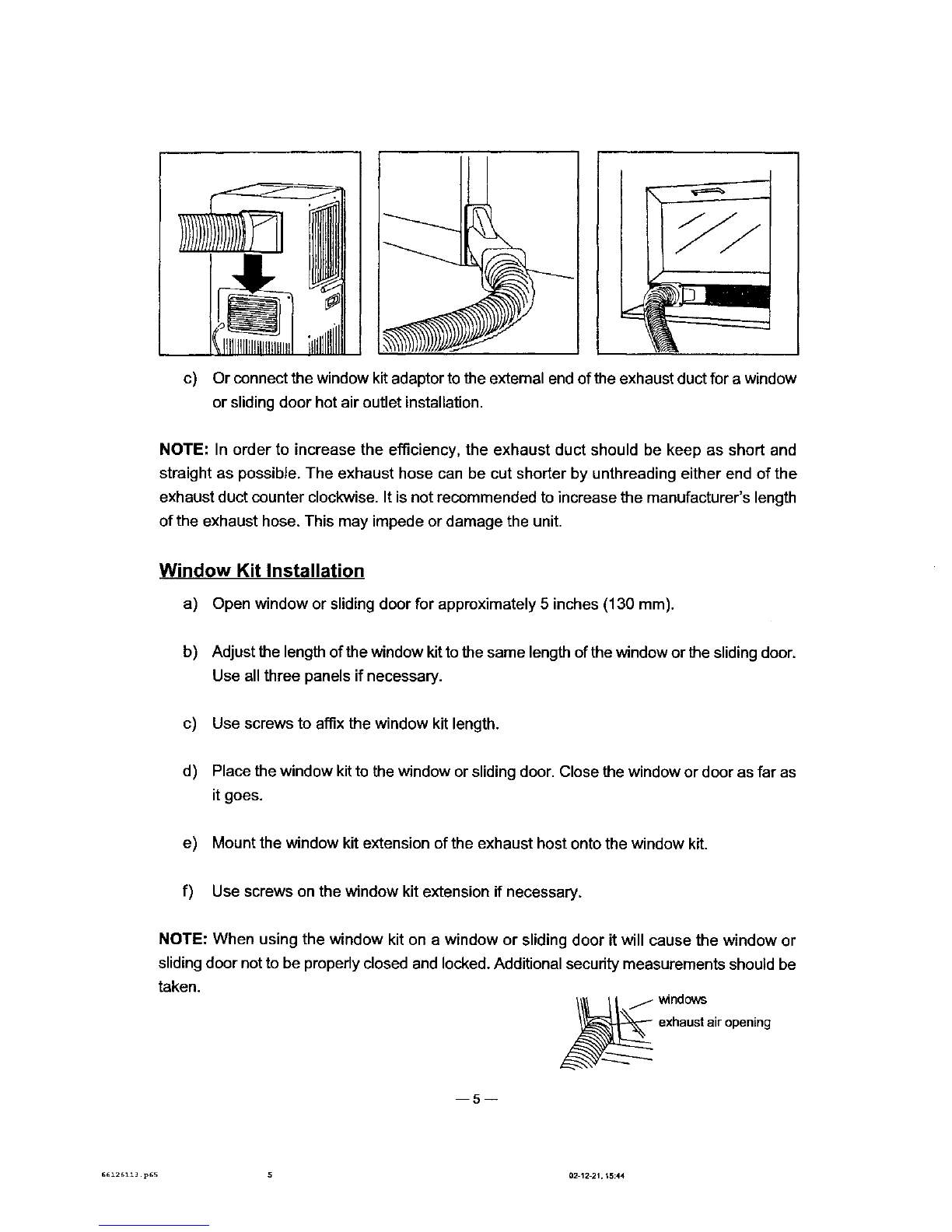

c) Or connect the window kit adaptor to the external end of the exhaust duct for a window
or sliding door hot air outlet installation.
NOTE: In order to increase the efficiency, the exhaust duct should be keep as short and
straight as possible, The exhaust hose can be cut shorter by unthreading either end of the
exhaust duct counter clockwise. It is not recommended to increase the manufacturer's length
of the exhaust hose. This may impede or damage the unit.
Window Kit Installation
a) Open window or sliding door for approximately 5 inches (130 mm).
b) Adjust the length of the window kit to the same length of the window or the sliding door.
Use all three panels if necessary.
c) Use screws to affix the window kit length.
d) Place the window kit to the window or sliding door. Close the window or door as far as
it goes.
e) Mount the window kit extension of the exhaust host onto the window kit.
f) Use screws on the window kit extension if necessary.
NOTE: When using the window kit on a window or sliding door it will cause the window or
sliding door not to be properly closed and locked. Additional security measurements should be
taken.
_windows
exhaustair opening
5--
66z2611J .p65 5 02.12-21,15:44

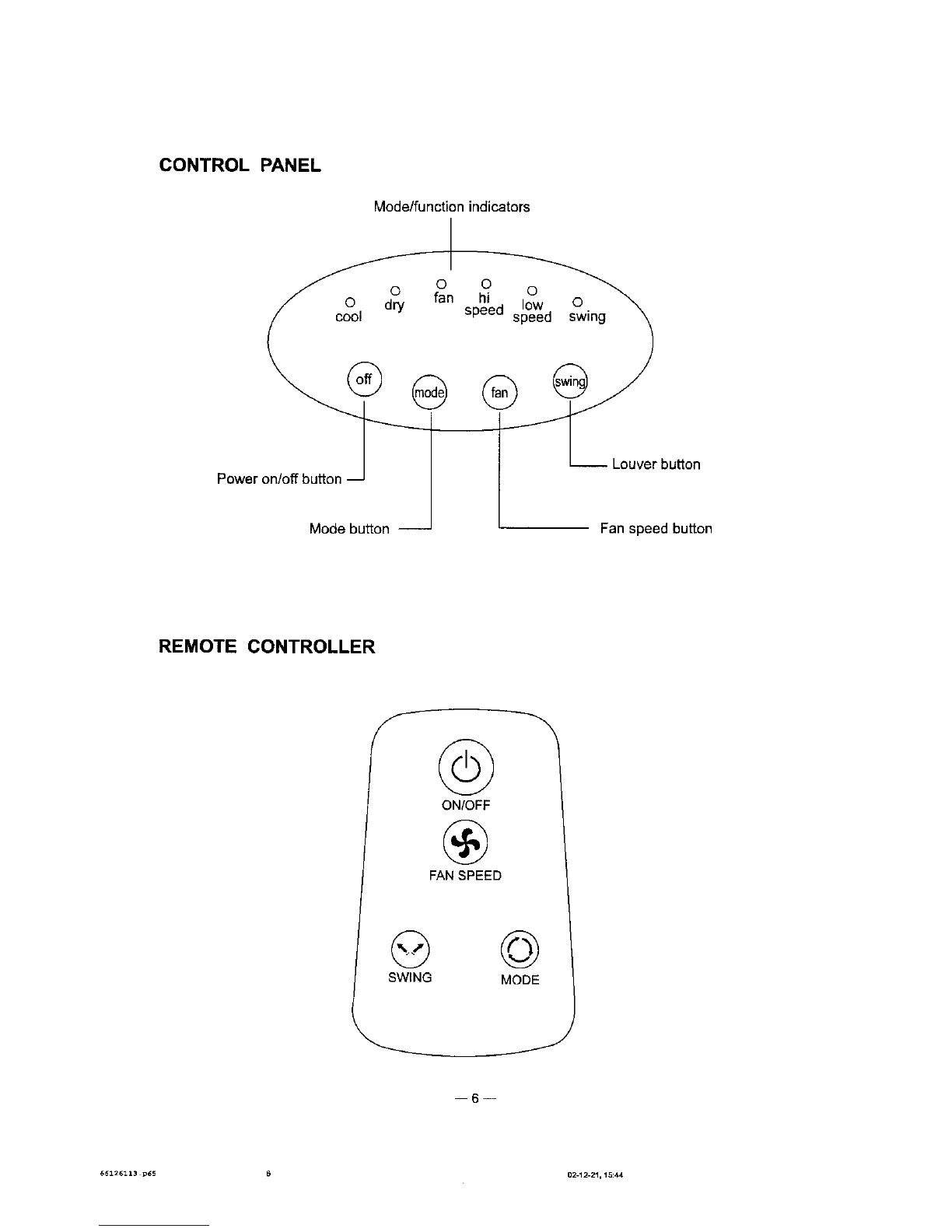

CONTROL PANEL
Mode/function indicators
/cool " op._u speed swing !
Mode button -- Fan speed button
REMOTE CONTROLLER
f©
ON/OFF
FAN SPEED
G ©
SWING MODE
J
--6 m
6512_Z3 p_5 8 02-12.21, 15:44

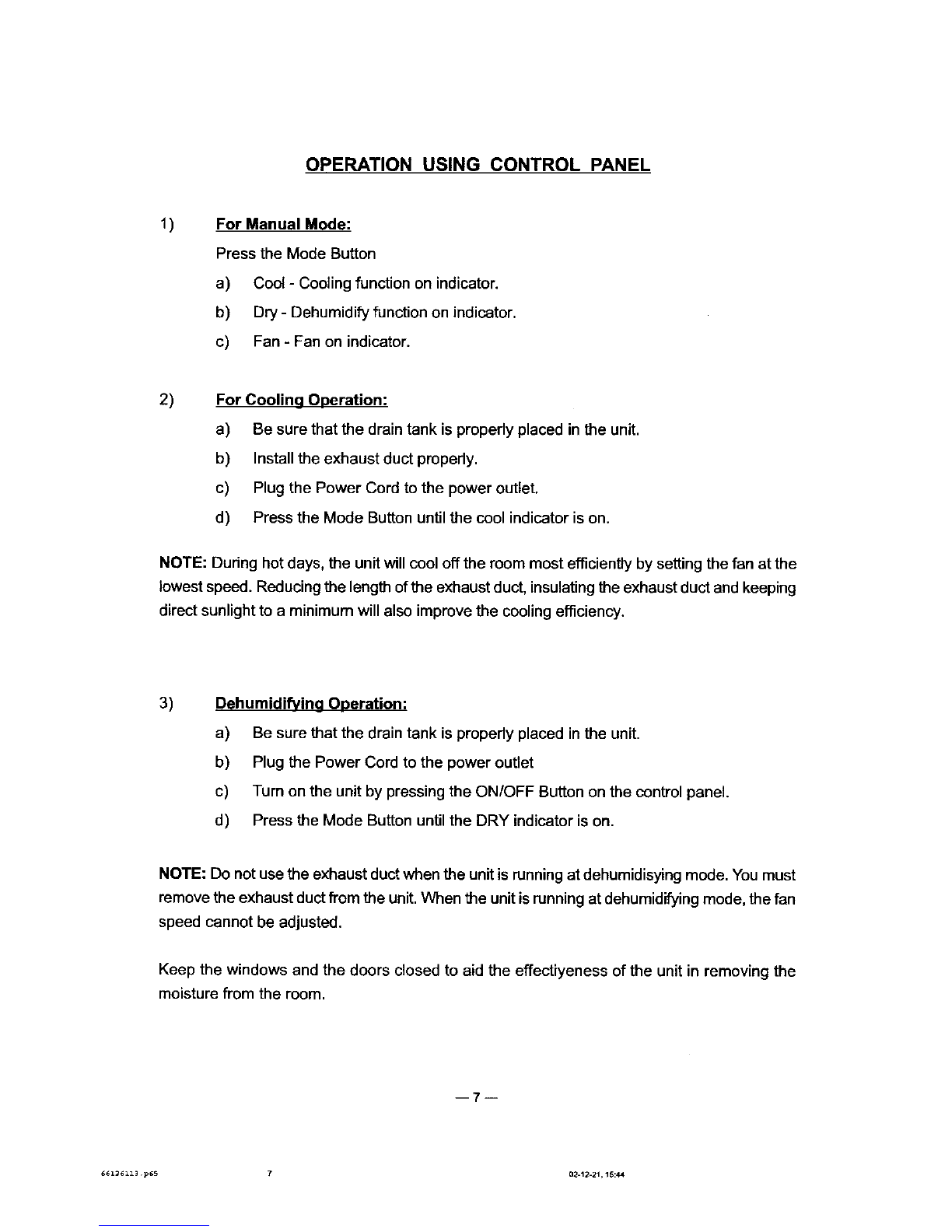

OPERATION USING CONTROL PANEL
1) For Manual Mode:
Press the Mode Button
a) Coot -Cooling function on indicator.
b) Dry - Dehumidify function on indicator.
c) Fan - Fan on indicator.
2) For Coolina Ooeration:
a) Be sure that the drain tank is properly placed in the unit.
b) Install the exhaust duct properly.
c) Plug the Power Cord to the power outlet,
d) Press the Mode Button until the cool indicator is on.
NOTE: During hot days, the unit will cool off the room most efficiently by setting the fan at the
lowest speed. Reducing the length of the exhaust duct, insulating the exhaust duct and keeping
direct sunlight to a minimum will also improve the cooling efficiency.
3) DehumidifYing Operation:
a) Be sure that the drain tank is propedy placed in the unit.
b) Plug the Power Cord to the power outlet
c) Turn on the unit by pressing the ON/OFF Button on the control panel,
d) Press the Mode Button until the DRY indicator is on.
NOTE: Do not use the exhaust duct when the unit is running at dehumidisying mode. You must
remove the exhaust duct from the unit. When the unit is running at dehumidifying mode, the fan
speed cannot be adjusted.
Keep the windows and the doors closed to aid the effectiyeness of the unit in removing the
moisture from the room.
--7--
G6126Z13 .p6S 7 02.12-21,15:44

4) Fan Oneration:
a) Plug the Power Cord to the power outlet.
b) Turn on the unit by pressing the ON/OFF Button on the control panel.
c) Press the Mode Button until 'FAN' indicator is on.
d) Select the fan speed by pressing the Fan Speed Button.
NOTE: When the unit is running on fan mode, the exhaust duct is inoperative and is not
required.
OPERATION USING REMOTE CONTROLLER
The remote controller provided with the unit may operate this portable air conditioner. The
remote controller uses one LITHIUM BATTERY 3V . Install the battery before using the re-
mote controller.
1. Press the On/Off key to turn on the unit.
2. Press Mode Key to:
a) Cool indicator is on = Cooling Function
b) Dry indicator is on = Dehumidify Function
c) Fan indicator is on = Fan Function
3. Fan Speed:
a) Press the Fan Speed key to turn fan speed to high or low.
4. Swinql
a) Press swing key to tum on auto swing function.
Do not dispose of batteries in fire, batteries may
explode or leak.
--8--
66_26113.p65 8 0_12-21,1544

CONDENSATE WATER DRAINAGE
1) Internal Water Tank
When operating in cooling or dehumidifying mode, the condensate water will drain into
the internal water tank. Depending on the surrounding humidity, the unit can continu-
ously operate for 2 to 12 hours before the internal water tank is full. When the internal
water tank gets full, a beep slarrn will sound eight times for 15 seconds. The compres-
sor stops running and the fan will continue to run in the set speed for three minutes
before the entire unit automatically shuts off.
When the water tank isfull, take out the entire water tank slowly and discard the water
inside the tank, place it back to its odginal position. You will then be able to tum on the
unit again.
If you want to take out the internal tank before it is full of water, please stop the unit
first. Wait for 3 minutes before taking out the water tank to prevent the condensate
water from discharging into the unit.
NOTE: Do not take out the water tank when the unit is running on either cooling or dehumidi-
fying mode or the alarm will sound and the compressor stops. The mode will automatically
change to FAN mode and the compressor will require approximately 3 minutes to restart to the
cooling/deh umidifying cycle.
--9--
6_12_113 .p_5 902-12.21 ' 15:44

CAUTION I Do not remove the water tank when the unit is in use.
Always turn "Off' the unit before removing water tank.
Periodically inspect and clean the drain valve to prevent
dogging.
METHOD OF CONTINUOUS DRAINAGE:
1. Slide out drain valve from the left side of the unit.
2. Connect a rubber pipe to the valve (not included).
3. Make sure the rubber pipe drains downward.
_Slide _1 dt_n
VBl_e
slide_imo
c_mecbon i$
ulO--
66_2_113 p65 10 02.12-21.15:44

AIR FILTER
•Soleus Air recommends cleaning your air filter at least after every two weeks of use. Keep-
ing your air filter clean will maximize the performance and life of this product.
• Open the air filter cover on the left side of the unit (fig. a)
• Remove the filter from the cover.
• Wash the filter using warm water and a mild dishwasher detergent.
• Allow to air dry before replacing in unit.
Fig. a
to remove air
firth" _ver
Water Tank
• Using the handle, slowly remove water tonk from unit (fig. b).
•Pour out any condensation accumulated in water tank (fig. c)
•Wash water tank using warm water and a mild dishwasher detergenr.
• Allow to dry completely.
• Replace water tank in unit (fig. d).
Fig. b
p_l
11_ handle
ull --
Fig. d
661251_3 .p65 11 02-12-21, t5:44

NOTE: Be very careful when using an external water tank. The unit will not shut off automati-
cally when an external water tank is full. Spill water can cause substantial damages to carpet,
furniture and other valuables.
Do not use lengthy drainage tabing without a condensate water pump.
MAINTENANCE
NOTE: Make sure power isoff and the plug is pulled out of the power outlet before performing
any maintenance activities.
1) Case
a) Keep the unit from being exposed directly to the sun for possible color fading.
b) Clean the surface with adamp cloth and dry it with a soft towel.
2) Storina the Unit for an Extended Period of Time
a) Ensure that the water drain tank is empty.
Remove the stopper from the water drain pipe and allow draining until empty.
(Fig. e)
b) The water drain valve should be reinserted back inthe unit.
c) The filter should be cleaned and air dded.
d) The power cable must be disconnected from power outlet and neatly rolled.
(Fig. f)
e) The unit should be stored in a dry place.
Fig. e
66126Z13 p65 12 02-1Z-21.15:44

TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE REMEDY
Unit does not operate Unit isumplugged Seoorely plug receptacle intothe power
outlet
Drain tank is full Empty water tank
Water tank not installed correctly Completely insertwater tank
Air exhaust isclogged Clear exhaust hose
Unit does not cool There is a heating source in the room Turn down or off the other heating
room source
Air filter is dirty Clean or replace the air fitler
Air exhaust is not installed correctly Check the air exhaust duct to make sure
that the hot exhaust air islet out of the
room freely
Room is too big or too much ambient This unit provides spot cooling or cool-
sunlight is reaching in ing for aroom no larger than 150
squarefeel with standard ceilling height
7_/_,,
The unit will defrost automatically and
return to operation afterwards
Indehumidifying mode, The unit will defrost automatically and
no cool air coming out will return to operation afterwards
Noise or vibration Place unit on a level surface and away
from obstructions
Place uniton alevel surfaceaway from
obstructions
There isfrost onthe evaporator
There isfrost onthe evaporator
Surface is not level
Surface isnot level
Drainage pipe is loose
Unit has been moved
Stopper on water drain pipe is loose
Air exhaust is not attached proparty
Air exhaust iscurved too much
When moving unit, emptydrain tank first
and keep unit updghtat alltimes
Make sure the stopper on the water
drain pipe is securelyin place
Machino stops and Check installationof airexhausthose
starts
Tryto keep the air exhaust horizontal
13--
G6_261Z3.1_65 13 02=12-21,15:44

SPECIFICATIONS
Model #
Power Source
Cooling capacity
Dehumidifyling capacity
Cooling input power
Rated current
Refrigerant type
Refrigerant capacity
Operating Range - Cooling
(indoor air temperature)
Unit dimensions (H x D x W)
Specifications are subject to change
MAC - 7500
115V~ /60Hz
7500 BTU/h
24.0 liters/day
1000W
8.7A
HCFC R22
1.15 Ib
Max 95°F Dry Bulb - 71°F Wet Bulb
Min 67°F Dry Bulb - 57°F Wet Bulb
31"x 12.8" x 16.3"
without notice
PRODUCT INFORMATION
If you have problems or questions concerning your air conditioner, you willneed the following
information. Model and Serial numbers are on the nameplate on the back ofthe unit,
Model No.
Date of Purchase
Dealer's Name
Purchaser's Name
Day Phone
Serial No.
Dealers Address
Evening Phone
--14 m
6_261_] .p65 14 02=12_1,15:44

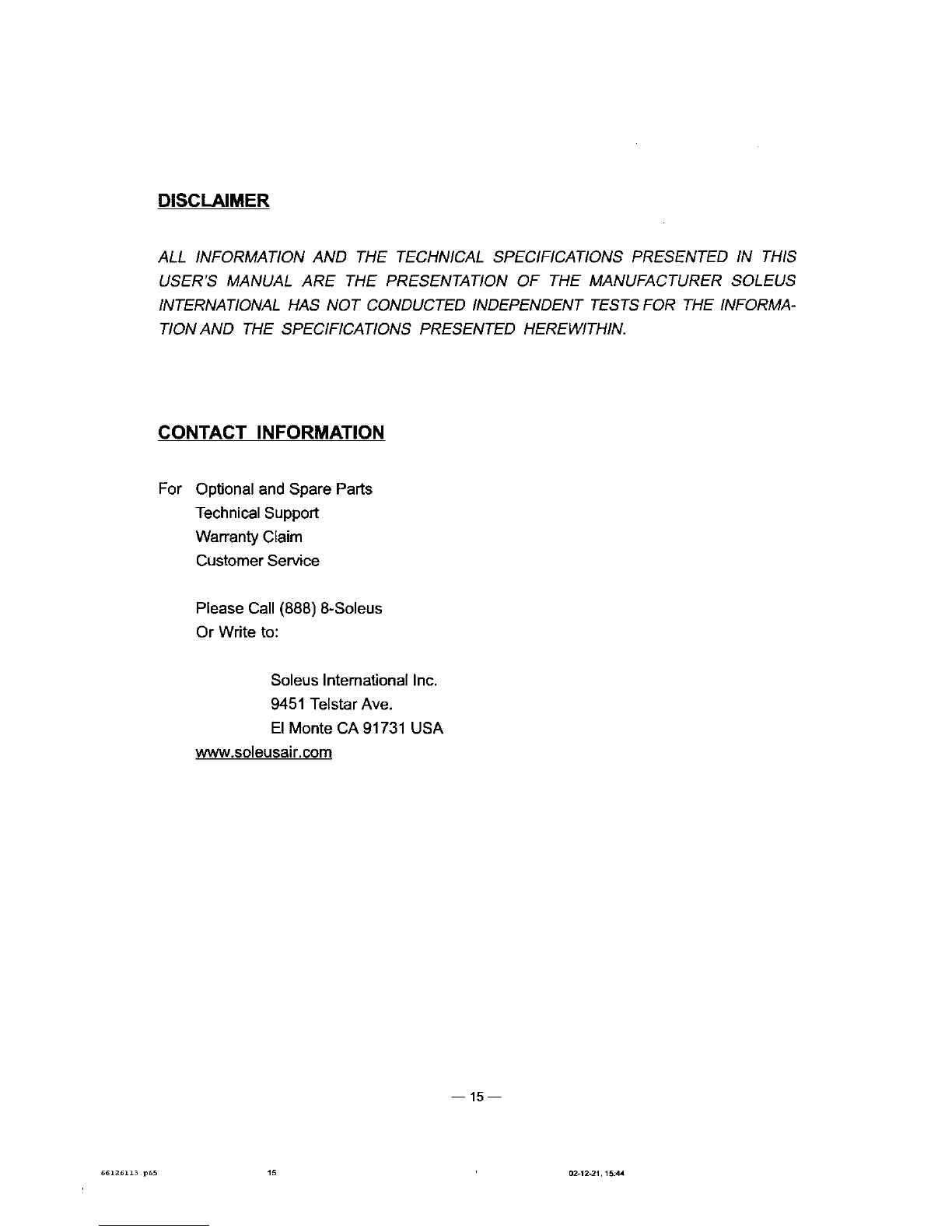

DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS
USER'S MANUAL ARE THE PRESENTATION OF THE MANUFACTURER SOLEUS
INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT TESTS FOR THE INFORMA-
TION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.
CONTACT INFORMATION
For Optional and Spare Parts
Technical Support
Warranty Claim
Customer Service
Please Call (888) 8-Soleus
Or Write to:
Soleus International Inc.
9451 Telstar Ave.
El Monte CA 91731 USA
www.soleusair.com
15
_612_ZZ3 p65 15 0_12_1,1544

WARRANTY
ONE YEAR LIMITED WARRANTY
Soleus International Inc. warrants the accompanying Soleus Air MAC-7500 Mobile Air Condi-
tioner to be free of defects in material and workmanship for the applications specified in its
operation instruction for a period of ONE (1)year from the date of original retail purchase in the
United States or Canada.
Ifthe air conditioner exhibits a defect in normal use, Soleus International Inc. will, at its option,
either repair or replace it, free of charge within a reasonable time after the air conditioner is
returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty
Certificate along with a copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
1) Damage, accidental or otherwise, to the air conditioner while in the possession of a
consumer not caused by a defect in matedal or workmanship;
2) Damage caused by consumer misuse, tampering, or failure to follow the care and
special handling provisions in the instructions.
3) Damage to the finish of the case, or other appearance parts caused by wear.
4) Filter.
5) Damage caused by repairs or alterations of the air conditioner by anyone other than
authodzed by Soleus Intemational Inc.
6) Freight and Insurance cost for the warranty service.
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY ARE
LIMITED TO ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY.. SOLEUS
INTERNATIONAL INC. DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDEN-
TAL DAMAGES AND IN NO EVENT SHALL SOLEUS INTERNATIONAL INC'S LIABILITY
EXCEEED THE RETAIL, VALUE OF THE AIR CONDITIONER FOR BREACH OF ANY
WRI'Iq'EN OR IMPLIED WARRANTY WITH RESPECT TO THIS AIR CONDITIONER.
--16
6_12_113 p_5 16 0_12_1,15:44

66126113
02-12-21,15:44
