SOLIS S5-EH1P3K-L User manual

Instruction Manual
Ginlong Technologies Co., Ltd.
Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: [phone]
Fax: [phone]
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
Please adhere to the actual products in case of any discrepancies in this user manual.
Solis S5-EH1P-L Hybrid Inverter
Ver1.0
(ForAustralia)

2
4
7
7
7
8
8
10
14
16
18
4
2
3
7
12
23
1.1 Product Description
………………………………………………………………………………………………………………
…………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………
……………………………………………………………………………………
……………………………………………………………………………………………………………………………………
……………………………………………………………………………………………
……………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………………
1. Introduction
1.2 Packaging
2. Safety & Warning
2.1 Safety
2.2 General Safety Instructions
3. Overview
3.1 Screen
4.14 LED Indicates
3.2 Keypad
4. Installation
4.1 Select a Location for the Inverter
4.2 Mounting the Inverter
4.3 PV Input Connection
4.5 AC Output Connection
4.6 Meter Installation
4.7 Communication Cable Assembly
Contents
……………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
4
2.3 Notice For Use 6
…………………………………………………………………………………………………………………………
3.3 Terminal Connection …………………………………………………………………………………………………………
………………………………………………………………………………………………………
…………………………………………………………………………………
21
4.11 Inverter monitoring connection …………………………………………………………………………………
………………………………………………………………………………………………………………………
13
4.4 Battery Input Connection …………………………………………………………………………………………………
19
4.8 External ground connection ……………………………………………………………………………………………
20
4.9 DRED port connections …………………………………………………………………………………………………
21
4.10 External Residual Current Device(RCD) …………………………………………………………………
29
26
24
24
5. Operation
5.1 Initial Display
5.3 Information
5.4 Settings
…………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
26
5.2 Main Menu ………………………………………………………………………………………………………………………………
31
5.5 Advanced Info
36
………………………………………………………………………
5.6 Advanced Settings - Technicians Only
…………………………………………………………………………………………………………………………
55
…………………………………………………………………………………
6. Commissioning & Shutdown
8. Troubleshooting ……………………………………………………………………………………………………………… 57
61
………………………………………………………………………………………………………………………
9. Specifications
10. Appendix 70
…………………………………………………………………………………………………………………………………
56
…………………………………………………………………………………………………………………
7. Maintenance
22
4.13 Earth Fault Alarm ………………………………………………………………………………………………………………
22
4.12 Max over current protection device (OCPD) …………………………………………………………

1.1 Product Description
Figure 1.1
Front side view
Reminder light
Figure 1.2
Bottom side view
Inverter x1 Back plate x1 Fastening screw x3
DC connector x2
AC grid terminal x1
.3..2.
1. Introduction 1. Introduction
1.2 Packaging
Please ensure that the following items are included in the packaging with your machine:
If anything is missing, please contact your local Solis distributor.
RJ45 connector x1
AC backup terminal x1
Display
Key
Connector x1
CAN cable x1
Battery Cable x2
Rs485 Meter cable x1
(For Acrel Meter)
Rs485 Meter cable x1
(For Eastron Meter)
The Solis S5-EH1P-L Series is designed for residential hybrid systems, which can work with
batteries to optimize self-consumption. The unit can operate in both off- and on-grid modes.
The Solis S5-EH1P-L Series has 5 different models:
S5-EH1P3K-L, S5-EH1P3.6K-L, S5-EH1P4.6K-L, S5-EH1P5K-L, S5-EH1P6K-L
Acrel Meter x1
(For Other markets )
Eastron Meter x1
(For Italian market Only)
Terminal cover x1
Battery Temperature Sensor x1
(Optional ) User manual x1
Manual
CT x1

2.1 Safety
The following types of safety instructions and general information appear in this document as
describedbelow:
.5..4.
CAUTION:
“Caution” indicates a hazardous situation which if not avoided, could result
in minor or moderate injury.
WARNING:
“Warning” indicates a hazardous situation which if not avoided, could result
in death or serious injury.
DANGER:
“Danger” indicates a hazardous situation which if not avoided, will result in
death or serious injury.
NOTE:
“Note” provides tips that are valuable for the optimal operation of your
product.
2. Safety & Warning 2. Safety & Warning
2.2 General Safety Instructions
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
WARNING:
Please don’t connect PV array positive (+) or negative (-) to ground, it could
cause serious damage to the inverter.
WARNING:
Only devices in compliance with SELV (EN 69050) may be connected to the
RS485 and USB interfaces.
WARNING:
Do not touch any inner live parts until 5 minutes after disconnection
from the utility grid and the PV input.
CAUTION:
The PV array supplies a DC voltage when they are exposed to sunlight.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter, do not
remove cover for 5 minutes after disconnecting all power sources (service technician
only). Warranty may be voided if the cover is removed without authorization .
CAUTION:
The surface temperature of the inverter can reach up to 75℃ (167 F).
To avoid risk of burns, do not touch the surface of the inverter while it’s operating.
Inverter must be installed out of the reach of children.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic source
and output circuit conductors shall have that comply with the NECisolators
Article 690, Part II. All Solis single phase inverters feature an integrated
DC switch.
CAUTION:
Risk of electric shock, do not remove cover. There is no user serviceable
parts inside, refer servicing to qualified and accredited service technicians.
NOTE:
PV module used with inverter must have an IEC 61730 Class A rating.
WARNING:
Operations below must be accomplished by licensed technician or Solis
authorized person.
WARNING:
Operator must put on the technicians’ gloves during the whole process in case
of any electrical hazards.
WARNING:
AC-BACKUP of S5-EH1P-L Series is forbidden to connect to the grid.

2. Safety & Warning
3.1 Screen
Solis S5-EH1P-L Series adopts 7 inch color screen, it displays the status, operating
information and settings of the inverter.
3. Overview
WARNING:
The S5-EH1P-L Series does not support parallel (three- and single-phase)
operation on the AC-BACKUP port. Parallel operation of the unit will void
the warranty.
WARNING:
Please refer to the specification of the battery before configuration.
1 Phase LOAD3 Phase LOAD
× × ×
2.3 Notice For Use
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications ONLY:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
.6. .7.
× ×
3.2 Keypad
There are four keys in the front panel of the inverter (from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access and modify the settings (the ESC and ENTER keys).
Figure 3.2 Keypad
Solis S5-EH1P-L Series inverter is different from normal on-grid inverter, please refer to
the instructions below before start connection.
3.3 Terminal Connection
WARNING:
Please refer to the specification of the battery before configuration.
Figure 3.3 Front Panel Display
COM Port
Dry Contact Port (reserved) DRM Connection
5. Single phase inverters can be used in parallel and external devices should be used in
accordance with the requirements of AS/NZS 4777.1.
Single phase inverters can't be used in multiple-phase installations.

.9..8.
4. Installation
4.1 Select a Location for the Inverter

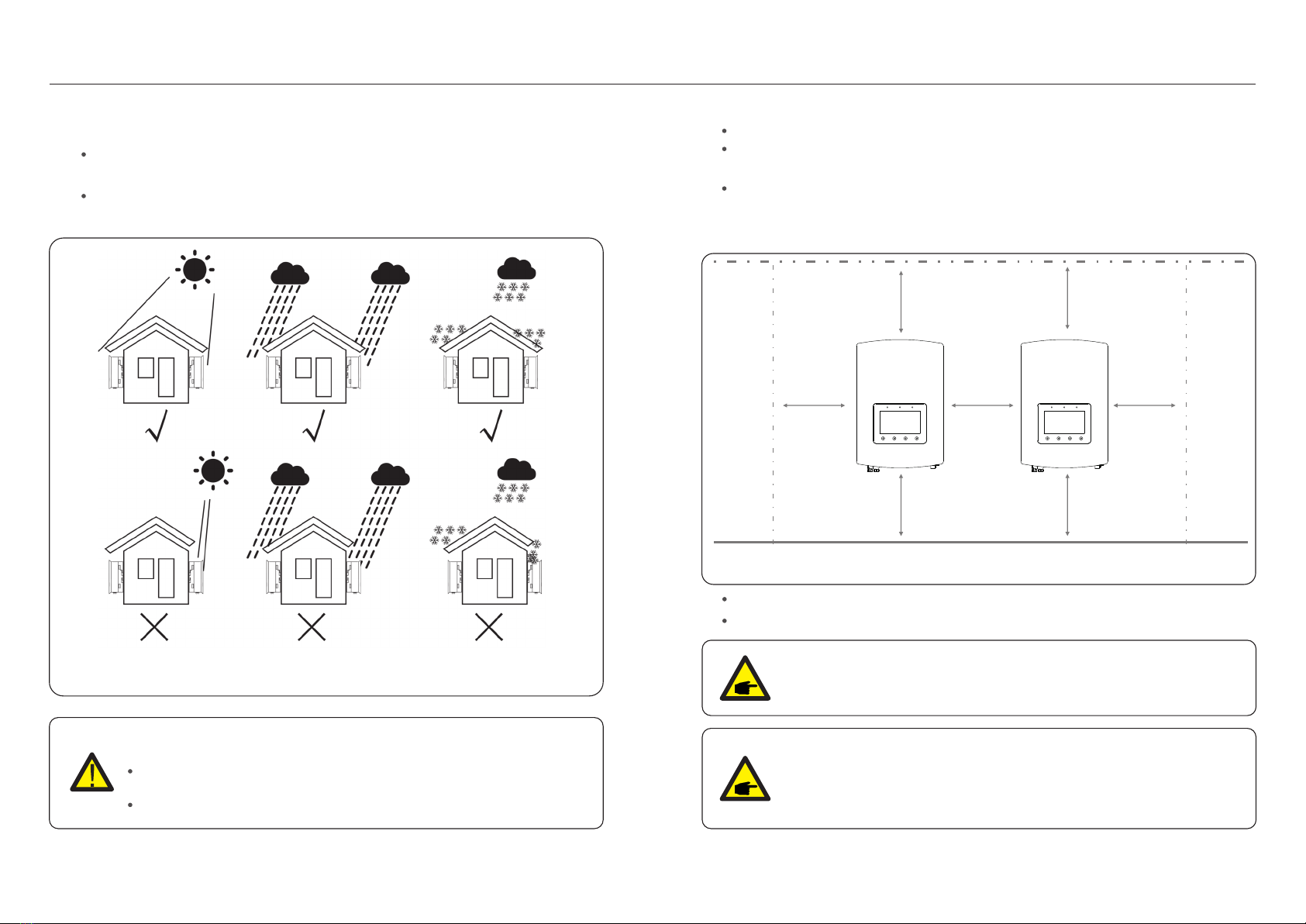

Figure 4.1 Recommended Installation locations
To select a location for the inverter, the following criteria should be considered:
Exposure to direct sunlight may cause output power derating. It is recommended to
avoid installing the inverter in direct sunlight.
It is recommended that the inverter is installed in a cooler ambient which doesn't
exceed 104F/40C.
4. Installation
To avoid overheating, always make sure the flow of air around the inverter is not
blocked. A minimum clearance of 300mm should be kept between inverters or
objects and 500mm clearance between the bottom of the machine and the ground.
Visibility of the LEDs and LCD should be considered.
Adequate ventilation must be provided.
NOTE:
Nothing should be stored on or placed against the inverter.
Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause
output power derating.
300mm
500mm 500mm
300mm 300mm
300mm 300mm
Figure 4.2 Inverter Mounting clearance
Install on a wall or strong structure capable of bearing the weight of the machine (18.3kg).
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive atmospheres.
NOTE:
This inverter complies with IEC 62109-2 clause 13.9 for earth fault alarm
monitoring.
If an Earth Fault Alarm occurs, the fault code “PV-ISO PRO 01/02” will be
displayed on the inverter screen / the LED indicator “Alarm” will light up.

4. Installation4. Installation
4.2 Mounting the Inverter
The inverter shall be mounted vertically.
The steps to mount the inverter are listed below:
1. Select the mounting height of the bracket and mark the mounting holes.
For brick walls, the position of the holes should be suitable for the expansion bolts.
Figure 4.4 Fix bracket on the wall
.10.
Figure 4.5 Wall Mount Bracket
WARNING:
The inverter must be mounted vertically.
2. Lift up the inverter (be careful to avoid body strain), and align the back bracket on the
inverter with the convex section of the mounting bracket. Hang the inverter on the
mounting bracket and make sure the inverter is secure (see Figure 4.5)
.11.
Once a suitable location has be found accordingly to 4.1 using figure 4.3 and figure 4.4
mount the wall bracket to the wall.
Locking screw
Suitable fixing screws
Bracket
Dimensions of mounting bracket:
Figure 4.3 Inverter wall mounting

.13..12.
4. Installation4. Installation
Figure 4.6
negative terminal
positive terminal
Inverter terminal
Use appropriate crimping tools for crimping
4.4 Battery Input Connection
WARNING:
Power cables use water-proof AMPHENOL
connectors. When pull out the power cable, you
must press the button as indicated in the right figure.
Connect the Battery cable to the inverter and make sure the positive and negative poles
are correct. A "Click" sound means fully connection and fasten the cables with the terminal
protection cover as indicated in Figure 4.7.
Figure 4.7 Installation of Terminal Protection Cover
NOTE:
Before connecting the battery, please carefully read the user manual of the
battery and perform the installation exactly as the battery manufacturer
requests.
4.3 PV Input Connection
Please ensure the following before connecting the inverter:
Make sure the voltage of the PV string will not exceed the max DC input voltage (600Vdc).
Violating this condition will void the warranty.
Make sure the polarity of the PV connectors are correct.
Make sure the DC-switch, battery, AC-BACKUP, and AC-Grid are all in their off-states.
Make sure the PV resistance to ground is higher than 20K ohms.
The Solis S5-EH1P-L Series inverter uses the MC4 connectors.

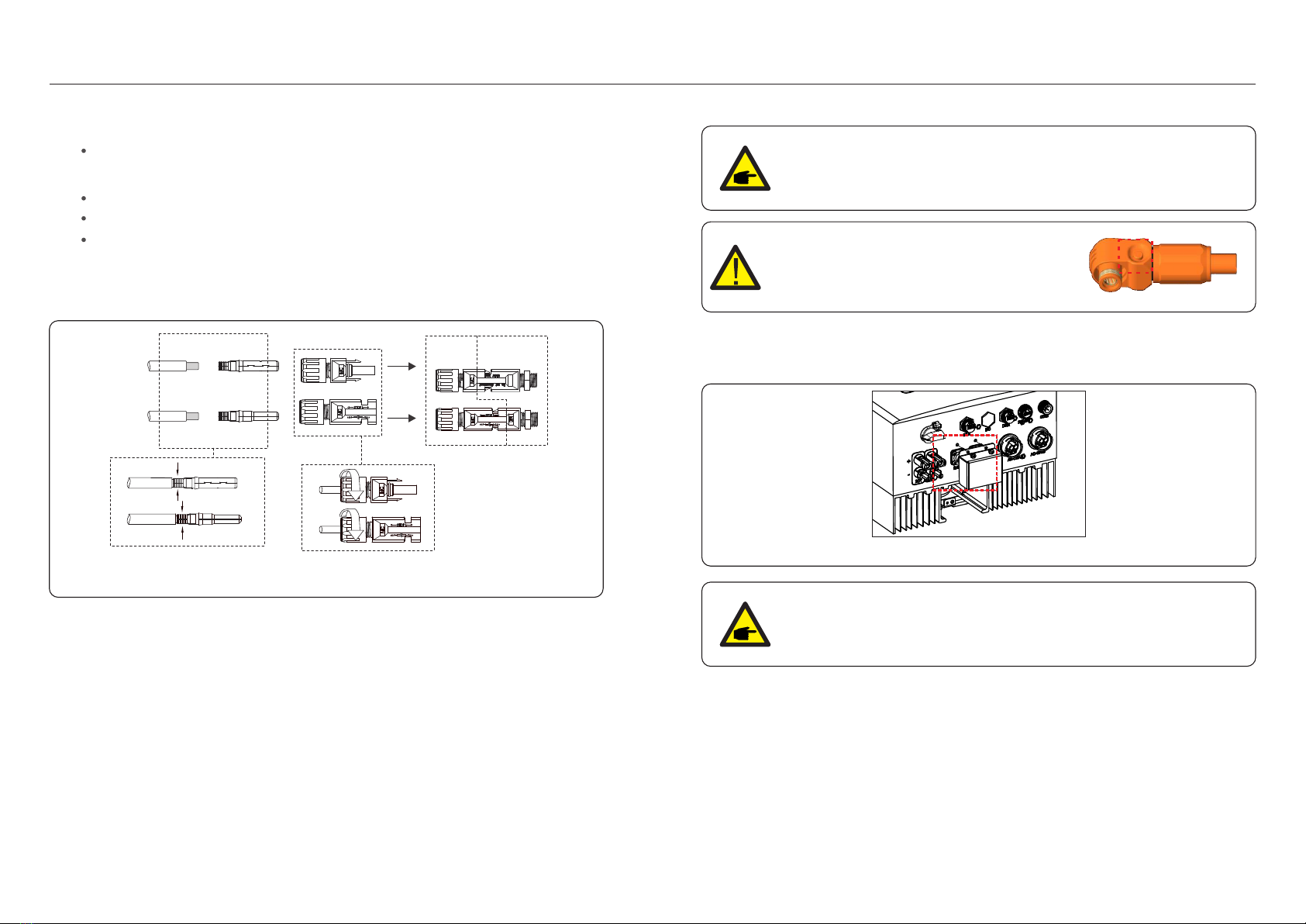

Please follow the picture below to assemble the MC4 connectors.
PV wire diameter requirements:2.5~4mm².
NOTE:
If battery does not have an built-in DC breaker, please install an external
DC breaker (>125A) between inverter and battery.

.15..14.
4. Installation4. Installation
4.5 AC Output Connection
5. Insert Seal and Clamp Finger into socket ,then tighten the nut , torque 4+/-0.5N·m.
1. .Disassemble the AC connector. Strip the AC wires about 9mm
3. Crimp wires screw twisting torque 0.8+/-0.1N·m.
2. Set the parts on the cable.
Describe
Cable diameter 10~14mm
6~8mm²
9mm
Traverse cross sectional area
Exposure Length
Numerical value
There are two AC terminals and the assembly steps for both are the same.
TakeouttheACconnectorpartsfromthepackaging.
4. Push Housing into Body.
6. The same installation for both cable end plug and socket connectors.
7. Mating plug andsocket: Push the plug into the socket completely, then rotate the
locker according to the direction instructed by the marks on thelocker.
These two planes stick together
Warning : hold the body !
Locker Body Seal body Claw
Nut
Figure 4.8
Figure 4.9
Figure 4.10
Figure 4.11
Figure 4.12
Figure 4.13

4. Installation4. Installation
.17..16.
4.6 Meter Installation
S5-EH1P(3-6)K-L series inverter is able to connected Acrel meters or Eastron meters
to fuilfill the control logic of the self-consumption mode, export power control, monitoring, etc.
Acrel 1ph meter (With CT): ACR10R-D16TE
Acrel 3ph meter (With CT): ACR10R-D16TE4 (Optional)
Eastron 1ph meter (Direct Insert): SDM120M
Eastron 1ph meter (With CT): SDM120CTM (Optional)
Eastron 3ph meter (Direct Insert): SDM630M (Optional)
Eastron 3ph meter (With CT): SDM630MCT (Optional)
Below 4.6.1 section describes the connection diagram of the Acrel 1ph meter (With CT)
(Standard Accessory for all other market exclude Italy)
Below 4.6.2 section describes the connection diagram of the Eastron 1ph meter
(Direct Insert) (Standard Accessory for Italian market)
4.6.1 Single phase meter installation
Power cable
Figure 4.14
Figure 4.15
10
5
8
6
SDM120M
9
7
L
N
PE
RS
485
RCD
L
N
PE
L
N
PE
Back
-up
Load_a
PE
RCD
NL
Distribution box
Grid
L
N
PE
GRID
RS485 Meter COM
34
1 2
Pin 9 – RS485A – Black
Pin 10 – RS485B – Red
RS485
Meter
S5-EH1P6K-L
S5-EH1P6K-L
Note:
If the CT is installed in the wrong direction,
the Hybrid Inverter can't work normally.
Power cable
Note:
If the CT is installed in the wrong direction,
the Hybrid Inverter can't work normally.
Note:
To maintain the neutral continuity in standalone mode, as required by
Australian safety code, the neutral cable on the AC-Backup port and AC-Grid
Port must be connected together.

4. Installation4. Installation
4.7 Communication C able Assembly
The S5-EH1P-L Series inverter uses RS485 cable to communicate with the Meter and CAN
to communicate with the battery's BMS. The image below shows the assembly of the
RS485/CAN communication cables.
-+
Figure 4.16
CAN
Procedure for connecting the CAN cable:
1. Take out the CAN cable (terminal marks ‘CAN' on one end and 'to Battery' on the
other end).
2. Unscrew the swivel nut from CAN port.
3.Insert the RJ45 terminal with CAN label into the CAN port, then fasten the swivel nut.
4. Connect the other end to the battery.
OR
NOTE:
Lead-Acid and other older-technology battery types require experienced
and precise design, installation and maintenance to work effectively.
For RHI series inverters there is no temperature compensation , thus client
need BTS (battery temperature sensor) which is connected to CAN port at
one side and battery negative pole at the other side.
BTS is optional. For further information please contact the sales manager.
For lead-acid battery , battery SOC calculation may not be accurate
according to battery inconformity between cells, battery aging or other
specifications of lead-acid battery etc.
NOTE:
For CAN cable pin 4 (blue) and pin 5 (white-blue) are used for the
communication.
Procedure for connecting the RS485 cable:
1. Take out the RS485 cable (terminal marks ‘RS485' on one end and 'to Meter' on the
other end).
2. Unscrew the swivel nut from RS485 port.
3. Insert the Two-pin terminal with RS485 label into the RS485 port, then fasten the
swivel nut.
4. Connect the other end to the Meter.
An external ground connection is provided at the right side of inverter.
Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal.
Connect the OT terminal with ground cable to the right side of inverter. The torque is 2Nm.
4.8 External ground connection
Figure 4.17 Connect the external grounding conductor
.19..18.
NOTE:
The CAN cable enables the communication between the inverter and Lithium
batteries.

4. Installation4. Installation
4.9 DRED port connections 4.10 External Residual Current Device(RCD)
All series of Solis inverters are integrated with an internal residual current device to
protect against any potential d.c component and a.c component of residual current.
Therefore, all Solis inverters, due to the design, are not able to feed in DC fault current to
the system which fully complies with IEC60364-7-712.
If an external RCD is required to be installed by local regulations, Solis recommends
installing a Type-A RCD with a threshold current higher than 100mA.
The inverter can be monitored via Wi-Fi or GPRS. All Solis communication devices are
optional. For connection instructions, please refer to the Solis Monitoring Device
installation manuals.
Internet
GPRS monitoring
Wi-Fi monitoring
Smart phone monitoring
PC monitoring
Web server
Router
Wi-Fi monitoring
Wi-Fi box
Figure 4.20 Wi-Fi orGPRScommunication function
4.11 Inverter monitoring connection
.21..20.
NOTE:
Solis hybrid inverter is designed to provide 12V power for DRED.
Please follow below steps to assemble RJ45 connector.
1. Insert the network cable into the communication connection terminal of RJ45.
Figure 4.18 RJ45 communication connection terminals
3. Connect RJ45 to DRM port.
Figure 4.19 Strip the insulation layer and connect to RJ45 plug
Correspondence between the
cables and the stitches of plug
Pin 1: white and orange ; Pin 2: orange
Pin 3: white and green； Pin 4: blue
Pin 5: white and blue； Pin 6: green
Pin 7: white and brown； Pin 8: brown
1--8
RJ45 plug RJ45terminal
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
2. Use the network wire stripper to strip the insulation layer of the communication cable.
According to the standard line sequence of figure 4.19 connect the wire to the plug of
RJ45, and then use a network cable crimping tool to make it tight.
Assignment for inverters capable
of both charging and discharging
Pin
1DRM 1/5
2DRM 2/6
3DRM 3/7
4 DRM 4/8
5RefGen
6
7
8
Com/DRM0
V+
V-
Assignment for inverters capable
of both charging and discharging
Pin
DRED means demand response enable device. The AS/NZS 4777.2 required inverter :2020
need to support demand response mode(DRM). This function is for inverter that comply with
AS/NZS 4777.2 standard.:2020
A RJ45 terminal is used for DRM connection.
NOTE:
To use this function, please contact the manufacturer.

4.12 Max. over current protection device (OCPD)
To protect the inverter's AC grid connection conductors, Solis recommends installing AC
breakers that will protect againt overcurrent. The following table defines OCPD ratings
for these inverters.
Table 4.1 Rating of grid OCPD
Inverter Rated
voltage(V)
Rated output
current (Amps)
Current for protection
device (A)
S5-EH1P3K-L 230 13.1
15.7
20
20.0
S5-EH1P3.6K-L
30
20
21.7
26.1
S5-EH1P4.6K-L
S5-EH1P5K-L 30
40
230
230
230
230
S5-EH1P6K-L
4. Installation4. Installation
4.13 Earth Fault Alarm
Solis inverters fully comply with IEC62109-2 in terms of earth fault alarm (PV insulation
detection and protection). When the earth fault on PV side happens, the yellow alarm
indicator will flash and the alarm code "PVISO-PRO" will show up on the LCD screen.
Inverter should be installed in a high traffic area to ensure the alarm to be noticed.
The inverter can’t start to generate until the earth fault is resolved. Please refer to the
troubleshooting section of this manual to resolve the earth fault or contact Solis service
team for help.
For the earth fault happened on battery inputs, customer shall install external alarm and
monitoring device to comply AS/NZS 5139.
Description
The inverter can detect DC power.
No DC power.
The inverter is fully operational.
The inverter has stopped operating.
The inverter is initializing.
Fault condition is detected.
No fault condition detected.
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Light
POWER
OPERATION
ALARM
4.14 LED Indicates
There are three LED indicators on the RHI inverter (Red, Green, and Orange) which
indicate the working status of the inverter.
Table 4.2 Status Indicator Lights
FLASHING Either the grid or solar cannot be detected.
.22. .23.

5. Operation
Monthly Energy Main interface
information
settings
advanced info.
advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
Pressing the ENTER
key to switch
to the submenu
Pressing the ESC
key calls back
the previous menu
main menu
Figure 5.1 Operation Overview
ESC
ESC
ENTER
5.1 Initial Display
When powering up the inverter for the first time, it is required to set the language.
Press "ENT" to select.
Figure 5.2 Set Language
Settings
Set Language 2015-02-23 19 35
English
中文
YES=< E N T > N O =< E S C >
5. Operation
After setting the language, press "ESC" to access the main page.
Figure 5.3 Main Page
KWH
2.526
Solar Power: When solar power is generated，an arrow
indicates the direction of the power flow and the value is shown
above the arrow.
Battery: When the battery is connected successfully, it will
display "CAN OK",meanwhile,battery SOC, arrow and value
of power flow is shown. Otherwise, it will display "CAN Fail".
Non-Critical Loads: Loads connected to the AC Grid port which
will shutdown if the grid is in malfunction.
KWH
2.526 Smart Meter: When the smart meter is connected successfully,
it will display "RS485 OK", otherwise "RS485 Fail".
Critical Loads: Loads connected to the AC Backup port which will
be supported by battery and solar even if the grid is in malfunction.
Grid: The arrow and value indicate the export/import power of
the hybrid system.
0.00kW
0.00kW
0.00kW
0.00kW
On the main page,
Press "ESC" : View the yield data on a monthly bar charts. Then use "UP" and "DOWN"
to change the date and "ENT" to move the cursor.
Press "UP" or "DOWN": View different status on the top left of the main page.
Press "ENT": Enter the main menu.
.24. .25.

5. Operation 5. Operation
5.2 Main Menu
There are four submenu in the Main Menu:
1. Information
2. Settings
3. Advanced Information
4. Advanced Settings
Figure 5.4 Main Menu
Settings
Menu 2015-02-23 19 35
Information
Settings
Advanced Information
Advanced Settings
5.3 Information
In the "Information" section, operating data and information can be viewed.
Three pages of information can be checked by press "UP" or "DOWN".
The example display is shown in the following Figure 5.5, 5.6 and 5.7.
Values are for reference only.
Figure 5.5 Information Page 1
Settings
Information 2015-02-23 19 35
1 / 4
Solar Power：
Solar Voltage1：
Solar Voltage2：
Grid Voltage：
Battery Voltage：
Backup Voltage：
Solar Current1：
Solar Current2：
Grid Power：
Grid Frequency：
02890W
345.1V
354.3V
221.5V
050.6V
000.0V
4.2A
4.1A
+02259W
50Hz
ESC U P D O W N E N T
DRM NO.：08
Charg Power：+00516W
Figure 5.6 Information Page 2
Information 2015-02-23 19 35
2 / 4
Total Energy：
This Year：
Last Year：
This Month：
Last Month：
Today：
Yesterday：
0000075kWh
0000033kWh
0000002kWh
0016kWh
0008kWh
0004.6kWh
00009.7kWh
E S C U P D O W N E N T
Inverter SN：FFFFFFFFFFFFFFF
Device Status：
Grid Status：
Generating
OffGridMode
Battery Status：
Normal
Backup Status：
Normal
Figure 5.7 Information Page 3
Settings
Information 2015-02-23 19 35
3 / 4
BMS Information
Battery Voltage：
Battery Current：
Charge Limit：
Discharge Limit：
SOC Value：
50.33V
12.9A
71.4A
71.4A
070%
E S C U P D O W N E N T
SOH Value：100%
BMS Status：CAN OK
Module Type：Pylon_LV
.26. .27.

5. Operation 5. Operation
Figure 5.8 Information Page 4
Settings
Information 2015-02-23 19 35
4 / 4
Grid Meter
Meter Voltage：
Meter+ Current：
Meter Power：
Meter Energy：
Input Energy：
000.0V
00.00A
+000000W
0000.00kWh
ESC U P D O W N E N T
Output Energy：
0000.00kWh
0000.00kWh
PV Inverter Meter
Meter Voltage：
Meter+ Current：
Meter Power：
Meter Energy：
Input Energy：
000.0V
00.00A
+000000W
0000.00kWh
Output Energy：
0000.00kWh
0000.00kWh
NOTE:
Meter Power/Grid Power: Positive value indicates exporting power to the
grid, negative value indicates importing power from the grid
Charge Power: Positive value indicates charging, negative value indicates
discharging.
NOTE:
Information for "PV Inverter Meter" is only available when two Eastron meters
are used and Meter Placement is selected as "Grid+PV Meter".
Details please consult Solis service department.
5.4 Settings
In the "Settings" section, Time/Date, Slave address and language can be modified.
Figure 5.9 Setting
Settings
Settings 2015-02-23 19 35
Set Time/Date
Set Address
Set Language
5.4.1 Set Time/Date
Figure 5.10 Set Time
Set Time/Date 2015-02-23 19 35
N E X T =< E N T > D O N E =< E S C >
MM DDYY
2 232015 --
HH MM
20 53 :
ESC U P D O W N E N T
Set the time and date on the inverter. Must set this according to local time as it
affects the daily yield calculation. (If Solis monitoring system is used, must set
the correct time zone of the system, otherwise datalogger will update the inverter
time based on the time zone of the system.)
Press "UP" and "DOWN" to change the value.
Press "ENT" to mover the cursor.
Press "ESC" to save the change.
.29..28.

5. Operation 5. Operation
5.4.2 Set Address
Set the slave address of the inverter. The default address is 01.
Figure 5.11 Set Address
Settings
Set Address 2015-02-23 19 35
YES=< E N T > N O =< E S C >
Slave Address：01
ESC U P D O W N E N T
5.4.3 Set Language
Set system language. Chinese and English are available.
Settings
Figure 5.12 Set Language
Set Language 2015-02-23 19 35
English
中文
YES=< E N T > N O =< E S C >
5.5 Advanced Information
Detailed information can be viewed in this section:
1. Alarm Message
2. Running Message
3. Version
4. Communication Data.
5. Daily Energy
6. Monthly Energy
7. Yearly Energy
8. Total Energy.
9. Warning Message
10. Inspection
Figure 5.13 Advanced Information
Settings
Advanced Information 2015-02-23 19 35
Warning Message
Version
Daily Energy
Monthly Energy
Yearly Energy
Total EnergyRunning Message
Communication Data
Alarm Message
40 pages of latest alarm messages (5 per page). Alarm message shows the alarm
that will lead to inverter shutdown.
Figure 5.14 Alarm Message
Alarm Message 2015-02-23 19 35
Message
NO-Grid
NO-Grid
NO-Grid
NO-Grid
NO-Grid
Date/Time
02-23 19:35
02-23 19:34
02-23 19:34
02-23 19:24
02-23 18:22
01/40
0000
0000
0000
0000
0000
E S C U P D O W N E N T
Date
5.5.1 Alarm Message
Inspection
.30. .31.

5. Operation 5. Operation

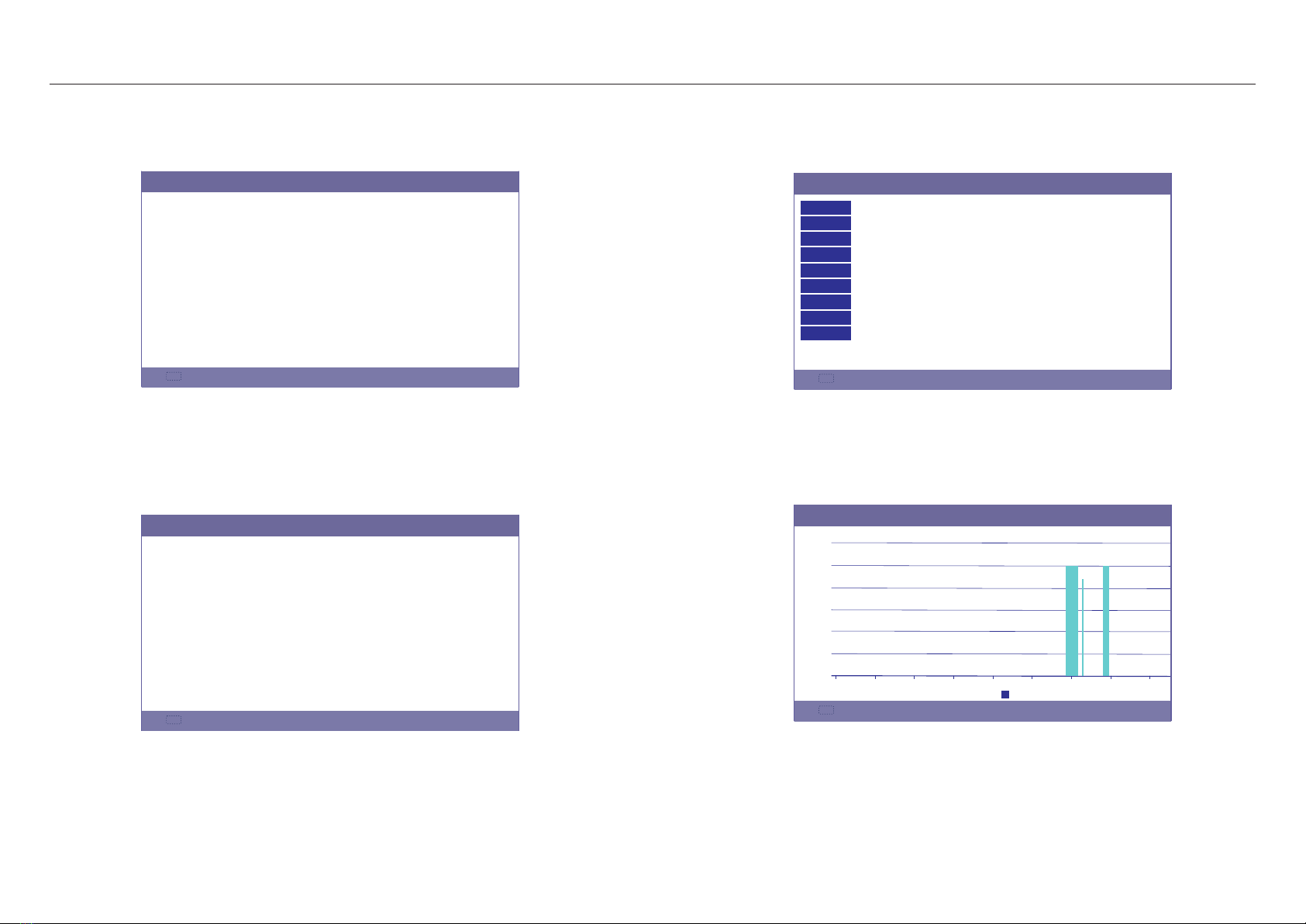

5.5.2 Running Message
5.5.3 Version
Inverter model number and software version can be viewed in this section.
Values are for reference only..
This function is for maintenance person to get running message such as internal
temperature, Standard NO. etc.(Values are for reference only.).
Settings
Figure 5.15 Running Message
Running Message 2015-02-23 19 35
DC Bus Voltage：
Reactive Power Ratio：
Output Power Limit：
Control Word Status：
Inverter Temperature：
Standard：
410.7V
+1.00
100%
0000H
+0031.6degC
G59/3
ESC
Grid Filter NO.：00
Ground Voltage：000.0V
版本号 2015-02-23 19 35
Version 2015-02-23 19 35
Model：
Software Ver.：
F8
140000
ESC
Figure 5.16 Model Version and Software Version
Battery Enable：Disable
5.5.5 Daily Energy
Figure 5.18 Daily Energy
Daily Energy 2015-02-23 19 35
2 0 1 5 - - 2 30 2
0 0
1 0
2 0
3 0
4 0
5 0
6 0
D a i l y E n e r g y [ k W ]
0 0 : 0 0 0 3 : 0 0 0 6 : 0 0 0 9 : 0 0 1 2 : 0 0 1 5 : 0 0 1 8 : 0 0 2 1 : 0 0 0 0 : 0 0
E S C U P D O W N E N T
The screen shows the daily energy detail of the inverter.
5.5.4 Communication Data
Internal communication data can be viewed in this section. For maintenance person only.
Values are for reference only.
Figure 5.17 Communication Data
Communication Data 2015-02-23 19 35
01-10：
11-20：
21-30：
31-40：
41-50：
51-60：
61-70：
71-80：
81-90：
86 61 A1 00 01 50 8A 06 1E 00
D5 05 1E 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00
09 02 00 00 00 00 B8 10 C0 00
20 5C 80 01 00 00 43 00 07 02
01 00 04 00 6D 04 E6 05 01 00
DC 05 1E 00 59 06 1E 00 D4 03
10 27 00 00 00 00 00 00 00 00
00 00 00 00 00 00 60 00 00 00
E S C
.33..32.

5. Operation 5. Operation
5.5.6 Monthly Energy
Settings
Monthly Energy 2015-02-23 19 35
2 0 1 5 - - 2 3 : 0 7 1 . 2 k W h0 2
0 0 0
1 0 0
2 0 0
3 0 0
4 0 0
5 0 0
6 0 0
M o n t h l y E n e r g y [ k W h ]
0 5 1 0 1 5 2 0 2 5
ESC U P D O W N E N T
The screen shows the inverter monthly energy detail of different month.
Figure 5.19 Monthly Energy
5.5.7 Yearly Energy
The screen shows the inverter yearly energy detail of different year.
Settings
Yearly Energy 2015-02-23 19 35
2 0 1 5
0 . 0
0 . 5
1 . 0
1 . 5
2 . 0
2 . 5
3 . 0
Ye a r ly E n e r g y [ M W h ]
0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 1 0 1 1 1 2
00.51
ESC U P D O W N E N T
Figure 5.20 Yearly Energy
Settings
Warning Message 2015-02-23 19 35
Message Date/Time Data
NO message.
E S C U P D O W N E N T
5.5.9 Warning Message
Figure 5.22 Warning Message
Settings
5.5.8 Total Energy
The screen shows the inverter total energy detail.
Figure 5.21 Total Energy
Total Energy 2015-02-23 19 35
0 . 0
0 . 5
1 . 0
1 . 5
2 . 0
2 . 5
3 . 0
T o t al ly E ne rg y[ MW h]
2 0 0 6 2 0 0 7 2 0 0 8 2 0 0 9 2 0 1 0 2 0 11 2 0 1 2 2 0 1 3 2 0 1 4 2 0 1 5
0 0 . 0 1
10 pages of latest warning messages (5 per page).
Warning message shows the warning that is abnormal but will not lead to inverter
shutdown.
.34. .35.

5. Operation 5. Operation
5.6 Advanced Settings - Technicians Only
NOTE:
This function is for authorised technicians only. Improper access
and operation may result in abnormal results and damage to the inverter.
Password required – restricted access – authorised technicians only
Un-authorised access may void the warranty. (Password"0010")
Settings
Password 2015-02-23 19 35
Please Input The Current Password
XXXX
ESC U P D O W N E N T
YES=< E N T > N O =< E S C >
Figure 5.23 Enter Password
This function is used to select corresponding grid standards.
Figure 5.25 Select Standard
5.6.1 Select Standard
Settings
Select Standard 2015-02-23 19 35
YES=< E N T > N O =< E S C >
4777_A
Select Standard:
Press the UP/DOWN keys to select the standard “4777_A”, “4777_B”,” 4777_C” and
“4777_N” for compliance with AS/NZS4777.2:2020. The standard “AS4777-15” is for
AS/NZS4777.2:2015.
The default password is “0010".
Please press “down” to move the cursor, press “up” to select the number.
After enter the correct password the Main Menu will display a screen and be able to
access to the following information.
1. Select Standard
2. ON/OFF
3. Calibrate
4. Reset Password
5. Restar HMI
6. Storage Energy Set
7. Export Power Set
8. HMI Update
9. DSP Update
10. BaudRate RS485
11. Special Settings
Advanced Settings 2015-02-23 19 35
Select Standard
Reset Password
Calibrate
HMIUpdate
Export Power Set
DSPUpdate
BaudRate RS485
ON/OFF
Figure 5.24 Advanced Settings
Storage Energy Set
Restart HMI Special Settings
.36. .37.
NOTE:
To check the firmware version, select the standard and you will find 'firmware
version' parameter. A2 is the current version that comply with AS/NZS
4777.2:2020.
