SOLTEK SL-56D1 User manual

i
Notice to End Users
This UserÕs Guide & Technical Reference is for assisting system
manufacturers and end users in setting up and installing the
mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer Inc. is not responsible for
printing or clerical errors. Information in this document is subject
to change without notice and does not represent a commitment on
the part of Soltek Computer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for
identification purposes only. Product names appearing in this
manual may or may not be registered trademarks or copyrights of
their respective companies.
SOLTEK COMPUTER INC. PROVIDES THIS MANUAL ÒAS ISÓ
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL SOLTEK COMPUTER
INC. BE LIABLE FOR ANY LOSS OR PROFITS, LOSS OF BUSINESS, LOSS
OF USE OR DATA, INTERRUPTION OF BUSINESS, OR FOR INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY
KIND, EVEN IF SOLTEK COMPUTER INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
© Copyright 1998 Soltek Computer Inc. All right reserved
Web site: http://www.soltek.com.tw
email: [email protected]
Edition: August 1998
Version: 1.0
SL-56D5/D1 SERIALS
®

ii
Contents
Chapter 1: Introduction --------------------------------------- 1
Features -------------------------------------------------------------------------1
CPU ------------------------------------------------------------------------1
Chipset -------------------------------------------------------------------- 1
L2 Cache ------------------------------------------------------------------1
Main Memory ----------------------------------------------------------- 1
BIOS ------------------------------------------------------------------------ 2
I/O Function -------------------------------------------------------------2
Other Functions --------------------------------------------------------- 2
Mainboard Setting for Pentium MMX-200----------------------------- 3
Chapter 2: Hardware Setup---------------------------------- 5
CPU VCORE Voltage Setting---------------------------------------------- 5
JP4: CPU VCore Voltage Setting -----------------------------------5
AGP Driver for Win95 Installation --------------------------------------6
Requirement -------------------------------------------------------------6
Installation Procedure -------------------------------------------------6
Intel Pentium MMXÐ166/200/233 CPUs ------------------------------7
AMD K6 CPU Settings------------------------------------------------------8
AMD K6 Ð 166/200/233 CPUs and K6-2 266 CPU ------------- 8
AMD K6-2 Ð 250/266/300/333/350 CPU Settings ------------------9
Cyrix MII Ð PR300/333/350 CPUs------------------------------------- 10
IDT C6 Ð 200/225/240 CPUs -------------------------------------------- 11
Intel Pentium/AMD K5 Ð 133/166/200 CPUs---------------------- 12
System Memory Configuration----------------------------------------- 13
Jumper Settings ------------------------------------------------------------- 13
JP8: Clear CMOS Data ---------------------------------------------- 13
JP11, JP12: CPU Dual/Single Voltage Select ------------------ 14
SW1: 4~6: Bus Ratio Select----------------------------------------- 14
JP6, JP7: Chipset Clock Settings ---------------------------------- 15

Contents iii
IDE LED Activity Light: (J1 pin1Ð4)------------------------------ 15
Infrared Port Module Connector (J1 pin6Ð10) ----------------- 15
J1 pin12, 13: ATX Power Button ---------------------------------- 15
J1 pin14, 15: Reserved ----------------------------------------------- 15
Speaker Connector (J2 pin1Ð4) ------------------------------------ 15
Reset Switch (J2 pin5, 6)--------------------------------------------- 16
Power LED and Keylock Switch (J2 pin8Ð12)------------------ 16
JWOL1: Wake On Lan (WOL) Connector ---------------------- 16
Turbo LED (J2 pin14, 15)-------------------------------------------- 17
J1 Switch Signal Summary ----------------------------------------- 18
J2 Switch Signal Summary ----------------------------------------- 19
Chapter 3: BIOS Setup ---------------------------------------20
Standard CMOS Setup ---------------------------------------------------- 21
BIOS Features Setup ------------------------------------------------------- 23
Chipset Features Setup --------------------------------------------------- 26
Power Management Setup ----------------------------------------------- 29
PnP/PCI Configuration Setup ------------------------------------------ 31
Load Setup Defaults ------------------------------------------------------- 34
Integrated Peripherals ---------------------------------------------------- 35
Supervisor/User Password---------------------------------------------- 38
IDE HDD Auto Detection ------------------------------------------------ 39
Save & Exit Setup ---------------------------------------------------------- 39
HDD Low Level Format -------------------------------------------------- 39
Exit Without Saving ------------------------------------------------------- 40

Introduction 1
Chapter 1
Introduction
Features
CPU
1. Supports Intel Pentium MMX CPUs at 100 ~ 233 MHz;
2. Supports Cyrix 6x86(L) CPUs at PR133+~ PR200+MHz
and 6x86MX (MII) CPUs at PR166+~ PR350+MHz;
3. Supports AMD K5: PR100 ~ PR200MHz, AMD K6: 166 ~
333MHz, and AMD K6-2: 250 ~ 350MHz;
4. Suports IDT C6: 200 ~ 225MHz;
5. Provides SOCKET 7 ZIF Socket;
6. Supports 66/75/83/95/100/112/124/133 MHz CPU clock.
Chipset
1. VIA Apollo MVP3 chipset;
2. PCI Rev 2.1 and APM1.1/1.2 compliant.
L2 Cache
1. Onboard supports 512K/1MB write back cache with
Pipelined Burst SRAMs.
Main Memory
1. Memory range from 4MB (minimum) to 768MB
(maximum) with DRAM Table Free configurations;
2. Supports SDRAM with 8/10ns;
3. Supports 3 pcs of 168pin DIMM sockets (3.3V
unbuffered 4 clock type).

2
BIOS
1. AWARD Plug and Play BIOS;
2. Supports Advanced Power Management, ACPI
Function;
3. Flash Memory for easy upgrade.
I/O Function
1. Integrated USB (Universal Serial Bus) controller with
two USB ports;
2. Supports 2 IDE channels with 4IDE devices (including
120MB IDE floppy);
3. Provides PCI IDE Bus Master function;
4. One floppy port;
5. Two high speed 16550 FIFO UART ports;
6. One parallel port with EPP/ECP/SPP capabilities;
7. PS/2 mouse connector;
8. Infrared module connector.
Other Functions
1. ATX Form Factor with 18cm x 30.5cm;
2. 5 PCI Master slots, 2 ISA slots, and 1 AGP slot;
3. Supports SCSI/CD-ROM Boot function;
4. Supports Wake On Lan (WOL)*, Modem Ring Up
function.
Note: 1. Make sure that the SDRAM module not only has
to be 168 pin DIMM but designed for 3.3V
unbuffered SDRAM as well. Double check with
the SDRAM supplier before install any
SDRAMs. The mainboard manufacturer has no
obligation to any damage of the board by using
the incorrect specification of SDRAM.
2. For 100MHz CPU environment, the SDRAM
must compliant PC-100MHz specification,
otherwise, the system maybe unstable.
*: To support WOL, the ATX Power Supply has to have
at least 5V/720mA standby current.

Introduction 3
Mainboard Setting for Pentium MMX-200
The default settings of the following figure is for the INTEL
Pentium MMX-200, Vcore: 2.8V.
ISA2
PCI5
FLASH BIOS
ISA1
PCI4
PCI3
PCI2
PCI1
AGP
VT82C586B
JP8
1
J1 J2
SPK KEYLOCK T/LED
HD LED IR CON PWR
RESET
JWOL1
Li BAT
W83877F
/877AF
VIA
MVP3
Chipset
Pipelined
SRAM Pipelined
SRAM
FDD1
IDE2 IDE1
JP6
JP7
1
TAG RAM
MMX-200 CPU
DIMM3 DIMM2 DIMM1
Clock Gen.
FAN1
JP4
1
ATX Power Conn.
LPT1
COM2 COM1
USB0 USB1
PS/2
K/B
Upper
Lower
654321
ON
SW1
Off
On
On
On
Off
Off
JP12
JP11
1
Figure 1–1. Motherboard Layout
Note: Double Check JP6/JP7 if system can not be boot up.

Chapter 2
Hardware Setup
CPU V
CORE
Voltage Setting
JP4, JP11, JP12: CPU V
Core
Voltage Setting
11
11
V
Core
Voltage
2.2V
K6-266
(or higher)
K6-2
JP4
JP12
JP11
JP4
JP12
JP11 JP4
JP12
JP11 JP4
JP12
JP11
JP4
JP12
JP11 JP4
JP12
JP11
1
V
Core
Voltage
2.8V
MMX, 6x86L
V
Core
Voltage
2.9V
K6-166/200
6x86MX/MII
V
Core
Voltage
3.2V
K6-233
1
V
Core
Voltage
3.3V
IDT C6
V
Core
Voltage
3.5V
Pentium (P54C)
6x86
K5
1
JP12 JP11
1
JP12 JP11
1
1
JP12 JP11
1
JP12 JP11
1
JP12 JP11
1
JP12 JP11
CPU Type VCore
Pentium, 6x86, K5 3.52V
MMX, 6x86L 2.8V
IDT C6 3.3V
K6-166/200, 6x86MX (MII) 2.9V
K6-233 3.2V
K6-266 (or higher), K6-2 2.2V

6
Note: 1. Refer to the table above to choose the correct
voltage for the CPU everytime that you install a
CPU.
2. Make sure that your JP4 is matched with the
CPU voltage, otherwise will damage the CPU or
make the system unstable.
3. When the new CPU is announced and is not
listed on this manual, please refer to the above
table, select the correct voltage setting for it.
AGP Driver for Win95 Installation
Requirement
¥ Microsoft Windows95OSR2.1 (OSR2.0 with USB upgrade)
¥ Apollo MVP3 AGP VxD Driver
¥ AGP VGA Card with Driver
¥ DirectX 5.0 DDK (or higher) or SDK
Installation Procedure
Step1 Go to the next step if you are running
Win95OSR2.0/2.1, and if not, install Windows95
4.00.950B or later version
Step2 Install USBSUPP.EXE program (USB upgrade)
Step3 Install Microsoft DirectX 5.0 (or higher) DDK or
SDK
Step4 Install AGP driver for Windows95
Step5 Install Apollo MVP3 AGP VxD Driver, run
ÒSETUP.EXEÓ program
To make sure if the Apollo MVP3 AGP driver is properly
installed, boot up the system and run the ÒRegeditÓ to check
if the following path with VIAGARTD exists:

Hardware Installation 7
ÒHKEY_LOCAL_MACHINES\System\CurrentControlSet\
Services\VxDÓ.
Follow the below procedure to check if the AGP driver is
capable to activate:
1. Activate ÒControl Panel,Ó
2. Click ÒDirectX,Ó
3. Click ÒDirectDraw,Ó and
4. Check if there are some values in ÒBitÓ and ÒOverlays.Ó
If there are some values, the AGP is able to activate.
Intel Pentium MMX–166/200/233 CPUs
MMX-200 CPU
JP4
1
SW1
1
Off
2
On
3
On
4
On On
56 123456 123456
Off
ON ON ON
MMX–166
Off
On On On On On
Off Off
MMX–200
Off Off Off Off
MMX–233
(2.8V)
JP6 JP7
1
JP12 JP11
1

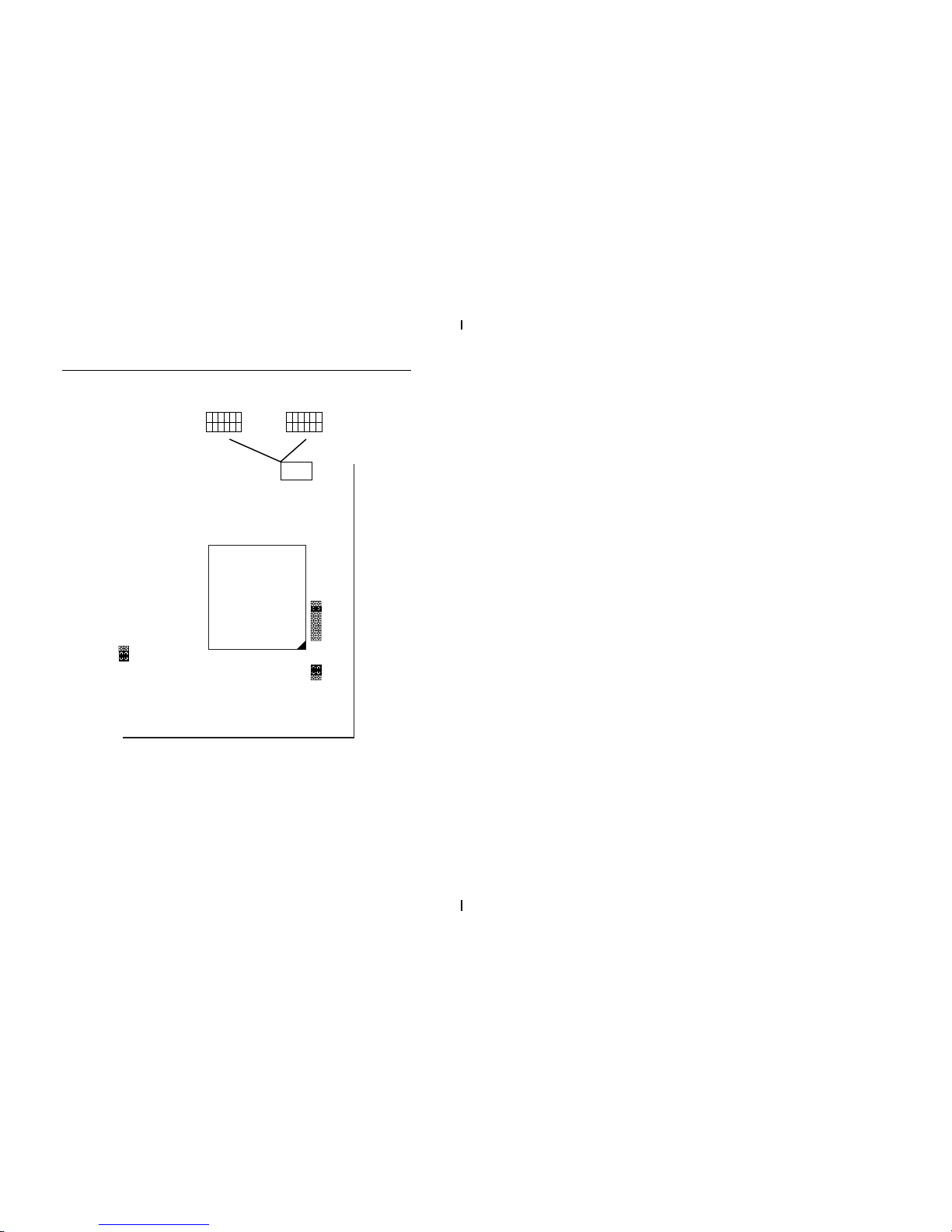

Figure 2–1. CPU Type Configuration

8
AMD K6 CPU Settings
AMD K6 – 166/200/233 CPUs and K6-2 266 CPU
ON
AMD K6 CPU
JP4
SW1
Off
On On On
ON ON ON
K6–300K6–200 K6–233
Off
On
Off On
On On On On On On On
Off Off
Off
Off
Off
Off
On
Off On
123456123456 123456 123456
K6-2-266
K6–266
JP4
1
(2.9V)
JP4
1
(2.2V)
JP4
1
(3.2V)
JP6 JP7
1
JP12 JP11
1
K6–233K6–200 K6-2–266
K6–266/300
Figure 2–2. CPU Type Configuration
Note: 1. K6–233 CPU is 3.2V. Please check its spec
before using it.
2. K6–266/300 is 2.2V CPU.Make sure that its
specification before using it.

Hardware Installation 9
AMD K6-2 – 250/266/300/333/350 CPU
Settings
AMD K6-2
CPUs
JP4
1
SW1
(2.2V)
Off Off Off Off Off
ONON
K6-2–350
(100MHz x 3.5)
K6-2–300
(100MHz x 3.0)
Off Off Off Off Off On Off
123456123456
ON
K6-2–333
(95MHz x 3.5)
Off Off Off Off Off
123456
ON
K6-2–250
(100MHz x 2.5)
Off
On
On
On
Off Off Off
123456
JP6 JP7
1
JP12 JP11
1
Figure 2–3. CPU Type Configuration
Note: K6-2-266 setting is the same as K6-266.

10
Cyrix MII – PR300/333/350 CPUs
Cyrix 6x86MX/MII
CPUs
JP4
1
SW1
(2.9V)
ON ON ON
MII–300
(66MHz x 3.5)
MII–333
(100MHz x 2.5)
MII–350
(83MHz x 3.5)
Off Off Off Off Off Off Off
On On On On
Off
Off Off Off Off Off
On
123456 123456 123456
ON ON ON
MII–300
(75MHz x 3.0)
MII–333
(66MHz x 4.0)
MII–350
(100MHz x 3.0)
Off Off
On
On
Off Off Off Off On
On On On
Off Off Off Off On Off
123456 123456 123456
ON
MII–333
(75MHz x 3.5)
Off Off
Off
Off
On
Off
123456
For 66/75MHz For 83MHz
JP6
1
JP7 JP6
1
JP7
JP6 JP7
1
JP12 JP11
1
For 95/100/112/124/133MHz
JP6
1
JP7
Figure 2–4. CPU Type Configuration

Hardware Installation 11
IDT C6 – 200/225 CPUs
IDT C6 CPUs
JP4
1
SW1
1
Off Off
2 3
On
4 5
On On
6 123456
Off
ON ON
C6–200
(66MHz x 3.0)
Off Off
On On
Off Off
C6–225
(75MHz x 3.0)
(3.3V)
JP6 JP7
1
JP12 JP11
1
Figure 2–5. CPU Type Configuration

12
Intel Pentium/AMD K5 – 133/166/200 CPUs
Pentium/K5
CPUs
JP4
1
SW1
1
Off
2
On
3
On On On
4 5
On On On
6 123456 123456
Off
ON ON ON
Off
On On On
Off Off
Off Off Off
(3.5V)
Pentium–166
K5–PR166 Pentium–200 K5–PR200 Pentium–133 K5–PR133
JP6 JP7
1
JP12 JP11
1
Figure 2–6. CPU Type Configuration

Hardware Installation 13
System Memory Configuration
This Apollo MVP3 motherboard supports 168pin DIMMs
(3.3V unbuffered type) of 4MB, 8MB, 16MB, 32MB, or 64MB
to form a memory size between 4MB to 768MB (total of 6
rows are supported).
The Apollo MVP3 chipset supports ÒTable FreeÓ
configuration so that DRAM module can be installed at any
capacity.
Note: For 100MHz CPU environment, the SDRAM must
compliant PC-100MHz specification, otherwise the
system maybe unstable.
Jumper Settings
JP8: Clear CMOS Data
Clear the CMOS memory by shorting this jumper on 2Ð3
momentarily; then remove the cap to retain new settings.
COMS Data
Retain Data
(default)
Clear Data
JP8
1
3
1
3

14
JP11, JP12: CPU Dual/Single Voltage Select
Single
Votage
Dual
Votage
Pentium P54C, K5,
6x86, IDT
MMX, 6x86L/6x86MX,
K6, K6-2, MII
JP11/JP12
1
3
CPU Type
1
3
Note: Wrong setting of JP11/JP12 will damage the CPU.
Please double check before powering on the
system.
SW1: 4~6: Bus Ratio Select
SW1: 1~3: CPU Clock Setting
Set the SW1 jumper according to your CPU Bus Ratio and
CPU Clock. (SW1 must work with JP6/JP7.)
ON
Off
6
5
4
Off
Off
On On
On On
1.5x or
3.5x
ON
6
5
4
Off
Off
2.0x 2.5x 3.0x
ON
6
5
4
Off
ON
Off
6
5
4
Off
SW1: 4~6
CPU Bus
Ratio Setting
On
On
Off
66MHz 75MHz
ON
3
2
1
ON
Off
3
2
1
On
On
83MHz
ON
Off
3
2
1
Off
Off
100MHz
ON
Off
3
2
1
Off
112MHz
ON
3
2
1
On
Off
95MHz
ON
On
On
On Off
124MHz
ON
On
On
133MHz
ON
3
2
1
Off
On
On
3
2
1
Off
Off
CPU Bus
Ratio Setting
ON
6
5
4
Off
On
On
On Off
On Off
4.0x
ON
6
5
4
On
On
4.5x 5.0x 5.5x
ON
6
5
4
On
ON
Off
6
5
4
On
SW1: 4~6
CPU Bus
Ratio Setting
SW1: 1~3

Hardware Installation 15
JP6, JP7: Chipset Clock Settings
JP6, JP7 setting must depend on the CPU clock. The system
will not boot up with wrong setting.
Chipset Clock
66/75 MHz
83 MHz
JP7, JP6
1
3
1
3
95/100/112/
124/133 MHz
1
3
IDE LED Activity Light: (J1 pin1–4)
This connector connects to the hard disk activity indicator
light on the case.
Infrared Port Module Connector (J1 pin6–10)
The system board provides a 5-pin infrared connectorÑIR1
as an optional module for wireless transmitting and
receiving. Pin 6 through 10 are Transmit, GND, Receive
(low speed), Receive (high speed), and Vcc, respectively.
J1 pin12, 13: ATX Power Button
Toggle this switch to turn on/off the system.
J1 pin14, 15: Reserved
Speaker Connector (J2 pin1–4)
The speaker connector is a 4-pin connector for connecting
the system and the speaker. (See the following drawing for
jumper position.)

16
Reset Switch (J2 pin5, 6)
The system board has a 2-pin connector for rebooting your
computer without having to turn off your power switch.
This prolongs the life of the systemÕs power supply.
Power LED and Keylock Switch (J2 pin8–12)
The keylock switch is a 5-pin connector for locking the
keyboard for security purposes. (See the following drawing
for jumper position, and pin1~3 is connected to power LED
and pin 4~5 is connected to keylock switch.)
JWOL1: Wake On Lan (WOL) Connector
This connector is designed to use Lan to bootup the system.
Connect the wake on signal from Lan card to this connector.

Hardware Installation 17
Turbo LED (J2 pin14, 15)
Connect the caseÕs turbo LED to this connector.
J1
J2
SPK KEYLOCK T/LED
HD LED IR CON PWR
RESET
J1
HD/LED IR PWR/SW
J2
T/LED
EXTSM1
KEYLOCKRESETSPK
Reset Power
LED
SPK Turbo
LED
J2
IR CON
HD/LED
J1
Power
Button
Keylock
1234 678910 12131415
123456 89101112 1415
