SOLTEK SL-53D5-S Use and care manual

ii
Notice to End Users
This UserÕs Guide & Technical Reference is for assisting system
manufacturers and end users in setting up and installing the
mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer Inc. is not responsible for
printing or clerical errors. Information in this document is subject
to change without notice and does not represent a commitment on
the part of Soltek Computer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for
identification purposes only. Product names appearing in this
manual may or may not be registered trademarks or copyrights of
their respective companies.
SOLTEK COMPUTER INC. PROVIDES THIS MANUAL ÒAS ISÓ
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL SOLTEK COMPUTER
INC. BE LIABLE FOR ANY LOSS OR PROFITS, LOSS OF BUSINESS, LOSS
OF USE OR DATA, INTERRUPTION OF BUSINESS, OR FOR INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY
KIND, EVEN IF SOLTEK COMPUTER INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
© Copyright 1997 Soltek Computer Inc. All right reserved
Web site: http://www.soltek.com.tw
email: [email protected], [email protected]
Edition: November 1997
Version: 1.0
SL–53D5-S SERIAL

Contents iii

iv
Contents
Chapter 1: Intorduction --------------------------------------- 1
Features -------------------------------------------------------------------------1
CPU ------------------------------------------------------------------------1
Chipset -------------------------------------------------------------------- 1
L2 Cache ------------------------------------------------------------------1
Main Memory ----------------------------------------------------------- 1
BIOS ------------------------------------------------------------------------ 2
I/O Function -------------------------------------------------------------2
Other Functions --------------------------------------------------------- 2
Mainboard Setting for Pentium MMX-166----------------------------- 3
Chapter 2: Hardware Setup---------------------------------- 4
CPU VCORE Voltage Setting---------------------------------------------- 4
J3: CPU VCore Voltage Setting ------------------------------------- 4
Intel Pentium MMXÐ166/200/233 --------------------------------------- 5
AMD K6 CPU Settings------------------------------------------------------6
AMD K6 Ð 166/200/233 ---------------------------------------------- 6
Cyrix 6x86MX (M2) Ð PR150/166/200/233/266 ---------------------7
Cyrix 6x86L Ð PR133+/PR150+/PR166+/PR200+ CPUs----------- 8
Intel Pentium/AMD K5 CPU Settings---------------------------------- 9
CPU 1.5X Clock Setting ----------------------------------------------- 9
CPU 2.0X Clock Setting --------------------------------------------- 10
CPU 2.5X Clock Setting --------------------------------------------- 10
CPU 3.0X Clock Setting --------------------------------------------- 11
System Memory Configuration----------------------------------------- 11
Jumper Settings ------------------------------------------------------------- 12
JBAT1: Clear CMOS Data ------------------------------------------ 12
JBF & JCK: Bus Ratio and External Bus Clock Select-------- 12
Power Connector ----------------------------------------------------- 13
IDE LED Activity Light: (J2 pin1Ð4)------------------------------ 14

Contents v
Infrared Port Module Connector (J2 pin6Ð10) ----------------- 14
J2 pin12, 13: Reserved ----------------------------------------------- 14
SMI Switch (J2 pin14, 15)-------------------------------------------- 14
Speaker Connector (J1 pin1Ð4) ------------------------------------ 14
Reset Switch (J1 pin5, 6)--------------------------------------------- 14
Power LED and Keylock Switch (J1 pin8Ð12)------------------ 14
Turbo LED (J1 pin14, 15)-------------------------------------------- 15
USB: USB Connector ------------------------------------------------ 16
J2 Switch Signal Summary ----------------------------------------- 17
J1 Switch Signal Summary ----------------------------------------- 18
Chapter 3: BIOS Setup ---------------------------------------19
Standard CMOS Setup ---------------------------------------------------- 20
BIOS Features Setup ------------------------------------------------------- 22
Chipset Features Setup --------------------------------------------------- 25
Power Management Setup ----------------------------------------------- 28
PnP/PCI Configuration Setup ------------------------------------------ 31
Load Setup Defaults ------------------------------------------------------- 33
Integrated Peripherals ---------------------------------------------------- 33
Supervisor/User Password---------------------------------------------- 37
IDE HDD Auto Detection ------------------------------------------------ 38
Save & Exit Setup ---------------------------------------------------------- 38
HDD Low Level Format -------------------------------------------------- 39
Exit Without Saving ------------------------------------------------------- 39

Introduction 1
Chapter 1
Introduction
Features
CPU
1. Supports Intel Pentium P54C/MMX (P55C) CPUs at 90
~ 233 MHz;
2. Supports Cyrix 6x86(L) CPUs at PR133+~ PR200+MHz
and 6x86MX (M2) CPUs at PR166+~ PR266+;
3. Supports AMD K5: PR90 ~ PR200 and AMD K6: 166 ~
233;
4. Provides SOCKET 7 ZIF Socket;
5. Supports 75MHz CPU clock;
6. Supports CPU voltage auto detect and switching circuit.
Chipset
1. VIA Apollo VPX chipset;
2. PCI Rev 2.1 and APM1.1 compliant.
L2 Cache
1. Onboard supports 512k write back cache with Pipelined
Burst SRAMs.
Main Memory
1. Memory range from 4MB (minimum) to 512MB
(maximum) with DRAM Table Free configurations;
2. Supports Fast Page Mode/EDO/Synchronous DRAM
with 60ns/70ns DRAM speed;
3. Supports 4 pcs 72pin SIMM sockets and 1 piece of
168pin DIMM sockets (3.3V unbuffered type).

2
BIOS
1. AWARD Plug and Play BIOS;
2. Supports Advanced Power Management Function;
3. Flash Memory for easy upgrade.
I/O Function
1. Integrated USB (Universal Serial Bus) controller with
two USB ports;
2. Supports 2 IDE channels with 4IDE devices (including
120MB IDE floppy);
3. Provides PCI IDE Bus Master function;
4. One floppy port (including 3.5", 1.2MB Mode 3
function);
5. Two high speed 16550 FIFO UART ports;
6. One parallel port with EPP/ECP/SPP capabilities;
7. PS/2 mouse connector;
8. Infrared module connector.
Other Functions
1. AT Form Factor with 22cm x 23cm;
2. 4 PCI Master slots and 3 ISA slots;
3. Supports SCSI/CD-ROM Boot function;
Note: Make sure that the SDRAM module not only has to be
168 pin DIMM but designed for 3.3V unbuffered
SDRAM as well. Double check with the SDRAM
supplier before install any SDRAMs. The mainboard
manufacturer has no obligation to any damage of the
board by using the incorrect specification of SDRAM.

Introduction 3
Mainboard Setting for Pentium MMX-166
The default settings of the following figure is for the INTEL
Pentium MMX-166 with the 512K (or 256K) cache. To get
the best cooling effect, make sure that the airflow from the
CPU fan is facing the heatsink.
SL1 SL2 SL3
PCI4 PCI3 PCI2 PCI1
SIMM4 SIMM3 SIMM2 SIMM1
COM2 COM1
K/B
PS/2
Mouse
Power Con.
MMX–166
CPU
FDC37C669
+
Battery
VT82C587VP
VT82C587VP
512K PB
Cache
1
USB
(Bank 2) (Bank 1)
VT82C586VPX VT826586
DIMM1 (BANK0) 3.3V Unbuffered SDRAM
Flash BIOS
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
J3
1
J2 HDLED IR
J1 T/LED
SM1
Power LEDRESETSPK
IDE1LPT IDE1FDC
1
JBAT1
Air Flow
COIL
COIL
Figure 1Ð1. SLÐ53D5-S Motherboard Layout

4
Chapter 2
Hardware Setup
CPU V
CORE
Voltage Setting
J3: CPU V
Core
Voltage Setting
3.1V*
3.5V
Pentium (P54C)
6x86
K5
V
Core
Voltage
3.0V* 3.4V
2.9V
K6Ð166/200
6x86MX (M2)
3.3V
2.8V
MMX, 6x86L
3.2V*
K6Ð233
(or higher)
V
Core
Voltage
2.4V2.0V
V
Core
Voltage
2.5V
2.6V
2.7V
2.1V*
K6Ð233
(or higher)
2.2V
2.3V
V
Core
Voltage
J3 J3 J3 J3
CPU Type VCore
Pentium (P54C), 6x86, K5 3.52V
MMX (P55C) 2.8V
6x86L 2.8V
K6-166/200, 6x86MX (M2) 2.9V
K6-233 (or higher) 3.2V

Hardware Installation 5
Note: 1. Refer to the table above to choose the correct voltage
for the CPU everytime that you install a CPU.
2. Make sure that your J3 is matched with the CPU
voltage, otherwise will damage the CPU or make the
system unstable.
3 When the new CPU is announced and is not listed
on this manual, please refer to the above table, select
the correct voltage setting for it.
Intel Pentium MMX–166/200/233
Intel MMX
CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
JBF1
JBF2
JBF3
(2.8V)
3.5x clock
MMX – 233
JBF1
JBF2
JBF3
3.0x clock
MMX – 200
JBF1
JBF2
JBF3
2.5x clock
MMX – 166
J3
1
Figure 2Ð1. CPU Type Configuration

6
AMD K6 CPU Settings
AMD K6 – 166/200/233
AMD K6
CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
JBF1
JBF2
JBF3
AMD K6 – 233
JBF1
JBF2
JBF3
AMD K6 – 200
JBF1
JBF2
JBF3
AMD K6 – 166
(2.9V) (2.9V) (3.2V)
J3
1
J3
1
J3
1
J3
1
Figure 2Ð2. CPU Type Configuration
Note: K6Ð233 CPU is 3.2V or 2.1V depending on its process.
Please check its spec before using it.

Hardware Installation 7
Cyrix 6x86MX (M2) – PR150/166/200/233/266
Cyrix
6x86MX(M2)
CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
JBF1
JBF2
JBF3
(2.9V)
6x86MX– PR200
(66MHz x 2.5)
JBF1
JBF2
JBF3
6x86MX– PR166
JBF1
JBF2
JBF3
6x86MX – PR150
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
6x86MX– PR233
(66MHz x 3.0)
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
6x86MX– P266
JBF1
JBF2
JBF3
6x86MX– PR200
(75MHz x 2.0)
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
6x86MX– PR233
(75MHz x 2.5)
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
J3
1
OR OR
Figure 2Ð3. CPU Type Configuration
Note: For the correct settings, you must refer to the CPUÕs
surface instruction.

8
Cyrix 6x86L –
PR133+/PR150+/PR166+/PR200+CPUs
Cyrix 6x86L
CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
(2.8V)
6x86L – PR166+ 6x86L – PR150+ 6x86L – PR133+
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
6x86L – PR200+
JCK1 JCK2 JCK3
1
J3
1
Figure 2Ð4. CPU Type Configuration

Hardware Installation 9

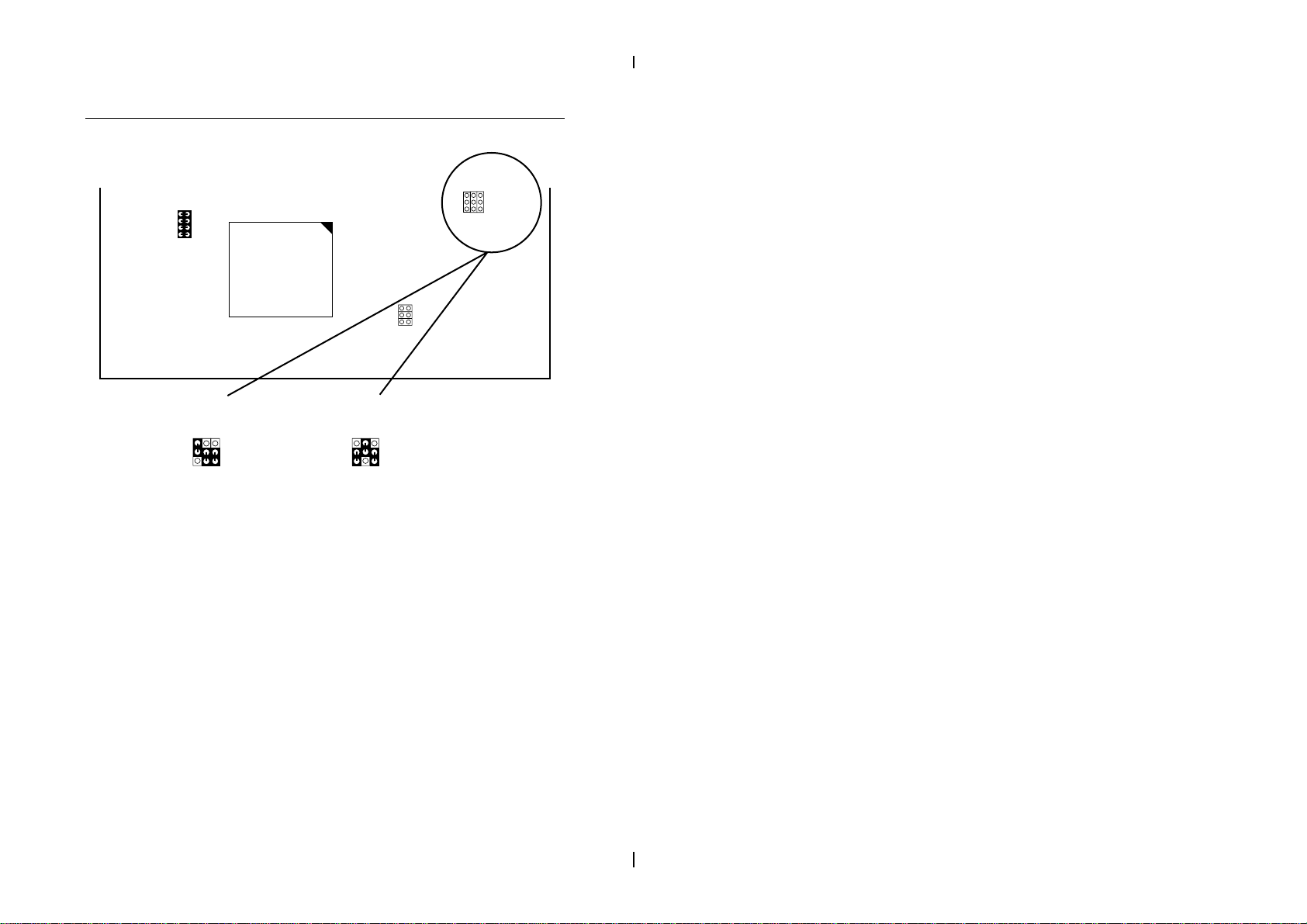

Intel Pentium/AMD K5 CPU Settings
CPU 1.5X Clock Setting
Pentium CPUs
K5 CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
(3.5V)
Pentium – 100
K5 – PR100
Pentium – 90
K5 – PR90
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
J3
1
Figure 2Ð5. CPU Type Configuration

10
CPU 2.0X Clock Setting
Pentium CPUs
K5 CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
Pentium – 133
K5 – PR133
Pentium – 120
K5 – PR120
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
(3.5V)
J3
1
Figure 2Ð6. CPU Type Configuration
CPU 2.5X Clock Setting
Pentium CPUs
K5 CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
Pentium – 166
K5 – PR166
Pentium – 150
K5 – PR150
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
(3.5V)
J3
1
Figure 2Ð7. CPU Type Configuration

Hardware Installation 11
CPU 3.0X Clock Setting
Pentium CPUs
JCK1 JCK2 JCK3
1
JBF1
JBF2
JBF3
Pentium – 200Pentium – 180
JCK1 JCK2 JCK3
1
JCK1 JCK2 JCK3
1
(3.5V)
J3
1
Figure 2Ð8. CPU Type Configuration
System Memory Configuration
This Apollo VPX motherboard supports 72-pin SIMMs and
168pin DIMMs (3.3V unbuffered type) of 4MB, 8MB, 16MB,
or 32MB to form a memory size between 4MB to 512MB
(total of 6 rows are supported).
The Apollo VPX chipset supports ÒTable FreeÓ configuration
so that DRAM module can be installed at any capacity.

12
Jumper Settings
JBAT1: Clear CMOS Data
Clear the CMOS memory by shorting this jumper
momentarily; then remove the cap to retain new settings.
COMS Data JBAT1
Clear Data
1
Retain Data
(default)
1
JBF & JCK: Bus Ratio and External Bus Clock Select
Set the jumper according to your CPU clock.
JBF1~3 1.5x
3.5x 2.0x 2.5x 3.0x
CPU
Bus
Ratio
Setting
JBF1
JBF2
JBF3
JBF1
JBF2
JBF3
JBF1
JBF2
JBF3
JBF1
JBF2
JBF3
JCK1~3 50MHz 55MHz 60MHz
CPU Clock
Setting
1
JCK3 JCK2 JCK1
1
JCK3 JCK2 JCK1
1
JCK3 JCK2 JCK1
66MHz 75MHz 83MHz
1
JCK3 JCK2 JCK1
1
JCK3 JCK2 JCK1
1
JCK3 JCK2 JCK1

Hardware Installation 13
Power Connector
The power connector has two 10-pin male header
connectors. Plug the dual connectors from the power
directly onto the board connector while making sure the
black leads are in the center.
Power Con.

14
IDE LED Activity Light: (J2 pin1–4)
This connector connects to the hard disk activity indicator
light on the case.
Infrared Port Module Connector (J2 pin6–10)
The system board provides a 5-pin infrared connectorÑIR1
as an optional module for wireless transmitting and
receiving. Pin 6 through 10 are Transmit, GND, Receive
(low speed), Receive (high speed), and Vcc, respectively.
J2 pin12, 13: Reserved
SMI Switch (J2 pin14, 15)
Toggle this jumper forces the system to sleep and the system
wonÕt wake up until the hardware event is coming. (The
BIOS Power Management setting muse be Enabled.)
Speaker Connector (J1 pin1–4)
The speaker connector is a 4-pin connector for connecting
the system and the speaker. (See the following drawing for
jumper position.)
Reset Switch (J1 pin5, 6)
The system board has a 2-pin connector for rebooting your
computer without having to turn off your power switch.
This prolongs the life of the systemÕs power supply.
Power LED and Keylock Switch (J1 pin8–12)
The keylock switch is a 5-pin connector for locking the
keyboard for security purposes. (See the following drawing
for jumper position, and pin1~3 is connected to power LED
and pin 4~5 is connected to keylock switch.)

Hardware Installation 15
Turbo LED (J1 pin14, 15)
Connect the caseÕs turbo LED to this connector.
J2
HDLED IR
J1
T/LEDKeylock
SM1
Power
LED
RESETSPK
J2
HDLED IR
J1
T/LED
SM1
Power LEDRESETSPK
Reset Power
LED
SPK Turbo
LED
J1
IR CON
HD/LED
J2 SMI
Keylock
1234 678910 12131415
123456 89101112 1415
