Sonation PRSO-V2-PF User manual

OPERATORS MANUAL
FOR PHARMAFLUIDICS µPAC™ NANOLC COLUMNS

Analytics
lab solutions.
lab solutions.
Sonation
Sonation

Seite 2
CE-Konformitätserklärung
CE Declaration of Conformity
CE Déclaration de Conformité
CE Dichiarazione di Conformità
Der Hersteller /The manufacturer / Le fabricant / Il fabbricante
Sonation GmbH
Alte Schulstr. 39 –88400 Biberach - Deutschland
erklärt hiermit, dass die Produkte
herewith declares that the products
déclare par la présente que le produits
dichiara che il prodotti
PRSO-V2-PF
den Anforderungen der folgenden EG-Richtlinien entspricht.
meets the provisions of following EC-Directives.
remplit les exigences des Directives CE suivantes.
soddisfa tutte le disposizioni dalle Direttive CE.
Richtlinie
Directive
Directive
Direttiva
gültig bis
valid until
valable jusqu’à
con validità fino al
gültig ab
valid after
valable à partir de
applicabile dal
2006/95/EG, EC, CE
19.04.2016
2014/35/EU
20.04.2016
2004/108/EG, EC, CE
19.04.2016
2014/30/EU
20.04.2016
2011/65/EU
03.01.2013
Angewandte Normen:
Applied standards:
Normes appliquées:
Norme applicate :
EN 61326-1:2013 - Basic requirements
EN 61010-1 :2010 + Cor. :2011
Diese Erklärung gilt für die oben genannten Produkte ab dem Unterzeichnungsdatum.
This declaration is valid for the above mentioned products after the signature date below.
La présente déclaration est valable à partir de la date de signature.
Questa dichiarazione vale per il suddetto prodotti dalla data di firma.
______________________ __________________________
Ort / place / lieu / luogo Unterschrift / signature / signature / firma
Datum /date / date / data
Name / name / nom / nome:
(Geschäftsführer / management / directeur / delegato)
Biberach, 17.05.2021
Christof Völkle

Seite 3
Contents
1 Safety 4
  .................................................................................................................................... 4
1.2 Intended use.............................................................................................................................................................. 4
1.3 Non-intended use...................................................................................................................................................... 4
1.4 Examples of foreseeable misuse ............................................................................................................................... 4
1.5 Who may use and operate the column oven ............................................................................................................ 5
1.6 Safety signs and symbols........................................................................................................................................... 5
Safety symbols on the device and in the user manual........................................................................................... 5
Symbols on the nameplate .................................................................................................................................... 5
  
2.1 Scope of delivery ....................................................................................................................................................... 6
2.2 Overview ................................................................................................................................................................... 6
 ..................................................................................................................... 6
Controller ............................................................................................................................................................... 7
................................................... 7
  
3.1 Hardware................................................................................................................................................................... 8
.............................................................................................................................................. 8
............................................................................................. 8
 ............... 9
 ........................................................................................................................................ 
.......................................................................................................................................... 
  .................................................................................................................................................................. 11
Installing CO-Control ............................................................................................................................................ 11
4 Usage 11
4.1 Column loading ....................................................................................................................................................... 11
4.2 Using CO-Control..................................................................................................................................................... 12
  
Maintenance ........................................................................................................................................................ 13
Cleaning ............................................................................................................................................................... 13
  
  
  
  

Page 4
Column Oven PRSO-V2-PF User manual
1 Safety
1.1 
-

The user manual is part of the product. Keep it in a safe place. If the product is sold, rented or passed on in any other
way, the user manual must be included.






Only use accessories expressly recommended by the manufacturer.

damage, if the power cord or plug is damaged, if liquid has been spilled inside the apparatus, if the apparatus has
been exposed to rain, if it does not perform as expected, or if it has fallen.

power.

device.




The oven must be installed as described in this manual.

Do not use any adhesive tape or other non-heat-resistant materials inside the oven.

The device may only be used in clean and dry rooms.

data“ on page 13 must not be exceeded.
-






The device may only be repaired by a specialist.
1.3 
A non-intended use is given when the equipment is treated in any way that is contrary to any of the points from the

If the oven is not used as intended, handled improperly and used, assembled or handled by untrained personnel,

1.4 


User manual Column Oven PRSO-V2-PF
Page 5

Use with damaged supply lines.
1.5 

























Page 6
Column Oven PRSO-V2-PF User manual
 




1 x Controller
1 x Oven control cable
1 x Data cable for RS232 and contact closure
1 x USB to serial adapter


1 x This manual




are achieved by the constant column temperature.


   
Column outlet Column compartment Column inlet

-
ing fan. This part is connected to the oven controller. The lower part holds the column and provides the in- and outlet

located.
7
6
5
4
3
2
1
Fig. 1: Column oven (top and boom part)

User manual Column Oven PRSO-V2-PF
Page 7

  
-



contact closure interface.

  Handle bar 
     
   Screw 4 x M3x14 
  


3
2
1
Fig. 2: Controller - Rear view (le) and front view (right)
11
10
9
8
7
6
5
4
3
2
1
Fig. 3: Mounng kit

Page 8
Column Oven PRSO-V2-PF User manual
3 
3.1 










  Metal rod
2
1
Fig. 4: µPAC™ Flex iON Connect

User manual Column Oven PRSO-V2-PF
Page 9


Fig. 3 .
  





    


2
1
Fig. 5: Aaching the adapter
3
2
1
Fig. 6: Adjusng the adapter


Column Oven PRSO-V2-PF User manual
    








Connect the controller with the provided data cable to an available COM-port on your instrument PC. If there is no
COM-port available, please use the provided USB to serial adapter.

-

Connect the oven to the controller with the provided oven control cable.

 The power supply will be connected to a wall outlet later.
2
1
Fig. 7: Mounng the oven
Power supply
24V/200W Oven Flex Ion
Source
Controller MS
PC
Fig. 8: Wiring scheme

User manual Column Oven PRSO-V2-PF
Page 11





4 Usage
4.1 










Plug in the power cord from the power supply to a wall outlet.
The oven is now ready to use.
Fig. 9: Column loading

Page 12
Column Oven PRSO-V2-PF User manual



current temperature of the oven in the display in the upper right.

is not properly closed, the temperature readout will show -999°C.


-



-


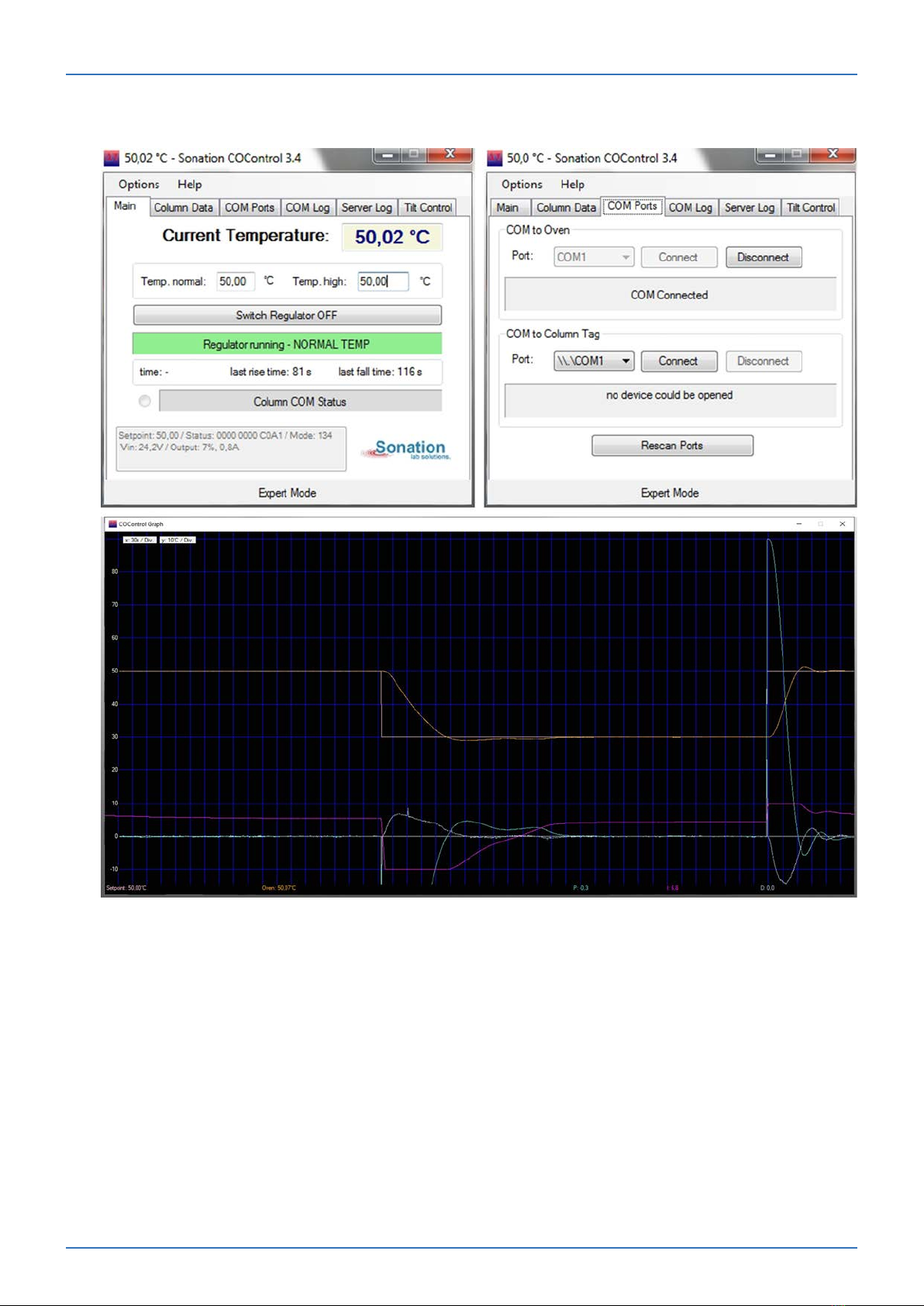

Fig. 10: Oven control soware CO-Control

User manual Column Oven PRSO-V2-PF
Page 13
5 

The product is basically maintenance-free but not wear-free. If a wear-related defect should occur, please contact your



 






7 
Temperature control range
 
 


Temperature control rate
 
 


Control accuracy 
Supported columns 
Oven weight 

Transport
Storage
 
Temperature Humidity
 
 
 
Power cable
EU
CH
UK
US




Supply voltage 
Max power input 
Appliance class 

Page 14
Column Oven PRSO-V2-PF User manual
 

Yes. Please use the provided USB to serial converter to install a virtual COM-port.

Please ensure that your oven is closed properly. When the oven is open or even not properly closed, the temperature
sensor cannot be read.





-


User manual Column Oven PRSO-V2-PF
