DESK WITH MICROPHONE P5552-P5556 and P55580

DESCRIPTION

Notice broadcast desks, including flexible Omni directional Electret

microphone.

Adjustable level of broadcasting notices.

Base of great stability and ergonomic keyboard for easy use.

Depending upon models, notices can be independently broadcast to

various areas, or to all in a general way.

With sound automatic generator of Pre-notice (DING-DONG) of two

notes, and on/off status to be selected with an external switch.

Models:

P5552 General Call

P5556 General Call and 6 Areas

P5580 General Call and 18 Areas

Allows a simple and quick solution for notice systems and public address

systems.

GENERAL CHARACTERISTICS

- 'All' push button of General Call, and LED

indicating hold (red) during the broadcast of the notice.

- Led (green) indicating connected microphone.

- 'Lock' push button for locking general call

- Push buttons for calls to areas

- 'On/off' switch for DING-DONG, with led indicating status

- Front adjustment for level of broadcast of notices

- Reset internal protection (Polyswitch) against short-circuits and

inversion of supply polarity.

- 2 DB1 and DB2 rear connectors (type DB15) to allow an easy and

quick connection to Sonelco line.

- Rear jack for supply with an external auxiliary supplier 15V/1A.

- Auxiliary audio exit of a Jack 6.35 type.

- Internal pre-adjusted adjustments from the factory for Ding-dong

level and microphone sensibility

Electrect uF sensibility: 5mV/1PSA

Nominal supply: +16 V DC

Consumption on standby: 25 mA

Consumption when broadcasting notices: Depends on the Zi switching

load (max 500 ma).

Audio exit level (nominal): 3 Vrms/exit impedance (min): 100 Ohm

Notice switching exit level: V(Zi)= 15V / Imax: 500 mA

Dimensions:

Box: 85 x 150 x 150 mm.

Maximum length of flexible microphone support: 430 mm

FUNCTIONING

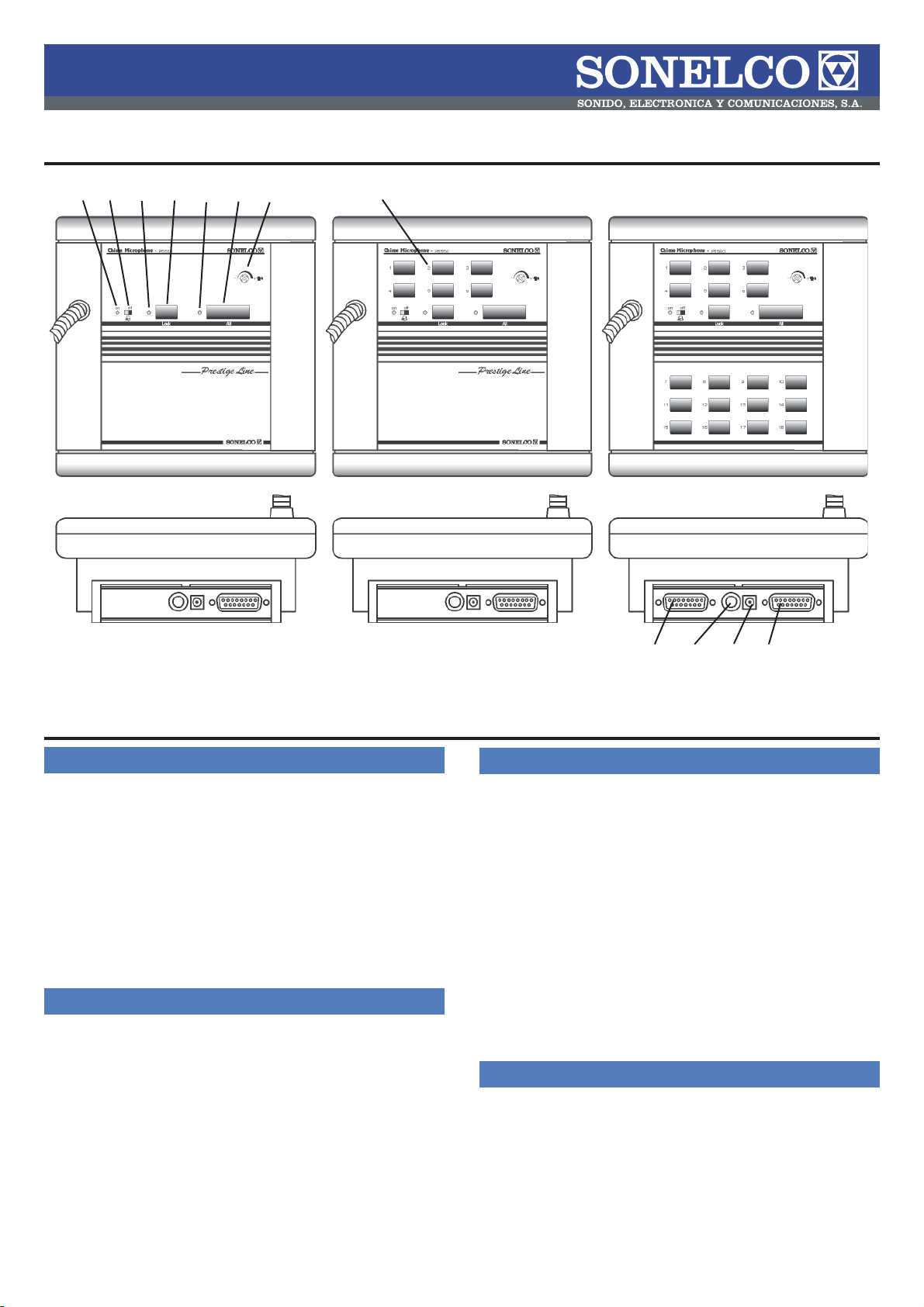

1/ LED indicating pre-notice mode activated -2/ Switch to select pre-notice mode 'on/off' -3/ LED indicating CALL activated -4/ Lock CALL push button

-5/ LED indicating telephone status: red = hold (pre-notice sound) - green = microphone activated -6/ General call push button -7/ regulation notice level

-8/ push buttons for calls by areas -9/ AUDIO-OUT -10/ Supply jack -11/ DB1 connection -12/ DB2 connection

1. Select the functioning mode for the pre-notice 'on/off'. If you wish pre-

notice place the switch to 'on', led (1) lights up.

2. If you wish to broadcast a notice you need to press on one of the

CALLbuttons orAreas (8) for the time the pre-notice Ding-dong lasts and

during the notice itself.

Upon pressing any of the buttons, both those of the areas of the general

call, the pre-notice starts automatically (if this mode has been selected)

and the pre-notice LED (5) lights up in red.

Once the Ding-dong has finalised, the indicating LED (5) lights up in

green to indicate that we can now broadcast the message.

Upon releasing the button the microphone disconnects automatically.

To broadcast a notice to all the areas keep the general call button (6)

pressed.

If you wish to maintain the microphone activated in a permanent mode,

press the Lock button (4); this will activate the microphone permanently

and the LED (3) will be lit up indicating this status until this is deactivated

by pressing the Lock (4) again.

TECHNICAL CHARACTERISTICS

1 2 3 4 5 6 7 8

12 9 10 11

DB1 DB1 DB1DB2

P5552 P5556 P5580

4FA019001

These characteristics are only given as reference. The manufacturer reserves the right to introduce any amendments without prior notice in order to improve the product. P55../ 26-03-08

INSTALLATION EXAMPLES

P5906

TO GENERAL

AUDIO LINE

INSTALLATION DETAIL WITH DESKTOP MICROPHONES P5552 and P5556

TO GENERALAUDIO LINE

AND 6 NOTICE ZONES

EXTENSION OF ZONES

FROM 7 TO 18

INSTALLATION DETAIL WITH DESKTOP MICROPHONE P5580

P5906

PC9405
