SonicWALL TZ 180 Wireless Getting Started Guide Page 1
SonicWALL TZ 180 Wireless
Getting Started Guide
Thank you for your purchase of the SonicWALL TZ 180 Wireless, the ultimate
security platform for home and small office deployments.
Note: To ensure optimal performance, please visit
<https://www.mysonicwall.com> to register your new
appliance, download the latest version of SonicOS firmware,
and view the online product documentation library.
With integrated support for SonicWALL's Gateway Anti-Virus, the SonicWALL
TZ 180 Wireless delivers powerful, yet easy-to-use protection against hackers
and viruses. The SonicWALL TZ 180 Wireless also provides support for
SonicWALL's Content Filtering Service to provide enhanced productivity and
network utilization.
This guide is intended to get you started with the SonicWALL TZ 180 Wireless.
For more advanced setups and configurations, please
refer to the SonicOS Standard Administrator’s Guide.

Page 2 The Front Panel

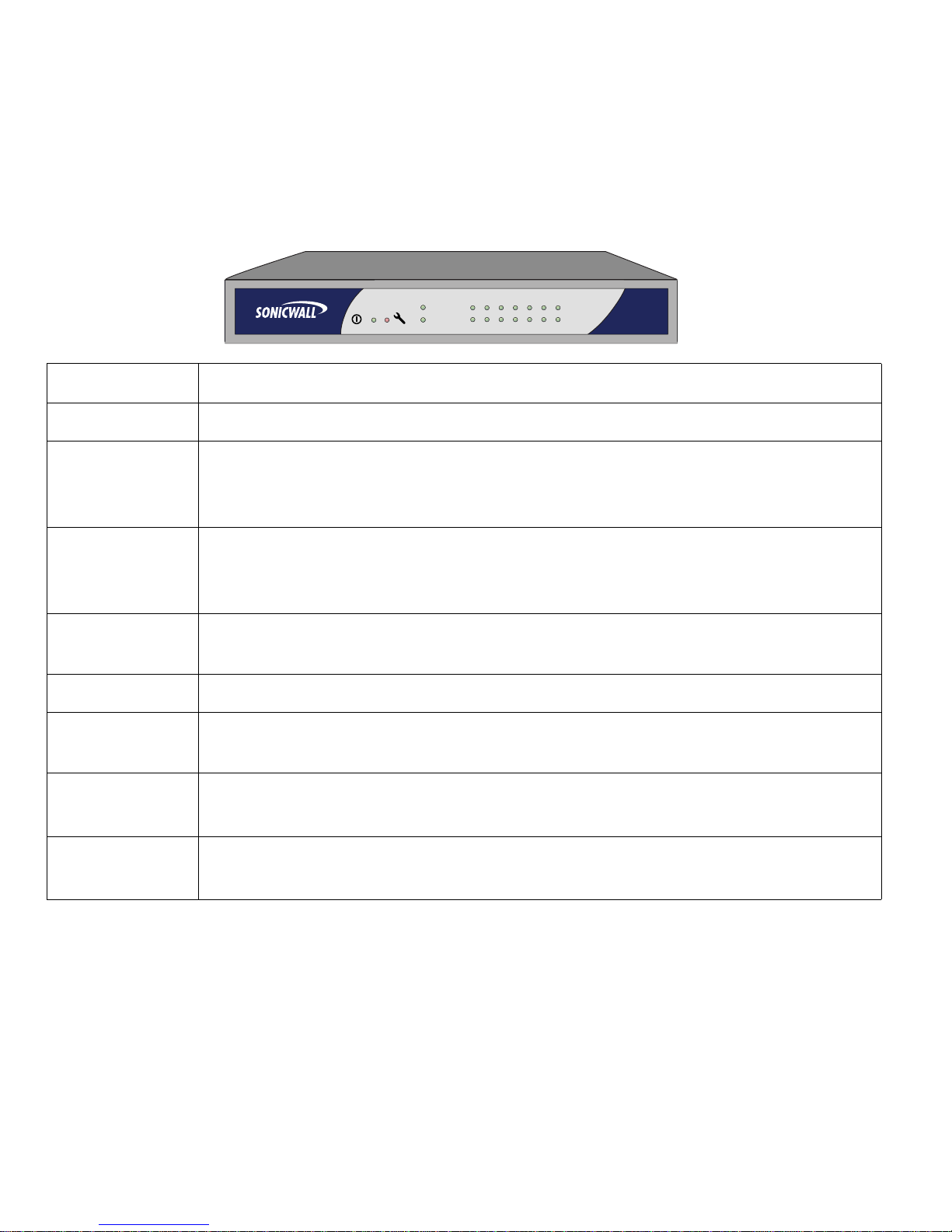

The Front Panel
Feature Description
Power LED Indicates the SonicWALL TZ 180 Wireless is powered on.
Test LED Solid: Indicates the unit is in test mode.
Blinking: The unit is booting up or restarting. This can also
indicate that the unit is in safe mode.
WLAN (WiFiSec): Indicates WiFiSec wireless security is operational.
(on/act): Solid indicates the wireless radio is powered on. Blinking
indicates wireless activity.
OPT The OPT port can be configured as a DMZ or an additional LAN or
WAN port.
WAN Indicates a device link and activity on your WAN port.
LAN (1-5) Indicates a device link, activity, and connection speed on individual
LAN ports (numbered 1-5).
Link/ACT Solid: Indicates a device is connected to the specified port(s).
Blinking: Indicates activity on the specified port(s).
10/100 Green: Indicates 10M connection on the specified port(s).
Amber: Indicates 100M connection on the specified port(s).
link/act
10/100
wan opt 12345
on/act
WiFiSec
wlan
TZ 180
wireless

SonicWALL TZ 180 Wireless Getting Started Guide Page 3
The Back Panel
Feature Description
Antenna
Connections Provides (2) connection points for the included wireless antennas.
Console Port Provides a console connection to the SonicWALL
appliance. This feature is not supported on the SonicWALL
TZ 180 Wireless.
WAN Port Provides a connection between your SonicWALL TZ 180
Wireless and the Internet, usually connecting through a
modem or router.
OPT Port The OPT port can be configured as a DMZ or an additional
LAN or WAN port.
LAN Ports (1-5) Provides 5 fully-configurable ports for connection between
your SonicWALL TZ 180 Wireless and the devices on your
network. These ports can be connected directly to a
computer, or to a network switch or hub.
Reset Button Provides the capability to reboot your SonicWALL TZ 180
Wireless to a special diagnostic “safe-mode.”
Power Provides a power connection using the supplied AC
adaptor.
Console WAN OPT 5 4 3 2 1 Power

Page 4 The Back Panel
Document Contents
This document contains the following sections:
Completing Pre-Configuration Tasks - page 5
Registering Your SonicWALL - page 11
Connecting for Initial Setup - page 15
Running the Setup Wizard - page 21
Verifying Your Connection - page 25
Appendix
Appendix A: Configuring DHCP IP Addressing - page 31
Appendix B: Troubleshooting Internet Connectivity - page 32
Appendix C: Global Support Services - page 33
Appendix D: Safety Instructions and Regulatory Information - page 39
1
2
3
4
5

SonicWALL TZ 180 Wireless Getting Started Guide Page 5
Completing Pre-Configuration Tasks
In this Section:
This section provides pre-configuration information. It is necessary to review
this section before setting up your SonicWALL TZ 180 Wireless.
•System Requirements, on page 6
•Check Package Contents, on page 7
•Obtain Configuration Information, on page 8
•Obtain Internet Service Provider (ISP) Information, on page 9
1

Page 6 System Requirements
System Requirements
Before you begin the setup process, ensure you have a computer that meets
the following requirements. This computer is used to manage your SonicWALL
TZ 180 Wireless during the setup process.
• Windows Vista, Windows XP, Windows 2000, or Windows NT
• 40MB of disk space available
• One available 10/100 Ethernet (LAN) port
• A Web browser supporting Java and HTTP uploads. Internet Explorer 6.0
or higher, Netscape Navigator 4.7 or higher, Mozilla 1.7 or higher are
recommended
• LAN interface set to obtain an IP address automatically (DHCP addressing
enabled)
Note: In order to connect to the SonicWALL TZ 180 Wireless, your
computer must be set to obtain an IP address automatically
using DHCP. For more information on configuring DHCP on
your computer, turn to Appendix A: Configuring DHCP IP
Addressing, on page 29.

SonicWALL TZ 180 Wireless Getting Started Guide Page 7
Check Package Contents
SonicWALL TZ 180 Wireless
Standard power adaptor
DB9 -> RJ45 (CLI) cable
Wireless antenna pair
Ethernet cable
Getting Started Guide
Release Notes document
1
2
3
4
5
6
7
Any Items Missing?
If any items are missing from your
package, please contact SonicWALL
support.
A listing of the most current support
options is available online at:
<http://www.sonicwall.com/us/support.html>
*The included power cordis intended for use
in North America only. For European Union
(EU) customers, a power cord is not
included.
1
2
45
link/act
10/100
wan opt 12345
on/act
WiFiSec
wlan
TZ 180
wireless
SonicOS Release Notes
Contents
67
SonicWALL
Getting Started Guide
COMPREHENSIVE INTERNET SECURITY
3
Getting Started
Guide
SonicWALL Security Appliances
UTM APPLIANCE
TZ Series

Page 8 Obtain Configuration Information
Obtain Configuration Information
Record and keep for future reference the following setup information:
Registration Information
Networking Information
Administrator Information
Serial Number: Record the serial number found on the bottom panel of
your SonicWALL appliance.
Authentication Code: Record the authentication code found on the bottom panel
of your SonicWALL appliance.
LAN IP Address:
. . .
Select a static IP address for your SonicWALL appliance
that is within the range of your local subnet. If you are
unsure, you can use the default IP address
(192.168.168.168).
Subnet Mask:
. . .
Record the subnet mask for the local subnet where you are
installing your SonicWALL appliance.
Ethernet WAN IP Address:
. . .
Select a static IP address for your Ethernet WAN. This
setting only applies if you are already using an ISP that
assigns a static IP address.
Admin Name: Select an administrator account name.
(default is admin)
Admin Password: Select an administrator password.
(default is password)

SonicWALL TZ 180 Wireless Getting Started Guide Page 9
Obtain Internet Service Provider (ISP) Information
Record the following information about your current Internet service:
If you connect via You likely use Please record
Cable modem,
DSL with a router DHCP No Internet connection information is usually
required, although some service providers
require a host name.
Host Name:
Home DSL PPPoE User Name:
Password:
Note: Your ISP may require your user name in
the format: [e-mail]
T1/E1,
Static broadband,
Cable or DSL with
a static IP
Static IP IP Address: . . .
Subnet Mask: . . .
Default Gateway
(Router IP Address): . . .
Primary DNS: . . .
Secondary DNS
(optional): . . .
Dial-in to a server PPTP Server Address:
User Name:
Password:

Page 10 Obtain Internet Service Provider (ISP) Information

SonicWALL TZ 180 Wireless Getting Started Guide Page 11
Registering Your SonicWALL
In this Section:
This section provides instructions for registering your
SonicWALL TZ 180 Wireless.
•Registering with MySonicWALL.com, on page 12
•Activating SonicWALL Security Services Free Trials, on page 13
Note: Product registration is an important part of the setup process,
allowing you to enable product support, firmware updates, and
other key features.
2

Page 12 Registering with MySonicWALL.com

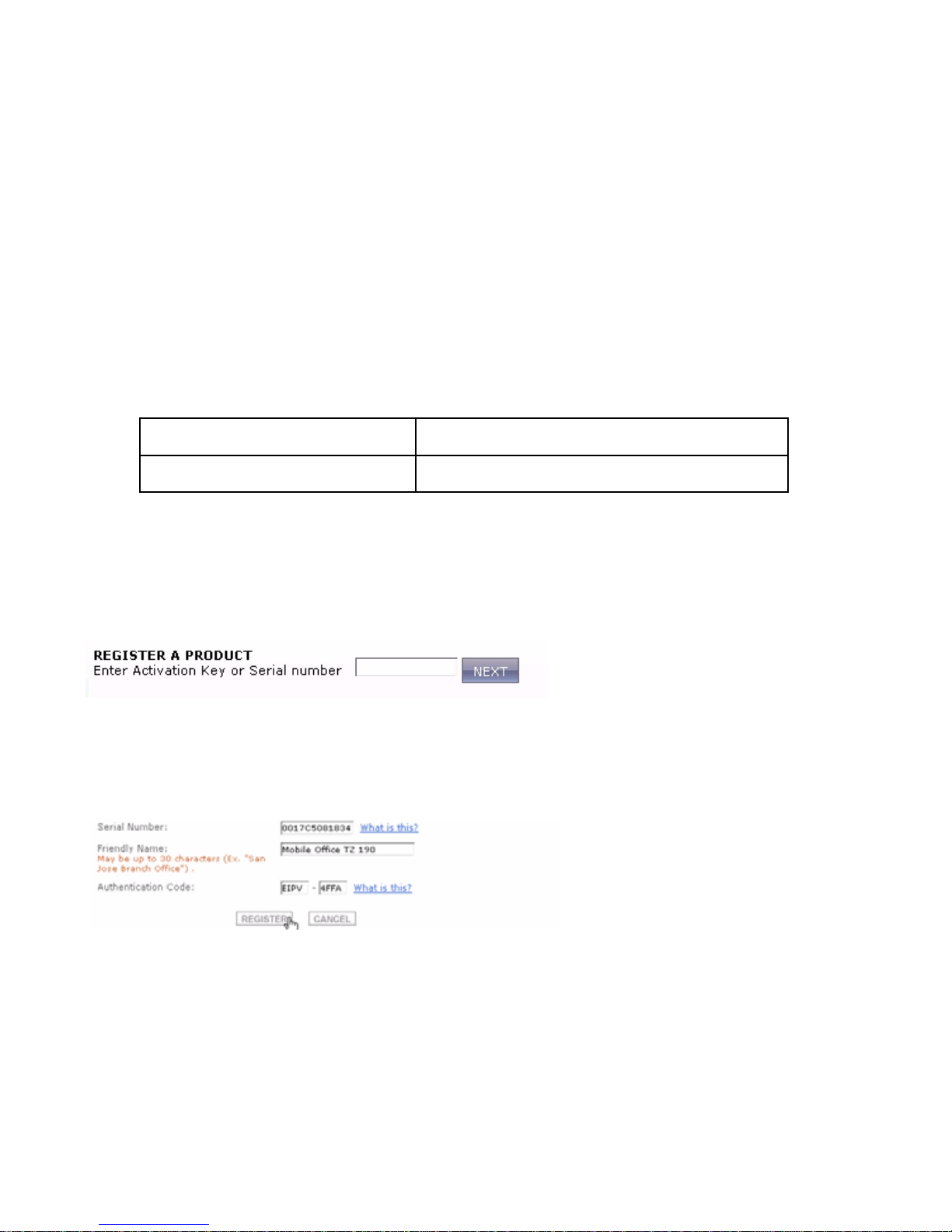

Registering with MySonicWALL.com
1. If you do not yet have a mysonicwall.com account, point your Web browser
to <https://www.mysonicwall.com> to register before continuing.
2. Locate and record your SonicWALL TZ 180 Wireless Serial Number and
Authentication Code. This information is printed on the bottom panel of
the appliance. This information was also recorded earlier. in Obtain
Configuration Information, on page 8.
3. In your Web browser, go to <https://www.mysonicwall.com> and login
with your mysonicwall.com username and password.
4. Enter your serial number in the Register a Product field and click the small
gray arrow. Follow the on-screen instructions.
5. Confirm your serial number.
6. Enter a friendly name for this appliance.
7. Enter your authentication code.
8. Click the Register button to continue.
9. Follow the online prompts to complete the registration process.
My Serial Number
My Authentication Code

SonicWALL TZ 180 Wireless Getting Started Guide Page 13
Activating SonicWALL Security Services Free Trials
Use these instructions to activate free trials of SonicWALL Security Services,
including:
•Gateway Anti-Virus and Intrusion Prevention Services - Delivers real-time
protection against viruses, worms, and Trojans
•Anti-Spyware - Blocks the installation of malicious spyware
•Enforced Client/Server Anti-Virus - Delivers desktop anti-virus protection
•Content Filtering Service - Enhances productivity by limiting access to
objectionable Web content
At the end of the free trial period, the services will expire unless you purchase a
subscription from your reseller or on the SonicWALL website at:
<https://www.mysonicwall.com>
Prerequisites
Your SonicWALL security appliance must be registered.
Activate the Free Trial
1. Login to your SonicOS management interface.
2. In the left-navigation menu, click System, then Licenses.
3. Near the bottom of the System > Licenses page, under Manage Security
Services Online, click For Free Trials, Click Here.
4. Log in with your MySonicWALL credentials, if prompted.
5. In the Manage Services Online table, click Try in the Free Trial column for
Gateway Anti-Virus. In the SonicWALL Gateway Anti-Virus page, click
Continue. Repeat this step to activate free trials of each service.
Your SonicWALL Security Services Free Trials are now activated. For instructions on
enabling each service, refer to administrative guides available on the Web:
<http://www.sonicwall.com/us/support.html>

Page 14 Activating SonicWALL Security Services Free Trials

SonicWALL TZ 180 Wireless Getting Started Guide Page 15
Connecting for Initial Setup
In this Section:
This section provides initial configuration instructions for connecting your
SonicWALL TZ 180 Wireless.
•Connect Antennas, on page 16
•Apply Power, on page 16
•Connect WAN Port to the Internet, on page 18
•Verify WAN / LAN / WLAN Connection, on page 19
3

Page 16 Connect Antennas

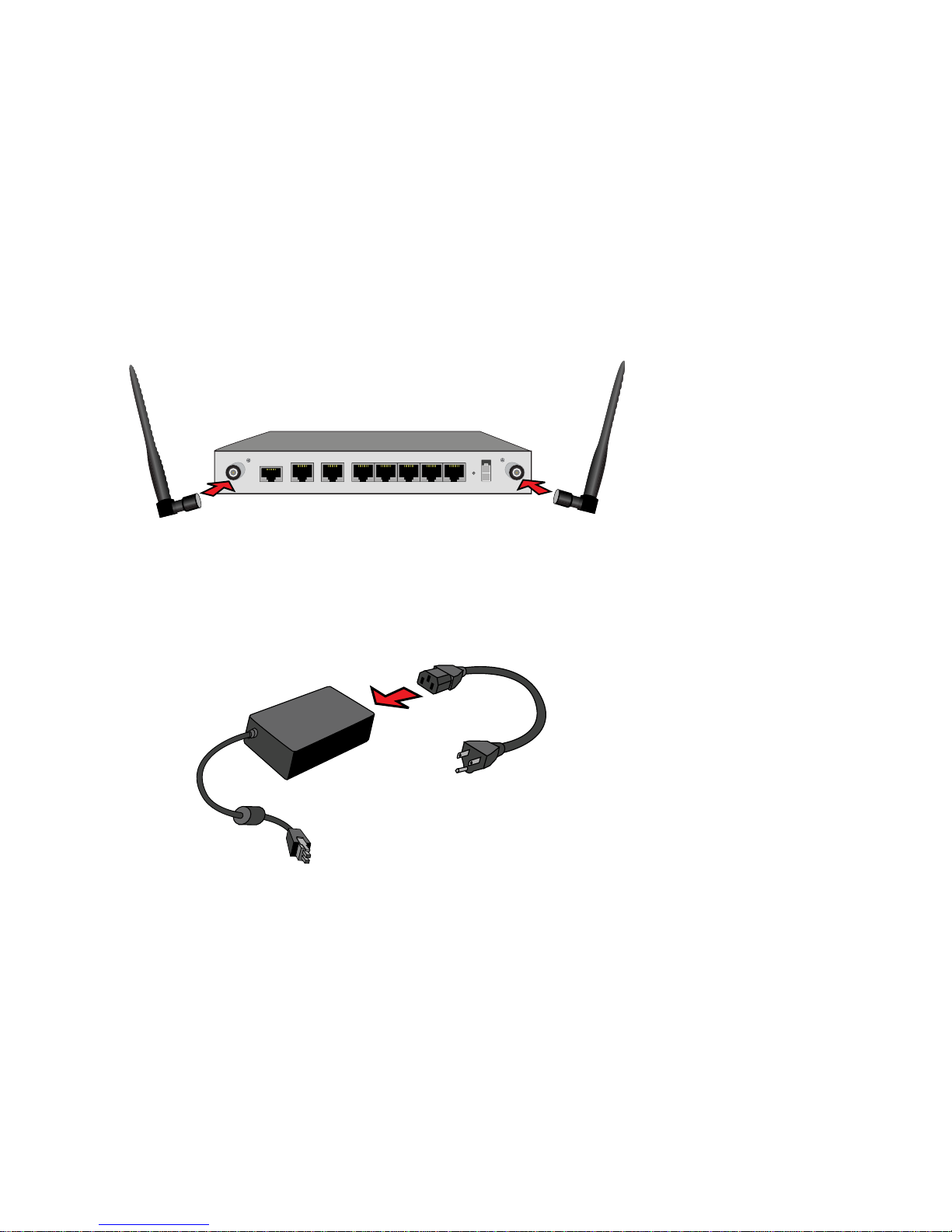

Connect Antennas
1. Attach each of the (2) included antennas to an antenna port on the back of
the SonicWALL TZ 180 Wireless.
2. Screw the end of the antenna clockwise to tighten.
3. Adjust the antennas to meet your space and signal requirements.

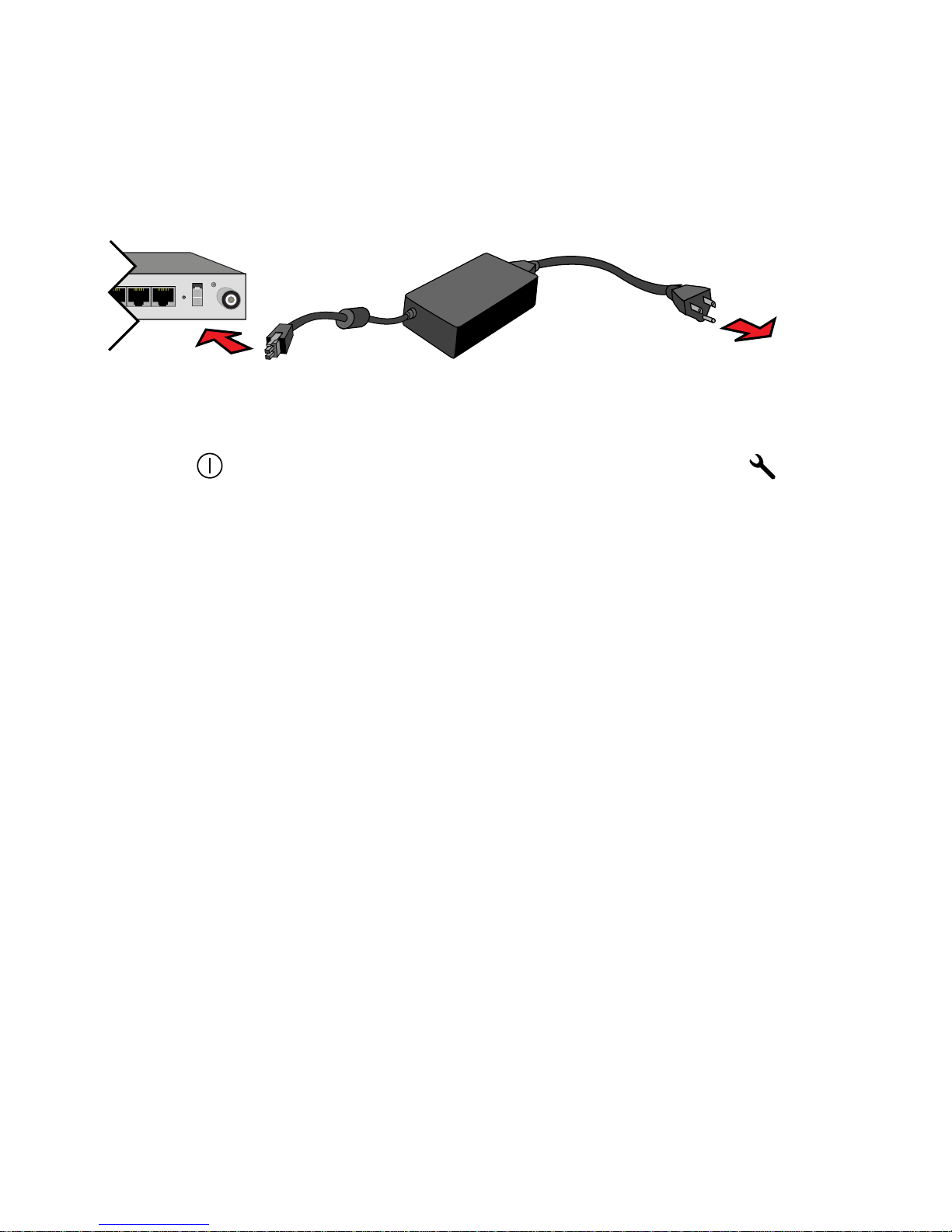

Apply Power
1. Connect the AC plug to the power supply.
2. Plug one end of the power supply to the back of the SonicWALL TZ 180
Wireless.
Console WAN OPT 5 4 3 2 1 Power

SonicWALL TZ 180 Wireless Getting Started Guide Page 17
3. Connect the AC plug to an appropriate power outlet.
The Power LED on the front panel lights up green. The Test LED lights
up and blinks while the appliance performs a series of diagnostic tests.
When the Test LED is no longer lit, the SonicWALL TZ 180 Wireless is ready for
configuration. If the Test LED stays lit for more than a few minutes, power cycle
the appliance.
To SonicWALL TZ 180 Wireless
To AC power
32 1 Power

Page 18 Connect WAN Port to the Internet
Connect WAN Port to the Internet
Using a standard network cable, connect the WAN port of the SonicWALL TZ
180 Wireless to your gateway device (usually your cable/DSL modem or T1
router).
Connect the Computer to the LAN (1) Port
Using the supplied network cable and the computer, connect the LAN
(Ethernet) port on the computer to the LAN (1) port on the back of your
SonicWALL TZ 180 Wireless.
Console WAN OPT 5 4 3 2 1 Power
Router / Modem
SonicWALL TZ 180 Wireless
Internet
Console WAN OPT 5 4 3 2 1 Power
Management Computer
LAN (Ethernet)
LAN (1)
SonicWALL TZ 180 Wireless

SonicWALL TZ 180 Wireless Getting Started Guide Page 19
Verify WAN / LAN / WLAN Connection
Once the cables are correctly connected, the WAN, LAN (1) and WLAN lights
on the front panel of your SonicWALL TZ 180 Wireless illuminate, with the
exception of the WAN if it is not in use. See the illustration below:
Note: In order to connect to the SonicWALL TZ 180 Wireless, your
computer must be set to accept dynamic “DHCP” addressing.
For more information on configuring DHCP, turn to Appendix A:
Configuring DHCP IP Addressing, on page 29.
Link/ACT (WAN / LAN 1) - A solid light
indicates a network connection is
present between the SonicWALL TZ
180 Wireless and another network
appliance. A blinking light indicates
connection activity.
10/100 (WAN / LAN 1) - A green light
indicates a 10 Mbps port connection.
An amber light indicates a 100 Mbps
port connection.
WLAN (on/act) - A solid light indicates
the wireless transmitter is powered on.
A blinking light indicates wireless
activity.
