Sonnen sonnenBackup-Box User manual

Operating instructions | for operators
sonnenBackup-Box
for sonnenBatterie eco 8.0, hybrid 8.1 and pro 2.0
KD-493 • Part no. 22324 • Version X01 [email protected] • sonnen.de

Publisher
sonnen GmbH
Am Riedbach 1
D-87499 Wildpoldsried
Service number [phone]
Email [email protected]
Document
Document number 493
Part number 22324
Version X01
Valid for AU, NZ
Publication date 16/01/2019
9007199347548427
IMPORTANT
 Read this documentation carefully before installation / operation.
 Retain this document for reference purposes.
EN
Operating instructions sonnenBackup-Box

Table of contents
KD-493 | 22324 | EN | X01 iii
Table of contents
1 Information about this document........................................................................................................4
1.1 Target group of this document ...................................................................................................4
1.2 Designations in this document ....................................................................................................4
1.3 Explanation of symbols...................................................................................................................4
2 Safety.............................................................................................................................................................. 5
2.1 Intended use....................................................................................................................................... 5
2.2 Requirements for the electrician................................................................................................ 5
2.3 Operating the product ................................................................................................................... 5
2.4 Product modifications or changes to the product environment.................................... 6
2.5 Voltage inside the Backup-Box....................................................................................................6
3 Product description....................................................................................................................................7
3.1 Technical data.................................................................................................................................... 7
3.2 Type plate............................................................................................................................................ 7
3.3 Symbols on the outside of the Backup-Box............................................................................ 8
4 Operation...................................................................................................................................................... 9
4.1 Function ............................................................................................................................................... 9
4.1.1 Grid operation - no grid outage.................................................................................... 9
4.1.2 Backup operation - grid outage ...................................................................................10
4.1.3 Backup operation - overload behaviour.....................................................................11

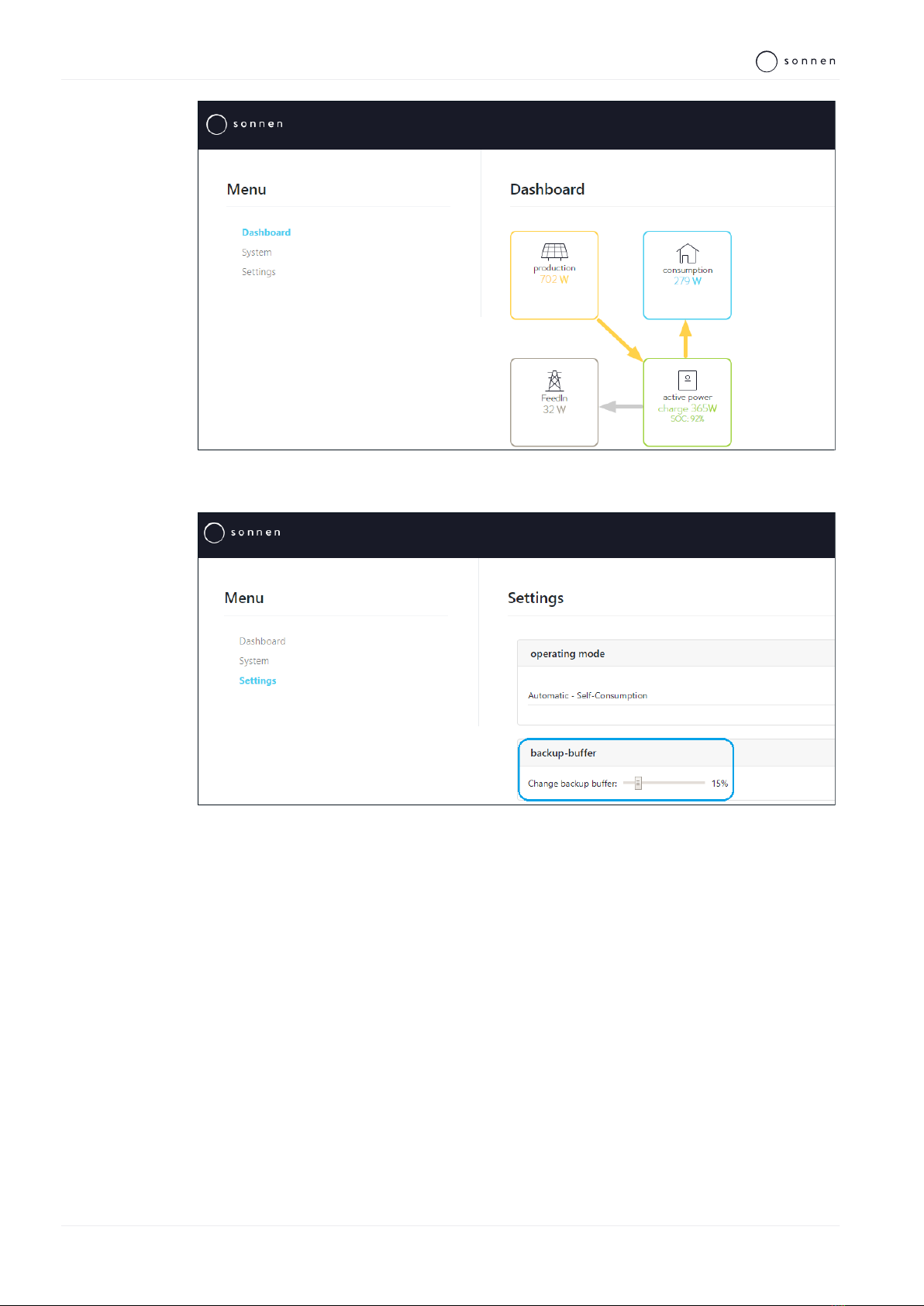

4.2 Setting the backup buffer .............................................................................................................11
5 Switching off the Backup-Box..............................................................................................................13
6 Maintenance and Cleaning ................................................................................................................... 14
6.1 Checking function.......................................................................................................................... 14
6.2 Cleaning ............................................................................................................................................. 14
7 Uninstallation and disposal ....................................................................................................................15
7.1 Uninstallation.....................................................................................................................................15
7.2 Disposal ...............................................................................................................................................15
8 Troubleshooting.........................................................................................................................................16

1 | Information about this document
4 / 20 Operating instructions sonnenBackup-Box
1 Information about this document
This document describes the operation of the sonnenBackup-Box.
Read this document in its entirety.
Keep this document in the vicinity of the sonnenBatterie.
1.1 Target group of this document
This document is intended for the operator of the storage system and the Backup-Box.
1.2 Designations in this document
The following designations are used in this document:
Complete designation Designation in this document
sonnenBatterie eco 8.0 (incl. pro 2.0) Storage system
sonnenBatterie hybrid 8.1
sonnenBackup-Box Backup-Box
1.3 Explanation of symbols
DANGER Extremely dangerous situation leading to certain death or serious injury if the
safety information is not observed.
WARNING Dangerous situation leading to potential death or serious injury if the safety
information is not observed.
CAUTION Dangerous situation leading to potential injury if the safety information is not
observed.
NOTICE Indicates actions that may cause material damage.
Important information not associated with any risks to people or property.
Symbol Meaning
►
Work step
1. 2. 3. … Work steps in a defined order
üCondition
• List
Table1: Additional symbols

Safety | 2
KD-493 | 22324 | EN | X01 5 / 20
2 Safety
2.1 Intended use
The sonnenBackup-Box is an emergency power unit designed to supplement the
sonnenBatterie eco 8.0, hybrid 8.1 or pro 2.0. The Backup-Box - in conjunction with the ap-
propriate storage system of the sonnen GmbH - serves to supply power in the event of a
power failure. Any other use is considered improper use.
Improper use poses a risk of death or injury to the user or third parties as well as damage to
the product and other items of value. The following points must therefore be observed in
order to comply with the intended use of the product:
• Only operate the Backup-Box together with the right storage system.
• The Backup-Box must be installed by a licensed electrician.
• The Backup-Box must only be connected to the storage system as described here.
• Isolated operation is not possible with the Backup-Box. A generator (e.g. a PV system)
must never be connected after the output of the Backup-Box.
• Intended use includes observing this document as well as all accompanying product doc-
umentation of the appropriate storage system.
• The Backup-Box must only be used at suitable installation location.
• The transport and storage conditions must be observed.
Especially the following uses are not permissible:
• Operation in flammable environments or areas at risk of explosion.
• Operation in locations at risk of flooding.
• Operation outdoors.
Failure to comply with the conditions of the warranty and the information spe-
cified in this document invalidates any warranty claims.
2.2 Requirements for the electrician
Improper installation can result in personal injury and/or damage to components. For this
reason, the Backup-Box must only be installed and commissioned by licensed electricians.
Licensed electricians must meet the following criteria:
• The electrician must be a person with a technical knowledge or sufficient experience to
enable him/her to avoid dangers which electricity may create.
• The electrician must has successfully completed the sonnen Australia installer training
and have valid installer accreditation at the time of installation.
2.3 Operating the product
Incorrect operation can lead to injury to yourself or others and cause damage to property.
• The Backup-Box must only be operated as described in the product documentation.
• This device can be used by children from the age of eight (8) years old and individuals
with impaired physical, sensory or mental capabilities or individuals with limited know-
ledge and/or experience of working with the device, as long as they are supervised or

2 | Safety
6 / 20 Operating instructions sonnenBackup-Box
have been trained to safely use the device and understand the resulting risks of doing so.
Children must not play with the device. Cleaning and user maintenance must not be car-
ried out by children without supervision.
2.4 Product modifications or changes to the product environment
• The Backup-Box must only be used in its original state without any user modifications
and only when in perfect working order.
• Safety devices must never be overridden, blocked or tampered with.
• The interfaces of the Backup-Box and the storage system must be wired in accordance
with the product documentation.
• All repairs on the Backup-Box must be performed by authorised service technicians
only.
2.5 Voltage inside the Backup-Box
5 min
The Backup-Box contains live electrical parts, which poses a risk of electrical shock. The
Backup-Box and storage system inverter also contain capacitors which carry voltage even
after the storage system is switched off.
Therefore:
Do not open the Backup-Box.

Product description | 3
KD-493 | 22324 | EN | X01 7 / 20
3 Product description
3.1 Technical data
sonnenBackup-Box
System data
Maximum power (2 sec.) 4,100 VA
Overload (30 min.) max. 2,800 VA
Nominal power 1,800 VA
Nominal frequency 50 Hz
Output voltage 230 VAC +/- 10 %
Mains connection three-phase, L1 / L2 / L3 / N / PE
Mains connection fuse Miniature circuit breaker | Type C | 32 A
Operating concept Single-phase emergency power supply. The switch to
emergency operation takes place automatically through
the storage system.
Switchover time approx. 3 seconds
Mains topology TN / TN-S / TN-C-S
Threshold power approx. 5 W
Dimensions / Weight
Dimension (H/W/D) in cm 70/67/23
Weight in kg 46
Safety / Protective devices
Protection class I / PE conductor
Degree of Protection IP30
Protective functions Overvoltage protection, Overcurrent protection, Over-
temperature protection
Residal current device (RCD) External RCD required
Separation principle Batt. -> AC galvanic isolation
Ambient conditions
Environment Indoor (conditional)
Ambient temperature range -5 °C ... 45 °C
Max. rel. humidity 90 %, non-condensing
Permissible installation altitude 2,000 m above sea level
Additional ambient conditions The ambient conditions prescribed for the storage system
apply.
3.2 Type plate
The type plate is located on the outer surface of the Backup-Box. The type plate can be
used to uniquely identify the Backup-Box. The information on the type plate is required for
the safe use of the system and for service matters.
The following information is specified on the type plate:

3 | Product description
8 / 20 Operating instructions sonnenBackup-Box
• Item designation
• Item number
• Technical data
3.3 Symbols on the outside of the Backup-Box
Symbol Meaning
Warning: flammable materials.
Warning: hazards due to batteries.
Warning: electrical voltage.
5 min
Warning: electrical voltage. Wait five minutes after switching off (ca-
pacitor de-energising time).
Warning: The information in the manuals regarding the rotary switch
settings must be observed.
kg
Warning: product is heavy.
CE mark. The product meets the requirements of the applicable EU
Directives.
WEEE mark. The product must not be disposed of in household
waste, dispose of it through environmentally friendly collection
centres.
Observe the documentation. The documentation contains safety in-
formation.

Operation | 4
KD-493 | 22324 | EN | X01 9 / 20
4 Operation
NOTICE Using three-phase consumers in backup operation
Damage to components/devices!
Do not switch on any three-phase (polyphase, high-voltage) electrical con-
sumers during backup operation. These consumers may be damaged be-
cause the Backup-Box only supplies electricity on one phase.
4.1 Function
A storage system with Backup-Box automatically switches from grid to backup operation
(and vice versa). The two operating modes are described in the following.
4.1.1 Grid operation - no grid outage
520
40
60
80
100
ON AL
Test
Reset
RAL
kΩ
1
2 3
7
5
9
12
+
F1
SPV
2
6
3
I
0
off off off
4
8
3
L1 L2 L3
4 5 6
23

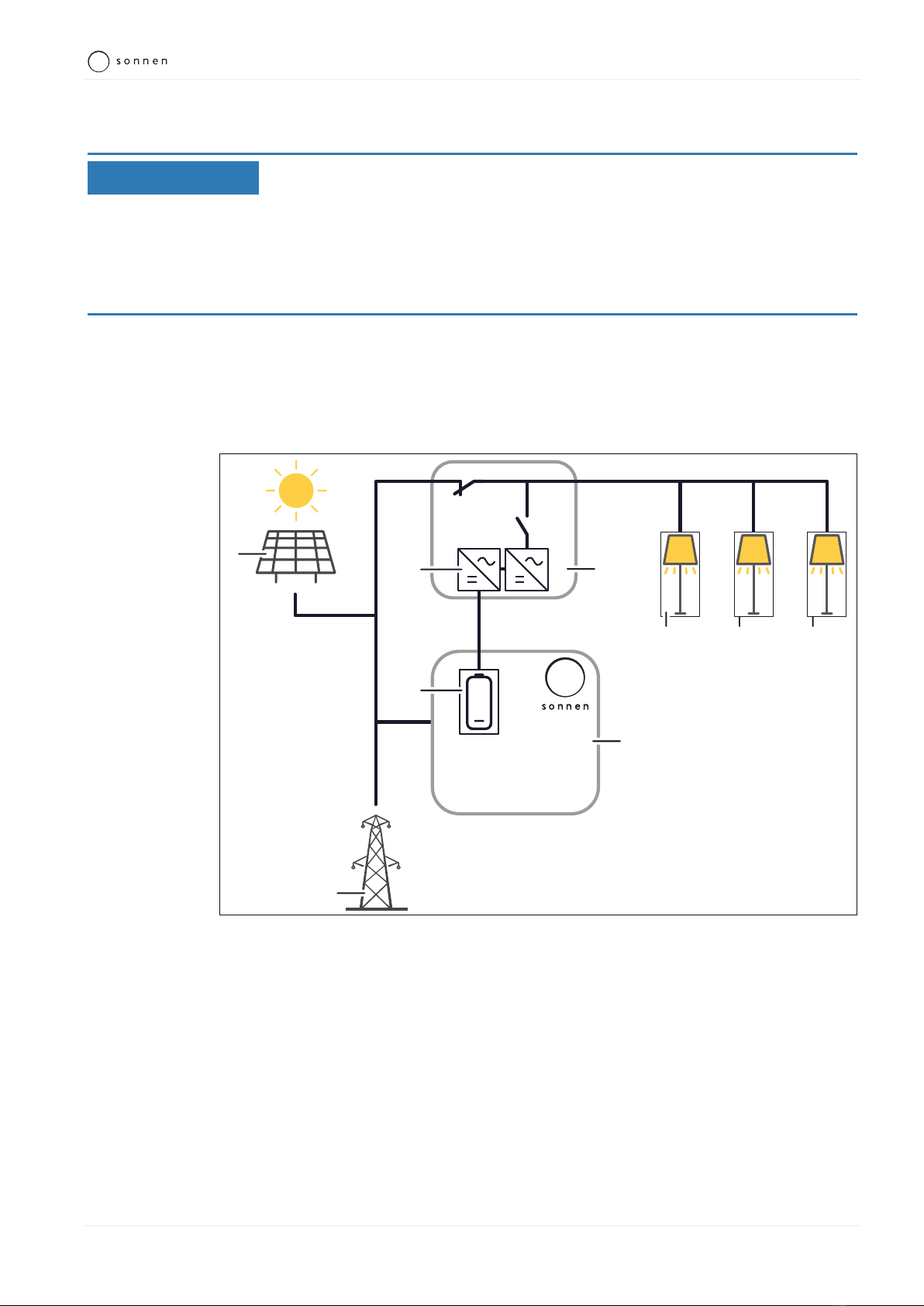

Illustration1: Grid operation - no grid outage
1 PV system 7 Storage system
2 Inverter of the Backup-Box 8 Battery of the storage system
3 Backup-Box 9 Public electrical mains
4 Consumer connected to phase L1
5 Consumer connected to phase L2
6 Consumer connected to phase L3
In grid operation the consumers in the building (4 - 6) are connected to the public elec-
trical mains. All consumers in the house are supplied with electrical power. The storage sys-
tem controls - as described in the product documentation of the storage system - the en-
ergy flows in the building.

4 | Operation
10 / 20 Operating instructions sonnenBackup-Box
4.1.2 Backup operation - grid outage
520
40
60
80
100
ON AL
Test
Reset
RAL
kΩ
1
2 3
7
5
9
12
+
F1
SPV
2
6
3
I
0
off off off
4
8
3
L1 L2 L3
4 5 6
Illustration2: Backup operation - grid outage
1 PV system 7 Storage system
2 Inverter of the Backup-Box 8 Battery of the storage system
3 Backup-Box 9 Public electrical mains
4 Consumer connected to phase L1
5 Consumer connected to phase L2
6 Consumer connected to phase L3
The Backup-Box (3) automatically detects a grid outage. As soon as the voltage of the
electrical mains drops to approx. 180V, the connection to the public electrical mains (9)
and to the PV system (7) is disconnected.
Backup power is generated after approx. 3 seconds. In this case, the direct current of the
battery of the storage system (8) is converted into alternating current using the inverter of
the Backup-Box (2). The consumers connected to the phase L1 in the house (4) are thereby
supplied with electrical power. Consumers connected to the phase L2 (5) or L3 (6) will not
be supplied with electrical power.
The sonnen Eclipse (light ring) of the storage system switches off as soon as the backup
operation starts. The sonnen Eclipse of the Backup-Box illuminates white during backup
operation.
The storage system with Backup-Box switches from backup to grid operation as soon as
the public electrical mains (9) start to deliver electrical power again.
Automatic stop of the backup operation
The storage system with Backup-Box generates electrical power until a minimum state of
charge of the battery is reached. Thereafter, no further discharge is allowed.

Operation | 4
KD-493 | 22324 | EN | X01 11 / 20
4.1.3 Backup operation - overload behaviour
The control of the storage systems protects the entire system against overload by stop-
ping the backup operation in special overload cases. The sonnen Eclipse of the storage sys-
tem signals this state by pulsing orange, the sonnen Eclipse of the Backup-Box switches off
as soon as the backup operation stops.
The storage system restores the backup operation as soon as the overload is no longer
present. If the backup operation was successfully restored, the sonnen Eclipse of the stor-
age system switches off and the sonnen Eclipse of the Backup-Box starts lighting up white
again.
4.2 Setting the backup buffer
Proceed as follows to set what percentage of the capacity of the storage system should be
available for the Backup-Box in the event of a grid outage.
Conditions:
ü The storage system is connected to the router of the home network.
ü Your laptop or PC also accesses the home network.
ü The Backup-Box was set up by the installer using the commissioning assistant 2.
Proceed as follows to access the storage system web interface:
Enter the following address into your browser’s address line:
https://find-my.sonnen-batterie.com
The following window appears:
12345
123.456.78.99
Click the ‘Configure Assistant 2’ button.
The login page appears.
Log in as user with the following password: sonnenUser3552
The Dashboard appears.

4 | Operation
12 / 20 Operating instructions sonnenBackup-Box
On the web interface of the storage system, navigate to the Settings page.
Change the percentage for backup-buffer to a desired value.

Switching off the Backup-Box | 5
KD-493 | 22324 | EN | X01 13 / 20
5 Switching off the Backup-Box
To switch off the Backup-Box manually, the following procedure can be carried out. In or-
der to be able to work on the Backup-Box safely it must be disconnected from the power
supply (see next section).
1. Disconnect the power supply to the storage system as described in the relevant
product documentation.
2. Wait at least five minutes until the internally stored energy inside the storage system
inverter has discharged.
NOTICE Deep-discharge of the battery modules
Destruction of the battery modules!
Do not disconnect the storage system from the public grid for long periods
of time.
Never continue to operate battery modules which have been deep-dis-
charged.

6 | Maintenance and Cleaning
14 / 20 Operating instructions sonnenBackup-Box
6 Maintenance and Cleaning
6.1 Checking function
The backup circuit is equipped with a residual current device (RCD). The function of the
RCD can be tested by pressing the test key T. After pressing, the RCD must switch off (the
backup circuit is interrupted).
Maintenance interval Action to be taken
Every 6 months Check the function of the RCD with help of the Test key.
Table2: Checking function
6.2 Cleaning
NOTICE Use of unsuitable cleaning agent and/or excessive water
Material damage because of scratched surfaces and/or damage caused by
penetration of water!
Do not use scouring cloths, sponges or cleaning agent.
Take particular care when cleaning the LED ring, since it can easily be
scratched.
Use only moist cloths, not wet cloths, to clean the system.
Do not use water jets.
Carefully clean the outside of the Backup-Box with a clean, moist cloth. For tougher
dirt, use a small amount of household dishwashing detergent on a moist cloth.

Uninstallation and disposal | 7
KD-493 | 22324 | EN | X01 15 / 20
7 Uninstallation and disposal
7.1 Uninstallation
DANGER Improper uninstallation of the Backup-Box
Danger to life due to electrocution!
The Backup-Box must only be uninstalled by licensed electricians.
7.2 Disposal
Illustration3: WEEE symbol
The Backup-Box must not be disposed of as do-
mestic waste!
Dispose of the Backup-Box in an environment-
ally friendly way through suitable collection sys-
tems.

8 | Troubleshooting
16 / 20 Operating instructions sonnenBackup-Box
8 Troubleshooting
Fault Possible causes Rectification
Grid operation (no grid outage)
The electrical consumers in the
building are not supplied with energy
in grid operation.
The mains cables (AC lines) have not
been correctly connected.
Contact your installer to check the elec-
trical wiring.
The F1.B miniature circuit breaker in
the Backup-Box is switched off.
Contact your installer to check if the
F1.B miniature circuit breaker is switched
on.
Backup operation (grid outage) - Backup operation does not start
Backup operation doesn’t start. The
sonnen Eclipse of the storage sys-
tem and the Backup-Box is off.
The batteries of the storage system
have discharged so much that further
discharging would lead to a deep dis-
charge state and therefore damage
the batteries.
The only thing to do is wait until the grid
outage passes, the public electrical grid
once again starts supplying electrical en-
ergy and the Backup-Box automatically
switches to grid operation.
The storage system is switched off. Switch on the storage system.
Backup operation doesn’t start. The
sonnen Eclipse of the storage sys-
tem pulses orange. The sonnen Ec-
lipse of the Backup-Box is off.
Electrical consumers with too high
power consumption are connected to
phase L1.
Switch off electrical consumers or re-
duce their power consumption.
Only connect electrical consumers to
phase L1 when they have a power con-
sumption that does not exceed the
nominal power or (when switching on)
the maximum power of the Backup-Box .
Backup operation doesn’t start. The
sonnen Eclipse of the storage sys-
tem illuminates red. The sonnen Ec-
lipse of the Backup-Box is off.
The storage system has detected a
problem.
Please contact the sonnen service team
to get help resolving the problem.
Backup operation (grid outage) - Backup operation stops
Backup operation stops. The sonnen
Eclipse of the storage system and
the Backup-Box is off.
The batteries of the storage system
have discharged so much that further
discharging would lead to a deep dis-
charge state and therefore damage
the batteries.
The only thing to do is wait until the grid
outage passes, the public electrical grid
once again starts supplying electrical en-
ergy and the Backup-Box automatically
switches to grid operation.
Backup operation stops. The sonnen
Eclipse of the storage system pulses
orange. The sonnen Eclipse of the
Backup-Box is off.
The control of the storage system de-
tected an overload, this means there
are electrical consumers connected to
phase L1 with a too high power con-
sumption.
Switch off electrical consumers so that
the power consumption does not ex-
ceed the nominal power or (when
switching on) the maximum power of
the Backup-Box .
The storage system automatically re-
starts the backup operation as soon as
the overload is no longer present.
Backup operation doesn’t stops. The
sonnen Eclipse of the storage sys-
tem illuminates red. The sonnen Ec-
lipse of the Backup-Box is off.
The storage system has detected a
problem.
Please contact the sonnen service team
to get help resolving the problem.

sonnen GmbH
Am Riedbach 1
D-87499 Wildpoldsried
