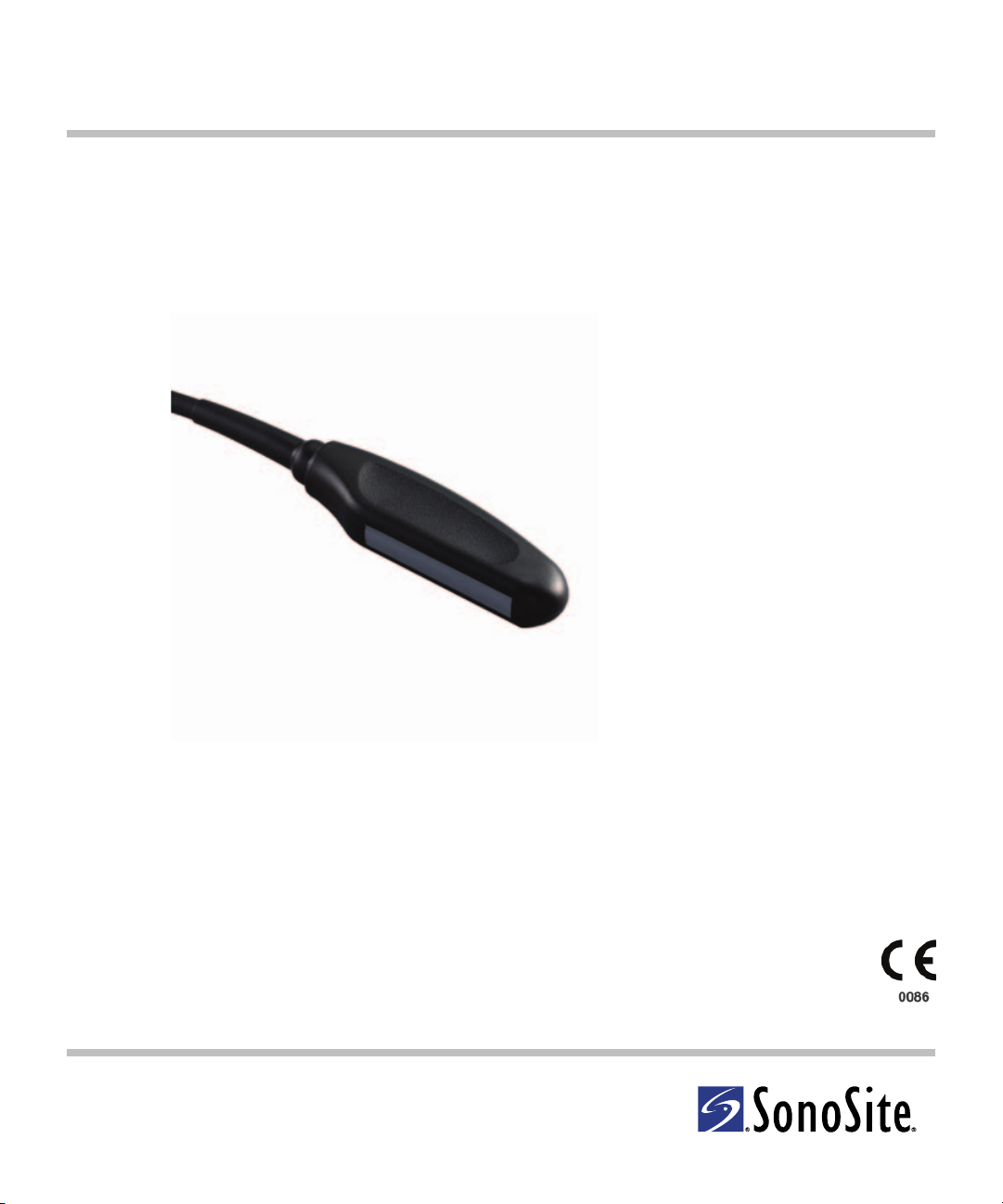

L52 Series Transducer
User Guide

English Deutsch Español Français Italiano PortuguêsFrançais
L52 Series Transducer User Guide
Benutzerhandbuch zum Schallkopf der L52-Series
Manual para el usuario del transductor
L52 Series
Guide d’utilisation de la sonde série L52
Manuale dell’utente del trasduttore serie L52
Manual do Usuário do Transdutor Série L52

Dansk Norsk Svenska Ελληνικά Русский Türkçe 简体中文 繁體中文
Brugervejledning til transducere af typen L52
Brukerhåndbok for transduser i L52-serien
Användarhandbok för transduktor L52-serien
Οδηγός χρήσης του μορφοτροπέα σειράς L52
Руководство пользователя датчика серии L52
L52 Series Dönüştürücü Kullanıcı Kılavuzu
L52 Series 换能器用户指南
L52 Series 轉換器使用者手冊

ii
Manufactured by
SonoSite, Inc.
21919 30th Drive SE
Bothell, WA 98021
USA
T: 1-888-482-9449 or 1-425-951-1200
F: 1-425-951-1201
SonoSite Ltd
Alexander House
40A Wilbury Way
Hitchin
Herts SG4 OAP
UK
T: [phone]
F: [phone]
180PLUS, M-Turbo, MicroMaxx, NanoMaxx, S Series, SonoSite, SonoSite TITAN, TITAN, and the SonoSite logo are registered (in some
jurisdictions) or unregistered trademarks owned by SonoSite, Inc.
Non-SonoSite product names may be trademarks or registered trademarks of their respective owners.
The SonoSite ultrasound system(s) referenced in this document may be covered by one or more of the following U.S. patents: 5722412,
5817024, 5893363, 6135961, 6203498, 6364839, 6371918, 6383139, 6416475, 6447451, 6471651, 6569101, 6648826, 6575908, 6604630,
6817982, 6835177, 6962566, 7169108, 7449640, 7534211, 7549961, 7588541, 7591786, 7604596, 7643040, 7686766, 7694814, 7727153,
7740586, 7804970, 7809400, 7819807, 7841575, 7849250, 7867168, 7883276, D456509, D461895, D509900, D538432, D544962, D558351,
D559390, D591423, D592750, D592760, D625014, D625015, and by the following counterpart foreign patents: AU727381, AU730822,
CA2372152, CA2372158, CA2373065, CN ZL 97113678.5, CN ZL 98106133.8, CN ZL 98108973.9, CN ZL 200830007734.8, DE60021552.0,
DE60029777.2, DE60034670.6, DE69730563.5, DE6980539.6, DE69831698.3, DE60 2004 23 816.3-08, FR0815793, FR0875203, FR0881492,
FR1175713, FR1180970, FR1589878, GB0875203, GB0881492, GB1175713, GB1180970, GB1180971, GB1589878, IT0815793, IT0881492,
IT1175713, IT1589878, KR528102, KR532359, NO326202, NO326814, NZ542968, RCD000897368-0001, SP0815793, SP0881492,
SP1589878. Patents pending.
Caution: United States federal law restricts this device to sale by or on the order of a veterinarian.
P07895-06 03/2011
Copyright 2011 by SonoSite, Inc.
All rights reserved. Printed in the USA.

English Deutsch Español Français Italiano Português
1
L52 Series Transducer User Guide
Introduction .................................................................................................................................................1
Imaging .........................................................................................................................................................1
Measurements and Calculations ..........................................................................................................4
Safety ..............................................................................................................................................................5
Troubleshooting and Maintenance ..................................................................................................21
Introduction
This user guide supplements the following ultrasound system user guides:
• NanoMaxx Ultrasound System User Guide
• M-Turbo Ultrasound System User Guide
• S Series Ultrasound System User Guide
• MicroMaxx Ultrasound System User Guide
• TITAN Ultrasound System User Guide
• SonoSite Ultrasound System User Guide
It describes the following transducers, which are for veterinary use only:
• L52n/10-5 MHz (L52n) transducer on the NanoMaxx® ultrasound system
• L52x/10-5 MHz (L52x) transducer on the M-Turbo® ultrasound system, S Series™ ultrasound
system, or MicroMaxx® ultrasound system
• L52e/10-5 MHz (L52e) transducer on the MicroMaxx® ultrasound system
• L52/10-5 MHz (L52) transducer on the TITAN® high-resolution ultrasound system or
SonoSite®180PLUS™ ultrasound system
See the ultrasound system user guide for additional safety information; for instructions on
preparation, use, and maintenance of the ultrasound system; and for intended uses for each exam
type and imaging mode.
Imaging
Transducer, Exam Type, and Imaging Mode
The following table describes the transducer, exam type, imaging mode, and optimization that may
be available on your system.

2
Transducer, Exam Type, and Imaging Mode (NanoMaxx)
Imaging Mode
Transducer Exam Type 2D
MMode CPD Color
L52n OB X X X
Vascular (Vas) X X X
Musculoskeletal (Msk) X X X
Transducer, Exam Type, and Imaging Mode (M-Turbo or MicroMaxx)
Imaging Mode
Transducer Exam Type 2D
MMode CPD Color PW CW
L52x OB X X X X —
Vascular (Vas) X X X X —
Muscle (Msk) X X X X —
Transducer, Exam Type, and Imaging Mode (S Series)
Imaging Mode
Transducer Exam Type 2D
M Mode CPD Color PW
L52x OB X X X X
Vascular (Vas) X X X X
Muscle (Msk) X X X X

English Deutsch Español Français Italiano Português
3
Transducer, Exam Type, and Imaging Mode (MicroMaxx)
Imaging Mode
Transducer Exam
Type
2D
MMode THI 2D MB
2D
SCPD Color PW TDI PW CW
L52e OB X — X X X X X — —
Vascular
(Vas)
X—XXXXX——
Muscle
(Msk)
X—XXXXX——
Transducer, Exam Type, and Imaging Mode (TITAN)
Imaging Mode
Transducer Exam
Type 2D THI CPD DCPD Color M Mode PW CW
L52 OB X — X — — X — —
Vascular
(Vas)
X—X — — X ——
Muscle
(Msk)
X—X — — X ——
Transducer, Exam Type, and Imaging Mode (180PLUS)
Imaging Mode
Transducer Exam Type 2D CPD
L52 OB res, gen, pen low, med, high
Vascular (Vas) res, gen, pen low, med, high

4
Measurements and Calculations
Calculations
This table shows the calculations available by exam type for the L52 Series transducer.
Calculations for L52n (NanoMaxx)
Exam Type Calculations
OB OB
Calculations for L52x (M-Turbo and MicroMaxx)
Exam Type Calculations
Musculoskeletal (Msk) Percent Reduction
Volume
OB OB
Vascular (Vas) Percent Reduction
Vascular
Volume
Volume Flow
Calculations for L52x (S Series)
Exam Type S Series System Calculations
OB S-VetMed OB
Calculations for L52e/L52 (MicroMaxx and TITAN)
Exam Type Calculations
Muscle (Msk) Percent Reduction
Volume
OB OB
Vascular (Vas) Percent Reduction
Vascular
Volume
Volume Flow

English Deutsch Español Français Italiano Português
5
Safety
Guidelines for reducing MI and TI
The following are general guidelines for reducing MI or TI. If multiple parameters are given, the best
results may be achieved by minimizing these parameters simultaneously. In some modes, changing
these parameters does not affect MI or TI. Changes to other parameters may also result in MI and TI
reductions. Please note the MI and TI values on the right side of the screen.
Calculations for L52 (180PLUS)
Exam Type Calculations
OB OB
Vascular (Vas) Volume
Volume Flow
Table 1: MI
Transducer Depth
L52n (NanoMaxx) ↑
L52x (M-Turbo, S Series, or MicroMaxx) ↑
L52e (MicroMaxx) ↑
L52 (TITAN) ↑
L52 (180PLUS) ↑
↓Decrease or lower setting of parameter to reduce MI.
↑Raise or increase setting of parameter to reduce MI.

6
Transducer surface temperature rise
Table 3 lists the measured surface temperature rise (in °C) from ambient (23°C ± 3°C) of transducers
used on the ultrasound system. The temperatures were measured in accordance with EN 60601-2-37
section 42 where controls and settings were positioned to give maximum temperatures.s
Table 2: TI (TIS, TIC, TIB)
Transducer
Color Power Doppler
Settings PW Settings
PRF Depth
L52n (NanoMaxx) — ↑—
L52x (M-Turbo or MicroMaxx) ↓↑Sample Vol ↓
L52x (S Series) ↓↑ —
L52e (MicroMaxx) ↓↑Sample Vol ↑
L52 (TITAN) ↓↑ —
L52 (180PLUS) — — —
↓Decrease or lower setting of parameter to reduce TI.
↑Raise or increase setting of parameter to reduce TI.
— Data are not applicable for this transducer/mode.
Table 3: Transducer Surface Temperature Rise IEC 60601-2-37 (Internal Use)
Test
L52n on
NanoMaxx
L52x on
M-Turbo
or S Series
L52x on
MicroMaxx
L52e on
MicroMaxx
L52 on
TITAN
L52 on
180PLUS
Still air 7.5 8.8 8.2 13.0 9.3 10.8
Simulated use 5.6 5.9 5.6 5.5 2.4 2.4

English Deutsch Español Français Italiano Português
7
Output display
Table 4: TI or MI is ≥1.0
Transducer Model Index 2D/
MMode Color CPD PW Doppler
L52n (NanoMaxx) MI Yes Yes Yes n/a
TI No No No n/a
L52x (M-Turbo) MI Yes Yes Yes Yes
TI No No No Yes
L52x (S Series) MI Yes Yes Yes —
TI No No No —
L52x (MicroMaxx) MI Yes Yes Yes Yes
TI Yes No No Yes
L52e (MicroMaxx) MI No Yes Yes Yes
TI No No No Yes
L52(TITAN,180PLUS)*MINoNoNoNo
TI No No No No
* The L52 transducer never exceeds or equals a MI or TI of 1.0 on the TITAN or 180PLUS system.

8
Acoustic output tables (M-Turbo and S Series)
(a) This index is not required for this operating mode; value is <1.
(b) This transducer is not intended for transcranial or neonatal cephalic uses.
# No data are reported for this operating condition since the global maximum index value is not reported for the reason
listed. (Reference Global Maximum Index Value line.)
— Data are not applicable for this transducer/mode.
Table 5: Transducer Model: L52x/10-5 Operating Mode: 2D
Index Label M.I.
TIS TIB
TIC
Scan Non-scan Non-scan
Aaprt≤1A
aprt>1
Global Maximum Index Value 1.01 (a) — — — (a)
Associated Acoustic
Parameter
pr.3 (MPa) 2.336
W0(mW) #— —#
min of [W.3(z1),ITA.3(z1)] (mW) —
z1(cm) —
zbp (cm) —
zsp (cm) 1.8 —
deq(zsp)(cm) —
fc(MHz) 5.33 # — — — #
Dim of Aaprt X(cm) #—— — #
Y(cm) #—— — #
Other
Information
PD (µsec) 0.15
PRF (Hz) 7222
pr@PIImax (MPa) 3.25
deq@Pllmax (cm) —
Focal Length FLx (cm) #—— #
FLy(cm) #—— #
IPA.3@MImax (W/cm2)329.1
Operating
Control
Conditions
Control 1: Exam Type Vas — — — — —
Control 2: Optimization Gen — — — — —
Control 3: Depth 4.2 cm — — — — —
Control 4: MB (Multi Beam) Off — — — — —

English Deutsch Español Français Italiano Português
9
(a) This index is not required for this operating mode; value is <1.
(b) This transducer is not intended for transcranial or neonatal cephalic uses.
# No data are reported for this operating condition since the global maximum index value is not reported for the reason
listed. (Reference Global Maximum Index Value line.)
— Data are not applicable for this transducer/mode.
Table 6: Transducer Model: L52x/10-5 (M-Turbo only) Operating Mode: M Mode
Index Label M.I.
TIS TIB
TIC
Scan Non-scan Non-scan
Aaprt≤1A
aprt>1
Global Maximum Index Value 1.01 — (a) — (a) (b)
Associated Acoustic
Parameter
pr.3 (MPa) 2.336
W0(mW) —# ##
min of [W.3(z1),ITA.3(z1)] (mW) —
z1(cm) —
zbp (cm) —
zsp (cm) 1.8 #
deq(zsp)(cm) #
fc(MHz) 5.33 — # — # #
Dim of Aaprt X(cm) —# — # #
Y(cm) —# — # #
Other
Information
PD (µsec) 0.15
PRF (Hz) 1600
pr@PIImax (MPa) 3.25
deq@Pllmax (cm) #
Focal Length FLx (cm) —# — #
FLy(cm) —# — #
IPA.3@MImax (W/cm2)329.1
Operating
Control
Conditions
Control 1: Exam Type Vas — — — — —
Control 2: Optimization Gen — — — — —
Control 3: Depth 4.2 cm — — — — —
Control 4: MB (Multi Beam) Off — — — — —

10
(a) This index is not required for this operating mode; value is <1.
(b) This transducer is not intended for transcranial or neonatal cephalic uses.
# No data are reported for this operating condition since the global maximum index value is not reported for the reason
listed. (Reference Global Maximum Index Value line.)
— Data are not applicable for this transducer/mode.
Table 7: Transducer Model: L52x/10-5 Operating Mode: Color/CPD
Index Label M.I.
TIS TIB
TIC
Scan Non-scan Non-scan
Aaprt≤1A
aprt>1
Global Maximum Index Value 1.33 (a) — — — (b)
Associated Acoustic
Parameter
pr.3 (MPa) 2.807
W0(mW) #— —#
min of [W.3(z1),ITA.3(z1)] (mW) —
z1(cm) —
Zbp (cm) —
Zsp (cm) 1.8 —
deq(Zsp)(cm) —
Fc(MHz) 4.37 # — — — #
Dim of Aaprt X(cm) #— — —#
Y(cm) #— — —#
Other
Information
PD (µsec) 0.61
PRF (Hz) 5427
pr@PIImax (MPa) 3.628
deq@Pllmax (cm) —
Focal Length FLx(cm) #— — #
FLy(cm) #— — #
IPA.3@MImax (W/cm2)411.1
Operating
Control
Conditions
Control 1: Mode Any — — — — —
Control 2: Exam type Vas — — — — —
Control 3: Optimization/Depth Any/5.4 — — — — —
Control 4: PRF Any — — — — —
Control 5: Color Box Position/Size Any/Def — — — — —

English Deutsch Español Français Italiano Português
11
(a) This index is not required for this operating mode; value is <1.
(b) This transducer is not intended for transcranial or neonatal cephalic uses.
# No data are reported for this operating condition since the global maximum index value is not reported for the reason
listed. (Reference Global Maximum Index Value line.)
— Data are not applicable for this transducer/mode.
Table 8: Transducer Model: L52x/10-5 (M-Turbo only) Operating Mode: PW Doppler
Index Label M.I.
TIS TIB
TIC
Scan Non-scan Non-scan
Aaprt≤1A
aprt>1
Global Maximum Index Value 1.17 —1.44 — 2.22 (b)
Associated Acoustic
Parameter
pr.3 (MPa) 2.443
W0(mW) —69.42 69.42 #
min of [W.3(z1),ITA.3(z1)] (mW) —
z1(cm) —
Zbp (cm) —
Zsp (cm) 2.1 1.5
deq(Zsp)(cm) 0.45
Fc(MHz) 4.36 —4.35 — 4.35 #
Dim of Aaprt X(cm) —1.476 — 1.476 #
Y(cm) —0.55 — 0.55 #
Other
Information
PD (µsec) 1.38
PRF (Hz) 1008
pr@PIImax (MPa) 3.30
deq@Pllmax (cm) 0.34
Focal Length FLx(cm) —5.99 — #
FLy(cm) —3.4 — #
IPA.3@MImax (W/cm2)288.97
Operating
Control
Conditions
Control 1: Exam Type Any — Any — Any —
Control 2: PRF 1008 Hz — 3125 Hz — 3125 Hz —
Control 3: SV Size 1 mm — 1 mm — 1 mm —
Control 4: SV Position Zone 4 — Zone 6 — Zone 6 —

12
Acoustic output tables (NanoMaxx)
(a) This index is not required for this operating mode; value is <1.
(b) This transducer is not intended for transcranial or neonatal cephalic uses.
# No data are reported for this operating condition since the global maximum index value is not reported for the reason
listed. (Reference Global Maximum Index Value line.)
— Data are not applicable for this transducer/mode.
Table 9: Transducer Model: L52n/10-5 Operating Mode: 2D
Index Label M.I.
TIS TIB
TIC
Scan Non-scan Non-scan
Aaprt≤1A
aprt>1
Global Maximum Index Value 1.0 (a) — — — (b)
Associated Acoustic
Parameter
pr.3 (MPa) 2.34
W0(mW) #— —#
min of [W.3(z1),ITA.3(z1)] (mW) —
z1(cm) —
zbp (cm) —
zsp (cm) 1.8 —
deq(zsp)(cm) —
fc(MHz) 5.33 # — — — #
Dim of Aaprt X(cm) #—— — #
Y(cm) #—— — #
Other Information
PD (µsec) 0.15
PRF (Hz) 7707
pr@PIImax (MPa) 3.25
deq@Pllmax (cm) —
Focal Length FLx (cm) #—— #
FLy(cm) #—— #
IPA.3@MImax (W/cm2)329.1
Operating
Control
Conditions
Control 1: Exam Type Any
Control 2: Optimization Gen
Control 3: Depth 4.2 cm
Control 4: MB (Multi Beam) Off or
On

English Deutsch Español Français Italiano Português
13
(a) This index is not required for this operating mode; value is <1.
(b) This transducer is not intended for transcranial or neonatal cephalic uses.
# No data are reported for this operating condition since the global maximum index value is not reported for the reason
listed. (Reference Global Maximum Index Value line.)
— Data are not applicable for this transducer/mode.
Table 10: Transducer Model: L52n/10-5 Operating Mode: M Mode
Index Label M.I.
TIS TIB
TIC
Scan Non-scan Non-scan
Aaprt≤1A
aprt>1
Global Maximum Index Value 1.0 — (a) — (a) (b)
Associated Acoustic
Parameter
pr.3 (MPa) 2.34
W0(mW) —# ##
min of [W.3(z1),ITA.3(z1)] (mW) —
z1(cm) —
zbp (cm) —
zsp (cm) 1.8 #
deq(zsp)(cm) #
fc(MHz) 5.33 — # — # #
Dim of Aaprt X(cm) —# — # #
Y(cm) —# — # #
Other Information
PD (µsec) 0.15
PRF (Hz) 1600
pr@PIImax (MPa) 3.25
deq@Pllmax (cm) #
Focal Length FLx (cm) —# — #
FLy(cm) —# — #
IPA.3@MImax (W/cm2)329.1
Operating
Control
Conditions
Control 1: Exam Type Any — — — — —
Control 2: Optimization Gen — — — — —
Control 3: Depth 4.2 cm — — — — —
Control 4: MB (Multi Beam) Off or
On
—— — — —

14
(a) This index is not required for this operating mode; value is <1.
(b) This transducer is not intended for transcranial or neonatal cephalic uses.
# No data are reported for this operating condition since the global maximum index value is not reported for the reason
listed. (Reference Global Maximum Index Value line.)
— Data are not applicable for this transducer/mode.
Table 11: Transducer Model: L52n/10-5 Operating Mode: Color/CPD
Index Label M.I.
TIs TIb
TIc
Scan Non-scan Non-scan
Aaprt≤1A
aprt>1
Global Maximum Index Value 1.2 (a) — — — (b)
Associated Acoustic
Parameter
pr.3 (MPa) 2.35
W0(mW) #— —#
min of [W.3(z1),ITA.3(z1)] (mW) —
z1(cm) —
Zbp (cm) —
Zsp (cm) 1.8 —
deq(Zsp)(cm) —
Fc(MHz) 4.37 # — — — #
Dim of Aaprt X (cm) #— — —#
Y (cm) #— — —#
Other
Information
PD (µsec) 0.60
PRF (Hz) 7097
pr@PIImax (MPa) 3.08
deq@Pllmax (cm) —
Focal Length FLx(cm) #— — #
FLy(cm) #— — #
IPA.3@MImax (W/cm2)308.5
Operating
Control
Conditions
Control 1: Mode CPD or
Color
—— — ——
Control 2: Exam type Msk — — — — —
Control 3: Optimization Res — — — — —
Control 4: depth 5.4 — — — — —
Control 5: Color Box Default — — — — —
