Sony Ericsson Z1 User manual

1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
Component Replacement
- electrical -
R800i, R800a, R800x, R800at, Z1

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
2(17)
CONTENTS
1Replaceable Components .............................................................3
2Component Placing........................................................................6
3Repair Actions................................................................................7
3.1 Shield Can Fence Modifications .........................................................7
3.2 Additional Repair Info..........................................................................8
4Revision History...........................................................................17
For general information about electrical repair related issues, refer to
1220-1336: Generic Repair Manual - electrical

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
3(17)
1 Replaceable Components
EXPLANATION OF ABBREVIATIONS USED IN THE COLUMN ‘COMMENTS’ BELOW
COMPONENT LOCATION
P= Primary side
S= Secondary side
MOISTURE SENSITIVITY LEVEL
MSLX (X = 1, 2, 2A, 3, 4, 5, 5A or 6)
For more information on moisture sensitivity levels:
Refer to 1220-1336: Generic Repair Manual –electrical, section ‘Moisture & Baking’!
REPAIR METHOD
HA = Hot Air (removal & mounting)
ST = Soldering Tool (removal & mounting)
HA/ST = Hot Air for removal - Soldering Tool for mounting
BGA = BGA Station
BH = Bottom Heater
ADDITIONAL INFORMATION
1 (2,3,4, etc.) = Proceed to ‘Additional Repair Info’ for further instructions in the indicated section(s).
CALIBRATION
C= Calibration of the phone is required after replacing the component
Calibration to be done by authorized centers only!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
4(17)
Position
Component
Part no.
Comments
B5000
B5002
B5003
B5500
B5501
Vibrator Bar Analog DC
IC
IC
Microphone
Microphone
1204-8172
1220-4770
1220-4470
1210-7410
1210-7410
P BGA 1
S HA 20
S HA
P BGA 2
S BGA
C5200
C5606
C5613
Capacitor 1.0 uF +/-10% 25.0 V K0603
Capacitor 1.5 nF +/-10% 50.0 V K0402
Capacitor Ceramic 4,7 uF +/-20% 25, V 08
1000-0076
1000-6548
1220-2537
S HA
S HA
S HA
E1000
Shield Can Closed Drawn Can - RF
1233-5273
S BGA
L3900
L3901
L3902
L3903
L3904
L4001
L5402
L5403
L5503
L5504
L5505
L5506
L5507
L5508
L5600
L5601
Ind WW 2.2 uH
Ind Chip 2.2 uH +/- 20% K0805
Ind WW 2.2 uH
Ind WW 2.2 uH
Ind WW 2.2 uH
Ind WW 2,2 uH +/-20% K3012
Filter
Filter
Filter 0.0 Hz 0402
Filter 0.0 Hz 0402
Filter 0.0 Hz 0402
Filter 0.0 Hz 0402
Filter 0.0 Hz 0402
Filter 0.0 Hz 0402
Ind WW 10, uH
Ferrite B 240.0 Ohm 200.0 mA 0201
1232-8769
1234-7293
1232-8769
1232-8769
1232-8769
1223-4064
1000-2609
1000-2609
1200-0317
1200-0317
1200-0317
1200-0317
1200-0317
1200-0317
1000-3331
1000-2593
S HA
S HA
S HA
S HA
S HA
S HA
S HA
S HA
P HA 3
P HA 3
P HA 3
S HA 4
S HA 4
S HA 4
S HA
S HA
N1200
N1200
N1600
N1600
N1700
N1701
N1800
N1902
N2100
N2500
N2501
N3802
N3803
N4003
N4400
N4401
N4402
N4500
N4700
N4800
N4801
N4802
N5200
N5300
N5301
ASIC RF Transceiver 308 NSP
ASIC RF Transceiver QTR-8200 308-NSP
Mod PA WCDMA 3X3X1 824-849MHz - REX-Q
Mod PA WCDMA 3X3X1 880-915MHz
Mod PA WCDMA 3X3X1 1920-1980MHz - REX-Q
Mod PA WCDMA 3X3X1 1850-1910MHz - REX-Q
Mod PA QUAD GSM850/GSM900/DCS/EDGE
RF Antenna Switch GSM & UMTS/CDMA DUAL
IC Amp 1010x0.4
Mod BB WLAN 6.57 x 5.62 x 0.55mm
IC Switch 2x2x0.6 mm, 8pin
IC Lin TDFN-8
IC Lin WDFN6 Protection Interface Circui
IC Lin Converter Step Down
IC Dri WL-CSP 2x1.5 4x3 balls, 0.5mm pit
IC ESD Prot Micro QFN 16L 3,3x1,5mm
IC ESD Prot Micro QFN 16L 3,3x1,5mm
IC Vreg PLP1010-4
IC Switch UMLP-28 Dual Row (3.6X2.8mm) I
IC ESD Prot 2.50x1.20x0.50mm
IC ESD Prot 2.50x1.20x0.50mm
IC ESD Prot 2.50x1.20x0.50mm
IC ESD Prot
IC Amp CSP-9 Class D Mono
IC Amp CSP-9 Class D Mono
1228-1206
1228-2273
1238-0476
1238-0477
1238-0469
1238-0474
1232-2928
1237-2994
1232-9070
1227-7418
1239-0547
1221-6812
1228-1705
1227-6376
1219-2970
1225-4036
1225-4036
1201-6465
1228-8877
1227-5811
1227-5811
1227-5811
1227-8675
1237-8660
1237-8660
S BGA C CDMA Only
S BGA C All Band
(Not CDMA)
S HA C For Band 5
S HA C For Band 8
S HA C All Band
(Not CDMA)
S HA C For Band 2
S BGA C All Band
(Not CDMA)
S HA C All Band
P HA
S BGA
S HA
S HA
S HA
S HA
S HA
S HA 5
S HA 5
S HA
S HA
S HA
S HA
S HA 6
S HA
S HA
S HA

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
5(17)
Position
Component
Part no.
Comments
N5400
N5500
N5600
N5701
ASIC Tjatte3 CSP20
IC Amplifier 500mA
IC WL-CSP 6x4 balls
MEMS Compass Analog
1000-0198
1203-4594
1212-7979
1228-7182
S HA
S HA 6
S HA
S HA
S4803
S4804
S4805
S4806
S4807
S4808
S4809
S4810
S5000
S5001
S5002
S5003
S5004
S5005
S5006
S5007
Input Switch
Input Switch
Input Switch Other TACT SWITCH 3.7 x 3.7
Input Switch Other TACT SWITCH 3.7 x 3.7
Input Switch
Input Switch Side Push/
Input Switch Side Push/
Input Switch Other TACT SWITCH 3.7 x 3.7
Input Switch Other TACT SWITCH
Input Switch Other TACT SWITCH
Input Switch Other TACT SWITCH
Input Switch Other TACT SWITCH
Input Switch Other TACT SWITCH
Input Switch Other TACT SWITCH
Input Switch Other TACT SWITCH
Input Switch Other TACT SWITCH
1001-0060
1001-0060
1213-3638
1213-3638
1001-0060
1245-9546
1245-9546
1213-3638
1230-4023
1230-4023
1230-4023
1230-4023
1230-4023
1230-4023
1230-4023
1230-4023
P HA/ST
P HA/ST
S HA
S HA
S HA/ST
P HA/ST 19
P HA/ST 21
S BGA
S HA/ST
S HA/ST
S HA/ST
S HA/ST
S HA/ST
S HA/ST
S HA/ST
S HA/ST
V3801
V3802
V3803
V4400
V4802
V5000
V5100
V5102
V5300
V5301
V5500
V5600
ZenerDiode, 5.6V, Pb-free
ZenerDiode, 5.6V, Pb-free
Trans N-ch FET 1.2X0.8X0.5
LED White 2.04x1.64x0.7mm
LED RED/GREEN/BLUE
Diode Schottky 20.0 V SOD323
Diode Protection 5, V SOD-923
Trans P-ch FET WDFN6
Diode Zener 5.0 V SOT-723
Diode Zener 5.0 V SOT-723
Diode Zener 5.0 V SOT-723
MOSFET & Schottky Diode
1001-1864
1001-1864
1200-2023
1228-6212
1200-1926
1200-1679
1201-8440
1200-1780
1203-0201
1203-0201
1203-0201
1201-3866
S HA
S HA
S HA
P BGA 7
S HA/ST 8
P HA 9
S HA
S HA
S HA
S HA
S HA
S HA
W2100
Internal Antenna Connector
1000-0308
P HA
X1900
X1901
X2500
X2501
X3801
X4300
X4500
X5000
X5100
X5101
X5200
X5401
Conn Coax Receptacle 0p test switch
Conn Pogopin 2p
Conn Coax Receptacle 0p test switch
Conn Leaf Spring Receptacle 1p
Conn Pogopin Plug 5p
Conn BtB Receptacle 64p
Conn BtB Receptacle 30p Hirose DF37B
Conn FPC Receptacle 8p
Card Conn SIM push-pull w/switch
Connector BtB
Conn USB micro B Receptacle 5p mid-mount
CONNECTOR/5 POS/FPC
1221-6477
1233-8058
1221-6477
1200-2144
1226-6294
1231-1872
1216-9089
1232-9797
1227-3532
1202-0859
1232-9759
1001-6666
P BGA 10
P BGA 11
P BGA 12
P HA 17
P BGA 13
S BGA
S BGA
S BGA
P BGA 14
P BGA 15
S BGA
P BGA 16
Z2100
Z2101
Z2500
Z4300
Z4301
Z4302
Z5200
Filter 1.575 GHz
Filter SAW 1.575 GHz
Filter Cer RF 2.45 GHz Bluetooth/W-LAN
Filter 100.0 MHz
Filter 100.0 MHz
Filter 100.0 MHz
Filter 100.0 MHz
1236-2944
1211-5714
1228-7102
1224-6060
1224-6060
1224-6060
1224-6060
S HA
P HA
S HA
S HA 18
S HA 18
S HA 18
S HA

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
6(17)
2 Component Placing
To access the Component Placing document, double-click the icon below.
Applicable for on-screen viewing only –icon not shown on hard-copies.

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
7(17)
3 Repair Actions
Refer to the Tools Catalogue/Matrix for information about equipment required for PBA repair!
3.1 Shield Can Fence Modifications
Refer to the pictures below of the primary and secondary sides for repairs that require the Shield Can
Fence to be modified:
the shield can lid has to be removed
the red symbols show where the frame should be cut to enable rework
after rework the height of the frame should not be affected
it should not be visible that rework has been carried out when the lid has been mounted
Primary side
Secondary side

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
8(17)
Repair Actions
3.2 Additional Repair Info

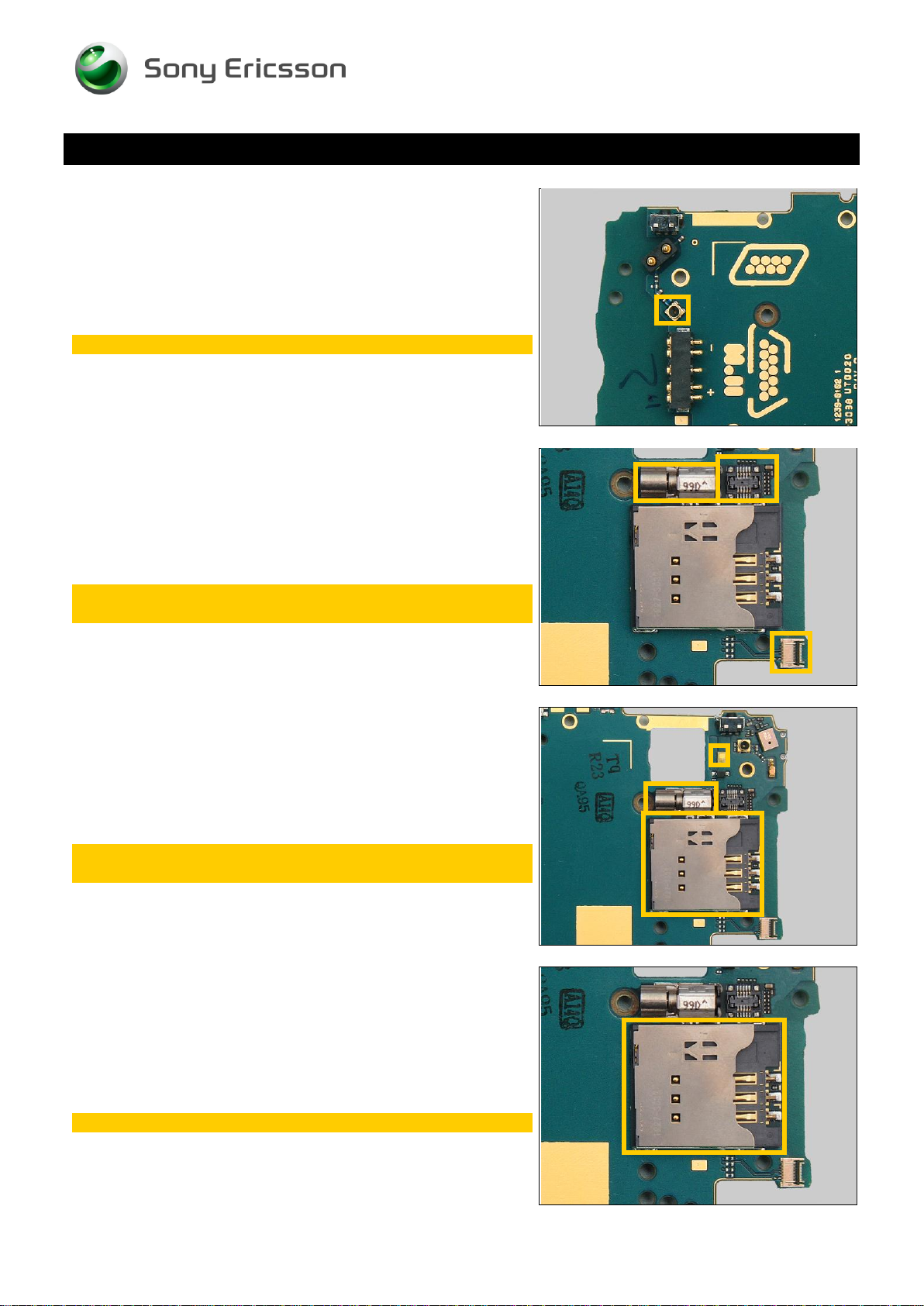

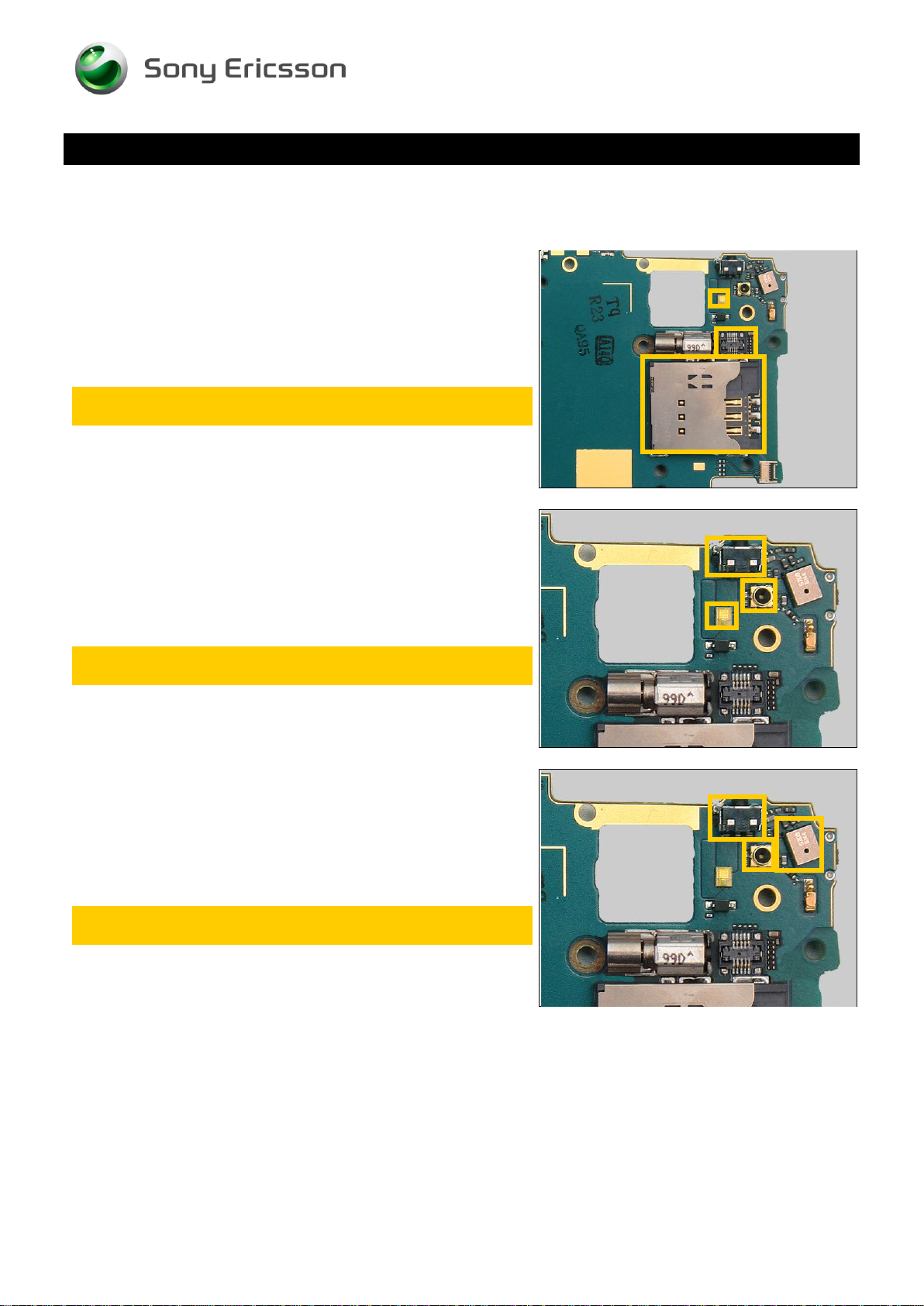

1
B5000
Protect the white LED, the BtB connector and the SIM
connector with capton tape!
2
B5500
Protect the white LED, the switch connector and the
Coax connector with capton tape!
3
L5503, L5504, L5505
Protect the Microphone, the switch connector and the
Coax connector with capton tape!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
9(17)

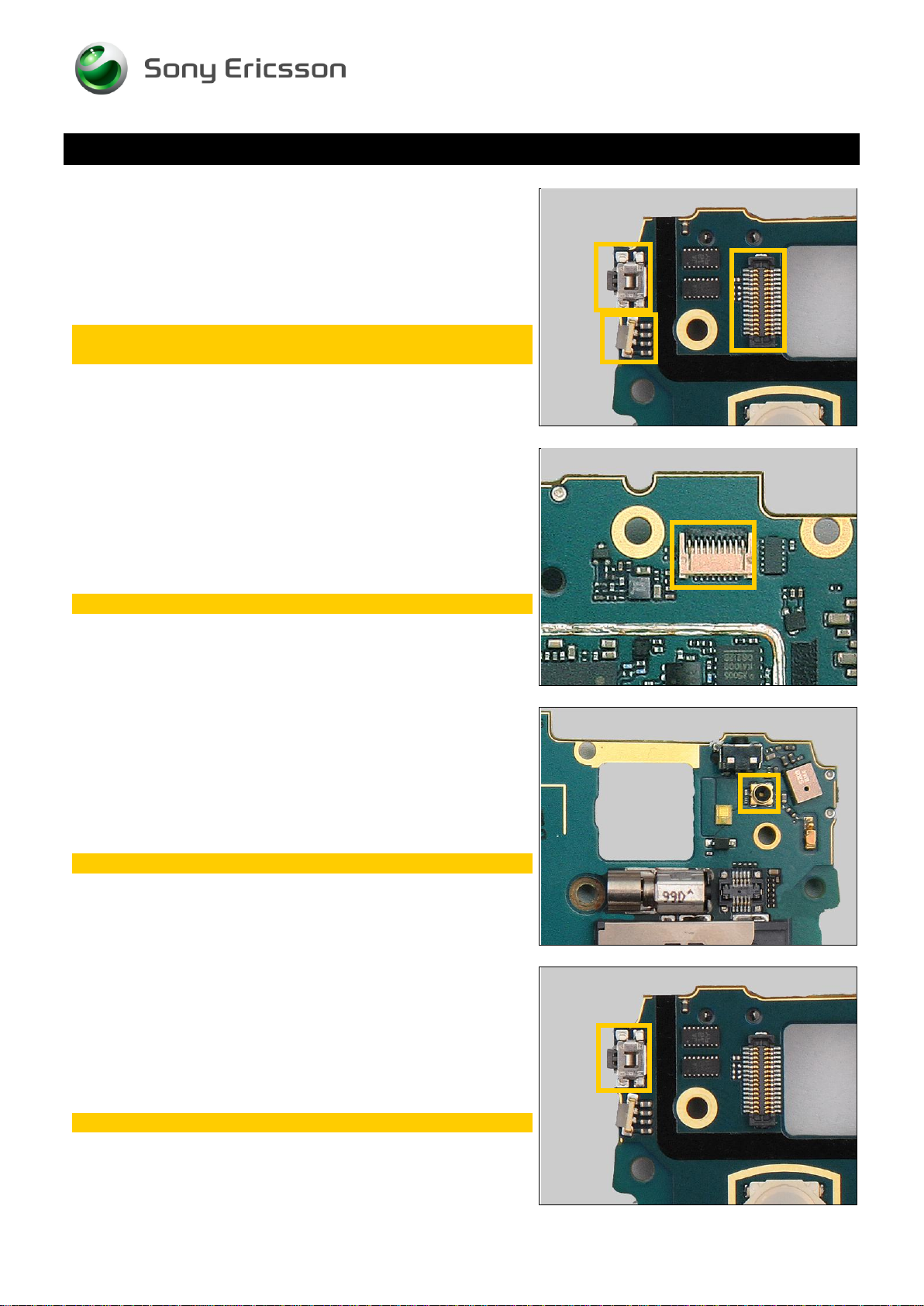

4
L5506, L5507, L5508
Protect the Microphone with capton tape!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
10(17)
Repair Actions: Additional Repair Info

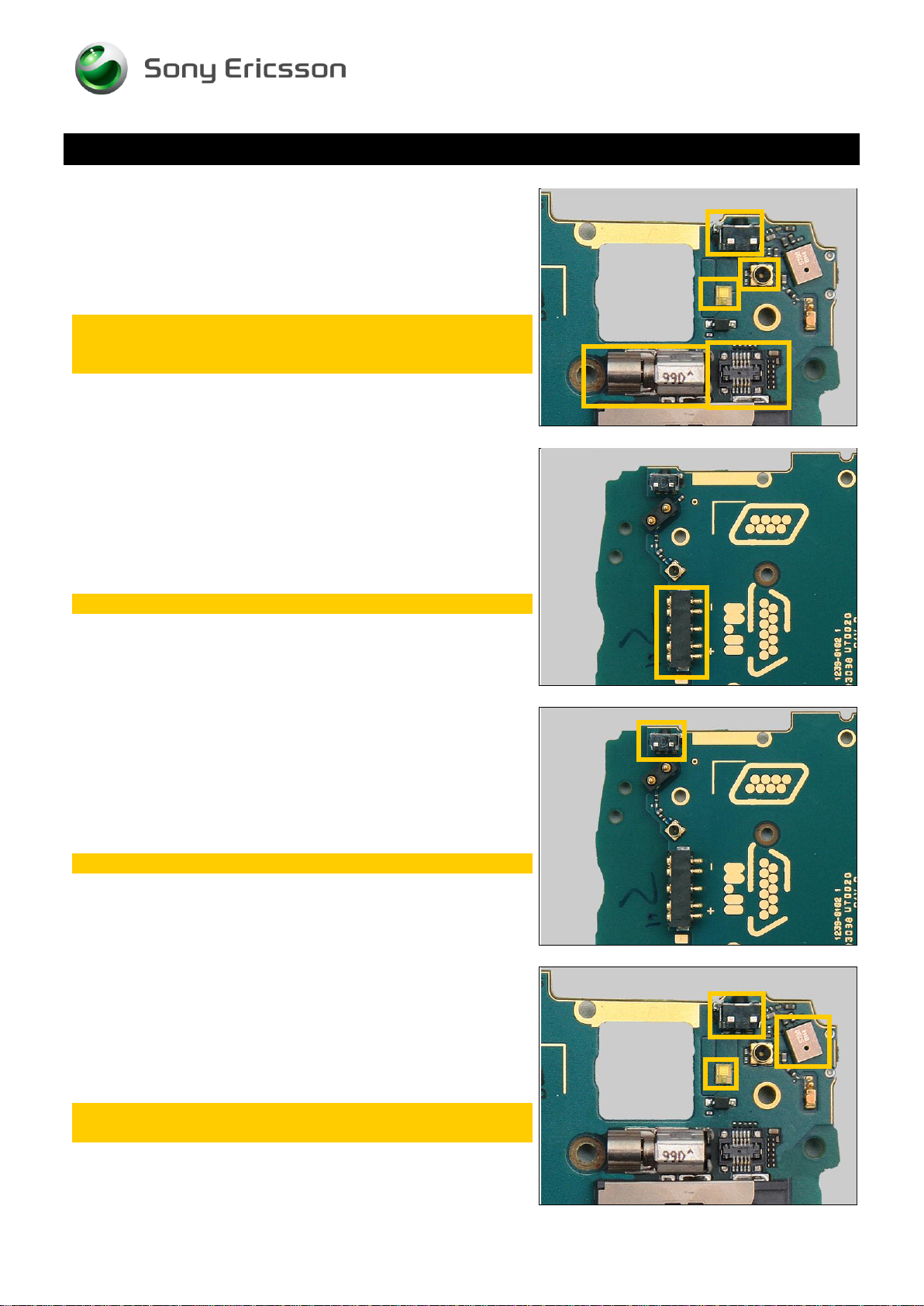

5
N4401, N4402
Protect the On/Off key connector, the LED and the BtB
connector with capton tape!
6
N4802, N5500
Protect the ZIF connector with capton tape!
7
V4400
Protect the Coax connector with capton tape!
8
V4802
Protect the On/Off key connector with capton tape!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
11(17)

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
12(17)
Repair Actions: Additional Repair Info

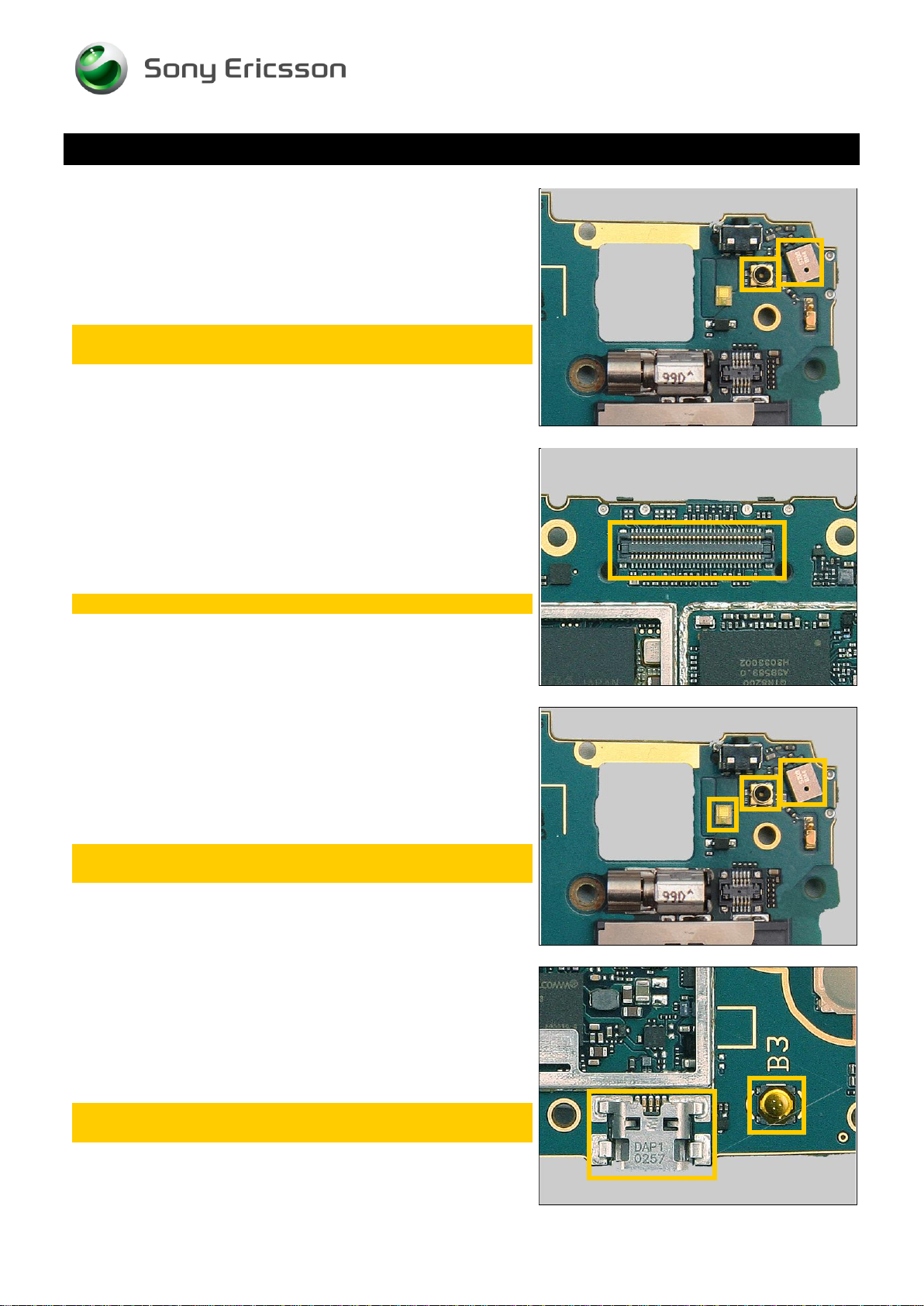

9
V5000
Protect the Vibrator, the BtB connector, the switch
connector, the white LED and the switch connector with
capton tape!
10

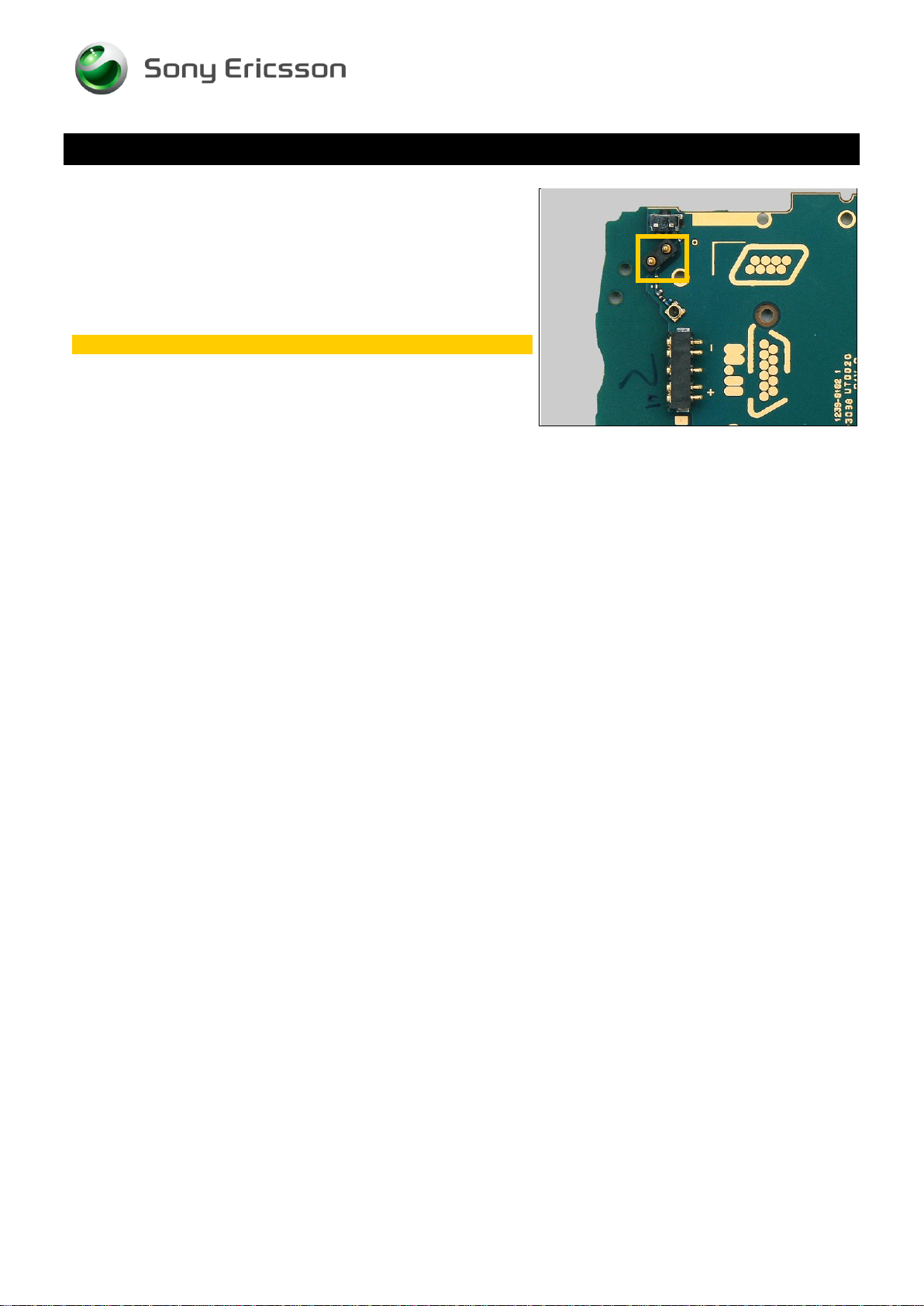

X1900
Protect the connector with capton tape!!
11
X1901
Protect the switch connector with capton tape!
12
X2500
Protect the Microphone, the switch connector and the
white LED with capton tape!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
13(17)

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
14(17)
Repair Actions: Additional Repair Info
13
X3801
Protect the Coax connector with capton tape!
14
X5100
Protect the Vibrator, BtB connector and the ZIF
connector with capton tape!
15
X5101
Protect the Vibrator, the white LED and the SIM
connector with capton tape!
16
X5401
Protect the SIM connector with capton tape!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
15(17)

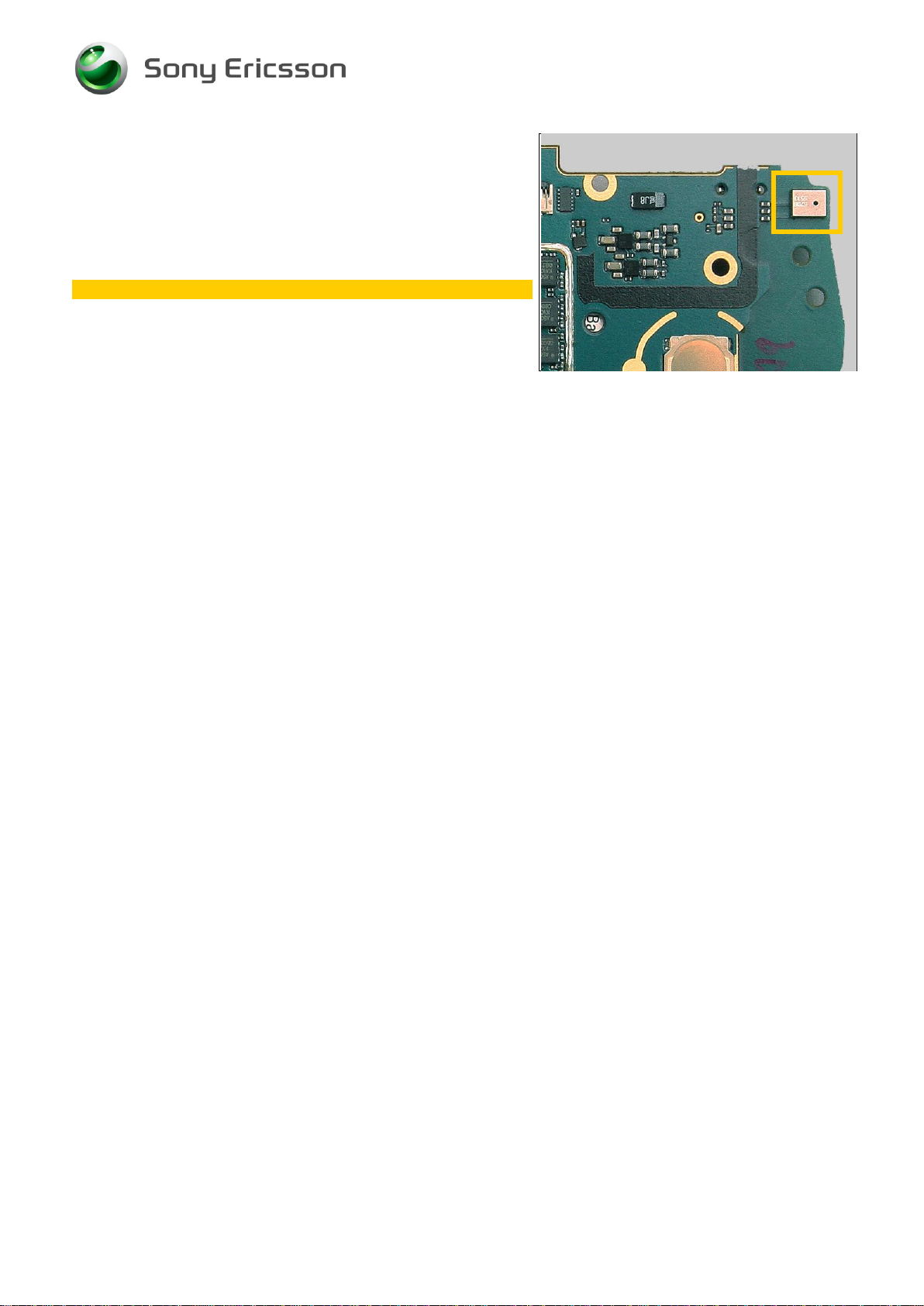

Repair Actions: Additional Repair Info
17
X2501
Protect the Microphone and the Coax connector with
capton tape!
18
Z4300, Z4301, Z4302
Protect the BtB connector with capton tape!
19
B5500, V4400, X2500
Protect the LED white, Microphone and the Coax
connector with capton tape!
20
S4805, X5200
Protect the USB connector and the input switch with
capton tape!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
16(17)
Repair Actions: Additional Repair Info
21
X1901
Protect the connector with capton tape!

Component Replacement (elect)
1246-2438 Rev 1
Sony Ericsson Mobile Communications AB –Company Internal
17(17)
4 Revision History
Rev.
Date
Changes / Comments
1
2011-Mar-24
Initial release
