Sony HDCU-3300R User manual

HD CAMERA CONTROL UNIT
HDCU3300R
SD ENCODER UNIT
HKCU1001
MULTI INTERFACE UNIT
HKCU1003
SDI OUTPUT EXPANSION UNIT
HKCU1005
OPERATION MANUAL [English]
1st Edition

2
For the HDCU3300R
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
THIS APPARATUS MUST BE EARTHED.
Afin de réduire les risques d’incendie ou
d’électrocution, ne pas exposer cet
appareil à la pluie ou à l’humidité.
Afin d’écarter tout risque d’électrocution,
garder le coffret fermé. Ne confier
l’entretien de l’appareil qu’à un personnel
qualifié.
CET APPAREIL DOIT ÊTRE RELIÉ À LA TERRE.
Um die Gefahr von Bränden oder
elektrischen Schlägen zu verringern, darf
dieses Gerät nicht Regen oder
Feuchtigkeit ausgesetzt werden.
Um einen elektrischen Schlag zu
vermeiden, darf das Gehäuse nicht
geöffnet werden. Überlassen Sie
Wartungsarbeiten stets nur qualifiziertem
Fachpersonal.
DIESES GERÄT MUSS GEERDET WERDEN.
WARNING: THIS WARNING IS APPLICABLE FOR
USA ONLY.
If used in USA, use the UL LISTED power cord specified
below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord Type SJT, three 16 or 18 AWG wires
Length Minimum 1.5 m (4 ft. 11 in.), less than 2.5 m
(8 ft. 3 in.)
Rating Minimum 10 A, 125 V
Using this unit at a voltage other than 120 V may require
the use of a different line cord or attachment plug, or both.
To reduce the risk of fire or electric shock, refer servicing
to qualified service personnel.
WARNING: THIS WARNING IS APPLICABLE FOR
OTHER COUNTRIES.
1. Use the approved Power Cord (3-core mains lead) /
Appliance Connector / Plug with earthing-contacts that
conforms to the safety regulations of each country if
applicable.
2. Use the Power Cord (3-core mains lead) / Appliance
Connector / Plug conforming to the proper ratings
(Voltage, Ampere).
If you have questions on the use of the above Power Cord
/ Appliance Connector / Plug, please consult a qualified
service personnel.
AVERTISSEMENT
1. Utilisez un cordon d’alimentation (câble secteur à 3
fils)/fiche femelle/fiche mâle avec des contacts de mise
à la terre conformes à la réglementation de sécurité
locale applicable.
2. Utilisez un cordon d’alimentation (câble secteur à 3
fils)/fiche femelle/fiche mâle avec des caractéristiques
nominales (tension, ampérage) appropriées.
Pour toute question sur l’utilisation du cordon
d’alimentation/fiche femelle/fiche mâle ci-dessus,
consultez un technicien du service après-vente qualifié.
WARNUNG
1. Verwenden Sie ein geprüftes Netzkabel (3-adriges
Stromkabel)/einen geprüften Geräteanschluss/einen
geprüften Stecker mit Schutzkontakten entsprechend
den Sicherheitsvorschriften, die im betreffenden Land
gelten.
2. Verwenden Sie ein Netzkabel (3-adriges Stromkabel)/
einen Geräteanschluss/einen Stecker mit den
geeigneten Anschlusswerten (Volt, Ampere).
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the
appliance.
WARNING
AVERTISSEMENT
WARNUNG

3
Wenn Sie Fragen zur Verwendung von Netzkabel/
Geräteanschluss/Stecker haben, wenden Sie sich bitte an
qualifiziertes Kundendienstpersonal.
For the customers in the U.S.A.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
For the customers in Europe
This product with the CE marking complies with both the
EMC Directive and the Low Voltage Directive issued by
the Commission of the European Community.
Compliance with these directives implies conformity to
the following European standards:
･EN60950-1 :Product Safety
･EN55103-1 : Electromagnetic Interference(Emission)
･EN55103-2 : Electromagnetic Susceptibility(Immunity)
This product is intended for use in the following
Electromagnetic Environment: E4 (controlled EMC
environment, ex. TV studio).
Pour les clients en Europe
Ce produit portant la marque CE est conforme à la fois à la
Directive sur la compatibilité électromagnétique (EMC) et
à la Directive sur les basses tensions émises par la
Commission de la Communauté Européenne.
La conformité à ces directives implique la conformité aux
normes européennes suivantes:
･EN60950-1 : Sécurité des produits
･EN55103-1 : Interférences électromagnétiques
(émission)
･EN55103-2 : Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans l’environnement
électromagnétique suivants: E4 (environnement EMC
contrôlé, ex. studio de télévision).
Für Kunden in Europa
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt
die EMV-Richtlinie sowie die Niederspannungsrichtlinie
der EG-Kommission.
Angewandte Normen:
･EN60950-1 : Sicherheitsbestimmungen
･EN55103-1 : Elektromagnetische Verträglichkeit
(Störaussendung)
･EN55103-2 : Elektromagnetische Verträglichkeit
(Störfestigkeit)
Für die folgenden elektromagnetischen Umgebungen: E4
(kontrollierter EMV-Bereich, z.B. Fernsehstudio).
For the customers in Europe
The manufacturer of this product is Sony Corporation, 1-
7-1 Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Germany. For any service or
guarantee matters please refer to the addresses given in
separate service or guarantee documents.
This apparatus shall not be used in the residential area.
Pour les clients en Europe
Le fabricant de ce produit est Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japon.
Le représentant autorisé pour EMC et la sécurité des
produits est Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Allemagne. Pour toute question
concernant le service ou la garantie, veuillez consulter les
adresses indiquées dans les documents de service ou de
garantie séparés.
Ne pas utiliser cet appareil dans une zone résidentielle.
Für Kunden in Europa
Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
Der autorisierte Repräsentant für EMV und
Produktsicherheit ist Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Deutschland. Bei
jeglichen Angelegenheiten in Bezug auf Kundendienst
oder Garantie wenden Sie sich bitte an die in den separaten
Kundendienst- oder Garantiedokumenten aufgeführten
Anschriften.
Dieser Apparat darf nicht im Wohnbereich verwendet
werden.
For the customers in Europe, Australia and New
Zealand
WARNING
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the
user may be required to take adequate measures.

4
Pour les clients en Europe, Australie et Nouvelle-
Zélande
AVERTISSEMENT
Il s’agit d’un produit de Classe A. Dans un environnement
domestique, cet appareil peut provoquer des interférences
radio, dans ce cas l’utilisateur peut être amené à prendre
des mesures appropriées.
Für Kunden in Europa, Australien und
Neuseeland
WARNUNG
Dies ist eine Einrichtung, welche die Funk-Entstörung
nach Klasse A besitzt. Diese Einrichtung kann im
Wohnbereich Funkstörungen verursachen; in diesem Fall
kann vom Betreiber verlangt werden, angemessene
Maßnahmen durchzuführen und dafür aufzukommen.
For kundene i Norge
Dette utstyret kan kobles til et IT-strømfordelingssystem.
This HD Camera Control Unit is classified as a CLASS 1
LASER PRODUCT.
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
For the State of California, USA only
Perchlorate Material - special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material : Lithium battery contains
perchlorate.
For the Customers in Taiwan only
For the HKCU1001/HKCU1003/HKCU1005
For the customers in the U.S.A.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired operation.
For the customers in Canada
This Class A digital apparatus complies with Canadian
ICES-003.
Pour les clients au Canada
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
For the customers in Europe
This product with the CE marking complies with the EMC
Directive issued by the Commission of the European
Community.
Compliance with this directive implies conformity to the
following European standards:
･EN55103-1 :Electromagnetic Interference (Emission)
･EN55103-2 : Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following
Electromagnetic Environments: E1 (residential), E2
(commercial and light industrial), E3 (urban outdoors),
E4 (controlled EMC environment, ex. TV studio).
Pour les clients en Europe
Ce produit portant la marque CE est conforme à la
Directive sur la compatibilité électromagnétique (EMC)
émise par la Commission de la Communauté européenne.

5
La conformité à cette directive implique la conformité aux
normes européennes suivantes :
･EN55103-1 : Interférences électromagnétiques
(émission)
･EN55103-2 : Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans les
environnements électromagnétiques suivants : E1
(résidentiel), E2 (commercial et industrie légère), E3
(urbain extérieur) et E4 (environnement EMC contrôlé, ex.
studio de télévision).
Für Kunden in Europa
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt
die EMV-Richtlinie der EG-Kommission.
Angewandte Normen:
･EN55103-1: Elektromagnetische Verträglichkeit
(Störaussendung)
･EN55103-2: Elektromagnetische Verträglichkeit
(Störfestigkeit)
Für die folgenden elektromagnetischen Umgebungen: E1
(Wohnbereich), E2 (kommerzieller und in beschränktem
Maße industrieller Bereich), E3 (Stadtbereich im Freien)
und E4 (kontrollierter EMV-Bereich, z.B. Fernsehstudio).
For the customers in Europe
The manufacturer of this product is Sony Corporation, 1-
7-1 Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Germany.
Pour les clients en Europe
Le fabricant de ce produit est Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japon.
Le représentant autorisé pour EMC et la sécurité des
produits est Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Allemagne.
Für Kunden in Europa
Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
Der autorisierte Repräsentant für EMV und
Produktsicherheit ist Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Deutschland.

6Table of Contents
Table of Contents
Overview ................................................................................ 7
System Configuration........................................................... 9
Basic System Components .........................................................9
HD Super Motion/HD/SD Signal System ................................10
Precautions.......................................................................... 11
Locations and Functions of Parts ..................................... 12
Front Panel................................................................................12

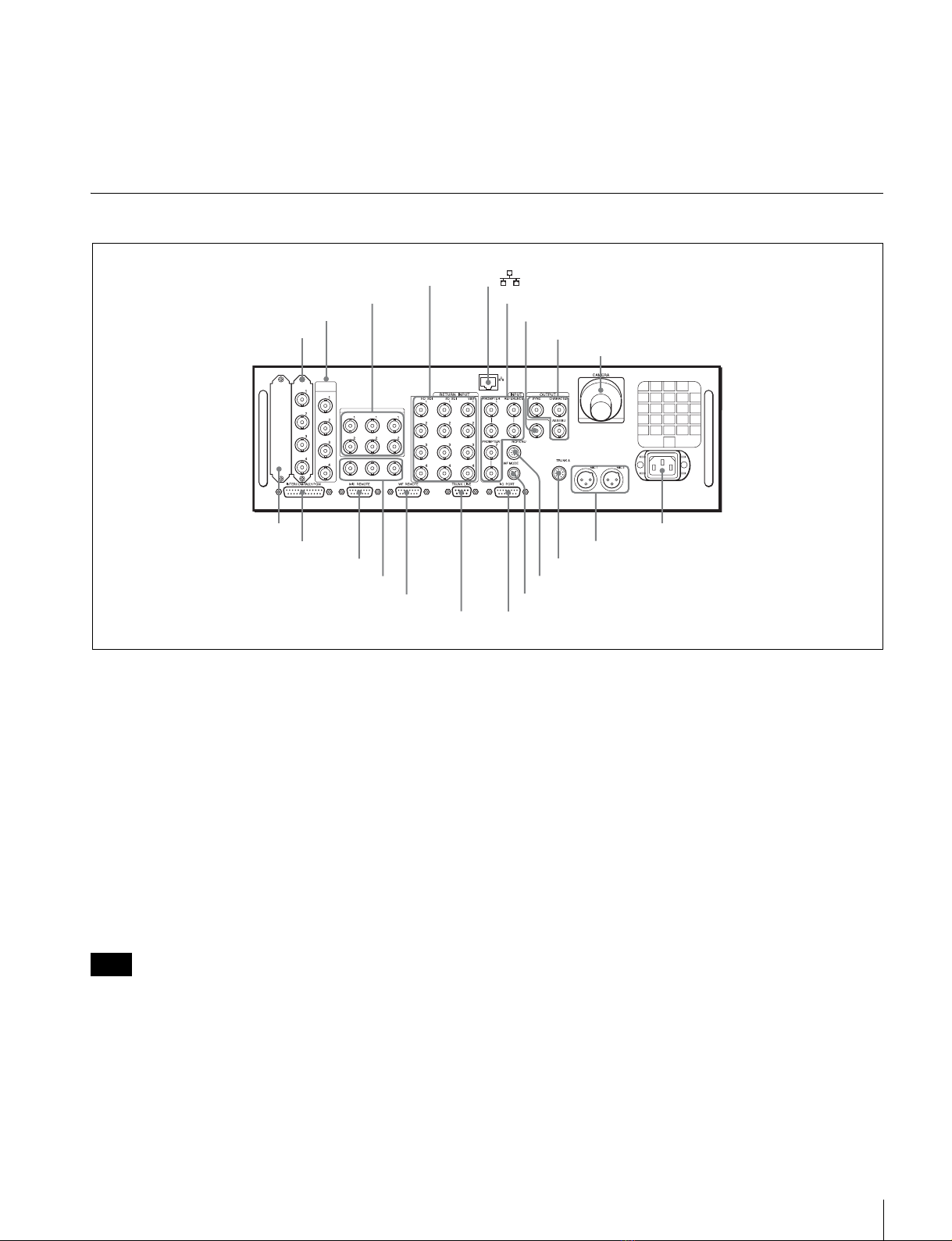

Rear Panel.................................................................................13
HKCU1001 SD Encoder Unit (optional)..................................15
HKCU1003 Multi Interface Unit (optional).............................16
HKCU1005 SDI Output Expansion Unit (optional).................18
Internal Switches and Internal Boards.............................. 19
Internal Switches ......................................................................19
Internal Boards .........................................................................19
Specifications...................................................................... 23
HDCU3300R ............................................................................23
HKCU1001 (optional) ..............................................................25
HKCU1003 (optional) ..............................................................25
HKCU1005 (optional) ..............................................................25

7
Overview
Overview
The HDCU3300R HD Super Motion Camera Control Unit
is to be connected to a Sony HDC3300R HD Super Motion
Color Camera. It carries out signal processing and
provides an interface for external equipment.
The HDCU3300R features a down converter, which
converts HD1) signals to SD2) signals, and a return video
up converter, which converts SD signals to HD signals,
making it usable with standard definition color video
cameras as well as a high-definition super slow-motion
color video cameras.
1) HD (High Definition) signal: A name for 1125/750-line high definition
TV signals
2) SD (Standard Definition) signal: A name for NTSC/PAL, 525/625
component, or 525/625 composite signals
The HDCU3300R may be combined with an MSU-900-
series Master Setup Unit (optional) or RCP-700/900-series
Remote Control Panel (optional) to form a camera control
system. Further, a system capable of controlling multiple
video cameras may be made up by adding a CNU-700
Camera Command Network Unit.
The HDCU3300R has the following major features.
Multiple video inputs and outputs
The HDCU3300R is equipped with a range of built-in
interfaces, such as the following:
- Two for each HD-SDI output of SS-A, B, and C
- Four HD-SDI outputs
- Four SDI outputs (HD-SDI/SD-SDI selectable)
- Four HD-SDI return inputs
- Four SD-SDI return inputs
- Four SD analog return inputs
- Two teleprompter inputs
In addition, a variety of output interfaces are offered via
optional boards.
HKCU1001 SD Encoder Unit and HKCU1003 Multi
Interface Unit
This board provides two analog VBS (NTSC/PAL) signal
outputs, an SD picture monitor output, and an SD
waveform monitor output.
The VDA-C board packed in the HKCU1003 cannot be
used.
HKCU1005 SDI Output Expansion Unit
This provides four HD-SDI or SD-SDI outputs.
External reference signals
The HDCU3300R can be locked to an external reference
signal. Either an HD tri-level sync signal or an SD sync
(black burst) signal may be used as the reference signal.
Built-in down converter
When the system is operating at a 59.94/50 Hz field
frequency, HD signals can be converted to SD component
SDI signals using the down converter. The output signal
aspect ratio may be set to 4:3 edge crop, 16:9 squeeze, or
letter box. The down converter has image enhancement,
gamma control, and matrix ON/OFF features, and can be
controlled externally.
Built-in simplified up converter
The HDCU3300R has a simplified up converter to allow
monitoring of SD signal return video using an HD
viewfinder. The aspect ratio of the return video signal may
be set to 4:3 edge crop, 16:9 squeeze, or letter box.
Optical digital transmission
The HDCU3300R may be connected to a camera using an
optical fiber cable (two single-mode optical fiber lines,
two power lines, two control lines) for the transmission of
digitized video, audio, and control signals. By connecting
together 500 meter (1,640 feet) optical fiber cables, signals
may be transmitted up to a maximum of 2,500 meters
(8,200 feet). The maximum length of the cable supplying
power to the camera varies with the camera system
configuration and with the type of optical fiber cable.
Safety-oriented power supply
The HDCU3300R is designed for safety. When the power
is turned on, a low voltage is supplied at first. Only after it
has been verified that an appropriated camera is attached,
the normal 240 V AC power supply is activated. The
power is not supplied unless a camera is connected via an
optoelectric cable.
Also, the HDCU3300R is equipped with an alarm
indicator to warn of open or short circuits in the cable.
It is not recommended to connect any camera other than
the HDC3300R to the HDCU3300R. If it is connected, the
HDCU3300R can supply power to the camera, but it
cannot communicate with the camera nor supply the video
signal from the camera, because of the different signal
interfaces.
Wide range of audio functions
The HDCU3300R has connectors for two-channel
microphone outputs, a digital audio output and a program
Note
Note

8Overview
audio input. Further, the HDCU3300R can use an intercom
system with two independent channels, and supports four-
wire and RTS/Clear-Com intercom systems.
For information on support for RTS/Clear-Com systems,
contact a Sony service or sales representative.
Remote control
The levels and phases of HDCU3300R output signals can
be controlled remotely by an MSU-900-series Master
Setup Unit.
Microphone volume control
The camera’s microphone volume can be controlled via
the MIC REMOTE connector.
Character monitor signal output
The results of the HDCU3300R self-diagnosis and setup
menu can be obtained with a text display by character
signal output.
Rack mountable
The HDCU3300R may be installed in a standard EIA 19-
inch rack (three units high).
Plug-in unit configuration
Internal printed circuit boards are designed for easy plug-
in and removal, which makes it easy to inspect and
maintain the unit.

9
System Configuration
System Configuration
Peripherals and related devices for this unit are shown in
the figures on the subsequent pages. Production of some of the peripherals and related devices
shown in the figures has been discontinued. For advice on
choosing devices, please contact your Sony dealer or a
Sony sales representative.

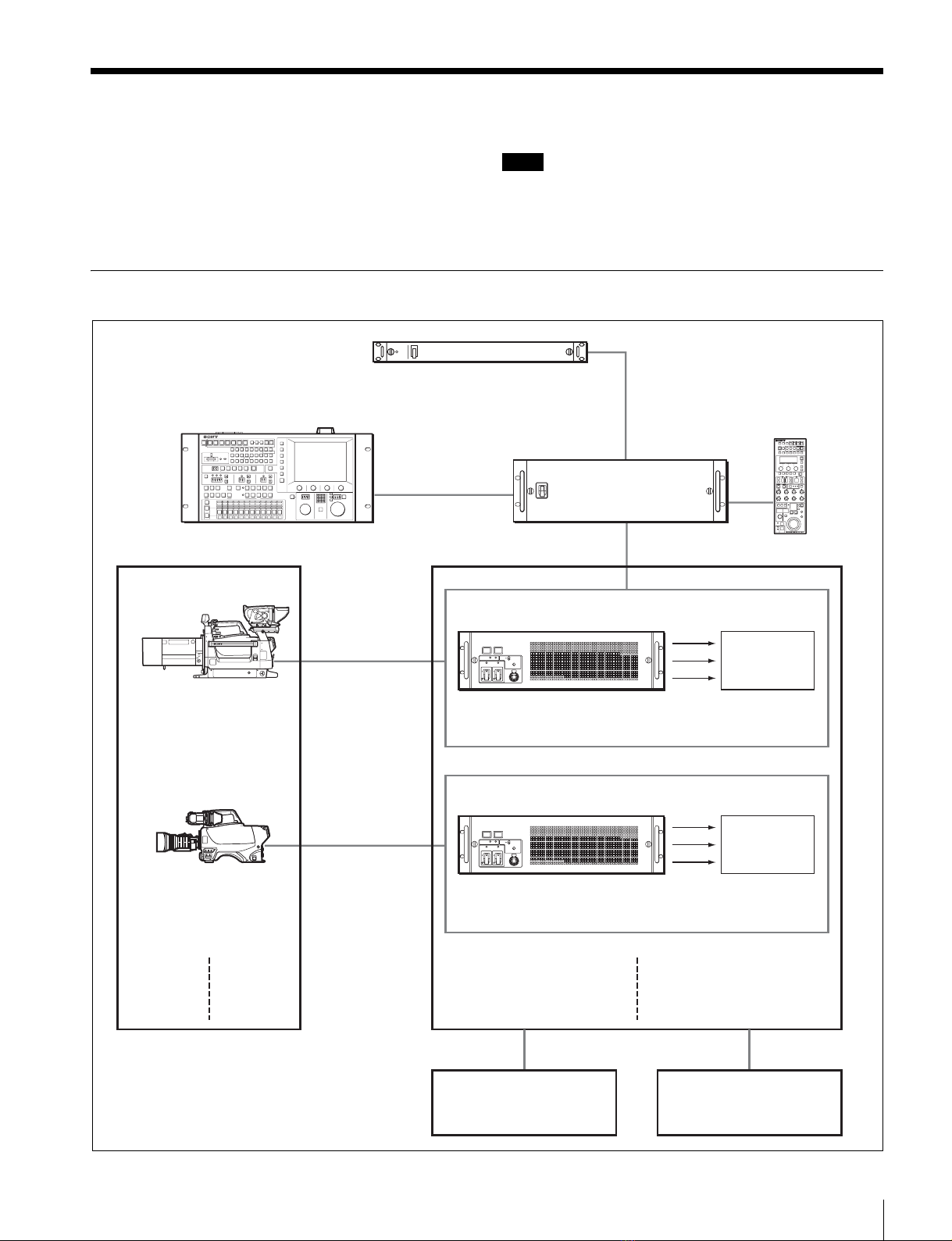

Basic System Components
Note
VCS-700 SD Video Selector
Camera 1
HDC3300R HD Color
Camera
+ HDLA1500 Large Lens
Adaptor
+ HDVF-EL100/700A
Viewfinder
Camera 2
Optical fiber cable
Program audio
MSU-900-series Master Setup Unit
CNU-700 Camera Command
Network Unit
Camera Control Unit 1
Intercom system
HDCU3300R HD Camera Control Unit
HD video
server
RCP-700/900-series
Remote Control Panel
HDC3300R HD Color
Camera
+ HDVF-20A/200/C30WR/
C35W Viewfinder
Optical fiber cable
Camera Control Unit 2
HDCU3300R HD Camera Control Unit
HD video
server
SS-A
SS-B
SS-C
SS-A
SS-B
SS-C

10 System Configuration
HD Super Motion/HD/SD Signal System
VCS-700
CNU-700
RCP series
MSU-900 series
HDCU3300R
+ HKCU1001/HKCU1003
HDC3300R+HDLA1500
HDC1000R
HDC3300R
HDC1500R
HDCU1000
+ HKCU1001/HKCU1003
HDCU3300R
+ HKCU1001/HKCU1003
HDCU1000
+ HKCU1001/HKCU1003
PIX/WF
SD-SDI
HD-SDI
HDCU1500
+ HKCU1001/HKCU1003
or
HDCU1500
+ HKCU1001/HKCU1003
or

11
Precautions
Precautions
Installation environments
• Avoid extremely hot places or near heating equipment.
• Do not place the unit near strong electromagnetic fields.
• Place the unit in a dry, well-ventilated place.
• Avoid direct sunlight and other strong lighting.

12 Locations and Functions of Parts
Locations and Functions of Parts
Front Panel
aRed tally indicator
Lights in red when this unit receives a red tally signal.
When the CALL button on the video camera, the MSU-
900-series Master Setup Unit, the RCP-700/900-series
Remote Control Panel, etc. is pressed, this indicator will go
out if previously lit, and light up if previously off.
You can attach the supplied number plate here.
bGreen tally indicator
Lights in green when this unit receives a green tally signal.
You can attach the supplied number plate here.
cMIC (microphone) switch
Press to turn the intercom microphone on and off.
dINTERCOM level control
Turn to adjust the audio listening level of the intercom.
eCABLE ALARM indicators
SHORT (red): Lights in red if the power supply cord of
an optical fiber cable is short-circuited to its external
sheath, or if two power supply cords are short-
circuited. Power is not supplied to the camera when
this indicator is lit.
OPEN (red): Lights in red when a camera is not connected
to the CAMERA connector on the rear panel of this
unit via an optical fiber cable.
Flashes when the connection status of an optical fiber
cable is bad.
fMAIN POWER switch and indicator
Turns the entire camera system on and off, including this
unit, the video camera, and the RCP-700/900-series
Remote Control Panel connected to the REMOTE
connector of this unit.
Press the “?” side to turn the camera system on, and the
“a” side to turn it off.
The indicator lights when the power switch is turned on.
gCAMERA switch and indicator
Turns the video camera on and off when the MAIN
POWER switch is turned on.
Press the “?” side to turn on the video camera and the “1”
side to turn it off.
When the CAM PW button of the remote control panel
connected to this unit is set to off, you can’t turn on the
video camera with this switch only.
HD CAMERA CONTROL UNIT HDCU3300R
SERIES
1Red tally indicator
2Green tally indicator
3MIC switch
4INTERCOM level control
5CABLE ALARM indicators
6MAIN POWER switch and indicator
7CAMERA switch and indicator
8INTERCOM connector

13
Locations and Functions of Parts
hINTERCOM connector (XLR 5-pin)
Connect a headset.
To use a headset with a plug other than an XLR 5-pin plug,
consult a Sony service or sales representative.
Rear Panel
aSDI OUT area (BNC-type)
The signal from the video camera may be output as two
HD-SDI or SD-SDI signals.
The signals output from the SDI OUT 3 and SDI OUT 4
connector can be superimposed character and marker.
SD-SDI signals are output only when the system is
operating with a field frequency of 59.94/50 Hz.
For details on the field frequency setting, contact a Sony
service or sales representative.
bHD SDI OUTPUT area (BNC-type)
The normal speed video signal from the video camera can
be output as four HD-SDI signals.
The connectors in this area do not supply the color bar
signals while the power to the video camera is ON (default
setting). There is a setting on the setup menu to supply the
color bar signals even if the power to the video camera is
ON. With that setting, the color bar signals are also
supplied to the viewfinder on the camera.
For details on the setup menu, contact a Sony service or
sales representative.
cSUPER MOTION OUTPUT area (BNC-type)
The HD super slow motion signals from the video camera
can be output as two LINK-A, LINK-B or LINK-C
signals. The connectors below are spares.
dRETURN INPUT area
1HD-SDI 1 to 4 (HD-SDI return video input 1/2/3/4)
connectors (BNC-type)
Four different HD-SDI return video input signals may be
received independently.
The selection of RET 1, 2, 3, or 4 is made by the return
switch of the video camera.
The type of input signal on RET 1, 2, 3, and 4 may be set
individually using the setup menu, or using the MSU-900-
series Master Setup Unit.
For details on the setup menu, contact a Sony service or
sales representative.
Refer also to the Master Setup Unit manual.
SUPER MOTION OUTPUT
SDI OUT HD SDI
OUTPUT
SLOT2
SLOT1
CAB
SLOT3
9CAMERA connector
w; AC IN connector
0Expansion slots
qa INTERCOM/TALLY/PGM connector
4RETURN INPUT area
6INPUT area
8OUTPUT area
qs MIC REMOTE connector
1SDI OUT area
5(LAN) connector
qd WF REMOTE connector
qf TRUNK LINE connector qg I/O PORT connector
ql MIC1, MIC2 connectors
qk TRUNK A connector
qj RCP/CNU connector
qh WF MODE connector
7Spare connector
3SUPER MOTION OUTPUT area
2HD SDI OUTPUT area
7Spare connectors
Note

14 Locations and Functions of Parts
2SD-SDI 1 to 4 (SD component SDI return video
input 1/2/3/4) connectors (BNC-type)
Four different SD component SDI return video input
signals may be received independently when the system is
operating with a field frequency of 59.94/50 Hz.
The selection of RET 1, 2, 3, or 4 is made by the return
switch of the video camera.
The type of input signal on RET 1, 2, 3, and 4 may be set
individually using the setup menu, or using the MSU-900-
series Master Setup Unit.
An aspect ratio may also be selected for SD signals.
For details on the setup menu, contact a Sony service or
sales representative.
Refer also to the Master Setup Unit manual.
3VBS 1 to 4 (VBS return video input 1/2/3/4)
connectors (BNC-type)
Four different VBS return video input signals may be
received independently.
The selection of RET 1, 2, 3, or 4 is made by the return
switch of the video camera.
The type of input signal on RET 1, 2, 3, and 4 may be set
individually using the setup menu, or using the MSU-900-
series Master Setup Unit.
An aspect ratio may also be selected for SD signals.
For details on the setup menu, contact a Sony service or
sales representative.
Refer also to the Master Setup Unit manual.
e(LAN) connector (RJ-45 8-pin)
For LAN connection. Connect a LAN HUB (10BASE-T/
100BASE-TX), using a LAN cable (shielded type of
category 5 or more).
For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to this
port.
Par mesure de sécurité, ne raccordez pas le connecteur
pour le câblage de périphériques pouvant avoir une tension
excessive à ce port.
Aus Sicherheitsgründen nicht mit einem Peripheriegerät-
Anschluss verbinden, der zu starke Spannung für diese
Buchse haben könnte.
fINPUT area
1PROMPTER 1, 2 (teleprompter input 1, 2)
connectors (BNC-type)
Input a teleprompter signal to either of the two connectors.
The input signal is output from the other connector as is
(loop-through output). If loop-through output is not used,
terminate the unused connector at 75 ohms. If the signal
used is a 1.0 Vp-p, 75-ohm signal, it may be output from
the PROMPTER OUT connector of the video camera with
a frequency bandwidth of 5 MHz, regardless of signal
format.
2REFERENCE connectors (BNC-type)
Input an HD tri-level reference sync signal or SD reference
sync signal (black burst signal) to either of the two
connectors.
The input signal is output from the other connector as is
(loop-through output). If loop-through output is not used,
terminate the unused connector at 75 ohms.
The type of reference signal is selected using the setup
menu, or using the MSU-900-series Master Setup Unit.
For details on the setup menu, contact a Sony service or
sales representative.
Refer also to the Master Setup Unit manual.
To use the VBS signal of the HKCU1001 SD Encoder Unit
or the HKCU1003 Multi Interface Unit (when SC phase
lock is required), use an SD reference sync signal (black
burst signal).
gSpare connector (BNC-type)
Reserved for future use.
hOUTPUT area
1SYNC (sync signal output) connector (BNC-type)
Used for output of an SD composite sync signal (with no
burst signal) or an HD tri-level sync signal from the
internal sync signal generator. (Factory setting: SD
composite sync signal)
For details on the signal selection, contact a Sony service
or sales representative.
2CHARACTER (character output) connector
(BNC-type)
Outputs the self-diagnostic results or the setup menu as an
SD monochrome analog video signal.
3AES/EBU connector (BNC-type)
Outputs an AES/EBU format digital audio signal input to
a video camera.
CAUTION
ATTENTION
ACHTUNG
Note

15
Locations and Functions of Parts
iCAMERA connector (optical fiber connector)
Used to connect a video camera, using an optical fiber
cable. All video camera signals, including power supply,
control, video, and audio, are sent and received over one
optical fiber cable.
Dust on the connection surface of the optical fiber cable
may result in transmission errors. When not connected,
always cover the end of the connector with the supplied
cap.
jExpansion slots
For installation of an optional HKCU1001 SD Encoder
Unit, HKCU1003 Multi Interface Unit, or HKCU1005
SDI Output Expansion Unit.
For details on installation, contact a Sony service or sales
representative.
kINTERCOM/TALLY/PGM (intercom/tally/
program audio) connector (D-sub 25-pin)
Used for input and output of intercom, tally, and program
audio signals. Connect to the intercom/tally/program audio
connector of the intercom system.
lMIC REMOTE (microphone remote) connector
(D-sub 15-pin)
Using this connector, the video camera’s microphone
input level may be set by external equipment such as an
audio mixer, in five level (-60, -50, -40, -30, and -20 dB).
When shooting, set the volume to a level appropriate for
the audio conditions.
This connector also supplies a red tally signal and a green
tally signal.
The microphone input level may also be set using the setup
menu. For details on the setup menu, contact a Sony
service or sales representative.
mWF REMOTE (waveform monitor remote)
connector (D-sub 15-pin)
Used to attach to the appropriate connector on a recall-type
waveform monitor when operating the waveform monitor
display using an MSU-900-series Master Setup Unit or an
RCP-700/900-series Remote Control Panel.When using a
recall-type monitor, preset a display mode on the
waveform monitor, and then recall the mode externally.
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
nTRUNK LINE connector (D-sub 9-pin)
Used to connect to the CCU connector on a video camera
via an RS-232C interface. Used mainly for communication
with equipment on the camera side.
Communication with up to two channels is available.
oI/O PORT connector (D-sub 15-pin)
Used for remote control using an external control device.
Use of a case wider than 42 mm can cause interference at
connectors 2, 4, 5. It is recommended that you use a
JAE-made DA-C1-J10.
pWF MODE (waveform monitor mode output)
connectors (4-pin)
Connect to the appropriate connector on a waveform
monitor when monitoring a signal in sequential mode.
A sequence signal will be output when the SEQ button on
the RCP-700/900-series Remote Control Panel or the
MSU-900-series Master Setup Unit is pressed, allowing
simultaneous monitoring of the R, G, and B signals in
sequential mode. When both the RCP and MSU are in use,
this connector functions as the output connector for RCP
control.
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
qRCP/CNU connector (8-pin)
Used to connect to an MSU-900-series Master Setup Unit,
CNU-700 Camera Command Network Unit, or RCP-700/
900-series Remote Control Panel via a CCA-5 Connection
Cable. Control signals are sent and received via this
connector.
When using an RCP-700/900-series unit, power is also
supplied.
rTRUNK A connector (12-pin)
Used to connect to the CCU connector on a video camera
via an RS-232C or RS-422A interface. Communication
with up to two channels is available.
sMIC1, MIC2 (microphone output 1, 2) connectors
(XLR 3-pin)
Used to supply the microphone signal sent from the video
camera.
tAC IN (AC power input) connector
Use the specified AC power cord to connect to an AC
power supply. The AC power cord can be secured to this
unit, using the plug holder (optional).
HKCU1001 SD Encoder Unit
(optional)
To reduce the risk of electric shock, fire or injury, do not
open the cabinet. To adjust the internal settings, refer to
qualified service personnel.
Note
Note
Note

16 Locations and Functions of Parts
The HKCU1001 consists of an EN-A front board and a
VDA-A rear board.
When these boards are installed in the front and rear
expansion slots of the unit, the unit outputs SD composite
signals, waveform monitor output signals, and picture
monitor output signals through the VDA-A board.
For details on installation, contact a Sony service or sales
representative.
EN-A Board
aSD signal format indicators
Either of these indicators lights, corresponding to the SD
signal format.
bSC PHASE (subcarrier phase) switch
Used to adjust the SC phase with respect to the reference
signal (black burst).
Press and hold the switch towards ADV to advance the
phase or towards DELAY for delay.
The phase is advanced or delayed only while the switch is
held pressed.
VDA-A Board
aVBS 1, 2 (composite video output 1, 2) connectors
(BNC-type)
The signal from the video camera may be output as two
analog composite signals.
bPIX OUT (picture monitor output) connector
(BNC-type)
Outputs the video signal for a picture monitor selected
with the PICTURE MONITOR button of an RCP-700/
900-series Remote Control Panel or MSU-900-series
Master Setup Unit.
Character signals or marker signals can be superimposed
on the video signal output through this connector.
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
cWF OUT (waveform monitor output) connector
(BNC-type)
Outputs the video signal for a waveform monitor selected
with the WF MONITOR button of an RCP-700/900-series
Remote Control Panel or MSU-900-series Master Setup
Unit.
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
HKCU1003 Multi Interface Unit
(optional)
To reduce the risk of electric shock, fire or injury, do not
open the cabinet. To adjust the internal settings, refer to
qualified service personnel.
The HKCU1003 consists of an EN-B front board and three
VDA rear boards (A/B/C). Only the VDA-A board can
actually be used with the HDCU3300R at present, and the
HKCU1003 has almost the same function as the
HKCU1001.
The VDA-B board can be used, but the FRAME REF IN
connector does not function.
For details on installation, contact a Sony service or sales
representative.
EN-A
NTSC
PA L
SC PHASE
ADV
DELAY
1SD signal format indicators
2SC PHASE switch
VDA-A
1
2
PIX
OUT
WF
OUT
VBS
1VBS 1, 2 connectors
2PIX OUT connector
3WF OUT connector
Note
Note

17
Locations and Functions of Parts
EN-B Board
aSD signal format indicators
Either of these indicators lights, corresponding to the SD
signal format.
bSUB-REF (sub-reference) indicators
Either of these indicators lights, corresponding to the
reference signal input via the FRAME REF IN connector
on the VDA-B board.
REF IN: Lights when the appropriate reference signal is
input.
UNLOCK: Lights when the reference signal is not
synchronized with the reference signal input via the
REFERENCE connector of the unit.
cSC PHASE (subcarrier phase) switch
Used to adjust the SC phase with respect to the reference
signal (black burst).
Press and hold the switch towards ADV to advance the
phase or towards DELAY for delay.
The phase is advanced or delayed only while the switch is
held pressed.
VDA-A Board
aVBS 1, 2 (composite video output 1, 2) connectors
(BNC-type)
The signal from the video camera may be output as two
analog composite video signals.
bPIX OUT (picture monitor output) connector
(BNC-type)
Outputs the video signal for a picture monitor selected
with the PICTURE MONITOR button of an RCP-700/
900-series Remote Control Panel or MSU-900-series
Master Setup Unit.
Character signals or marker signals can be superimposed
on the video signal output through this connector.
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
cWF OUT (waveform monitor output) connector
(BNC-type)
Outputs the video signal for a waveform monitor selected
with the WF MONITOR button of an RCP-700/900-series
Remote Control Panel or MSU-900-series Master Setup
Unit.
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
VDA-B Board
aFRAME REF IN, OUT (frame reference input/
output) connectors (BNC-type)
Not used now.
bPIX OUT (picture monitor output) connector
(BNC-type)
Outputs the video signal for a picture monitor selected
with the PICTURE MONITOR button of an RCP-700/
900-series Remote Control Panel or MSU-900-series
Master Setup Unit. Character signals or marker signals can
be superimposed on the video signal output through this
connector.
EN-B
NTSC
PA L
REF IN
UN
LOCK
SC PHASE
ADV
DELAY
1SD signal format indicators
3SC PHASE switch
2SUB-REF indicators
VDA-A
1
2
PIX
OUT
WF
OUT
VBS
1VBS 1, 2 connectors
2PIX OUT connector
3WF OUT connector
FRAME
REF IN
PIX
OUT
WF
OUT
OUT
VDA-B
1FRAME REF IN, OUT connectors
2PIX OUT connector
3WF OUT connector

18 Locations and Functions of Parts
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
cWF OUT (waveform monitor output) connector
(BNC-type)
Outputs the video signal for a waveform monitor selected
with the WF MONITOR button of an RCP-700/900-series
Remote Control Panel or MSU-900-series Master Setup
Unit.
For details on these operations, refer to the Master Setup
Unit or Remote Control Panel manuals.
HKCU1005 SDI Output Expansion
Unit (optional)
To reduce the risk of electric shock, fire or injury, do not
open the cabinet. To adjust the internal settings, refer to
qualified service personnel.
The HKCU1005 consists of a DRX front board and a HIF
rear boards.
When these boards are installed in the front and rear
expansion slots of the unit, four SDI output connectors are
added to the unit.
For details on installation, contact a Sony service or sales
representative.
DRX Board
aOutput signal format indicators
Displays the format status of the output signal.
1080/720P/SD: One of these indicators corresponding to
the signal status of the SDI OUTPUT 1, 2 connectors
of the four SDI signal output from this unit lights.
PsF: Not function.
FC: Lights when the frame rate converter function of the
unit is performed.
60/50/30/25/24: One of these indicators corresponding to
the field/frame frequency of the output signals lights.
The 30, 25, and 24 indicators do not function on the
HDCU3300R.
HIF Board
aSDI OUT 1, 2, 3, 4 (HD/SD serial digital interface
output 1 to 4) connectors (BNC-type)
The signal from the video camera is supplied as four HD-
SDI or SD-SDI signals.
Note
DRX
1080
720P
SD
PsF
FC
60
50
30
25
24
1Output signal format indicators
Note
1
3
2
4
SDI OUT
1SDI OUT 1, 2, 3, 4 connectors

19
Internal Switches and Internal Boards
Internal Switches and
Internal Boards
To reduce the risk of electric shock, fire or injury, do not
open the cabinet. To adjust the internal settings, refer to
qualified service personnel.
Internal Switches
The following switches are located inside the unit, behind
the front panel:
aIntercom switch (S2)
Selects the pathway of intercom signals output/input
through the INTERCOM connector.
PROD: Producer line
PRIV: Producer line and engineer line are ignored, and
communication is possible only between this unit and
the video camera connected to this unit.
ENG: Engineer line
bProgram audio mix switch (S3)
Set whether or not to mix the program audio with the
headset output.
cHeadset microphone switch 1 (S4)
Set the switch according to the type of microphone of the
headset connected to the INTERCOM connector on the
front panel of this unit:
CARBON: Carbon microphone (power supply, 20 dB
gain)
ECM: Electret condenser microphone (power supply, 40
dB gain)
DYNAMIC: Dynamic microphone (no power supply, 60
dB gain)
dHeadset microphone switch 2 (S5)
When you set headset microphone switch 1 (S4) to
DYNAMIC, also set this switch according to the type of
output of the headset microphone.
ON: Unbalanced type
OFF: Balanced type
Internal Boards
AT Board
aACCESS indicator
Shows the status of the “Memory Stick.”
b“Memory Stick” slot
Insert an upgrade “Memory Stick” to upgrade the software
version of this unit.
CAUTION
CABLE MIC
ALARM
MAIN
POWER
CAMERA
INTERCOM
SHORT OPEN
ON
OFF
PRODPRIVENGCARBONECMDYNAMIC
PGM ON
PGM OFF
O N
S5
S3S2
S4
OFF
1
1Intercom switch (S2)
3Headset microphone switch 1 (S4)
4Headset microphone switch 2 (S5)
2Program audio mix switch (S3)
Indication Meaning
Off No “Memory Stick” is inserted.
Lit in green There is a “Memory Stick” in the slot.
Lit in red Data is being read/written. If you eject the
“Memory Stick” during this operation, the
integrity of the data is not guaranteed. All the
data may be lost.
AT
REF IN
UN
LOCK
H PHASE
REFERENCE
HD
RMT
SD
ADV
DELAY
5H PHASE switch
1ACCESS indicator
2“Memory Stick” slot
4REFERENCE indicators and switch
3(network) indicator

20 Internal Switches and Internal Boards
To insert a “Memory Stick”
Insert the “Memory Stick” into the slot so that the labelled
side of the stick faces you.
When the “Memory Stick” is correctly set, the ACCESS
indicator lights in green. If the indicator stays dark, the
“Memory Stick” may be inserted incorrectly. Check the
stick and reinsert it. To eject the “Memory Stick,” press it
in.
Do not eject a “Memory Stick” when the ACCESS
indicator is lit in red (which means that data is being read
from or written to the “Memory Stick”). This may erase
data stored in the “Memory Stick.”
c(network) indicator
Lights in green when communication via the LAN
connector is being made.
dREFERENCE indicators and switch
The switch is used to select the type of sync signal to be
connected to either of the REFERENCE connectors on the
rear panel.
HD: HD tri-level reference sync signal (local setting)
RMT (remote): Signal selected on the MSU-900-series
Master Setup Unit
SD: SD reference sync signal (black burst signal) (local
setting)
When a signal is supplied to the REFERENCE connector,
the REF IN indicator lights. If the type of the input sync
signal does not match the setting on this unit, the
UNLOCK indicator will light.
eH PHASE switch
Used to adjust the H phase.
Press and hold it towards ADV to advance the phase or
towards DELAY for phase delay.
The phase is advanced or delayed only while the switch is
held pressed.
AVP Board
aCCU POWER indicator
Lights when the power voltage inside the board is normal.
bCAM LOCK (camera lock) indicator
Lights when the transaction with the video camera is
operating normally.
cCAM POWER (camera power) switch
Press downward to turn the video camera connected to this
unit on or off.
dSYSTEM indicators
/1.001 (frame frequency): Lights when the frame
frequency of the camera system is set to 1/1.001.
LINE DELAY (phase difference): Lights when the phase
difference between HD and SD outputs is set to LINE
DELAY.
Phase difference is 90H when the scan line is 1125, or
120H when the scan line is 750.
e2WIRE CANCEL controls
When using a 2-wire intercom system, adjust the controls
to minimize the side tone level on the producer line
(PROD) and engineer line (ENG).
Note
AVP
/1.001
LINE
DELAY
CCU
POWER
CAM
LOCK
CAM POWER
SYSTEM
ON/
OFF
PROD
ENG
2WIRE CANCEL
1CCU POWER indicator
2CAM LOCK indicator
52WIRE CANCEL controls
4SYSTEM indicators
3CAM POWER switch
