Sony HDVF-L750 User manual

LCD COLOR VIEWFINDER
HDVF-L750
HDVF-L770
OPERATION MANUAL [English]
1st Edition

Table of Contents /
2
Table of Contents
Precautions................................................ 3
Overview .................................................... 4
Functions of Parts and Controls.............. 5
Attaching to the Camera........................... 8
Turning on the Viewfinder...................... 10
Adjusting the Viewfinder Position ......... 10
Adjusting the Height and Tilting/
Panning...........................................10
Adjusting the Front-Back Position
(HDVF-L770 only) ........................12
Adjusting the Screen .............................. 13
Attaching Accessories............................ 14
Attaching a Hood .....................................14
Attaching a Number Plate........................15
Using the Focus Assist Function .......... 15
PEAKING PLUS Function......................15
MAGNIFICATION Function ..................17
Using the Menu........................................ 18
Basic Menu Operations............................18
List of Menu Items...................................20
Error Message ......................................... 26
Specifications .......................................... 26

Precautions 3
Precautions
Handling the screen
• The LCD panel fitted to this unit is manufactured with
high precision technology, giving a functioning pixel
ratio of at least 99.99%. Thus a very small proportion of
pixels may be “stuck”, either always off (black), always
on (red, green, or blue), or flashing. In addition, over a
long period of use, because of the physical
characteristics of the liquid crystal display, such
“stuck” pixels may appear spontaneously. These
problems are not a malfunction.
These phenomena have no effect on the camera’s
output signals.
• Do not leave the screen facing the sun as it can damage
the screen. Take care when you use the unit outdoors.
• Do not push or scratch the screen. Do not place a heavy
object on the screen. This may cause the screen to lose
uniformity.
• An afterimage may appear when a still image is
displayed continuously. Turn the viewfinder off when it
is not used for a long time.
• When using the viewfinder in low temperature, the
moving image resolution deteriorates right after the
viewfinder is turned on.
• Do not apply strong shock to the screen. This may
damage the internal structure or deform the cabinet.
Handling and maintenance of the screen
The surface of the screen is specially coated to reduce
image reflection. Make sure to observe the following
points as improper maintenance procedures may impair
the screen’s performance. In addition, the screen is
vulnerable to damage. Do not scratch or knock against it
using a hard object.
• Be sure to turn off the power of the connected
equipment before performing maintenance.
• The surface of the screen is specially coated. Do not
attach adhesive objects, such as stickers, on it.
• The surface of the screen is specially coated. Do not
touch the screen directly.
• Wipe the screen surface gently with a soft dry cloth to
remove dirt.
• Stubborn stains may be removed with a soft cloth
slightly dampened with a mild detergent solution.
• The screen may become scratched if a cloth is dusty.
• Never use strong solvents such as alcohol, benzene,
thinner, acidic or alkaline detergent, detergent with
abrasives, or chemical wipe as these may damage the
screen.
• Use a blower to remove dust from the screen surface.
On installation
• Allow adequate air circulation to prevent internal heat
build-up.
Do not place the unit on surfaces (rugs, blankets, etc.)
or near materials (curtains, draperies) that may block
the ventilation holes.
• Do not install the unit in a location near heat sources
such as radiators or air ducts, or in a place subject to
direct sunlight, excessive dust, mechanical vibration or
shock.
On dew condensation
If the unit is suddenly taken from a cold to a warm
location, or if ambient temperature suddenly rises,
moisture may form on the outer surface of the unit and/or
inside of the unit. This is known as condensation. If
condensation occurs, turn off the unit and wait until the
condensation clears before operating the unit. Operating
the unit while condensation is present may damage the
unit.
Disposal of the unit
Do not dispose of the unit with general waste.
Do not include the unit with household waste.
When you dispose of the unit, you must obey the law in
the relative area or country.

Overview
4
Overview

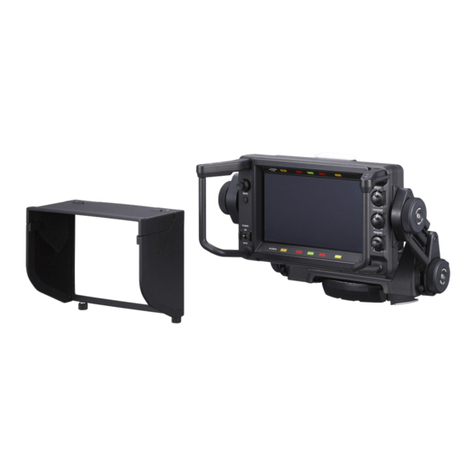

The HDVF-L750/HDVF-L770 is a 7.0-inch LCD
viewfinder.
This viewfinder has the following features.
High resolution and wide visual angle
The viewfinder uses a 7.0-inch Full-HD resolution LCD
panel for a resolution of 1920 × 1080 and a wide visual
angle.
Focus Assist function
This viewfinder comes with an original Focus Assist
function to support accurate focusing.
• Peaking function
Edge enhancement can be performed in the horizontal/
vertical direction on the entire of the screen. (Only in
the horizontal direction for the previous HDVF.)
• Peaking Plus function
Edge enhancement can be performed on the object that
is specified using a color, area selected, or both.
• Image magnification function
A portion of the image can be magnified vertically and
horizontally while displaying the image for composing
the picture.
Easy return function
You can switch between the camera image from the
supplied connecting cable and the SDI image from the
external input by operating the assignable switch.
Waveform Monitor function
The input signal waveform can be easily displayed in the
sub display.
Guide frame displaying function
The guide marker for matching the horizontal/vertical
line can be displayed.
Switching to preset adjustment settings
Brightness, contrast, peaking, and chroma levels can be
preset for selection through an assignable switch or a
menu operation.
False color function
Display signal levels using different colors. When you
use the false color function, image signals are displayed
in black and white, and colors are added based on the
signal levels.
Assignable switch
Assignable switches are provided on the front (2
switches) and on the left and right handles (2 switches
each, HDVF-L770 only) for frequently used functions.
Tally indicators
The viewfinder comes with three tally indicators (red,
green, and yellow), which light up in response to tally
signals.
Check the connected camera to identify whether the use
of the yellow tally indicator is supported.
Superior operation
• Screen positioning mechanism
HDVF-L770:
Use of a counterbalance mechanism to optimize weight
distribution of the panel and link arms allows
immediate screen tilting and lifting with a light
operational feeling.
HDVF-L750:
The lift mechanism is equipped while being light
(approx. 1.7 kg). This mechanism can perform panning,
tilting, and height adjustment.
• Large handles equipped with assignable switches
(HDVF-L770 only)
Large handles each equipped with two assignable
switches are provided for the left and right sides of the
screen. These do not hinder the operator’s view, and
they offer comfortable operation.
Supplied indoor hood and optional VFH-
790 outdoor hood
The indoor hood is supplied. The optional VFH-790
outdoor hood offers superior shading ability.

Functions of Parts and Controls 5
Functions of Parts and Controls
qh qj qlqk
8 9 qa67435210
waw;
qd
qs
qf
qg
wk
wf
ws
wh
wd
wg
wj
wl
ea
e;
HDVF-L770
qh qj qlqk
8 9 qa6743520
w;
qd
qs
qf
wk
wf
ws
wh
wd
wg
e;
es
HDVF-L750

Functions of Parts and Controls
6
aASSIGN. (assignable) L1/L2/R1/R2 switches
(HDVF-L770 only)
Can be used to store frequently used functions.
The switches ASSIGN. L1 and ASSIGN. L2 are located
on the left handle, and ASSIGN. R1 and ASSIGN. R2 are
located on the right handle.
Storing a function is performed using “ASSIGN. L1,”
“ASSIGN. L2,” “ASSIGN. R1,” or “ASSIGN. R2” in the
FUNCTION menu.
bMENU control
Turn the control to select a menu item, and then press the
control to confirm the selection. Use with the MENU
switch to set various functions.
When the menu is not displayed, pressing this control
shows the status information of the viewfinder on the
screen.
For details on operations, see “Using the Menu” on page
18.
cPEAKING PLUS indicator (blue)
Lights up when “PEAKING MODE” in the PEAKING
menu is set to “PLUS.”
dMAG (magnification) indicator (amber)
Lights up when the displayed image is magnified (when
the ASSIGN. switch of the MAGNIFICATION function
is set to “ON,” or “MAGNIFICATION” in the
MAGNIFICATION menu is set to “ON”).
eG TALLY indicator (green)
Lights up when the green tally signal is input.
fR TALLY indicator (red)
Lights up when the red tally signal is input.
gY TALLY indicator (yellow)
Lights up when the yellow tally signal is input.
hBATT (battery) indicator (red)
Lights up or flashes, to indicate the status of the battery
attached to the camera as follows.
Lit: The battery is drained.
Flashing: The voltage of the battery has dropped below
the threshold value.
To prevent camera from shutting down, change the
battery as soon as possible after this indicator begins
flashing.
The threshold battery voltage value at which this
indicator begins flashing can be set by the camera. For
details, refer to the manual for the camera.
iBRIGHT control
Adjusts the brightness of the viewfinder image.
This control does not affect the output signal of the
camera.
jCONTRAST control
Adjusts the contrast of the viewfinder image.
This control does not affect the output signal of the
camera.
kTilt-lock knob
HDVF-L770:
Turn this knob in the direction of the arrow indicated on
the knob to secure the tilting position of the viewfinder.
HDVF-L750:
Turn this knob clockwise to secure the tilting position of
the viewfinder.
lMENU switch
Displays the menu. Use with the MENU control to set
various functions.
When the menu is not displayed and this switch is pressed
and held for three seconds or more, “VR LOCK” appears.
This locks the BRIGHT, CONTRAST, and PEAKING
controls at their current settings, preventing accidental
operation. To unlock the controls, press this switch for
three seconds or more again so that “VR UNLOCK”
appears.
For details on operations, see “Using the Menu” on page
18.
mASSIGN. (assignable) 1/2 switches
Can be used to store frequently used functions.
Storing a function is performed using “ASSIGN.1” and
“ASSIGN.2” in the FUNCTION menu.
nPOWER switch
Turns off the power of the LCD panel and goes into a
power-saving mode when SAVE is selected.
oHandles (HDVF-L770 only)
Use the handles to move the viewfinder’s screen.
pSTATUS indicator (amber)
Shows the current status of the viewfinder.
Blinking in intervals of 0.5 seconds: A problem is
detected during self-diagnosis.
An error message (see page 26) may be displayed at the
same time. Turn off the power and contact your Sony
service representative.

Functions of Parts and Controls 7
q(attention) indicator (amber)
Lights up when the camera detects certain conditions. The
conditions under which the indicator lights up are
specified on the camera.
For details on how to set up and verify the conditions
under which the indicator lights up, refer to the
operation manual of the camera in use.
rMounting wedge
To attach the viewfinder to the camera, mount the
viewfinder in the V-wedge shoe attachment attached on
top of the camera.
For attachment, see “Attaching to the Camera” on page
8.
sAuxiliary indicator
Is not currently used.
tPEAKING control
Adjusts the sharpness of the viewfinder image.
Turn the control clockwise to make the edges sharper.
This control does not affect the output signal of the
camera.
uLift-lock knob (HDVF-L770 only)
Turn this knob in the direction of the arrow indicated on
the knob to fix the height of the viewfinder.
vCAM connector (26-pin rectangular type)
Connect this to the VF connector on the camera using the
supplied connecting cable (26-pin).
wINPUT switch
Switches the input signal.
CAM: Inputs signals from the CAM connector.
SDI: Inputs signals from the SDI IN connector (monitor
mode).
xCAM connector (round-type, 20-pin)
Connects to the camera’s VF connector using the
supplied connecting cable (20-pin).
When you connect the unit to peripheral device, use the
supplied cable to prevent malfunction due to radiation
noise.
Use a round-type 20-pin connector when connecting to
the CA4000.
ySDI IN connector (BNC type)
When using monitor mode, connect this to the SDI OUT
connector on the camera or external device using a BNC
cable.
For details on supported formats, see “Specifications” on
page 26.
zDC IN connector
When power cannot be supplied via CAM connector,
connect to an external power supply (DC 10.5 V to 17.0
V). In this case, contact your Sony service representative.
wj COUNTER BALANCE control (HDVF-L770 only)
Adjust the counterbalance for the screen.
Turning the control toward + increases counterbalance. If
the control movement is too tight, lift the screen then turn
the control.
wk Up-tally lamp (red)
The supplied number plate can be attached to this.
The lamp lights up when the red tally signal is input.
wl Tilt friction adjustment knob (HDVF-L770 only)
Adjusts the friction in the tilting mechanism.
Turning the knob toward + increases the friction, and
toward – decreases the friction.
e; Cable clamp
Clamps the supplied connecting cable.
ea Lift friction adjustment knob (HDVF-L770 only)
Adjusts the friction in the lift mechanism.
Turning the knob toward + increases the friction, and
toward – decreases the friction.
es Lift fixing screw (HDVF-L750 only)
Adjusts the height of the viewfinder in two levels.
CAUTION
Note

Attaching to the Camera
8
Attaching to the Camera
Attach the V-wedge shoe attachment to the camera and
attach the viewfinder to the V-wedge shoe attachment.
• When attaching the viewfinder to the camera or
removing it from the camera, be sure to lock the
viewfinder in its standard position.
• When removing the viewfinder from the camera, be
sure to secure the tripod with its tilt-lock mechanism
and hold the viewfinder firmly.
Be careful not to fall or drop the viewfinder and camera.
• When attaching the V-wedge shoe attachment, be sure
to use the supplied hexagonal screws.
• When attaching the viewfinder to the HXC-D70 or
PMW-320/350/400/500, use the shoe conversion
bracket (supplied) (see page 9). (HDVF-L750 only)
For how to change the position of the viewfinder attached
to the camera, see “Adjusting the Viewfinder Position”
on page 10.
1Reset the viewfinder to the standard position.
2HDVF-L770:
Fix the viewfinder screen in the standard position by
turning the tilt-lock knob and lift-lock knob in the
direction of the arrow indicated on each knob
(toward the lock position).
HDVF-L750:
Adjust the height of the viewfinder to the position of
the illustration below, then fix the viewfinder screen
in the standard position by turning the tilt-lock knob.
3Remove the four plastic caps from the camera.
4Attach the supplied V-wedge shoe attachment to the
camera using the supplied hexagonal wrench and
four socket head cap screws (4 ×12).
Notes
Standard position:
The screen’s height
and position are
fixed fully back, as
illustrated.
Tilt-lock knob
Lift-lock knob
2
1
2
Standard position:
The screen’s height
and position are
fixed fully back, as
illustrated.
Tilt-lock knob
2
1
Plastic caps

Attaching to the Camera 9
5Mount this viewfinder firmly in the V-wedge shoe
attachment.
There is an audible click when the viewfinder snaps
into the attachment.
6Connect the CAM connector to the camera’s VF
connector.
Clamp the connecting cable with the cable clamp as
shown in the following figure.
• Fix the connecting cable while adjusting the cable
length so that the connecting cable is not caught when
adjusting height, tilting, or panning.
• When gathering the cables together, use the supplied
spiral tube.
• When using the connecting cable (26-pin), make sure
not to tighten the two cable fixing screws too tightly.
When moving the viewfinder attached to
the camera
Reset the viewfinder screen to the standard position and
fix it in place.
To detach the viewfinder from the camera
Pull the lever and push down the button while pulling the
viewfinder toward you, as shown in the figure below.
Attaching the shoe conversion bracket
(HDVF-L750 only)
When attaching the viewfinder to the HXC-D70 or
PMW-320/350/400/500, use the shoe conversion bracket
(supplied).
1Remove the cover on the handle of the camera, then
attach the shoe conversion bracket (supplied) to the
camera by using the screws (3×10 screws (4),
supplied).
2Attach the V-wedge shoe attachment to the shoe
conversion bracket by using the hexagonal wrench
and socket head cap screws (4×12 screws (4)).
Notes
HDVF-L770
Connecting cable
Cable clamp
To the camera’s
VF connector
HDVF-L770
21
Lever
Button
HDVF-L770

Turning on the Viewfinder / Adjusting the Viewfinder Position
10
Turning on the
Viewfinder
When the camera is turned on and the POWER switch of
the viewfinder is set to ON, power is supplied to the
viewfinder.
The image will be displayed several seconds after
supplying power to the viewfinder.
Adjusting the Viewfinder
Position
Adjusting the Height and Tilting/
Panning
You can adjust the viewfinder height and tilt or pan the
viewfinder.
HDVF-L770
1Turn the tilt-lock knob and lift-lock knob in the
direction of the arrow shown below to unlock.
2Turn the tilt friction adjustment knob and lift friction
adjustment knob in the direction of the arrow shown
below to adjust the friction.
Turn the COUNTER BALANCE control to adjust
the counterbalance for the screen, if necessary.
Lift-lock knob
Tilt-lock knob
Tilt friction adjustment
knoba)
Lift friction adjustment
knoba)
a) Turning the knob toward + increases the friction.
b) Turning the knob toward + increases the counterbalance.
COUNTER
BALANCE
controlb)

Adjusting the Viewfinder Position 11
3Holding the handles, move the viewfinder to the
desired height and position.
• The maximum adjustment ranges above are allowed
when the viewfinder is positioned near the camera
operator. To adjust the front-back position of the
mounting wedge or plates, see “Adjusting the Front-
Back Position (HDVF-L770 only)” on page 12.
• Depending on the shape of the connected camera,
panning of the viewfinder may hinder use of the
camera’s handle. If the position of the camera’s handle
is fixed, adjust the position of the mounting wedge and/
or plates. (See page 12).
4Turn the tilt-lock knob and lift-lock knob in the
direction of the arrow indicated on each knob
(toward the lock position) to secure the position of
the viewfinder.
HDVF-L750
1Adjust the height of the viewfinder by loosening the
lift fixing screw, then fix it by fastening.
The height of the viewfinder can be adjusted in 2
levels.
• Loosen the lift fixing screw while holding the
viewfinder securely with your hand.
• Fasten the lift fixing screws on both sides tightly after
adjusting.
2Turn the tilt-lock knob in the direction of the arrow
shown below to unlock.
Notes
10 cm
(4 inches)
Height adjustment
Maximum adjustment range: 10 cm (4 inches)
Tilting adjustment
Panning adjustment
Maximum adjustment range: 90° upward/downward Notes
Lift fixing
screw
Tilt-lock knob

Adjusting the Viewfinder Position
12
3Adjust the viewfinder angle.
Depending on the shape of the connected camera,
panning of the viewfinder may hinder use of the camera’s
handle. If the position of the camera’s handle is fixed,
adjust the height of the viewfinder.
4Turn the tilt-lock knob clockwise to secure the
position of the viewfinder.
Adjusting the Front-Back Position
(HDVF-L770 only)
You can adjust the front-back position of the viewfinder
by sliding or rotating the mounting position of the
mounting wedge and upper and lower plates at the bottom
of the viewfinder.
1Holding the viewfinder firmly, remove the seven
screws from the mounting wedge and the lower
plate.
Note
Tilting adjustment
Panning adjustment
Maximum adjustment range
For lift up: 110° upward, 60° downward
For lift down: 60° upward, 110° downward
Bottom
Mounting wedge
Lower plate
Upper plate
Rotates to right and
left.

Adjusting the Screen 13
2Slide or rotate the mounting wedge, lower plate, and/
or upper plate as required, then tighten the screws. Adjusting the Screen
Before operating, make sure that “PRESET” in the
PRESET menu is set to “OFF.”
The BRIGHT, CONTRAST, and PEAKING controls do
not operate when “PRESET” is set to “ON.”
For details on menu operations, see “Using the Menu”
on page 18.
1Turn the BRIGHT control to adjust the screen
brightness.
To increase the brightness: Turn in a clockwise
direction.
2Turn the CONTRAST control to adjust the screen
contrast.
To increase the contrast: Turn in a clockwise
direction.
3Turn the PEAKING control to adjust the peaking.
To sharpen the edges in the image: Turn in a
clockwise direction.
To prevent accidental operation of the controls
When the menu is not displayed, press and hold the
MENU switch for three seconds or more so that “VR
LOCK” appears. This locks the BRIGHT, CONTRAST,
and PEAKING controls at their current settings,
preventing accidental operation. To unlock the controls,
press and hold the MENU switch for three seconds or
more again so that “VR UNLOCK” appears.
The lock is released whenever the power is turned on.
When the mounting wedge is slid forward:
The viewfinder moves 15 mm (19/32 inches) toward
the camera operator from the factory default
position.
When the lower plate is slid backward:
The viewfinder moves 20 mm (13/16 inches) toward
the camera lens from the factory default position.
When the upper plate is rotated 180°:
The viewfinder moves 64 mm (2 5/8 inches) toward
the camera operator from the factory default
position.
Note
HDVF-L770

Attaching Accessories
14
Attaching Accessories
Attaching a Hood
You can attach the optional VFH-790 outdoor hood in the
same way as the supplied indoor hood.
This section describes the procedure of attaching the
indoor hood.
1To attach the hood, hook the hood to the groove the
viewfinder.
2Tighten the screw to fix the viewfinder.
Indoor hood (supplied)
HDVF-L770
The angle of the hood can be changed up to 45° upward.
HDVF-L750
Outdoor hood (optional)
When the outdoor hood is too tight to move, or too loose
to fix at a desired position, adjust the coin screws on both
sides of the hood. Turn the screws clockwise to tighten,
and counterclockwise to loosen.
Groove
HDVF-L770
Screw
HDVF-L770
Coin screw (on both sides)
HDVF-L770

Using the Focus Assist Function 15
Attaching a Number Plate
Insert the tabs on the sides of the number plate into each
slit in the up-tally lamp.
Using the Focus Assist
Function
For details on menu operations, see “Using the Menu”
on page 18.
PEAKING PLUS Function
This function can be used to sharpen the edges of an
image that is specified using the color, area selected, or
both. You can also enhance the edges of the entire image.
This function has no effect on the camera’s video output
signals.
The PEAKING PLUS function is invalid when
connecting the connecting cable (26-pin).
To sharpen edges by specifying the color
1Press the ASSIGN. switch that is assigned the
PEAKING PLUS function to switch to the
PEAKING PLUS mode.
The PEAKING PLUS indicator lights up.
You can also set to this mode using “PEAKING
MODE” from the PEAKING menu (see page 21).
2Select “COLOR” under “COLOR/AREA SEL” of
the PEAKING menu.
3Press and hold the ASSIGN. switch that is assigned
the PEAKING PLUS function for one second or
more (the detection area marker appears in the center
of the screen), align the color to be corrected in the
detection area marker, and then release the switch.
The color that is to be corrected will be detected.
: Effective edge enhancement area
4Adjust the effective edge enhancement area of the
color using the following menus in the PEAKING
menu.
Up-tally lamp
Number plate
(supplied)
HDVF-L770
Note
Detection
area
marker

Using the Focus Assist Function
16
• HUE PHASE: Hue center position
• HUE WIDTH: Hue range
• SAT WIDTH: Saturation range
– direction:
Narrows the effective range
+ direction:
Widens the effective range
5Adjust the amount of correction with the PEAKING
control.
Only the edges of the object that coincides with the
color detected in step 3will be sharpened.
Turn the control clockwise to make the edges
sharper.
To sharpen edges by specifying the
display area
1Press the ASSIGN. switch that is assigned the
PEAKING PLUS function to switch to the
PEAKING PLUS mode.
The PEAKING PLUS indicator lights up.
You can also set to this mode using “PEAKING
MODE” from the PEAKING menu (see page 21).
2Select “AREA” under “COLOR/AREA SEL” of the
PEAKING menu.
3Select an area under “POSITION” of the PEAKING
menu.
: Effective edge enhancement area
If the “POSITION” setting is changed, the “MAG
POSITION” setting in the MAGNIFICATION menu
will be changed too.
4Adjust the amount of correction with the PEAKING
control.
Only the edges of the object within the area selected
in step 3will be sharpened.
Turn the control clockwise to make the edges
sharper.
To specify both color and area
1Press the ASSIGN. switch that is assigned the
PEAKING PLUS function to switch to the
PEAKING PLUS mode.
The PEAKING PLUS indicator lights up.
You can also set to this mode using “PEAKING
MODE” from the PEAKING menu (see page 21).
2Select “BOTH” under “COLOR/AREA SEL” of the
PEAKING menu.
3Select an area under “POSITION” of the PEAKING
menu.
If the “POSITION” setting is changed, the “MAG
POSITION” setting in the MAGNIFICATION menu
will be changed too.
4Press and hold the ASSIGN. switch that is assigned
the PEAKING PLUS function for one second or
more (the detection area marker appears in the center
of the screen), align the color to be corrected in the
detection area marker, and then release the switch.
The color that is to be corrected will be detected.
: Effective edge enhancement area
5Adjust the effective edge enhancement area of the
color using the following menus in the PEAKING
menu.
• HUE PHASE: Hue center position
• HUE WIDTH: Hue range
• SAT WIDTH: Saturation range
CENTER UPPER LOWERRIGHT LEFT
CENTER UPPER LOWERRIGHT LEFT

Using the Focus Assist Function 17
6Adjust the amount of correction with the PEAKING
control.
The edges of the object that coincides with the color
detected in step 4are sharpened within the area
selected in step 3.
Turn the control clockwise to make the edges
sharper.
To enhance the edges of the entire image
1Press the ASSIGN. switch that is assigned the
PEAKING PLUS function to switch to the STD
(standard) mode.
The PEAKING PLUS indicator is turned off.
You can also set to this mode using “PEAKING
MODE” from the PEAKING menu (see page 21).
2Adjust the amount of correction with the PEAKING
control.
Turn the control clockwise to make the edges
sharper.
MAGNIFICATION Function
This function enables you to display both images for
picture composition and for focusing at the same time.
1Press the ASSIGN. switch that is assigned the
MAGNIFICATION function.
The image is magnified.
You can also set to this mode from the
MAGNIFICATION menu (see page 22).
2Press and hold the ASSIGN. switch that is assigned
the MAGNIFICATION function.
The magnified area changes in the following
sequence.
You can also select an area under “MAG
POSITION” of the MAGNIFICATION menu (see
page 22).
If the “MAG POSITION” setting is changed, the
“POSITION” setting in the PEAKING menu will be
changed too.
3Select one of the display modes (MODE1 to
MODE3) under “MODE SEL” of the
MAGNIFICATION menu.
MODE1: Standard magnified display
MODE2: Displays the original image at the bottom
right corner of the magnified image
MODE3: Displays the magnified image at the center
of the original image
To return to normal display
The two manners of returning to the normal display,
under “AUTO RELEASE” settings in the
MAGNIFICATION menu, are as follows.
“AUTO”: Returns to the normal display automatically in
a specified time after magnifying the image using the
ASSIGN. switch.
“MANUAL”: Press the ASSIGN. switch again to return
to the normal display.
CENTER UPPER LOWERRIGHT LEFT

Using the Menu
18
Using the Menu
Many of the viewfinder’s functions can be set by a menu
operation.
Basic Menu Operations
1Enter the menu.
Press the MENU switch.
A menu page appears in the viewfinder display.
Example
The viewfinder menu can be displayed at the same
time a picture from the camera is being displayed.
The camera picture or menu darkens so that it
appears dimly behind the viewfinder menu.
2Select a menu page.
While the ? mark appears to the left of the page
number (page select mode), turn the MENU control.
The menu changes to another page.
When the desired menu page appears, press the
MENU control.
The cmark appears to the left of a menu item on the
selected menu page (item select mode).
• To select another menu page, press the MENU
switch to return to the page select mode.
• If the ? mark appears to the left of the setting (value
setting mode), press the MENU switch to change
to item select mode. Press the MENU switch again
to change to page select mode.
3Select menu items.
With the cmark positioned to the left of a menu item
on the selected menu page (item select mode), turn
the MENU control to move the cmark to the desired
menu item.
To move the cmark downward, turn the control
clockwise. To move the cmark upward, turn the
control counterclockwise.
Position the cmark to the left of the desired menu
item, and then press the MENU control.
A ? mark appears to the left of the setting and the
settings screen is activated (value setting mode).
To select another menu item, press the MENU
switch to return to item select mode.
4Change the value of a setting.
With the ? mark positioned to the left of the setting
(value setting mode), turn the MENU control to
change the value.
If the setting is a numerical value, turn the MENU
control clockwise to increase the value, and
counterclockwise to decrease the value.
Turning the control quickly changes the value
rapidly, and turning it slowly allows you to make
fine adjustments.
5Enter the setting.
Press the MENU control.
MENU
V
?
ASS I GN L
KN EE
MON CHROMEO
:
:
WFM
EEE PAK
+
.
.1
ASS I GN L 2
ASS I GN .
.1
ASS I GN 2 :
.
ASS I GN R1
:
:
:
:
:
:
:
.
ASS I GN R2
OMNO
MAG
G
PEA I NG PL US SWKED
DIU
OM 1
CHR MAO0
FOF
FO
RT
F
01FUNCT ION
F
M
ON
D
D
YP
II
MDI
T
N
LL :
:
:
:
AU YPTLLA
Y/TLLA
DINY/TLLA
DINY/TLLA
U
0?
5
ON
5
2
MENU
VF
? mark
c
M
ON
D
D
YP
II
MDI
T
N
LL :
:
:
:
AU YPTLLA
Y/TLLA
DINY/TLLA
DINY/TLLA
U
0
5
ON
5
2
MENU
VF
cmark
M
ON
D
D
YP
II
MDI
T
N
LL :
:
:
:
AU YPTLLA
Y/TLLA
DINY/TLLA
DINY/TLLA
U
0
5
ON
5
2
MENU
VF
?
Value setting mode

Using the Menu 19
The setting is entered and the menu returns to item
select mode.
If you press the MENU switch before pressing the
MENU control, the setting returns to the value that
was previously set and then the menu returns to item
select mode.
6Set other menu items.
Repeat steps 2to 5to set other menu items.
7End menu operations.
Press the MENU switch repeatedly until the menu
page disappears from the display.
To restore a setting to its factory default
value
Position the cmark to the left of the desired menu item,
or while the ? mark appears to the left of the menu item to
be restored, press the MENU control for two seconds or
more.

Using the Menu
20
List of Menu Items
• Some settings cannot be selected unless the previous
menu item is set to “ON.”
• “– – –” appears to the left of settings that cannot be
selected.
Notes
Page Menu Item Settings
(default in [ ])
Function
01 FUNCTION ASSIGN. 1 OFF/[MONO]/
MAG/WFM/
PEAK+/RET/
GUIDE/ZEBRA/
DISP/KNEE/
PRESET/UPTLY
For assigning a function to the ASSIGN. 1 switch.
Detailed settings of the individual features can be specified
on the respective menu pages.
OFF: No function assigned.
MONO: Toggles the black-and-white display between ON
and OFF.
MAG: Toggles the magnification function between ON
and OFF (Press and hold for one second or more to
select the area to magnify).
WFM: Toggles WFM between ON and OFF.
PEAK+: Toggles the peaking mode between STD and
PLUS (Press and hold for one second or more to
execute COLOR DETECT).
RET: Displays the signal that is input to SDI IN while
pressing the button (works only when the INPUT
switch is set to CAM).
GUIDE: Toggles GUIDE FRAME between ON and OFF.
ZEBRA: Toggles ZEBRA/FALSE COLOR between ON
and OFF.
DISP: Toggles the display of the marker or character
information between ON and OFF.
KNEE: Toggles the KNEE correction circuit between ON
and OFF.
PRESET: Toggles PRESET between ON and OFF.
UPTLY: Toggles UP TALLY between ON and OFF.
ASSIGN. 2 OFF/MONO/
[MAG]/WFM/
PEAK+/RET/
GUIDE/ZEBRA/
DISP/KNEE/
PRESET/UPTLY
For assigning a function to the ASSIGN. 2 switch.
The assignable functions are the same as those for
ASSIGN. 1.
ASSIGN. L1 OFF/MONO/
MAG/[WFM]/
PEAK+/RET/
GUIDE/ZEBRA/
DISP/KNEE/
PRESET/UPTLY
For assigning a function to the ASSIGN. L1 switch. (HDVF-
L770 only)
The assignable functions are the same as those for
ASSIGN. 1.
ASSIGN. L2 OFF/MONO/
MAG/WFM/
[PEAK+]/RET/
GUIDE/ZEBRA/
DISP/KNEE/
PRESET/UPTLY
For assigning a function to the ASSIGN. L2 switch. (HDVF-
L770 only)
The assignable functions are the same as those for
ASSIGN. 1.
ASSIGN. R1 OFF/MONO/
MAG/WFM/
PEAK+/[RET]/
GUIDE/ZEBRA/
DISP/KNEE/
PRESET/UPTLY
For assigning a function to the ASSIGN. R1 switch. (HDVF-
L770 only)
The assignable functions are the same as those for
ASSIGN. 1.
ASSIGN. R2 OFF/MONO/
MAG/WFM/
PEAK+/RET/
[GUIDE]/ZEBRA/
DISP/KNEE/
PRESET/UPTLY
For assigning a function to the ASSIGN. R2 switch. (HDVF-
L770 only)
The assignable functions are the same as those for
ASSIGN. 1.
