Sony EMCS Co.
SAL35F14G (1.4/35G) (35mm F1.4G)
Ver 1.1 2007.02
LENS FOR DSLR CAMERA
2007B0800-1
© 2007.02
Published by Kohda TEC9-852-108-11
US Model
Canadian Model
AEP Model
Chinese Model
SAL35F14G
(1.4/35G) (35mm F1.4G)

— 2 —
SAL35F14G (1.4/35G) (35mm F1.4G)
SPECIFICATIONS
• This lens is equipped with a distance encoder. The distance encoder allows more accurate measurement (ADI) by using a flash for ADI.
• Depending on the lens mechanism, the focal length may change with any change of the shooting distance. The focal length assumes the lens is focused
at infinity.
Equivalent 35mm-format focal length *1(mm)
52.5
*1The value for equivalent 35mm-format focal length is based on Digital Single Lens Reflex Cameras equipped with an APS-C sized image sensor.
Lens groups elements
8-10
Angle of view 1*2
63°
Angle of view 2*2
44°
*2The value of angle of view 1 is based on 35mm-format cameras, and that of angle of view 2 is based on Digital Single Lens Reflex Cameras
equipped with an APS-C sized image sensor.
Minimum focus (m (feet)) *3
0.3 (1.0)
*3Minimum focus is the shortest distance from the image sensor to the subject.
Maximum magnification (××
××
×)
0.2
Minimum f-stop
f/22
Filter diameter (mm)
55
Dimensions (maximum diameter ××
××
×height) (mm (in.))
Approx. 69 ×76 (2 3/4 ×3)
Mass (g (oz.))
Approx. 510 (18)
Included items
Lens (1), Front lens cap (1), Rear lens cap (1), Lens hood (1), Carrying case (1), Set of printed documentation
Designs and specifications are subject to change without notice.

— 3 —
SAL35F14G (1.4/35G) (35mm F1.4G)
TABLE OF CONTENTS
Section Title Page
1. SERVICE NOTE
1-1. Chemicals ······································································· 1-1
1-2. Exterior Parts ·································································· 1-1
1-3. Unleaded Solder ····························································· 1-1
1-4. Safety Check-out ···························································· 1-2
1-5. Troubleshooting ····························································· 1-3
2. DISASSEMBLY
2-1. Disassembly ··································································· 2-2
3. REPAIR PARTS LIST
3-1. Exploded Views ······························································ 3-1
3-2. Supplied Accessories ······················································ 3-8
4. ADJUSTMENTS
4-1. Preparations ···································································· 4-1
4-2. Aperture Diameter Check/Adjustment ························· 4-13
4-3. Projective Resolving Power Check ······························ 4-18
4-4. Flange Back (f’F) Check/Adjustment ·························· 4-21
4-5. Focus-shift Check/Adjustment (Aperture (Amount of
Spherical Aberration)) ·················································· 4-24
4-6. Lens ROM Check ························································· 4-25
4-7. Focus Brush Position Check/Adjustment·····················4-27
4-8. Focus Hold Button Check (Focus Hold Button) ·········· 4-34
4-9. Write dSB ····································································· 4-36

1-1
SAL35F14G (1.4/35G) (35mm F1.4G)
1. SERVICE NOTE
1-1. Chemicals
Some chemicals used for servicing are highly volatile.
Their evaporation caused by improper management affects your health and environment, and wastes resources.
Manage the chemicals carefully as follows.
•Store chemicals sealed in a specific place to prevent from exposure to high temperature or direct sunlight.
•Avoid dividing chemicals into excessive numbers of small containers to reduce natural evaporation.
•Keep containers sealed to avoid natural evaporation when chemicals are not in use.
•Avoid using chemicals as much as possible. When using chemicals, divide only required amount to a small plate from the container and
use up it.
1-2. Exterior Parts
Be careful to the following points for exterior parts used in this unit.
•Use a piece of cleaning paper or cleaning cloth for cleaning exterior parts. Avoid using chemicals.
Even if you have to use chemicals to clean heavy dirt, don’t use paint thinner, ketone, nor alcohol.
•Insert the specific screws vertically to the part when installing a exterior part.
Be careful not to tighten screws too much.
1-3. Unleaded Solder
This unit uses unleaded solder.
Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)
: LEAD FREE MARK
Be careful to the following points to solder or unsolder.
•Set the soldering iron tip temperature to 350 °C approximately.
If cannot control temperature, solder/unsolder at high temperature for a short time.
Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!
Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Be sure to control soldering iron tips used for unleaded solder and those for leaded solder so they are managed separately. Mixing
unleaded solder and leaded solder will cause detachment phenomenon.

1-2
SAL35F14G (1.4/35G) (35mm F1.4G)
1-4. SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched”or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their
replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C during repairing.
•Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

1-3
SAL35F14G (1.4/35G) (35mm F1.4G)
1-5. TROUBLESHOOTING
1-5-1. Aperture Trouble
NG
Check operation of
the preset ring.
Replace the defective part.
Check operation of the
preset ring, and replace
the defective part.
Perform the aperture
diameter adjustment.
(See page 4-16.)
Perform the aperture
diameter check.
(See page 4-13.)
NG
Check operation
of the diaphragm
control block.
OK OK
OK
Function NG F No. NG
Aperture trouble
Replace the defective part.
NG
NGNG
END
OK
Perform the aperture
diameter check.
(See page 4-13.)

1-4
SAL35F14G (1.4/35G) (35mm F1.4G)
1-5-2. Focus Trouble
Check the operation
again.
Replace the defective part
or apply the grease.
OK
NG
OK
OK
OK
OK
Function NG Position NG
Focus trouble
Replace the defective part
or apply the grease.
Check the coupler.
Check the fixed holding
tube and distance
control tube.
NGNG
NG
NG
NG
END
OK
Check the installation of
the main flexible block.
Reinstall the main
flexible block.
Check pattern
of the main flexible block.
Clean the pattern of the
main flexible block.
Replace the
main flexible block.
Check the foecusing
operation again.

2-1
SAL35F14G (1.4/35G) (35mm F1.4G)
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
2. DISASSEMBLY
NOTE FOR REPAIR
•Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
•When remove a connector, dont’pull at wire of connector. It is possible that a wire is snapped.
•When installing a connector, dont’press down at wire of connector.
It is possible that a wire is snapped.
•Do not apply excessive load to the gilded flexible board.
UNIVERSAL WRENCH
In case of the following notches or holes are located in the lens block, etc during disassembling/
assembling the lens, Use the universal wrench.
How to Use
Attach the chip-A or chip-B to the universal wrench.
For the notches: chip-A
For the holes: chip-B
Match the universal wrench to the holes or notches of the lens block, etc.
Notches Holes
Universal wrench
J-6082-609-A
Chip-A for
universal wrench:
J-6082-609-1
Chip-B for
universal wrench:
J-6082-609-2
Notches
Chip-A
Chip-A
Chip-B
Chip-B
Chip
Chip
Match the universal wrench
to the width of holes or notches.
Universal wrench
Holes

2-2
SAL35F14G (1.4/35G) (35mm F1.4G)
2-1. DISASSEMBLY

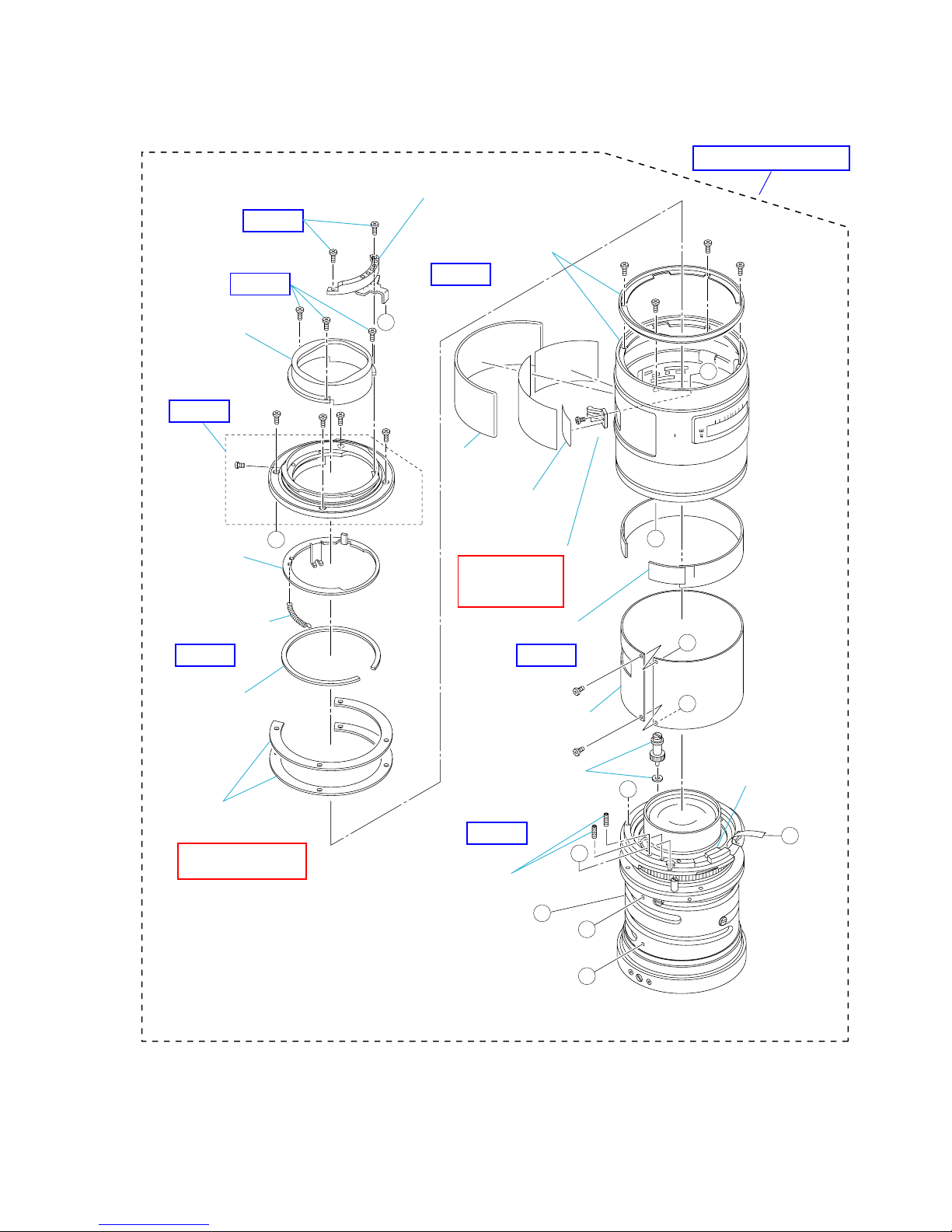

2-1-1. ORNAMENTAL RING LABEL AND MIRROR BARREL TUBE BLOCK
1.4/35G
A
A
EXPLODED VIEW
51 Group Lens Block
HELP01
3G1
HELP02
HELP03
1Ornamental Ring Label
2Ornamental Ring
4Mirror Barrel
Tube Block

2-3
SAL35F14G (1.4/35G) (35mm F1.4G)

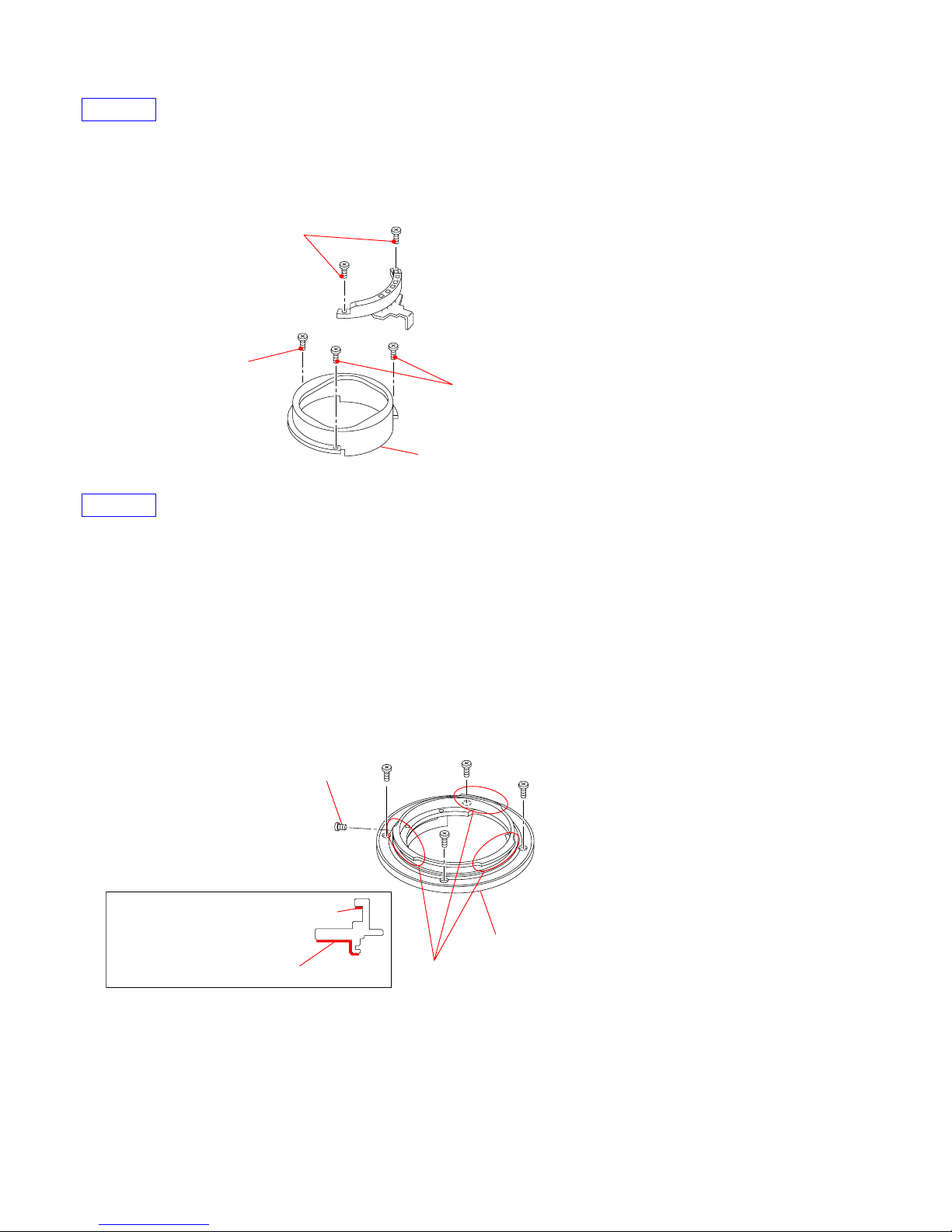

2-1-2. LENS MOUNT RIVETING BLOCK AND LIGHT INTER CEPTION TUBE
SONY
C
E
D
D
A
F
A
B
B
C
F
E
EXPLODED VIEW
HELP05
HELP06
HELP04
HELP04 HELP07
HELP08
HELP09
1Light Interception
Tube
Preset Ring
Preset Ring
Retainer
Main Spring
2Connection Box
3Lens Mount
Riveting Block
4Back Adjustment
Washer
!- Orange Ring and
G Ornamental
Ring Block
7Beam
Leather
!= Distance Scale
Plate
![ Cam Tube
Reinforcement
6Coupler and
Coupler Height
Adjustment
Washer
5Ground SP
!/ Connector of
DV-FH Flexible
9Focus Brush
8Brush Hole
Cover
FLANGE BACK (f F)
ADJUSTMENT
FOCUS BRUSH
POSITION
ADJUSTMENT

2-4
SAL35F14G (1.4/35G) (35mm F1.4G)

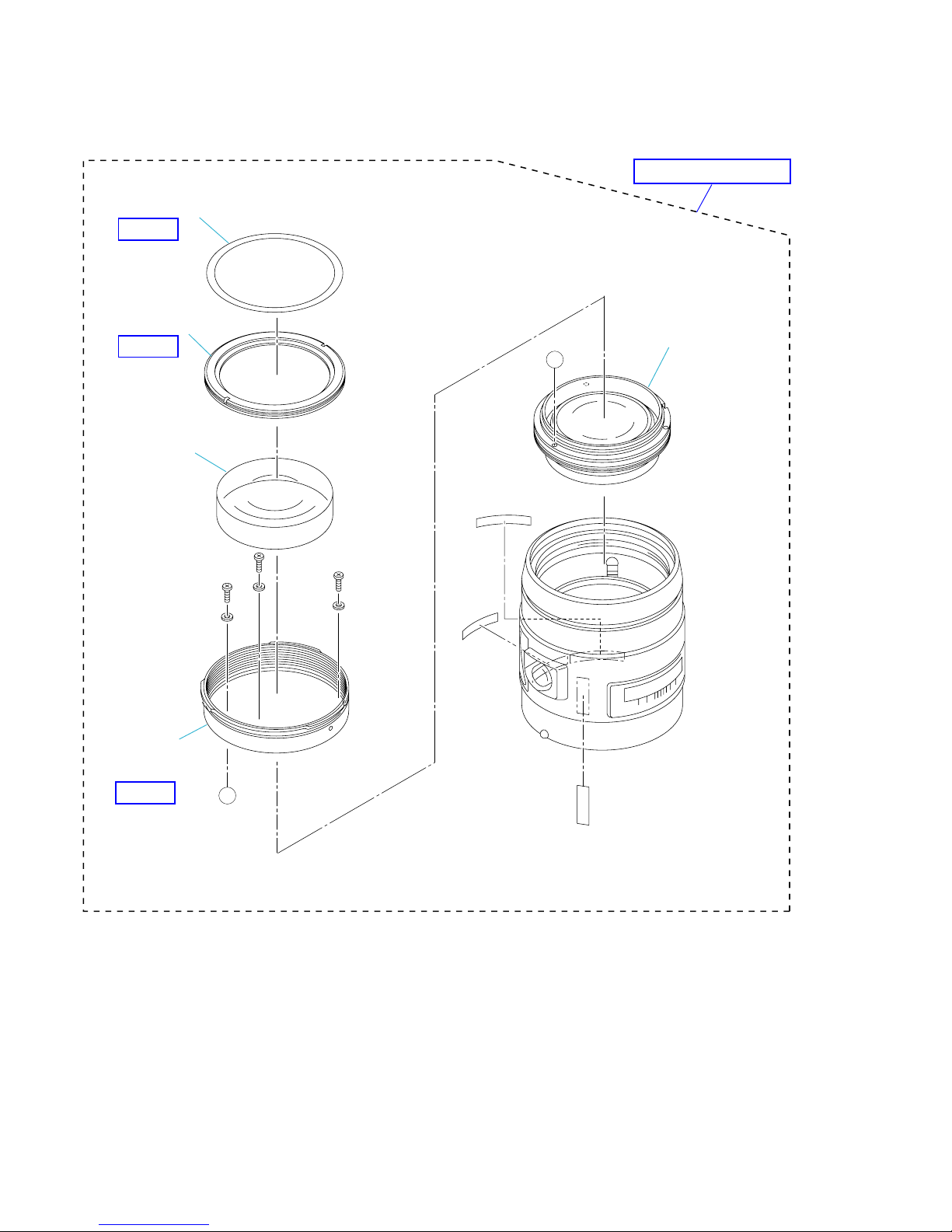

2-1-3. OUTER TUBE AND JOINT TUBE
EXPLODED VIEW
2Flexible Base Plate
53 Group
Lens Block
1Outer Tube
3Joint Tube
HELP12
Guide Pin Guide Roller
Guide Roller
Guide Roller
Guide Roller
Guide Roller
Guide Roller
HELP13
Guide Pin
HELP13
Guide Pin
HELP13
Guide Pin
HELP13
Guide Pin
HELP13
Main Flexible Block
Stopper Pin
HELP11
HELP10 HELP10
HELP14
Guide Pin
HELP13
6Iris Control
Plate Block
42 Group Lens Block
Iris Feather
Unit
Iris Retainer
Tube
Iris Retainer
Tube SP

2-5
SAL35F14G (1.4/35G) (35mm F1.4G)

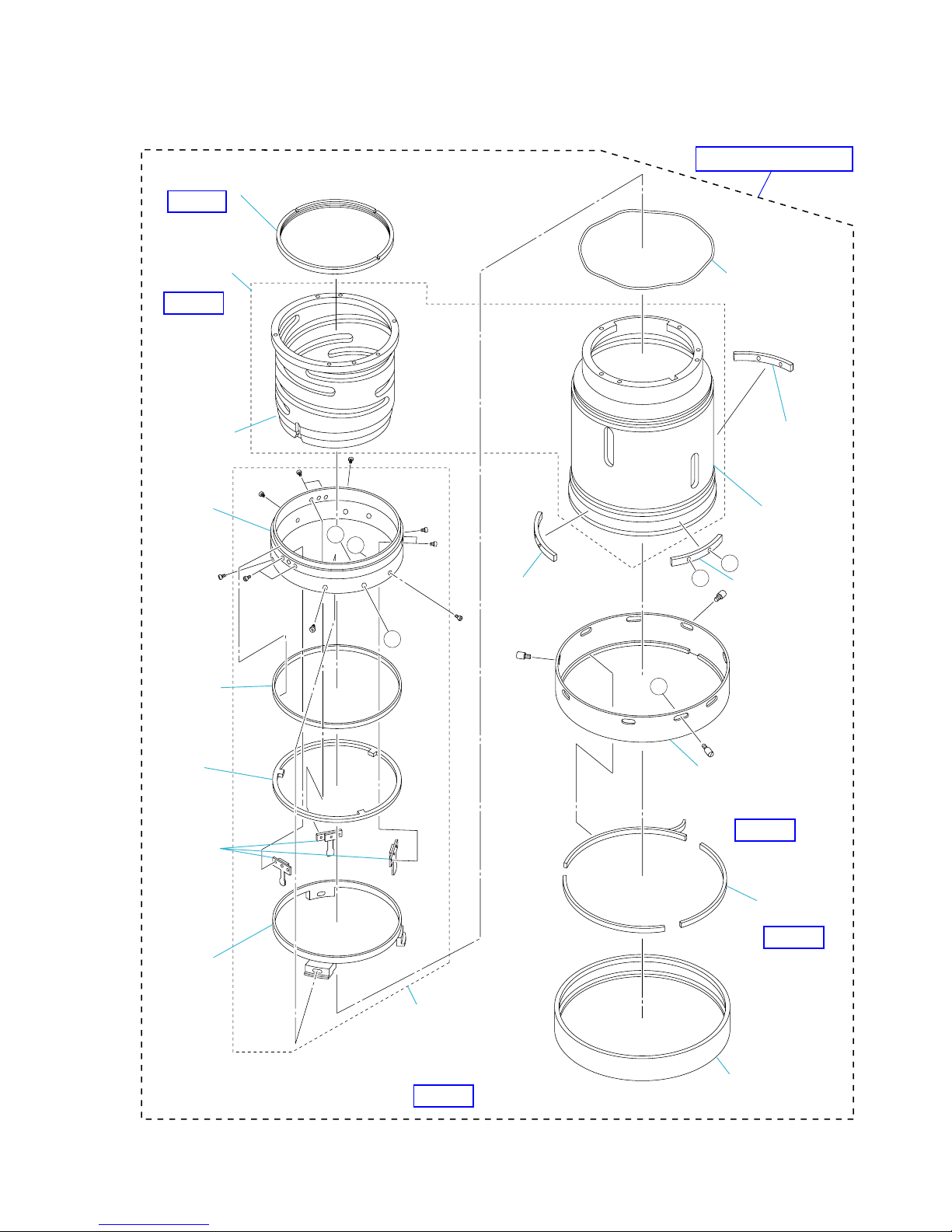

2-1-4. FIXED TUBE BLOCK AND DISTANCE CONTROL TUBE
EXPLODED VIEW
HELP15
HELP15
HELP16
HELP18
HELP17
2Cam Tube Retainer
3Fixed Tube
Block 6Friction (SP)
7Torque Ring
Punching
Stopper
7Torque Ring
Punching
Stopper
7Torque Ring
Punching
Stopper
Fixed Tube
Cam Tube
Torque
Ring A
5Torque Ring A,
Float Ring,
Scissors Lever Block,
Torque Ring B
Torque
Ring B
Friction
Cloth A
Float Ring
Scissors
Lever Block
4Distance Control
Tube and Control
Tube Guide Pin
1Distance Tube
Rubber Ring
Friction Cloth B
CA
B
CA
B

2-6
SAL35F14G (1.4/35G) (35mm F1.4G)
2-1-5. G ORNAMENTAL RING BLOCK AND FOCUS HOLD BUTTON BASE
ft
m
SONY
HELP21
HELP20
Mount Guide Mark
G Ornamental Ring Block
Distance Scale Window
Dust Protection Tape
FHB ADHESION TAPE
Focus Hold Button
Focus Hold Button Base
Click Plate
EXPLODED VIEW
HELP19
DV-FH Flexible
FOCUS HOLD
BUTTON CHECK

2-7
SAL35F14G (1.4/35G) (35mm F1.4G)

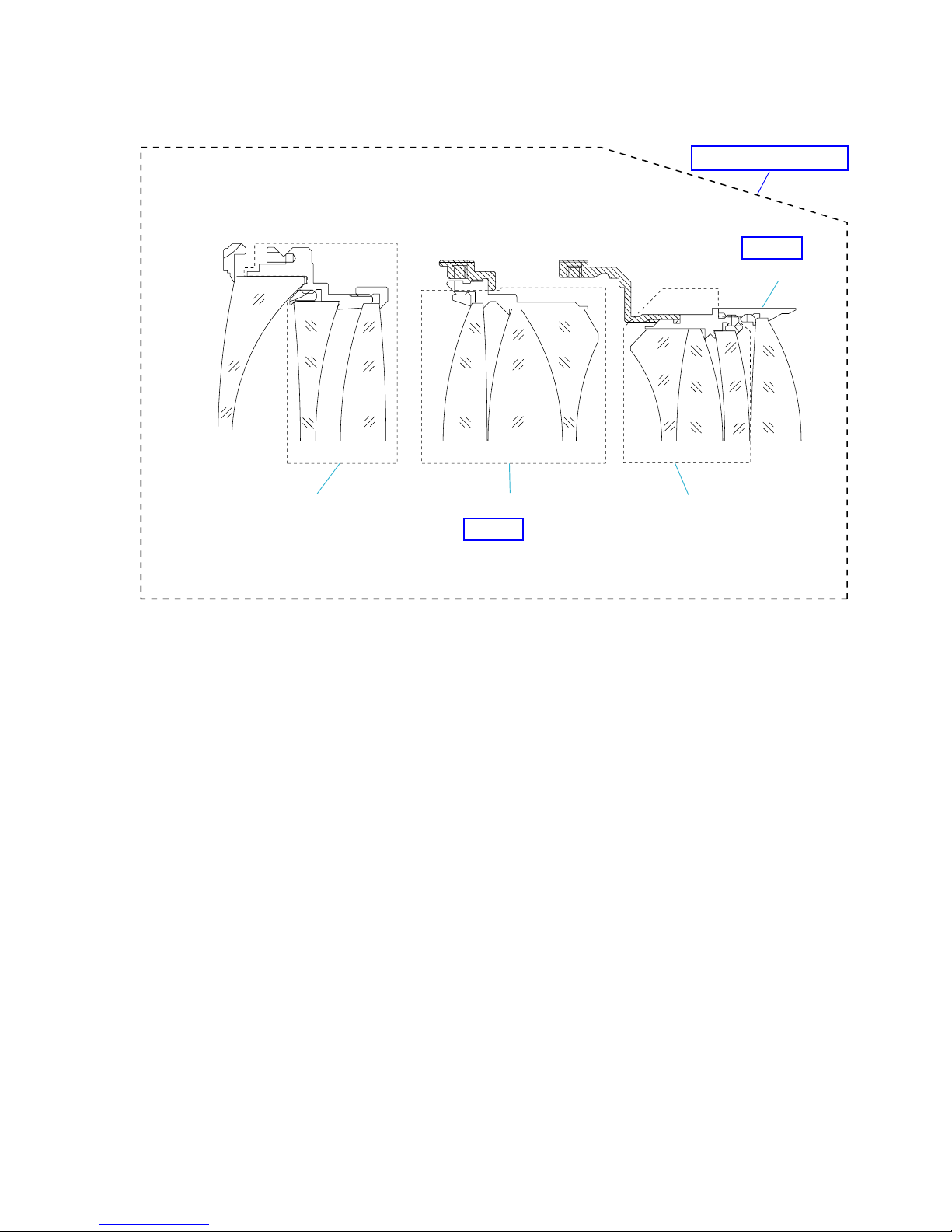

2-1-6. 1 GROUP, 2 GROUP AND 3 GROUP LENS BLOCK
G1 G2 G3
G4 G5
G7 G8 G9 G10
G6
EXPLODED VIEW
1 Group Lens Block 2 Group Lens Block
HELP22
3 Group Lens Block
G10 Retainer
HELP23

HELP
SAL35F14G (1.4/35G) (35mm F1.4G)
HELP
Note for assembling and grease applying positions are shown.
HELP01
1. Align of ”/” of “1.4/35” of the ornamental ring label with range index, and stick the ornamental ring label onto the ornamental ring.
2. Remove the masking tape of the ornamental ring label.
Note: Tolerance: ±2.5 =±1 mm
Ornamental Ring Label
Ornamental Ring
Range Index
Masking Tape

HELP
SAL35F14G (1.4/35G) (35mm F1.4G)
HELP02
Adhesive bond (B-10): J-6082-612-A
After applying the adhesive bond (B-10) to the indicated portion, tighten the ornamental ring with the special lens fixture.
Apply the adhesive bond (B-10) in width 10mm.
Ornamental Ring
G1
Mirror Barrel Tube

HELP
SAL35F14G (1.4/35G) (35mm F1.4G)
HELP03
Adhesive bond (B-40): J-6082-614-A
1. Align the ring positioning pin of the mirror barrel tube block to U groove of the fixed tube, attach them.
2. Apply the adhesive bond (B-40) to 3 screws shown in figure and tighten the screws.
Mirror Barrel Tube Block Ring Positioning Pin
1 Group Lens Block
U Groove
Apply the adhesive bond (B-40)
Apply the adhesive bond (B-40)

HELP
SAL35F14G (1.4/35G) (35mm F1.4G)
HELP04
Adhesive bond (B-40): J-6082-614-A
Apply the adhesive bond (B-40) to 5 screws shown in figure and tighten the screws.
HELP05
Adhesive bond (LOCTITE 460) (Note)
Note: Use adhesive bond (LOCTITE 460) or an equivalent article.
Do not use what becomes white after drying like quick-drying glue.
Anti-diffusion agent (A-20): J-6082-611-A
Grease (G-85): J-6082-626-A
1. Apply the anti-diffusion agent (A-20) to the indicated portions of lens mount.
2. Apply the grease (G-85) to 3 locations of indicated portion3 (3 locations) of lens mount.
3. Apply the adhesive bond (LOCTITE 460) to the stopper screw and attach it to the lens mount.
Apply the adhesive bond (B-40)
Apply the adhesive bond (B-40)
Apply the adhesive bond (B-40)
Light Interception Tube
Lens Mount
Apply the grease (G-85) to 3 locations of
indicated portion.
Apply the anti-diffusion agent (A-20)
to all circumferences of indicated Portion.
Apply the adhesive bond (LOCTITE 460)
Apply the grease (G-85) (rear side)

HELP
SAL35F14G (1.4/35G) (35mm F1.4G)
HELP06
Oil (O-20): J-6082-610-A
Apply small amount of oil (O-20) to the instruction portion of the main spring.
HELP07
Adhesive bond (B-40): J-6082-614-A
Anti-diffusion agent (A-20): J-6082-611-A
1. Apply the anti-diffusion agent (A-20) to the indicated portion of G ornamental ring.
2. Apply the adhesive bond (B-40) to 4 screws shown in figure and tighten the screws.
3. Lay out the DV-FH flexible properly.
Aplly small amount(O-20)(On contact area)
Connector
Layout DV-FH Flexible
DV-FH Flexible
G Ornamental Ring Block
Apply the adhesive bond (B-40)
Apply the adhesive bond (B-40)
Apply the anti-diffusion agent (A-20) to
all circumferences of indicated portions.
Apply the anti-diffusion agent (A-20) (inside) to
all circumferences of indicated portions.
Apply the anti-diffusion agent (A-20)
Mount Guide
Mark
G Ornamental Ring Block

HELP
SAL35F14G (1.4/35G) (35mm F1.4G)
HELP08
Affix the distance scale plate with distance scale plate set tape, aligning with the punch mark on the cam tube set.
HELP09
Grease (G-85): J-6082-626-A
Apply grease (G-85) to the gear of coupler and the slide portion.
HELP10
Adhesive bond (B-40): J-6082-614-A
Apply bond (B-40) to 4 screws shown in figure and tighten the screws.
Distance Scale Plate
Fixed Tube Block
Punch Mark
Distance Scale Plate
Set Tape Align with the punch mark on the
fixed Tube block.
Apply grease (G-85).
(slide portion) Apply grease (G-85).
(gear)
Outer Tube
Apply the adhesive bond (B-40) Apply the adhesive bond (B-40)
