Sony XPERIA tipo ST21A Quick reference guide

Xperia™ Tapioca
XperiaTM tipo
ST21a, ST21i
White paper
June 2012

White paper | Xperia™ tipo
2 June 2012
This document is published by Sony Mobile
Communications AB, without any warranty*.
Improvements and changes to this text
necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Mobile Communications
AB at any time and without notice. Such changes
will, however, be incorporated into new editions
of this document. Printed versions are to be
regarded as temporary reference copies only.
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall Sony or
its licensors be liable for incidental or
consequential damages of any nature, including
but not limited to lost profits or commercial loss,
arising out of the use of the information in this
document.
This White paper is published by:
Sony Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonymobile.com
© Sony Mobile Communications AB, 2009-2012.
All rights reserved. You are hereby granted a
license to download and/or print a copy of this
document.
Any rights not expressly granted herein are
reserved.
First released version (June 2012)
Publication number: 1266-2416.1
Purpose of this document
Sony product White papers are intended to give an overview of a product and provide details in relevant
areas of technology.
Document history
Sony Mobile Developer World
For the latest technical documentation and development tools, go to http://developer.sonymobile.com/
wp.
Version
June 2012 First released version Version 1

White paper | Xperia™ tipo
1 June 2012
Table of contents
Product overview ........................................................................................................2
Xperia™ tipo ..........................................................................................................2
Signature features .................................................................................................3
Categorised feature list ..........................................................................................6
Technologies in detail .................................................................................................8
Device-to-device communications (local) .............................................................8
Bluetooth wireless technology ............................................................................8
Wi-Fi® .................................................................................................................9
Messaging ...........................................................................................................10
MMS (Multimedia Messaging Service)..............................................................10
Email .................................................................................................................10
Positioning – location based services .................................................................11
Provisioning (OMA CP) ........................................................................................11
Multimedia (audio, image and video) ...................................................................12
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................13
Web browser .......................................................................................................14
Trademarks and acknowledgements ..................................................................15

White paper | Xperia™ tipo
2 June 2012
Product overview
Xperia™ tipo – Smart has never been this simple

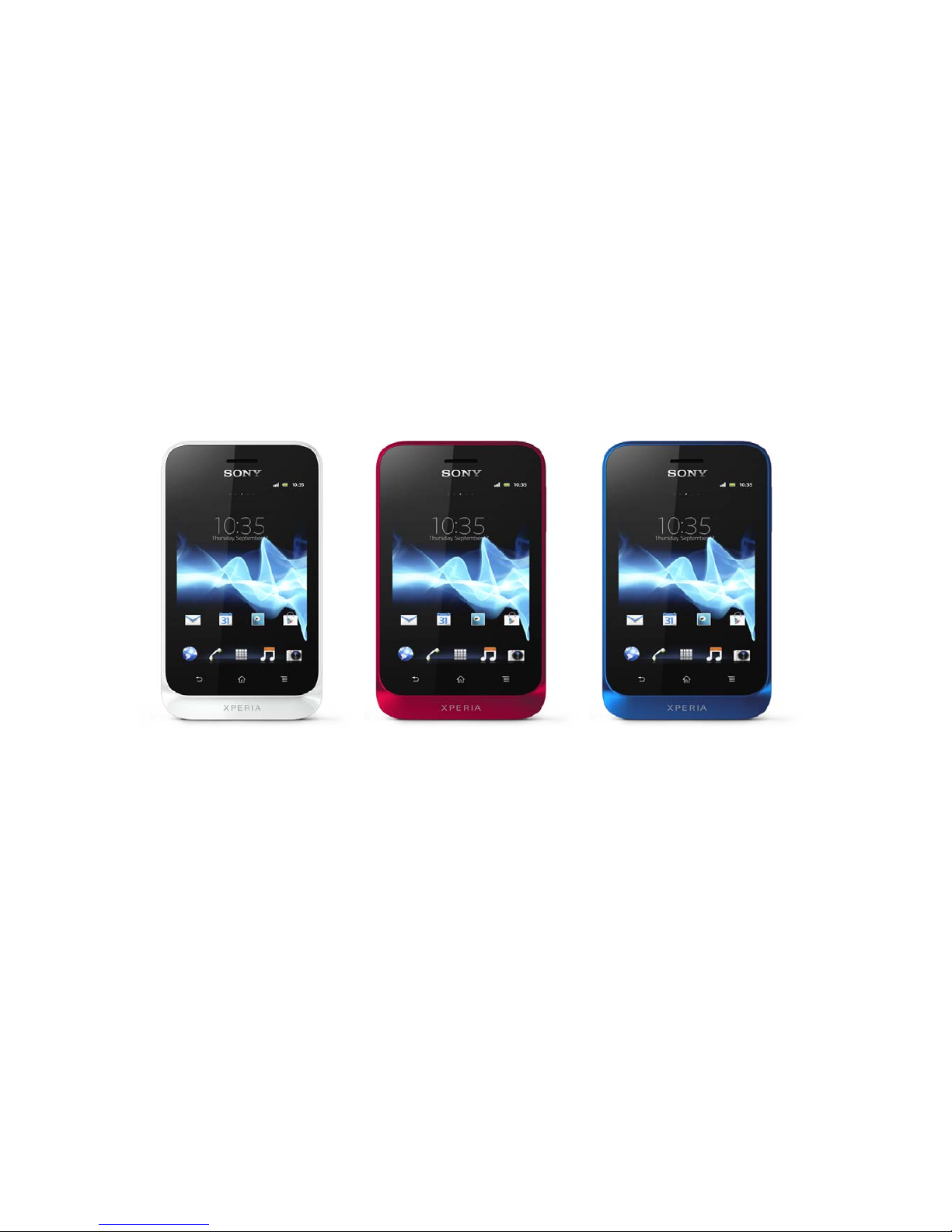

The new Xperia™ tipo
Buy the phone. Switch on. Relax. Xperia™ tipo makes it easy to set up your Google™ and Facebook™
accounts and much more. It’s easy to use too. The latest apps and music are just a click away from your
home screen. Worried about data costs? Don’t be. Simply switch to the other SIM card, or set the limits
you want to use data to surf, chat or game online. Fancy an all-nighter? The long lasting battery gives you
24 hours of service when you’re on-the go.
made to make life easy
Open the box. Switch on the phone. Enjoy the entertainment. Xperia™ tipo is so easy to use. Simply
follow the guide to set up your accounts, such as Google and Facebook, and transfer contacts from your
phone. Running on the latest Android platform, it makes web browsing quicker and easier too. Enjoy.
made to control your costs
Enjoy shock horror on-screen. Not on your phone bill. With two SIM cards and the data usage app, which
lets you set limits on how much data you transfer, you never need to spend more than you want to.
made to keep in touch – for longer
Chat on the phone. Or have an all-night gossip using Facebook™ inside Xperia™. For longer. With the
powerful battery you can charge your phone and then use it for 24 hours without having to charge it again.
Long battery life means you’ll never miss that important call – or funny status update again.
made to match your moods
Xperia™ tipo is a smartphone. It gives you instant access to the web and online content, and a whole host
of apps, like email, Google Maps™ and Google Search™. Make your phone your own with hundreds of
thousands of apps to choose from. All apps appear on the home screen, so they’re easy to get to.

White paper | Xperia™ tipo
3 June 2012
Music Unlimited™*. We’ve got what you want to hear.
Millions and millions of songs on demand from Music Unlimited™. Listen offline and with no annoying
ads. Enjoy dozens of preset channels and easily sync with your own music collection. Get the most from
your music with Music Unlimited™.
• Enjoy millions and millions of songs
•Noads
• Offline playback
• Preset channels
*Music Unlimited™ is a subscription service, please refer to Terms Of Service for details of fees. Music
Unlimited™ is not available in every market.

White paper | Xperia™ tipo
4 June 2012
Signature features
The Sony Xperia™ tipo comes with a range of features as standard. Below is a summary of the key
signature features.
Xperia™ Timescape™
Communication made easy
The Timescape™ application manages all your communication with one person in one place. You can
effortlessly browse by category your Facebook™ and Twitter™ communications, as well as view your
photos. Now everything is all together and in chronological order, so you don't have to open different
applications to see what's going on.
Xperia™ Infinite button
Everything you want – from everywhere
Tap the infinite button in the Timescape™ application and smart filter each category of communication by
person. For example, when viewing a text message from a friend in Timescape™, tap the infinite button to
view a list of all chat messages with that friend.
Xperia™ Local connectivity
More control over your media
Using Xperia™ Local connectivity, you can exercise more control over how media files get transferred and
stored. For example, you can select MTP mode to transfer files if you want to limit the risk of data corrup-
tion or select MSC mode if you want to have more control over the data storage.
Xperia™ Home screen application
The place you call Home
Customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items.
Where’s best for you? Email top right? Music player bottom left? You decide. With four extensions to your
Home screen, you’ve got plenty of space to put things where you want. Just remember to flick left or right
to find them.

White paper | Xperia™ tipo
5 June 2012
Facts – dimensions, weight, performance and net-
works
Operating system Google™ Android™ 4.0 (Ice Cream Sandwich)
Processor 800 MHz Qualcomm Snapdragon™ MSM7225AA
Size 103x 57x13 mm
Weight 99.4 grams
Available colours Classic Black
Classic White
Deep Red
Navy Blue
Main screen
Colours 262,000 colour TFT
Resolution 320x480 pixels
Size (diagonal) 3.2 inches
Scratch resistant Yes -Shatter proof sheet on PMMA
Input mechanisms
Text input On-screen QWERTY keyboard
Touch screen Capacitive
Touch gesture Yes - multi-touch, up to 2 fingers supported
Memory**
Internal phone storage 2.9 GB (up to 2.5 GB user-accessible memory)
RAM 512 MB
Expansion slot microSD™ card, up to 32 GB
Camera
Camera resolution 3.2 MP
Digital zoom 4x
Video recording Yes - VGA
Sensors
Accelerometer Yes
Proximity sensor Yes
Networks
ST21i UMTS HSPA 900 (Band VIII), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900

White paper | Xperia™ tipo
6 June 2012
*Values are according to GSM Association Battery Life Measurement Technique as performed in controlled
laboratory conditions. Actual time may vary.
Note: Battery performance may vary depending on network conditions and configurations, and phone
usage.
Note: Performance metrics measured under laboratory conditions.
ST21a UMTS HSPA 850 (Band V), 1900 (Band II), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
Data transfer speeds
GSM GPRS Up to 86 kbps (download and upload)
GSM EDGE Up to 237 kbps (download and upload)
UMTS HSDPA cat 8(download) Up to 7.2 Mbps
Talk t ime (GSM) Up to 5 hours*
Standby time (GSM) Up to 470 hours*
Tal k t i m e (UMTS) Up to 4 hours 30 min.*
Standby time (UMTS) Up to 545 hours*
Music listening time Up to 30 hours*
Video playback time Up to 3 hours*
Battery 1500 mAh Typical
1460 mAh Minimum

White paper | Xperia™ tipo
7 June 2012
Categorised feature list
Camera
3.2 megapixel camera
4x digital zoom
Geotagging
Self-timer
Send to web
Touch capture
Video recording
Music
Album art
Bluetooth™ stereo (A2DP)
PlayNow™ service*
Music Player
TrackID™ music recognition
application*
xLoud™ Experience
Internet
Bookmarks
Google Play™
Google™ search*
Google Voice™ Search*
Google Maps™ for mobile with
Street View and Latitude™
NeoReader™ barcode scanner
Pan & zoom
Web browser (WebKit™)
Communication
Call list
Conference calls
Facebook™ inside Xperia™
Google Talk™ application
Speakerphone
Messaging
Conversations
Email
Google mail™
Handwriting recognition
Instant messaging
Picture messaging (MMS)
Predictive text input
Text messaging (SMS)
Design
Auto rotate
on-screen 12 key keyboard
on-screen QWERTY keyboard
Picture wallpaper
Touch screen
Wallpaper animation

White paper | Xperia™ tipo
8 June 2012
*This service is not available in all markets.
Entertainment
3D games
Media browser
Motion gaming
Radio (FM radio with RDS)
Sony Entertainment Network*
Video streaming
YouTube™ *
Organiser
Alarm clock
Airplane mode
Calculator
Calendar
Contacts
E-Manual
Infinite button
Setup Wizard
Connectivity
3.5 mm audio jack (CTIA)
aGPS*
Bluetooth™ wireless technology
Media Transfer Protocol support
Micro USB support
Native USB tethering
Synchronisation via Facebook™
Synchronisation via Google™
Synchronisation via Exchange
ActiveSync®
Synchronisation via SyncML™
USB High speed 2.0 support
USB mass storage
Wi-Fi®
Wi-Fi® Hotspot functionality

White paper | Xperia™ tipo
9 June 2012
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Developer World or your
Sony contact person where applicable.
Device-to-device communications (local)
Bluetooth wireless technology
More information:
http://developer.sonymobile.com/wp
www.bluetooth.com
Bluetooth™ profiles supported Advanced Audio Distribution Profile v1.2
Audio/Video Remote Control Profile v1.0
Handsfree Profile v1.5
Headset Profile v1.1
Object Push Profile v1.1
Phonebook Access Profile v1.0
Core version and supported
core features
Advanced Audio 2.1+EDR
Connectable devices Products which support at least one of the profiles above.

White paper | Xperia™ tipo
10 June 2012
Wi-Fi®
Supported standards IEEE 802.11b/g/n and Wi-Fi®.
Connectable devices Wi-Fi® access points
Frequency band 2.4 GHz
Data transfer rate Up to 72 Mbit/s
Security WEP 64 bit
WEP 128 bit
TKIP
CCMP (AES)
Open Authentication
Shared Authentication
EAP-TLS
EAP-TTLS/MSCHAPv2
EAP-SIM
PEAPv0/EAP-MSCHAPv2
PEAPv1/EAP-GTC
WPA Personal and WPA2 Personal
WPA Enterprise and WPA2 Enterprise
Encryption WEP, TKIP and AES
Power save WMM-UAPSD
QoS, WMM

White paper | Xperia™ tipo
11 June 2012
Messaging
MMS (Multimedia Messaging Service)
According to OMA Multimedia Messaging Service v1.0 + SMIL.
Email
More information:
http://developer.sonymobile.com/wp
www.openmobilealliance.org
Bearer type (IP) GPRS, EGPRS, UMTS, Wi-Fi
Character sets BIG5 Traditional Chinese
GB2312 Simplified Chinese
ISO-2022-JP Japanese
ISO-8859-1
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO 8859-11
KOI8-R Cyrillic
Shift_JIS Japanese
USASCII
UTF-16
UTF-8
Windows® 874
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1258 Vietnamese
Protocols POP3 and IMAP4
Push email Microsoft® Exchange ActiveSync® (EAS)
Secure email SSL/TLS, both port methods (POPS/IMAPS) and START-
TLS
HTML mail Yes (read only)

White paper | Xperia™ tipo
12 June 2012
Positioning – location based services
Supported standards:
OMA Secure User Plane Location (SUPL) v1.0
3GPP™ Control Plane location (incl. Emergency location), only support E911.
Qualcomm® GPSOneXtra
Provisioning (OMA CP)
OMA CP version 1.1

White paper | Xperia™ tipo
13 June 2012
Multimedia (audio, image and video)
Audio Playback Decoder format Supported in file format
Audio decoding MPEG-1/2/2.5,
audio layer 3
MP3 (.mp3), 3GPP (.3gp)
MP4 (.mp4, .m4a)
AAC, AAC+, eAAC+ 3GPP (.3gp), MP4 (.mp4)
AMR-NB, AMR-WB 3GPP (.3gp), MP4 (.mp4)
General MIDI (GM) SMF (.mid)
Linear PCM 16bit WAV (.wav)
OTA OTA (.ota)
Ogg vorbis Ogg vorbis (.ogg)
Audio Recording Encoder format Supported in file format
AMR-NB, AMR-WB 3GPP (.3gp), MP4 (.mp4),
AMR(.amr)
AMR-NB, AMR-WB, AAC-LC
stereo
Sample rate: 48 kHz
Bit rate: 128 kbps
3GPP (.3gp), MP4 (.mp4)
Image Playback Decoder format Supported in file format
1, 4, 8, 16, 24 and 32 bpp and
RLE encoded formats
BMP (.bmp)
Single and multi frame, bitmap
mask support (GIF87a format
and GIF89a format)
GIF (.gif)
Joint Photographic Experts
Group
JPEG (.jpg)
Portable Network Graphics Bit-
map mask support
PNG (.png)
Wireless Bitmap WBMP (.wbmp)
Image Capture Encoder format Supported in file format
Joint Photographic Experts
Group
JPEG (.jpg)
Video Playback Decoder format Supported in file format
MPEG-4 Visual Simple Profile 3GPP (.3gp); MP4 (.mp4)
H.264 3GPP (.3gp); MP4 (.mp4)
H.263 Profile 0 3GPP (.3gp)

White paper | Xperia™ tipo
14 June 2012
Video Recording Encoder format Supported in file format
- Video H.263 Profile 0, H.264
Baseline Profile
- Audio: AAC-LC stereo, sample
rate 48 kHz bit rate 128 kbps,
AMR-NB
3GPP (.3gp), MP4 (.mp4)
Audio/Video Streaming Streaming transport RTSP according to 3GPP™
HTTP streaming
DRM DRM (Digital Rights Manage-
ment) — features the rights and
copy protection of downloaded
content.
OMA DRM 1.0

White paper | Xperia™ tipo
15 June 2012
Synchronisation (OMA DS, EAS, Google Sync™)
OMA Data Synchronisation protocol versions 1.1.2 and 1.2.
OMA Data Formats: vCard 2.1, vCalendar 1.0.
Microsoft® Exchange ActiveSync® protocol version 2.5
Microsoft® Exchange ActiveSync® protocol version 12.0
Microsoft® Exchange ActiveSync® protocol version 12.1
Microsoft® Exchange ActiveSync® protocol version 14.0
Microsoft® Exchange ActiveSync® protocol version 14.1
Google Sync™
Related information:
http://developer.sonymobile.com/wp

White paper | Xperia™ tipo
16 June 2012
Web browser
Related information:
http://developer.sonymobile.com/wp
Browser version Android 4.0 Browser (Based on WebKit™)
Navigation/rendering Pan & Zoom
Landscape/portrait rendering
Full page PC rendering
Search Internet Search
Browser compliancy HTML version 4.0
HTML version 5.0
XHTML Basic version 1.0
XHTML 1.1
CSS 2.0
CSS 2.1
CSS 3.0
V8 JavaScript Engine/ECMA-script 262 5rd edition
DOM 2.0
DOM 3.0
Supported Device API Geo-location API
Protocol compliancy HTTP/1.1
TLS 1.0 and SSL 3.0
Gzip
OMA Download 1.0

White paper | Xperia™ tipo
17 June 2012
Trademarks and acknowledgements
The PlayNow, TrackID, Xperia and Timescape are trademarks or registered trademarks of Sony Ericsson
Mobile Communications AB. Sony, "make.believe" and xLOUD are trademarks or registered trademarks
of Sony Corporation. Ericsson is a trademark of Telefonaktiebolaget LM Ericsson.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
Sony Ericsson is under licence. TrackID is powered by Gracenote Mobile MusicID. Gracenote and
Gracenote Mobile MusicID are trademarks or registered trademarks of Gracenote, Inc.
Google, Google Calendar, Google Gallery 3D, Google Latitude, Google Maps, Google Places, Google
Talk, Google Search, Google Sync, Google Mail, Picasa, YouTube, Google Voice, Android and Android
Market are trademarks or registered trademarks of Google, Inc. Facebook is a trademark or registered
trademark of Facebook, Inc. Twitter is a trademark or a registered trademark of Twitter, Inc.
Wi-Fi is a trademark or registered trademark of the Wi-Fi Alliance. DLNA is a trademark or registered
trademark of the Digital Living Network Alliance. MicroSD is a trademark or registered trademark of
SanDisk Corporation. XHTML is a registered trademark of the W3C.
Microsoft, Windows, Exchange ActiveSync are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Adobe Flash is a trademark or registered trademark of Adobe Systems Incorporated in the United States
and/or other countries. 3GPP™ is a trademark of ETSI.
Qualcom is a trademark or registered trademark of Qualcomm, Inc.
All other trademarks and copyrights are the property of their respective owners.
