Sony S1 Reference guide
Help Guide
Airpeak S1
ARS-S1
This manual explains the basic usage of ARS-S1.
Operating an aircraft in the United States is subject to federal law and regulations. State and local ordinances may also
apply to certain operations. When operating an aircraft, it is the remote pilot/operator's responsibility to always comply
with applicable laws, regulations, and ordinances.
Before first use
About this product
Introduction
Supported mobile devices
Supported cameras and lenses
Package contents
Guide to parts and controls
Parts and controls (Aircraft)
Detection range of the infrared range sensors and stereo cameras
Parts and controls (Remote controller)
Parts and controls (Gimbal (sold separately))
1
Using the dedicated apps
Using the “Airpeak Base” App
Features of the “Airpeak Base” App
Using the “Airpeak Flight” App
Installing the “Airpeak Flight” App
Signing in to the “Airpeak Flight” App
Features of the “Airpeak Flight” App
Getting ready
Preparing the batteries
Charging the batteries
If you cannot charge the aircraft battery pack
Loading battery packs in the aircraft
Preparing the aircraft
Connecting cables to the aircraft
Attaching the damping plate to the aircraft
Attaching landing gear
Attaching the propellers
Preparing the gimbal and a camera
Mounting the gimbal on the aircraft
Configuring settings on the camera
Mounting a camera on the gimbal
Connecting cables between the camera and gimbal
Adjusting the balance of the gimbal
Adjusting the gimbal parameters
Preparing the remote controller
Attaching a mobile device to the remote controller
Cautions when using the remote controller
Linking the aircraft and remote controller
Configuring various settings before flights
2
Setting the flight mode
Selecting the wireless channel
Controlling the aircraft with two remote controllers (dual operation mode)
Selecting the operating mode of the control sticks
Adjusting the sensitivity of the control sticks
Changing the functions assigned to the custom buttons, lever, or dial on the remote controller
Configuring the gimbal settings
Checking settings before flights
Flight precautions
Operator’s responsibilities
Flight environment
Airspace flight-restricted functions
Preflight checks
Precautions during flights
Making a flight plan
Creating projects and missions
Setting the flight area for a project
Setting geofences
Setting a flight path (mission)
Viewing flight logs
Creating a new mission using a flight log
Turning the power on/off
Turning the aircraft on/off
Turning the remote controller on/off
Controlling the aircraft
Relationship between the remote controller and the flight screen
Parts for flight operations
Switching views on the flight screen
Controlling the aircraft with the remote controller (manual flight)
3
5-027-737-11(1) Copyright 2021 Sony Group Corporation
Flying the aircraft along a set path (automated flight)
Flying the aircraft again along a previous flight path (automated flight)
Returning the aircraft to the Home Point (RTH (Return to Home))
Landing gear operation
Executing an emergency motor stop
Shooting
Relationship between the remote controller and the flight screen
Parts for shooting operations
Maintaining the devices
Checking the status of the devices
Calibrating the sensors of the aircraft
Calibrating the remote controller
Updating the system software
Before disposing of this product
Precautions
General Information
Troubleshooting
Trademarks and copyrights
4
Help Guide
Airpeak S1
ARS-S1
Introduction
This product is an aircraft system that realizes dynamic and stable remote photography and videography. With a full-
frame mirrorless Sony Alpha camera (sold separately; hereafter, “camera”) equipped, you can capture high-quality
images in aerial photography and videography.
Sony is not liable or responsible for any experience, including but not limited to videography, photography, content,
income, fees, and/or other compensation associated with or related to the use and/or misuse of the aircraft, its parts,
and/or accessories including hardware and software.
Highlights
Agile flying performance and control that unleashes the potential of cameras
Capture impressive, dynamic images from an agile aircraft with intuitive control.
Expands possibilities in aerial photography
Stable flight even in strong wind or where GNSS (Global Navigation Satellite System) signals are weak or unavailable.
Multi-directional sensors assist in obstacle detection and braking.
Streamlines workflows with automation
Create sophisticated flight plans with the web app “Airpeak Base.” Besides automated flights based on flight plans, you
can use past flight logs to automatically fly the same routes you have flown.
System configuration
This product consists of the following:
Aircraft
A camera can be mounted using a 3-axis gimbal (sold separately; hereafter, “gimbal”)
Remote controller/dedicated mobile app “Airpeak Flight”
Install the “Airpeak Flight” App to your mobile device (tablet or smartphone) and attach your mobile device to the remote
controller. After completing the process of linking the remote controller and aircraft, you can operate the aircraft, gimbal,
and camera (the latter two both sold separately). On the “Airpeak Flight” App screen, you can check the flight distance
and battery level, perform various operations, and change settings.
This data and information is synchronized between the “Airpeak Base” and “Airpeak Flight” Apps while your mobile
device is connected to the cloud.
Dedicated web app “Airpeak Base”
“Airpeak Base” is a dedicated cloud-based web application that can be used on a computer or iPad to manage devices,
plan flights, and view flight logs.
Web app “Airpeak Base”-ready computer or iPad:
5
Manage the devices, plan flights, and view flight logs.
Cloud
Mobile app “Airpeak Flight”-ready remote controller:
Control the aircraft and a gimbal/camera (both sold separately).
Aircraft:
Equip with a camera (sold separately) on the aircraft using a gimbal (sold separately).
Note
“Airpeak Flight,” “Airpeak Base,” “Airpeak Plus,” and any other Airpeak or third-party network services, content, operating
systems, or software are subject to terms and conditions and may be changed, interrupted, or discontinued at any time. Fees,
registration, and credit card information may also be required.
Screen images and illustrations in this Help Guide (web manual) may vary from the actual product.
Design and specifications are subject to change without notice.
5-027-737-11(1) Copyright 2021 Sony Group Corporation
6
AC adapter for remote controller (1)/power cord (1)1.
Remote controller (1)
2.
Battery pack (2)
3.
Aircraft (1)
4.
Cables
Power cable (aircraft — gimbal) (1)
Control cable (aircraft — gimbal) (1)
5.
10
USB Type-C® cable (aircraft — gimbal) (1)
Micro USB cable (gimbal — camera) (1)
(a) Micro USB
USB Type-C® cable (gimbal — camera) (1)
(b) USB Type-C®
AC adapter for battery charger (1)/power cord (1)
6.
Battery charger (1)
7.
Calibration board (1)
8.
Landing gear (2)
9.
Propeller (CW: clockwise rotation) (2) (*1)
10.
11

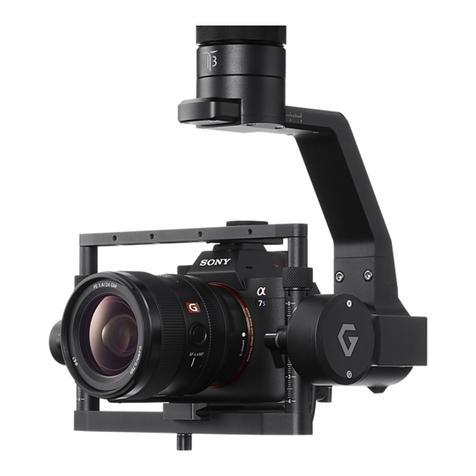

Gimbal set (sold separately)
Gimbal (1)
Damping plate (1) (*1)
Hot shoe adapter (1)
Top camera screw (1)
Camera plate (1)
Micro USB cable (gimbal — computer) (1)
Hot shoe extension (1)
Hex screw (10) (including two spare screws)
Hex wrench (1)
5-027-737-11(1) Copyright 2021 Sony Group Corporation
(c) Hub: silver
Propeller (CCW: counterclockwise rotation) (2) (*1)
(d) Hub: black
11.
Startup Guide (1)/Warranty (1)12.
Not capable of being folded
*1
Quick-release is preinstalled.
*1
12
Upward infrared range sensor
Detects objects above and measures the distance to them.
1.
Propellers2.
Motors3.
Flight status LEDs (Front LEDs)
Light up in red while the aircraft is turned on to indicate the front direction.
4.
Antennas (built-in)5.
Frame arms6.
FPV gimbal camera
Images from this camera are displayed in the FPV view in the “Airpeak Flight” App.
7.
Forward-facing stereo camera
Detects objects in front and measures the distance to them.
8.
Camera (sold separately)9.
Landing gear10.
Gimbal (Main gimbal) (sold separately)11.
Side-facing stereo cameras
Detect objects on the left and right and measure the distance to them.
12.
GNSS (Global Navigation Satellite System) antenna (built-in)13.
(Power) button
Press and hold for 2 seconds to turn the aircraft on or off.
14.
14
LINK button
Press to link the aircraft and the remote controller.
15.
BATTERY RELEASE levers16.
Power status LED
Indicates the status of the aircraft.
17.
LED color LED indication Status of the aircraft
Green Lit up Turned on
Cyan Lit up Receiving system software data.
Green, red, and yellow Blinking alternately Updating system software.
Battery level LEDs
Indicate the remaining battery level of the battery packs loaded in the aircraft.
18.
LED indication Remaining battery level
All lit up Full
Three lit up Approx. 75%
Two lit up Approx. 50%
One lit up Approx. 25%
Blinking fast Low
Off None
Flight status LEDs (Rear LEDs)
Indicate the status of the aircraft.
Status notifications
Warning notifications
19.
LED color LED indication Status of the aircraft
Green, yellow, and
red Blinking alternately The aircraft is starting up.
Green Blinking slowly GNSS (Global Navigation Satellite System) signals are being used for
positioning.
Green Blinking twice
repeatedly The Vision Positioning is being used for positioning.
Yellow Blinking slowly The aircraft is flying with [Flight mode] set to [Alt (Altitude)].
Blue Blinking fast The brakes have been activated to avoid obstacles.
Blue Blinking slowly The aircraft is performing automated flight.
Cyan Blinking twice
repeatedly
The aircraft is waiting for the completion of linking with the remote
controller.
LED color LED indication Status of the aircraft
15
Related Topic
Connecting cables to the aircraft
Attaching the damping plate to the aircraft
Attaching landing gear
Attaching the propellers
Setting the flight mode
Turning the aircraft on/off
Calibrating the sensors of the aircraft
5-027-737-11(1) Copyright 2021 Sony Group Corporation
LED color LED indication Status of the aircraft
Yellow Blinking twice repeatedly The signal from the remote controller has been lost.
Red Blinking twice repeatedly The battery level of the aircraft is low.
Red Blinking fast The battery level of the aircraft is almost depleted.
Red Lit up A fatal error has occurred. If the aircraft is in flight, land it immediately.
Backward-facing stereo camera
Detects objects to the rear and measures the distance to them.
20.
Downward-facing stereo camera
Detects objects below and measures the distance to them.
21.
Downward infrared range sensor
Detects objects below and measures the distance to them.
22.
Battery packs23.
16
Help Guide
Airpeak S1
ARS-S1
Detection range of the infrared range sensors and stereo cameras
The aircraft is equipped with two infrared range sensors and five stereo cameras. They enable stable flight and hovering
by detecting objects around the aircraft and measuring the distance to them.
Note
To ensure flight stability and safety, do not block the infrared range sensors or stereo cameras.
Detection range of the infrared range sensors
The detection range of the infrared range sensors is as shown in the illustrations below. Objects in the gray areas in the
illustrations are outside the detection range, which means they cannot be detected. Be cautious when you fly the aircraft.
Side view (The left side is the front of the aircraft.)
(a) 3 m
(b) 15°
(c) 100 mm
Rear view
17
(a) 3 m
(b) 15°
(c) 100 mm
Detection range of the stereo cameras
The detection range of the stereo cameras is as shown in the illustrations below. Objects in the gray areas in the
illustrations are outside the detection range, which means they cannot be detected. Be cautious when you fly the aircraft.
Front view
(a) 80°
(b) 54 m
Side view (The left side is the front of the aircraft.)
(a) 80°
(b) 54 m
Top view
18
