Sony MAV-555 User manual

MULTI ACCESS VIDEO DISK RECORDER
MAV-555
INSTALLATION MANUAL
1st Edition (Revised 1)
Serial No. 10001 and Higher

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.
MAV-555

1 (E)
MAV-555
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Contents ............................................................................................................... 3 (E)
Related manuals................................................................................................... 3 (E)
Trademark............................................................................................................ 3 (E)
1. Installation
1-1. Cautions before Installation ..................................................................1-1 (E)
1-2. Installation Procedure............................................................................1-2 (E)
1-3. Operating Conditions and Installation Space ........................................1-2 (E)
1-3-1. Operating Conditions ...........................................................1-2 (E)
1-3-2. Installation Space .................................................................1-3 (E)
1-4. Power Supply ........................................................................................1-4 (E)
1-4-1. Information for Power Supply .............................................1-4 (E)
1-4-2. Power Cord...........................................................................1-4 (E)
1-5. On Slots to Which Option Boards are Inserted .....................................1-5 (E)
1-6. Rack Mounting......................................................................................1-6 (E)
1-7. Signal Input and Output ........................................................................1-9 (E)
1-8. Connecting Connectors and Cable ......................................................1-12 (E)
1-9. Settings upon Completion of Installation............................................1-13 (E)
1-9-1. Erasing All Materials in the HDD......................................1-13 (E)
1-9-2. NTSC/PAL Setting.............................................................1-13 (E)
1-9-3. Setting the Operation Mode ...............................................1-14 (E)
1-9-4. Setting the Record Rate......................................................1-14 (E)
1-9-5. Setting the Setup Level ......................................................1-15 (E)
1-9-6. Setting the Network............................................................1-15 (E)
2. Service Overview
2-1. Cleaning the Air Filter ..........................................................................2-1 (E)
2-2. List of Periodic Replacement Parts .......................................................2-2 (E)
2-3. Description of Internal Switches and Indicators ...................................2-3 (E)
2-3-1. DPR-127/127A Board ..........................................................2-3 (E)
2-3-2. DM-120 Board .....................................................................2-4 (E)
2-3-3. EM-1 Board..........................................................................2-8 (E)
2-3-4. FM-68 Board ......................................................................2-12 (E)
2-3-5. FP-115 Board .....................................................................2-14 (E)
2-3-6. IF-751 Board ......................................................................2-15 (E)
2-3-7. PU-109 Board.....................................................................2-16 (E)
2-3-8. TM-40 Board......................................................................2-21 (E)

3 (E)
MAV-555
Manual Structure
Purpose of this manual This manual is the installation manual of the MAV-555 Multi Access Video Disk
Recorder.
This manual is intended for use by trained system and service engineers, and
describes the information regarding installation.
Contents The following is a summary of all the section for understanding the contents of this
manual.
Section 1 Installation
Explains how to install the MAV-555, and the connector and cable information for
peripheral equipment connections, etc.
Section 2 Service Overview
Explains the function and factory setting of the switches and LEDs on the board and
the periodic inspection items.
Related manuals Besides this Installation Manual, the following manuals are available for the
MAV-555.
..
..
.MAV-555
Operation Manual (supplied with MAV-555)
This manual describes the application and operation.
..
..
.MAV-555, BKMA-505/510/511/512/570
Maintenance Manual Volume 1 (available on request)
This manual describes the information that premise the service based on parts
replacement (diagnostics, parts replacement, electrical alignment, and circuit
descriptions, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
..
..
.MAV-555, BKMA-505/510/511/512/570
Maintenance Manual Volume 2 (available on request)
This manual describes the information that premise the service based on parts
replacement (parts list, block diagrams, schematic diagrams, board layouts, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
Trademark
.Ethernet is a registered trademark of XEROX corporation.

1-1 (E)
MAV-555
1-1. Cautions before Installation
The Hard Disk Drives (HDD) are installed in this unit.
The HDD is a precision part. The causes such as shock, vibration and static electricity to the unit, and the
conditions of temperature and humidity may damage HDD or its data.
Before installation, read fully the following cautions, and perform the installation with extra care.
Cautions about shock and vibration
When transporting and moving;
.Pack the unit using the packaging materials specified by the manufacturer.
.Use a proper cart.
.Put a cushion*on the cart.
.Avoid rough routes, and manage the cart gently.
When placing on a floor or table;
.Put a cushion*on stable and horizontal place, and put the unit on it gently.
.Do not place the unit near vibrating equipments.
For the unit;
.Never hit the unit by tool, and drop the tool on the unit.
Take extra care;
.Never give vibration or shock to the unit while the power is turned on, or within about 30 seconds after
turning off the power.
*Cushion: Polyethylene foam (density: 38 kg/m3, surface intrinsic resistance : 1011 to 1012 Z, thickness: 50 mm) or equivalent.
Cautions about rack mounting the unit
.Be careful not to give shock to the HDD.
Caution about static electricity
.Keep static-producing items such as plastics away from the working area.
Cautions about temperature and humidity
.Temperature and humidity of storage and operating condition must be kept within the correct specified
range.
.Never turn on the power with the cabinet is removed in consideration of the air-cooling effect.
Cautions when an error appears in a HDD
.Treat this unit conform to the above cautions, even when an error appeared.
.Keep the unit in the condition in which the error appeared, and record the details of the error.
Section 1
Installation

1-2 (E) MAV-555
1-2. Installation Procedure
n
Keep the packing materials such as carton, cushion, etc.
after unpacking.
When transporting the unit, pack the unit using the materi-
als provided.
1-3. Operating Conditions and
Installation Space
1-3-1. Operating Conditions
1. Set the operating temperature and humidity
within the following conditions.
Operating Temperature : +5 dC to +40 dC
Operating humidity : 20 % to 90 %
(Condensation not allowed)
Storage temperature : _20 dC to +60 dC
2. Do not install this unit in the following
locations.
.Areas where the unit will be exposed to direct
sunlight or any other strong lights.
.Dusty areas or areas where the unit will be subject to
vibration.
.Areas with strong electric or magnetic fields.
.Areas near heat sources.
.Areas where the unit will be subjected to electrical
noise.
.Areas where the unit will be subjected to static
electricity noise.
.Unstable and unbalanced places.
3. To prevent the internal temperature from
rising, ensure air ventilation of the place
where the unit is installed.
c
Do not block the ventilation slots.
If the ventilation slots are blocked, overheating inside the
unit may cause fire.
1-2. Installation Procedure
1-3. Operating Conditions and Installation Space
Start
Determination of
installation place
Option boards
installation
Rack mounting
Connection
Settings of
setup menu
End
1-3. Operating Conditions
and Installation Space
1-4. Power Supply
1-5. On Slots to Which Option
Boards are Inserted
1-6. Rack Mounting
1-8. Connecting Connectors
and Cable
1-9. Settings upon Completion
of Installation

1-3 (E)
MAV-555
1-3-2. Installation Space
m
.The rear side of this unit should be 50 cm away from the walls for maintenance and replacement.
.If the power is turned on with the cabinet is removed, the air-cooling effect of the fan will be greatly
reduced, damaging the HDD or its data. Avoid operating the unit with the cabinet is removed.
1-3. Operating Conditions and Installation Space
Unit : mm
12 592
578
667
650
265.6
290.7
424
132.8 13
68
624
123.8 263.5 415.9
631

1-4 (E) MAV-555
1-4. Power Supply
1-4-1. Information for Power Supply
A switching regulator is used for the power supply of this
unit. Voltage within the range of 100 V to 240 V can be
used without changing the supply voltage.
Power supply voltage : AC 100 to 240 V
Power supply frequency : 50/60 Hz
Power consumption : 600 W (continuous rating)
Inrush current : 20 A
1-4-2. Power Cord
w
.Use the specified power cord only
.Otherwise, fire or electric shock may occur.
w
.Do not damage the power cord.
.Otherwise, fire or electric shock may occur.
c
.Ground the unit safety.
.Otherwise, electric shock may occur.
Recommended parts
For customers in U.S.A. and Canada.
1Power cord : !1-557-377-11
2Plug holder : 2-990-242-01
For customers in the United Kingdom.
1Power cord : !1-782-929-11
2Plug holder : 3-613-640-01

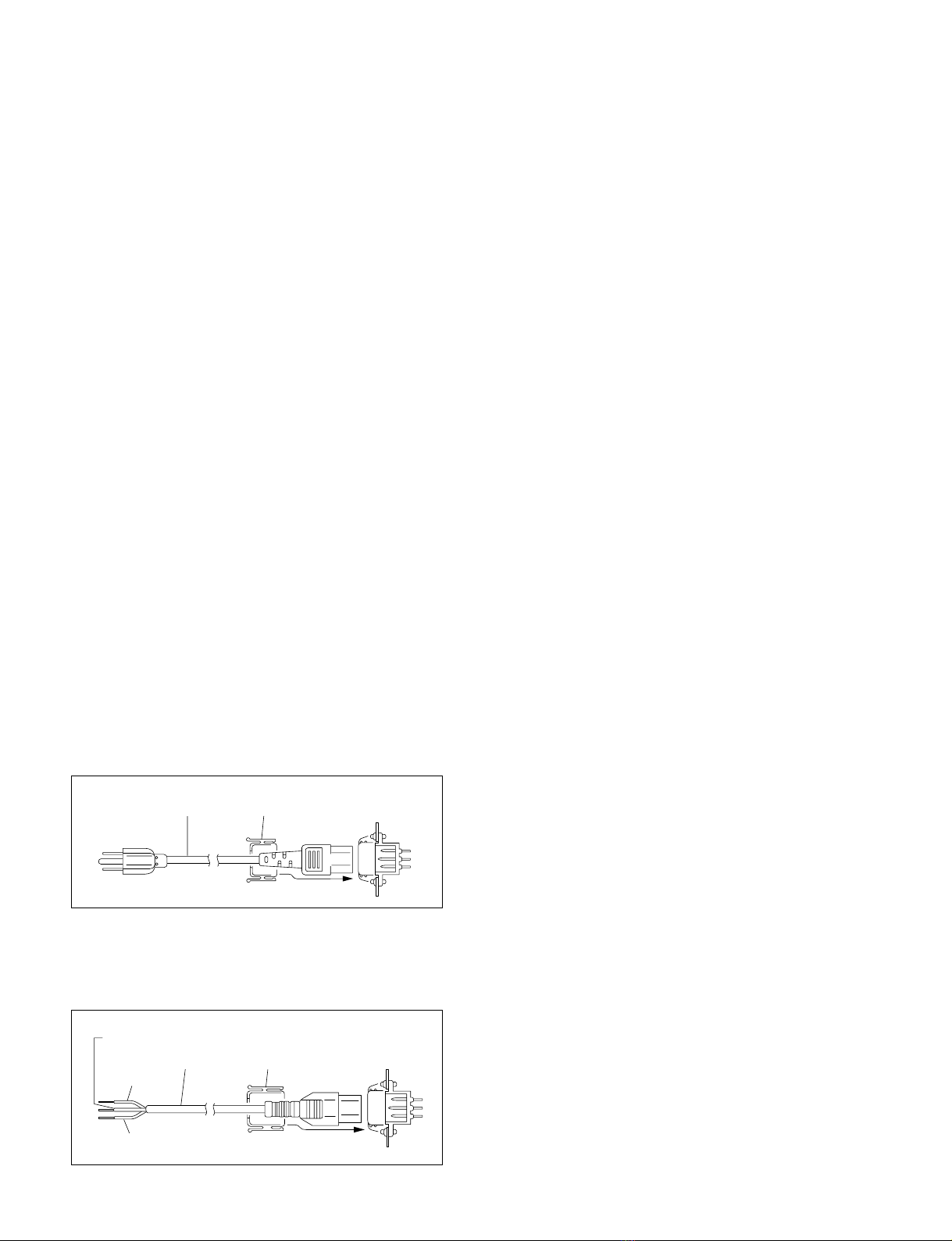

12AC inlet
(MAV)
12
AC inlet
(MAV)
Safety earth (Green/Yellow)
Live (Brown)
Neutral (Blue)
1-4. Power Supply

1-5 (E)
MAV-555
1-5. On Slots to Which Option Boards
are Inserted
The option boards must be inserted to the different slots
depending on the application that the MAV-555 is used.
An example of the name of the boards that are inserted into
slots, and necessity of the analog expansion units is shown
below.
m
.The PU-109 board that is nearest to the power supply
unit is named as the slot No.1.
All the slots are named starting from the slot No.1 to the
slot No.13 in this order in the MAV-555 Installation
Manual.
.Refer to the respective Installation Manuals that are
supplied with each option board.
Power supply unit
Slot No.1
Slot No.13
No.2 No.3 No.4 No.5 No.9 No.10 No.13 BKMA-570
SLOT SLOT SLOT SLOT SLOT SLOT SLOT
1-input/1-output ____ __ _Not required
(Input and output
are digital.)
1-input/1-output ____ _AD-160 _Required
(R1 port only is (BKMA-511)
analog input.)
1-input/1-output ____ DA-136 __Required
(P1 port only is (BKMA-512)
analog output.)
1-input/1-output ____ DA-136 AD-160 _Required
(Input and output (BKMA-512) (BKMA-511)
are analog.)
2-inputs/2-outputs __DPR-127 DM-120 __ _Not required
(All inputs and (BKMA-510) (BKMA-510)
outputs are digital.)
2-inputs/2-outputs __DPR-127 DM-120 _AD-160 _Required
(R1 port only is (BKMA-510) (BKMA-510) (BKMA-511)
analog input.)
2-inputs/2-outputs AD-160 _DPR-127 DM-120 __ _Required
(R2 port only is (BKMA-511) (BKMA-510) (BKMA-510)
analog input.)
2-inputs/2-outputs __DPR-127 DM-120 DA-136 __Required
(P1 port only is (BKMA-510) (BKMA-510) (BKMA-512)
analog output.)
2-inputs/2-outputs _DA-136 DPR-127 DM-120 __ _Required
(P2 port only is (BKMA-512) (BKMA-510) (BKMA-510)
analog output.)
2-inputs/2-outputs AD-160 DA-136 DPR-127 DM-120 DA-136 AD-160 _Required
(All inputs and (BKMA-511) (BKMA-512) (BKMA-510) (BKMA-512) (BKMA-512) (BKMA-511)
outputs are analog.)
1-5. On Slots to Which Option Boards are Inserted

1-6 (E) MAV-555
1-6. Rack Mounting
c
Install the unit in a stable location.
The unit could drop and cause physical injury if installed
in an unstable location or on a cart at an angle.
c
Be sure to use the specified rack mount rail.
The unit could drop and cause physical injury if installed
in any other racks than the specified one due to insufficient
strength of the rails.
This unit can be mounted in a 19-inch standard rack.
Install the units into racks in accordance with the specified
installation procedure using the specified rack rail. The
units could unexpectedly drop or the rack collapse if the
units are not installed correctly.
n
Mount the unit in the rack with the HDD removed from the
unit.
Supplied rack mount kit
RMM-555 (optional)
Components of the RMM-555
.Slider rail : 2 pcs
.Rack angle : 2 pcs
.Bracket : 4 pcs
.Plate nut (long) : 4 pcs
.Plate nut (short) : 4 pcs
.Screw PSW4 x16 : 4 pcs
.Screw B4 x8 : 16 pcs
.Hexagon socket screw : 8 pcs
.Flat washer : 8 pcs
.Screw RK5 x14 : 4 pcs
.Ornamental washer : 4 pcs
n
Standard tightening torque
Screw size Standard tightening torque
M3.0 0.7 to 1.0 N.m (7 to 9 kgf.cm)
M4.0 1.2 to 1.6 N.m (12 to 16 kgf.cm)

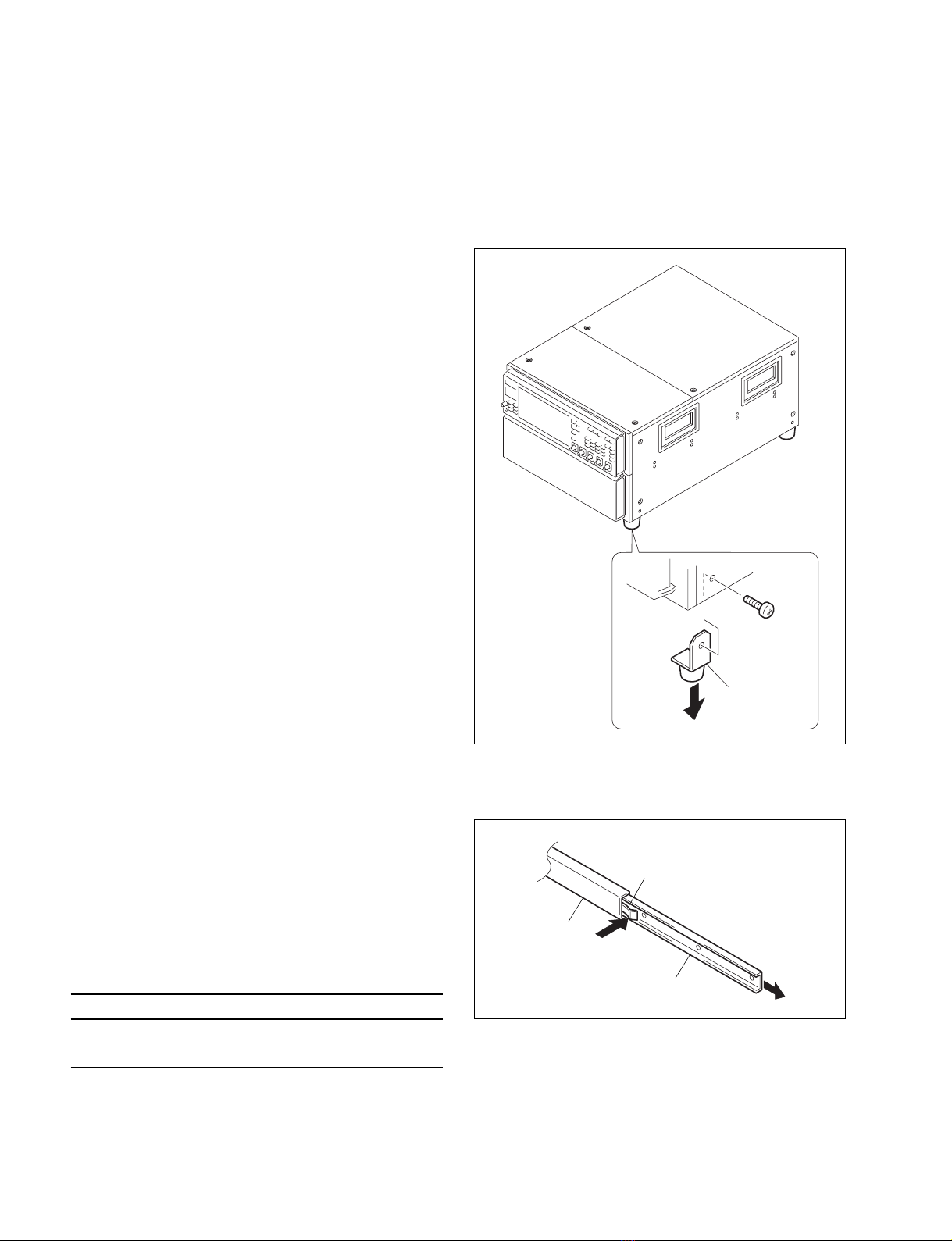

Attaching the inner rail in the unit
1. Turn off the power of the rack mounted unit incorpo-
rating the HDD.
2. Remove the four screws on both sides of the unit, and
remove the four foot-holder assemblies while lifting
up the unit.
3. Remove the inner rail while pressing the stopper on
the inner rail.
Foot-holder
assembly
Stopper
Outer rail
Inner rail
1-6. Rack Mounting

1-7 (E)
MAV-555

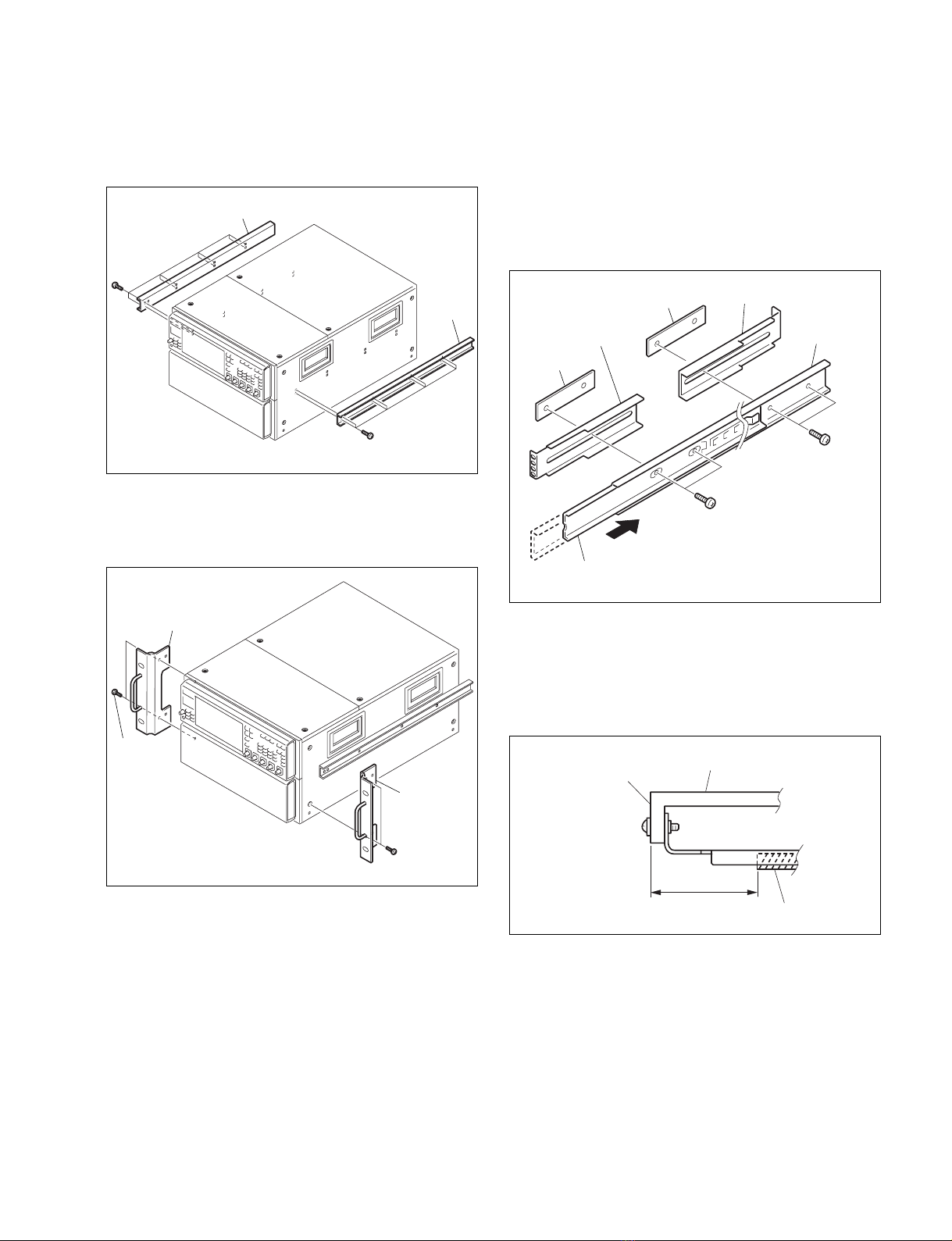

4. Remove the eight screws on both sides of the unit.
Attach the inner rails to the unit using the eight screws
supplied.
5. Remove the four screws on both sides of the unit.
Attach the rack angles to the unit using the four screws
supplied.
Rack angle
PSW4 x16
Rack angle
PSW
4 x16
B4 x8
B4 x8
Inner rail
Inner rail
1-6. Rack Mounting
Attaching the outer rails to the rack
1. Attach the brackets to the outer rails 1with plate nuts
(long) and the screws temporarily as shown.
n
Attach the brackets such that the screw hole of the
outer rail 1becomes visible when the outer rail 2is
moved to the front and rear.
2. Adjust the outer rail position so that the distance
between the rack angle mounting surface and the outer
rail 1tip becomes 50 to 55 mm as shown when the
outer rail is attached to the rack. Tighten the screws
of the bracket that were temporary tightened in step 1.
Plate nut
Plate nut
Bracket
Bracket
Outer rail 1
Outer rail 2
B4 x8
B4 x8
50 to 55 mm
Rack angle
mounting surface Rack
Outer rail 1

1-8 (E) MAV-555
Wide type

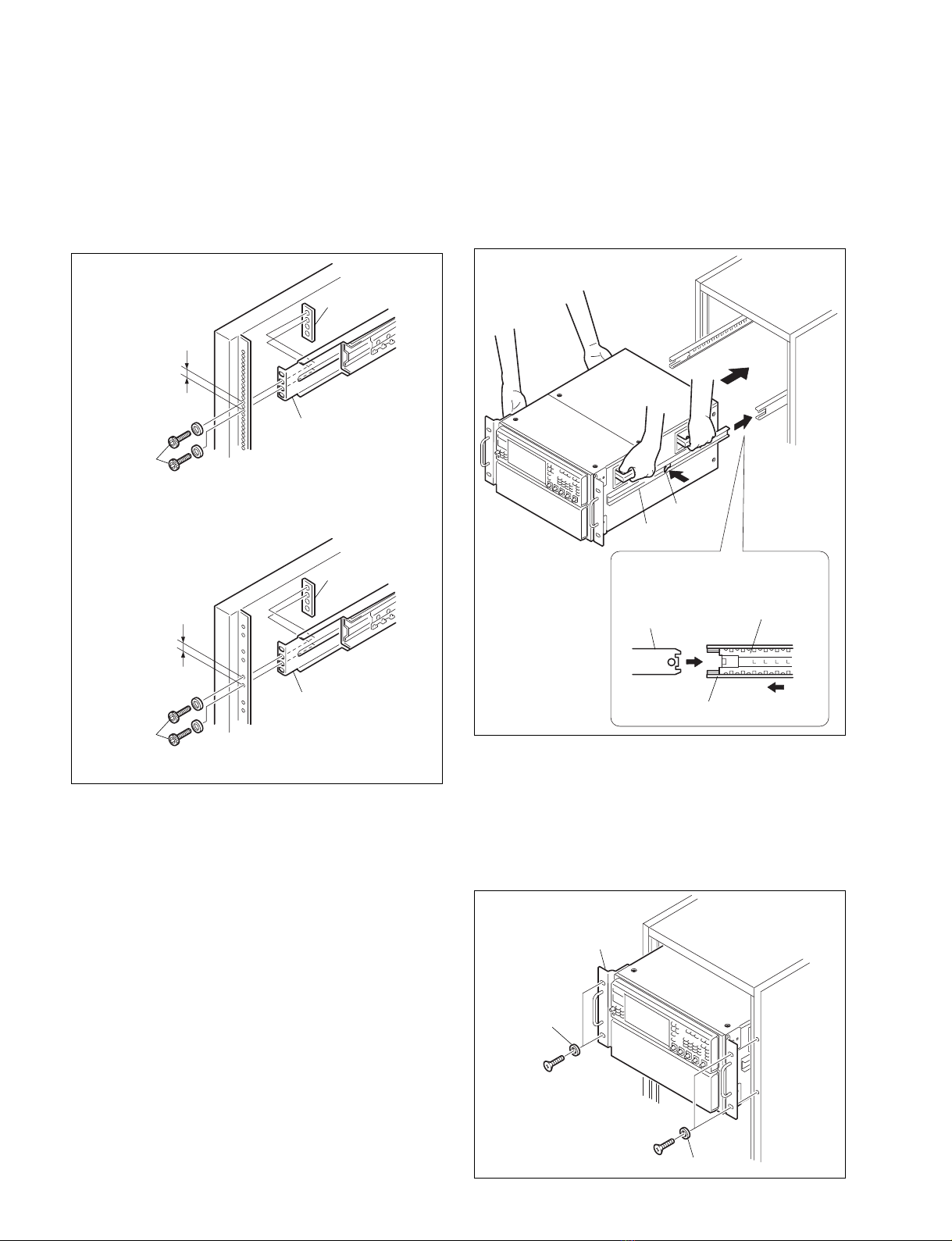

3. Attach the brackets to the rack with plate nuts (short),
hexagon head cap bolts and flat washers.
c
Be sure to mount the unit with at least two persons to avoid
back injuries and prevent the unit from falling.
Universal type
Hexagon
head cap
screws
Flat washer
Flat washer
Plate nut (short)
Bracket
Hexagon
head cap
screws
Flat washer
Flat washer
Plate nut (short)
Bracket
12.7
12.7
Installing the unit in the rack
1. While pressing down the stoppers of the inner rails, align
and insert the unit into the outer rails. Confirm that the
unit can be smoothly moved to the front and rear. Then
tighten securely the hexagon head cap screws that were
temporarily tightened to fix the bracket.
2. Attach the rack angles to the rack with screws and
ornamental washers.
c
Secure the rack angles to the rack with the screws. Other-
wise the unit may slide and fall off, resulting in injury.
When inserting the unit into the rack,
push in the sliding bearing deep
inside as shown.
Inner rail Sliding bearing
Outer rail 2
Inner rail
Stopper
1-6. Rack Mounting
Rack angle
RK5 x14
RK5 x14
Ornamental
washers
Ornamental washers

1-9 (E)
MAV-555
1-7. Signal Input and Output
Input
REFERENCE (BNC)
(With Loop Through Output) Sync : 0.3 Vp-p, Burst : 0.3 Vp-p, 75 Z(Sync negative)
(With bult-in switch for termination) Black burst or composite sync
VIDEO IN (COMPOSITE) R1, R2 (BNC)
(With Loop Through Output) 1 Vp-p, 75 Z(Sync negative)
(With bult-in switch for termination)
AUDIO IN (AES/EBU) R1, R2 (BNC)
1 Vp-p (75 Z), Unbalanced
Conforms to the AES-3id-1995
SERIAL V/A IN R1, R2 (BNC)
(With Active Through Output) Conforms to the CCIR-656-3/ SMPTE-259M
TIME CODE IN R1, R2, SYSTEM (BNC)
0.5 to 18 Vp-p, Impedance 10 kZ, Unbalanced
Conforms to the SMPTE-12M
VS BUS (BNC)
(With Loop Through Output) Protocol : HDLC Flag, Syncronize
(With bult-in switch for termination)
Output
VIDEO OUT (COMPOSITE) P1 to P3 (BNC)
1 Vp-p, 75 Z(Sync negative)
AUDIO OUT (AES/EBU) P1 to P3 (BNC)
1 Vp-p (75 Z), Unbalanced
Conforms to the AES-3id-1995
SERIAL V/A OUT P1 to P3 (BNC)
Conforms to the CCIR-656-3/ SMPTE-259M
TIME CODE OUT P1 to P3 (BNC)
2.2 Vp-p (600 Z) Impedance 50 Z, Unbalanced
MONITOR OUT (BNC)
SERIAL V/A (SUPER) :
Conforms to the CCIR-656-3/ SMPTE-259M
ANALOG COMPOSITE (SUPER) :
1 Vp-p, 75 Z(Sync negative)
(XLR 3-pin, male)
AUDIO L : +4 dBm/ 600 Zload,
Low impedance, Unbalanced
AUDIO R : +4 dBm/ 600 Zload,
Low impedance, Unbalanced
CONTROL PANEL (BNC)
(COMPOSITE VIDEO OUT) 1 Vp-p, 75 Z(Sync negative)
HEAD PHONES (JM-60)
_12 dBu (8 Z), Unbalanced
1-7. Signal Input and Output

1-10 (E) MAV-555
REMOTE IN 1 to 4 : RS-422A (D-sub 9-pin, Female)
REMOTE SPARE
CONTROL PNAEL
< External View >
Pin No. Signal
1 GND
2 TX (_)
3 RX (+)
4 GND
5NC
6 GND
7 TX (+)
8 RX (_)
9 GND
REMOTE IN/OUT 1, 2 : RS-422A (D-sub 9-pin, Female)
Pin No. Signal
1 GND
2 RX (_)
3 TX (+)
4 GND
5NC
6 GND
7 RX (+)
8 TX (_)
9 GND
51
6
9
1
8
1-7. Signal Input and Output
ETHER : 100BASE-TX (8-pin modular jack)
< External View >
Pin No. Signal
1 TX +
2 TX _
3 RX +
4 RXCT
5 RXCT
6 RX _
7 TXCT
8 TXCT

1-11 (E)
MAV-555
REMOTE PARALLEL I/O (50P) :
GPI (D-sub 50-pin, Female)
< External View >
Pin No. Signal
1 GPI IN1
2 GPI IN4
3 GPI IN7
4 GPI IN10
5 GPI IN13
6 GPI IN16
7 GPI IN19
8 GPI IN22
9 GPI OUT1
10 GPI OUT4
11 GPI OUT7
12 GPI OUT10
13 GPI OUT13
14 GPI OUT16
15 GPI OUT19
16 GPI OUT22
17 GND
18 GPI IN2
19 GPI IN5
20 GPI IN8
21 GPI IN11
22 GPI IN14
23 GPI IN17
24 GPI IN20
25 GPI IN23
17 1
33
50 34
18
Pin No. Signal
26 GPI OUT2
27 GPI OUT5
28 CPI OUT8
29 GPI OUT11
30 GPI OUT14
31 GPI OUT17
32 GPI OUT20
33 GPI OUT23
34 GPI IN3
35 GPI IN6
36 GPI IN9
37 GPI IN12
38 GPI IN15
39 GPI IN18
40 GPI IN21
41 GPI IN24
42 GPI OUT3
43 GPI OUT6
44 GPI OUT9
45 GPI OUT12
46 GPI OUT15
47 GPI OUT18
48 GPI OUT21
49 GPI OUT24
50 GND
1-7. Signal Input and Output

1-12 (E) MAV-555
1-8. Connecting Connectors and Cable
When connecting cables to various connectors on the rear panel, connect the following connectors/cable
or their equivalent.
MAV-555 Matching Connector/Cable
Panel Indication Connector Connector Sony Part No.
VIDEO IN (COMPOSITE) BNC, 75 ZBNC, 75 Z1-569-370-12
VIDEO OUT (COMPOSITE) 5C-2V cable*1
AUDIO IN (AES/EBU)
AUDIO OUT (AES/EBU)
SERIAL V/A IN
SERIAL V/A OUT
REFERENCE
VS BUS
MONITOR OUT (SERIAL V/A)
MONITOR OUT
(ANALOG COMPOSITE)
TIME CODE IN
TIME CODE OUT
SERIAL V/A (SUPER)
OPTION
CONTROL PANEL
MONITOR OUT XLR 3-pin, Male XLR 3-pin, Female 1-508-083-00*2
(AUDIO L/R)
REMOTE IN 1 to 4 D-sub 9-pin, Female D-sub 9-pin, Male 1-560-651-00 (Connector)
REMOTE IN/OUT 1, 2 1-561-749-00 (Shell)
REMOTE SPARE
CONTROL PANEL
REMOTE PARALLEL I/O D-sub 50-pin, Female D-sub 50-pin, Male 1-565-516-11 (Connector)
(50P) 1-563-379-11 (Shell)
ETHER RJ-45 modular jack*3–––––– ––––––
*1 : Use of the coaxial cable 5C-2V of Fujikura America Inc./Fujikura Europe Ltd. (FEL) or equivalent is recommended.
*2 : ITT Cannon XLR-3-11C or the equivalent.
*3 : Conforms to the IEEE 802.3 Ethernet 100BASE-TX standard.
1-8. Connecting Connectors and Cable

1-13 (E)
MAV-555
1-9-2. NTSC/PAL Setting
1. Open the [010-525/625] display from the setup menu.
2. Press the VIDEO/MENU knob once and open the
SubMenu.
3. Turn the VIDEO/MENU knob and select “525/625”.
Press the VIDEO/MENU knob once.
4. Turn the VIDEO/MENU knob and select either “525/
60” or “625/50”, and press the VIDEO/MENU knob
once.
5. Press the VIDEO/MENU knob once and open the
SubMenu.
6. Turn the VIDEO/MENU knob and select “Execute”.
Press the VIDEO/MENU knob.
7. Turn the VIDEO/MENU knob and select “YES”.
8. Press the SET button.
1-9. Settings upon Completion of Installation
R1 00 : 00 : 00 : 00 P1 00 : 00 : 00 : 00
R2 00 : 00 : 00 : 00 P2 00 : 00 : 00 : 00
1-9. Settings upon Completion of
Installation
n
Refer to the Operation Manual for details of how to use the
setup menu.
1-9-1. Erasing All Materials in the HDD
1. Open the [022-ALL ERASE] display from the setup
menu.
2. Press the VIDEO/MENU knob once and open the
SubMenu.
3. Press the VIDEO/MENU knob once.
4. Turn the VIDEO/MENU knob, and select [YES].
5. Press the SET button to erase all materials in the
HDDs.
022-ALL ERASE
Execute
022-ALL ERASE
NO?Execute
022-ALL ERASE
[SET]YESExecute
010-525/625
SubMenu
010-525/625
Execute
010-525/625
525/625 525/60
010-525/625
SubMenu
010-525/625
525/625 525/60
010-525/625
NO?Execute
010-525/625
[SET]YESExecute
022-ALL ERASE
SubMenu
The ITEM indicator flashes.

1-14 (E) MAV-555
9. Turn off the main power once.
n
To re-start the system swiftly, execute [027-FAST
REBOOT] from the setup menu.
1-9-3. Setting the Operation Mode
1. Open the [019 OPERATE CONFIG] display from the
setup menu.
2. Press the VIDEO/MENU knob once and open the
SubMenu.
3. Turn the VIDEO/MENU knob and select the operation
mode.
PANEL : When the PANEL is selected, the
entire system can be controlled from
the control panel (BKMA-505) only.
DTR +PANEL :When the DTR +PANEL is select-
ed, the entire system can be con-
trolled from both the control panel
(BKMA-505) and a single DTR-
3000 unit.
DTR +DTR : When the DTR +DTR is selected,
the entire system can be controlled
from two DTR-3000 units.
4. Press the SET button.
5. Turn off the main power once.
n
To re-start the system swiftly, execute [027-FAST
REBOOT] from the setup menu.
1-9-4. Setting the Record Rate
1. Open the [035 VIDEO COMP. RATE] display from
the setup menu.
2. Press the VIDEO/MENU knob once and open the
SubMenu.
3. Turn the VIDEO/MENU knob and select the video
record rate.
4. Press the SET button.
5. Open the [028 AUDIO BIT LENGTH] display from
the setup menu.
6. Press the VIDEO/MENU knob once and open the
SubMenu.
7. Turn the VIDEO/MENU knob and select the audio
record rate.
8. Press the SET button.
9. Turn off the main power once.
n
To re-start the system swiftly, execute [027-FAST
REBOOT] from the setup menu.
1-9. Settings upon Completion of Installation
019 OPERATE CONFIG
PANEL
019 OPERATE CONFIG
DTR +PANEL
035 VIDEO COMP. RATE
50Mbps
035 VIDEO COMP. RATE
40Mbps
028 AUDIO BIT LENGTH
20bit
028 AUDIO BIT LENGTH
16bit
