Sony HT-DDW860 Instruction manual

VIDEO 1 MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO IN
AUDIO
OUT
FRONT B
CENTER
VIDEO IN VIDEO OUT DVD
IN VIDEO 2
IN MONITOR OUT
VIDEO 2
AUDIO IN
MONITOR
SA-CD/
CD
IN
Y
P
B /C B
/B-Y
P
R /C R
/R-Y
MD/TAPE SA-CD/CD
L
R
L
R
L
R
OUT ININ
VIDEO IN
DVD
AM
AUDIO IN
LR
LR
+ +
+ –
AUDIO OUT
VIDEO OUT
L
R
L
R
DIGITAL
ANTENNA
OPTICAL
VIDEO 2
IN
FRONT A
LR
LR
+ + ––
DIGITAL OUT
COAXIAL
OUTPUT
VIDEO
COAXIAL
INPUT
VIDEO
INPUT
SUB
WOOFER
SPEAKERS
SURROUND
SURROUND BACK
COMPONENT VIDEO
DVD
IN
4-255-339-12(1)
DVD player
Sony Corporation © 2004 Printed in Malaysia
HOME THEATRE
SYSTEM
HT-DDW860
Speaker Connection
SS-MSP860SR
Surround speaker (right)
Coaxial cord
Speaker cord
Center speaker
SS-CNP860
SS-MSP860R
Front speaker (right)
SS-MSP860L
Front speaker (left)
SS-MSP860SL
Surround speaker (left)
Speaker cord
Speaker label
SA-WMSP76
Sub woofer
Monaural audio cord

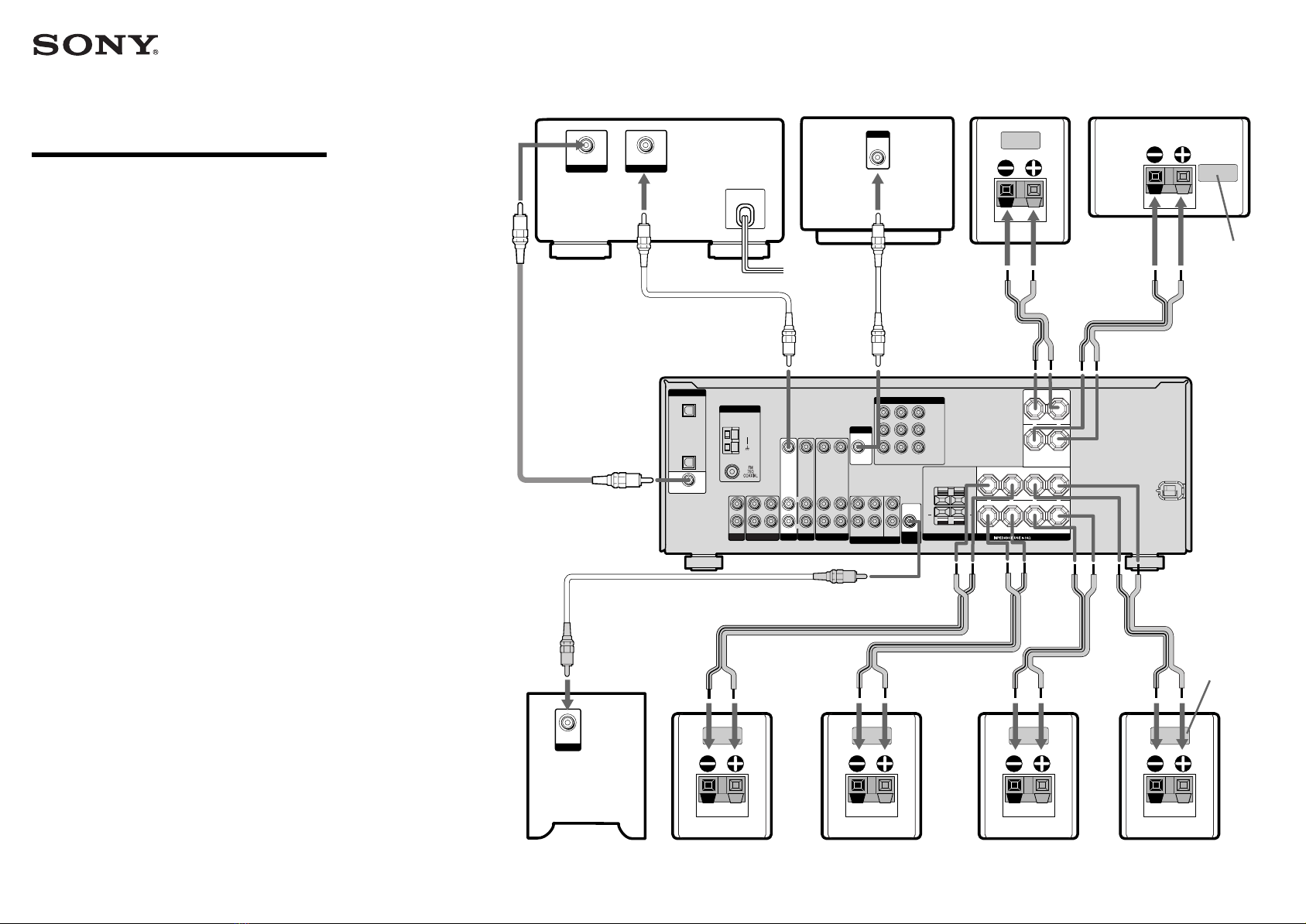

This Speaker Connection explains how to connect the DVD player, TV, speakers, and sub woofer so you
can enjoy multi channel surround sound from the DVD player. For details, refer to the operating
instructions supplied with the receiver.
Before you connect the speakers, check the speaker label on the rear panel of the speakers for the model
name. Connect the speakers as shown in the illustration at right.
The front and center speakers and the sub woofer are magnetically shielded to allow it to be installed near a
TV set. However, as the surround speakers are not magnetically shielded, we recommend that you place the
surround speakers slightly further away from TV set.
TV
Video cord
Video cord
Surround back speaker
SS-MSP860SB
HT-DDW860 4-255-339-12(1) GB
Speaker label
4255339121_DDW860leaf.p65 8/2/04, 4:15 PM1
