Sony SDM-S81 User manual

SDM-S81 and SDM-S81/B
Flat Panel Computer Display
Technologically advanced
Flat Panel LCD display
provides superb images
with outstanding on-screen
colors, all in a sleek,
space-saving design.
18.0" Flat Panel - TFT Active Matrix LCD technology
combined with anti-glare coating provides flicker free
images and reduces eyestrain.
Slim Styling - Slim design maximizes desktop space,
adding efficiency and style to the home or office.
Adjustable Pivot Stand - Adjusts to numerous positions to
provide optimal viewing angle and maximum comfort.
Automatic Image Adjustment - Sony's Auto ImageSet™and
Digital FlexRes™technologies maximize performance with
automatic adjustments of video images at multiple
resolutions.
Zero Footprint™design - Tilt base can be removed to
provide arm or wall mounting options.
Flat Panel LCD

Power Management:
 Normal Operation 50W max.
 Active Off  3W max.
 Power Off 3W max.
Regulation and Standard Compliance
 Safety Regulations:  UL1950, CSA C22.2 No.950
  EN60950, CPA (SISAR)
  Hong Kong,CB IEC60950
  EMKO's,
 Human Factor:  ISO 13406-2, ISO 9241-3,7,8
 CE mark:  EN55022/55024
  EN61000-3-2/-3
 EMI  FCC Class B
  IC Class B
  AS/NZS (C-Tick)
 ELF/VLF MPR-II (TUV Ergonomic Mark)
  TCO 99 (SDM-S81)
  TCO 95 (SDM-S81/B)
 Power Management International Energy Star
 Designed for PC99,Windows® 95,98,2000
  Windows NT®,Windows XP®
  Macintosh® Compatible
Plug and Play DDC-2B
Tilt Range -5° to + 30°
Front Panel User Controls
 Power Switch On/Off
 Menu Button Enter/Exit On Screen Menu
 Contrast Button Select Contrast Menu
 Brightness Button Select Brightness Menu

On Screen Display Controls
 Phase, Pitch, Image Center, Zoom
 Color Temperature, Gamma, Backlight Control
 Option (OSD Position)
 Power Saving Delay
 Multi-Language (Eng., Fre., Spa., Ital., Ger., Jap.)
 Menu Lock, Reset, Smoothing
Operating Conditions
 Temperature: 41° to 95° F (5° to 35° C)
 Relative Humidity: 10% to 80% (Non-Condensing)
Storage Conditions
 Temperature: -4° to 140°F (-20° to 60°C)
 Relative Humidity: 5% to 95% (Non-Condensing)

Supplied Accessories
 AC adapter, AC Power Cord
 User's Manual (Eng., Fre., Spa., Ital., Ger.)
 Windows® Monitor Information Disk/Utility Disk
 Macintosh® Utility Disk
 HD15 Video Signal Cable
 Warranty Card
Limited Warranty
 Parts,Labor and Backlight: 3 years
Sony Electronics Inc.
16450 West Bernardo Drive
San Diego, California 92127
For more information: 1.800.352.SONY
Web address: sony.com/displays
SDM-S81 and SDM-S81/B
Flat Panel Computer Display
Printed in the USA - (12/01/01)

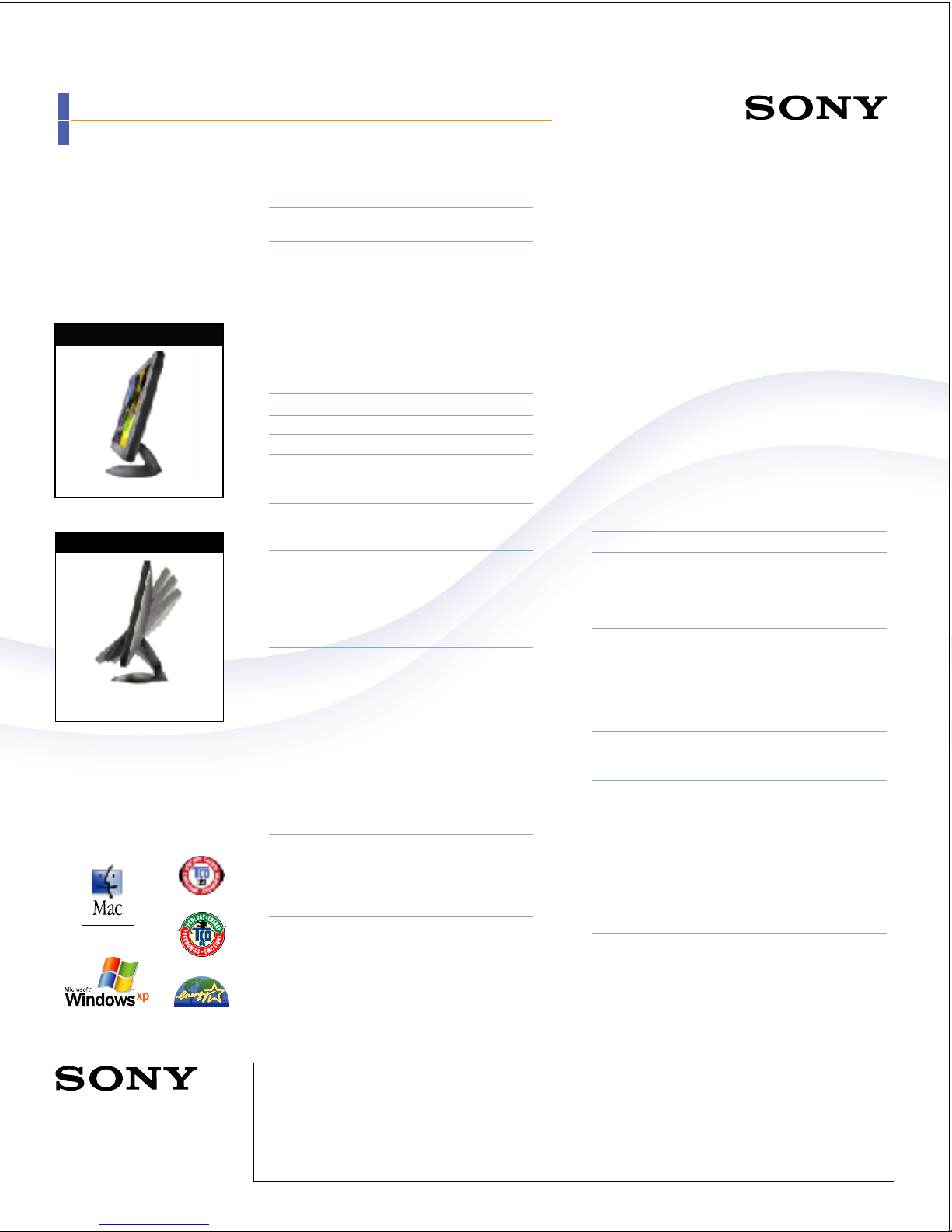

Model  SDM-S81 and SDM-S81/B
Color   Two Tone Gray (SDM-S81)
   Black (SDM-S81/B)
Viewable Image Size
   Diagonal 18.0”
   Horizontal 14.1”
   Vertical 11.2”
LCD Panel
 LCD Type  a-Si TFT Active Matrix
 Color Filters  RGB Vertical Stripes
 Pixel Pitch  .279 mm
 Screen Treatment Anti-Glare/Hard Coating
 Colors  16.78 Million (approx.)
Native Resolution 1280 x 1024
Luminance  200 cd/m2
Contrast Ratio  400:1
Viewing Angle
 Horizontal  160
 Vertical  160
Scan Range
 Horizontal  28kHz - 92kHz
 Vertical  48Hz - 85Hz
Preset Timings
 Factory  22
 User Adj  18
Response Time
 Rise Time  20 ms
 Fall Time  10 ms
Color Temperature Presets
 5000, 6500, 9300 (default) Kelvin
 user adjustable 5000K-11000K
Video Signal Inputs
 Video Input  Analog RGB 0.7 Vp-p ± 5%,  
   Positive,75 ohms (typ)
 Sync Input  Separate HD/VD
   TTL, Polarity Free
   Polarity free, Ext. Composite
 Sync on Grn  0.3 Vp-p ± 10%, Negative
Input Connectors
 D-sub HD15
Display Dimensions (WxHxD)
 17.3" x 17.1" x 8.7"
 17.3" x 14.8" x 2.4" (without stand)
Display Weight
 15.0 lbs.
Power Requirements
 100-240V AC, 50/60Hz
• Maximize desktop space
Slim Design
4 Port USB Hub
D236
Adjustable Pivot Stand
• Optimal Viewing Angle
• Maximize Comfort
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and Sony does not
and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this document. Sony hereby
disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance.
©2001 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, Multiscan, Digital FlexRes, Auto ImageSet and Zero Footprint Design™ are
trademarks of Sony. Microsoft, the Windows Logo and Windows are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc. All other trademarks are property of their respective owners.
Features and specifications are subject to change without notice. Non-metric weights and measurements are approximate.
This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this product
meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.
