Sony HAP-S1 User manual

HDD AUDIO PLAYER SYSTEM HAP-S1
About the HDD AUDIO PLAYER SYSTEM
Features of the HDD AUDIO PLAYER SYSTEM [1]
Playable audio file formats [2]
How to make and enter selections [3]
How to input characters [4]
System requirements for computers connected to the HDD AUDIO PLAYER [5]
Required network environment [6]
Supplied accessories [7]
Supported applications
HAP Music Transfer [8]
HDD Audio Remote [9]
Help for HAP Music Transfer/HDD Audio Remote [10]
Preparations
What you need to do before starting to use the HDD AUDIO PLAYER [11]
Prep 1. Connecting speakers [12]
Prep 2. Connecting to a network with a LAN cable (only when using a wired LAN) [13]

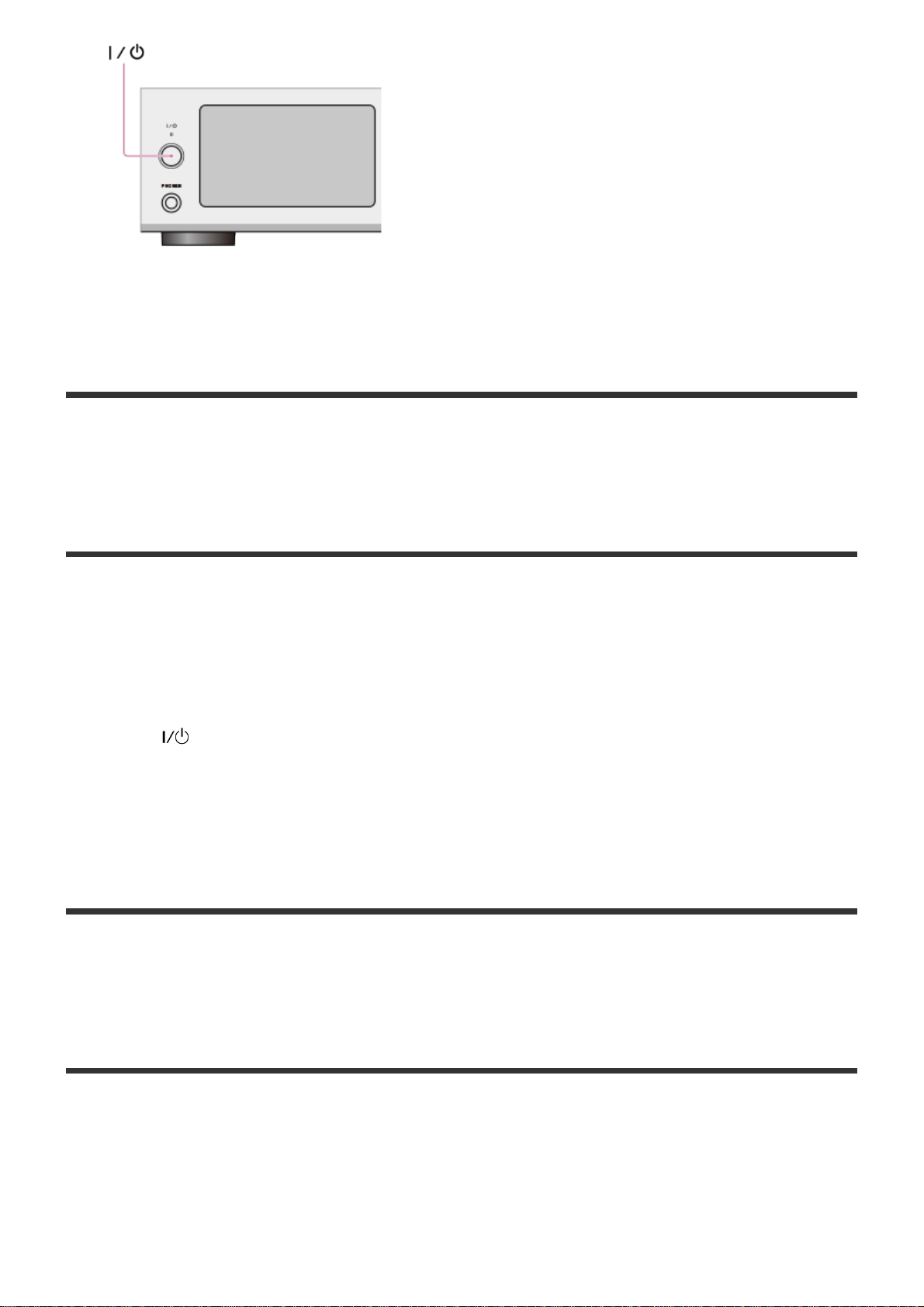

Prep 3. Turning on the HDD AUDIO PLAYER [14]
Prep 4. Configuring the initial settings of the HDD AUDIO PLAYER [15]
Prep 5. Configuring the settings of a computer to use HAP Music Transfer [16]
Operating the HDD AUDIO PLAYER from your smartphone or tablet (using HDD Audio
Remote) [17]

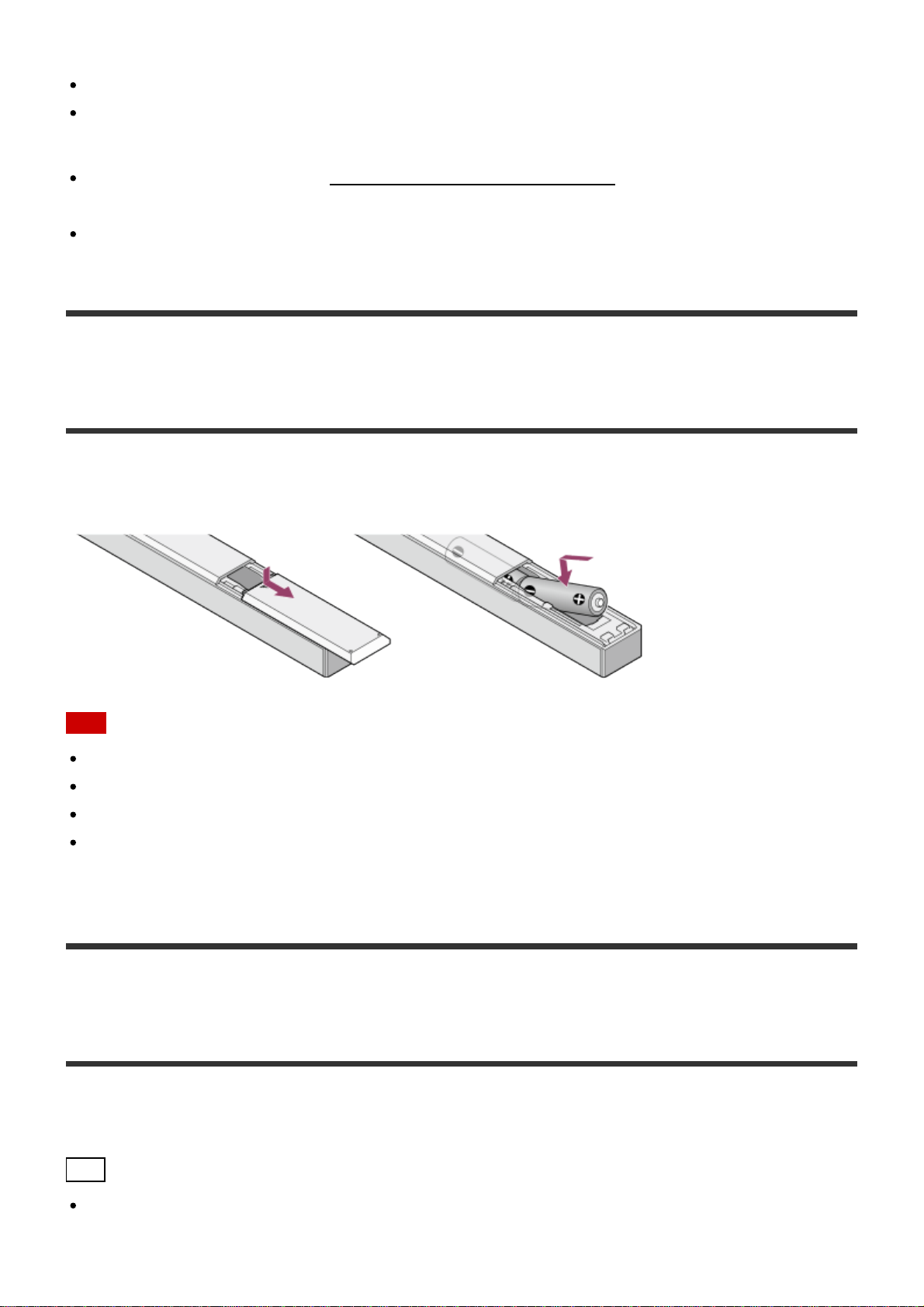

Preparing the remote control [18]
Connections

Connecting to a computer [19]
Connecting speakers [20]
Connecting an amplifier [21]
Connecting other playback equipment [22]
Connecting an external hard disk drive [23]
Connecting an external CD drive [24]
Connecting headphones [25]
Network connections (wired LAN)
Required network environment [26]
Connecting the HDD AUDIO PLAYER to a network automatically [27]
Connecting the HDD AUDIO PLAYER to a network manually [28]
Wi-Fi network connections (wireless LAN)
Required network environment [29]
Selecting a Wi-Fi (wireless LAN) connection method [30]
Method 1. Setting up a network connection using the WPS push button configuration method
[31]
Method 2. Setting up a network connection by selecting an access point [32]
Method 3. Setting up a network connection by adding a new access point [33]
Method 4. Setting up a network connection using the (WPS) PIN code configuration method
[34]
Playing music
Playable audio file formats [35]
Transferring music files from a computer to the HDD AUDIO PLAYER [36]
Playing music files [37]
Deleting music files from the HDD AUDIO PLAYER (when operating on the HDD AUDIO
PLAYER) [38]
Deleting music files from the HDD AUDIO PLAYER (when using the HAP Music Transfer)
[39]
Playing tracks using SensMe™ channels [40]
Playing tracks in playlists [41]

Selecting playback methods [42]
Registered music file information [43]
Standby modes [44]
Listening to the sound from externally connected devices [45]
Internet radio
Listening to the TuneIn Internet radio programs [46]
Music copy from a CD
Copying music files from a CD [47]
Useful functions
Copying music files from a CD [48]
Deleting music files from the HDD AUDIO PLAYER (when operating on the HDD AUDIO
PLAYER) [49]
Deleting music files from the HDD AUDIO PLAYER (when using the HAP Music Transfer)
[50]
Using the DSEE HX function [51]
Using the DSEE function [52]
Using the Tone Control Bypass function (Tone Control Bypass) [53]
Using the Tone Control function (Tone Control) [54]
Adding tracks to “Favorites” [55]
Playing tracks in “Favorites” [56]
Registered music file information [57]
Parts and controls
Front panel [58]
Rear panel [59]
Remote control [60]
Home screen [61]
Playback screen [62]
Playback Options screen [63]

Play Queue screen [64]
Settings menus
Network Settings [65]
HDD Settings [66]
Audio Settings [67]
System Settings [68]
Network Update [69]
Backups
Backing up data [70]
Backing up music files in the HDD AUDIO PLAYER to your computer (for Windows) [71]
Backing up music files in the HDD AUDIO PLAYER to your computer (for Mac) [72]
Returning backup music files from your computer to the HDD AUDIO PLAYER (for Windows)
[73]
Returning backup music files from your computer to the HDD AUDIO PLAYER (for Mac) [74]
Specifications/Notes
Playable audio file formats [75]
Design and specifications [76]
Software updates for the HDD AUDIO PLAYER [77]
When registering music files to the HDD AUDIO PLAYER [78]
Precautions on heat buildup [79]
Precautions on short circuit of the speakers [80]
Notes on the internal hard disk drive [81]
Precautions for use [82]
Disclaimer regarding services offered by third parties [83]
Trademarks [84]
Troubleshooting
General [85]
Sound/playback [86]

Connections [87]
Hard disk drive [88]
Help for HAP Music Transfer/HDD Audio Remote [89]
If the problem is not solved [90]
Dealing with problems/Inquiries
Standby modes [91]
Forced shutdown of the HDD AUDIO PLAYER [92]
Messages for protecting the HDD AUDIO PLAYER [93]
Other messages [94]
When a notification about a new version of the software appears on the display [95]
Customer support websites [96]
[1] About the HDD AUDIO PLAYER SYSTEM
Features of the HDD AUDIO PLAYER SYSTEM
Thank you for purchasing this HDD AUDIO PLAYER SYSTEM.
The HDD AUDIO PLAYER SYSTEM is a music player that allows you to transfer and store
High-Resolution Audio files, such as DSD, and various other formats of audio files, such as MP3
and FLAC, from your computer and enjoy playback of high quality audio sources.
You can install a specially designed application on your smartphone or tablet and operate the
HDD AUDIO PLAYER SYSTEM remotely.
The HDD AUDIO PLAYER SYSTEM has the following features:

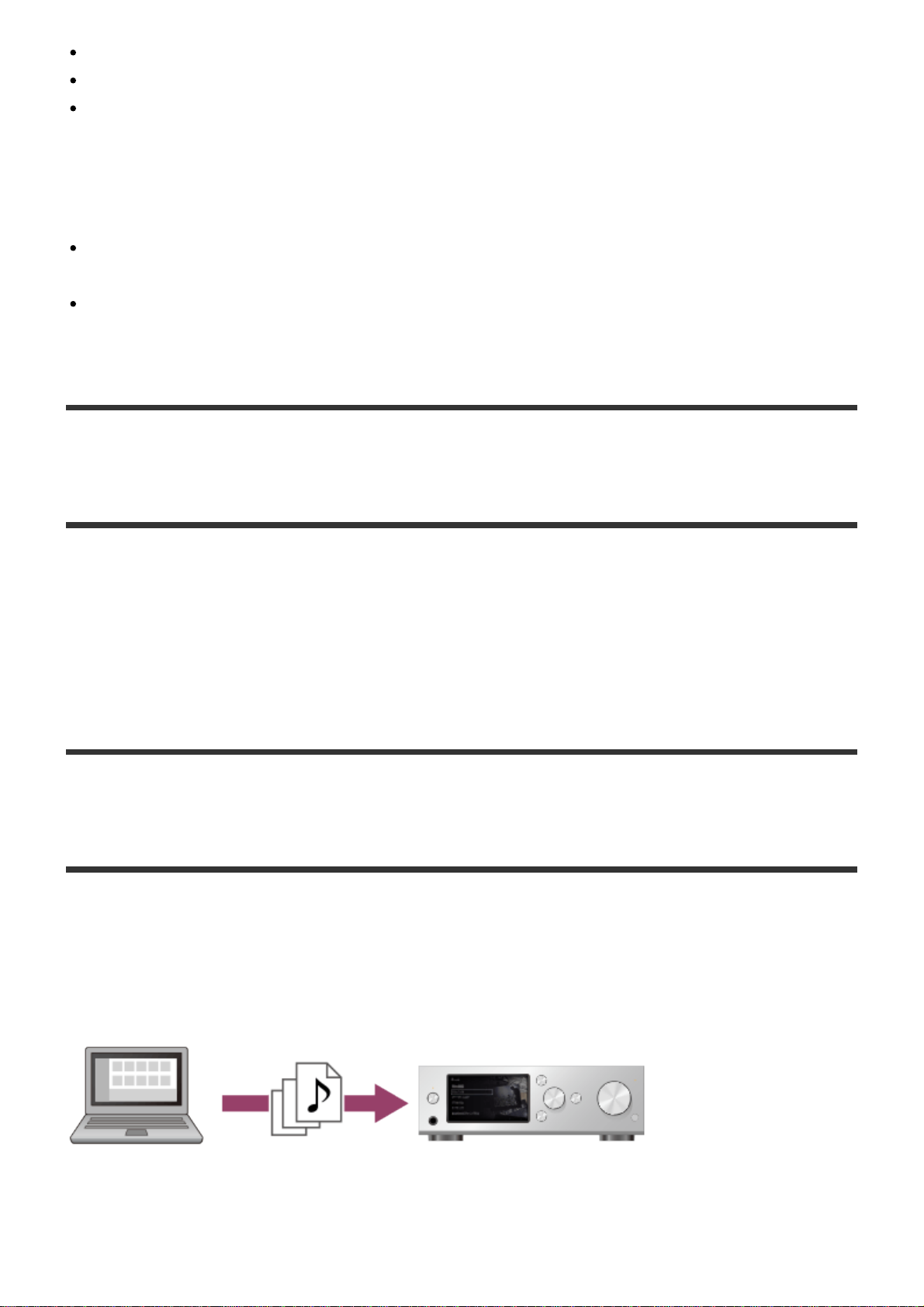

Transferring various audio files to the HDD AUDIO PLAYER
SYSTEM
You can transfer various types of audio files to the hard disk drive of the HDD AUDIO PLAYER
SYSTEM from a computer connected to the same network (*).
Storing audio files in the HDD AUDIO PLAYER SYSTEM allows you to enjoy high quality sound

playback that is not affected by the network environment.
*You can use HAP Music Transfer, an application designed for HDD AUDIO PLAYER SYSTEM, to
automatically transfer audio files from your computer to the HDD AUDIO PLAYER SYSTEM.
High quality audio playback
The HDD AUDIO PLAYER SYSTEM can play High-Resolution Audio files such as 192 kHz/24
bit, 96 kHz/24 bit, or DSD (Direct Stream Digital) audio files.
Furthermore, the HDD AUDIO PLAYER SYSTEM gives a more natural and expansive sound to
compressed audio files, such as MP3s, by restoring high-frequency sound and almost
imperceptible sound during fade-out, which are usually lost by compression.
Easy operation with your smartphone or tablet
The HDD Audio Remote application is available to for even easier operation of the HDD AUDIO
PLAYER SYSTEM.
You can install the application on your smartphone or tablet.
[2] About the HDD AUDIO PLAYER SYSTEM
Playable audio file formats
The following audio file formats can be played on the HDD AUDIO PLAYER.
Note
Only the LPCM 2ch audio format can be played when the signal is input through the
OPTICAL IN or COAXIAL IN jack. (The HDD AUDIO PLAYER supports the LPCM format

with sampling frequencies up to 96 kHz for signals input through the OPTICAL IN jack. 176.4
kHz and 192 kHz sampling frequencies are not supported.)
Playing other formats may produce noise or even damage the speakers if played at a high
volume.
DSD (DSF, DSDIFF)
Extensions: .dsf, .diff
Sampling frequency: 2.8224 MHz, 5.6448 MHz
LPCM (WAV, AIFF)
Extensions: .wav, .aif, .aiff
Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bits: 16 bits, 24 bits, 32 bits (*)
*32-bit playback is only possible for files in WAV format.
FLAC
Extensions: .flac, .fla
Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bits: 16 bits, 24 bits
ALAC
Extensions: .m4a
Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bits: 16 bits, 24 bits
MP3 (MPEG-1/2 Audio Layer-3)
Extensions: .mp3
Bit rate: 64 kbps - 320 kbps
Sampling frequency: 44.1 kHz, 48 kHz
Quantization bits: 16 bits
AAC (MPEG-4 AAC-LC, HE-AAC)
Extensions: .m4a, .mp4, .3gp
Bit rate: 64 kbps - 320 kbps
Sampling frequency: 44.1 kHz, 48 kHz
Quantization bits: 16 bits
WMA (WMA, WMAPro, WMA Lossless)
Extensions: .wma, .asf
Bit rate: 32 kbps - 320 kbps (WMA, WMAPro)
Sampling frequency: 44.1 kHz, 48 kHz (WMA)
Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (WMAPro, WMA Lossless)
Quantization bits: 16 bits (WMA, WMAPro)
Quantization bits: 16 bits, 24 bits (WMA Lossless)

ATRAC (ATRAC3, ATRAC3plus, ATRAC Advanced Lossless)
Extensions: .oma, .aa3
Bit rate: 48 kbps - 352 kbps (ATRAC3plus)
Bit rate: 132 kbps (ATRAC3)
Sampling frequency: 44.1 kHz
Quantization bits: 16 bits
Note
No copy protected files in any of the above formats can be played. If you transfer copy
protected files to the HDD AUDIO PLAYER, music information of the copy protected files will
appear in gray and you will not be able to select it.
Only 2ch files in the above formats are supported.
Playing formats other than those above may produce noise or even damage the speakers if
played at a high volume.
[3] About the HDD AUDIO PLAYER SYSTEM
How to make and enter selections
The basic operations of the HDD AUDIO PLAYER are as follows:
1. Turn the jog dial left or right to select an item.
2. Push the jog dial in to enter the selection.
Hint
To display the Home screen, press the HOME button.
To go back to the previous screen, press the BACK button.
[4] About the HDD AUDIO PLAYER SYSTEM
How to input characters

When the character input screen appears during operations, enter characters as follows:
A: Character input area
B: Keyboard area
C: OK
1. Turn the jog dial left or right to select a character in the keyboard area, and then push the
jog dial in to enter the selection.
2. Repeat the operations in step 1 to enter a text string.
3. When the character input is done, turn the jog dial left or right to select [OK], and then
push the jog dial in to enter the text string.
Hint
To change the type of characters, use the character type selection button on the bottom left
of the keyboard area.
The character type changes in the order of [ABC] (capitals), [abc] (lower case) and [@./]
(symbols).
To move the cursor left and right in the character input area, use / .
To delete a character, move the cursor to the right of the character you want to delete, and
then use [BS] on the keyboard area.
[5] About the HDD AUDIO PLAYER SYSTEM
System requirements for computers connected to the HDD
AUDIO PLAYER
HAP Music Transfer, an application that copies audio files from your computer to the HDD

AUDIO PLAYER, can be used in the following system environment:
OS
Windows 10 Home
Windows 10 Pro
Windows 8.1
Windows 8
Windows 8 Pro
Windows 7 Starter Service Pack 1 or later
Windows 7 Home Basic Service Pack 1 or later
Windows 7 Home Premium Service Pack 1 or later
Windows 7 Professional Service Pack 1 or later
Windows 7 Ultimate Service Pack 1 or later
Windows Vista Home Basic Service Pack 2 or later
Windows Vista Home Premium Service Pack 2 or later
Windows Vista Business Service Pack 2 or later
Windows Vista Ultimate Service Pack 2 or later
Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11 (*)
*Intel CPU models, 64 bit (10.6, 10.7, 10.8, 10.9, 10.10, 10.11) and 32 bit (10.6, 10.7) are supported.
Screen resolution
1,024 x 768 pixels or higher
Note
One of the above operating systems should be installed by default. Upgraded operating
systems and multi-boot environments are not supported.
We do not guarantee operation for all computers even if they meet the above system
requirements. Furthermore, the following systems are not supported:
Personally constructed computers or operating systems
Upgraded operating systems
Multi-boot environments
Multi-monitor environments
[6] About the HDD AUDIO PLAYER SYSTEM
Required network environment
You can transfer audio files from your computer to the HDD AUDIO PLAYER by connecting
both to the same network, either by a wired or wireless connection.
Confirm the supported environment described below.

Note
You need to connect the HDD AUDIO PLAYER to a network that can access the Internet if
you want to listen to Internet radio programs (*).
*The Internet radio service may not be available depending on your country or region.
Wired LAN (using a LAN cable)
LAN (10/100/1000) port:
1000BASE-T/100BASE-TX/10BASE-T
(The network speed may differ depending on the network environment.)
LAN cable:
We recommend using a LAN cable that is Cat5 or higher. A normal-type cable is also
recommended, as some flat-type LAN cables are easily affected by noise.
If the receiver is used in an environment with power supply noise from electronic devices or
in a noisy network environment, use a shielded-type LAN cable.
Wi-Fi (using a wireless LAN network)
Compatible standards:
IEEE 802.11 b/g/n
Security mode:
None
WEP
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency:
2.4 GHz
Note
Wi-Fi devices work on the 2.4 GHz band, which is used by a variety of devices. Wi-Fi
devices use technology to minimize radio interference from other devices that use the same
band. However, radio interference may still cause slower data transfer rates, reduce the
communication range, or cause communication failure.
The data transfer rate and communication range may vary depending on the following
conditions:
Distance between devices
Presence of obstacles between devices
Device configuration
Signal conditions
Surrounding environment (wall material, etc.)
Software in use

Communications may be cut off depending on signal conditions.
The HDD AUDIO PLAYER does not support 5 GHz band Wi-Fi.
The data transfer rate for IEEE 802.11g and IEEE 802.11n (2.4 GHz) devices may be
affected by interference when used with IEEE 802.11b products. Also, products using IEEE
802.11g and IEEE 802.11n automatically lower the transfer rate to maintain compatibility with
IEEE 802.11b products. The normal transfer rate may be regained by changing the channel
settings of your access point.
When the data transfer rate is not as fast as expected, changing the wireless channel on the
access point may increase the rate.
If a communication failure occurs while transferring music files, updating the firmware of your
access point may improve the communication status.
[7] About the HDD AUDIO PLAYER SYSTEM
Supplied accessories
Main unit (1)
Remote control (1)
R03 (size-AAA) batteries (2)
AC power cord (mains lead) (1)
LAN cable (1)
[8] Supported applications
HAP Music Transfer
What you can do using HAP Music Transfer
You can transfer audio files managed and stored on your computer to the HDD AUDIO
PLAYER using the dedicated HAP Music Transfer application.
Install the application to your (Windows or Mac) computer.
Downloading HAP Music Transfer

Download HAP Music Transfer from the following website:
Models for the USA and Canada:
http://esupport.sony.com/swu/8812
Models for Europe:
www.sony.eu/support
Models for China:
http://www.sony-asia.com/support
[9] Supported applications
HDD Audio Remote
What you can do using HDD Audio Remote
You can operate the HDD AUDIO PLAYER using your smartphone or tablet by installing HDD
Audio Remote, a dedicated application for smartphones and tablets.
HDD Audio Remote allows you to browse and play audio files stored in the HDD AUDIO
PLAYER from your smartphone or tablet.
You can also add tracks to playlists, edit information such as the genre, artist, album and track
title of music files, and more.
Install the application to your smartphone or tablet.
Downloading HDD Audio Remote
Download HDD Audio Remote from the following websites:
Models except for China:
For Android devices: Google Play
For iPhone/iPod touch/iPad: App Store
Models for China:
For Android devices: Access http://www.sony-asia.com/support and then enter “HDD Audio
Remote” in the search box to locate the download page.
For iPhone/iPod touch/iPad: App Store

[10] Supported applications
Help for HAP Music Transfer/HDD Audio Remote
Help for HAP Music Transfer or HDD Audio Remote can be displayed from the following
website.
http://rd1.sony.net/help/ha/hap1/
[11] Preparations
What you need to do before starting to use the HDD
AUDIO PLAYER
After you purchase the HDD AUDIO PLAYER, you need to connect the external equipment and
configure settings before you can listen to music.
1. Prep 1. Connecting speakers.
2. Prep 2. Connecting to a network with a LAN cable (only when using a wired LAN).
Make a wired connection between the HDD AUDIO PLAYER and a computer with a LAN
cable (supplied).
If you want to establish a wireless connection between the HDD AUDIO PLAYER and
computer, you can set it in step 4.
3. Prep 3. Turning on the HDD AUDIO PLAYER.
When all necessary connections are completed, AC power cord (mains lead) to the wall
outlet (mains) and then turn the power on.
4. Prep 4. Configuring the initial settings of the HDD AUDIO PLAYER.
When you use the HDD AUDIO PLAYER for the first time, configure the language setting
and network setting first.
5. Prep 5. Configuring the settings of a computer to use HAP Music Transfer.
Install HAP Music Transfer on your computer.
HAP Music Transfer is a dedicated application to transfer music files stored on your
computer to the HDD AUDIO PLAYER.
6. Launch HAP Music Transfer to transfer music files on your computer to the HDD AUDIO
PLAYER.

Refer to the HAP Music Transfer Help for details on operations.
7. Play music files transferred to the HDD AUDIO PLAYER.
Choose your desired method of playback from each topic under “Playing music files” in this
Help Guide.
Note
The HDD AUDIO PLAYER is equipped with a built-in antenna for wireless LAN. Make sure to
keep a distance between the HDD AUDIO PLAYER and speakers or other devices to
maintain good wireless communication.
Hint
We recommend using a wired LAN when you transfer a large number of music files from
your computer to the HDD AUDIO PLAYER, such as when you transfer music files for the
first time, to save transfer time.
It may take a while before the file registration is completed, as transferring, analyzing and
registering music files takes time when a large number of music files are transferred to the
HDD AUDIO PLAYER.
[12] Preparations
Prep 1. Connecting speakers
First, you need to connect speakers to the HDD AUDIO PLAYER.
Note
Make sure that the AC power cord (mains lead) of the HDD AUDIO PLAYER is unplugged
when connecting any other cord.
Connect speakers to the SPEAKERS terminals on the rear panel of the HDD AUDIO PLAYER
as shown in the illustration below.

: SPEAKERS terminals of the HDD AUDIO PLAYER
: Speaker cords (not supplied)
: Speaker (R)
: Speaker (L)
Note
The HDD AUDIO PLAYER is equipped with a built-in antenna for wireless LAN. Make sure to
keep a distance between the HDD AUDIO PLAYER and speakers or other devices to
maintain good wireless communication.
[13] Preparations
Prep 2. Connecting to a network with a LAN cable (only
when using a wired LAN)
You need to connect the HDD AUDIO PLAYER to the same network as your computer. We
recommend using a wired LAN connection when you transfer music files stored on your
computer to the HDD AUDIO PLAYER for the first time.
Connect the LAN cable (only one cable is supplied) between the LAN (10/100/1000) port on the
rear panel of the HDD AUDIO PLAYER and a router.

: Internet
: Modem
: Router
: LAN cables (only one cable is supplied)
: LAN (10/100/1000) port of the HDD AUDIO PLAYER
: Computer
[14] Preparations
Prep 3. Turning on the HDD AUDIO PLAYER
When you have made all connections with the other devices, connect the supplied AC power
cord (mains lead), then turn on the HDD AUDIO PLAYER.
1. Firmly connect the supplied AC power cord (mains lead) to the AC IN jack on the rear
panel of the HDD AUDIO PLAYER, then connect the plug to a wall outlet (mains).
2. Press to turn on the HDD AUDIO PLAYER.

The power lamp lights up in green.
[15] Preparations
Prep 4. Configuring the initial settings of the HDD AUDIO
PLAYER
When you turn on the HDD AUDIO PLAYER for the first time, it automatically enters the initial
settings mode. You can configure the initial settings of the HDD AUDIO PLAYER easily by
following the instructions on the screen.
Refer to each related topic for details on each item of the initial settings.
1. Press to turn on the HDD AUDIO PLAYER.
2. Configure the initial settings by following the instructions on the screen.
When a screen appears to indicate that the initial settings are completed, select [Close].
[16] Preparations
Prep 5. Configuring the settings of a computer to use HAP
Music Transfer
You can transfer music files managed on your computer to the HDD AUDIO PLAYER using
HAP Music Transfer. The music files are saved in the hard disk drive of the HDD AUDIO
PLAYER, so you can enjoy playing tracks without worrying about the status of the network
connection, even if those tracks are large files with a high sound quality.
For details on the operations of HAP Music Transfer, refer to the HAP Music Transfer Help.

1. Download the HAP Music Transfer application from the following website:
Models for the USA and Canada:
http://esupport.sony.com/swu/8812
Models for Europe:
www.sony.eu/support
Models for China:
http://www.sony-asia.com/support
2. Install HAP Music Transfer.
Install the application by following the instructions on the screen.
3. Launch HAP Music Transfer to transfer music files to the HDD AUDIO PLAYER.
[17] Preparations
Operating the HDD AUDIO PLAYER from your
smartphone or tablet (using HDD Audio Remote)
What you can do using HDD Audio Remote
You can operate the HDD AUDIO PLAYER using your smartphone or tablet by installing HDD
Audio Remote, a dedicated application for smartphones and tablets.
HDD Audio Remote allows you to browse and play audio files stored in the HDD AUDIO
PLAYER from your smartphone or tablet.
You can also add tracks to playlists, edit information such as the genre, artist, album and track
title of music files, and more.
Install the application to your smartphone or tablet.
Downloading HDD Audio Remote
Download HDD Audio Remote from the following websites:

Models except for China:
For Android devices: Google Play
For iPhone/iPod touch/iPad: App Store
Models for China:
For Android devices: Access http://www.sony-asia.com/support and then enter “HDD Audio
Remote” in the search box to locate the download page.
For iPhone/iPod touch/iPad: App Store
[18] Preparations
Preparing the remote control
Open the lid of the remote control and insert two R03 (size-AAA) batteries.
Place the batteries so that the + and – ends are in the correct position.
Note
Do not leave the remote control in an extremely hot or humid place.
Do not use a new battery and an old one together.
Do not mix different kinds of batteries.
If you do not intend to use the remote control for an extended period of time, remove the
batteries to avoid possible damage from battery leakage and corrosion.
[19] Connections
Connecting to a computer
You need to connect the HDD AUDIO PLAYER to your computer through a wired LAN or Wi-Fi
(wireless LAN).
Hint
A wired LAN connection enables you to transfer music files more quickly.
Using a wired LAN is especially recommended when transferring large volumes of data, such
