Sony Ipela SNT-EP104 User manual

4-154-544-12 (1)
Video Network Station
Installation Manual
Before operating the unit, please read this manual thoroughly and
retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom of the unit. Record
these numbers in the spaces provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding
this product.
Model No. Serial No.
WARNING
To reduce a risk of fire or electric shock, do not expose
this product to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
WARNING
This installation should be made by a qualified service person and should
conform to all local codes.
CAUTION
The rating label is located on the bottom.
WARNING
This unit has no power switch.
When installing the unit, incorporate a readily accessible disconnect device
in the fixed wiring. If a fault should occur during operation of the unit,
operate the disconnect device to switch the power supply off.
WARNING
Using this unit at a voltage other than 120 V may require the use of a
different line cord or attachment plug, or both. To reduce the risk of fire or
electric shock, refer servicing to qualified service personnel.
For customers in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.
All interface cables used to connect peripherals must be shielded in order to
comply with the limits for a digital device pursuant to Subpart B or Part 15 of
FCC Rules.
For customers in Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
For the customers in Europe
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-
ku, Tokyo, Japan.
The Authorized Representative for EMC and product safety is Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters please refer to the addresses given in
separate service or guarantee documents.
For the customers in Europe, Australia and New Zealand
WARNING
This is a Class A product. In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate
measures.
In the case that interference should occur, consult your nearest authorized
Sony service facility.
This apparatus shall not be used in the residential area.
CAUTION
These servicing instructions are for use by qualified personnel only. To
reduce the risk of electric shock, do not perform any servicing other than
that contained in the Operating Instructions unless you are qualified to do
so.
Refer all servicing to qualified service personnel.
When installing the installation space must be secured in consideration of
the ventilation and service operation.
Do not block the ventilation slots at the left side and right side panels, and
vents of the fans.
Leave a space around the unit for ventilation.
Leave more than 15 cm (5.9 inches) of space in the rear of the unit to
secure the operation area.
When the unit is installed on the desk or the like, leave at least 2 cm
(0.78 inches) of space in the left and right sides.
Leaving 4 cm (1.6 inches) or more of space above the unit is recommended
for service operation.
WARNING
THIS WARNING IS APPLICABLE FOR USA ONLY.
If used in USA, use the UL LISTED power cord specified below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade
(NEMA 1-15P Configuration)
Cord Type NISPT-2 or SPT-2, two 16 or 18 AWG wires
Length Minimum 1.5 m (4 ft .11in.), Less than 2.5 m (8 ft .3 in.)
Rating Minimum 7 A, 125 V
Using this unit at a voltage other than 120 V may require the use of a
different line cord or attachment plug, or both. To reduce the risk of fire or
electric shock, refer servicing to qualified service personnel.
WARNING
THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.
1. Use the approved Power Cord (2-core mains lead) / Appliance Connector /
Plug that conforms to the safety regulations of each country if applicable.
2. Use the Power Cord (2-core mains lead) / Appliance Connector / Plug
conforming to the proper ratings (Voltage, Ampere).
If you have questions on the use of the above Power Cord / Appliance
Connector / Plug, please consult a qualified service personnel.



Notes on Use
Before Use
If you find condensation when you open the package, turn on the power after
leaving it for about 60 minutes.
Data and security
You should keep in mind that the images or audio you are monitoring may be
protected by privacy and other legal rights, and the responsibility for making
sure you are complying with applicable laws is yours alone.
Access to the images and audio is protected only by a user name and the
password you set up. No further authentication is provided nor should you
presume that any other protective filtering is done by the service. Since
the service is Internet-based, there is a risk that the image or audio you are
monitoring can be viewed or used by a third-party via the network.
SONY IS NOT RESPONSIBLE, AND ASSUMES ABSOLUTELY NO LIABILITY TO YOU
OR ANYONE ELSE, FOR SERVICE INTERRUPTIONS OR DISCONTINUATIONS OR
EVEN SERVICE CANCELLATION. THE SERVICE IS PROVIDED AS-IS, AND SONY
DISCLAIMS AND EXCLUDES ALL WARRANTIES, EXPRESS OR IMPLIED, WITH
RESPECT TO THE SERVICE INCLUDING, BUT NOT LIMITED TO, ANY OR ALL
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR THAT IT WILL OPERATE ERROR-FREE OR CONTINUOUSLY.
Security configuration is essential for wireless LAN. Should a problem
occur without setting security, or due to the limitation of the wireless LAN
specifications, SONY shall not be liable for any damage, loss of recorded data
or restoration thereof.
Always make a test recording, and verify that it was recorded successfully.
SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT
LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE
OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR
ANY OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE.
Always verify that the unit is operating properly before use. SONY WILL NOT
BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE
WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY
OTHER REASON WHATSOEVER.
If you lose data by using this unit, SONY accepts no responsibility for
restoration of the data.
Personal information
The images taken by the system using this device can identify individuals
and thus they fall under “personal information” stipulated in the “Act on
the Protection of Personal Information”. Please handle the video data
appropriately according to law.
Information recorded using this product may also be “personal information”.
Upon disposal, transfer, repair, or any other occasion where this product or
storage media is passed on to a third party, practice due care in its handling.
Operating or storage location
Avoid operating or storing the unit in the following locations.
Extremely hot or cold places (Operating temperature: 0 °C to +45 °C [32 °F to
113 °F])
Exposed to direct sunlight for a long time, or close to heating equipment (e.g.,
near heaters)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV
transmitters
Locations subject to strong vibration or shock
Ventilation
To prevent heat buildup, do not block air circulation around the unit.
Transportation
Always turn off the power when carrying.
When transporting the unit, repack it as originally packed at the factory or in
materials of equal quality.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the camera. Stubborn
stains can be removed using a soft cloth dampened with a small quantity of
detergent solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may
damage the surface finishes.
Please consult the store of purchase or authorized Sony dealer if there were
troubles and anomalies.
About the Supplied Manuals
Installation Manual (this document)
This Installation Manual describes the names and functions of parts and controls
of the Video Network Station, gives connection examples and explains how to
set up the unit. Be sure to read the Installation Manual before operating.
User’s Guide (stored in the CD-ROM)
The User’s Guide describes how to set up the Video Network Station and how to
control the unit via a Web browser.
After installing and connecting the Video Network Station correctly, operate by
referring to this User’s Guide.
Using the CD-ROM Manuals
The supplied CD-ROM disc includes the User’s Guides for this unit (Japanese,
English, French, German, Spanish, Italian and Chinese versions) in PDF format.
Preparations
Adobe Reader Version 6.0 or higher must be installed on your computer in order
to use the User’s Guide stored in the CD-ROM disc.
Note
If Adobe Reader is not installed, it may be downloaded from the following URL:
http://www.adobe.com/
Reading the manual in the CD-ROM
1Insert the CD-ROM in your CD-ROM drive.
A cover page appears automatically in your Web browser.
If it does not appear automatically in the Web browser, double-click on the
index.htm file on the CD-ROM.
2Select and click on the manual that you want to read.
This opens the PDF file of the manual.
Clicking an item in the Table of Contents allows you jump to the relevant
page.


















Notes
The files may not be displayed properly, depending on the version of Adobe
Reader. In this case, install the latest version, which you can download from
the URL mentioned in “Preparations” above.
If you have lost or damaged the CD-ROM, you can purchase a replacement.
Contact your Sony service representative.
Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated in the
United States and/or other countries.

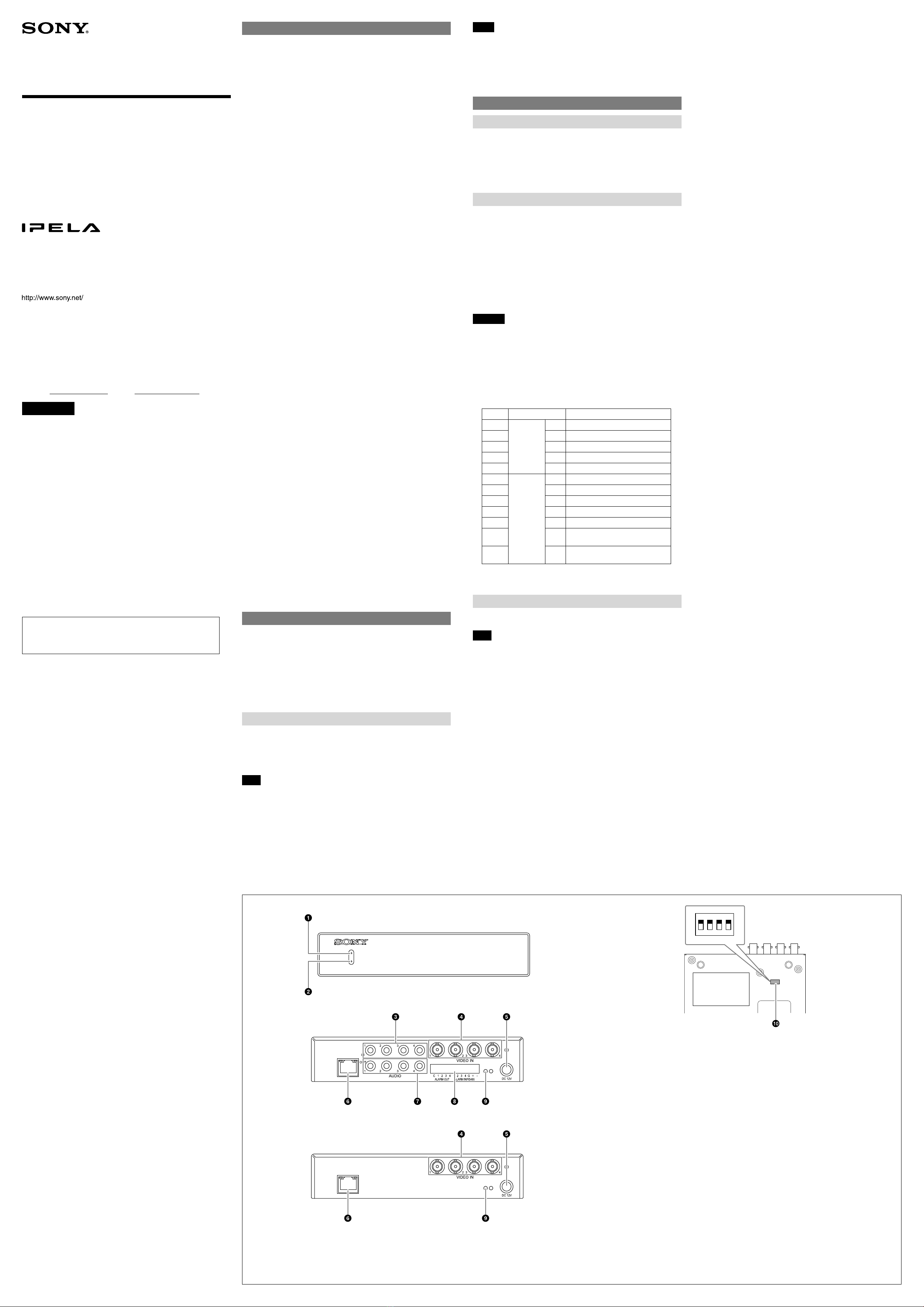

Location and Function of Part
Front 
POWER indicator (green)
When the video network station receives power, an internal system check is
performed.
The indicator lights up when the unit is operating normally.
NETWORK indicator (green)
The indicator lights up or flashes in green when the unit is connected to the
network. The indicator is off when the unit is not connected to the network.
Rear 
(microphone input/line input) terminal (mini-jack, monaural)
Connect a commercially-available microphone when using the microphone
input.
The plug-in power system (reference voltage 2.5 V DC) is supported. Input
between microphone and line input is user-switchable.
Video input terminal (BNC)
Inputs composite video signals.
IN 12 V DC (power input) terminal
Connect to the supplied DC 12 V AC adapter.
LAN (network) port (RJ45)
Connect to the 10BASE-T or 100BASE-TX network using a network cable (UTP,
category 5).
CAUTION
For safety, do not connect the connector for peripheral device wiring that
might have excessive voltage to this port. Follow the instructions for this port.
When you connect the LAN cable of the unit to peripheral device, use a
shielded-type cable to prevent malfunction due to radiation noise.
(line output) terminal (minijack, monaural)
Connect to a speaker (optional) with a built-in amplifier.
I/O (Input/Output) port
This device is provided with an RS-485 port, four sensor inputs and four alarm
outputs.
Pin No. Indication Functions
1
“ALARM
OUT”
C Common terminal for alarm output
2 1 Alarm output 1 (floating)
3 2 Alarm output 2 (floating)
4 3 Alarm output 3 (floating)
5 4 Alarm output 4 (floating)
6
“ALARM IN/
RS-485”
1 Alarm input 1 (GND level reference)
7 2 Alarm input 2 (GND level reference)
8 3 Alarm input 3 (GND level reference)
9 4 Alarm input 4 (GND level reference)
10 G ALARM IN/RS-485 reference GND
11 + RS-485 (+) input/output (GND level
reference)
12 – RS-485 (–) input/output (GND level
reference)
Reset switch
To reset the unit to the factory default settings, supply the power to the unit,
while holding down this switch with a pointed object.
Bottom 
Video signal terminating resistor switch
Switches 1 to 4 respectively, corresponding to video input terminals 1 to 4.
Note
Always turn on the switch when using Coaxitron® (SNT-EX104 only). The device
does not operate with the switch off.
(continued on the reverse side)







POWER
NET WORK
ON
1 2 3 4
SNT-EX104
SNT-EP104
SNT-EX104
SNT-EP104
2009 Sony Corporation Printed in China

Installation
Installing USB memory devices (SNT-EX104 only)
You can record video data of four channels separately using four USB memories.
To use this function, consult the store of purchase or an authorized Sony dealer.
Connection
Connecting to the Network 
Connect the LAN port of the unit to a router or hub in the network using the
network cable (straight, not supplied).
To connect to a computer
Connect the LAN port of the unit to the network connector of a computer using
the network cable (cross, not supplied).
Connecting the Power Source 
Connect to the supplied DC 12 V AC adapter.
Specifications
Compression
Video compression format JPEG/MPEG4/H.264
Audio compression format G.711/G.726 (40, 32, 24, 16 kbps)
Maximum frame rate 30 fps
Interface
Network port 10BASE-T/100BASE-TX, auto negotiation (RJ-45)
I/O port (Only SNT-EX104) Sensor input : × 4
Alarm output : × 4
(electrically isolated from the unit)
Camera control interface: ×1 (RS-485)
Microphone input/Line input (switchable by setting) (SNT-EX104 only)
Minijack (monaural)
Microphone input: Supports plug-in power system
(reference voltage 2.5 V DC)
Line output Minijack (monaural) (SNT-EX104 only)
Others
Power supply DC 12V
Consumption current SNT-EP104: 1 A
SNT-EX104: 1.5 A
Capacity of USB memory 2.5W or less (SNT-EX104 only)
Operating temperature 0 °C to +45 °C (32 °F to 113 °F)
Storage temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating humidity 20% to 80% (no condensation)
Storage humidity 20% to 80% (no condensation)
Dimensions 210 × 44 × 250 mm (8 3/8× 1 3/4× 9 7/8inches) (w/h/d)
(without the projecting parts)
Mass SNT-EP104: Approx. 1.3 kg (2 lb 14 oz)
SNT-EX104: Approx. 1.4 kg (3 lb 1 oz)
Supplied accessories CD-ROM (User’s Guide and supplied programs) (1)
Installation Manual (this document) (1)
B&P Warranty Booklet (1)
AC adaptor (AC-NB12A) (1)
Power cord (1)
I/O port connector (SNT-EX104 only) (1)
Note
This package may contain additional installation
manuals and/or documentations for those options.
AC adaptor (AC-NB12A)
Power supply AC 100~240 V, 50/60 Hz
0.65 A~0.35 A
Output DC 12 V, 2.5 A
Operating temperature 0 °C to +45 °C (32 °F to 113 °F)
Operating humidity 20% to 80% (no condensation)
Storage temperature –20 °C to +60 °C (–4 °F to +140 °F)
Storage humidity 20% to 80% (no condensation)
Dimensions 49.5 × 28 × 99.5 mm (2 × 1 1/8× 4 inches) (w/h/d)
(without the projecting parts)
Mass Approx. 0.2 kg (7 oz)
Design and specifications are subject to change without notice.
Recommendation of Periodic Inspections
In case using this device over an extended period of time, please have it
inspected periodically for safe use.
It may appear flawless, but the components may have deteriorated over time,
which may cause a malfunction or accident.
For details, please consult the store of purchase or an authorized Sony dealer.
SNT-EX104
SNT-EP104
250
(9 7/8)
44
(1 3/4)
210
(8 3/8)
Unit: mm (inches)
LAN
Network cable
(straight, not supplied)
10BASE-T/
100BASE-TX
Hub
Network
To power socket
AC adaptor

